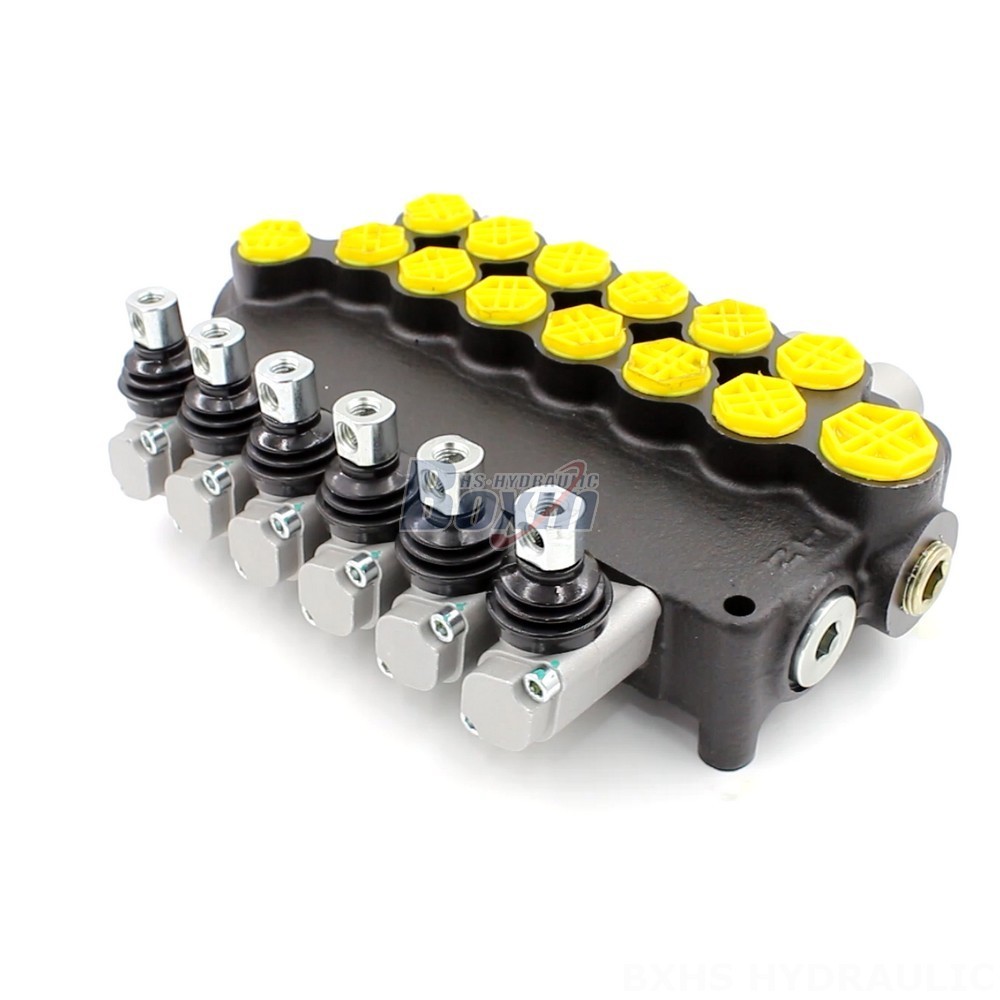

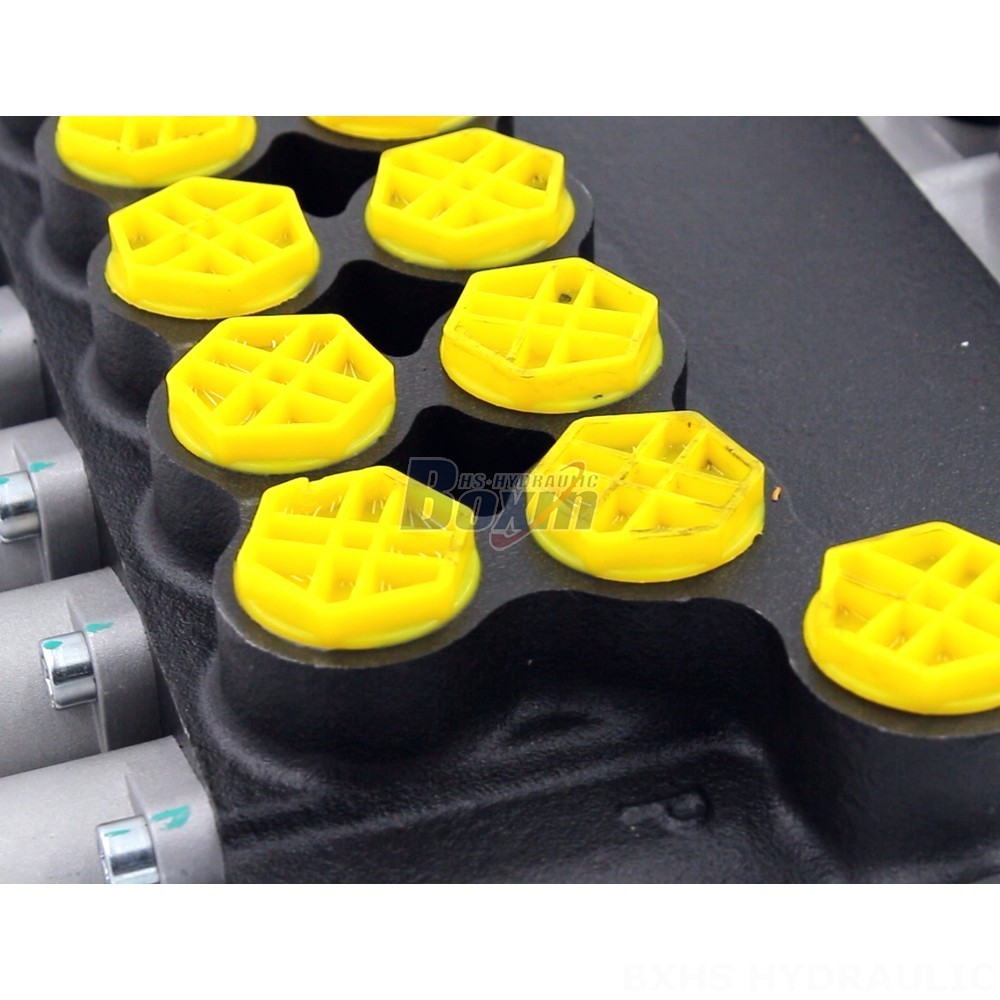

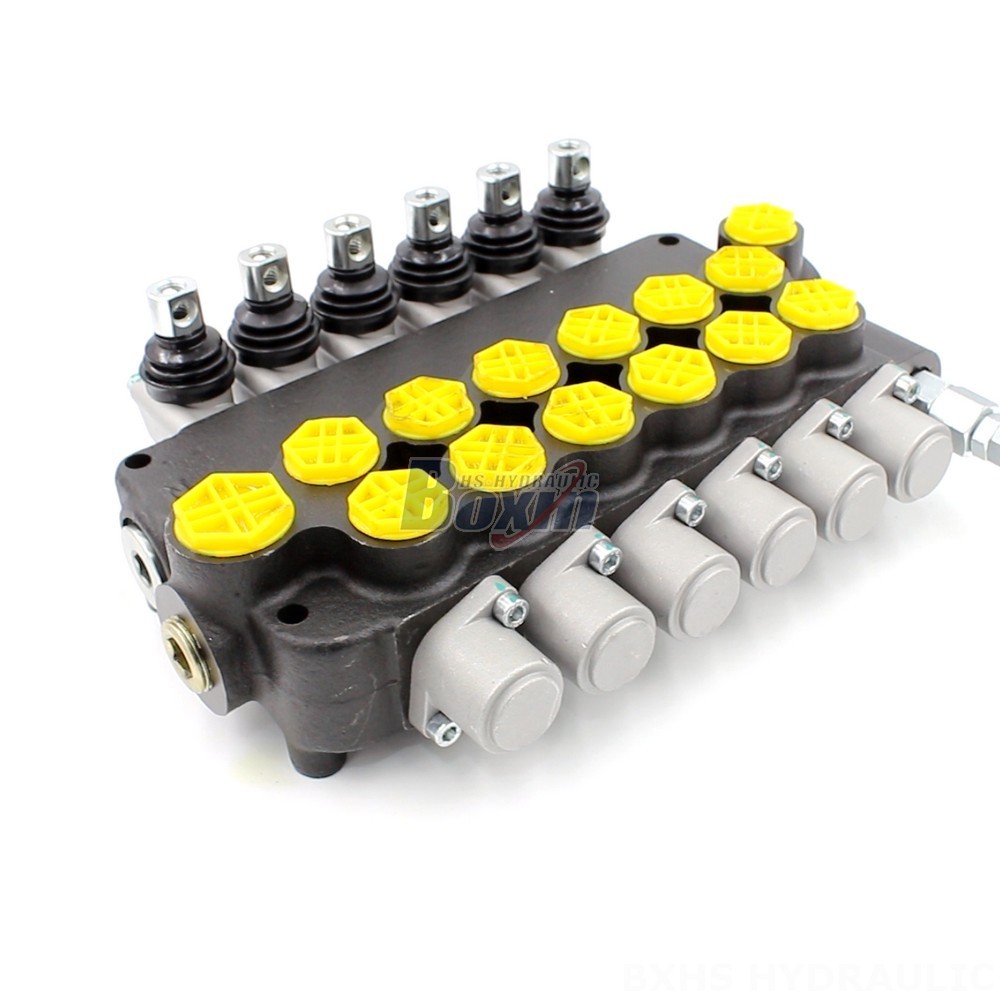

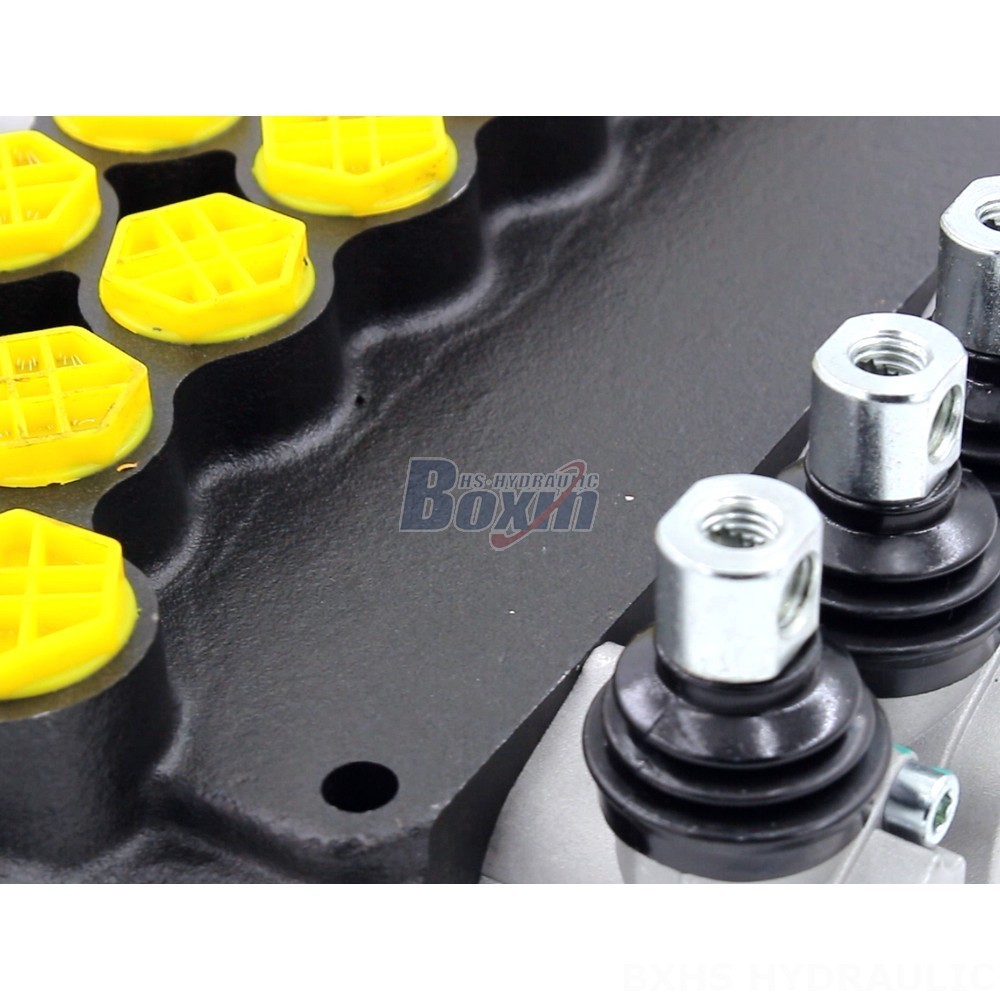

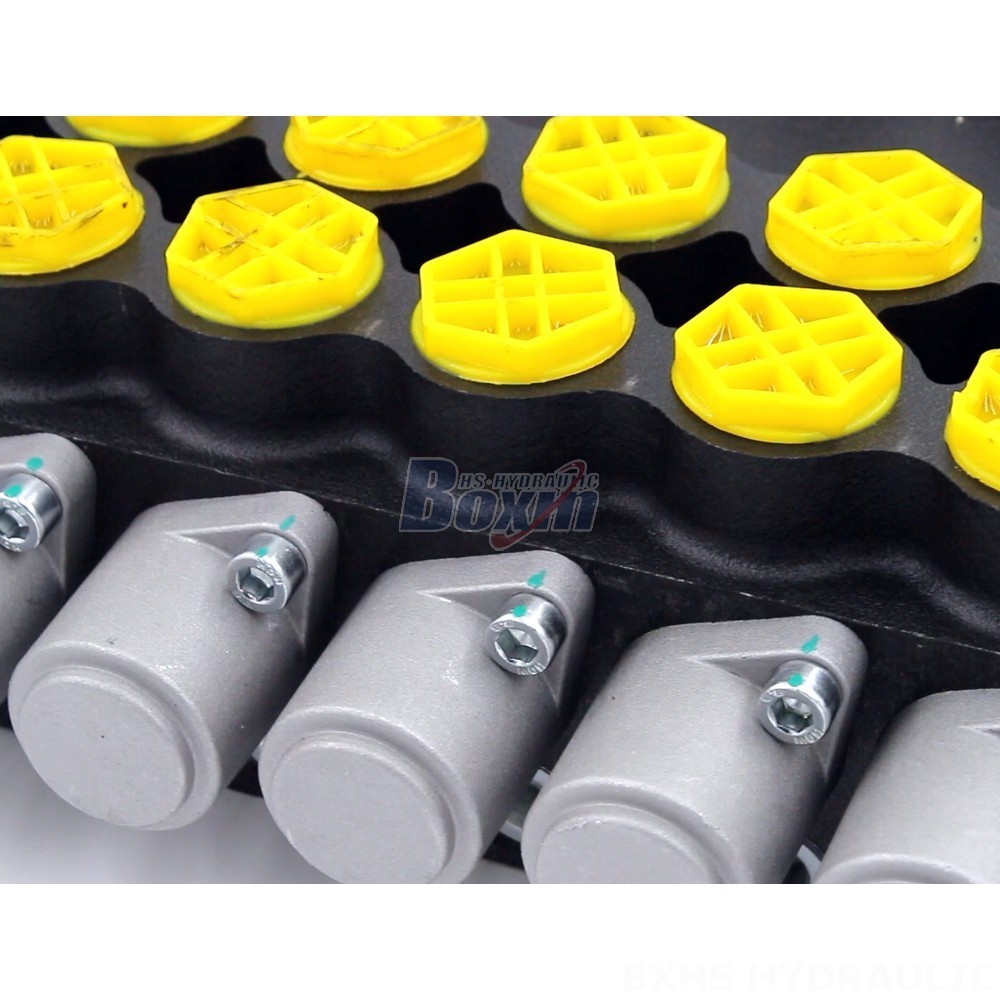

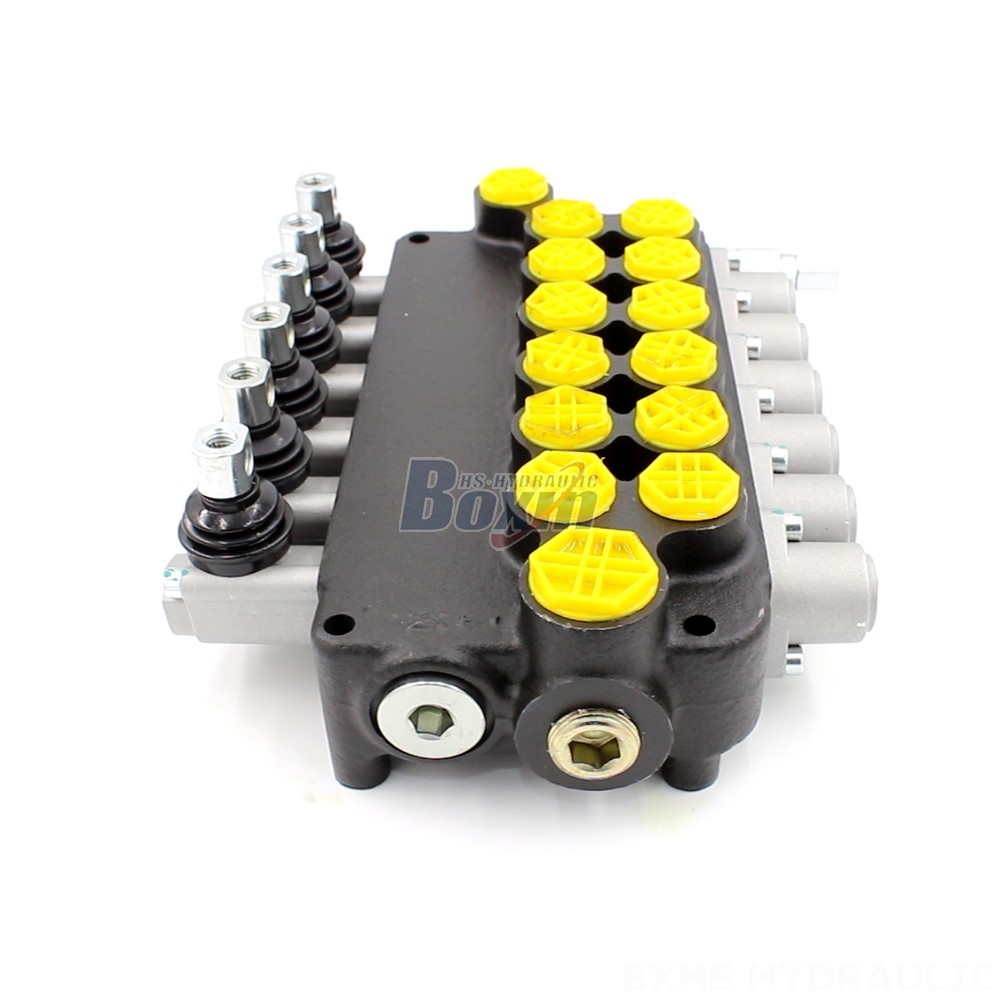

The P80-G12-G34-6OT Manual 6 Spool Monoblock Directional Valve is a heavy-duty hydraulic valve designed for demanding applications in construction, material handling, and industrial vehicles. This 6-section monoblock valve features a manual control method and a rated flow of 80 L/min (21.2 US gpm). With a maximum pressure rating of 250 bar (3600 psi) and a robust construction, this valve is ideal for a wide range of applications.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
This P80 series hydraulic diverter valve is a 6-section monoblock valve with a manual control method. It features a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi). The valve is designed for use in a wide range of operating temperatures, from -40°C to +80°C (-40°F to +176°F). This versatile valve is suitable for various applications in construction, material handling, and industrial vehicles, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, and compact wheel loaders.
