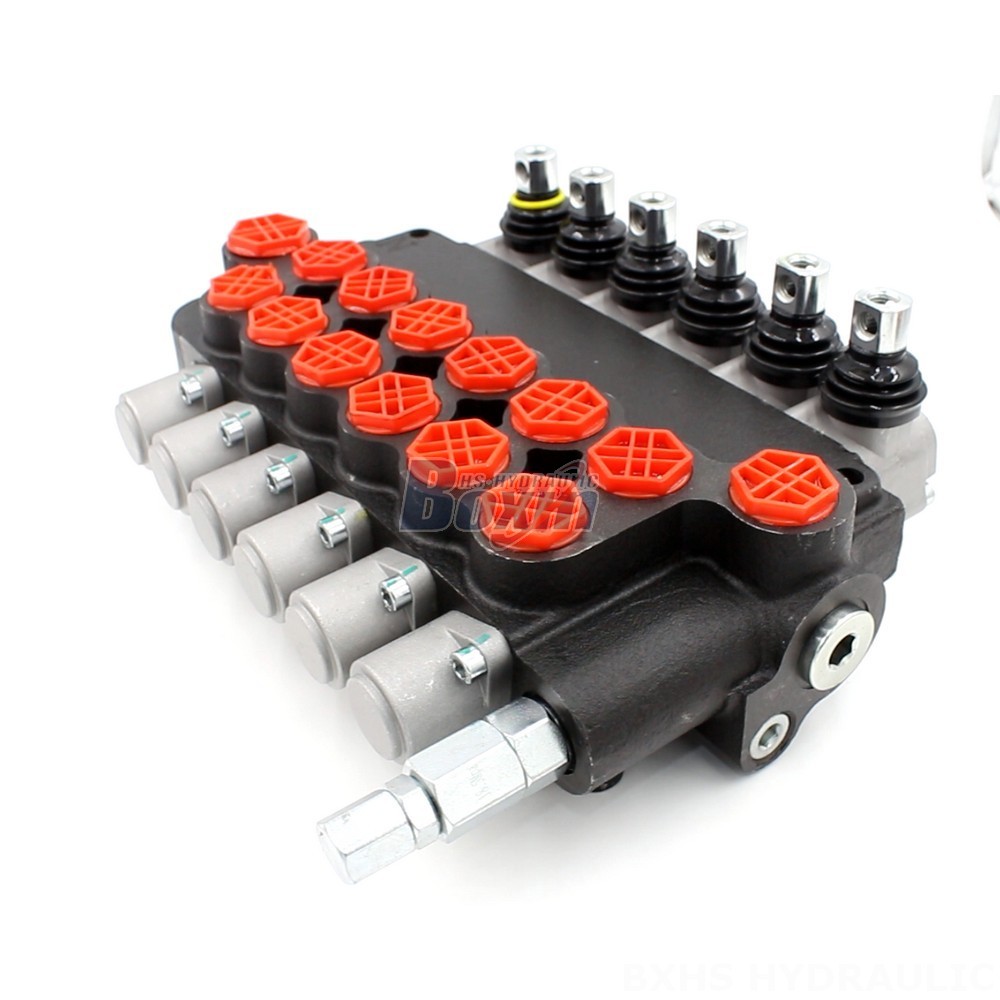

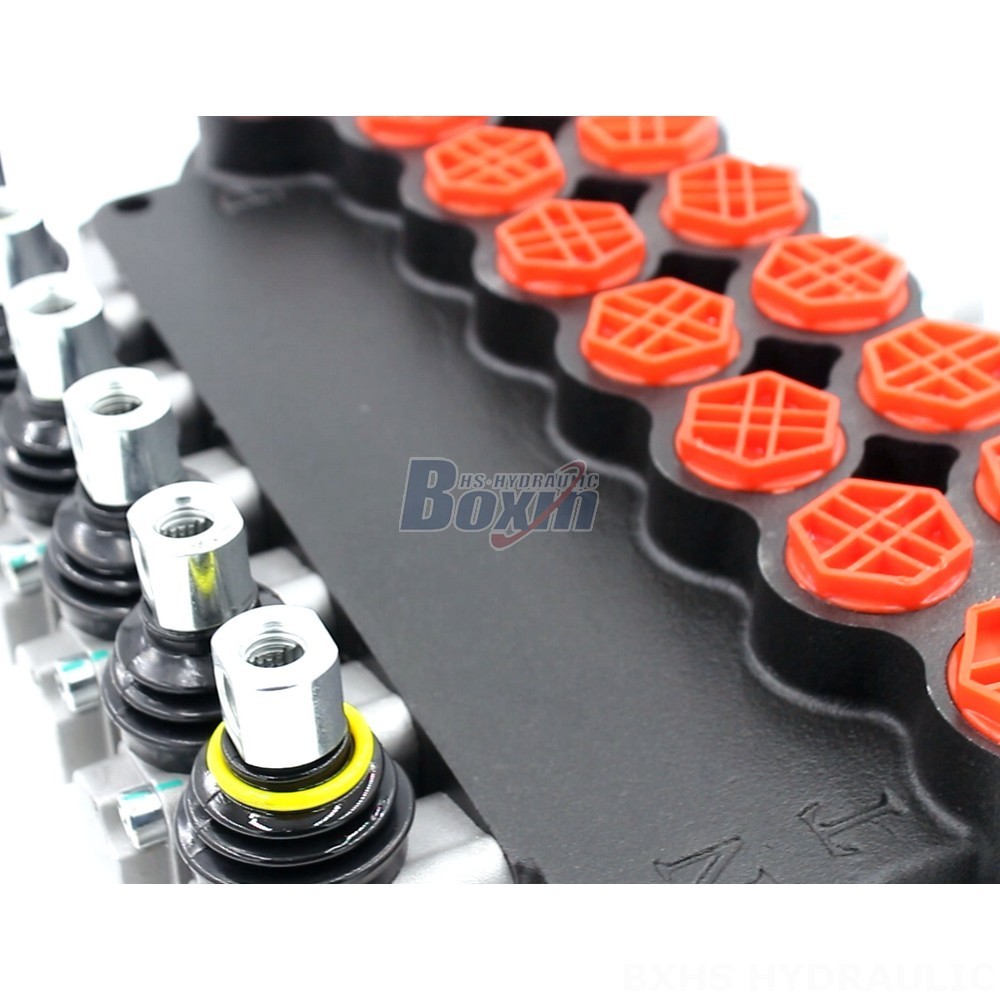

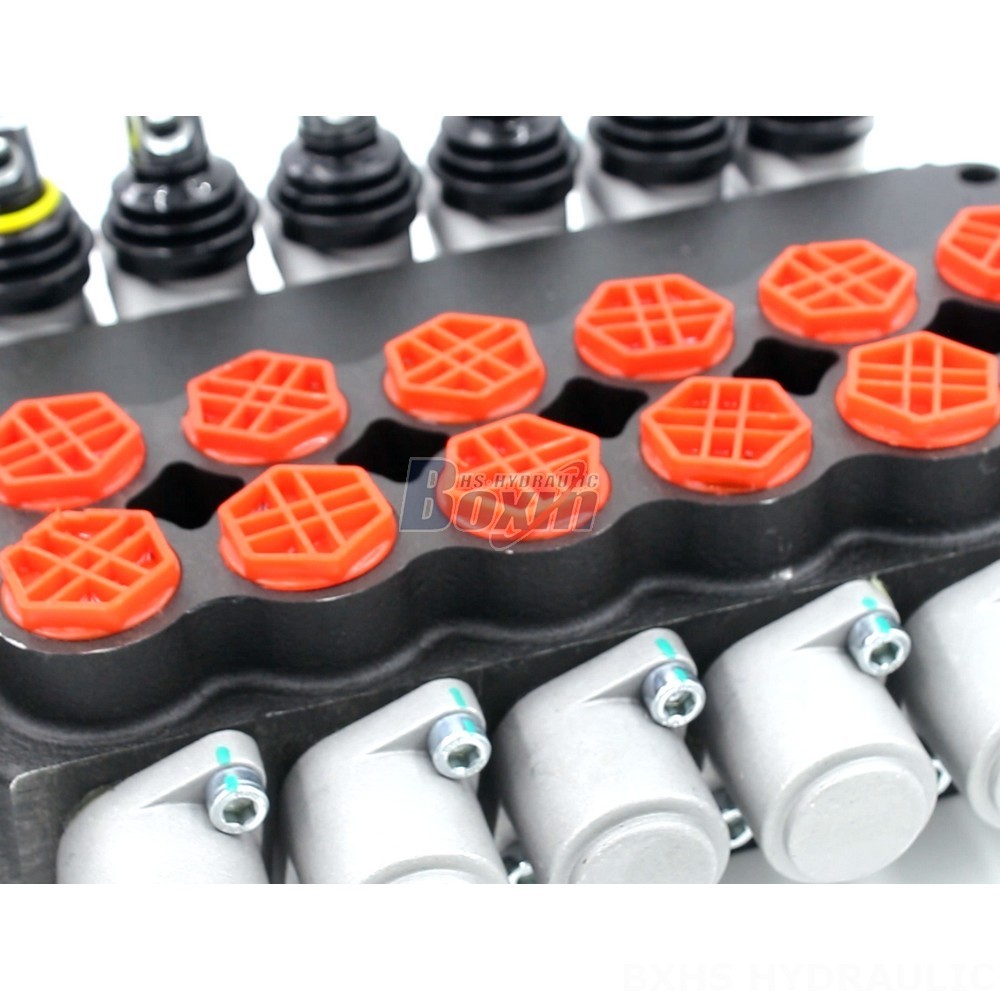

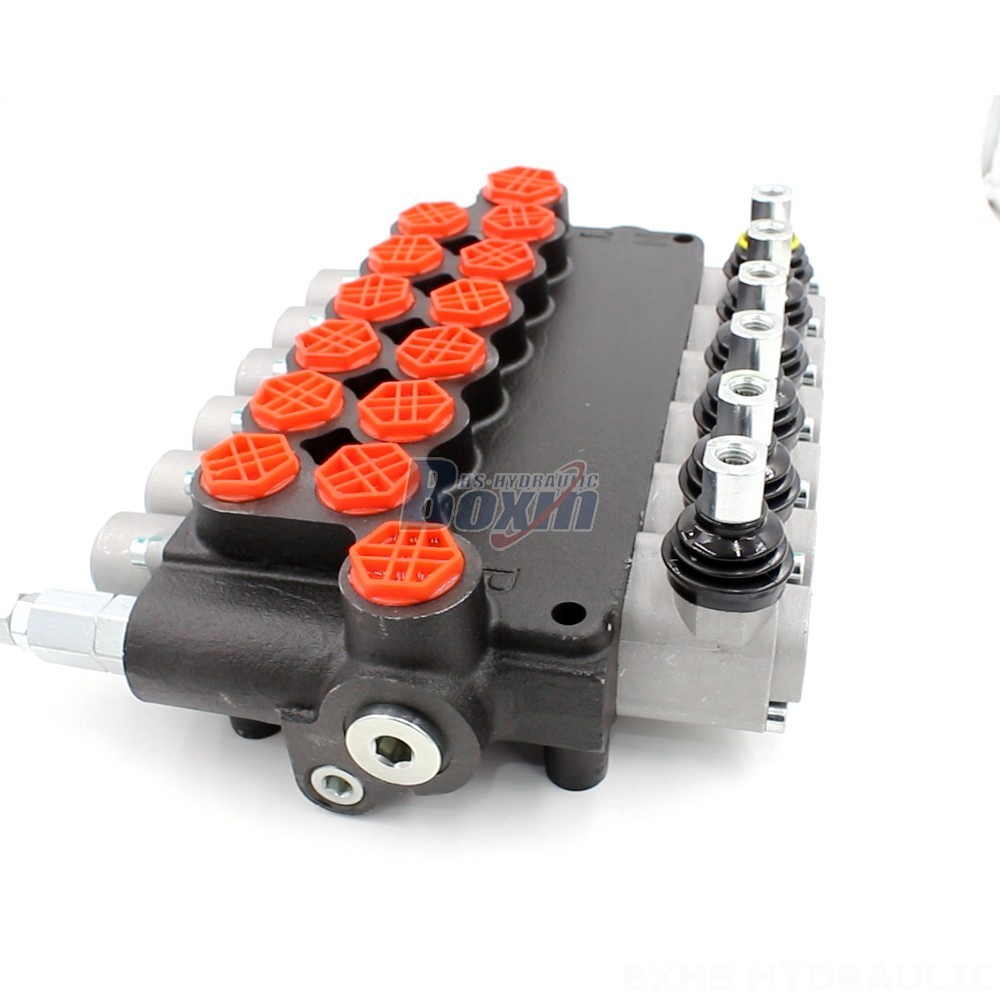

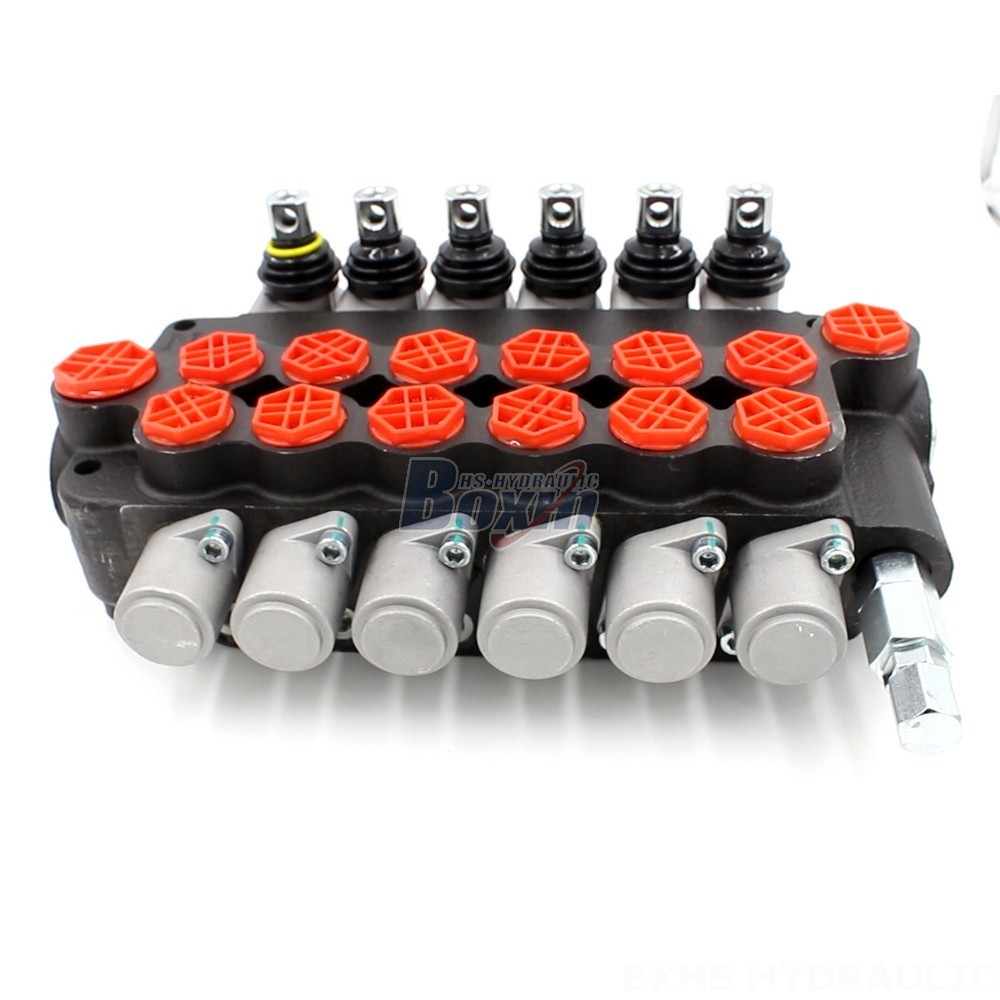

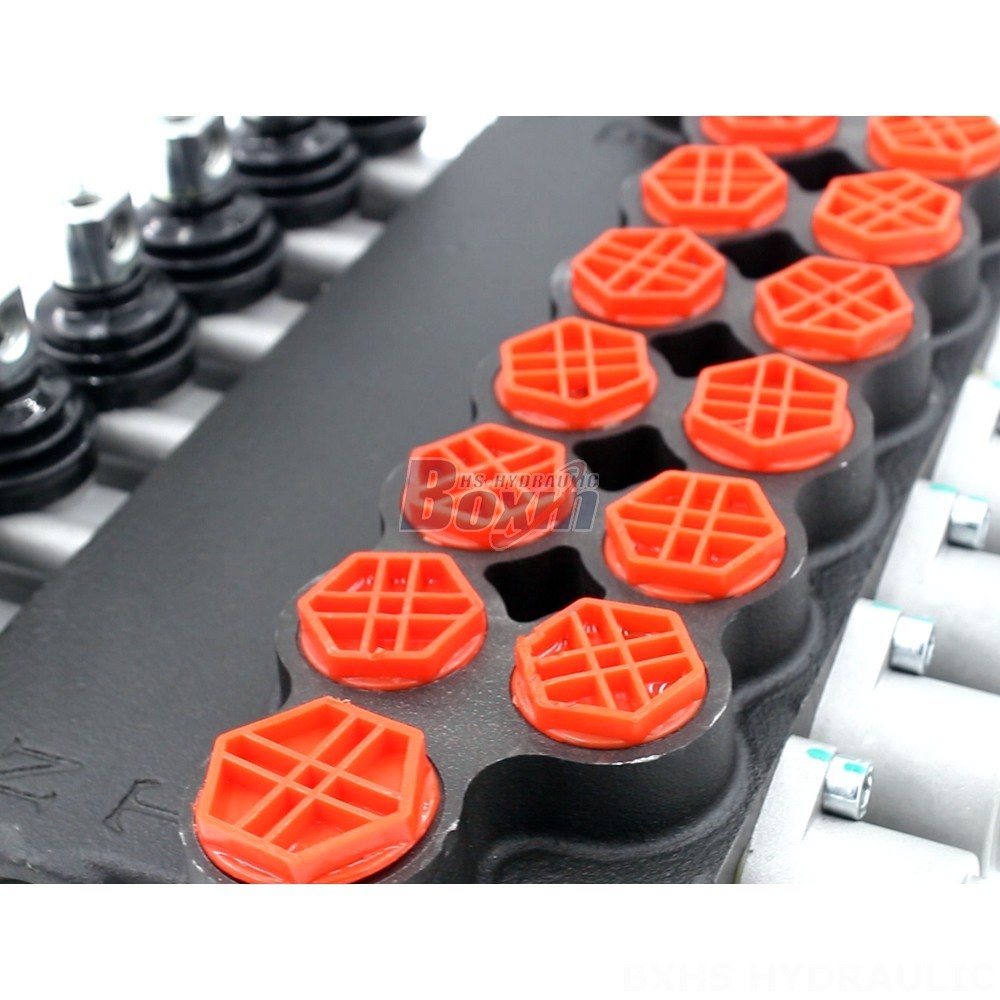

P80-G12-G34 6-Spool Hydraulic Directional Valve is a high-performance valve designed for use in various hydraulic systems. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve is suitable for demanding applications. Its manual control provides precise and responsive operation, while its monoblock construction ensures durability and reliability. This valve finds applications in material handling, construction, agriculture, and industrial vehicles.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
The P80-G12-G34 6-Spool Hydraulic Directional Valve features a compact and efficient design, making it ideal for space-constrained applications. Its operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) allows for compatibility with a wide range of hydraulic fluids. The valve operates within an ambient temperature range of -40°C to +80°C (-40°F to +176°F), ensuring reliable performance in diverse operating conditions. This valve is commonly used in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
