P80 Electro-hydraulic Valve: Distributors & Wholesalers Wanted Worldwide

控制方式:电液控

路数:4 联

额定流量:80 L/min (21.2 US gpm)

最大压力:250 bar (3600 psi)

进油口:G1/2接口

出油口:G3/4接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P80系列 单块式方向阀

Packagingsize:50*40*20

Grossweight:23.00 kg

库存: 有货

409 次查看了此产品

P80 Electro-hydraulic Valve: Distributors & Wholesalers Wanted Worldwide

P80 Electro-hydraulic Valve: Distributors & Wholesalers Wanted Worldwide

P80 Electro-hydraulic Valve: Distributors & Wholesalers Wanted Worldwide drawing image

P80 Series electro-hydraulic monoblock valve, rated at 80 L/min and 315 bar, ideal for material handling, construction, and agricultural applications. We offer manufacturing, OEM, ODM, customization, and wholesale options. Distributors and wholesalers worldwide are welcome.

P80系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 80 L/min (21.2 US gpm)
最大压力 315 bar (4600 psi)
进油口 G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
出油口 G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
接口尺寸 G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹

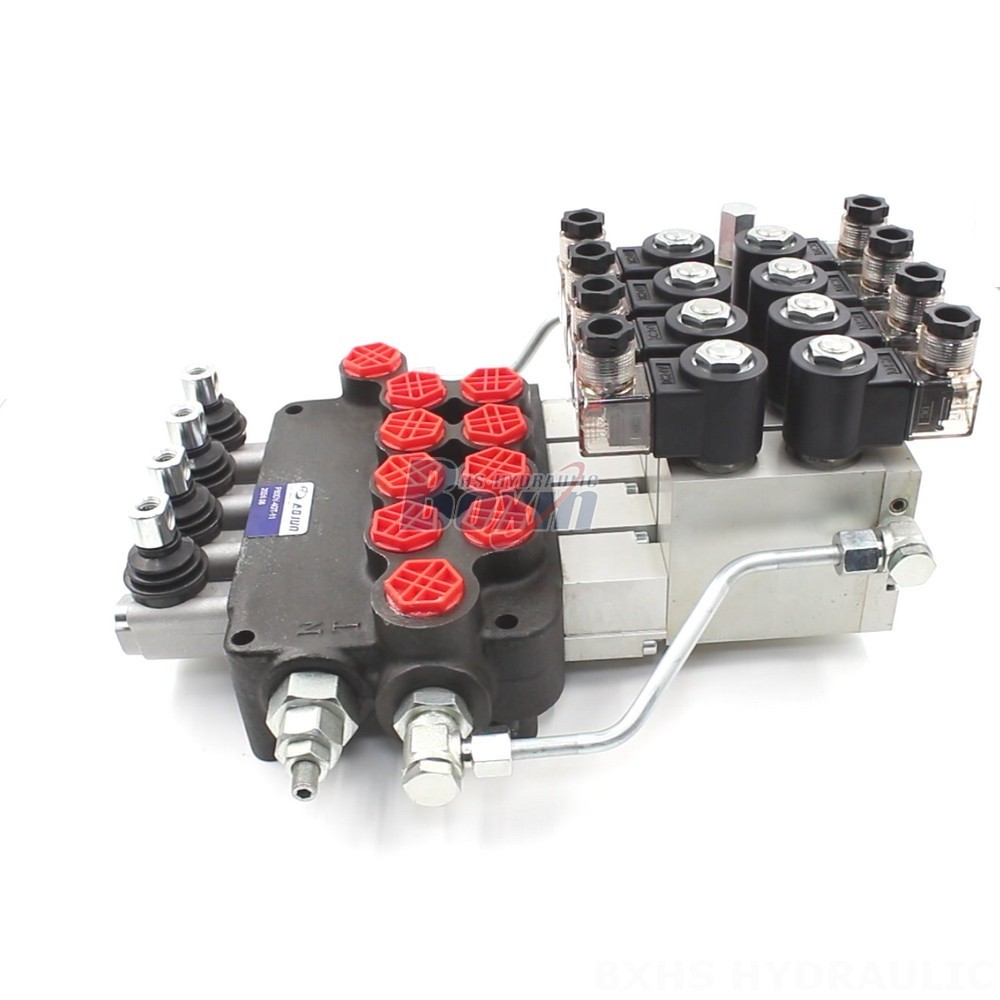

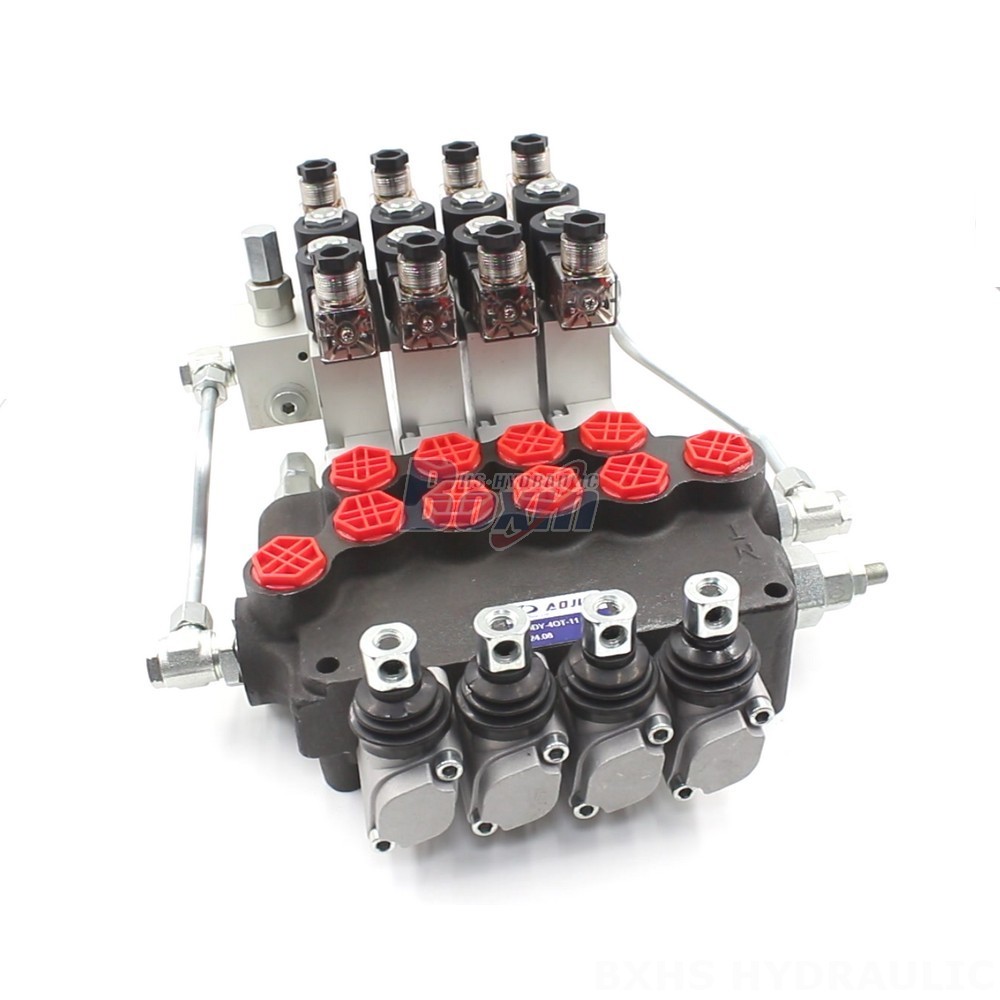

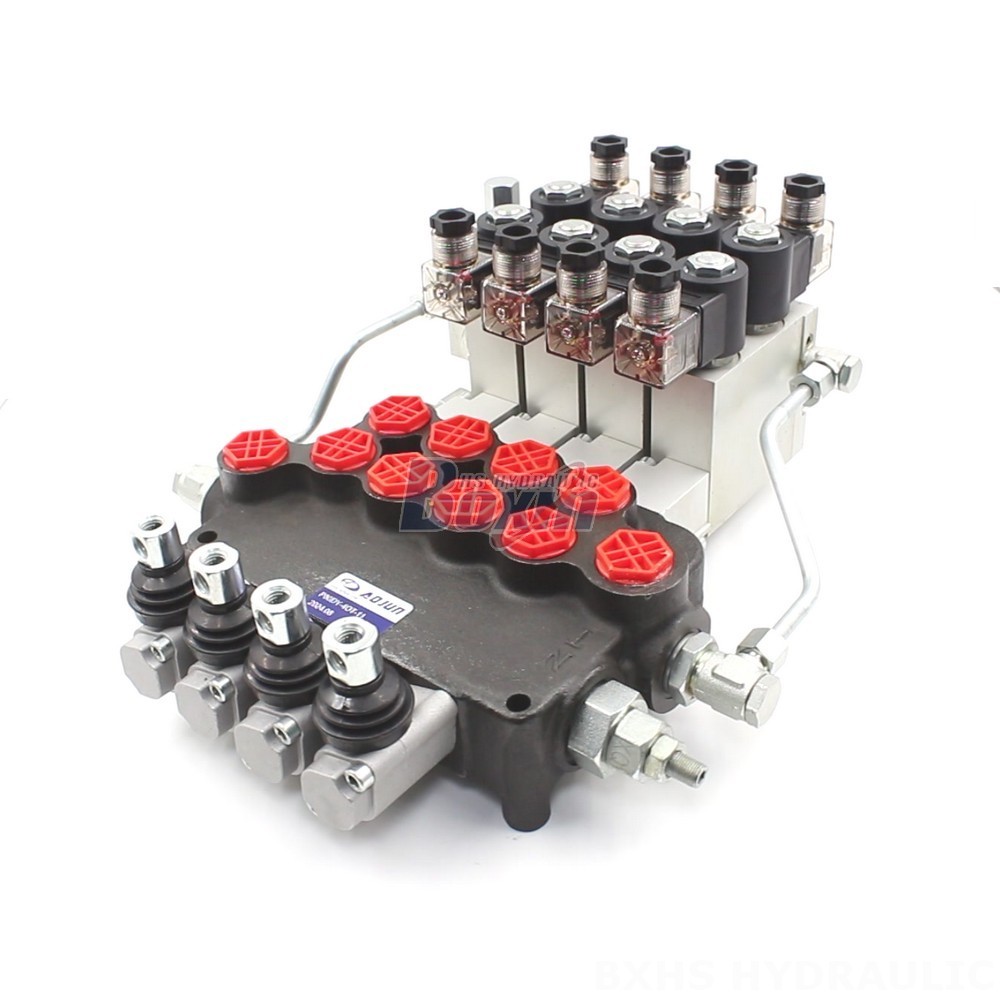

The P80 Series Electro-hydraulic Valve is a high-performance, 4-section monoblock valve with a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 315 bar (4600 psi). Designed for demanding applications in material handling, construction and earth moving, industrial vehicles, and agriculture, this robust valve is suitable for forklifts, skid steer loaders, compact wheel loaders, tractors, telehandlers, mini- and midi-excavators, harvesters, balers, and backhoes.

**Key Features:**
* Electro-hydraulic control for precise operation
* 4-section monoblock design for reliability and compactness
* High flow rate (80 L/min)
* High-pressure rating (315 bar)
* Wide operating viscosity range (15-75 mm²/s)
* Wide ambient temperature range (-40°C to +80°C)
* 4 spool design for versatile control

**Business Opportunities:**
As a leading manufacturer, we offer a comprehensive range of services, including manufacturing, OEM (Original Equipment Manufacturing), ODM (Original Design Manufacturing), customization, and wholesale distribution. We are actively seeking reliable distributors, wholesalers, agents, and trading companies worldwide to expand our global reach. Partner with us to tap into the growing demand for high-quality electro-hydraulic valves.

**Factory Direct Supply:**
Benefit from our factory-direct pricing and consistent product quality. We provide large-scale wholesale options to meet your business needs, guaranteeing competitive pricing and fast delivery times. Contact us today to discuss your requirements and explore a mutually beneficial partnership.

**Contact Us:** [Insert Contact Information Here]

This powerful and versatile valve offers excellent value and performance, making it an ideal choice for various applications. Become a valued partner and join us in supplying the global market with this superior hydraulic solution. We are eagerly awaiting your inquiries!
