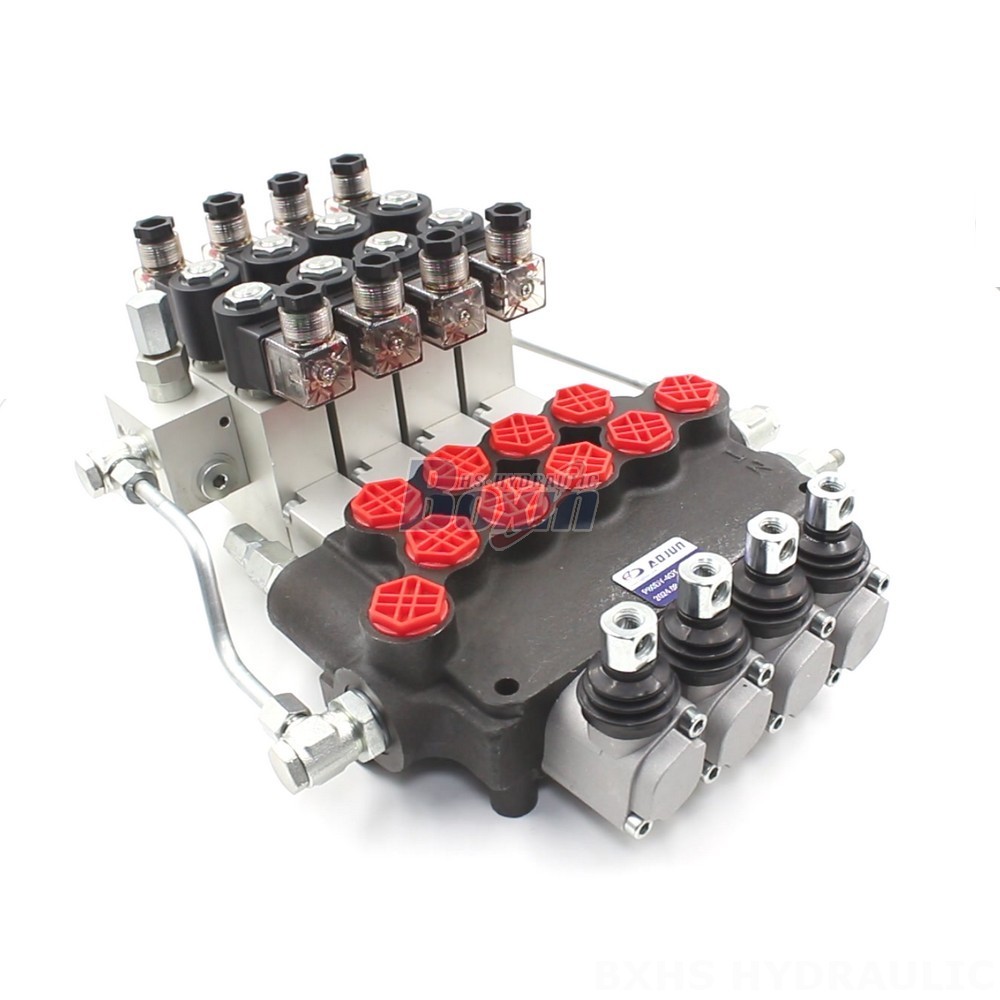

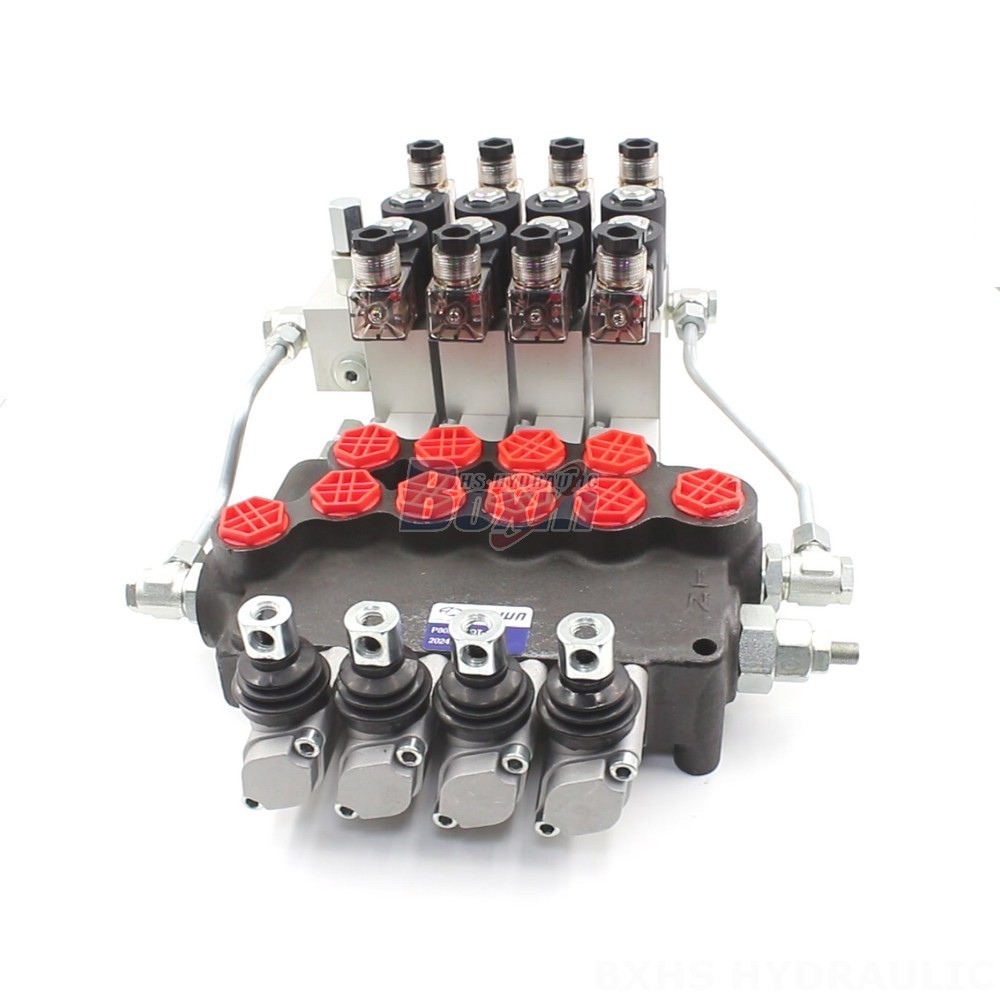

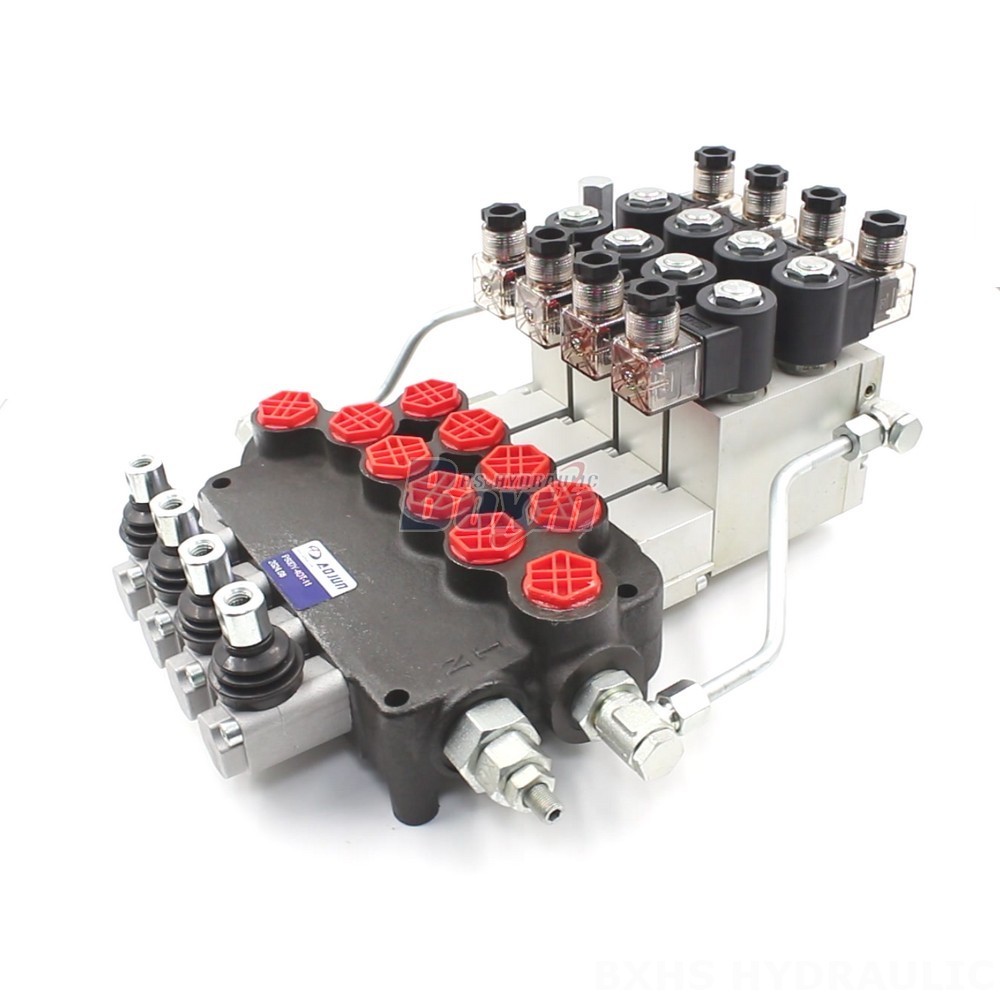

The P80 Electro-hydraulic 4 Spool Monoblock Valve offers high performance and reliability for various applications. It features a rated flow of 80 L/min and a maximum pressure of 315 bar. OEM, ODM, custom design, and wholesale options are available.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
The P80 Series Electro-hydraulic 4 Spool Monoblock Valve is a high-performance, robust solution for diverse applications in material handling, construction, agriculture, and industrial vehicles. This 80 L/min valve boasts a maximum pressure of 315 bar and operates efficiently within a wide temperature range (-40°C to +80°C). Its monoblock structure ensures compact design and high reliability. As a leading manufacturer and factory supplier, we provide comprehensive services including OEM, ODM, custom design, and wholesale options. We are seeking distributors, wholesalers, agents, and trading companies to partner with us globally.
**Key Features:**
* Electro-hydraulic control
* 4-spool monoblock design
* Rated flow: 80 L/min (21.2 US gpm)
* Max pressure: 315 bar (4600 psi)
* Wide operating temperature range: -40°C to +80°C (-40°F to +176°F)
* Suitable for forklifts, excavators, tractors, and more.
**Business Opportunities:**
* **OEM:** We can manufacture valves to your specifications, incorporating your branding and requirements.
* **ODM:** We offer design and manufacturing services based on your specific needs.
* **Custom Design:** Our engineering team can create bespoke solutions for your unique applications.
* **Wholesale:** Benefit from our competitive factory direct pricing and bulk order discounts.
We are actively seeking distributors, wholesalers, agents, and trading companies worldwide to expand our global reach. Partner with us and leverage our high-quality products, competitive pricing, and comprehensive services. Contact us today to discuss your partnership opportunities. Factory direct, factory wholesale, and private label options are available.
