Hydraulic Cylinder Speed Control P40-DKL 2-Spool Hydraulic Valve: Factory Direct & Customizable

控制方式:手控

路数:2 联

额定流量:40 L/min (10.5 US gpm)

最大压力:250 bar (3600 psi)

进油口:G3/8接口

出油口:G3/8接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P40-DKL系列 单块式方向阀

Packagingsize:23*18*13

Grossweight:5.00 kg

库存: 有货

929 次查看了此产品

Hydraulic Cylinder Speed Control P40-DKL 2-Spool Hydraulic Valve: Factory Direct & Customizable

Hydraulic Cylinder Speed Control P40-DKL 2-Spool Hydraulic Valve: Factory Direct & Customizable

Hydraulic Cylinder Speed Control P40-DKL 2-Spool Hydraulic Valve: Factory Direct & Customizable drawing image

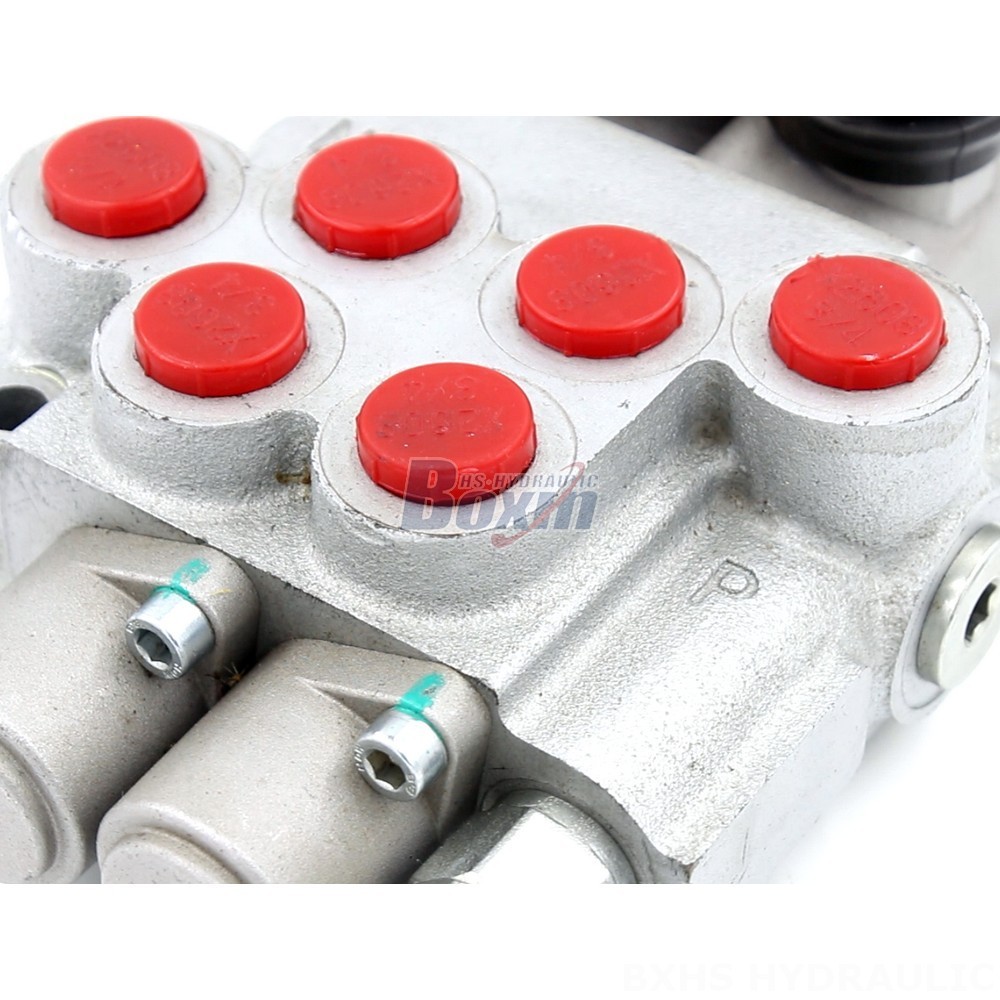

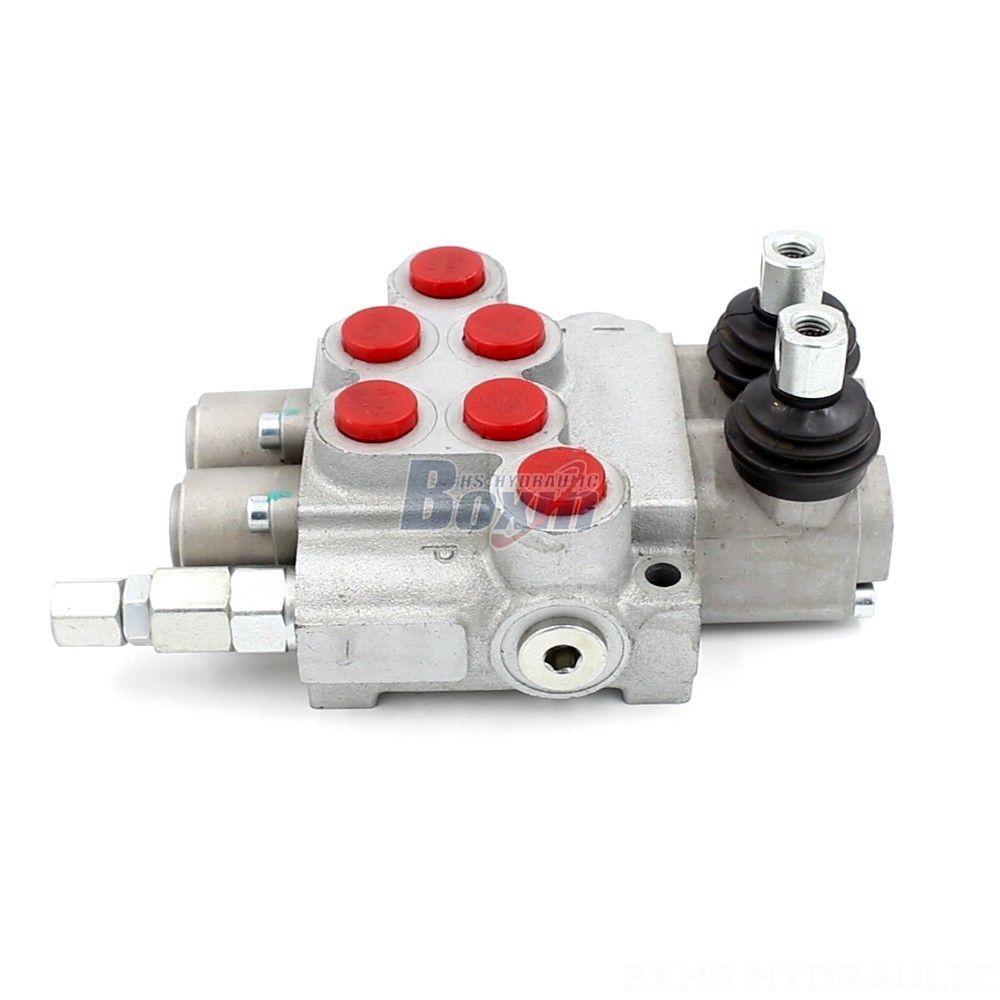

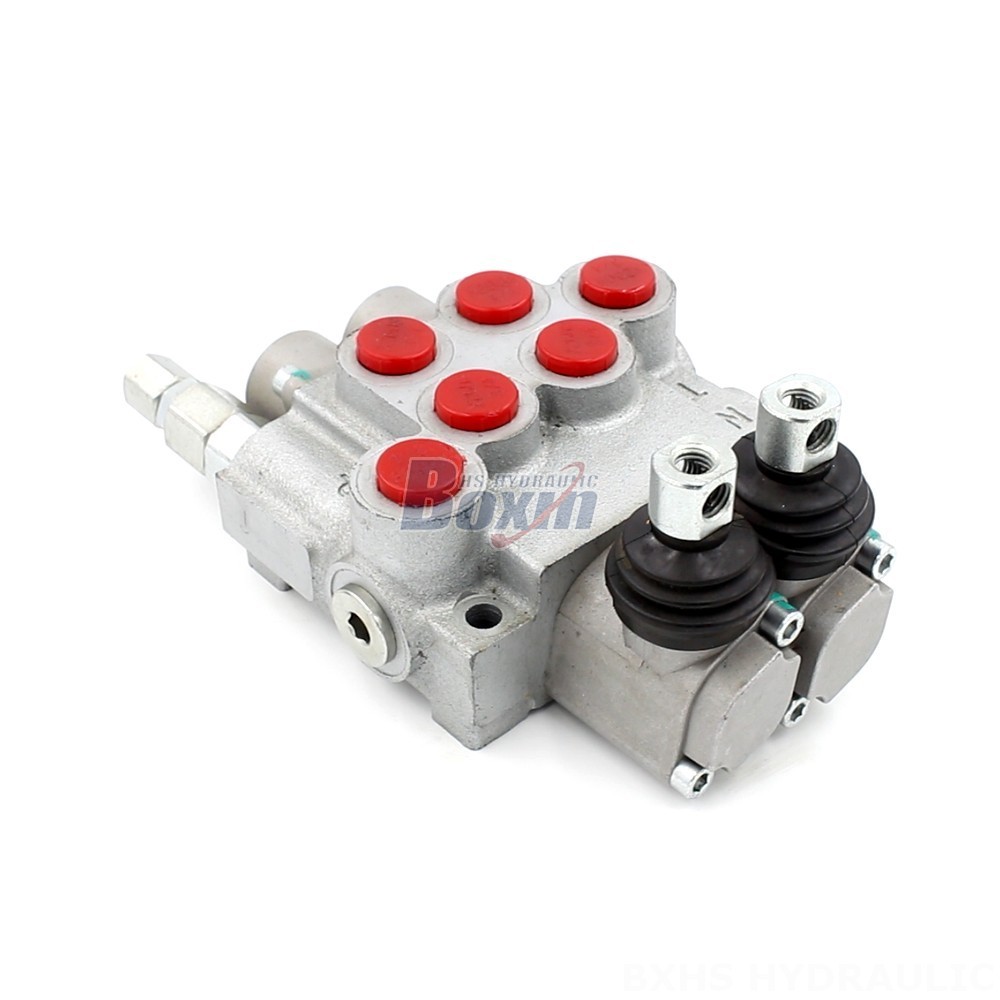

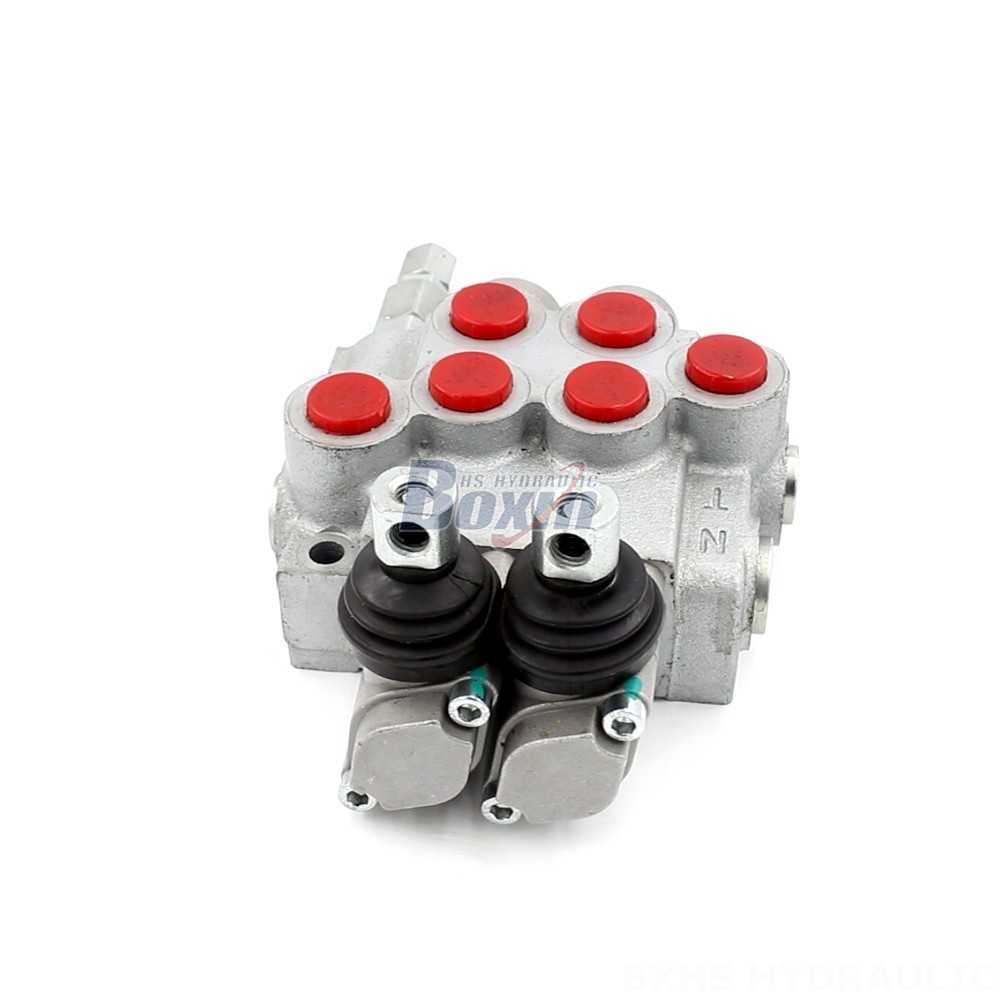

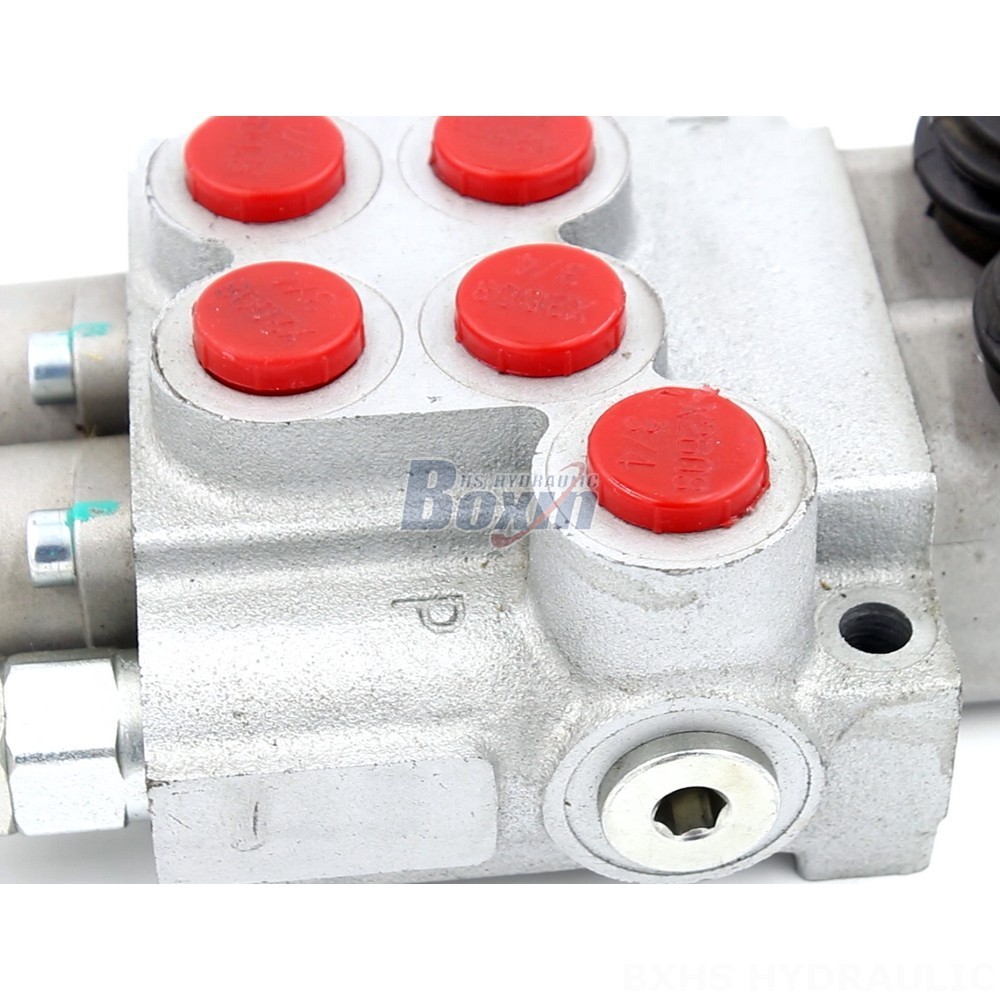

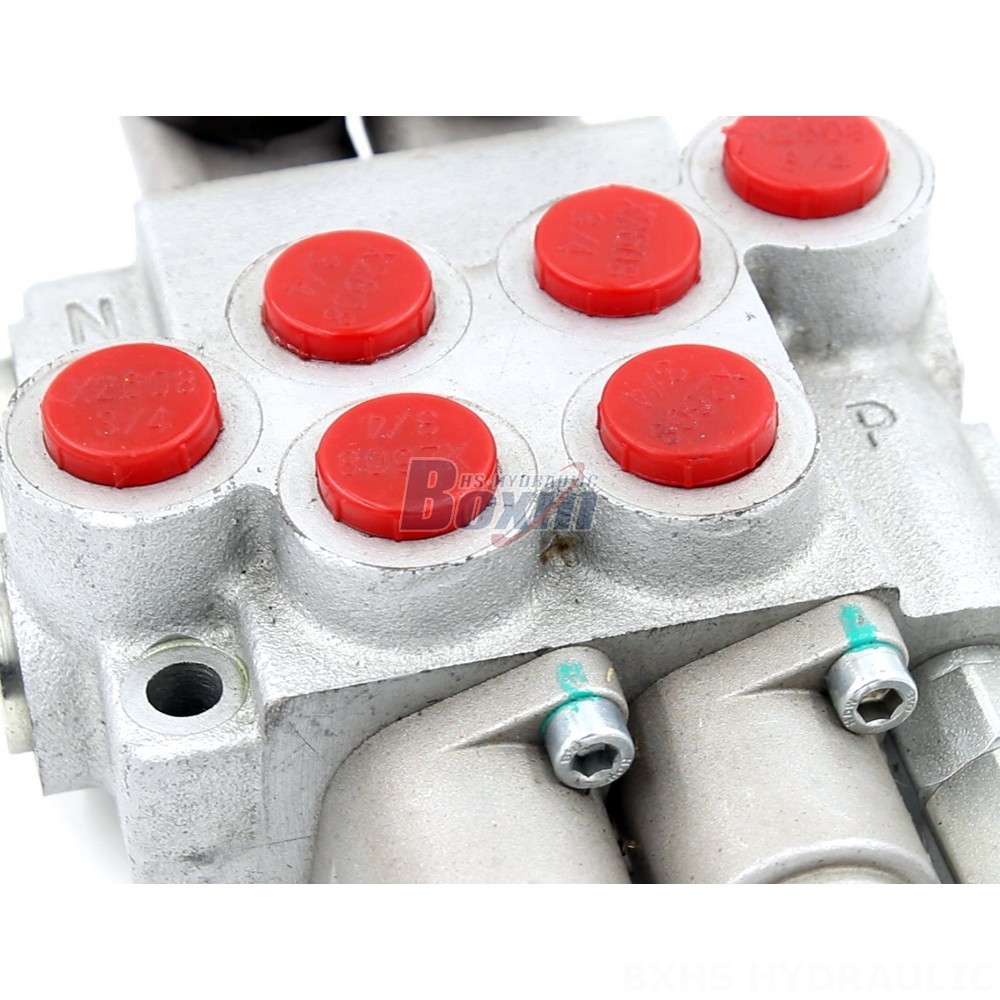

The P40-DKL 2-Spool Hydraulic Valve is a manual speed control valve designed for hydraulic cylinders in various applications, including material handling, construction, and agriculture. This 2-section monoblock valve offers a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment.

P40-DKL系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
额定流量 40 L/min (10.5 US gpm)
最大压力 250 bar (3600 psi)
进油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口 G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸 G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
结构类型 整体阀
环境温度范围 -40°C to +80°C (-40°F to +176°F)
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)

The P40-DKL 2-Spool Hydraulic Valve is a high-quality, durable valve designed for controlling the speed of hydraulic cylinders. It features a manual control method and a 2-section monoblock structure. The valve has a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). It is designed for use in a wide range of operating conditions, with an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The valve is compatible with a variety of hydraulic fluids, with an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). This versatile valve is suitable for various applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. It is compatible with a wide range of equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, and skid steer loaders.
