P120 Manual 2 Spool Monoblock Directional Valve | Manufacturer & Supplier

控制方式:手控

路数:2 联

额定流量:120 升/分钟 (31.7 美制加仑/分钟)

最大压力:250 bar (3600 psi)

进油口:G1接口

出油口:G1接口

接口尺寸:G1接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P120系列单块式方向阀

Packagingsize:30*39*17

Grossweight:19.00 kg

库存: 有货

描述

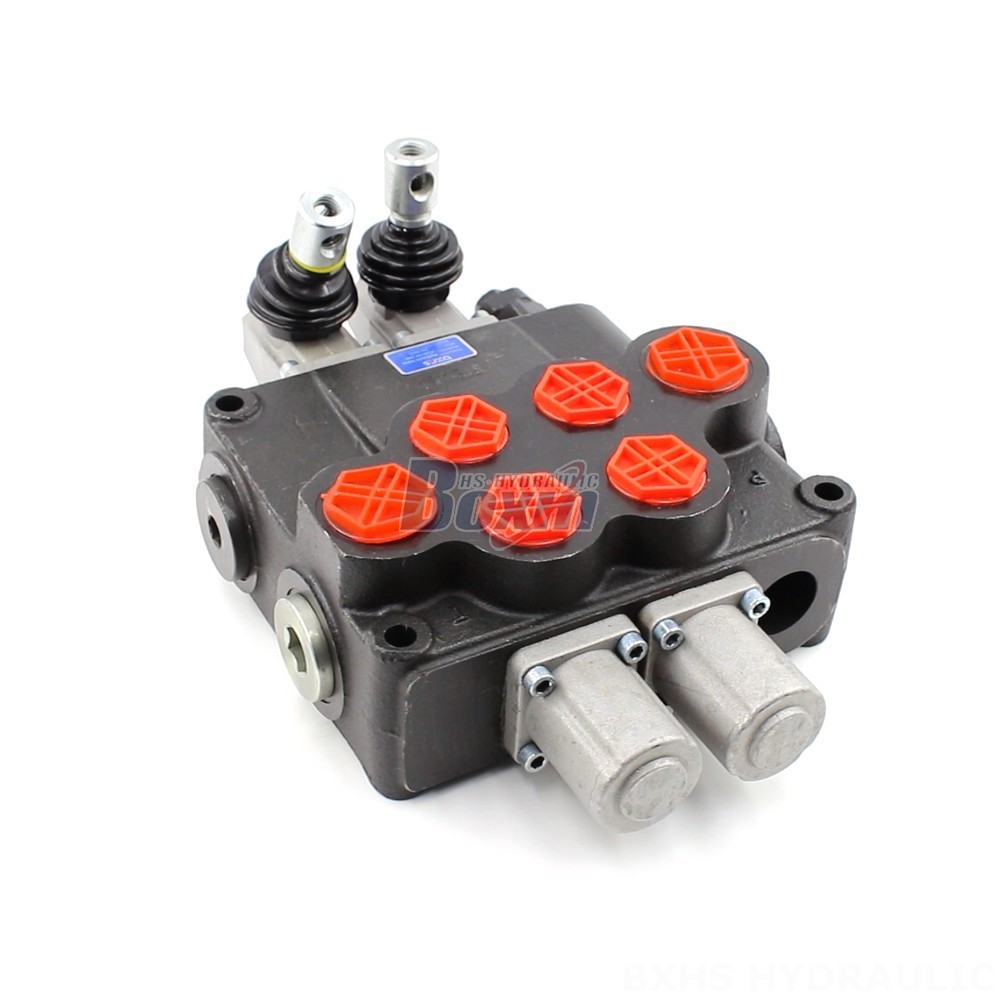

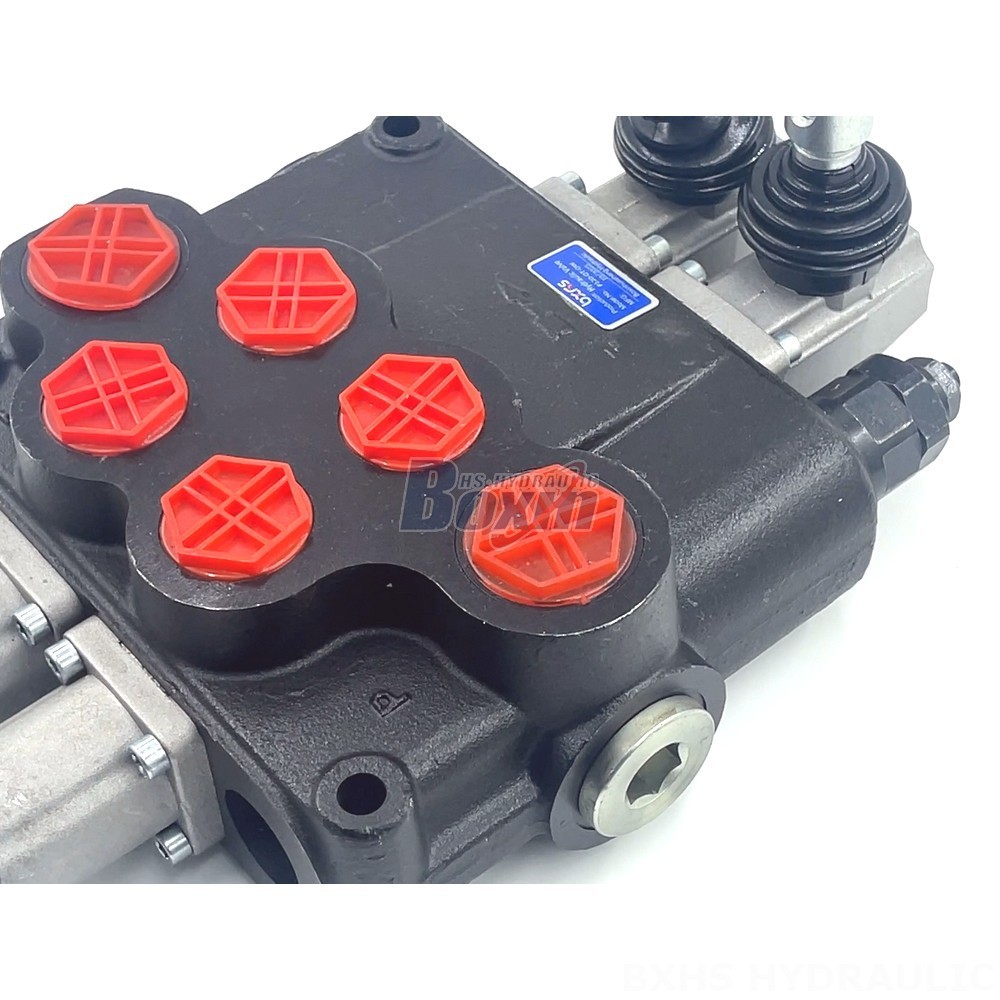

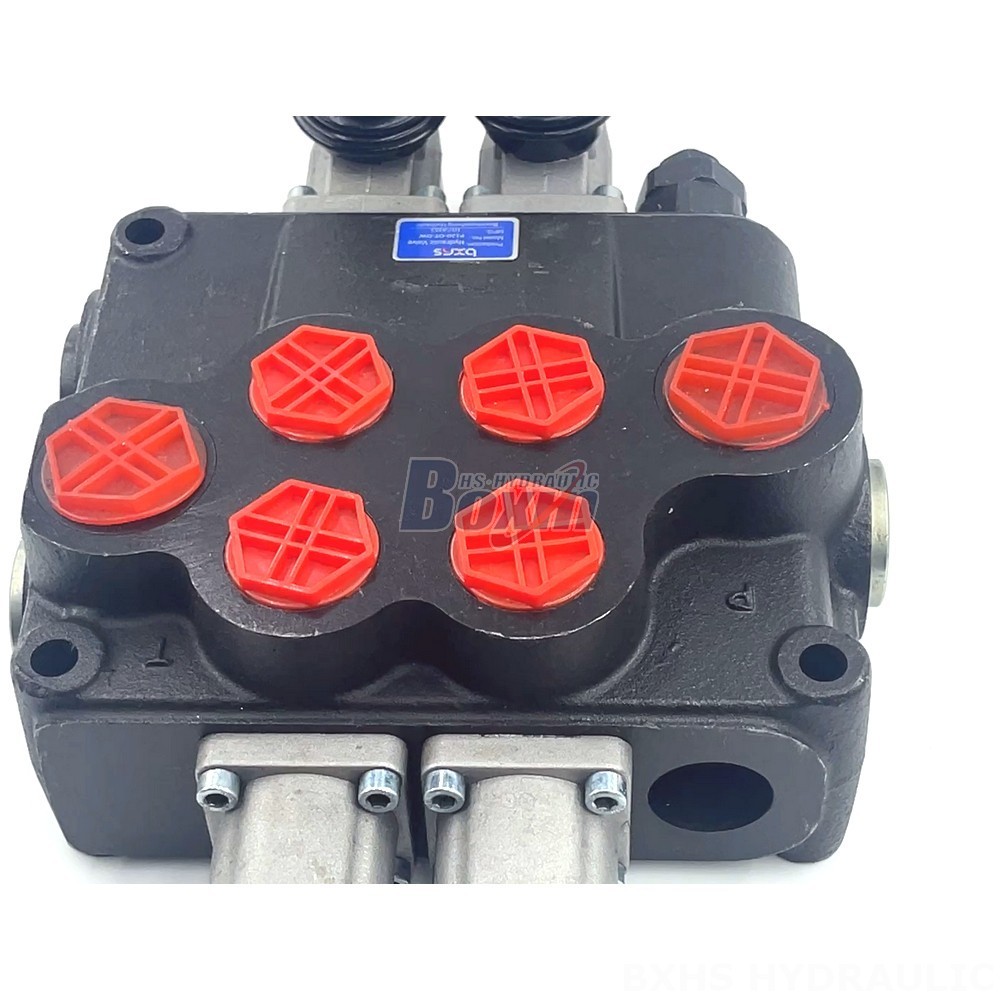

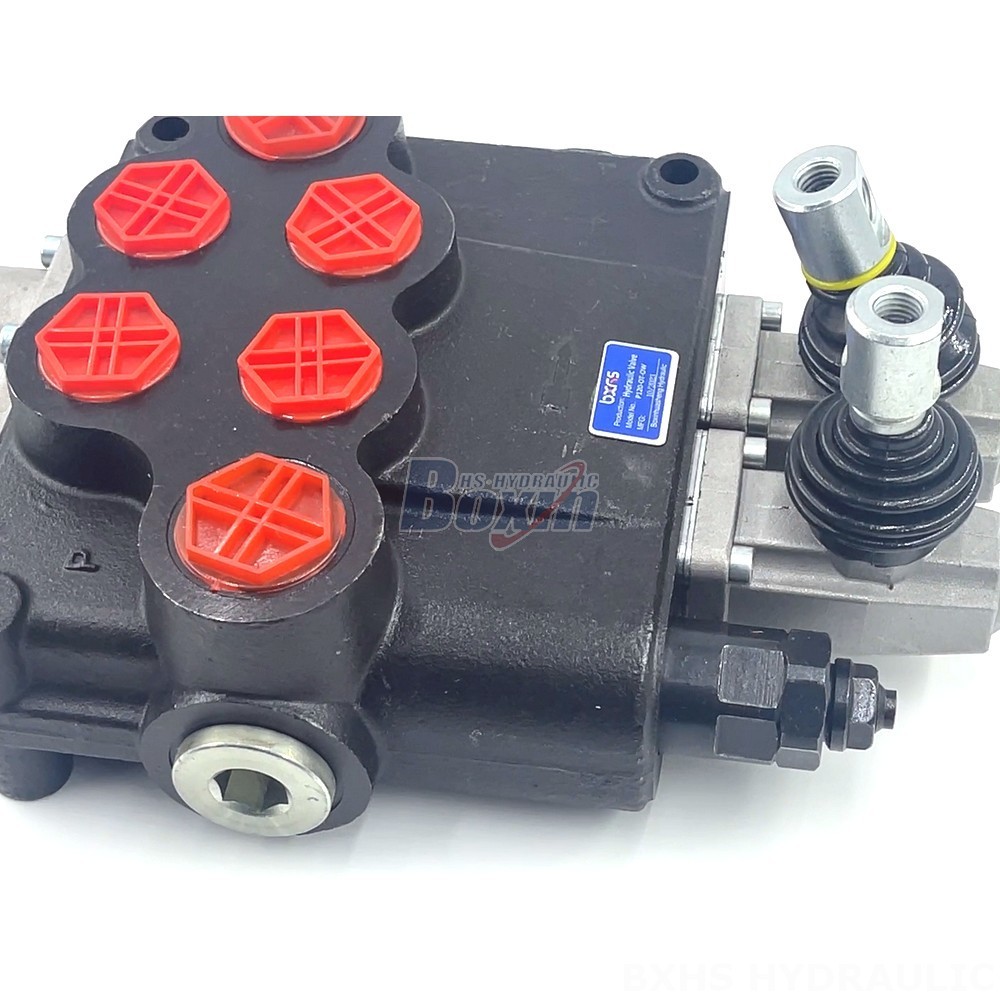

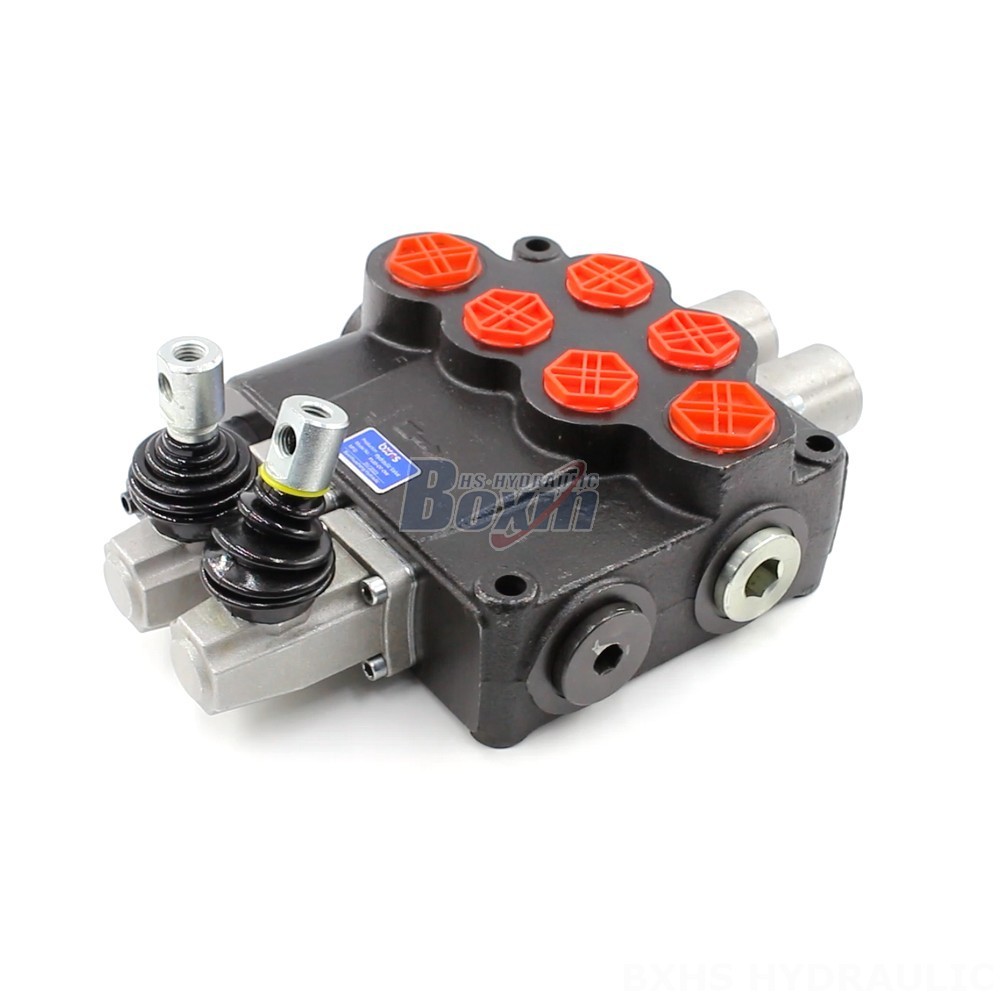

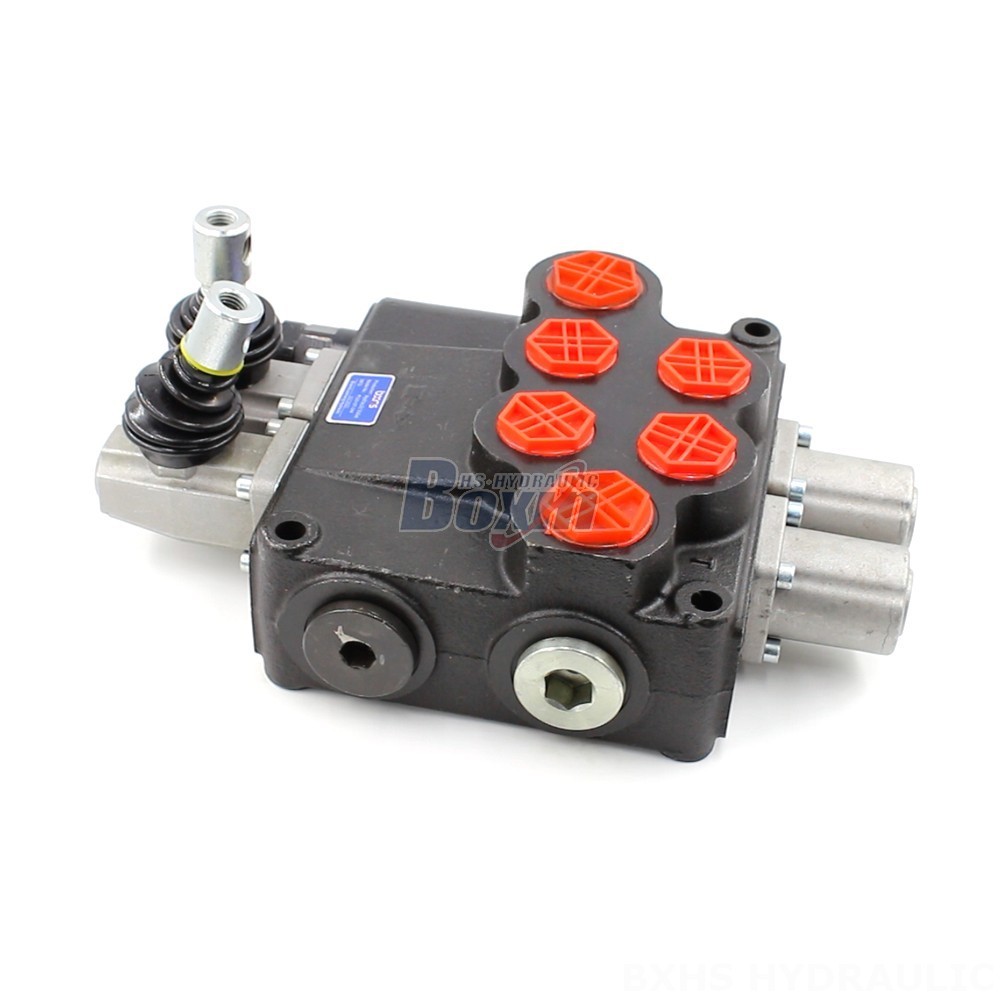

P120 Manual 2 Spool Monoblock Directional Valve | Manufacturer & Supplier

P120 Manual 2 Spool Monoblock Directional Valve | Manufacturer & Supplier drawing image

The P120 Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial applications. With a rated flow of 120 L/min and a maximum pressure of 250 bar, this valve is capable of handling demanding hydraulic systems.

P120系列单块式方向阀参数
控制方式	手控, 软轴, 一控二手柄控制, 手控+一控二
路数	1 联, 2 联, 3 联, 4 联
额定流量	120 升/分钟 (31.7 美制加仑/分钟)
最大压力	250 bar (3600 psi)
进油口	G3/4接口, G1接口, M27×2.0螺纹, SAE 14接头, SAE 16接头, 3/4 NPT螺纹, 1 NPT螺纹, M36×2螺纹
出油口	G1接口, SAE 16接头, 1 NPT螺纹, M36×2螺纹
接口尺寸	G3/4接口, G1接口, M27×2.0螺纹, SAE 14接头, SAE 16接头, 1 NPT螺纹, M36×2螺纹
联数	1联, 2联, 3联, 4联
结构类型	整体阀
环境温度范围	-40°C to +80°C (-40°F to +176°F)
工作粘度范围	15 - 75 mm²/s (15 cSt to 75 cSt)

**P120 Manual 2 Spool Monoblock Directional Valve**

**Control Method:** Manual
**Section:** 2 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 120 L/min (31.7 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 2 Spool
**Series:** P120 Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER

P120 Manual 2 Spool Monoblock Directional Valve | Manufacturer & Supplier
