The P120-G1-OT Monoblock Valve is a 2 Spool Control Valve designed for heavy-duty applications in material handling, construction, and agriculture. This manual control valve offers a rated flow of 120 L/min and a maximum pressure of 250 bar, making it ideal for use with a wide range of equipment.
| P120系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联 |
| 额定流量 | 120 升/分钟 (31.7 美制加仑/分钟) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/4接口, G1接口, M27×2.0螺纹, SAE 14接头, SAE 16接头, 3/4 NPT螺纹, 1 NPT螺纹, M36×2螺纹 |
| 出油口 | G1接口, SAE 16接头, 1 NPT螺纹, M36×2螺纹 |
| 接口尺寸 | G3/4接口, G1接口, M27×2.0螺纹, SAE 14接头, SAE 16接头, 1 NPT螺纹, M36×2螺纹 |
| 联数 | 1联, 2联, 3联, 4联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |

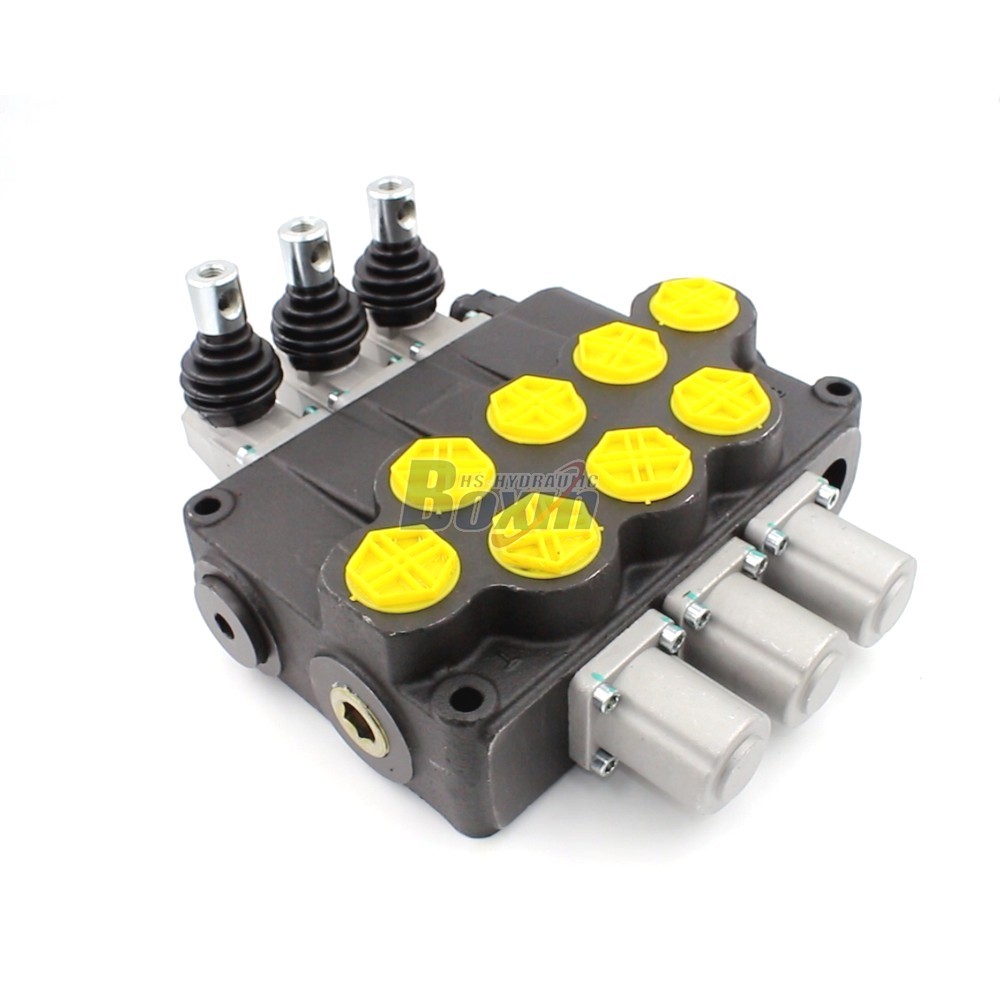

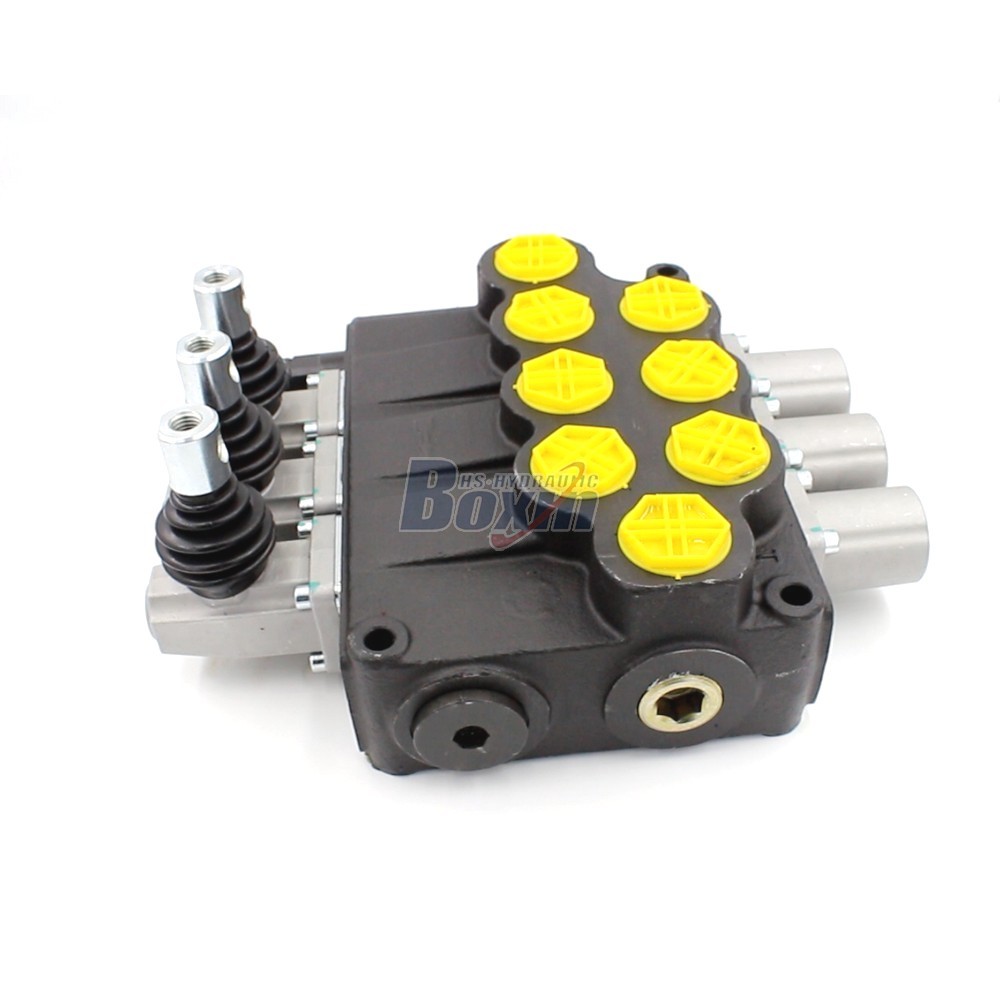

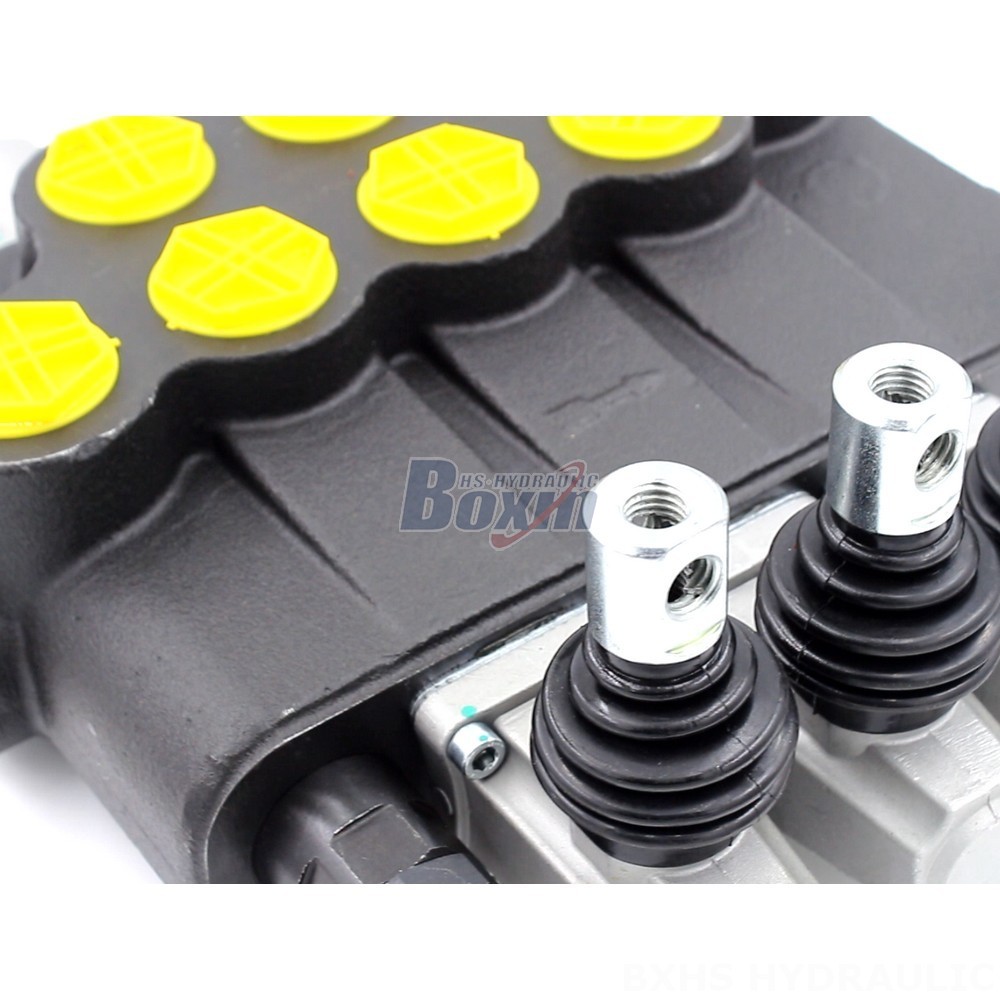

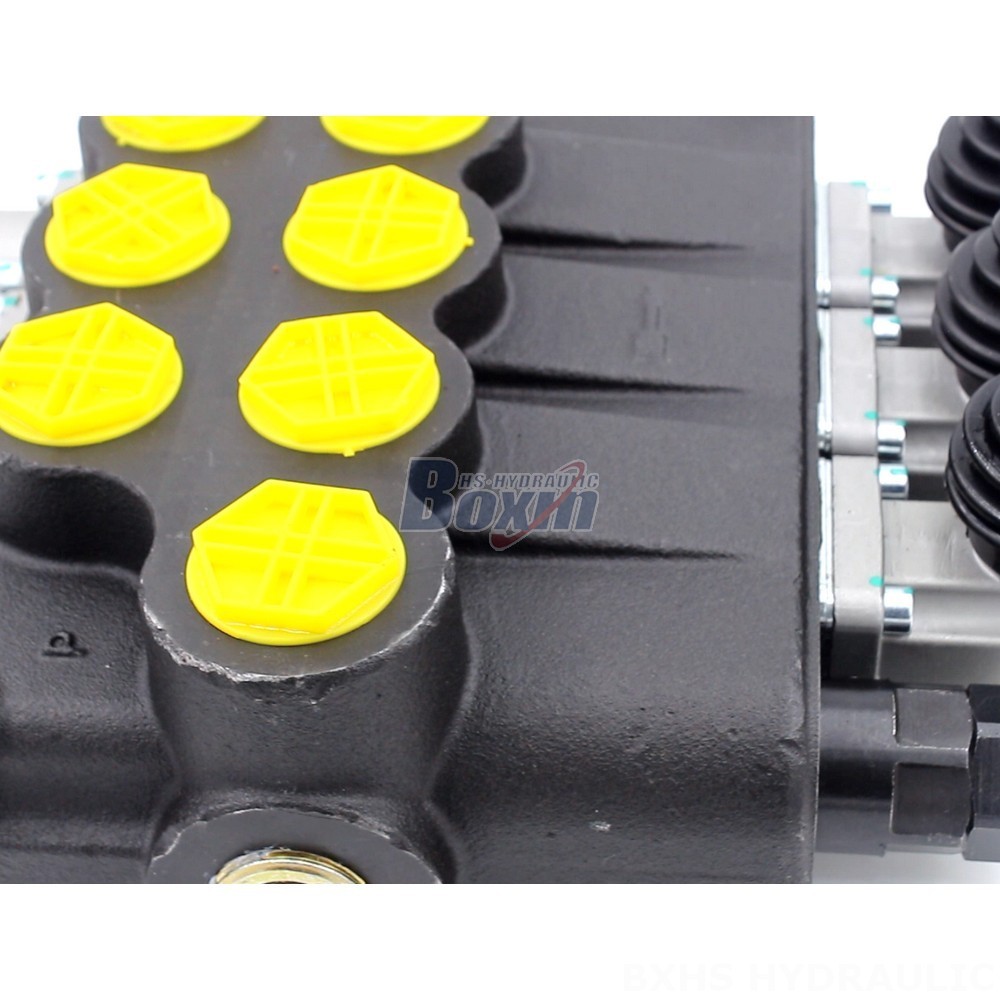

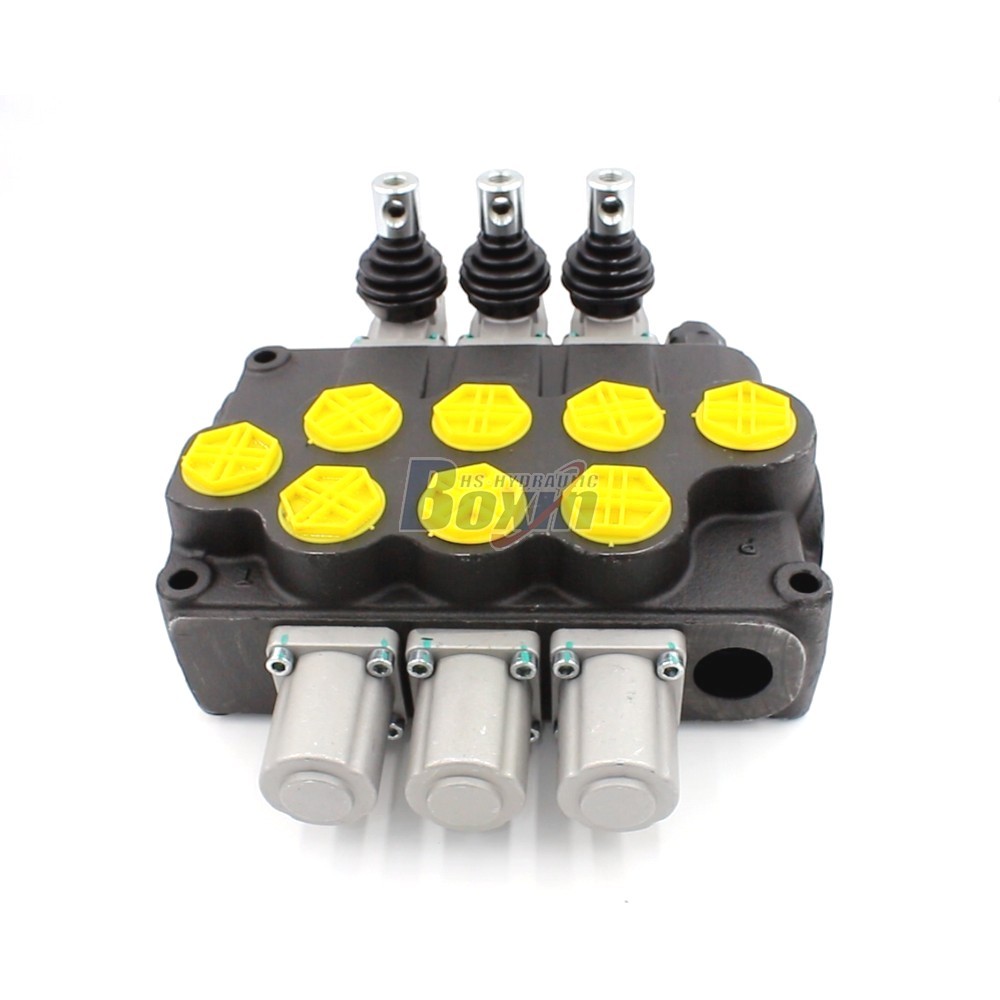

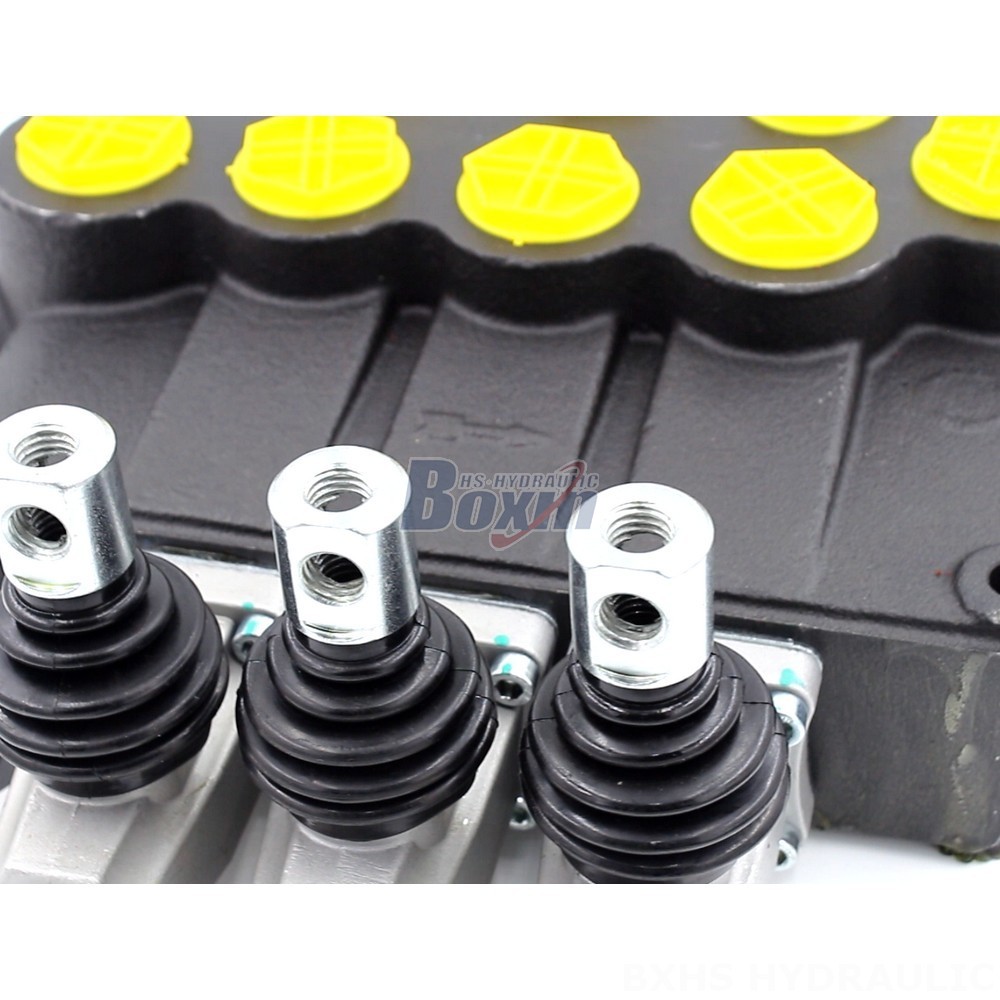

This 3 section, monoblock valve features a manual control method and is equipped with 3 spools. It is designed for a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi excavators, mini excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, and dumpers. The valve has a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 250 bar (3600 psi). It can operate in ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F) and with operating viscosity ranging from 15 - 75 mm²/s (15 cSt to 75 cSt). This durable and reliable valve is built to withstand the demands of tough working environments.
