The P120-G1-OT Manual 3 Spool Monoblock Directional Valve is designed for demanding hydraulic systems. With a rated flow of 120 L/min and a maximum pressure of 250 bar, it delivers reliable performance in various applications. Its monoblock construction ensures durability and compact design.
| P120系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联 |
| 额定流量 | 120 升/分钟 (31.7 美制加仑/分钟) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/4接口, G1接口, M27×2.0螺纹, SAE 14接头, SAE 16接头, 3/4 NPT螺纹, 1 NPT螺纹, M36×2螺纹 |
| 出油口 | G1接口, SAE 16接头, 1 NPT螺纹, M36×2螺纹 |
| 接口尺寸 | G3/4接口, G1接口, M27×2.0螺纹, SAE 14接头, SAE 16接头, 1 NPT螺纹, M36×2螺纹 |
| 联数 | 1联, 2联, 3联, 4联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |

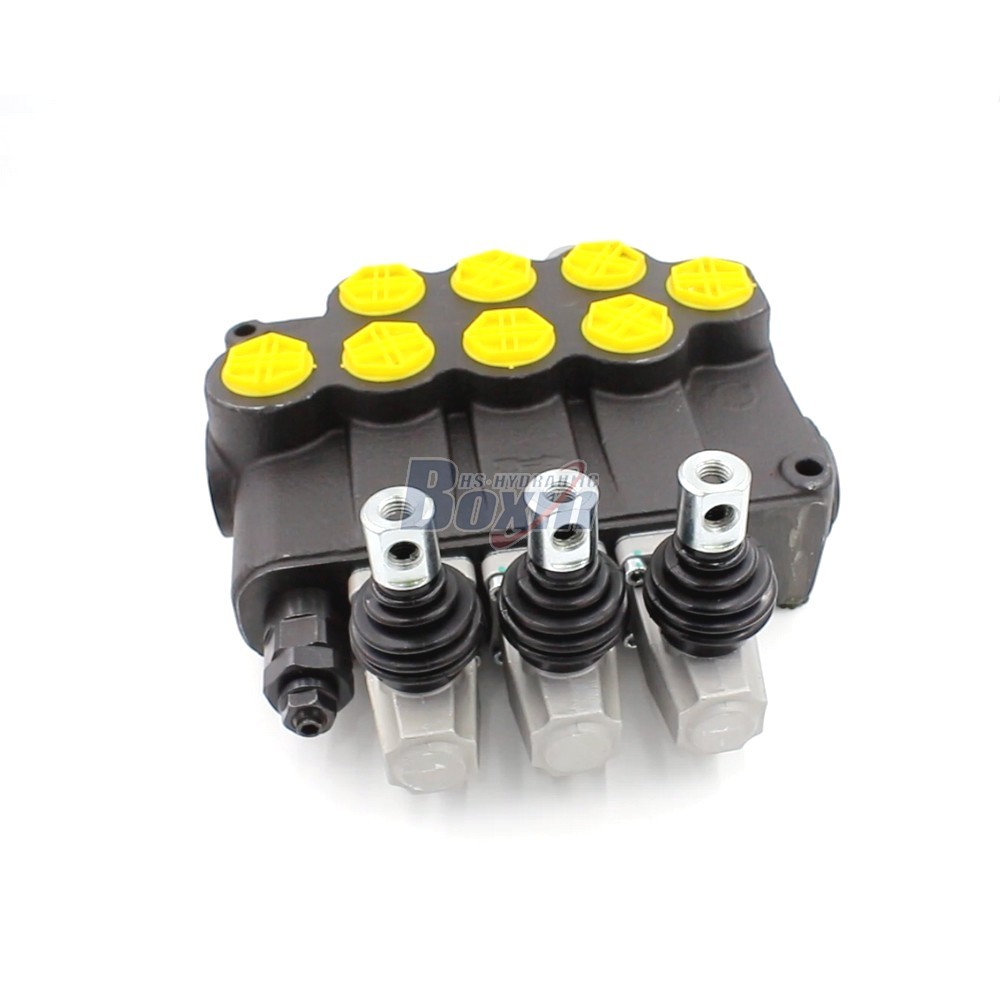

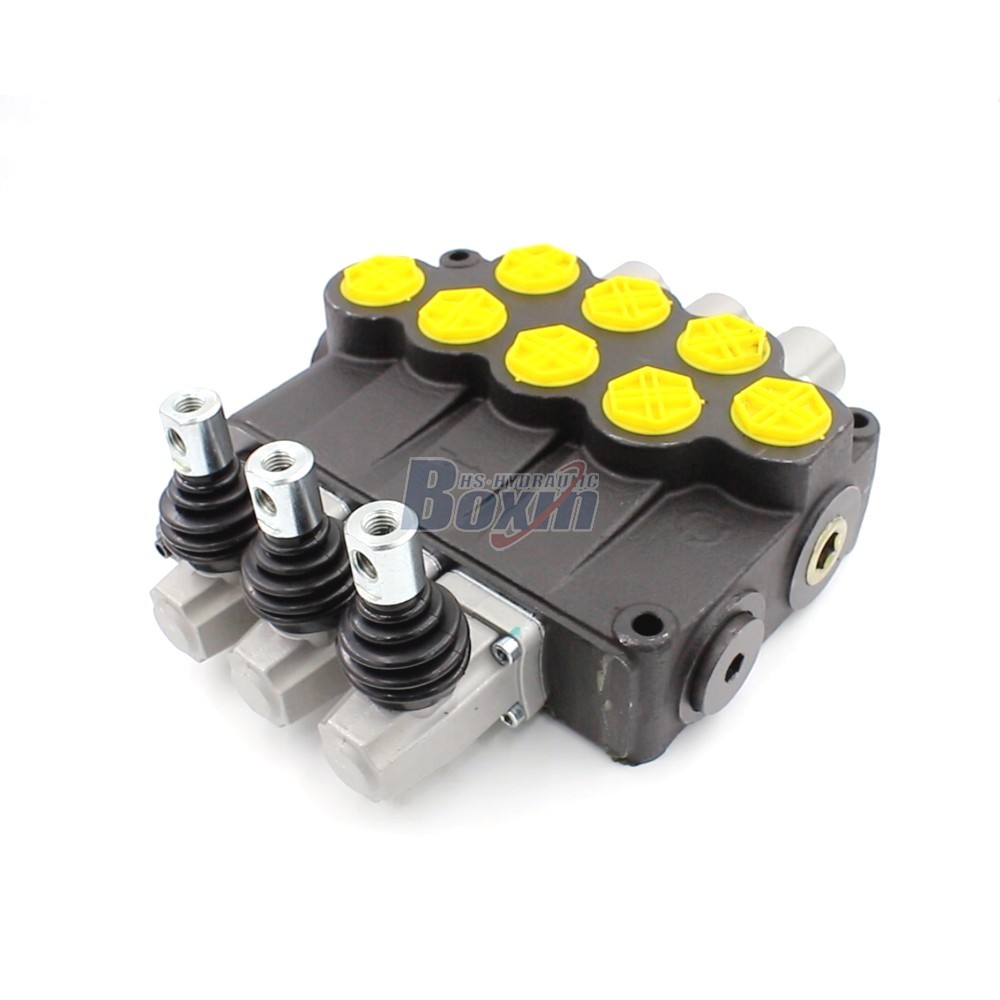

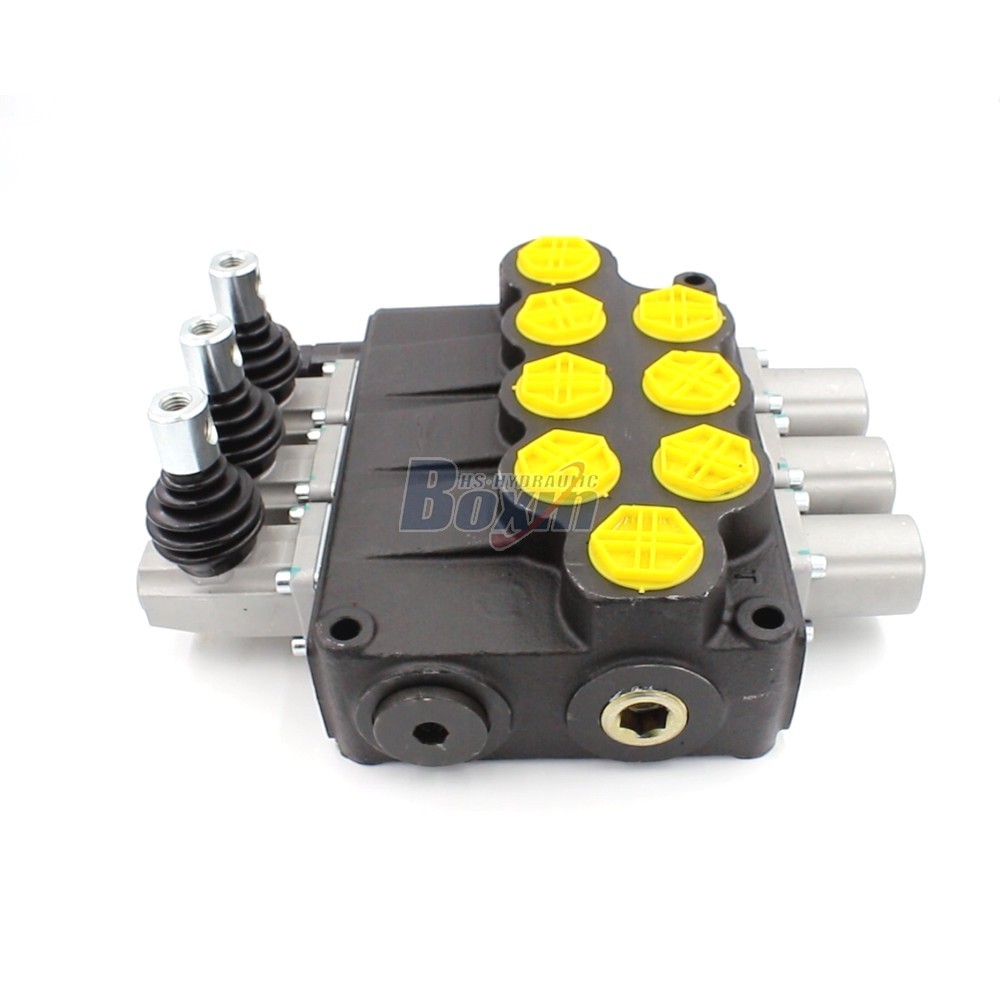

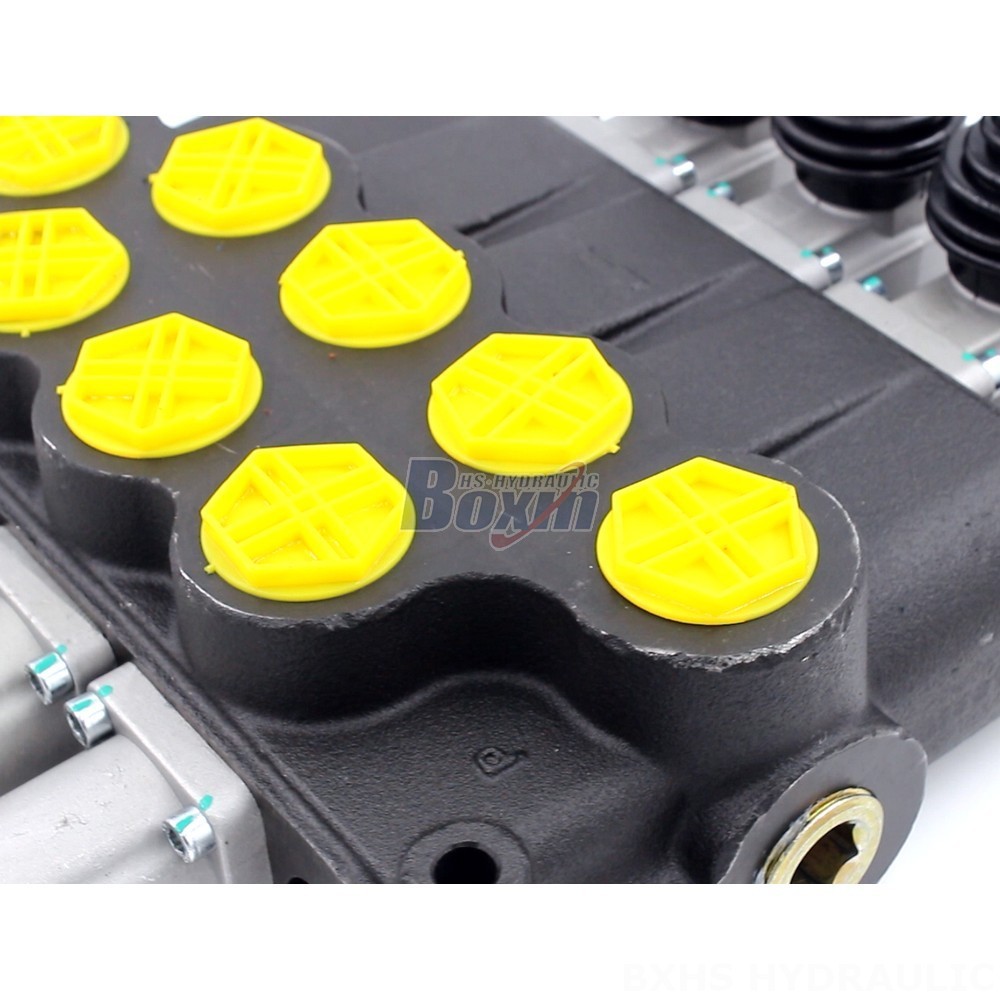

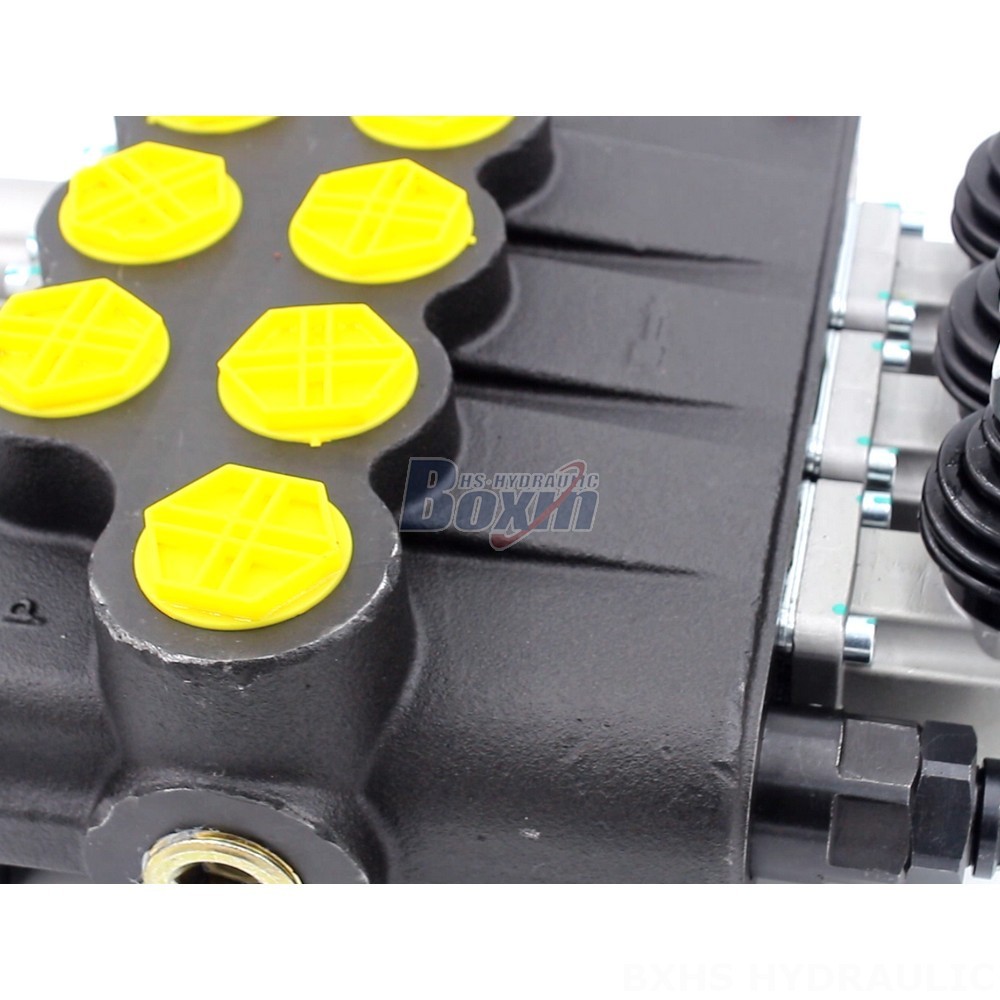

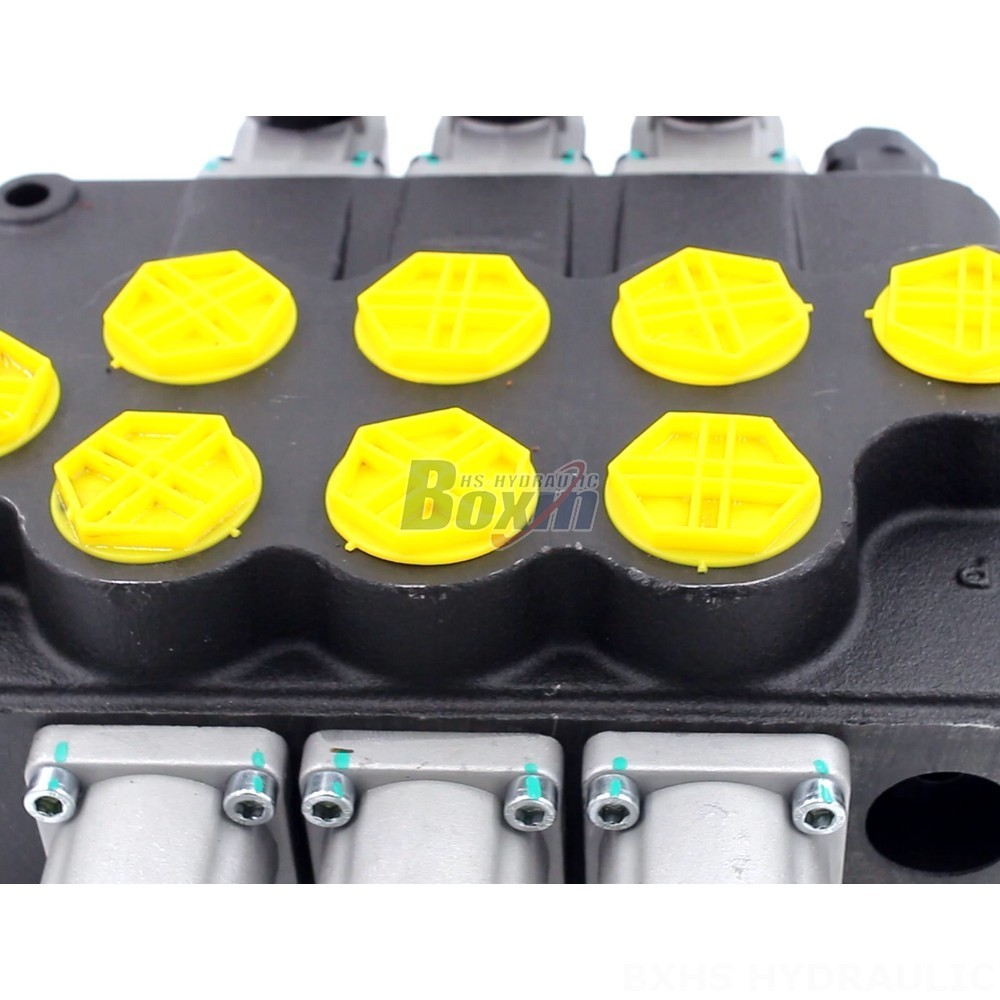

**P120-G1-OT Manual 3 Spool Monoblock Directional Valve**
**Product Highlights:**
- Manual control for precise operation
- 3 spool design for versatile flow control
- Monoblock structure for durability and compact size
- High flow capacity of 120 L/min
- Robust performance with a maximum pressure of 250 bar
- Wide operating viscosity range from 15 to 75 mm²/s
- Suitable for ambient temperatures ranging from -40°C to +80°C
**Applications:**
- Material Handling: Telehandlers, forklifts, stackers
- Construction and Earth Moving: Excavators, skid steer loaders, wheel loaders
- Agriculture: Tractors, harvesters
- Industrial Vehicles: Aerial platforms, motor graders
