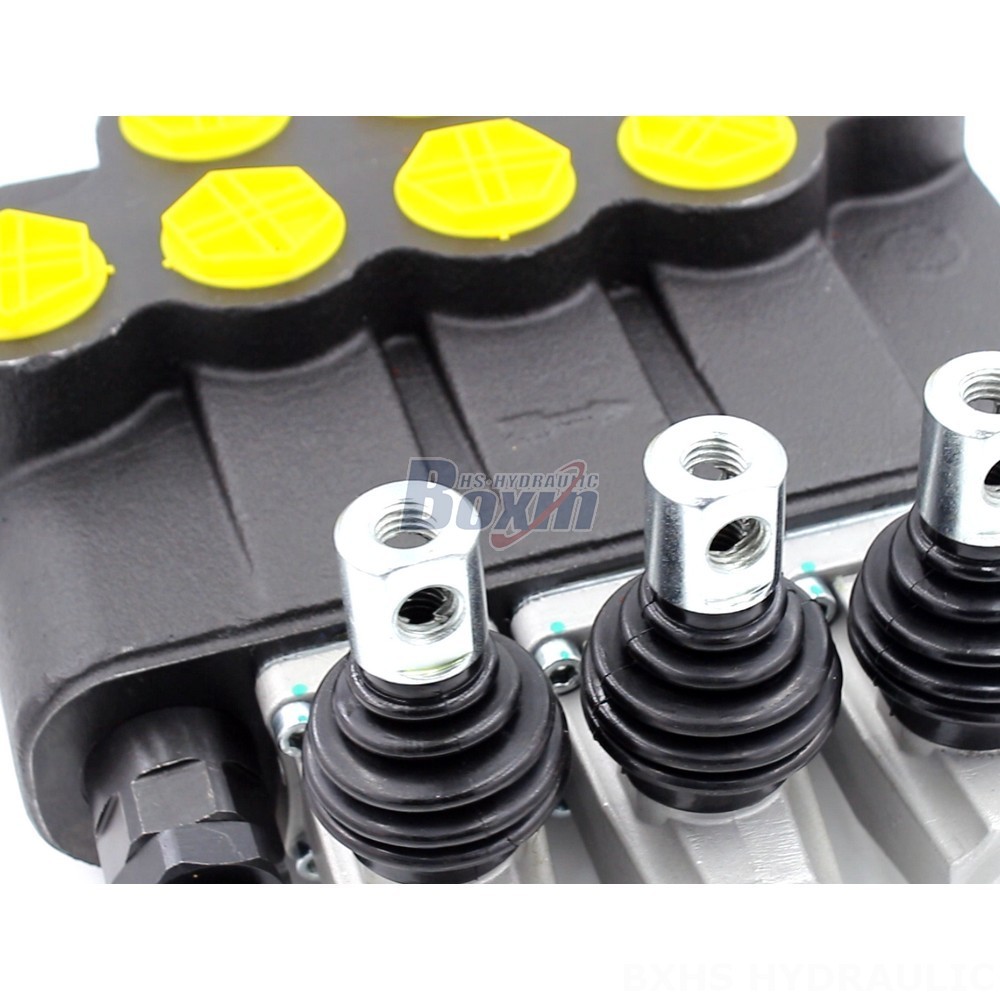

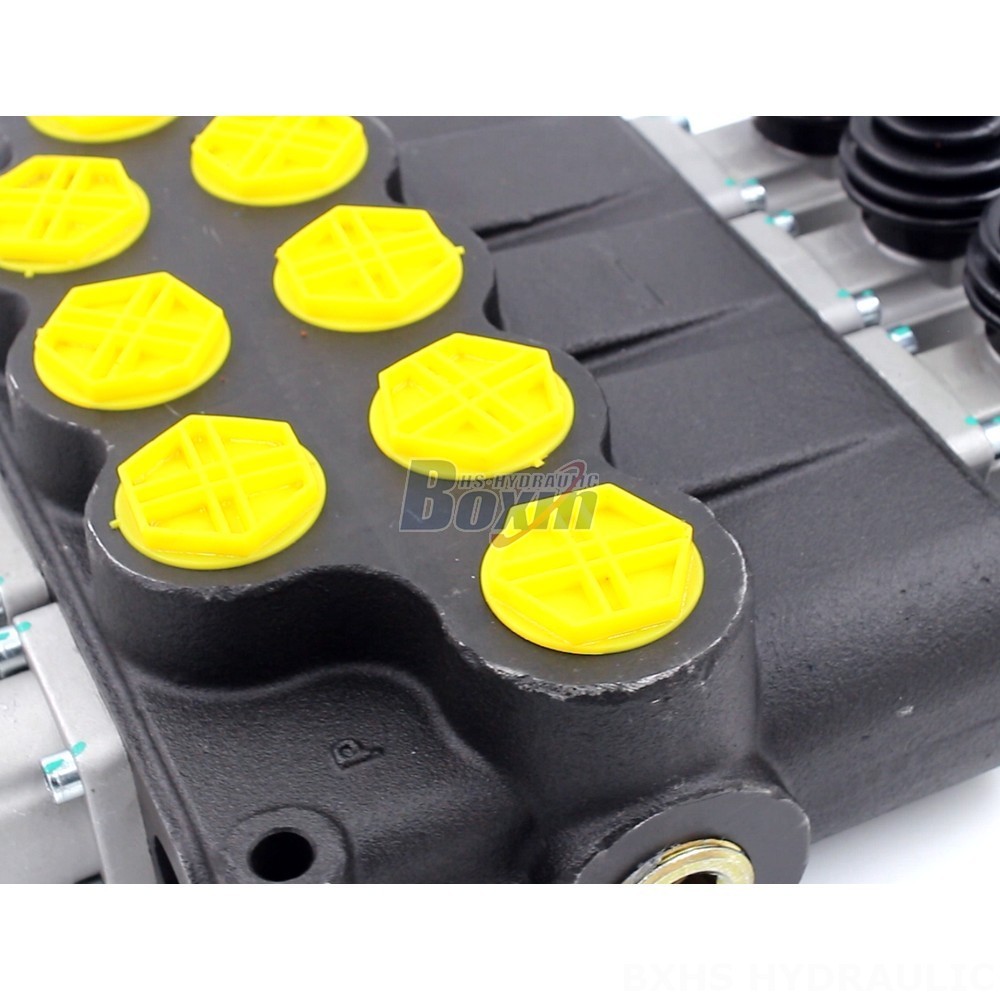

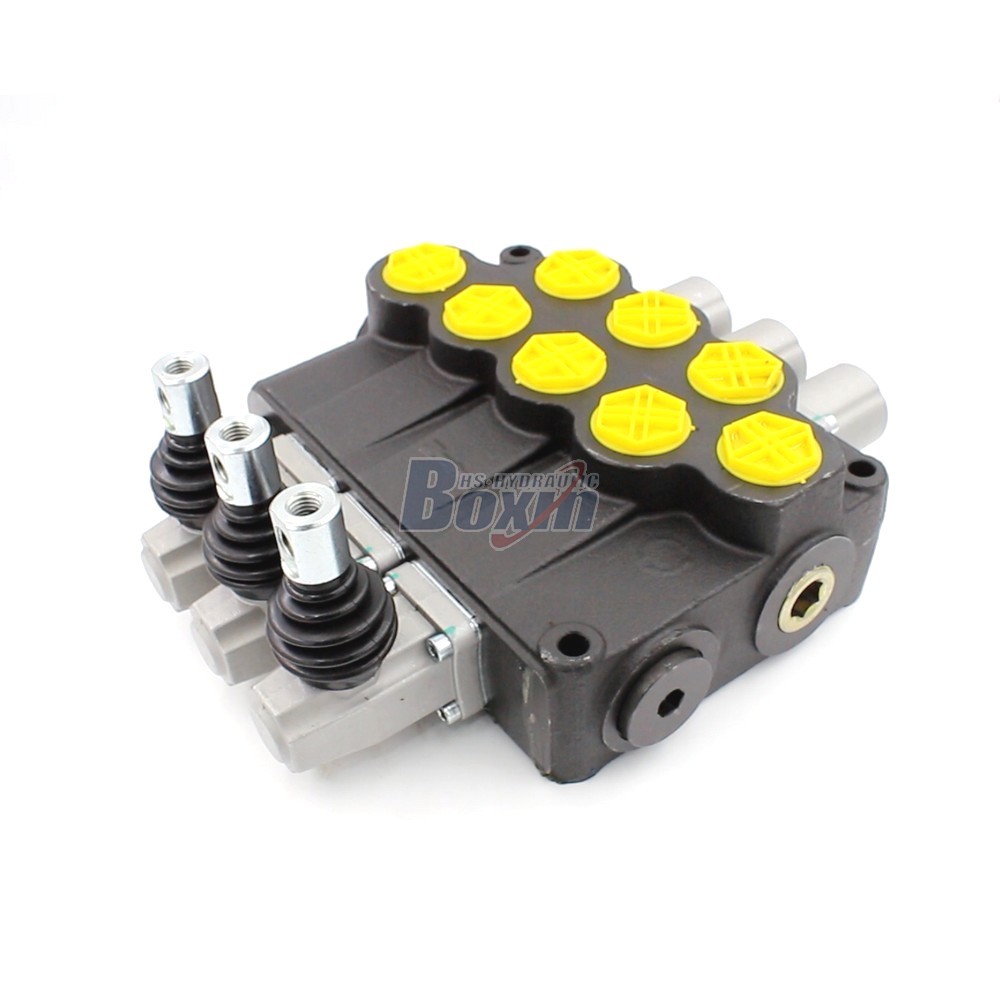

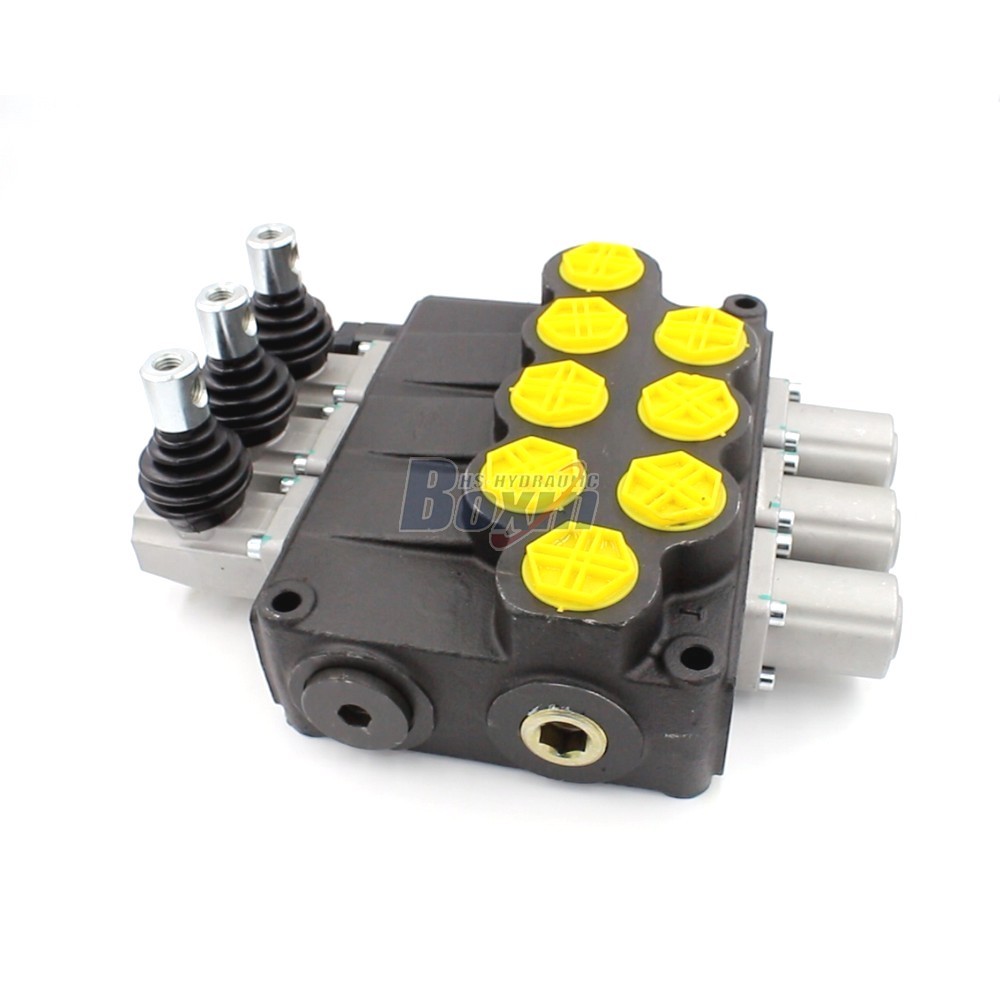

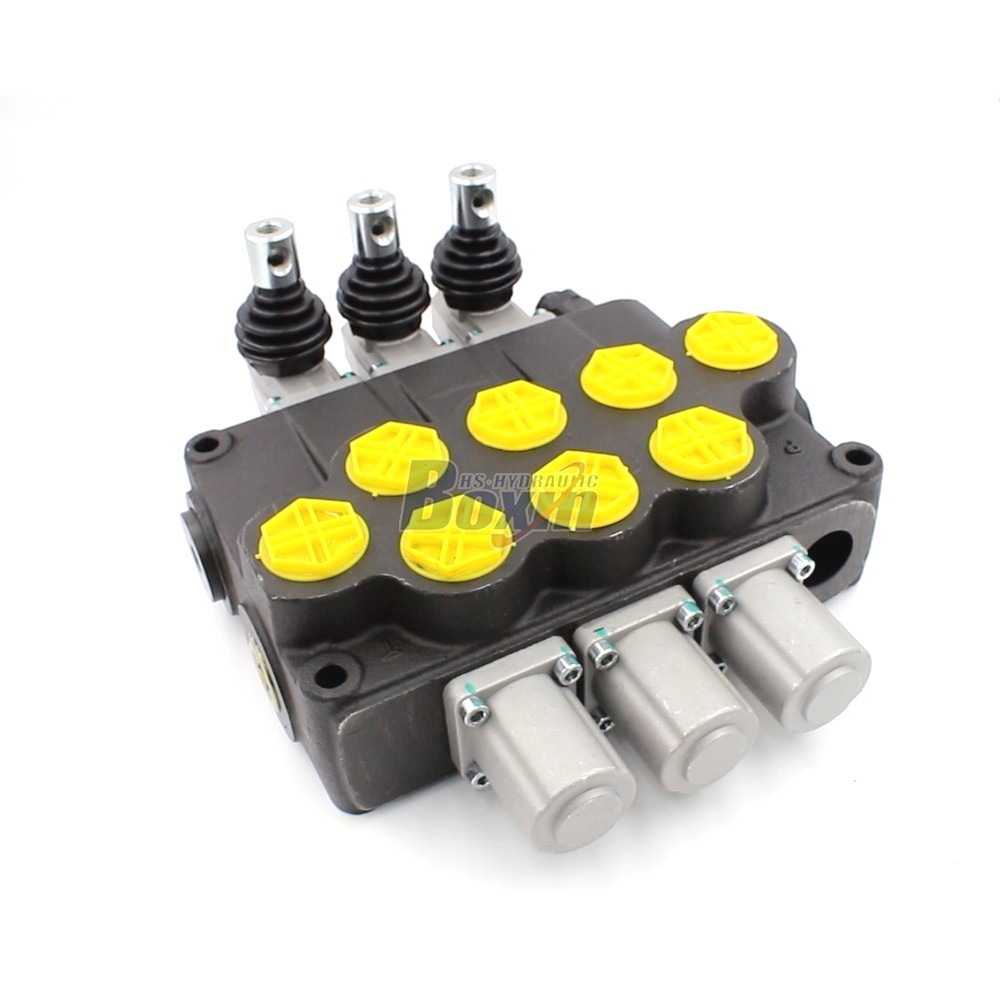

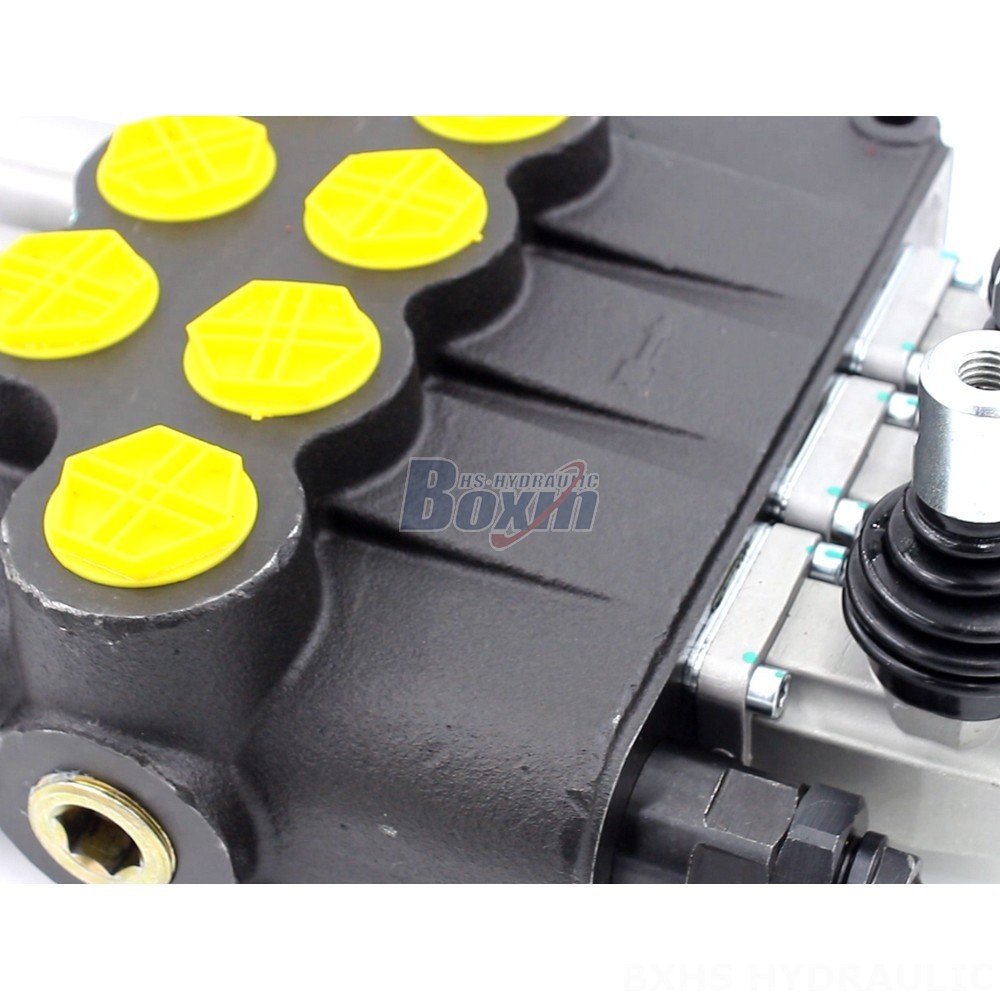

The P120-G1-OT 3 Spool Hydraulic Directional Valve is a high-performance, manually operated valve designed for demanding applications in various industries. With a rated flow of 120 L/min and a maximum pressure of 250 bar, it ensures efficient and reliable operation in a wide range of hydraulic systems.
| P120系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联 |
| 额定流量 | 120 升/分钟 (31.7 美制加仑/分钟) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/4接口, G1接口, M27×2.0螺纹, SAE 14接头, SAE 16接头, 3/4 NPT螺纹, 1 NPT螺纹, M36×2螺纹 |
| 出油口 | G1接口, SAE 16接头, 1 NPT螺纹, M36×2螺纹 |
| 接口尺寸 | G3/4接口, G1接口, M27×2.0螺纹, SAE 14接头, SAE 16接头, 1 NPT螺纹, M36×2螺纹 |
| 联数 | 1联, 2联, 3联, 4联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**Key Features:**
- Manual control for precise and responsive operation
- Monoblock construction for durability and compact design
- 3 spool design for versatile flow control
- Rated flow of 120 L/min (31.7 US gpm) for high-flow applications
- Maximum pressure of 250 bar (3600 psi) for demanding conditions
- Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various hydraulic fluids
- Wide ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in extreme environments
**Applications:**
- Material handling equipment, such as forklifts and telehandlers
- Construction machinery, including excavators, skid steer loaders, and wheel loaders
- Agricultural machinery, such as tractors and harvesters
- Industrial vehicles, including aerial platforms and motor graders
