Hydraulic Distributor Tractor P120 2-Spool Hydraulic Valves | Factory Wholesale & Customization

控制方式:手控

路数:2 联

额定流量:120 升/分钟 (31.7 美制加仑/分钟)

最大压力:250 bar (3600 psi)

进油口:G3/4接口

出油口:G1接口

接口尺寸:G3/4接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P120系列 单块式方向阀

Packagingsize:30*39*17

Grossweight:19.00 kg

库存: 有货

811 次查看了此产品

Hydraulic Distributor Tractor P120 2-Spool Hydraulic Valves | Factory Wholesale & Customization

Hydraulic Distributor Tractor P120 2-Spool Hydraulic Valves | Factory Wholesale & Customization

Hydraulic Distributor Tractor P120 2-Spool Hydraulic Valves | Factory Wholesale & Customization drawing image

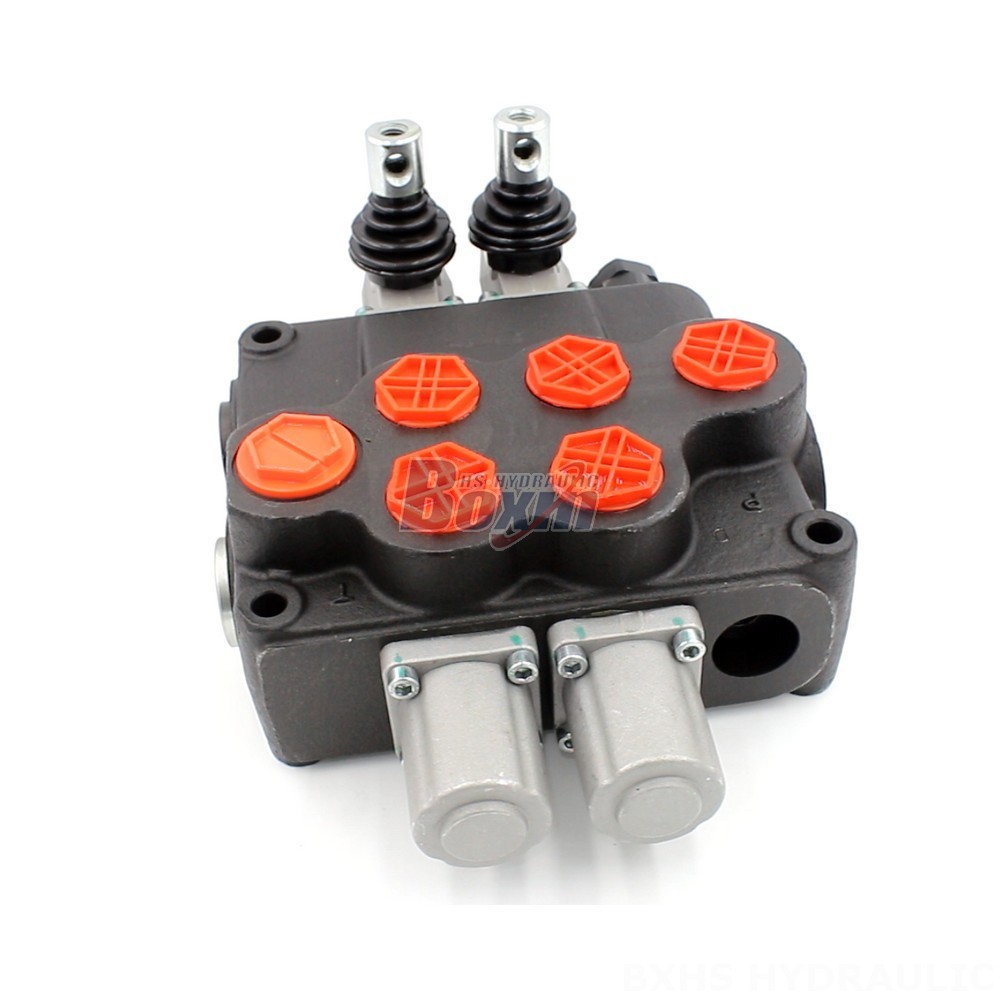

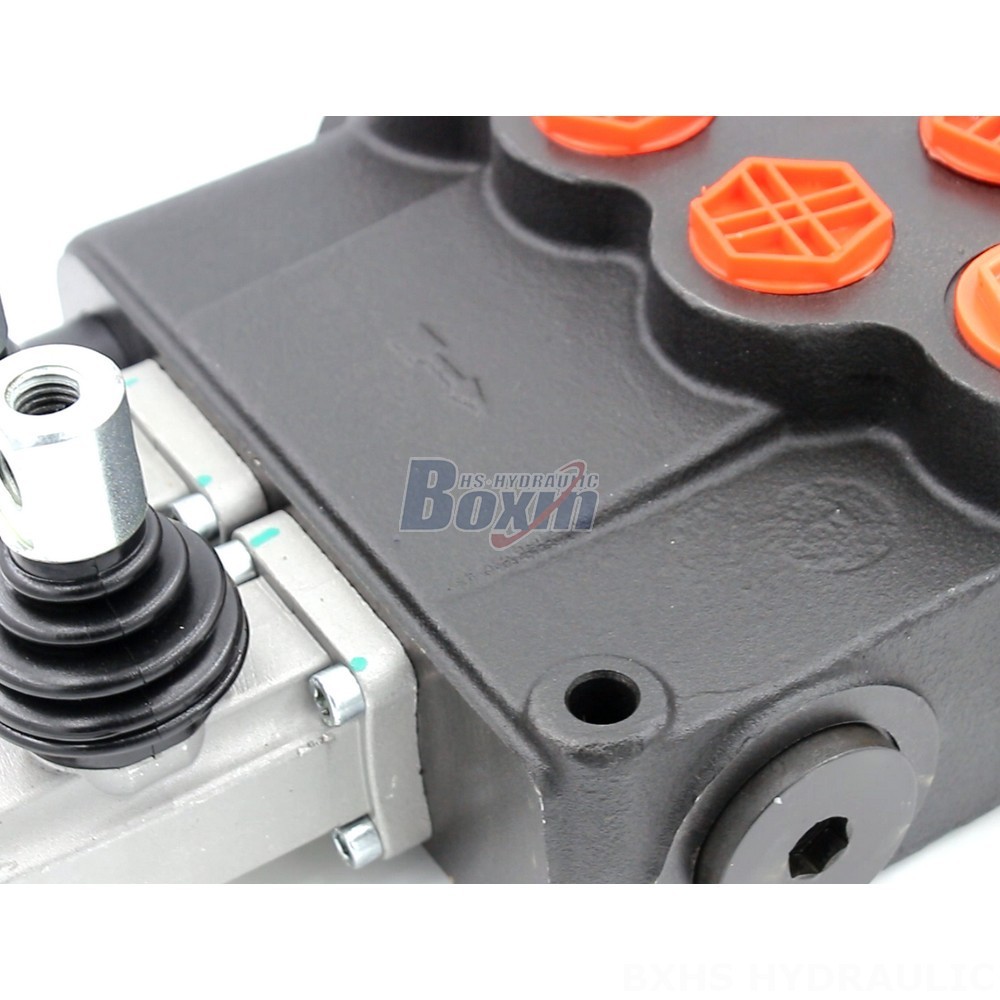

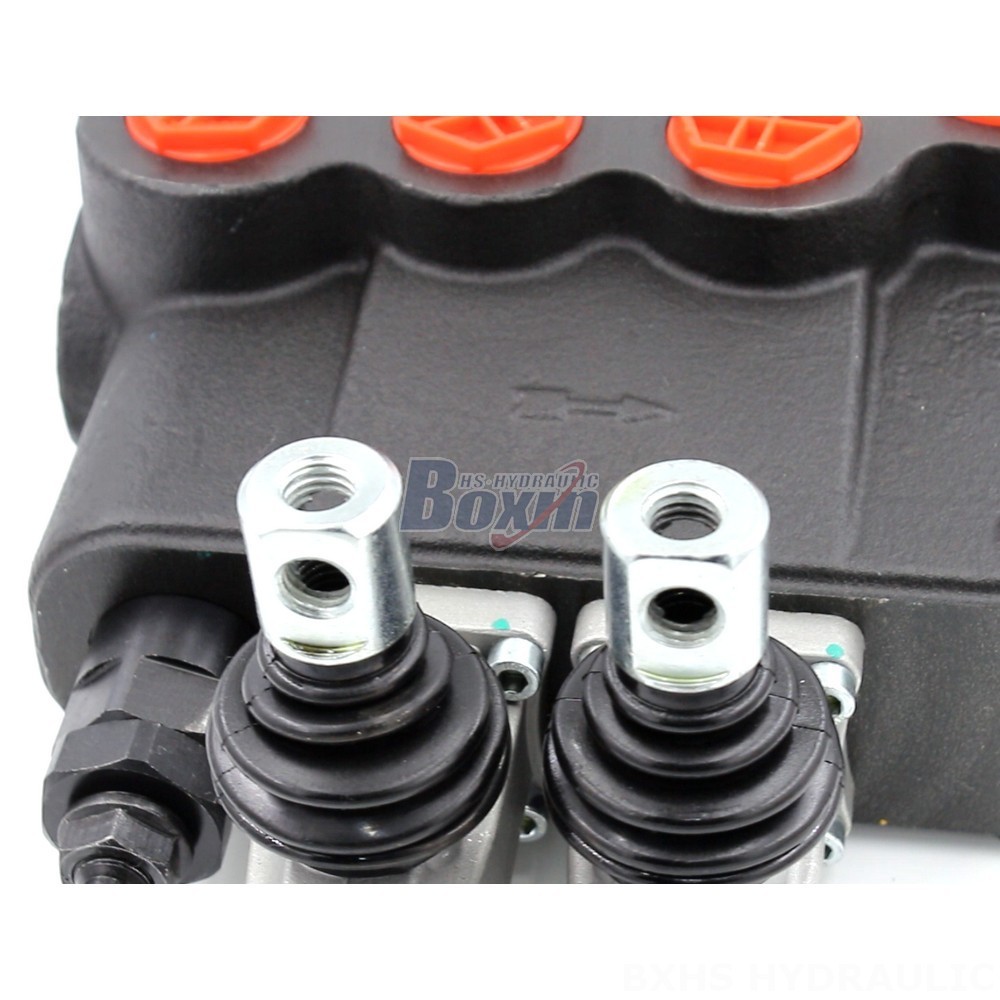

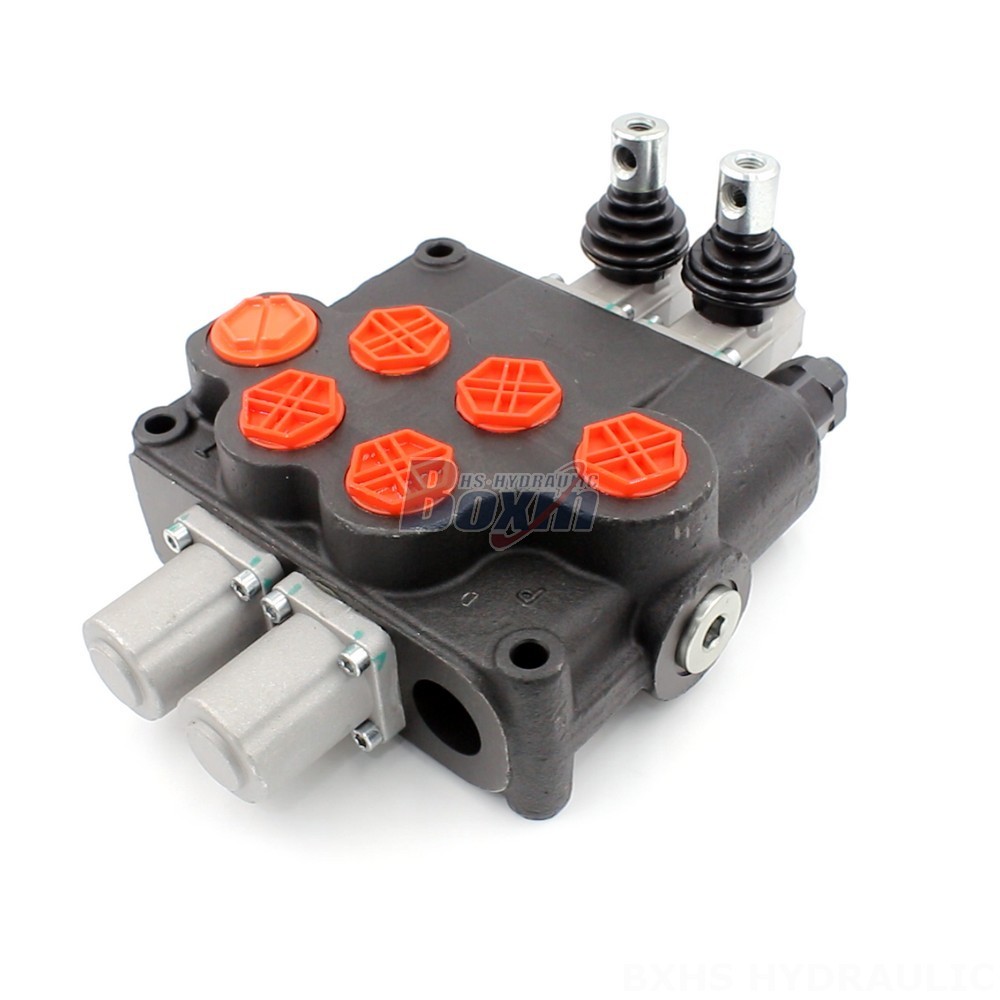

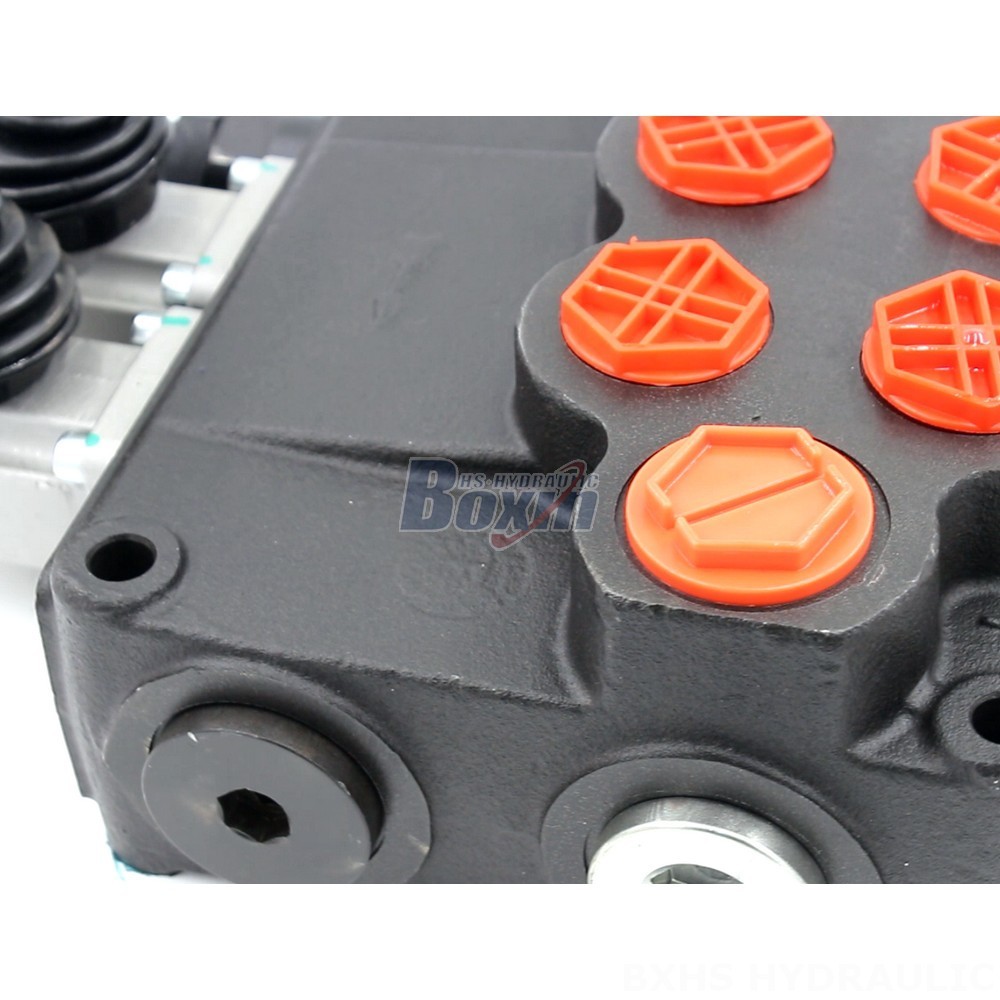

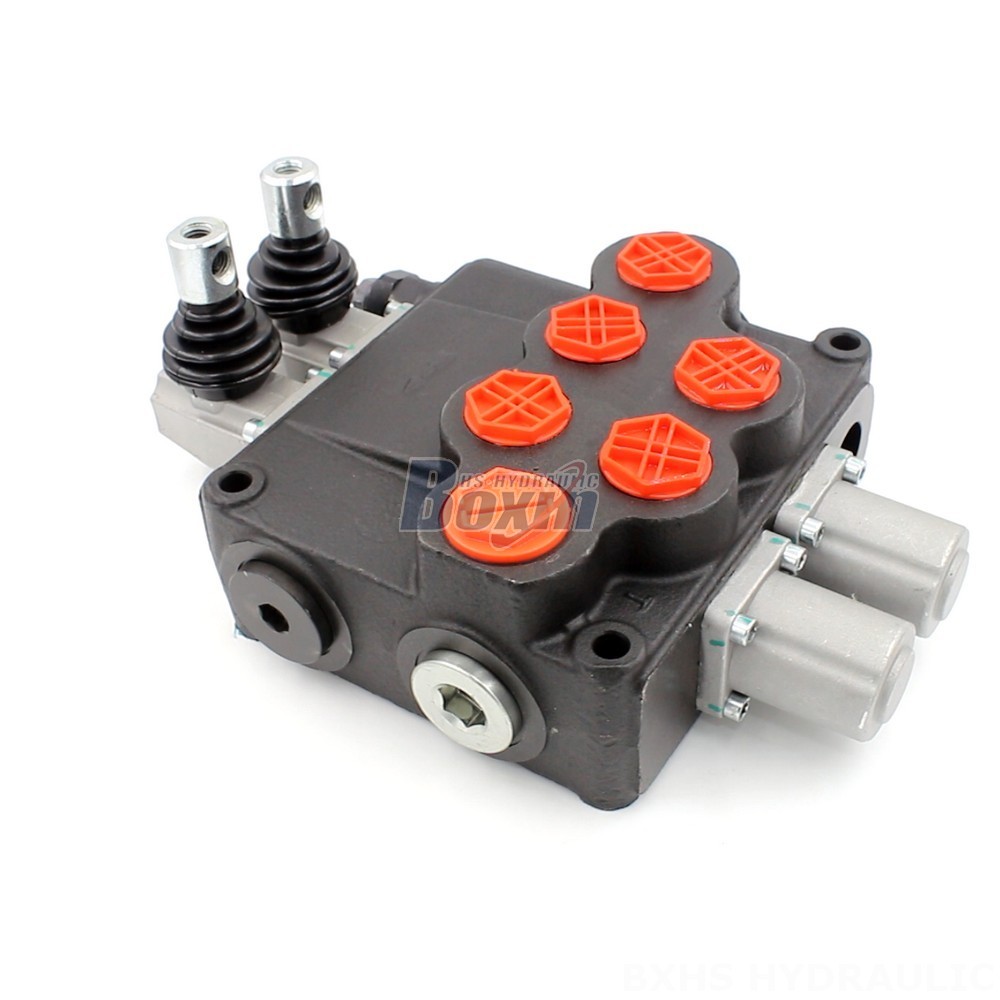

The P120 2-Spool Hydraulic Valve is a robust and reliable monoblock valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It features a rated flow of 120 L/min and a maximum pressure of 250 bar, making it suitable for demanding tasks.

P120系列 单块式方向阀 参数
控制方式 手控, 软轴, 一控二手柄控制, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联
额定流量 120 升/分钟 (31.7 美制加仑/分钟)
最大压力 250 bar (3600 psi)
进油口 G3/4接口, G1接口, M27×2.0螺纹, SAE 14接头, SAE 16接头, 3/4 NPT螺纹, 1 NPT螺纹, M36×2螺纹
出油口 G1接口, SAE 16接头, 1 NPT螺纹, M36×2螺纹
接口尺寸 G3/4接口, G1接口, M27×2.0螺纹, SAE 14接头, SAE 16接头, 1 NPT螺纹, M36×2螺纹
联数 1联, 2联, 3联, 4联
结构类型 整体阀
环境温度范围 -40°C to +80°C (-40°F to +176°F)
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)

This high-performance hydraulic distributor valve is part of the P120 series and is specifically designed for 2-spool operation. It offers a compact and durable design with a robust monoblock construction. The valve is manually controlled and features a rated flow of 120 L/min (31.7 US gpm) with a maximum pressure rating of 250 bar (3600 psi). Its operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), ensuring reliable performance in various operating conditions. The P120 2-Spool Hydraulic Valve can withstand ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). It is widely applicable in various equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
