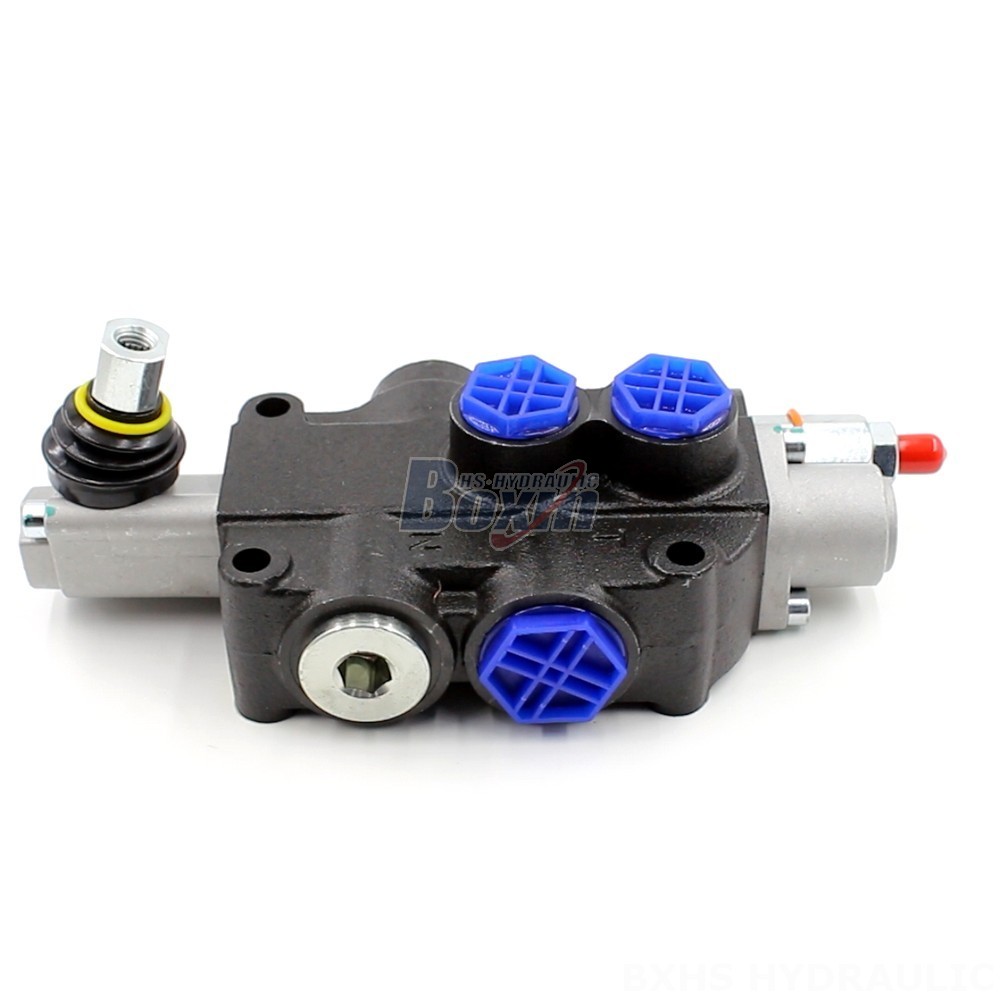

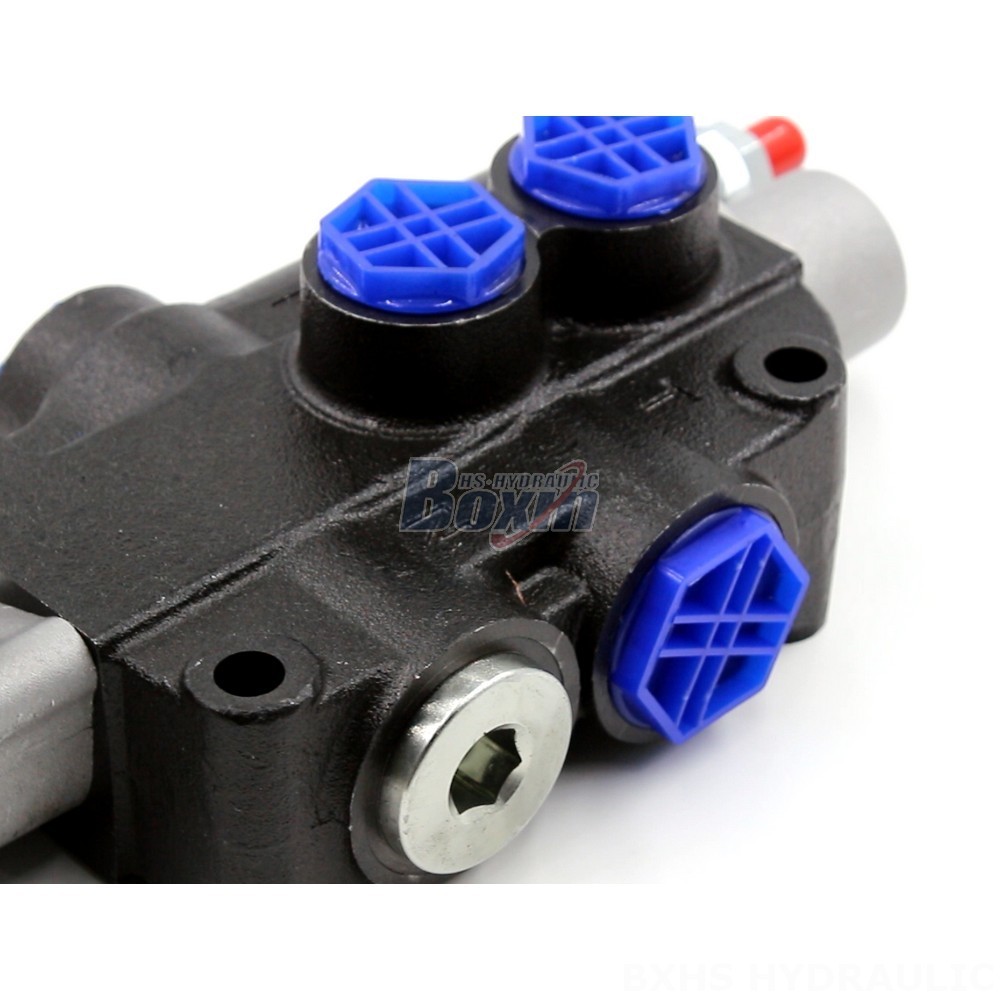

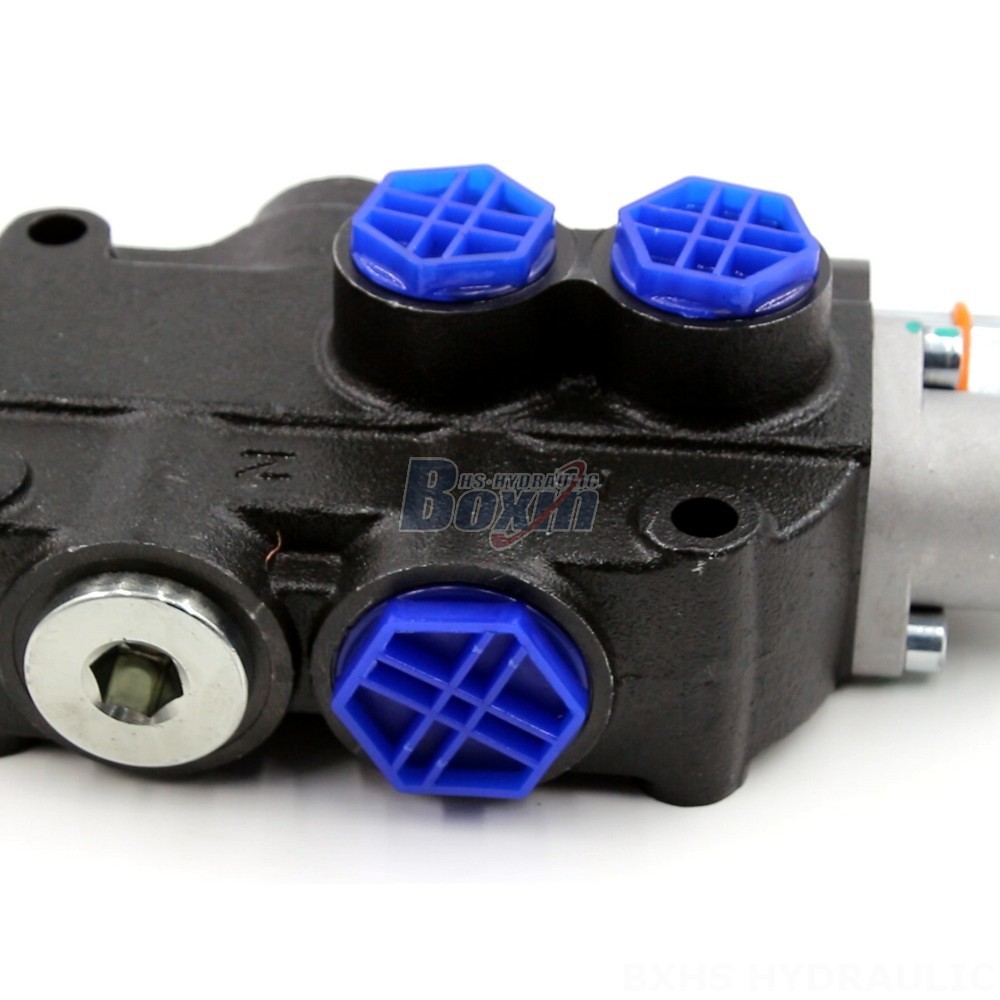

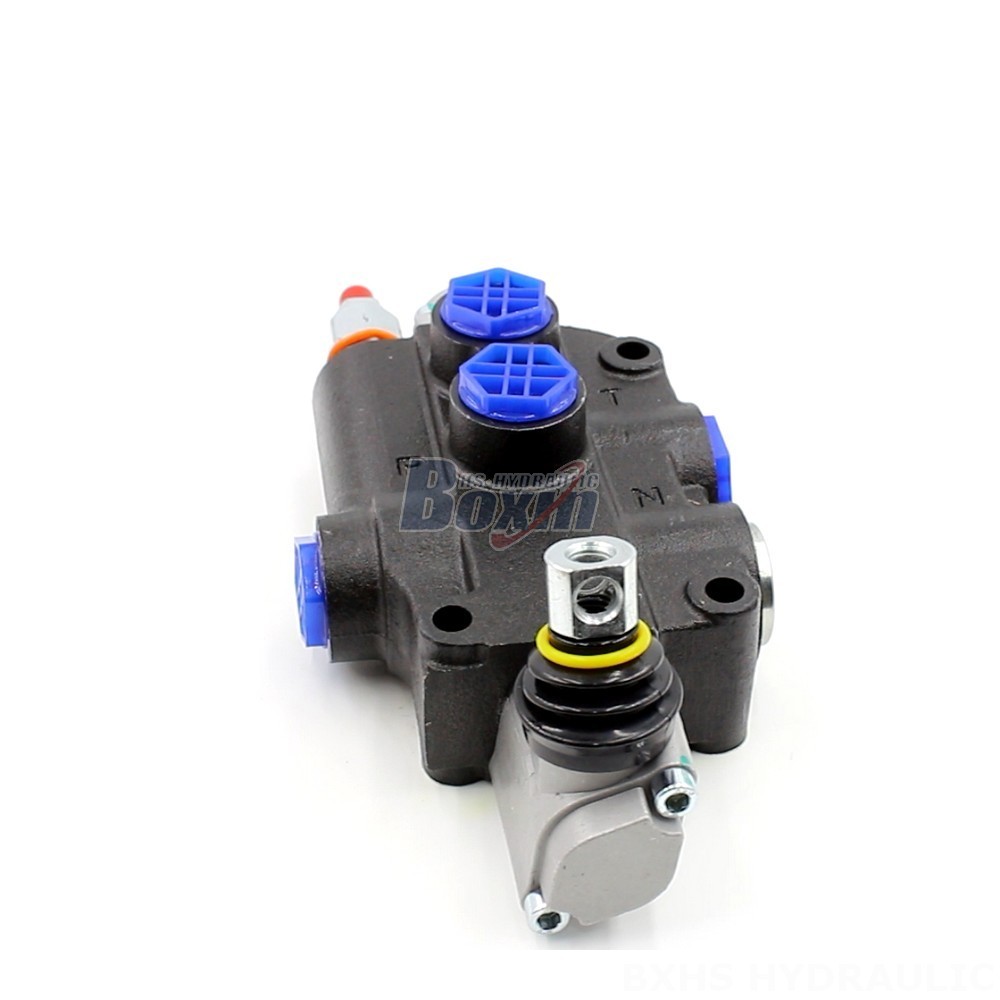

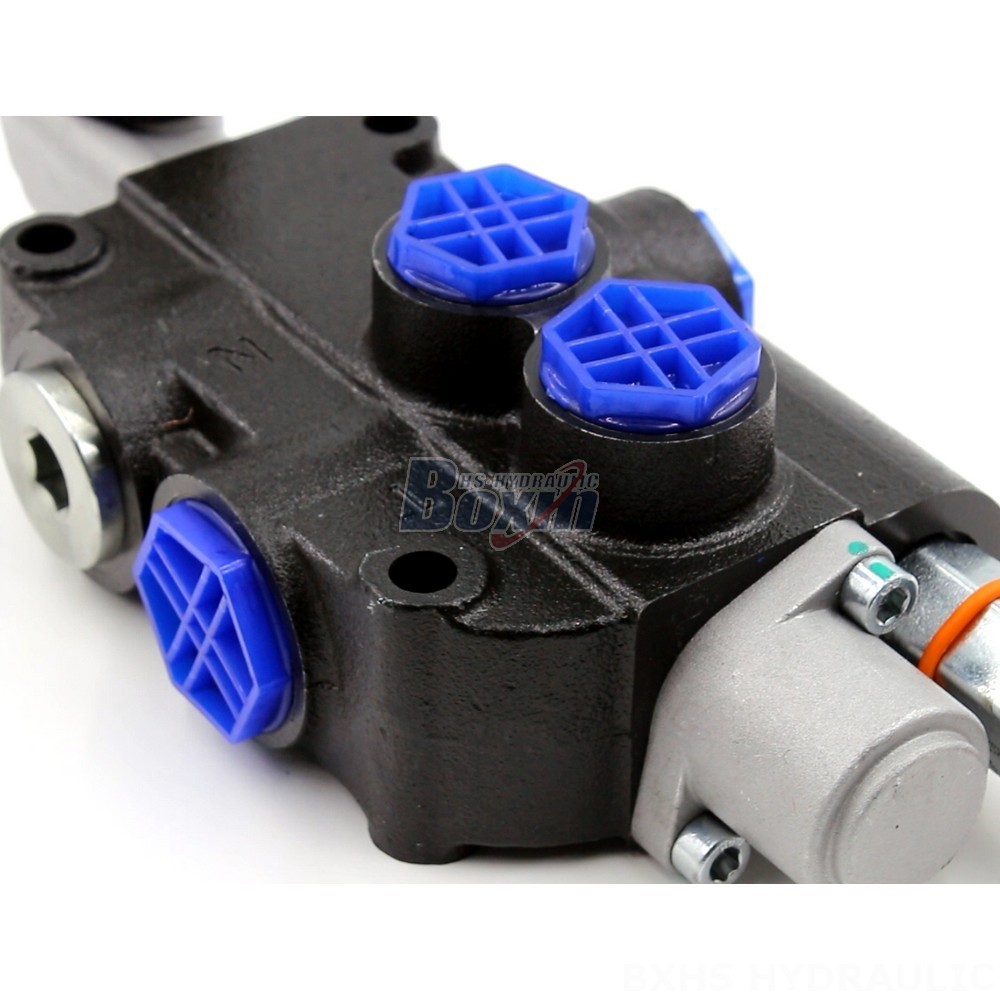

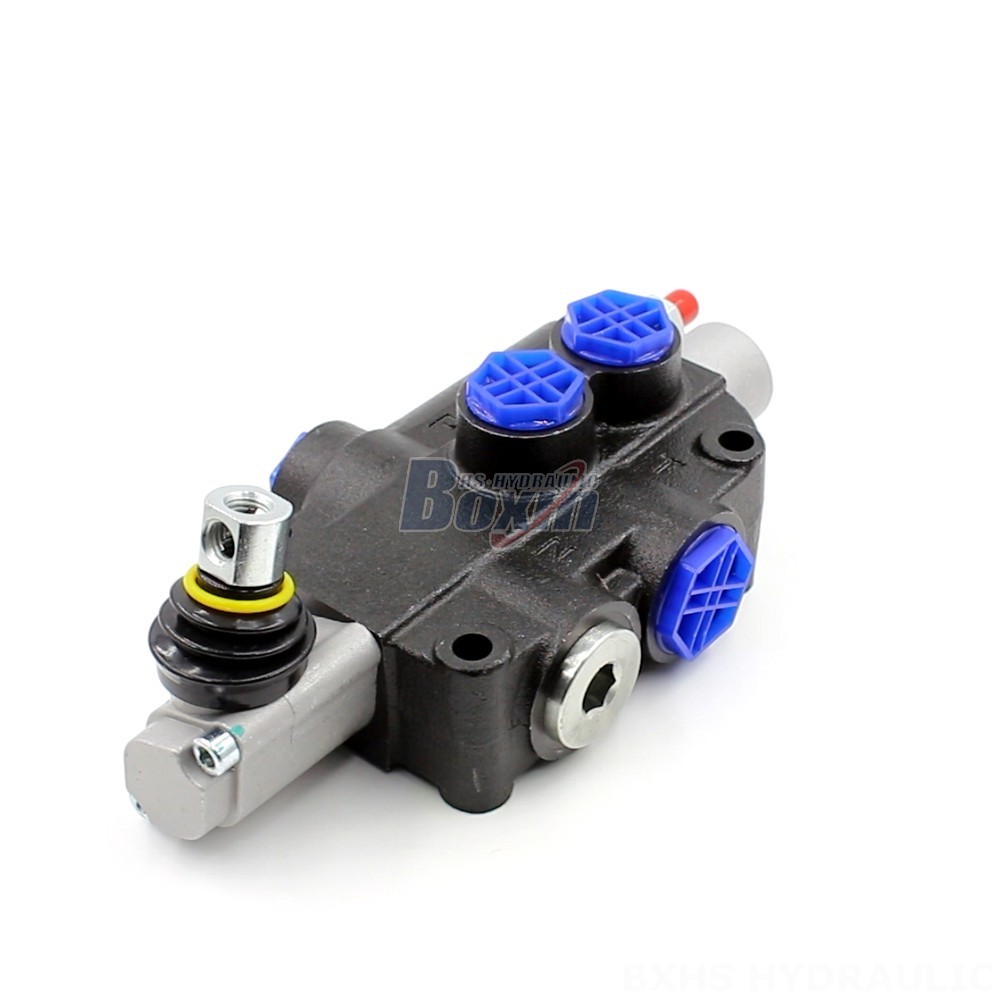

The P80-G12-OW directional valve from OEM Hydraulic Solutions is a highly customizable and reliable solution for various hydraulic applications. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it offers exceptional performance and durability.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
The P80-G12-OW valve features a monoblock design for compactness and robustness. It operates manually and has a single spool. Its wide operating viscosity range (15 - 75 mm²/s) and ambient temperature range (-40°C to +80°C) ensure optimal performance in diverse conditions. This valve is ideal for applications in material handling, construction and earth-moving equipment, agriculture machinery, and industrial vehicles. OEM Hydraulic Solutions offers customization, private labeling, and turnkey manufacturing services to meet specific customer requirements.
