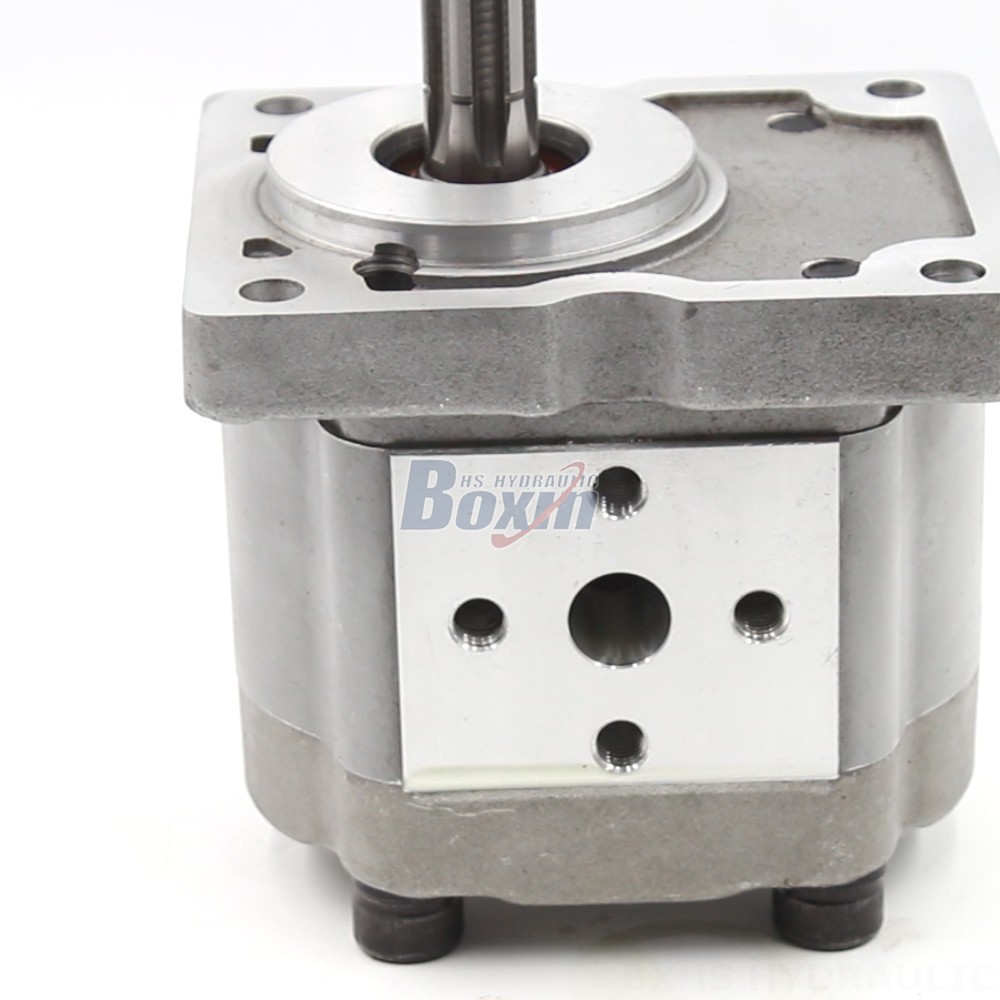

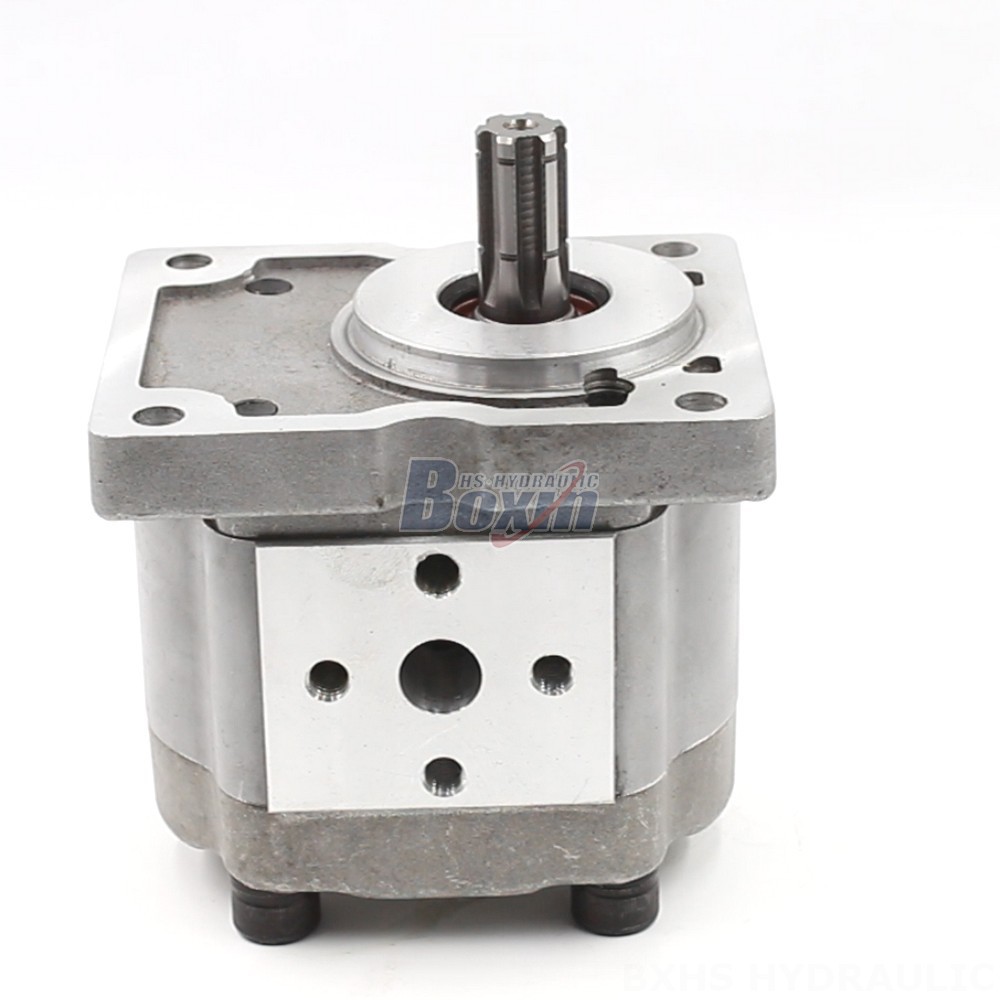

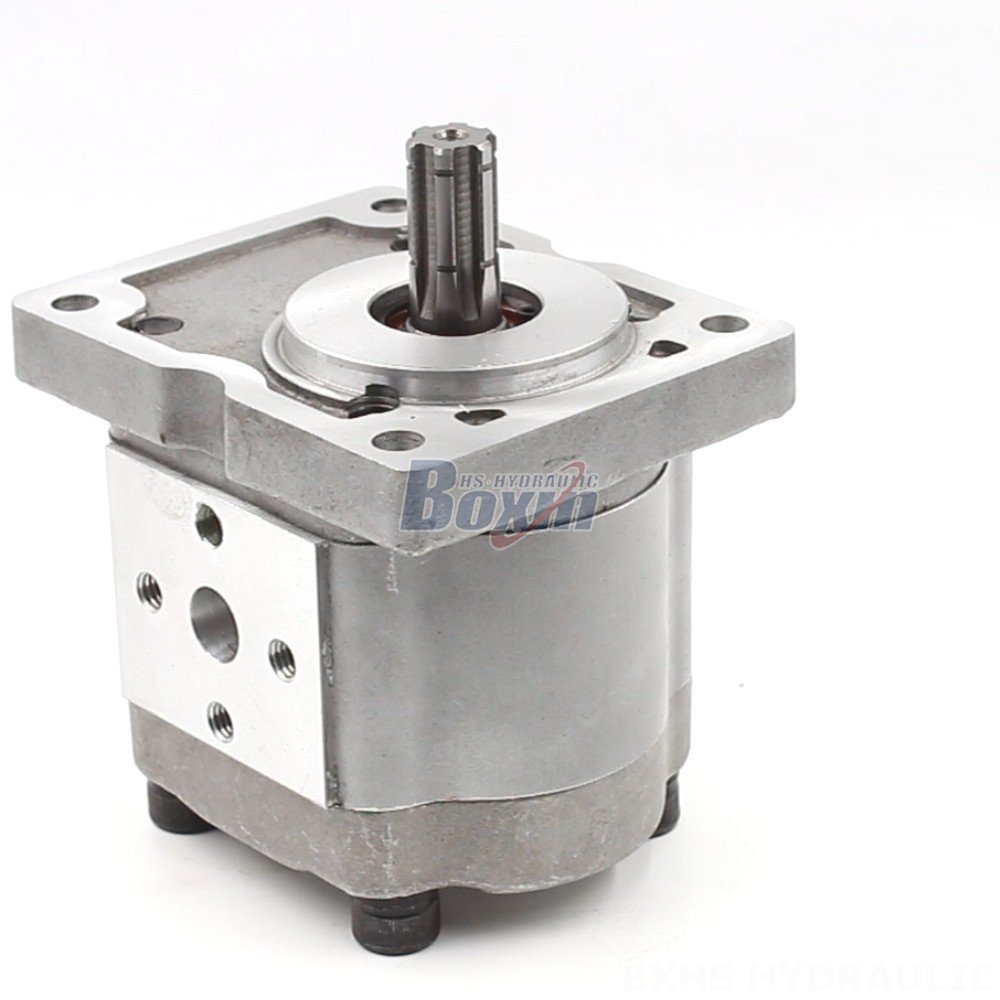

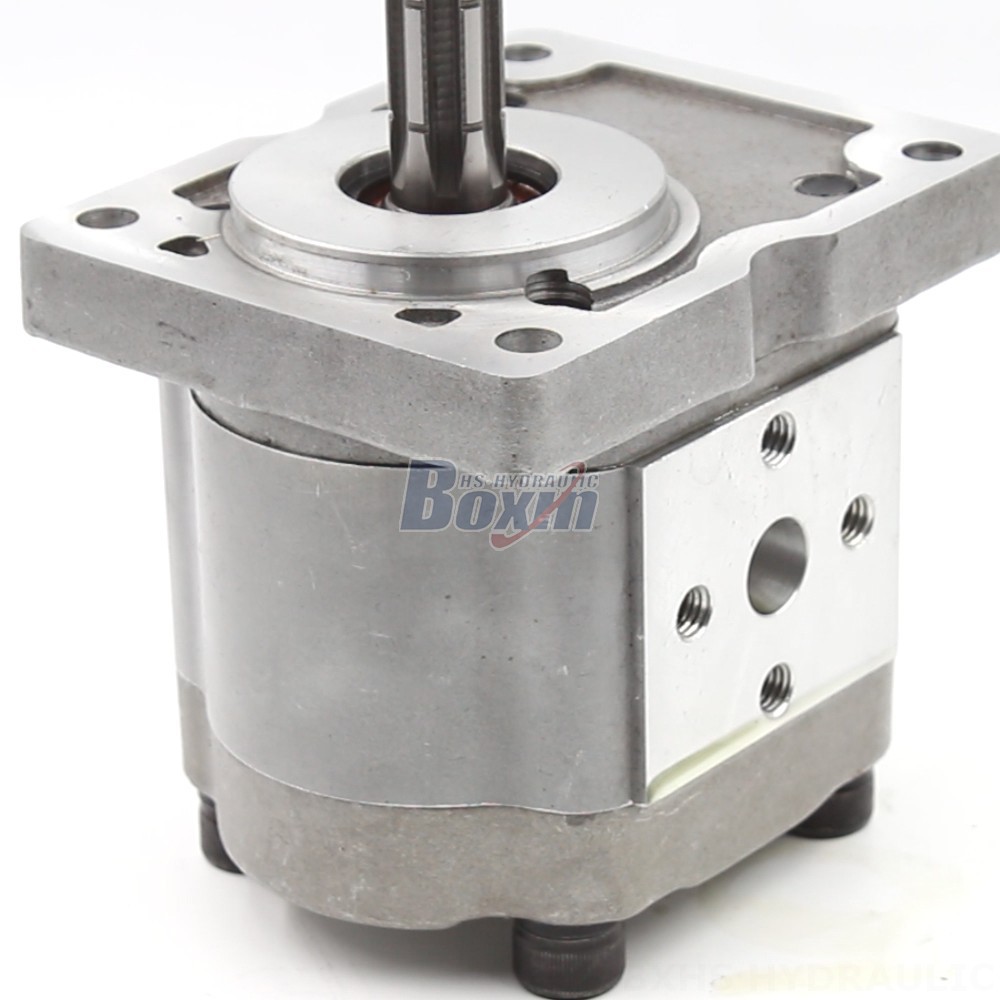

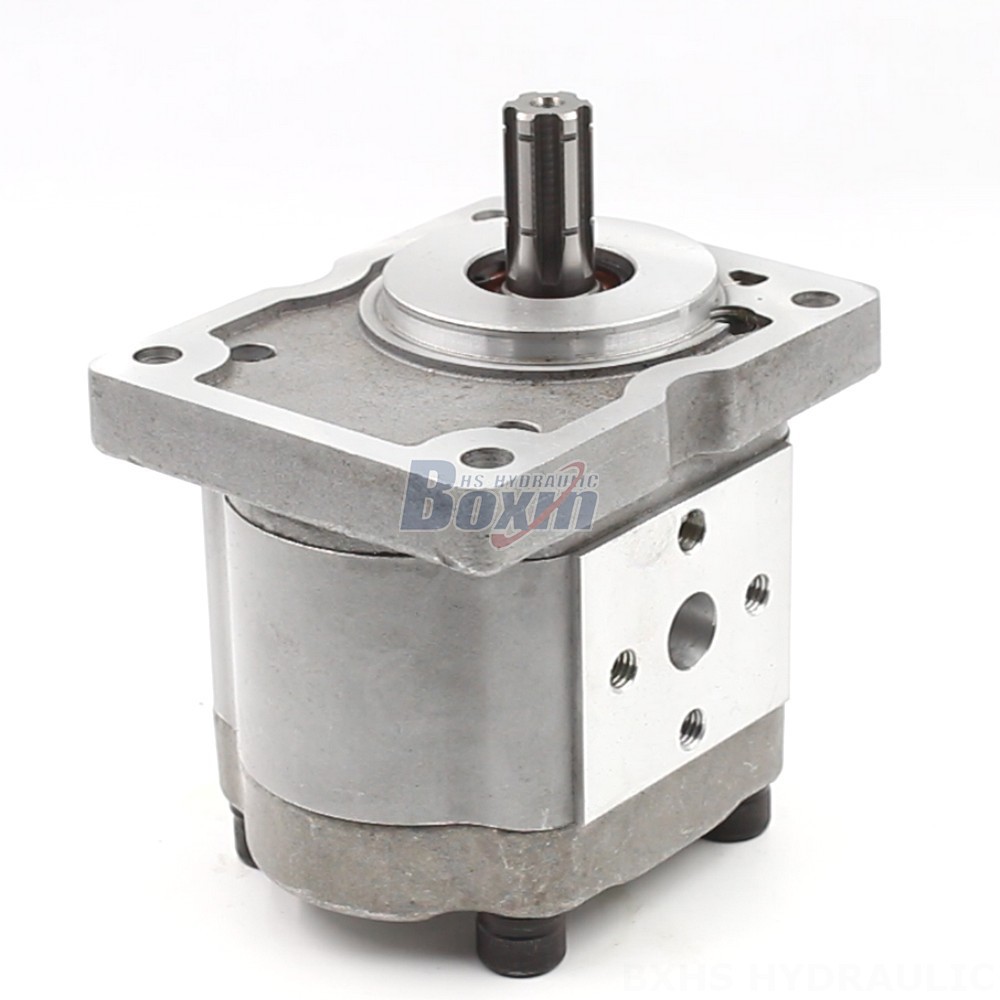

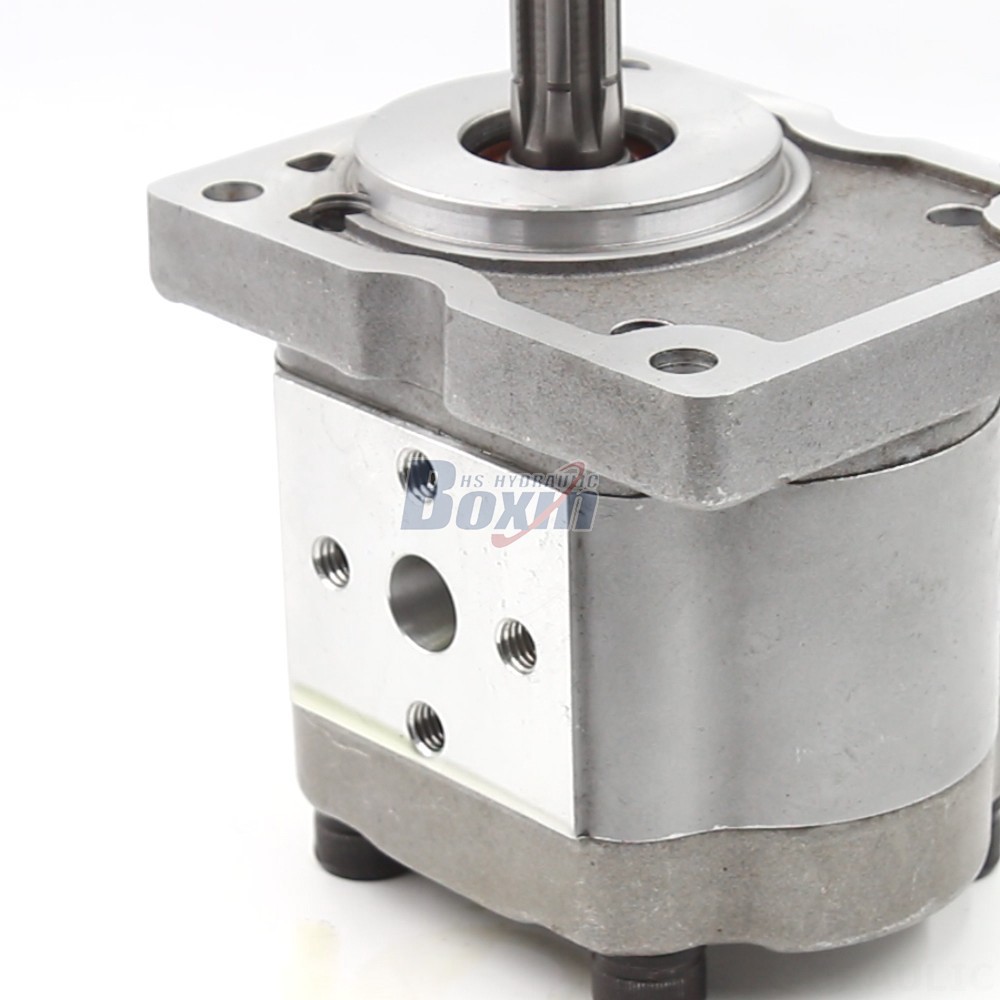

The NSH-10 Gear Pump is a high-performance and reliable hydraulic gear pump designed for fluid power systems. It features a displacement of 100 cc/rev, 10 cc/rev, 40 cc/rev, or 50 cc/rev, a rated pressure of 18 MPa (2610 psi), and a rated speed of 2000 r/min. The pump is constructed from aluminium and has a B-Square flange version and an involute spline shaft type.
| NSH系列 液压齿轮泵 参数 | |
|---|---|
| 排量 | 10 毫升/转, 32 毫升/转, 40 毫升/转, 50 毫升/转, 100 毫升/转 |
| 额定压力 | 18 MPa (2610 psi) |
| 最大压力 | 20 MPa (2900 psi) |
| 额定转速 | 2000 r/min |
| 最大转速 | 4200 r/min |
| 旋转方向 | 左旋（逆时针旋转） |
| 材质 | 铝 |
| 架构 | 外啮合齿轮泵 |
| 法兰盘类型 | B-方形法兰 |
| 轴伸形式 | X:渐开线花键 |
The NSH-10 Gear Pump is suitable for various applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. It is commonly used in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, and skid steer loaders. The pump's external gear design provides high efficiency and low noise levels, while its aluminium construction ensures durability and corrosion resistance.
