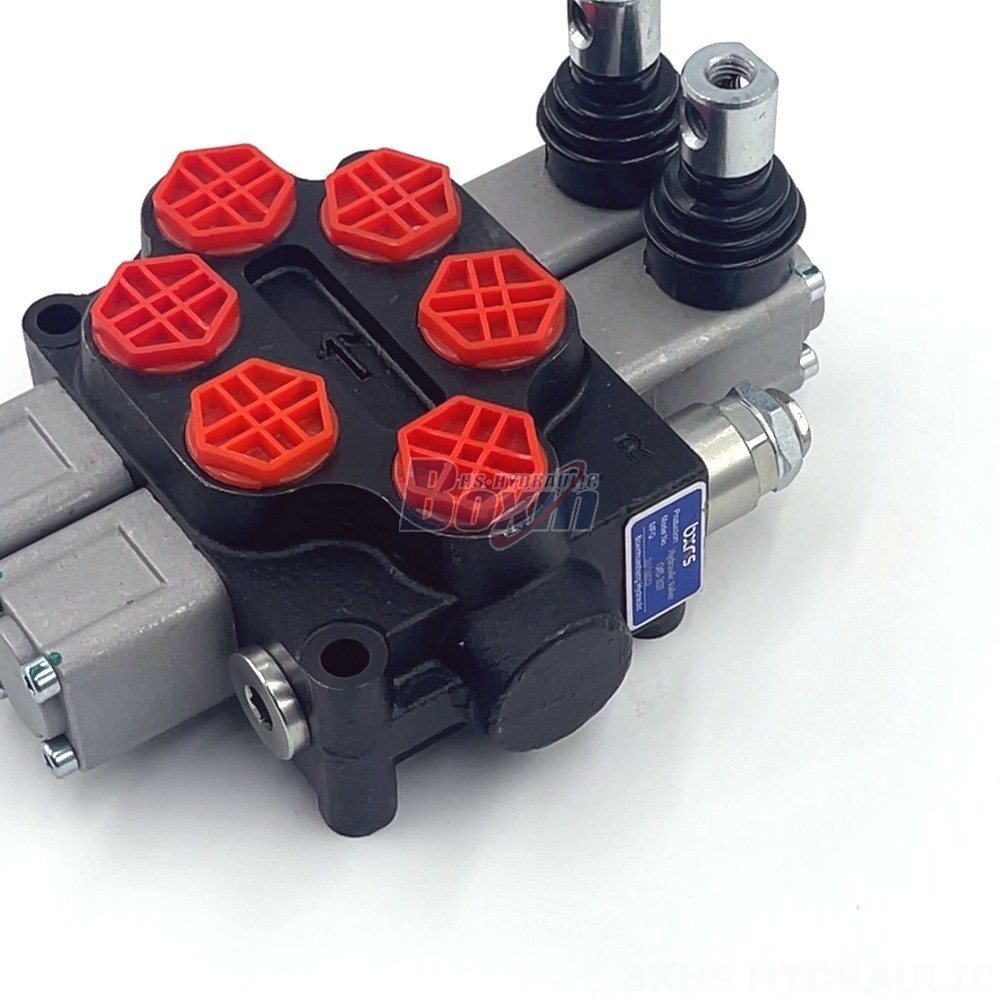

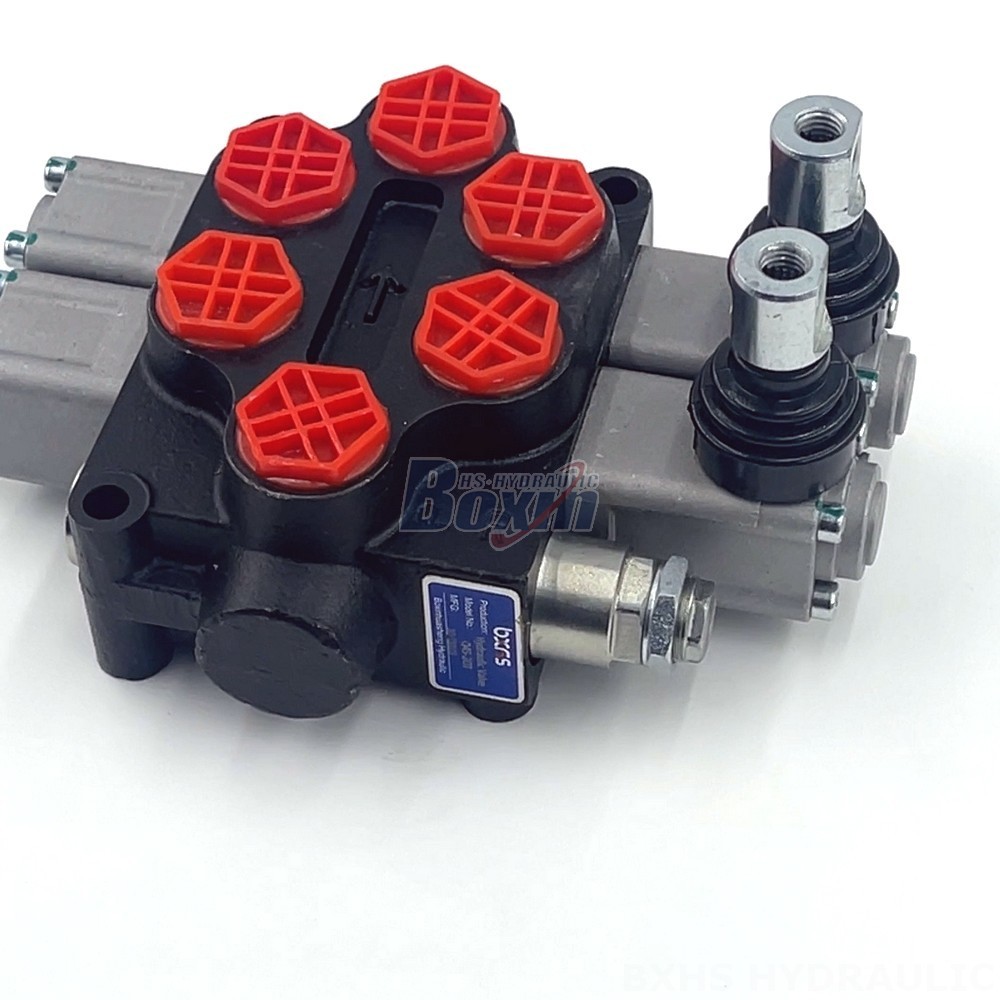

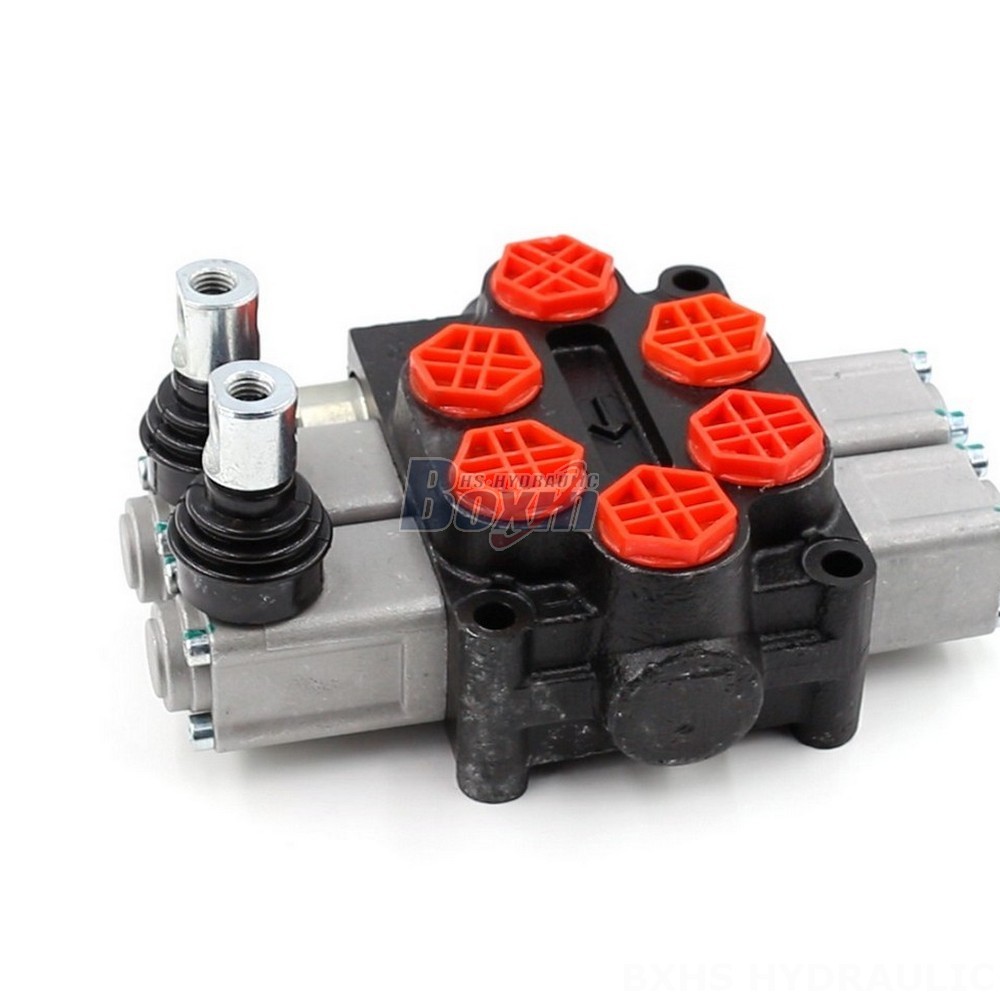

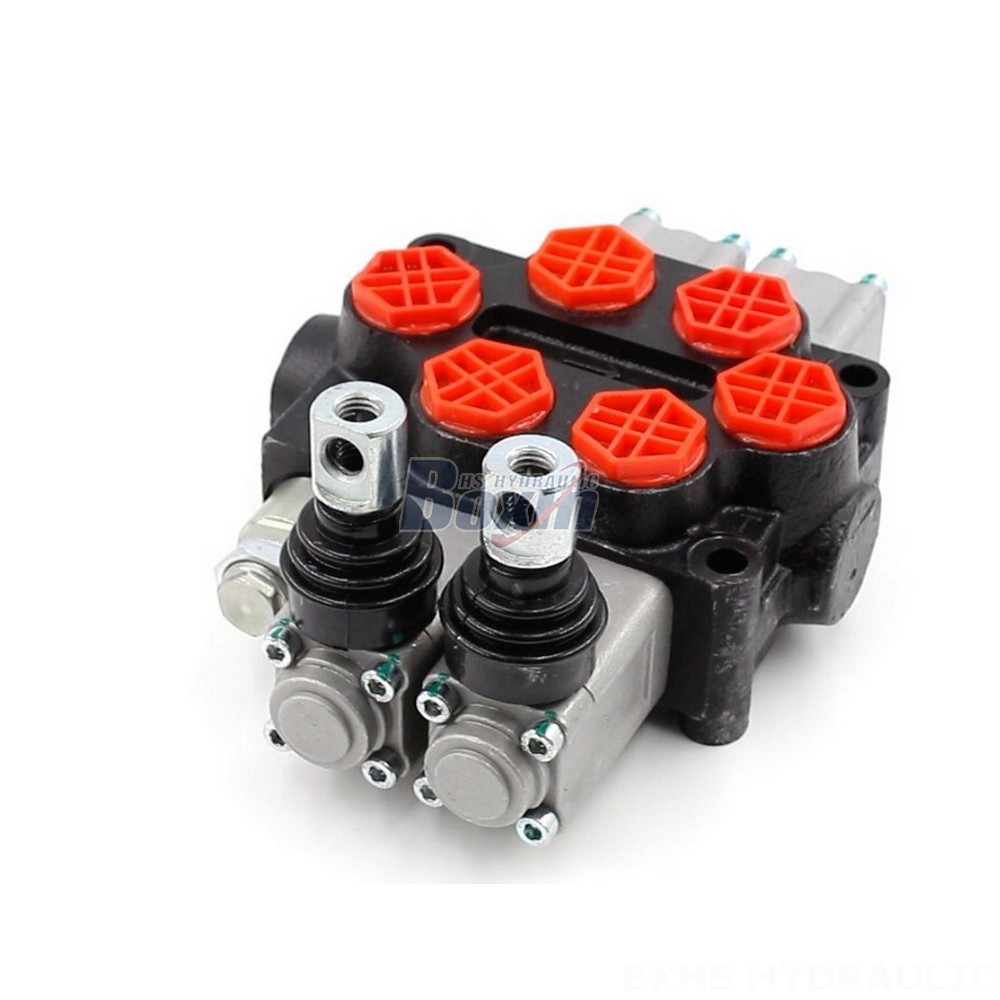

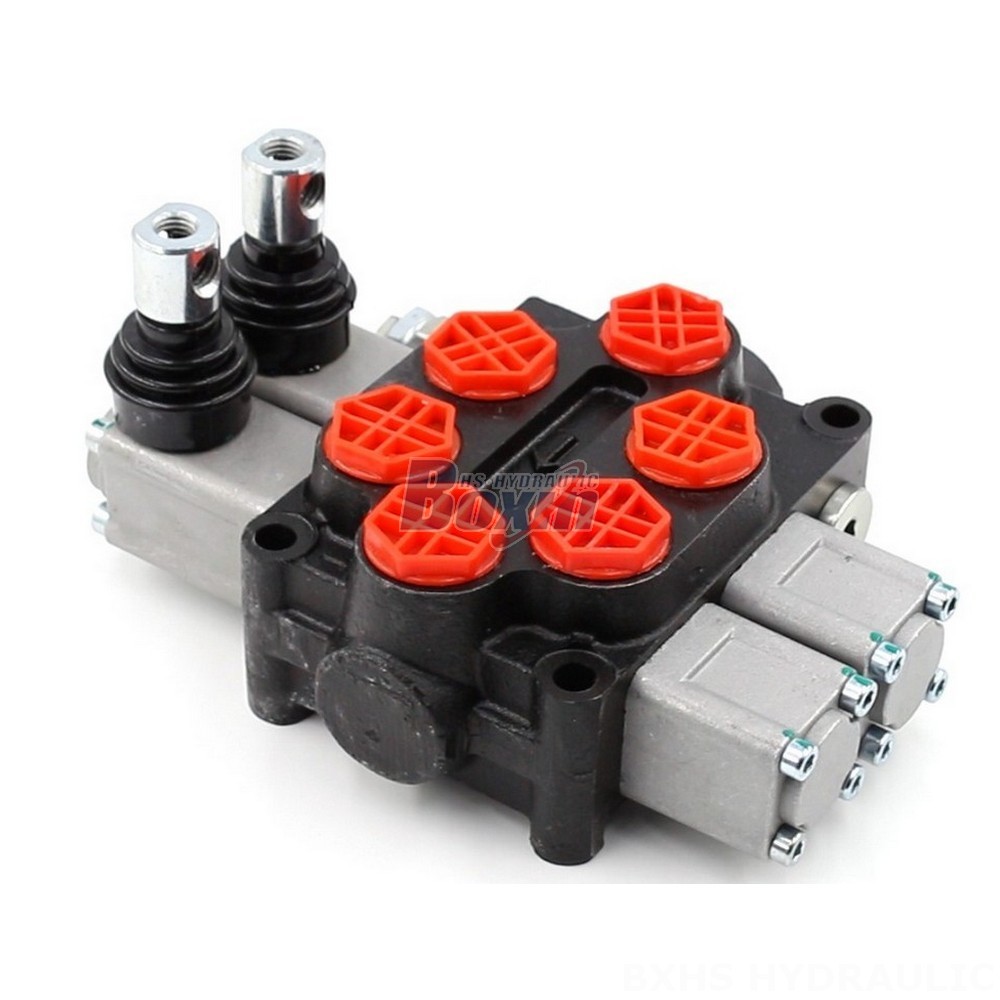

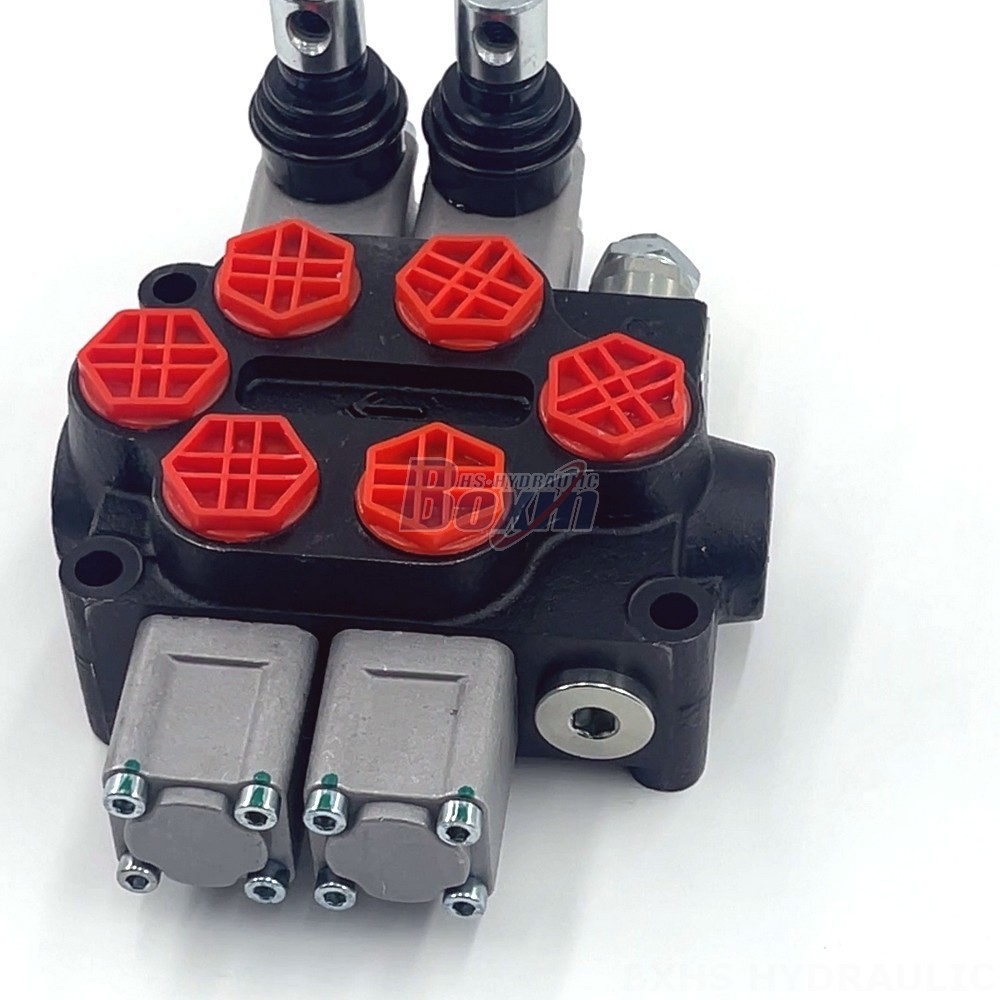

The Q45 Series Hydraulic Hand Lever Valve Monoblock Directional Valve is a high-performance, reliable valve designed for a wide range of applications in material handling, construction, earthmoving, agriculture, and industrial vehicles. This manual control valve features a 2-section, monoblock design with a rated flow of 45 L/min and a maximum pressure of 315 bar. Its robust construction and precise engineering ensure long-lasting performance and optimal control for various equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
| Q45系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 一控二手柄控制, 电磁和手动, 手动及推拉式电磁铁, 推拉式电磁铁 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -20°C to +80°C (-4°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 45 L/min (11.8 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口 |
| 出油口 | G1/2接口 |
| 接口尺寸 | G1/2接口 |
The Q45 Series Hydraulic Hand Lever Valve Monoblock Directional Valve is a compact and robust solution for controlling hydraulic systems. This manual control valve is engineered for precision and reliability, making it an ideal choice for demanding applications. Its 2-section, monoblock design offers excellent flow and pressure performance, while its 2-spool configuration provides versatile control options. The valve is rated for a flow rate of 45 L/min and a maximum pressure of 315 bar, ensuring efficient and reliable operation. Its wide range of applications includes material handling, construction, earthmoving, agriculture, and industrial vehicles. The valve is particularly well-suited for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. This versatile valve offers exceptional durability and performance, making it a valuable asset for any operation requiring precise and reliable hydraulic control.
