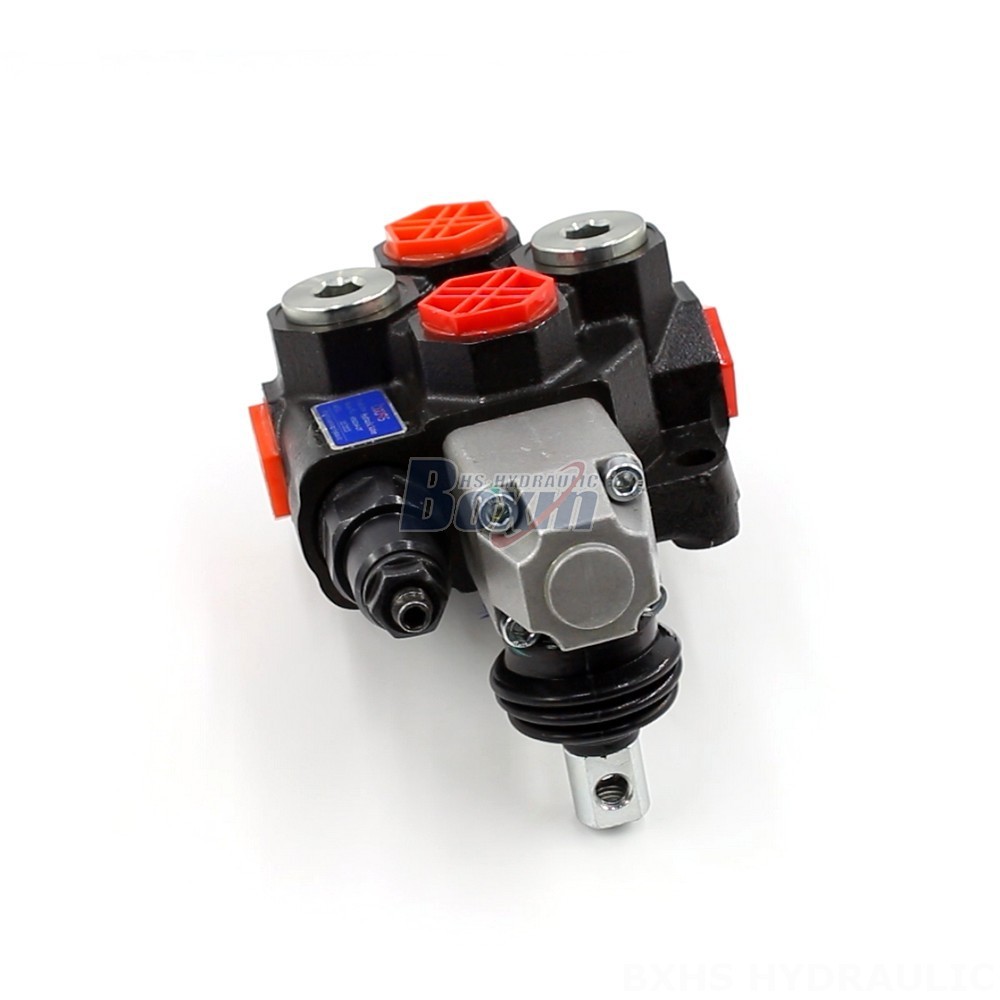

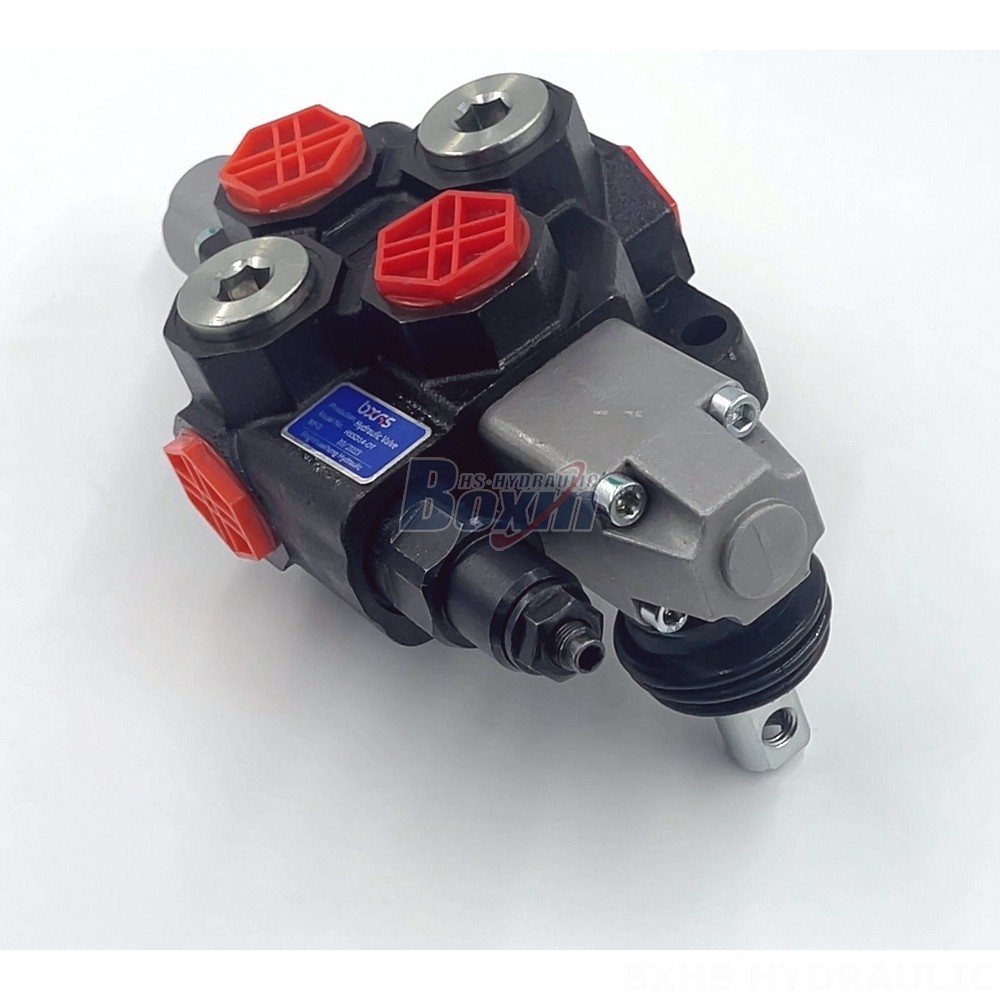

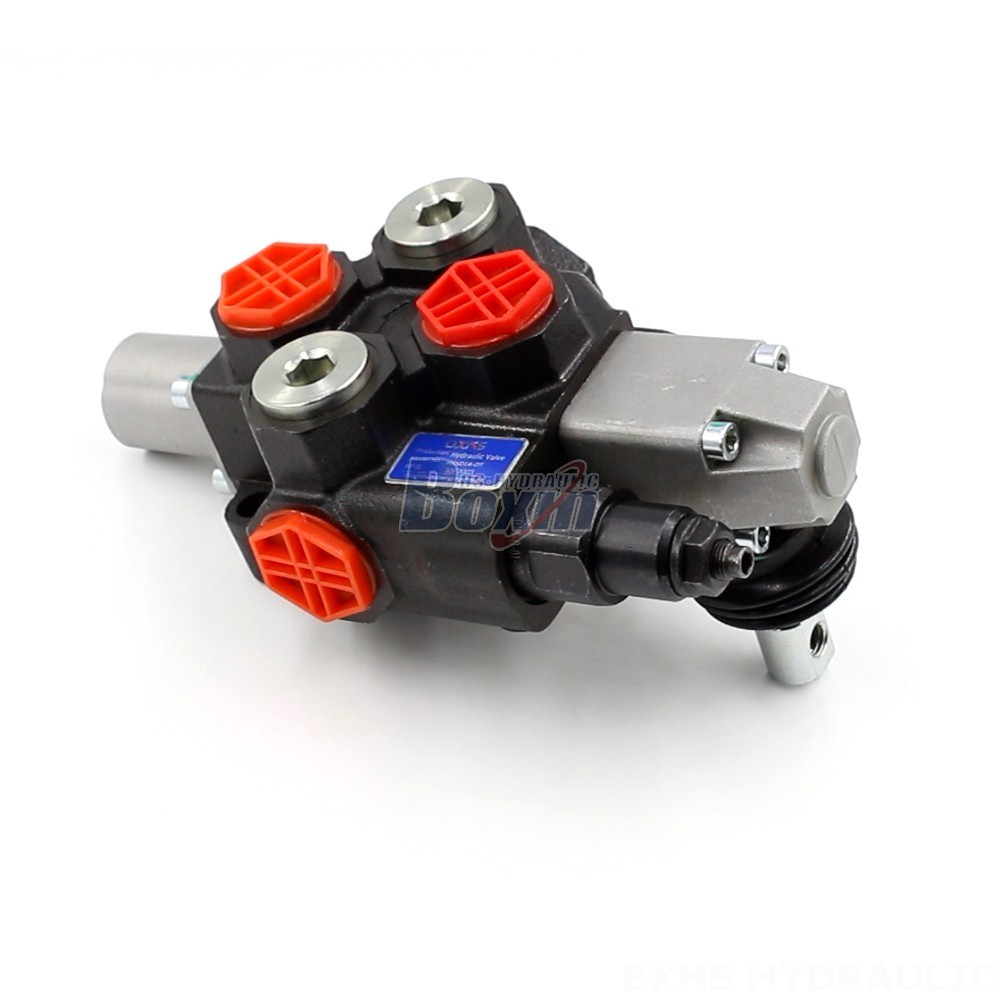

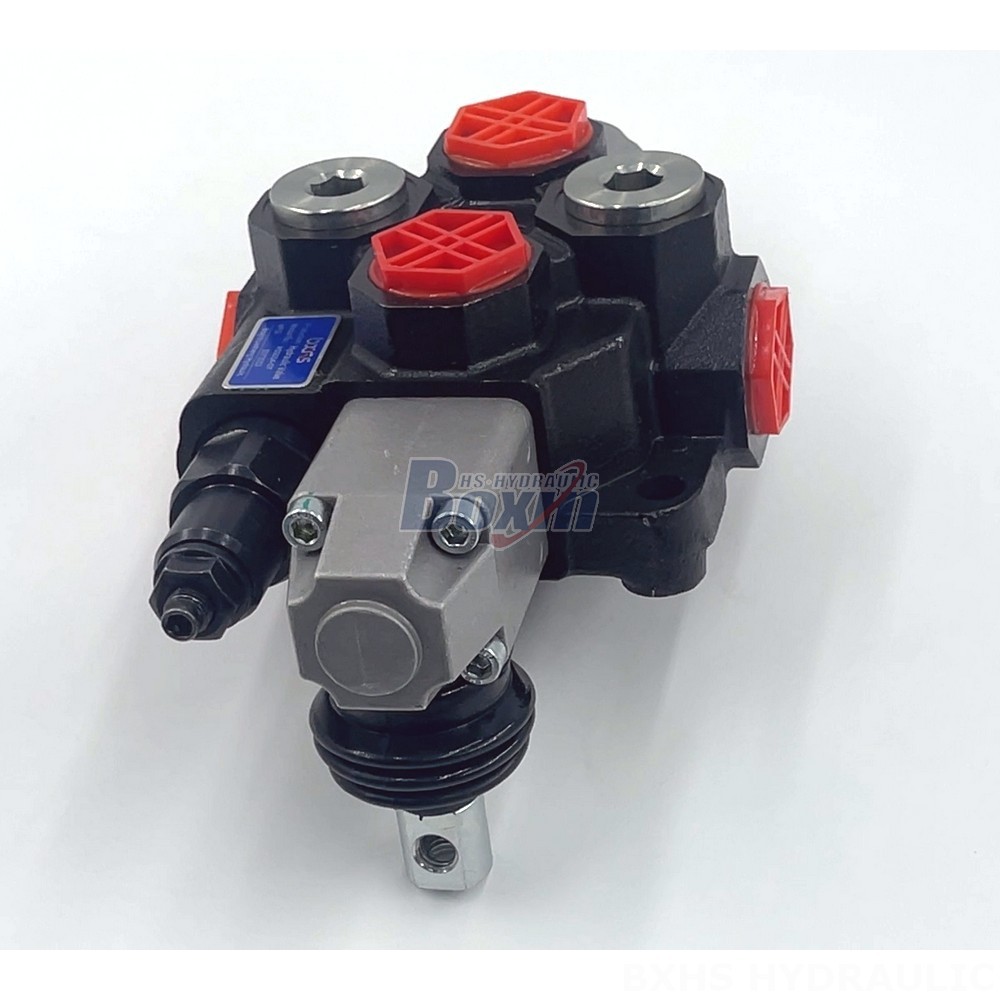

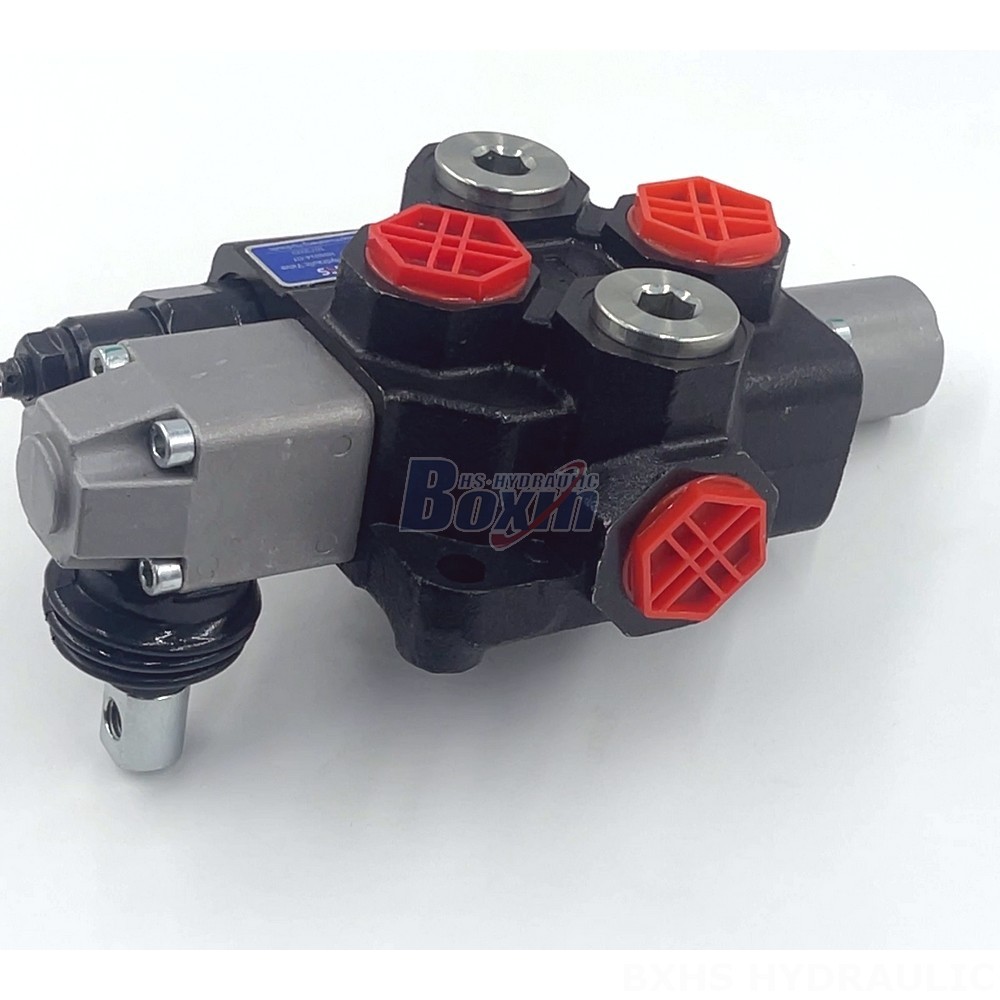

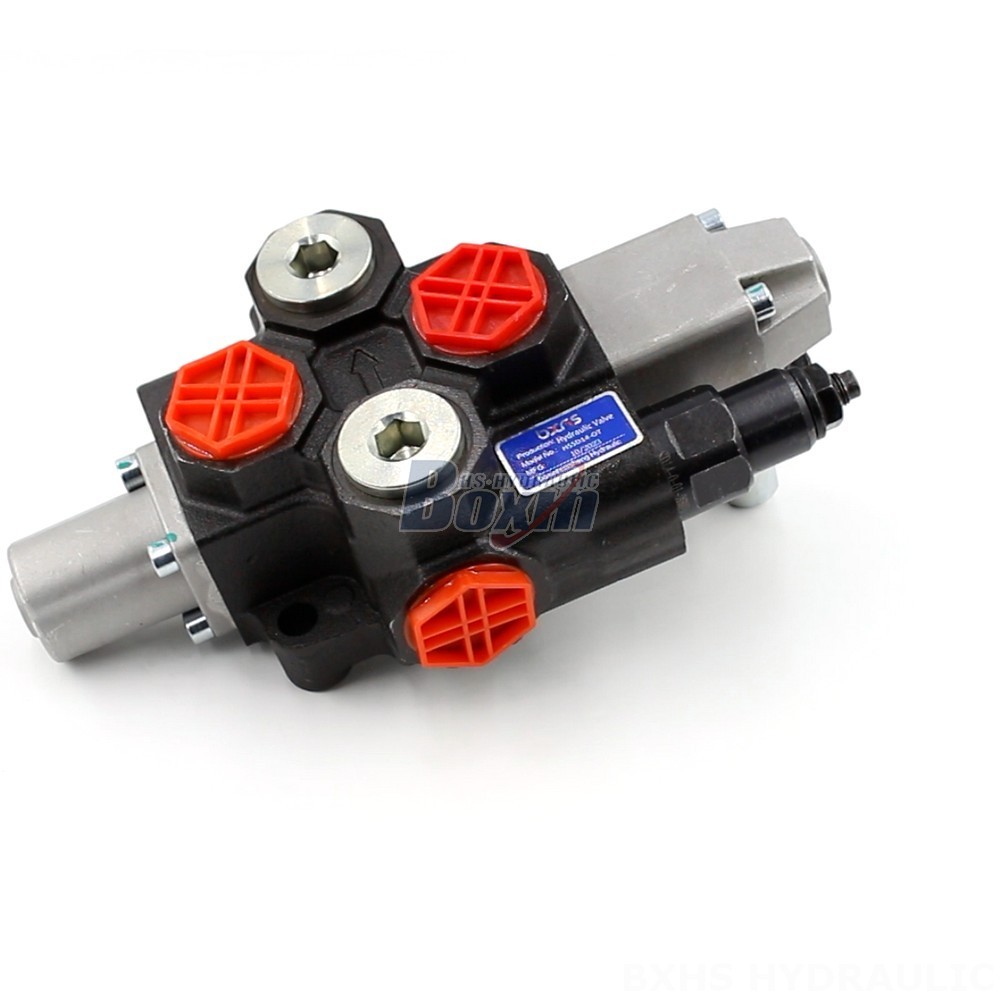

The SD14 Series Hydraulic Electric Generator Manual Monoblock Directional Valve is a high-performance valve designed for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. This manual control valve features a monoblock construction for reliability and durability, with a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 315 bar (4600 psi).
| SD14系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 液控 |
| 路数 | 1 联 |
| 环境温度范围 | -40°C to +60°C (-40°F to +140°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 120 升/分钟 (31.7 美制加仑/分钟) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G3/4接口 |
| 出油口 | G3/4接口 |
| 接口尺寸 | G3/4接口 |
The SD14 Series Hydraulic Electric Generator Manual Monoblock Directional Valve is a robust and reliable valve ideal for demanding applications. This 1-section, manual control valve utilizes a monoblock design for strength and durability. It offers a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 315 bar (4600 psi), making it suitable for a variety of applications. The valve is designed to operate in a wide temperature range of -40°C to +60°C (-40°F to +140°F). Its versatility makes it applicable for various equipment including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. This valve can be purchased wholesale or OEM, enabling manufacturers to integrate it into their own equipment.
