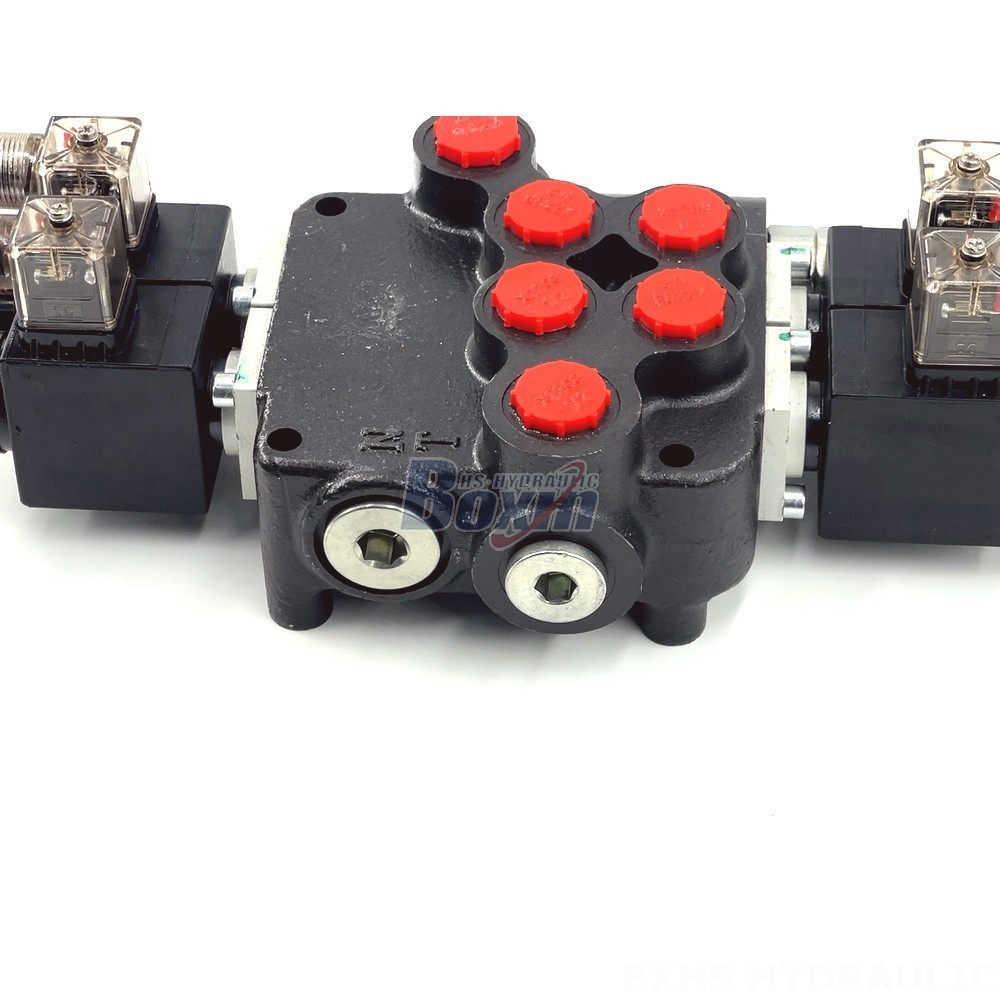

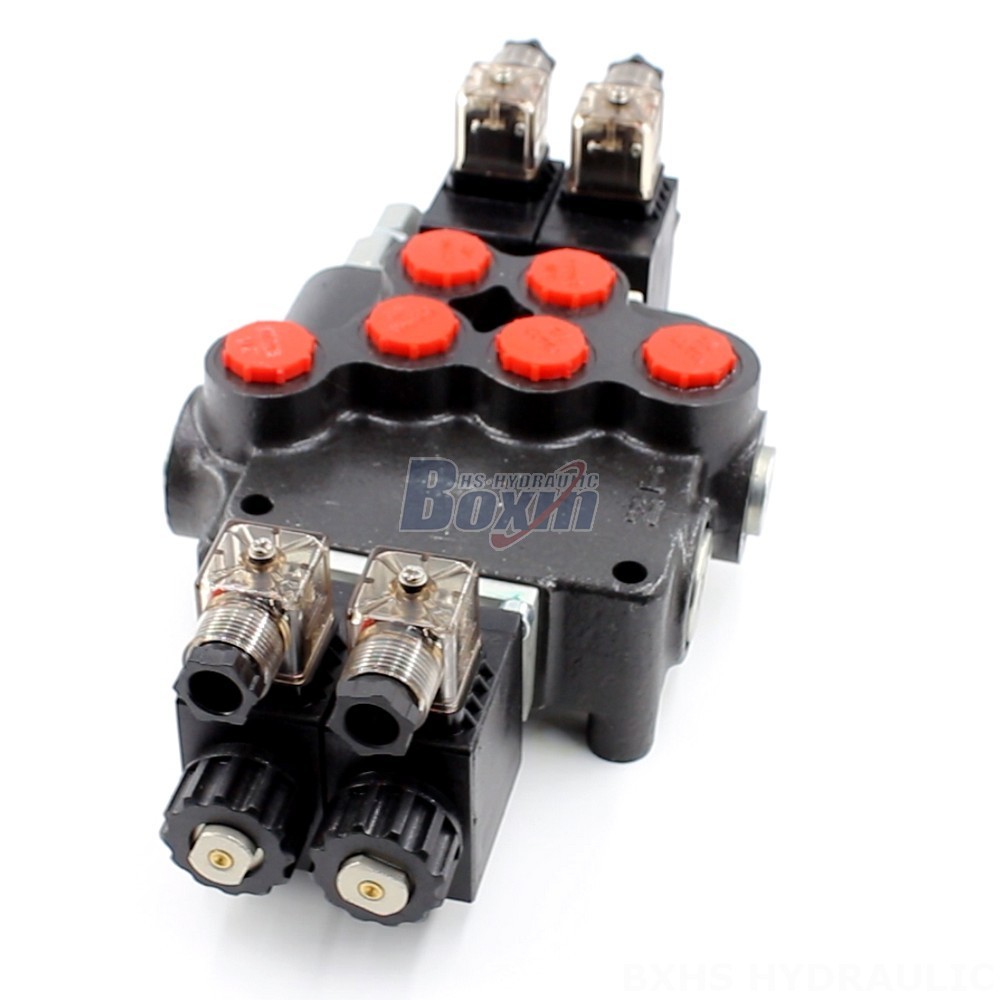

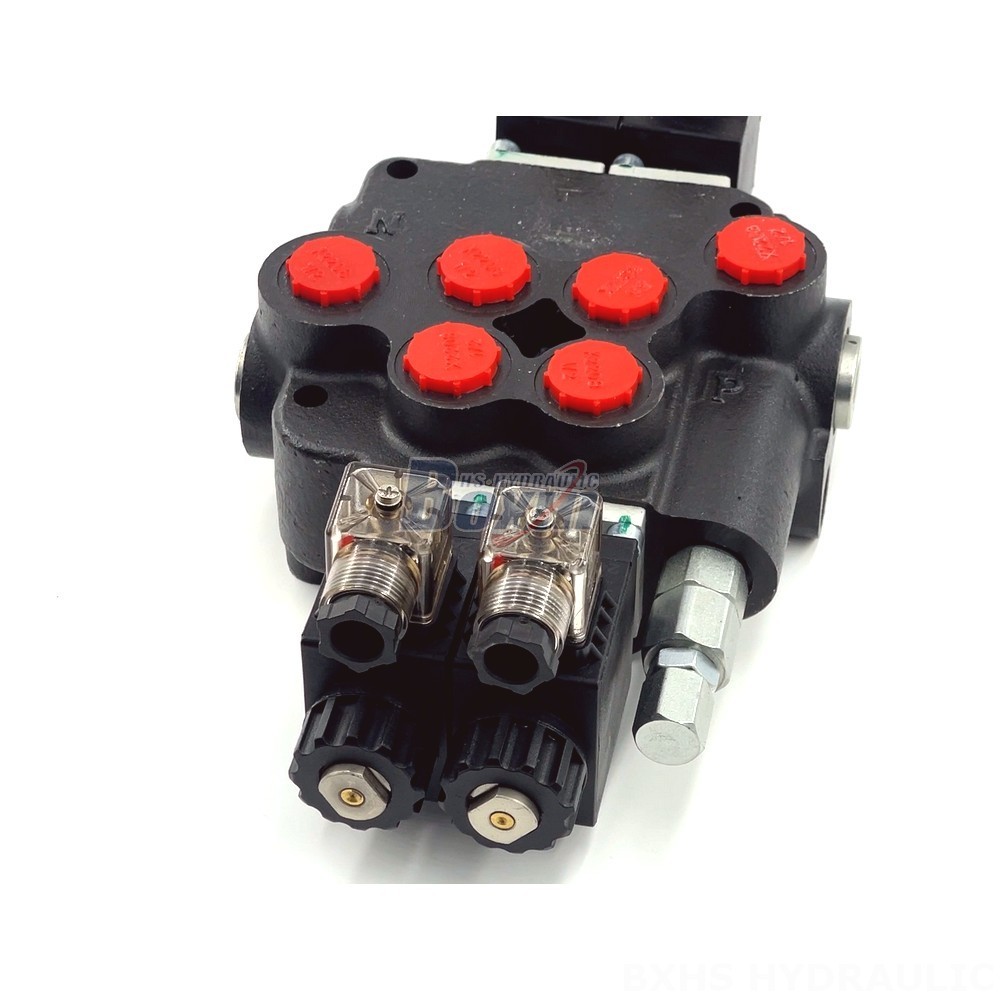

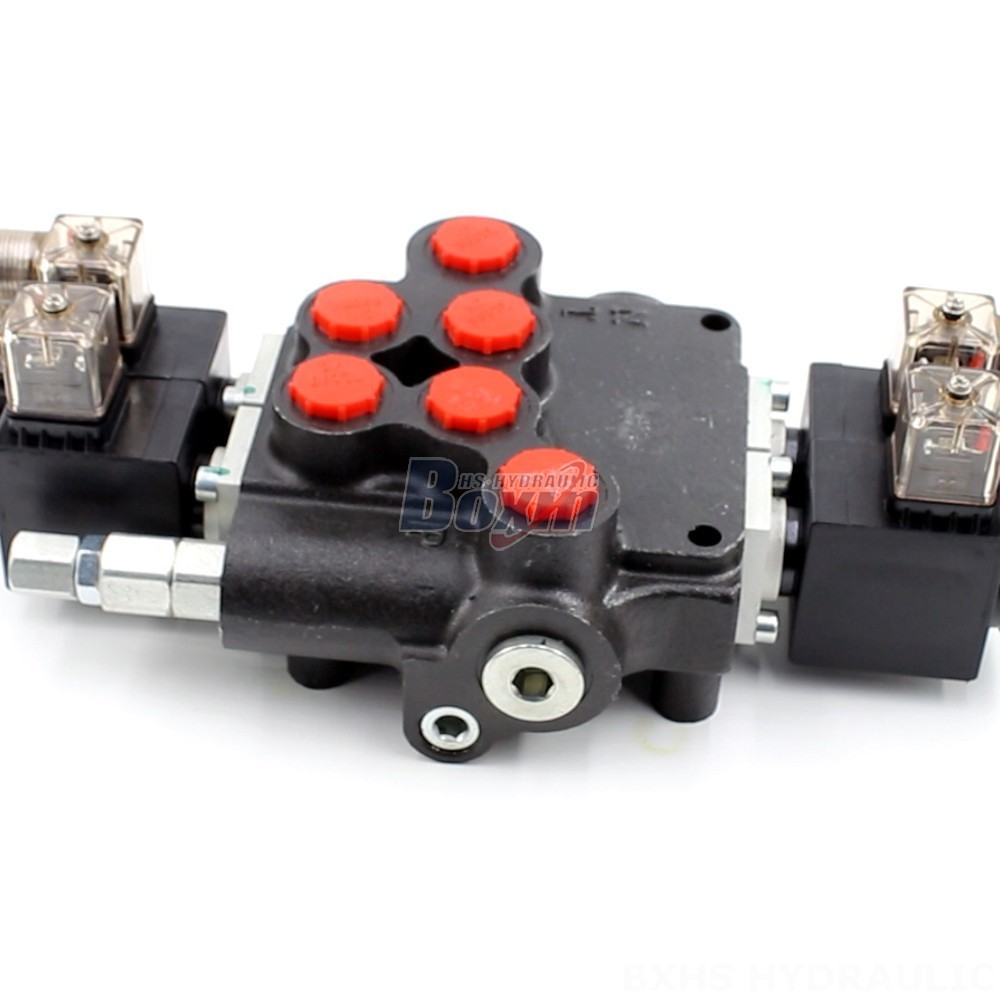

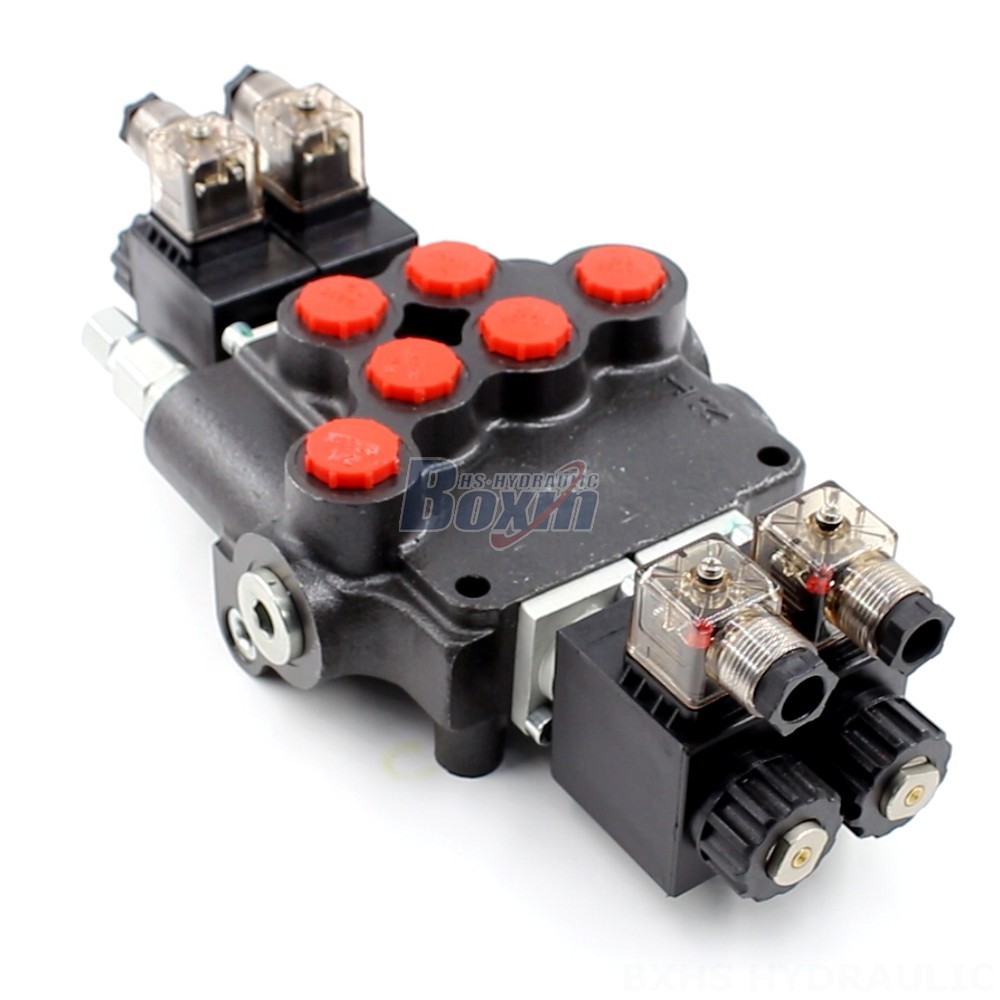

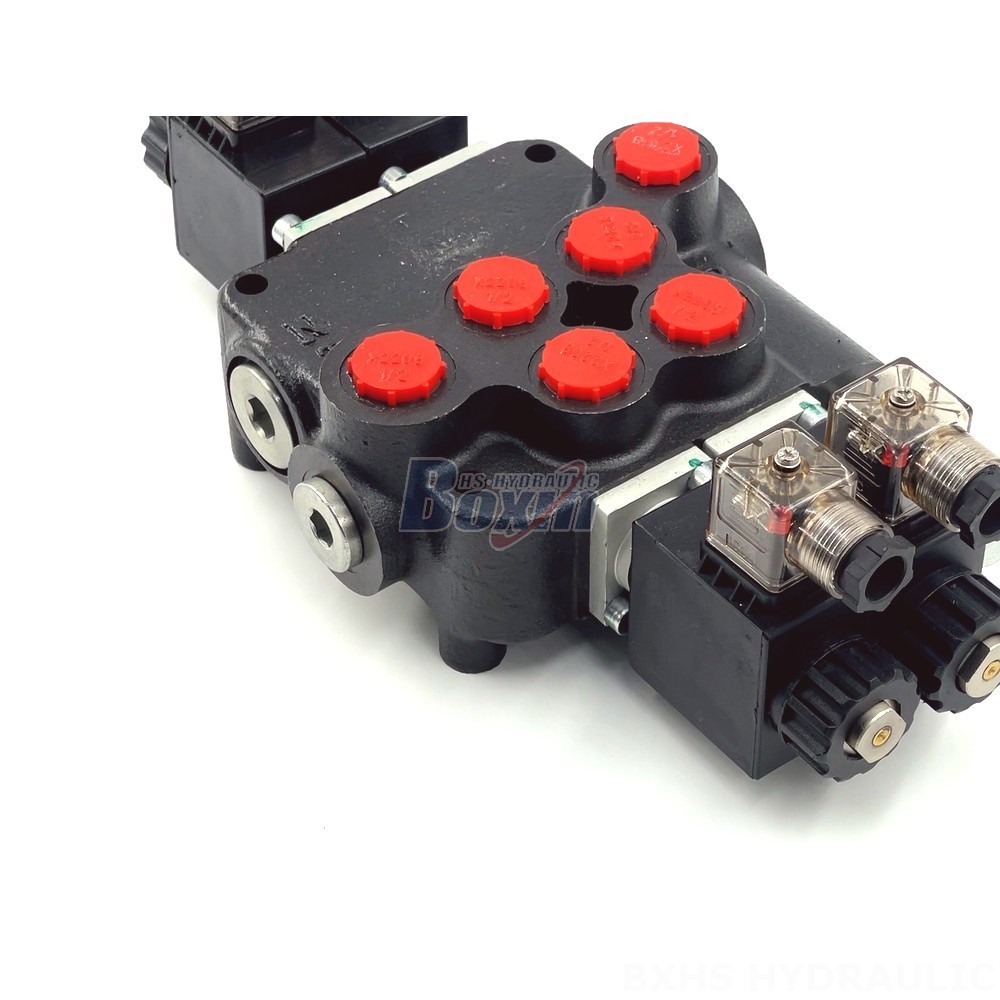

Hydraulic Selector Valve 3 Way Manual Monoblock Directional Valve - P80 Series | Wholesale & OEM

控制方式:电磁

路数:2 联

额定流量:80 L/min (21.2 US gpm)

最大压力:200 bar (2900 psi)

进油口:G3/4接口

出油口:G3/4接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:P80系列 单块式方向阀

Packagingsize:37*18*11

Grossweight:9.50 kg

库存: 有货

900 次查看了此产品

Hydraulic Selector Valve 3 Way Manual Monoblock Directional Valve - P80 Series | Wholesale & OEM

Hydraulic Selector Valve 3 Way Manual Monoblock Directional Valve - P80 Series | Wholesale & OEM

Hydraulic Selector Valve 3 Way Manual Monoblock Directional Valve - P80 Series | Wholesale & OEM drawing image

The P80 Series 3 Way Manual Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a variety of applications, including material handling, construction, agriculture, and industrial vehicles. This valve features a 2-section, 2-spool design with a rated flow of 80 L/min and a maximum pressure of 250 bar. It is available for OEM and wholesale orders.

P80系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 80 L/min (21.2 US gpm)
最大压力 315 bar (4600 psi)
进油口 G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
出油口 G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
接口尺寸 G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹

This 3 Way Manual Monoblock Directional Valve from the P80 Series is a reliable and efficient solution for controlling hydraulic systems in various applications. Its compact design and robust construction make it suitable for demanding environments. The valve features a solenoid control method, a 2-section monoblock structure, and a rated flow of 80 L/min. It can withstand a maximum pressure of 250 bar and operates within a viscosity range of 15 - 75 mm²/s. The valve is designed for use in a wide range of temperatures, from -40°C to +80°C. Its versatility and performance make it ideal for various applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, and compact wheel loaders. We offer this valve for wholesale and OEM orders, catering to the specific needs of our customers. If you are looking for a high-quality, reliable, and efficient 3 Way Manual Monoblock Directional Valve, the P80 Series is the perfect choice.
