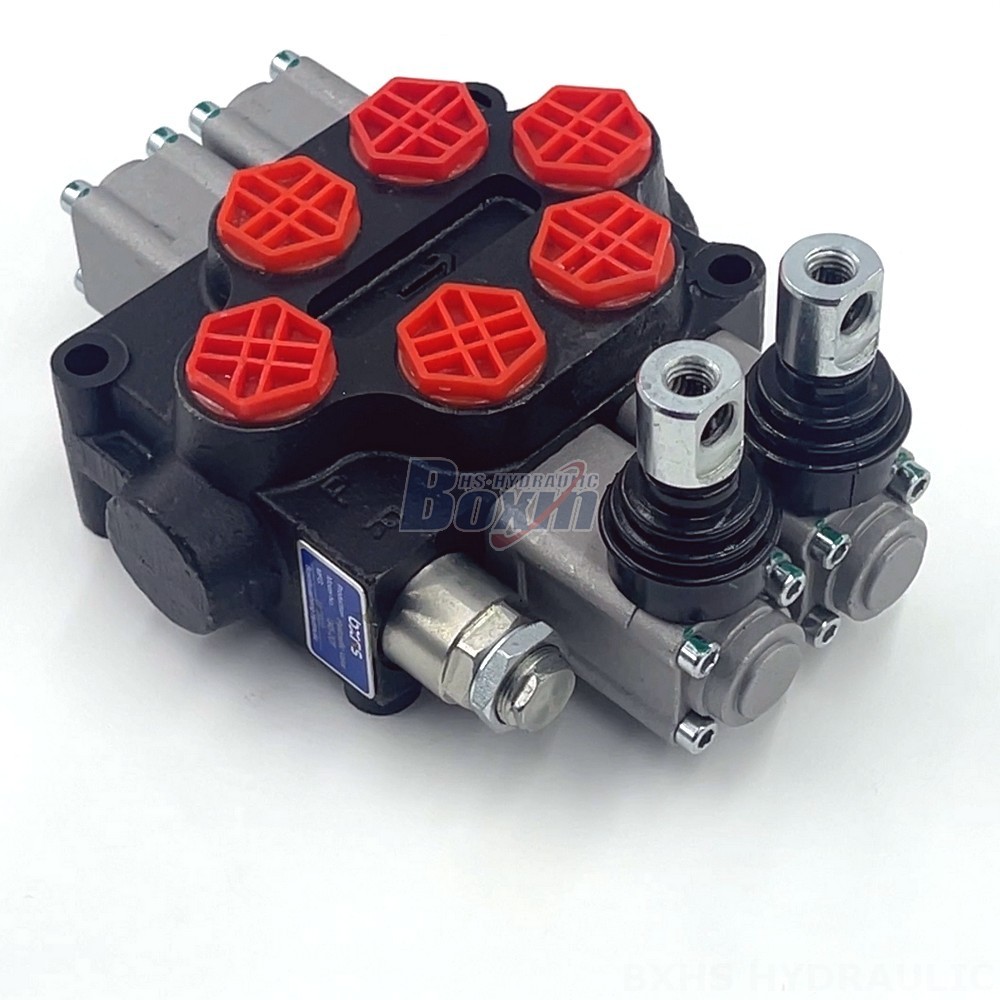

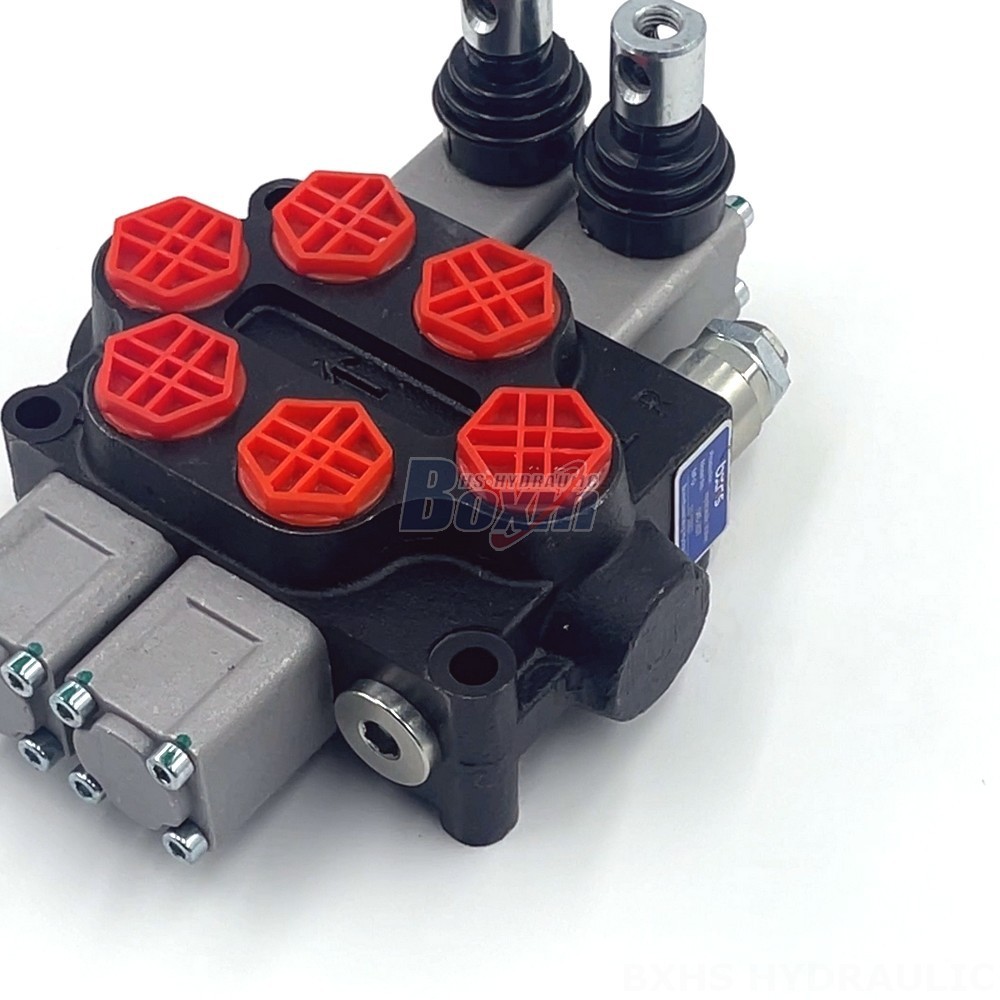

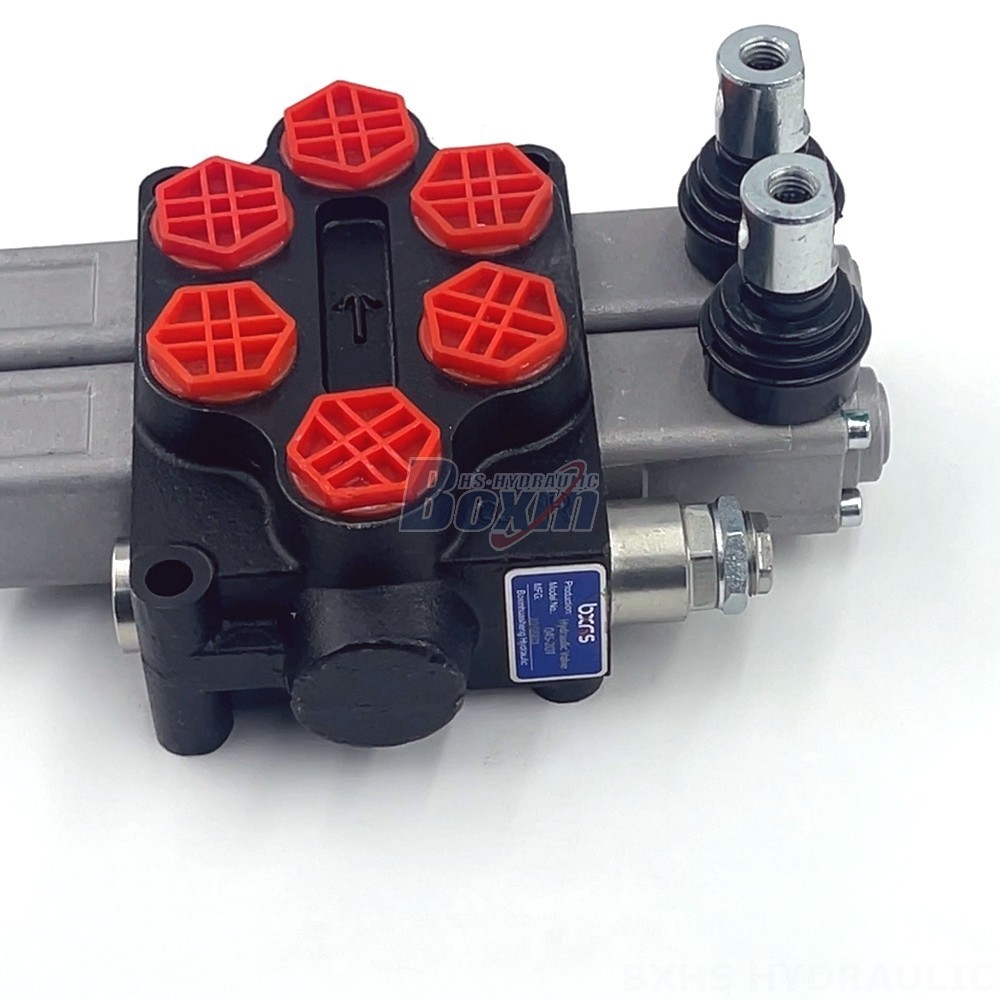

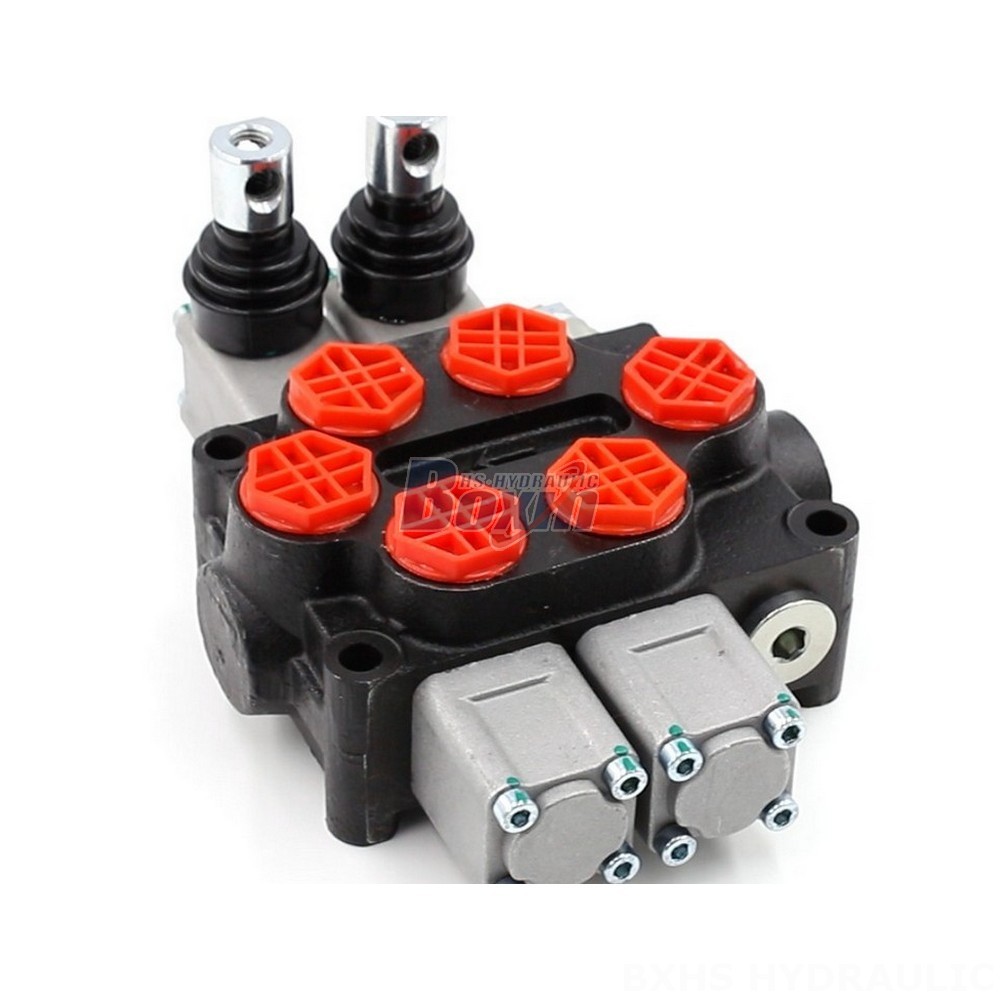

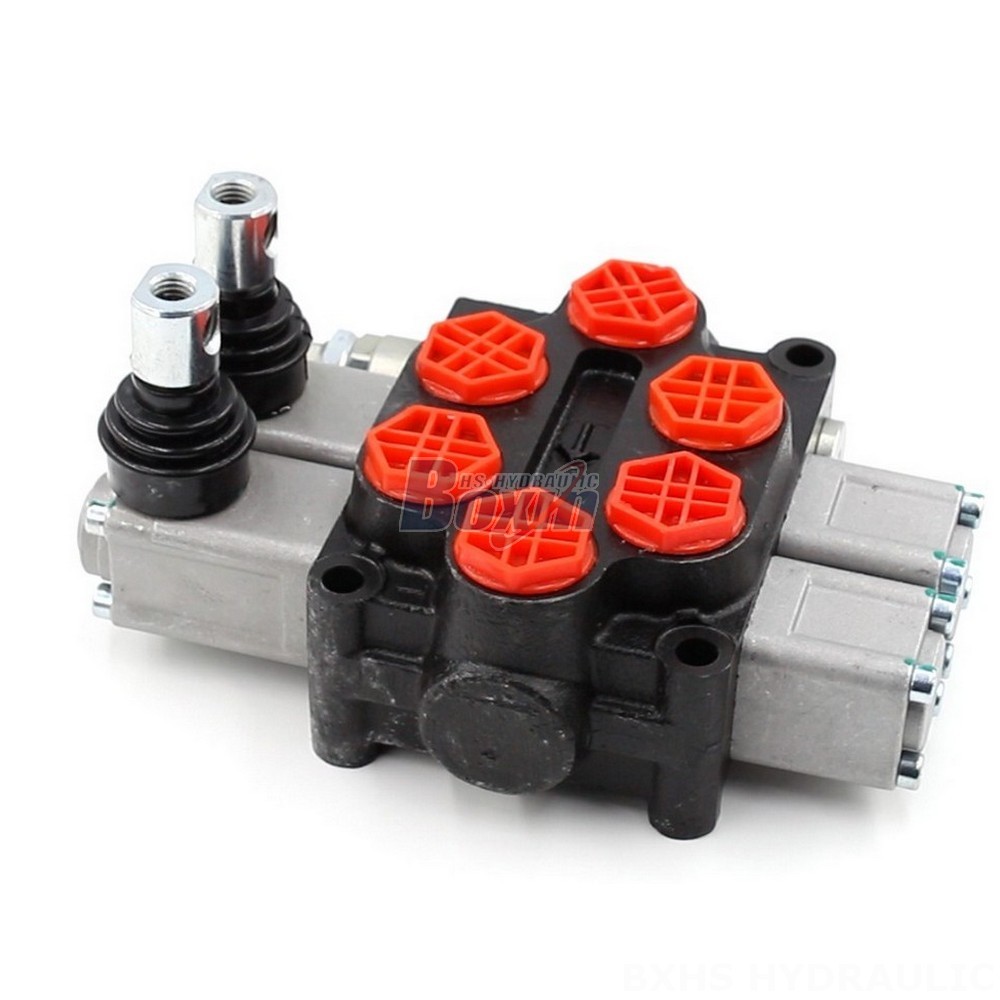

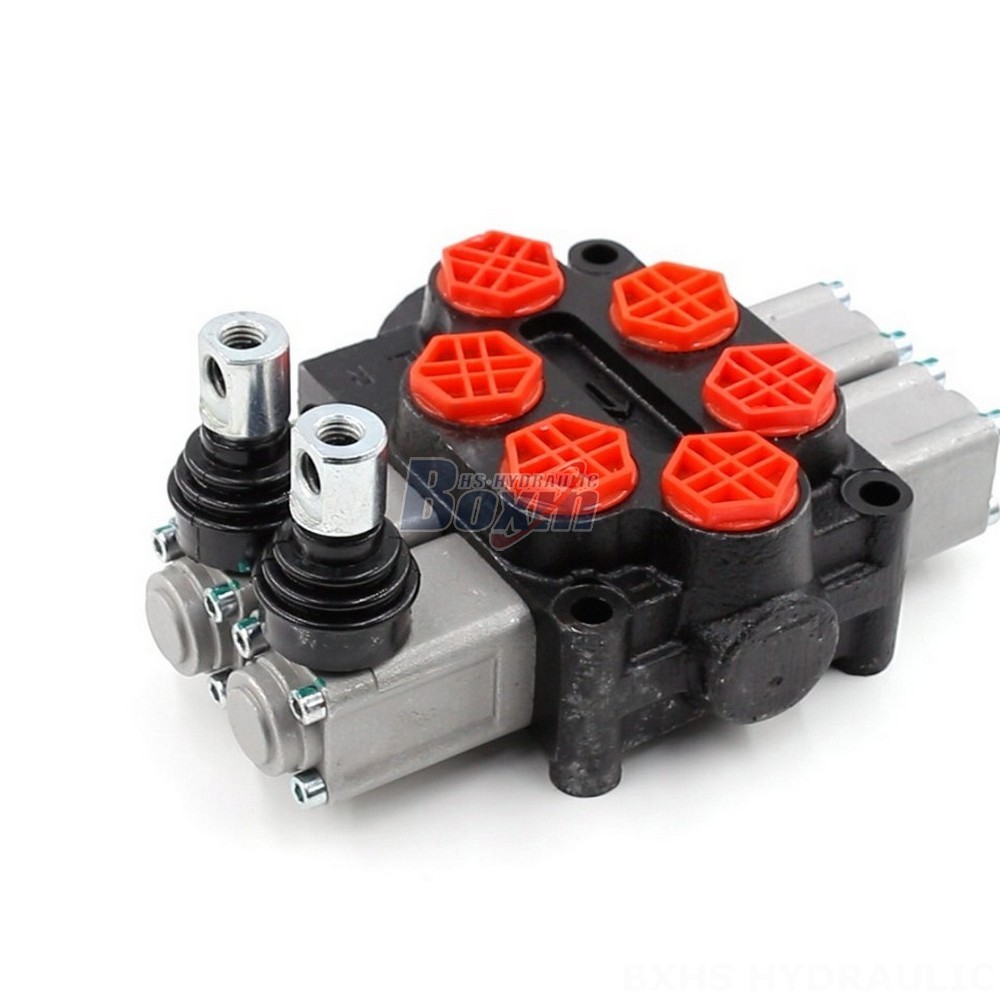

The Q45 Series 4 Way Flow Diverter Valve is a manual hydraulic valve designed for controlling hydraulic flow in various applications like material handling, construction, agriculture, and industrial vehicles. This high-performance valve offers reliable control and durability for demanding operations.
| Q45系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 一控二手柄控制, 电磁和手动, 手动及推拉式电磁铁, 推拉式电磁铁 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -20°C to +80°C (-4°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 45 L/min (11.8 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口 |
| 出油口 | G1/2接口 |
| 接口尺寸 | G1/2接口 |
The Q45 Series 4 Way Flow Diverter Valve is a manual, 2-section, monoblock valve with a rated flow of 45 L/min (11.8 US gpm) and a maximum pressure rating of 315 bar (4600 psi). It features a 2-spool design and is suitable for a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, and wheel loaders. This valve offers uncompromised control and reliability, ensuring smooth and efficient operation in demanding environments.
