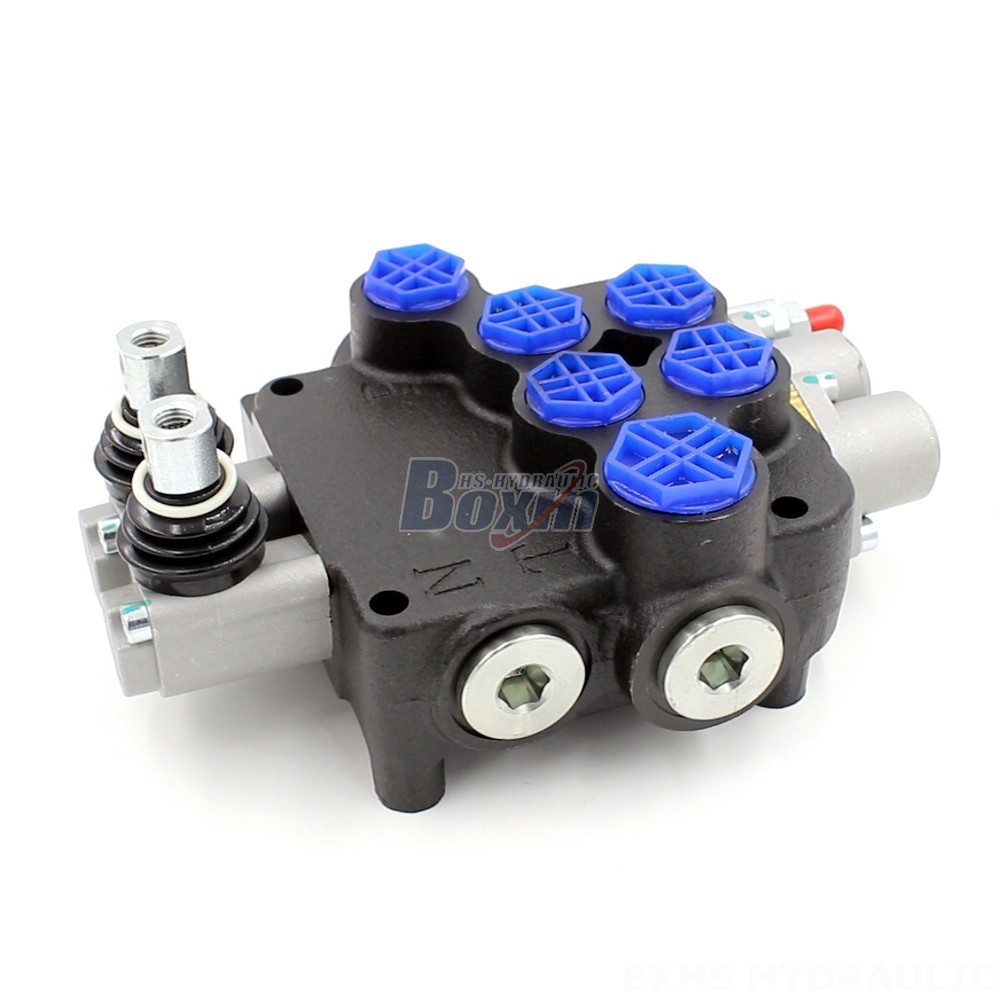

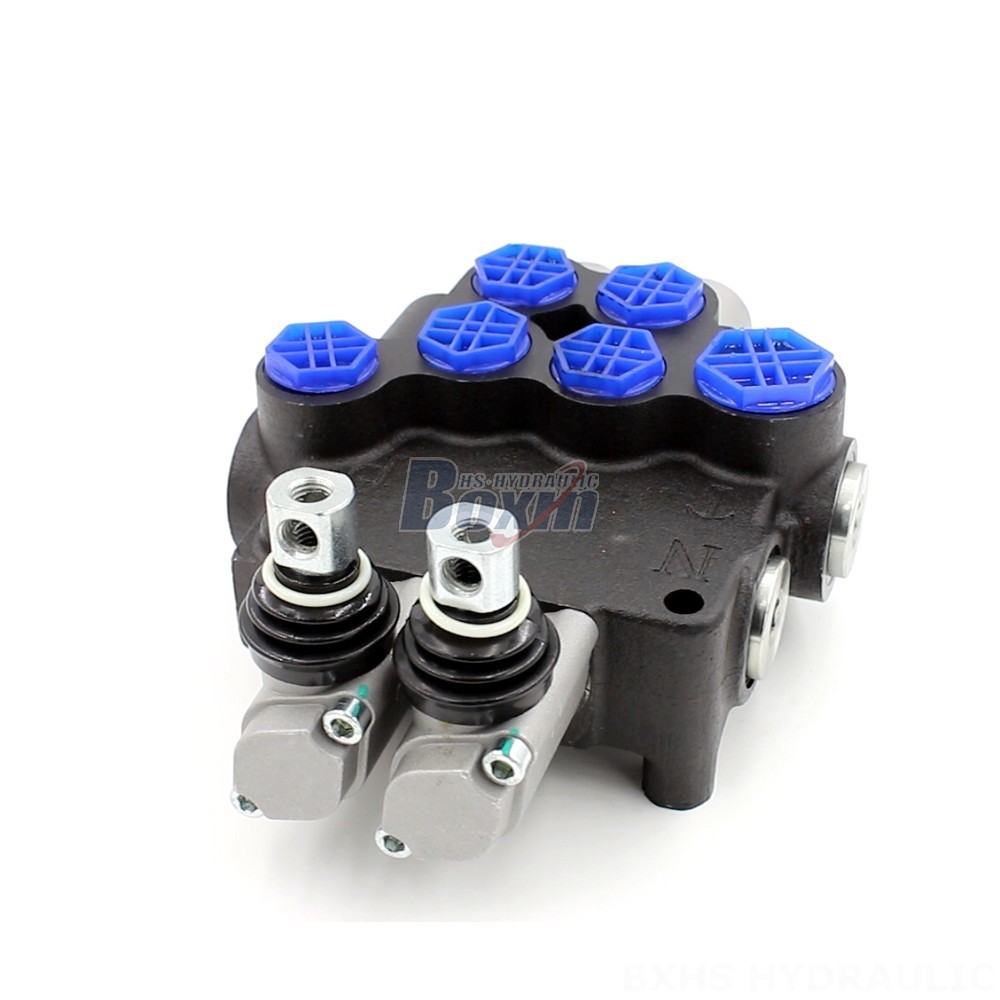

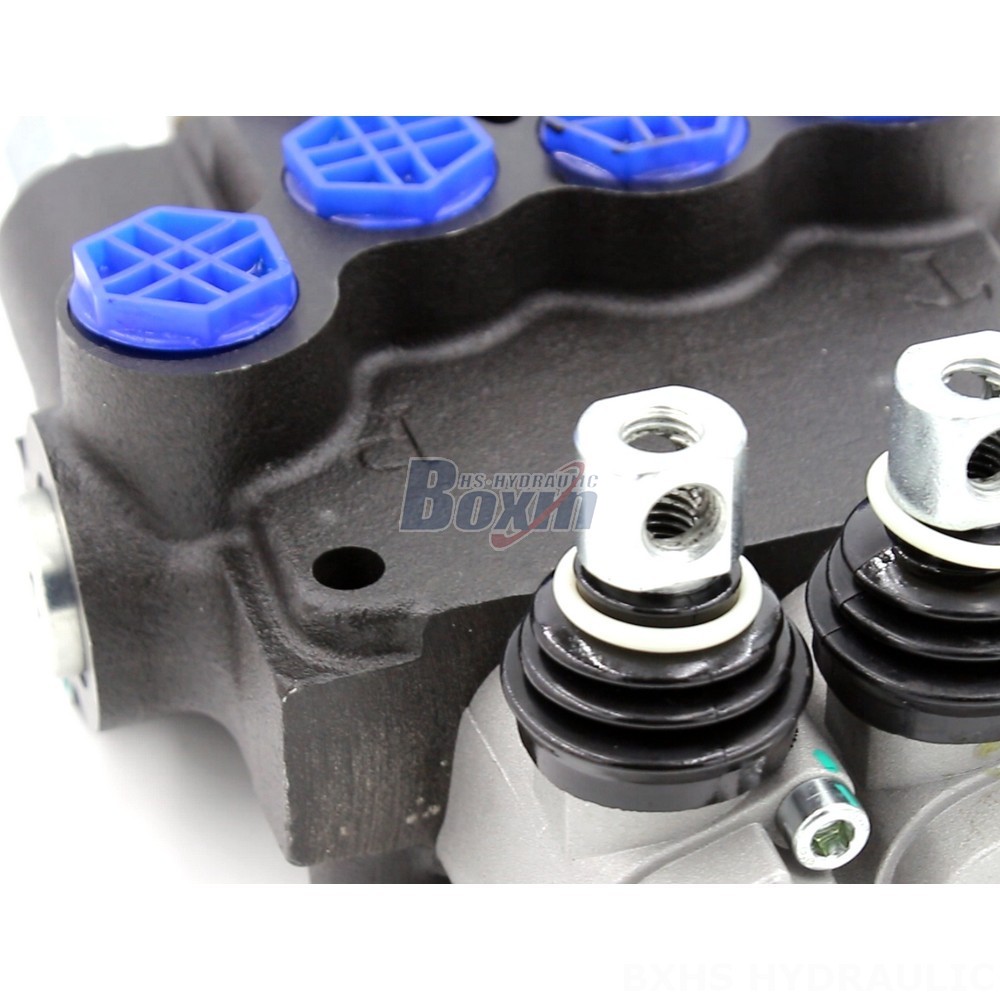

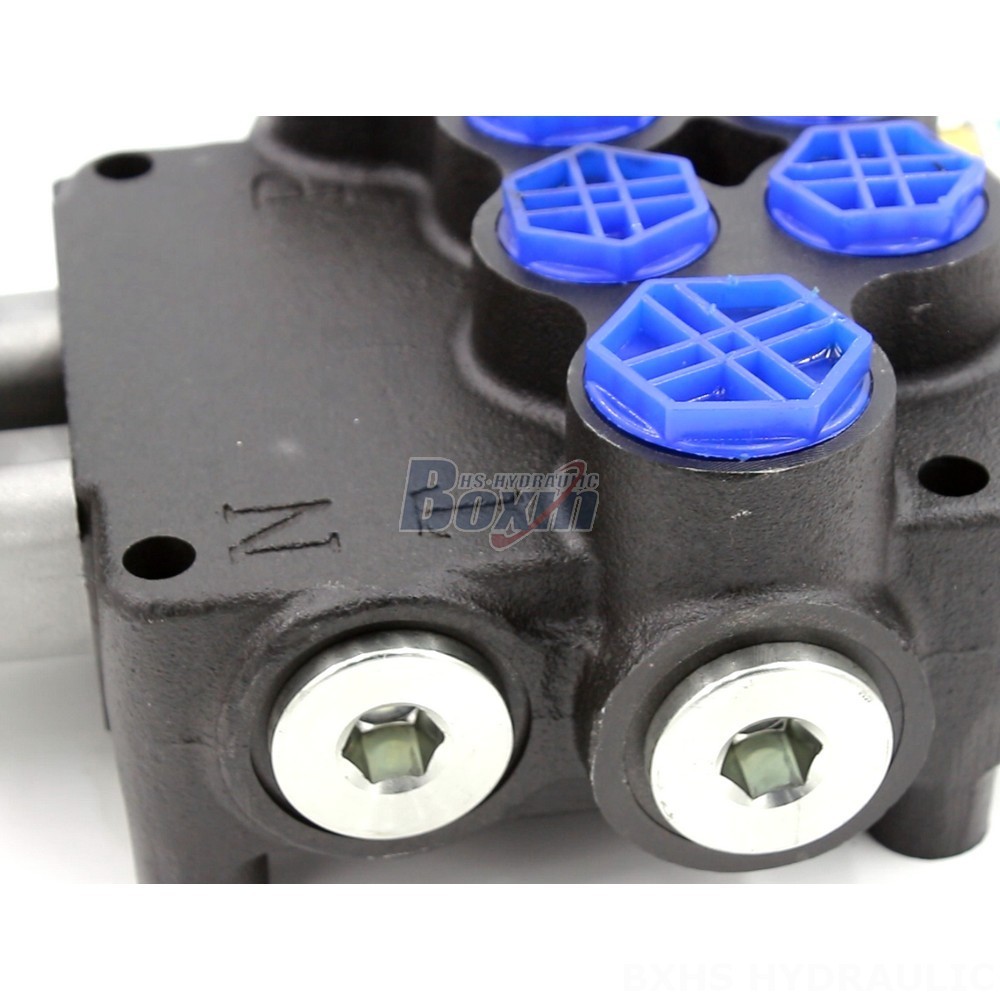

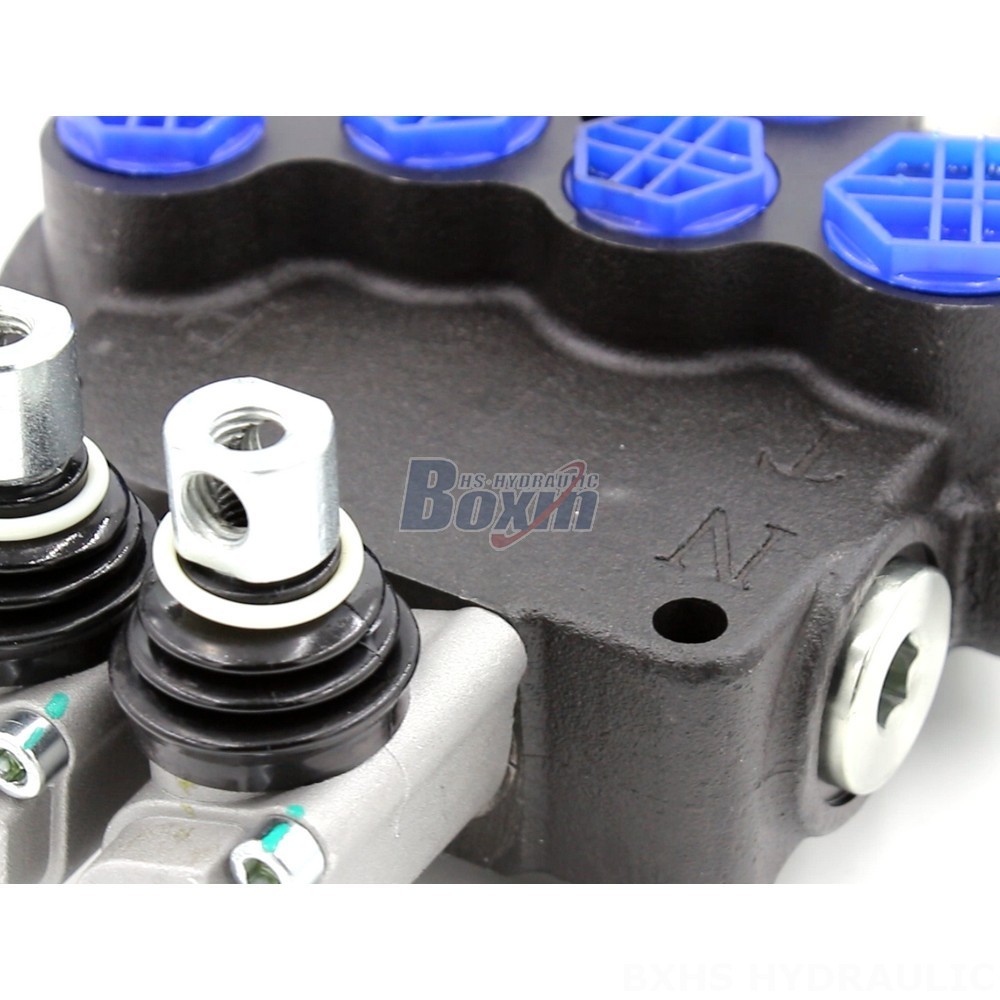

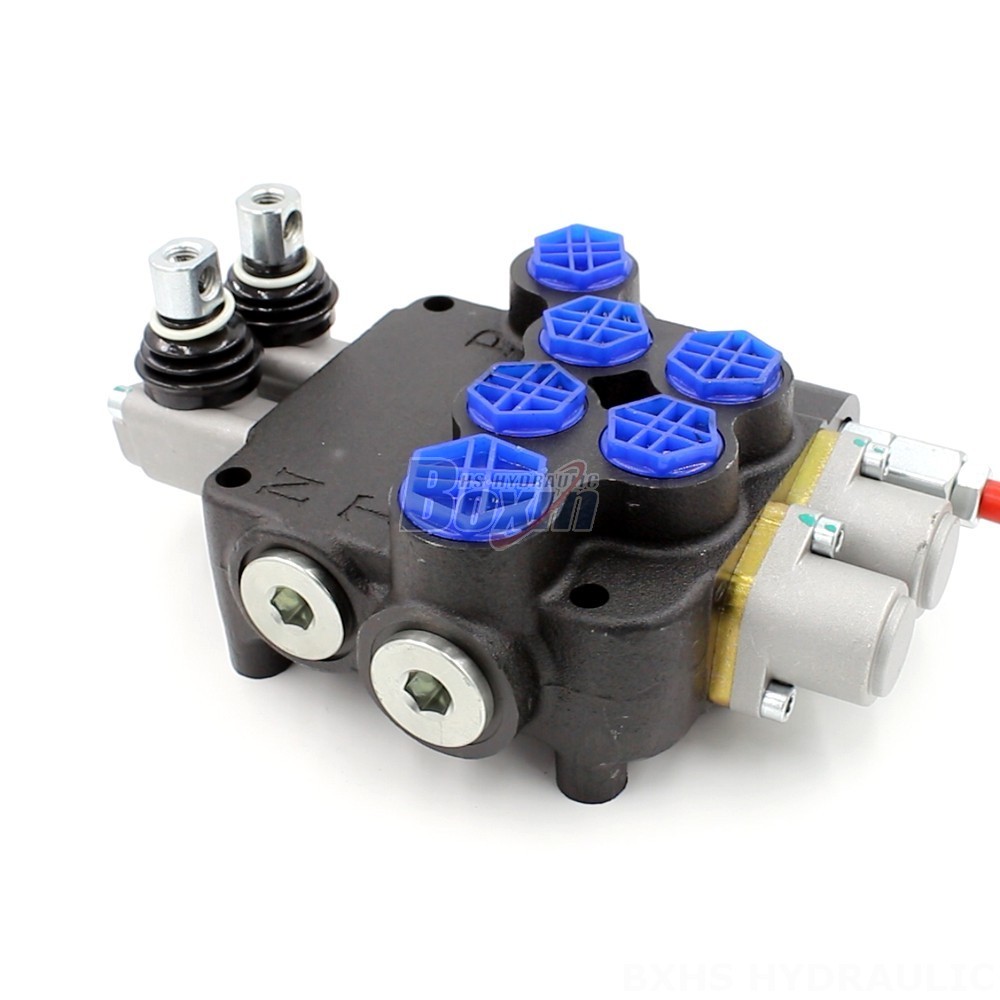

The P80-G12-G38-QW is a high-performance, 2-spool joystick loader valve designed for use in demanding applications like construction equipment, material handling, agriculture, and industrial vehicles. It offers precision control and durability, making it an ideal choice for telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, and more.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
This manual directional valve features a robust monoblock construction with a rated flow of 80 L/min and a maximum pressure rating of 250 bar. Its operating viscosity range is from 15 to 75 mm²/s, allowing for use in a wide variety of environments. With its durable design and reliable performance, this 2-spool joystick loader valve is an excellent choice for manufacturers and users of construction equipment, material handling equipment, agricultural machinery, and industrial vehicles.
