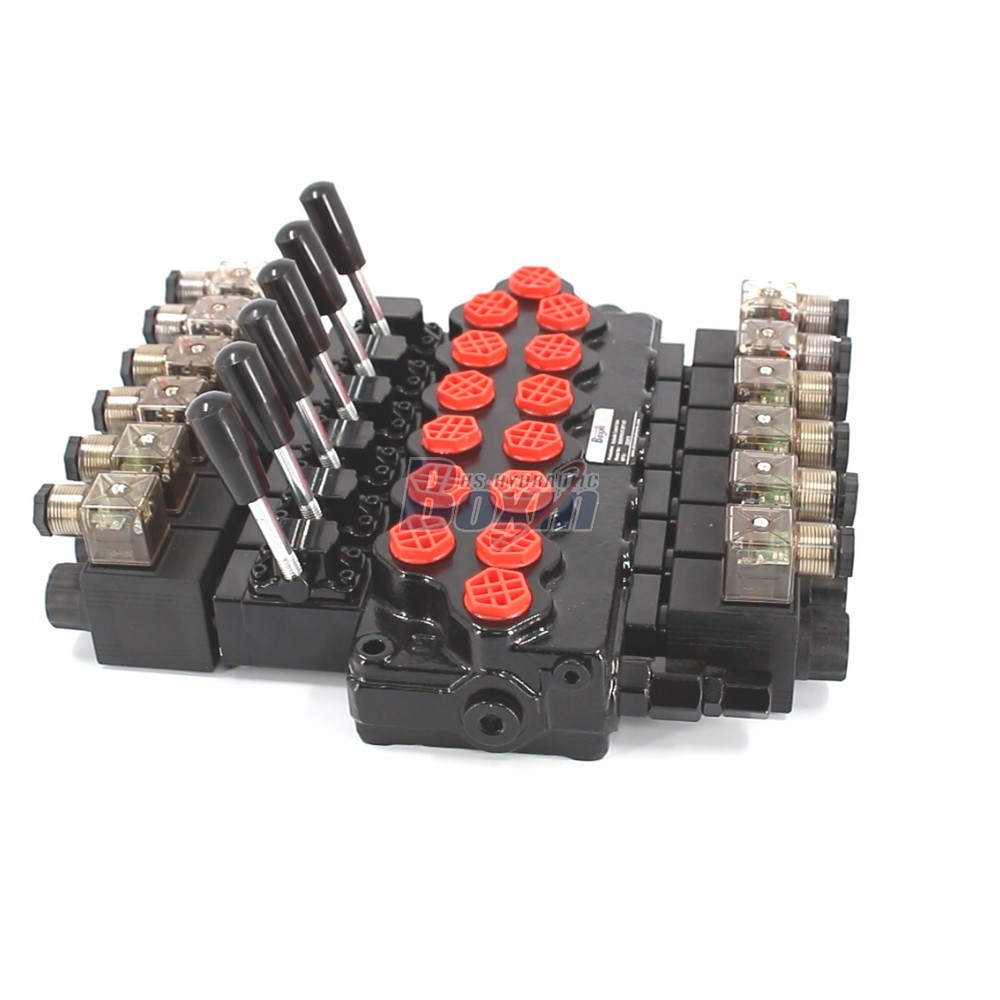

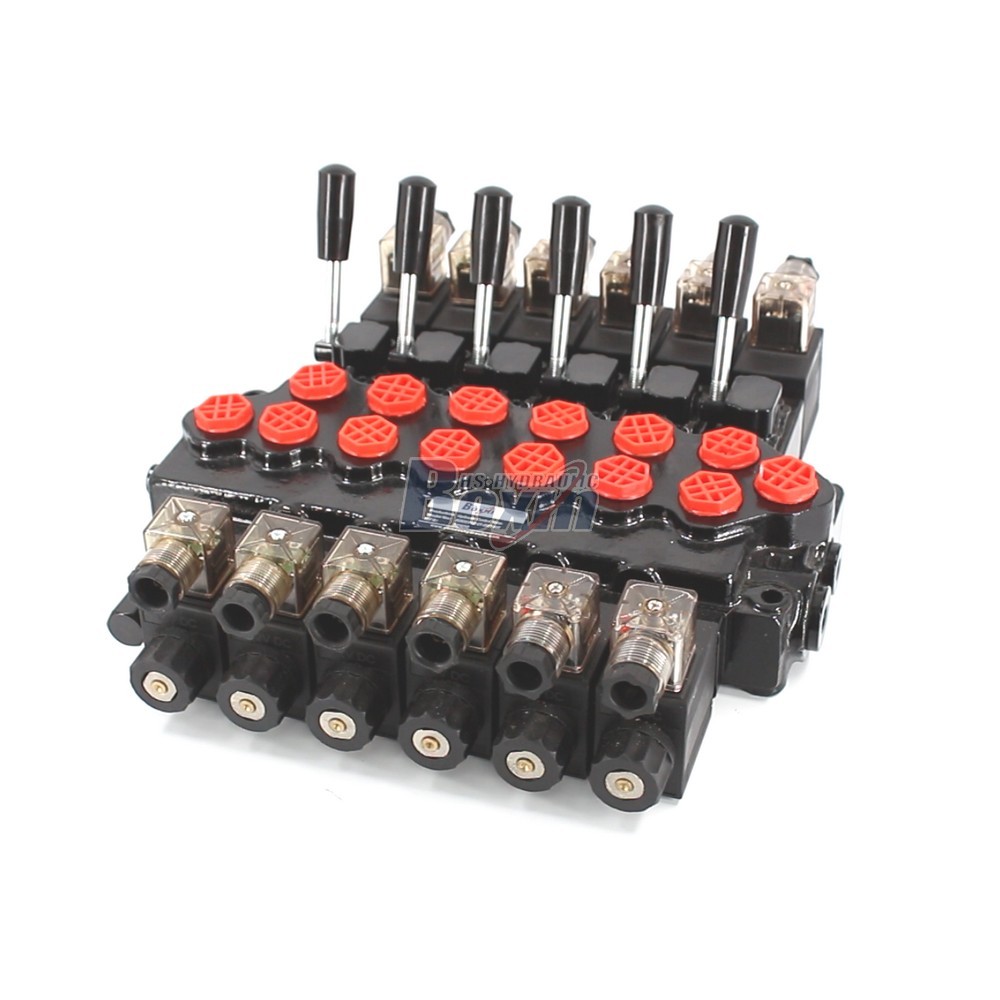

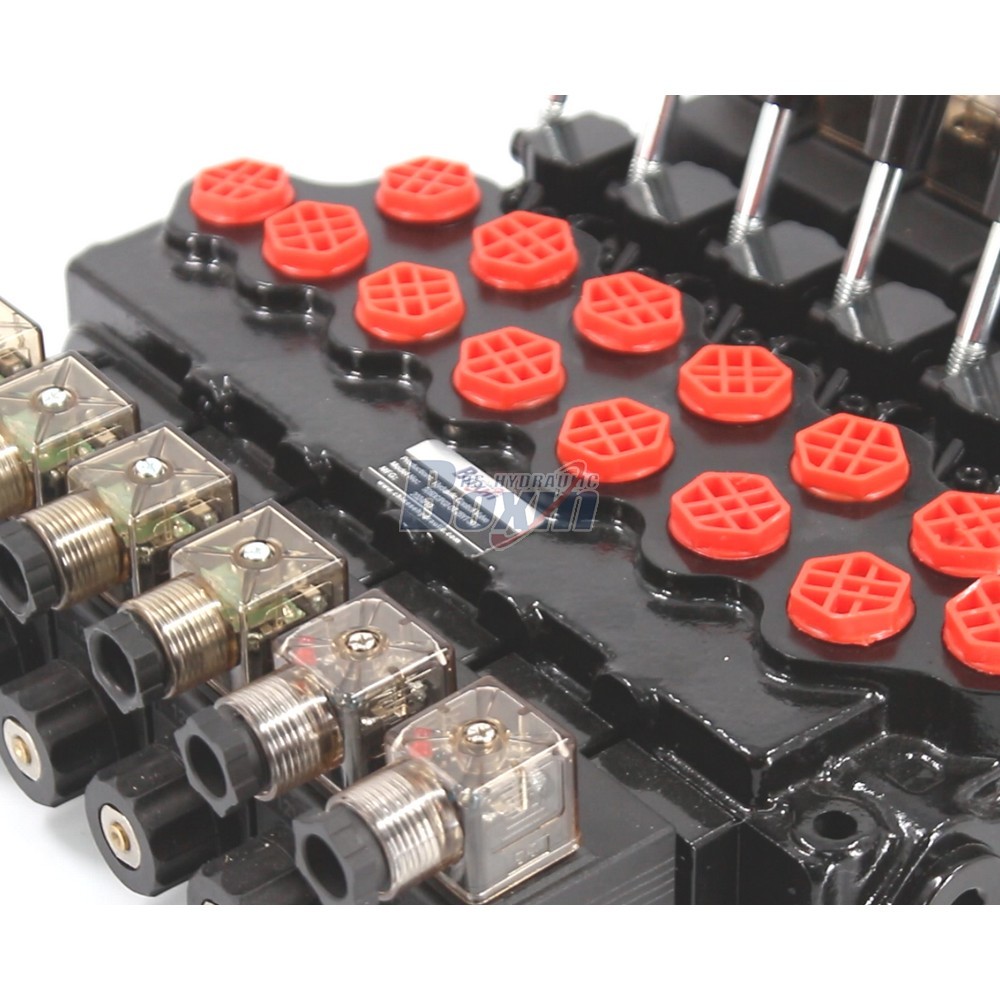

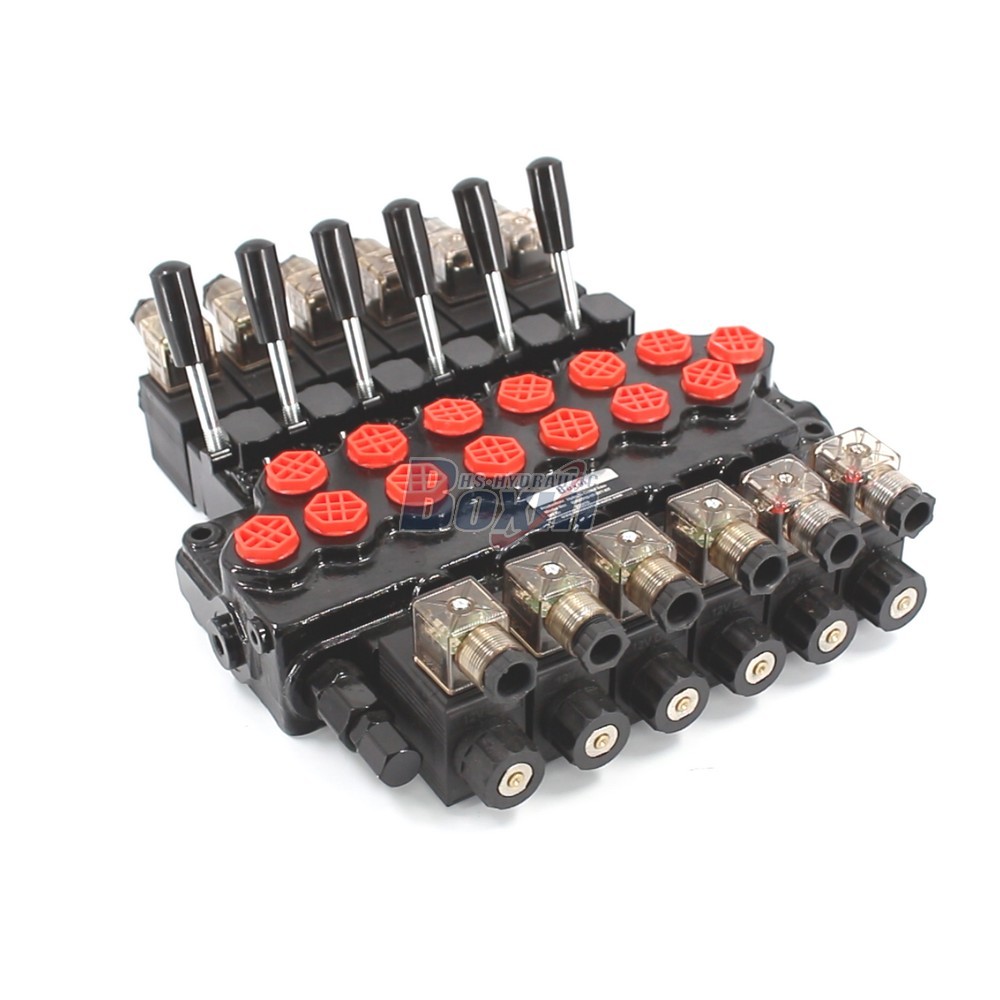

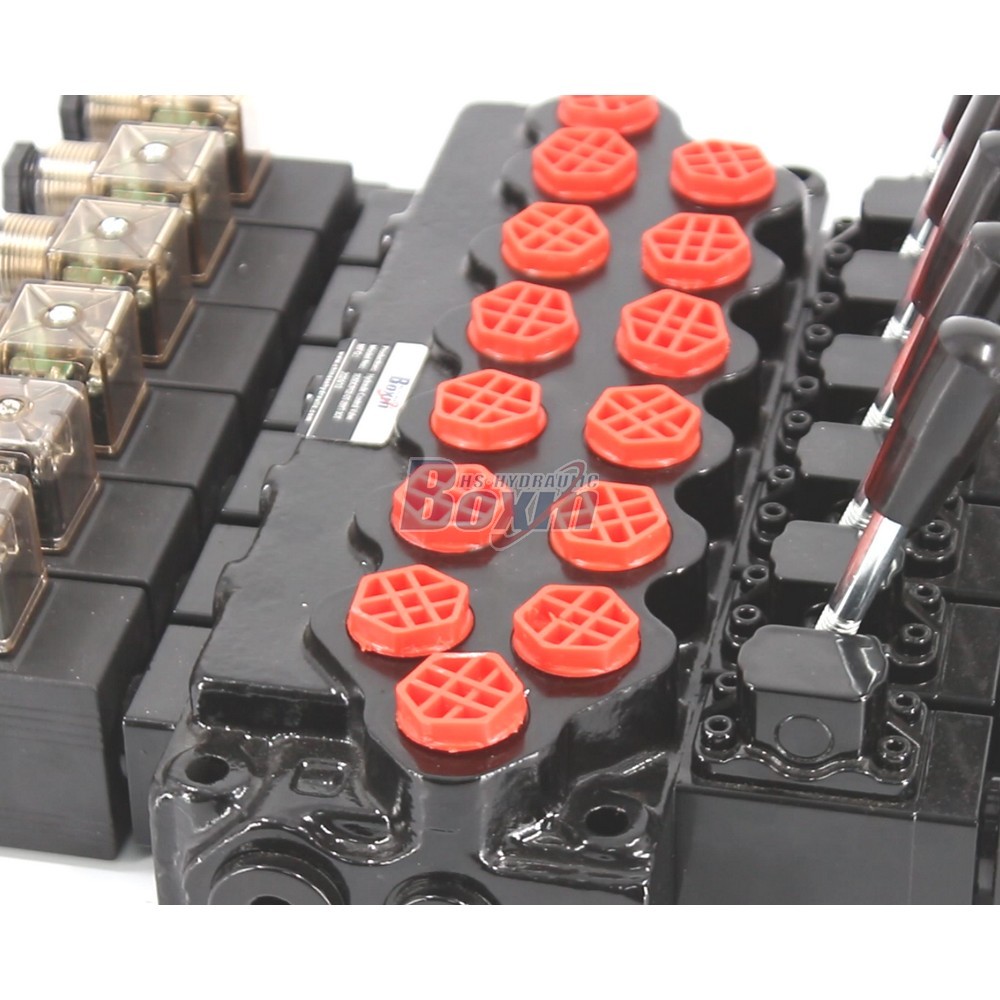

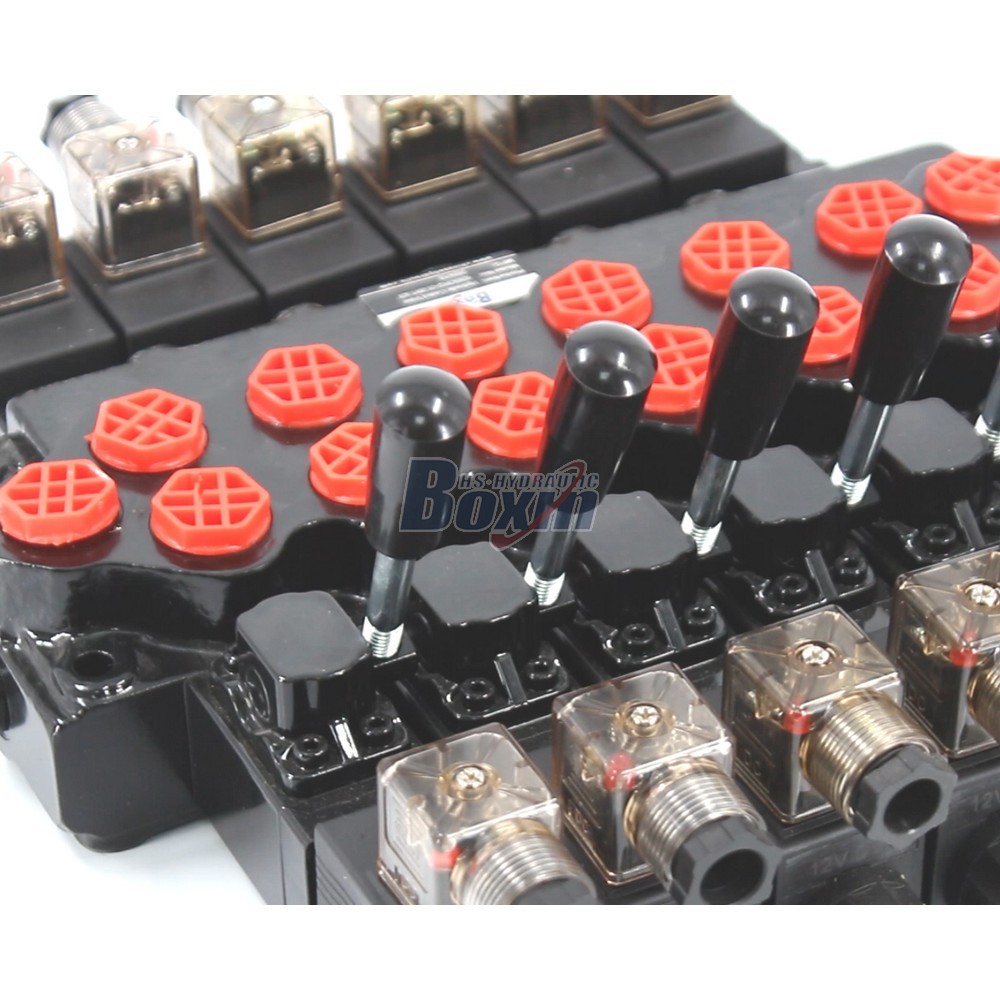

High-performance SD5-PG2 6-spool solenoid monoblock valve engineered for precision control in construction, agricultural, and industrial machinery, featuring 45 L/min flow capacity and 315 bar pressure rating.
| SD5系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +60°C (-40°F to +140°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 305 bar (4400 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头, G1-1/2接口 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头 |
As a specialized manufacturer, we provide high-quality SD5 series solenoid monoblock valves designed for demanding applications including tractors, excavators, forklifts, and backhoe loaders. Our infrastructure supports large-scale manufacturing, offering flexible solutions for OEM, ODM, and customized branding to meet specific technical requirements. We are dedicated to providing competitive factory-direct wholesale pricing to support our global partners. We are actively seeking long-term cooperation with reliable distributors, wholesalers, agents, and international trade companies. With our robust production capacity and rigorous quality control, we ensure consistent supply and reliable performance for your hydraulic systems. Contact us for professional OEM/ODM services, tailored hydraulic solutions, and factory wholesale opportunities.
