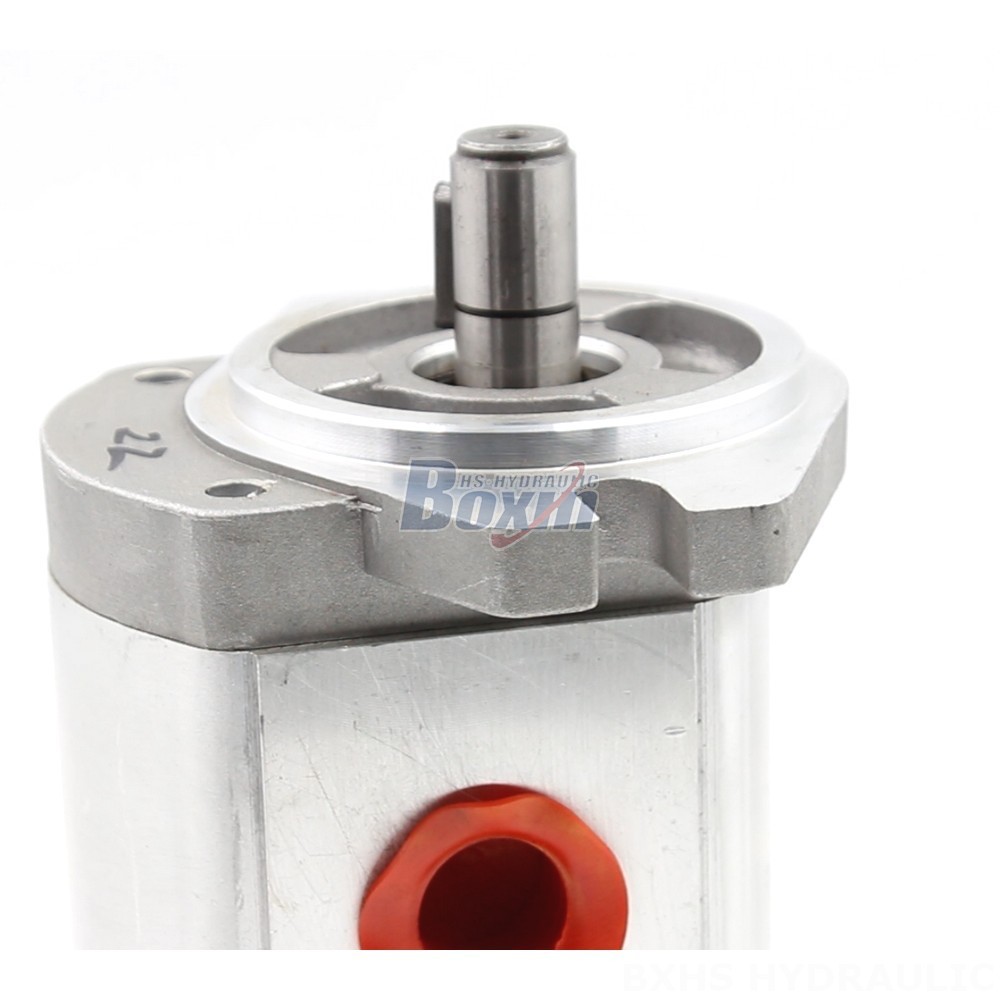

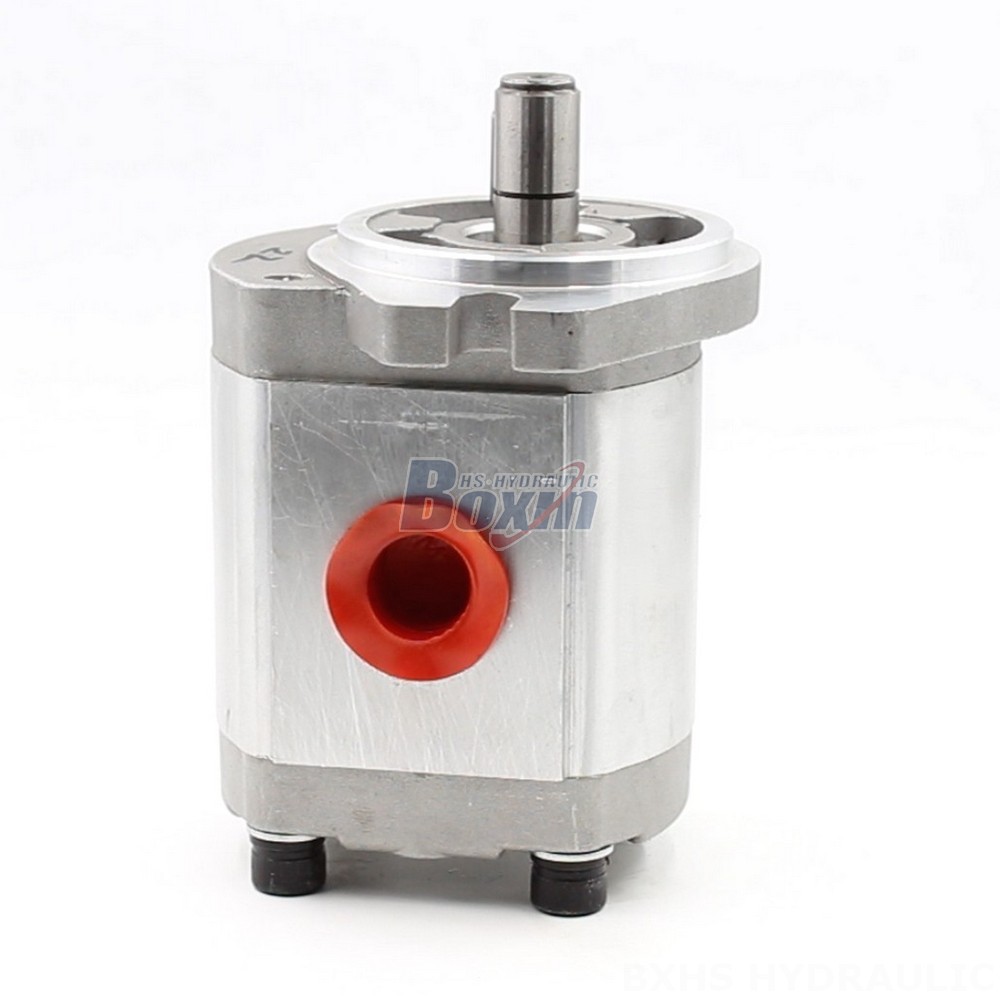

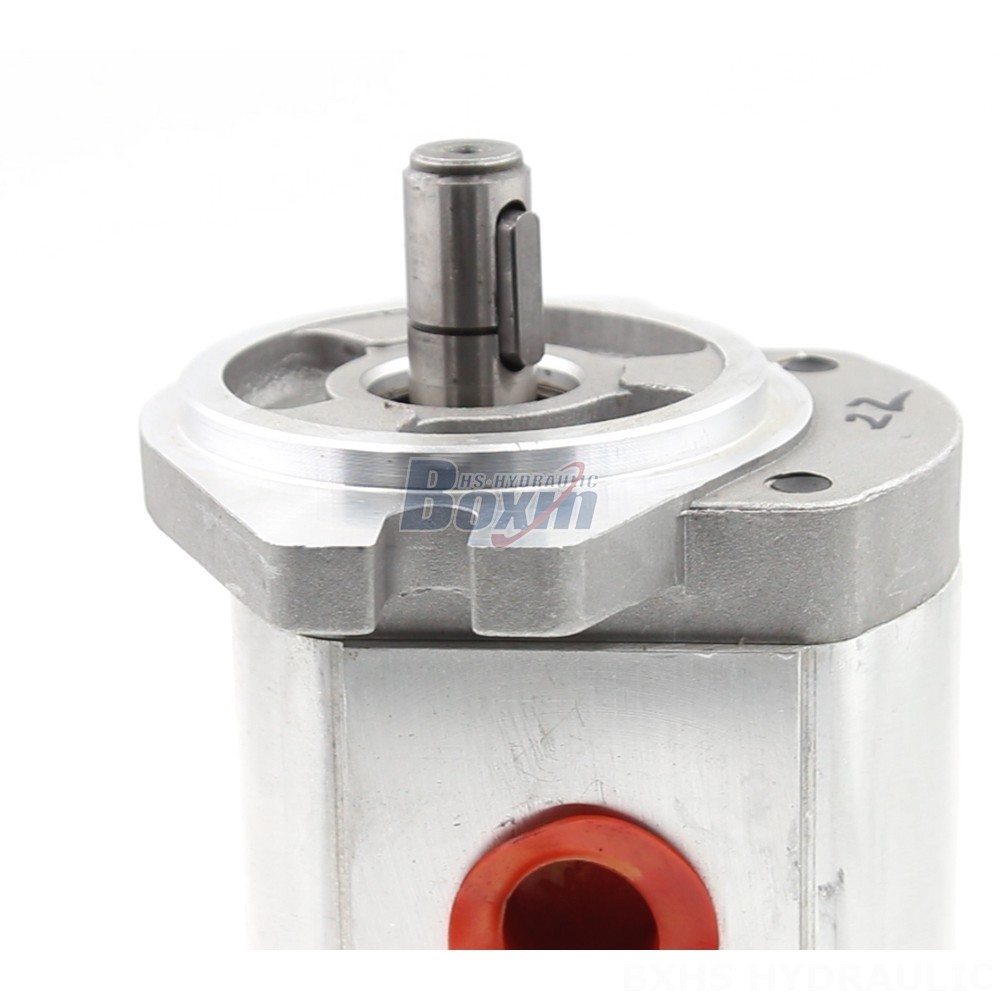

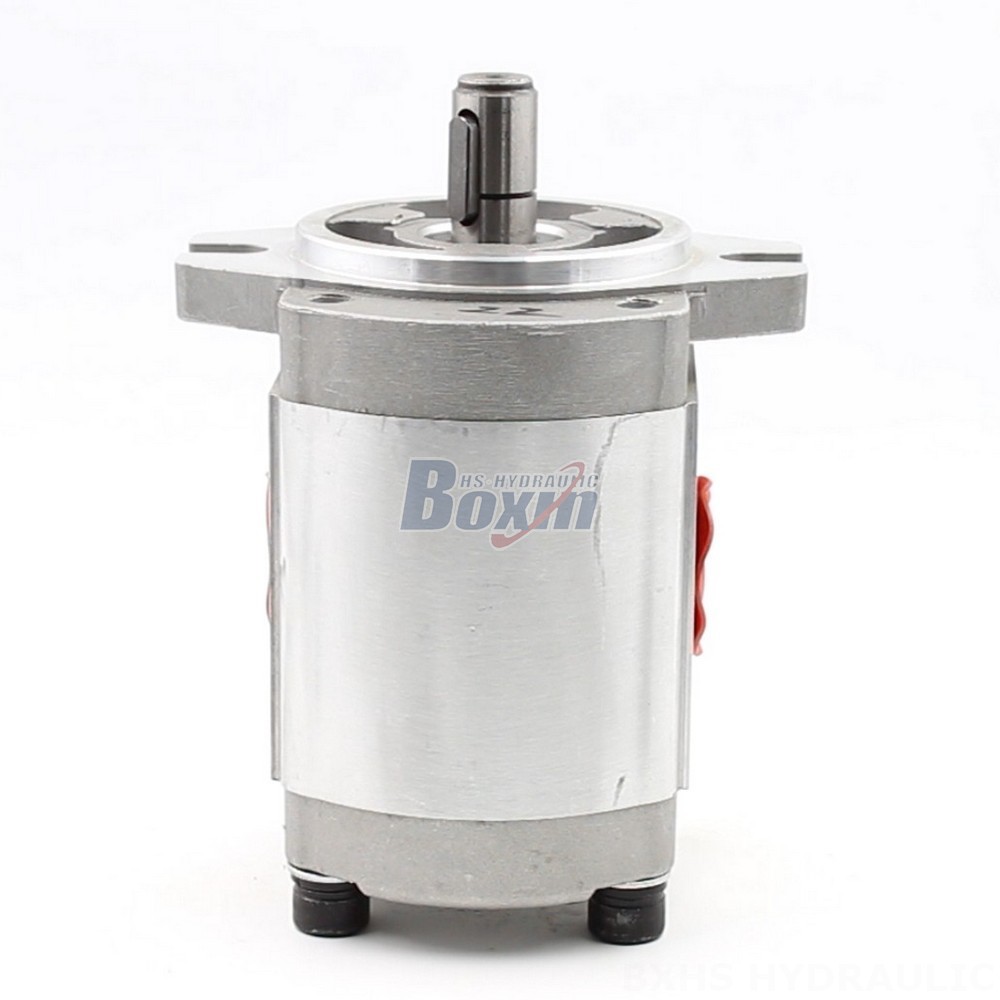

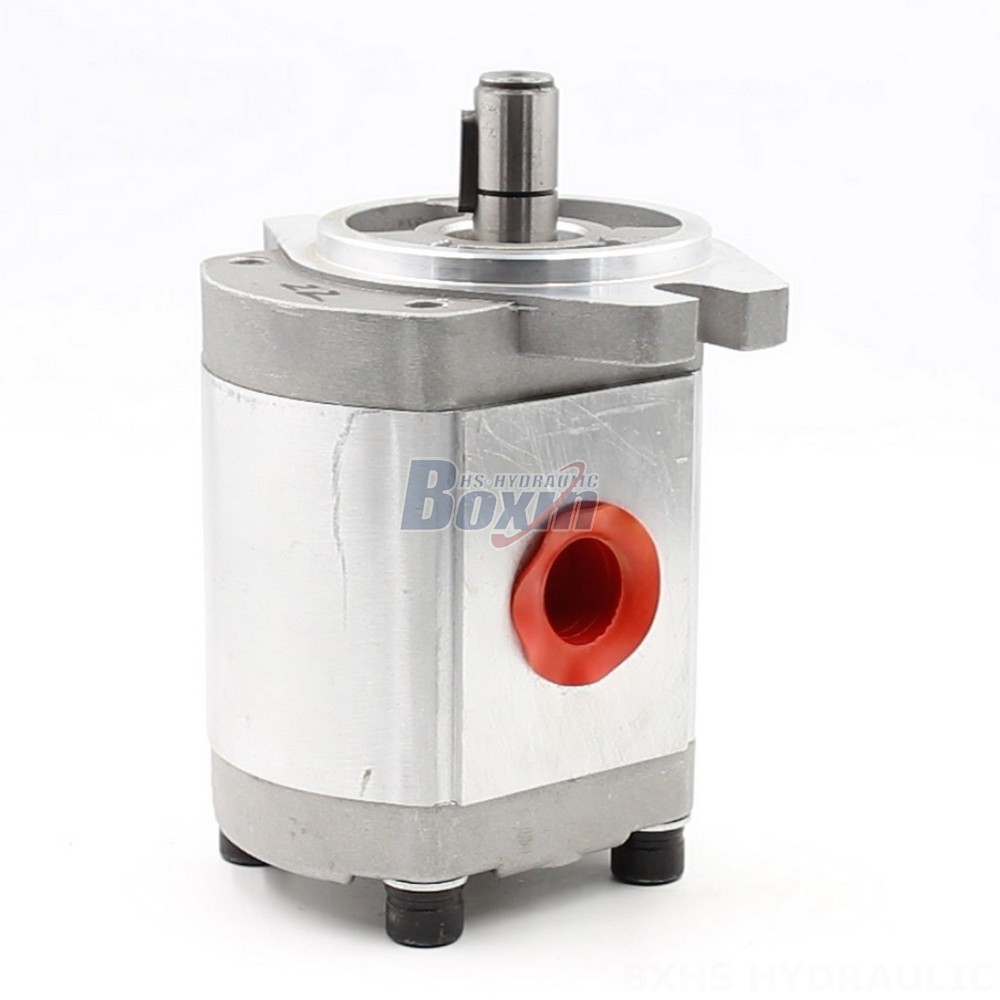

The CBHS-FL304 Industrial Hydraulic Gear Pump is a high-performance, low-noise pump designed for demanding applications in construction, agriculture, industrial vehicles, and material handling. With a displacement of 10 cc/rev and a rated pressure of 20 MPa (2900 psi), this pump delivers high flow rates while maintaining quiet operation.
| CBHS-FL3系列 液压齿轮泵 参数 | |
|---|---|
| 排量 | 10 毫升/转, 4 毫升/转, 20 毫升/转, 16 毫升/转, 14 毫升/转, 6 毫升/转 |
| 额定压力 | 20 MPa (2900 psi) |
| 最大压力 | 25 MPa (3625 psi) |
| 额定转速 | 2000 r/min |
| 最大转速 | 3000 r/min |
| 旋转方向 | 左旋（逆时针旋转）, 右旋（顺时针旋转） |
| 材质 | 铝 |
| 架构 | 外啮合齿轮泵 |
| 法兰盘类型 | A-菱形法兰 |
| 轴伸形式 | H:矩形花键, X:渐开线花键, P：普通键 |
The CBHS-FL304 is a robust internal gear pump constructed from aluminium, featuring an A-Oval flange and a plain key shaft. It boasts a rated speed of 2000 r/min and a maximum speed of 3000 r/min, ensuring reliable performance in various applications. Specifically designed for construction and earth moving, agriculture, industrial vehicles, and material handling, it is suitable for telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and balers.
