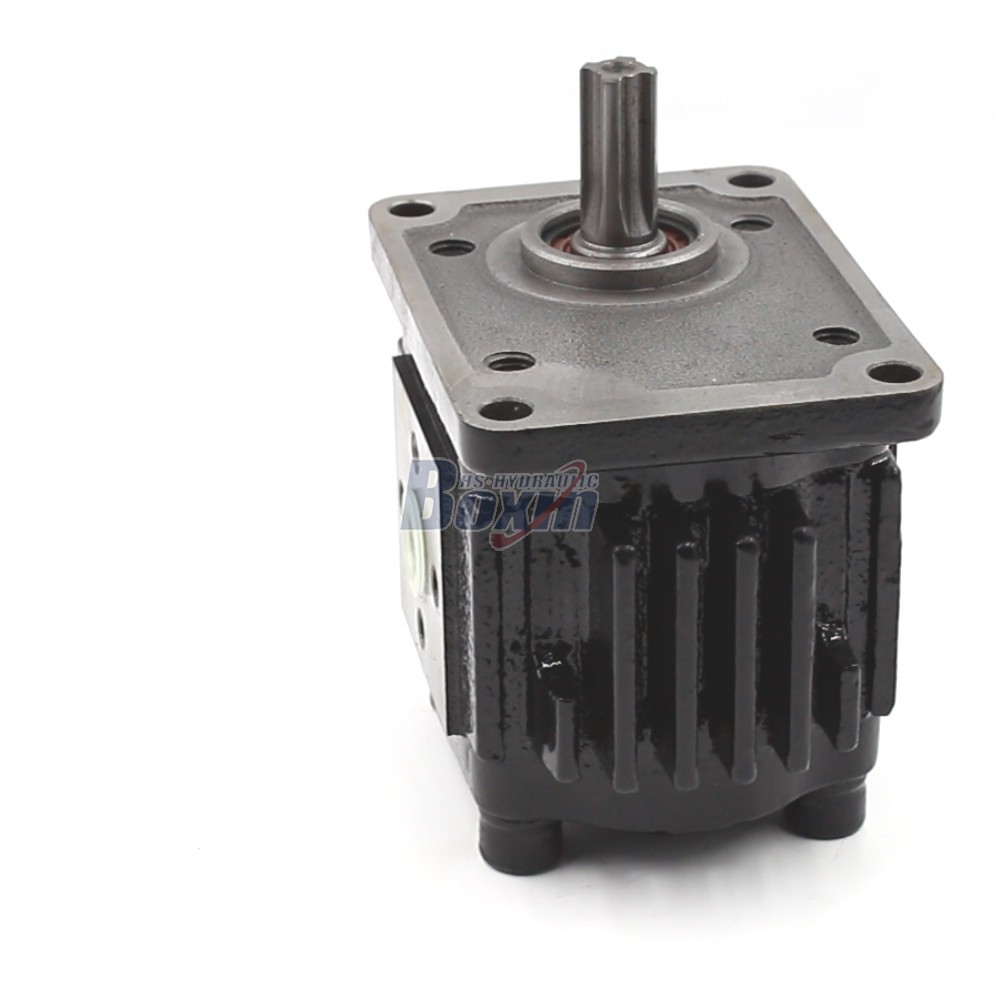

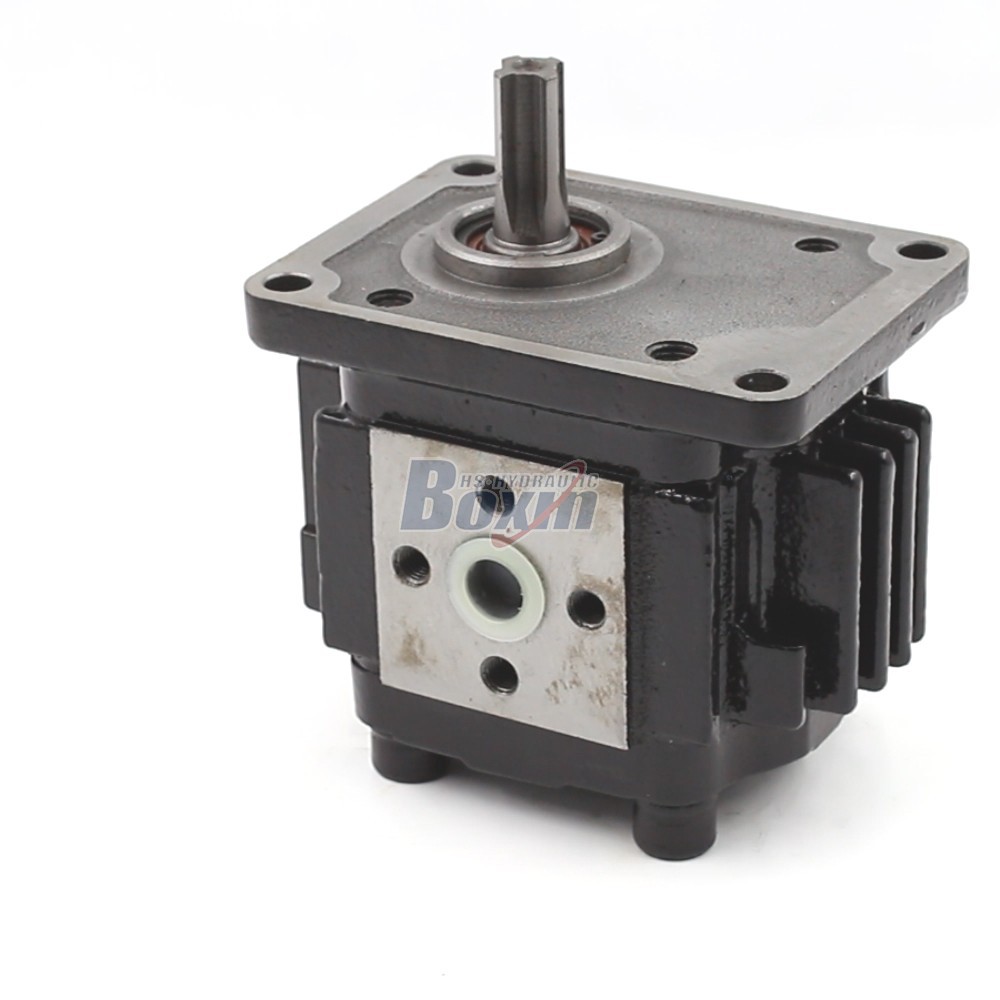

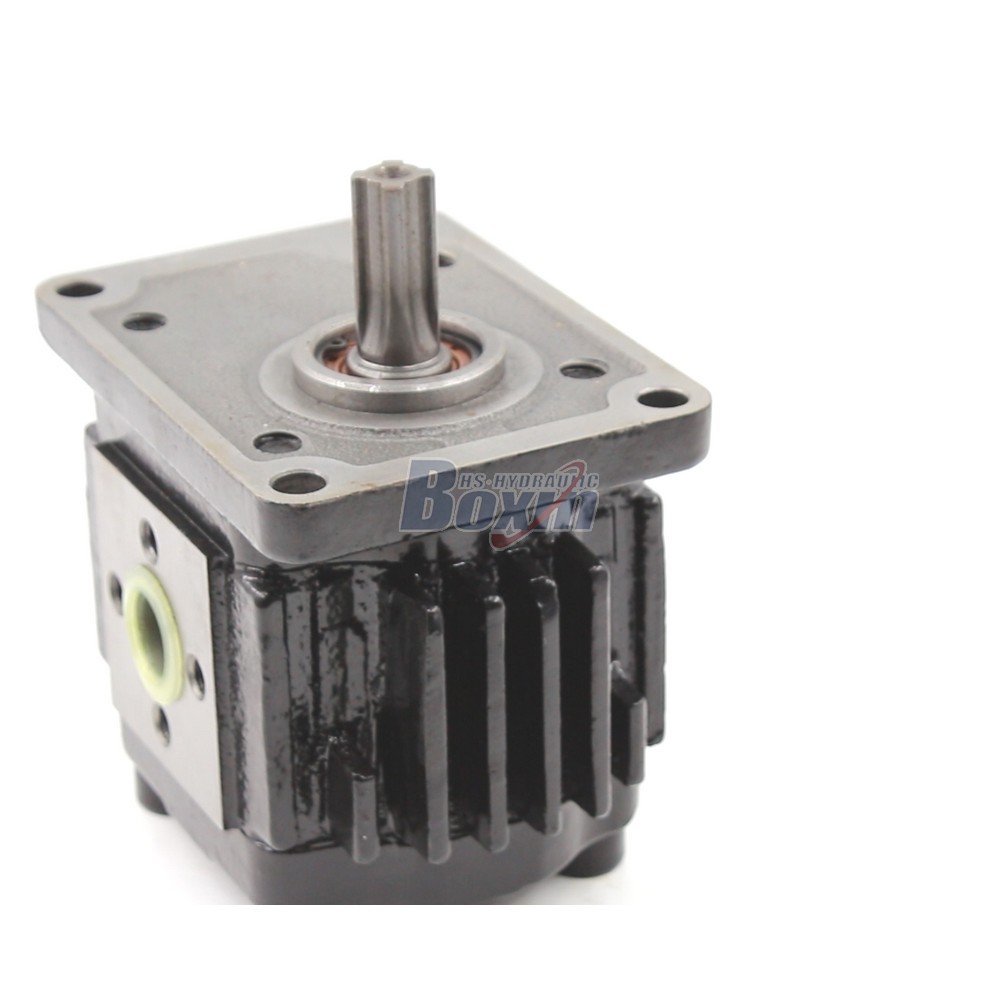

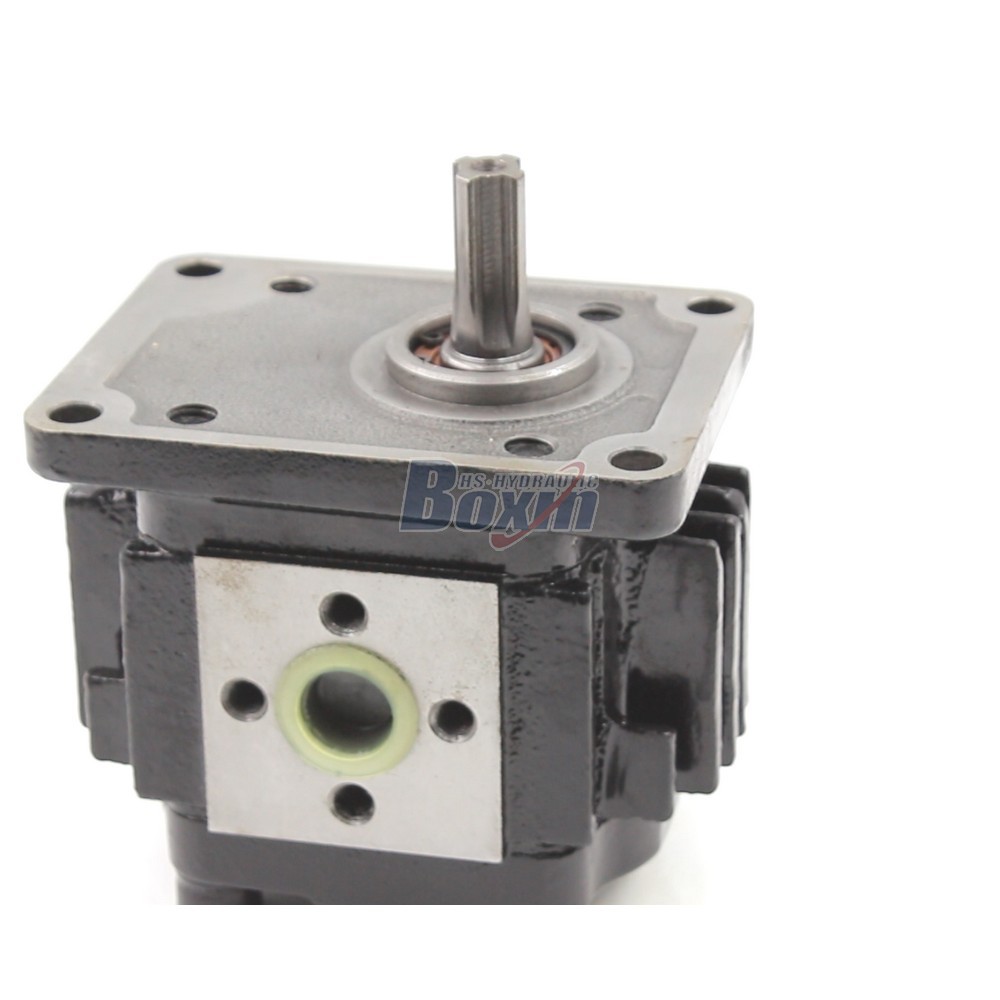

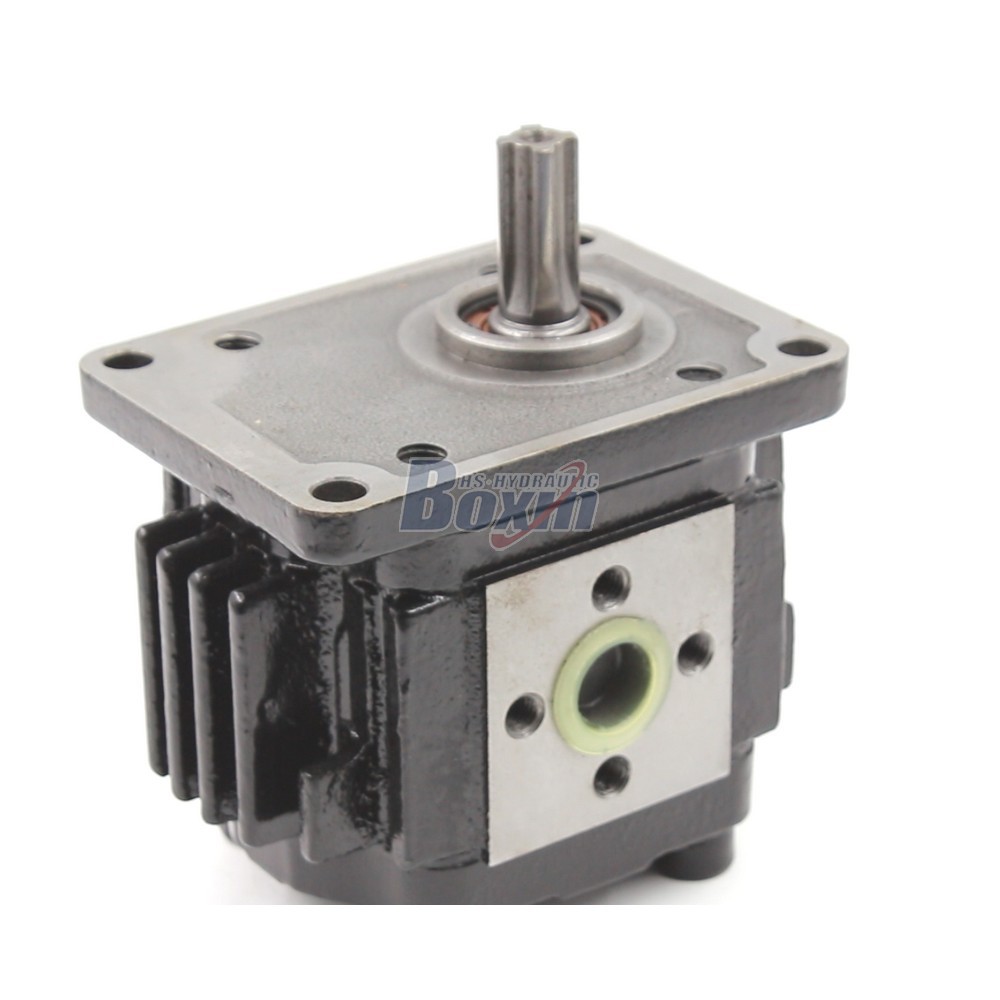

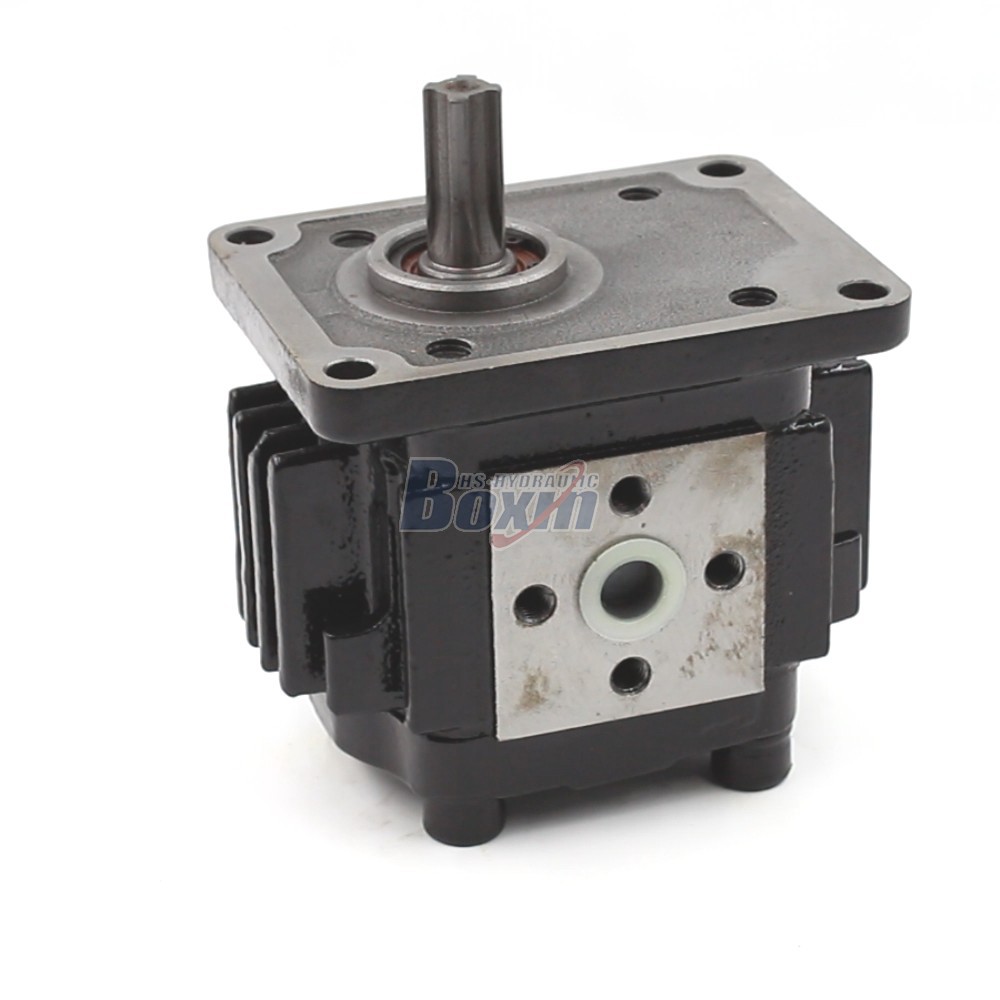

This industrial hydraulic gear pump is designed for high performance and heavy duty applications. It features a robust construction with a displacement of 16 cc/rev and a rated pressure of 18 MPa (2610 psi), ensuring reliable operation in demanding environments.
| CBHS-F3系列 液压齿轮泵 参数 | |
|---|---|
| 排量 | 10 毫升/转, 20 毫升/转, 16 毫升/转, 14 毫升/转, 6 毫升/转 |
| 额定压力 | 16 MPa (2320 psi) |
| 最大压力 | 18 MPa (2610 psi) |
| 额定转速 | 2000 r/min |
| 最大转速 | 2200 r/min |
| 旋转方向 | 左旋(逆时针旋转), 右旋(顺时针旋转) |
| 架构 | 外啮合齿轮泵 |
| 材质 | 铝 |
| 轴伸形式 | P:普通键 |
| 法兰盘类型 | A-菱形法兰 |
Our Industrial Hydraulic Gear Pump is available in various displacements, including 50 cc/rev, 32 cc/rev, 45 cc/rev, and 63 cc/rev. It is designed to withstand a maximum pressure of 20 MPa (2900 psi) and can operate at speeds up to 2200 r/min. The pump features a robust cam plate type design and is available with both internal and external gear configurations. Constructed from durable aluminium, the pump comes with an A-oval flange and plain key shaft. This pump is ideal for a wide range of applications including material handling, construction, earth moving, agriculture, and industrial vehicles. It is particularly suited for use in forklifts, telehandlers, mini-excavators, midi-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters. We offer a complete range of services including manufacturing, OEM, ODM, private label, and customization to meet the specific requirements of our customers.
