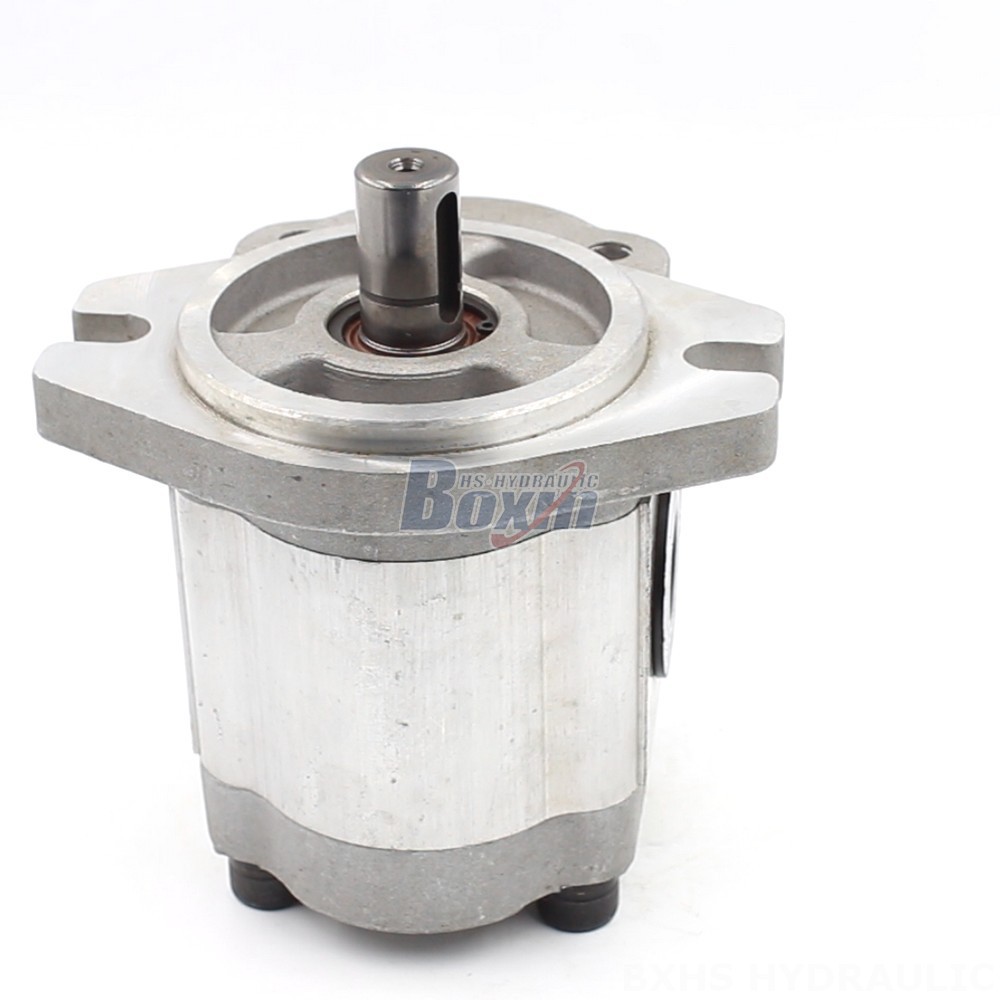

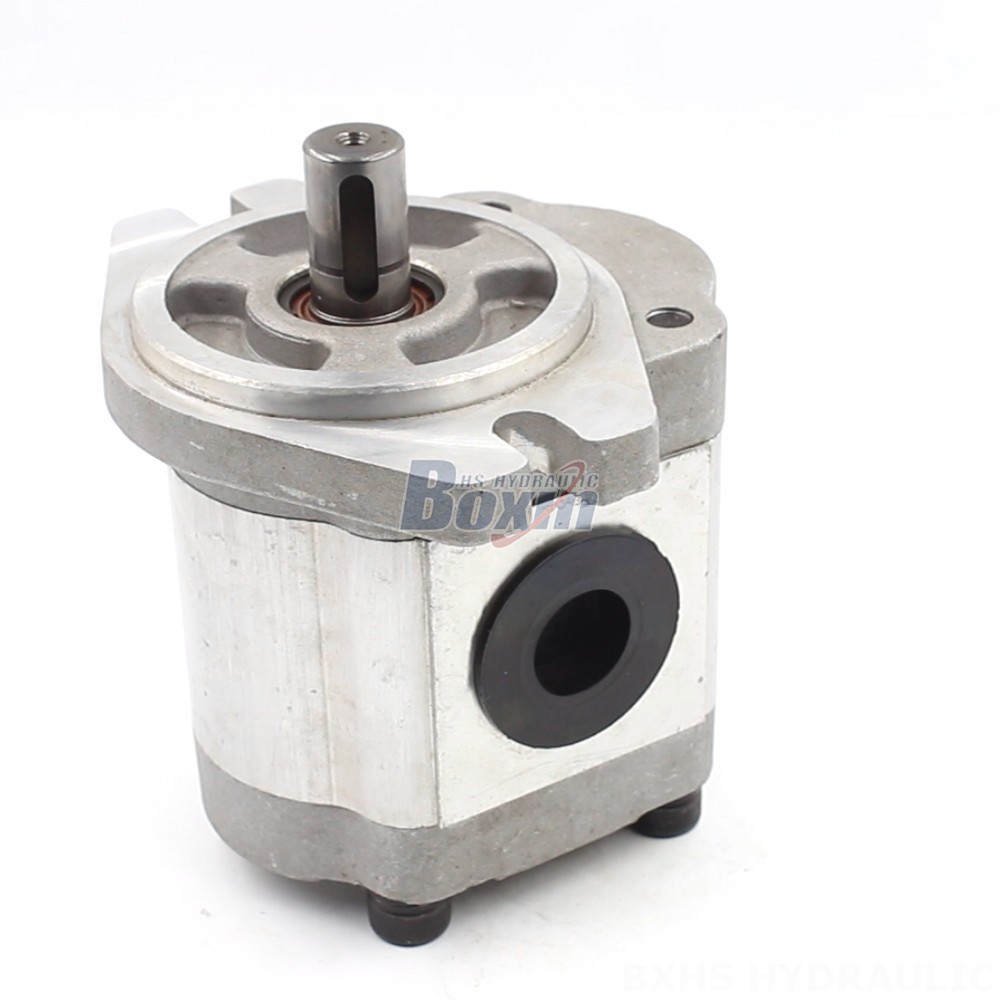

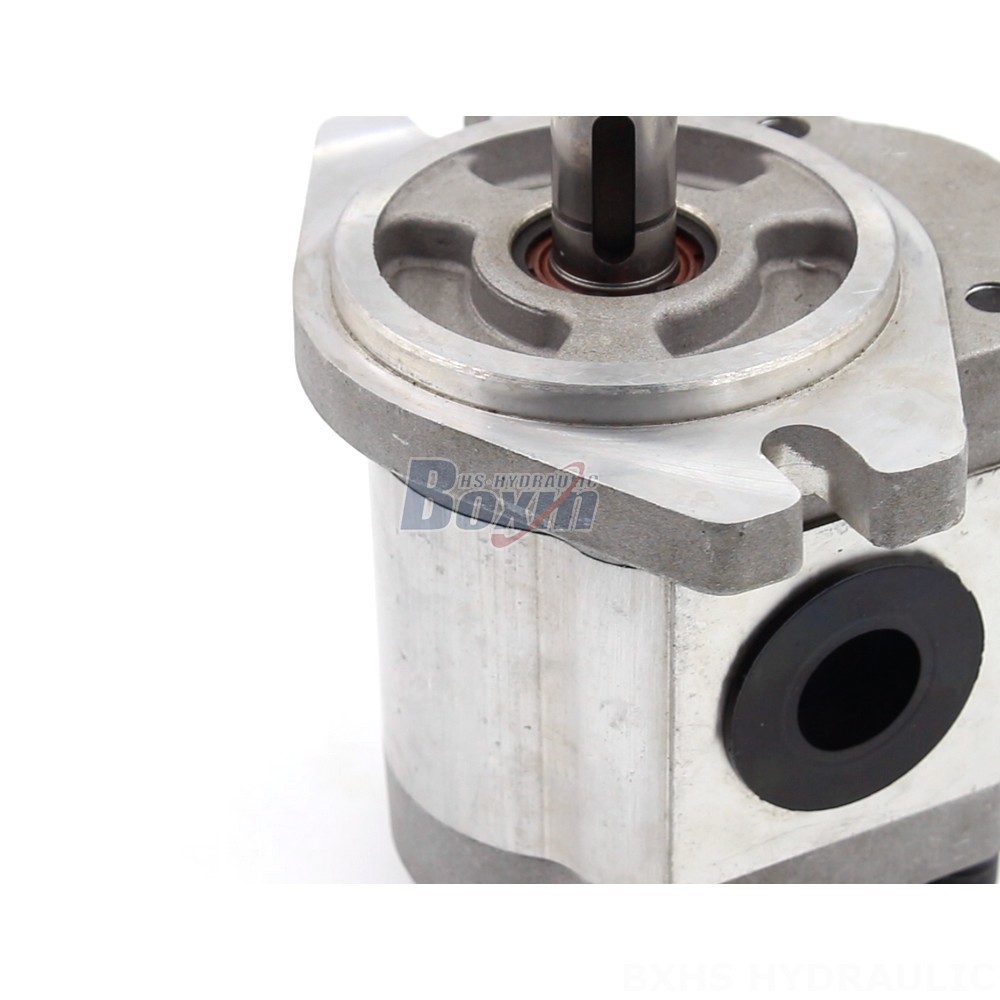

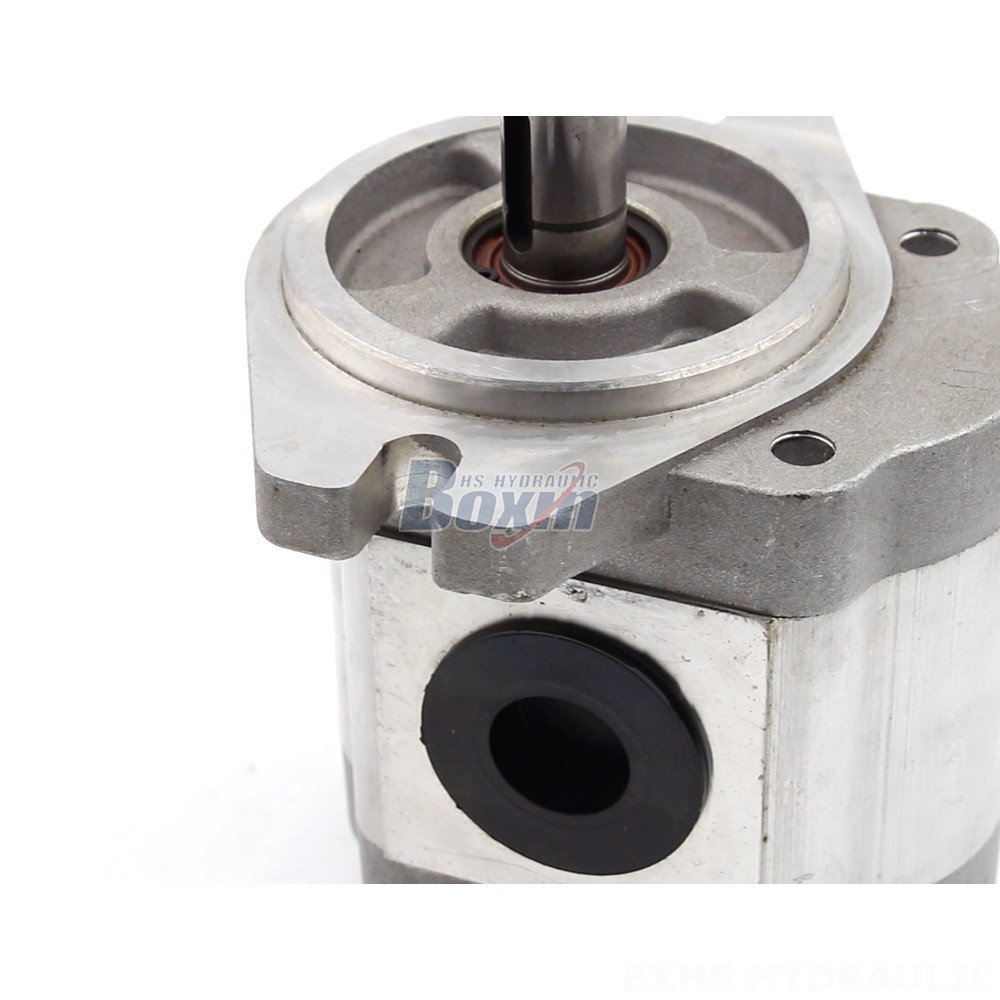

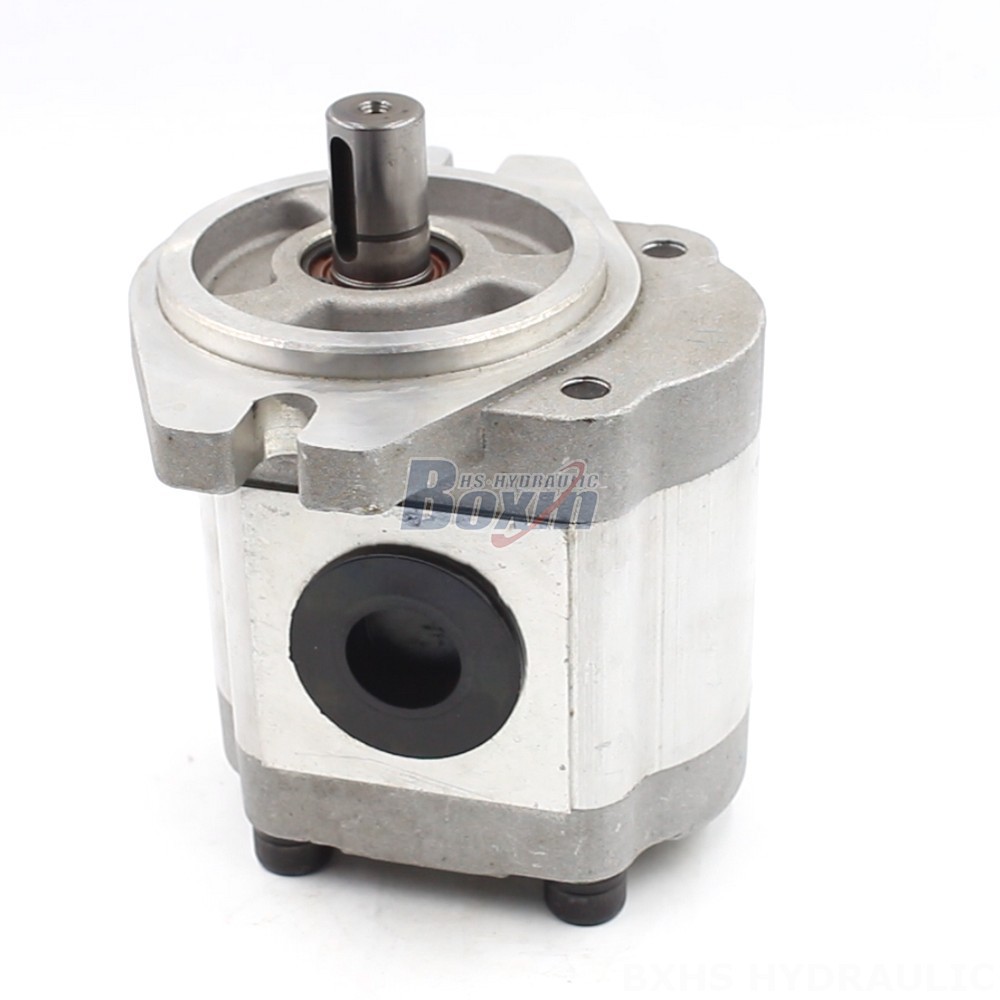

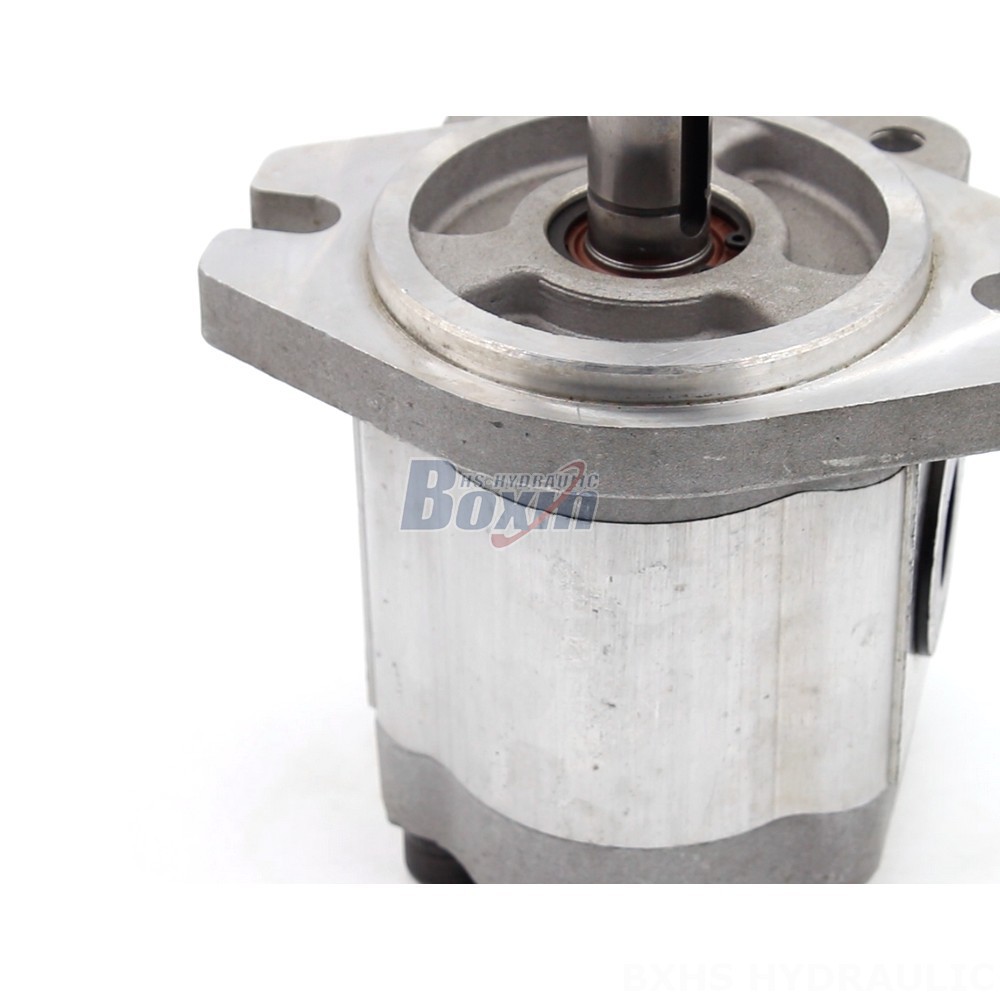

This industrial-grade 14 cc/rev hydraulic gear pump offers customizable solutions for a wide range of applications, including material handling, construction, earth moving, agriculture, and industrial vehicles. It features a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min. The pump is constructed with an internal gear design and aluminium material, providing reliable performance and durability.
| CBHS-FL3系列 液压齿轮泵 参数 | |
|---|---|
| 排量 | 10 毫升/转, 4 毫升/转, 20 毫升/转, 16 毫升/转, 14 毫升/转, 6 毫升/转 |
| 额定压力 | 20 MPa (2900 psi) |
| 最大压力 | 25 MPa (3625 psi) |
| 额定转速 | 2000 r/min |
| 最大转速 | 3000 r/min |
| 旋转方向 | 左旋（逆时针旋转）, 右旋（顺时针旋转） |
| 材质 | 铝 |
| 架构 | 外啮合齿轮泵 |
| 法兰盘类型 | A-菱形法兰 |
| 轴伸形式 | H:矩形花键, X:渐开线花键, P：普通键 |
This high-performance hydraulic gear pump is designed for demanding industrial applications. It boasts a displacement of 10 cc/rev and a rated pressure of 20 MPa (2900 psi), ensuring powerful and efficient operation. The pump can handle speeds up to 3000 r/min and is available in both left and right rotation configurations. Its internal gear pump design, combined with its robust aluminium construction, provides exceptional durability and reliability. The A-Oval flange and plain key shaft make it compatible with a wide range of systems. This versatile pump is ideally suited for use in forklifts, telehandlers, mini-excavators, skid steer loaders, and tractors, making it a valuable asset for various industries.
