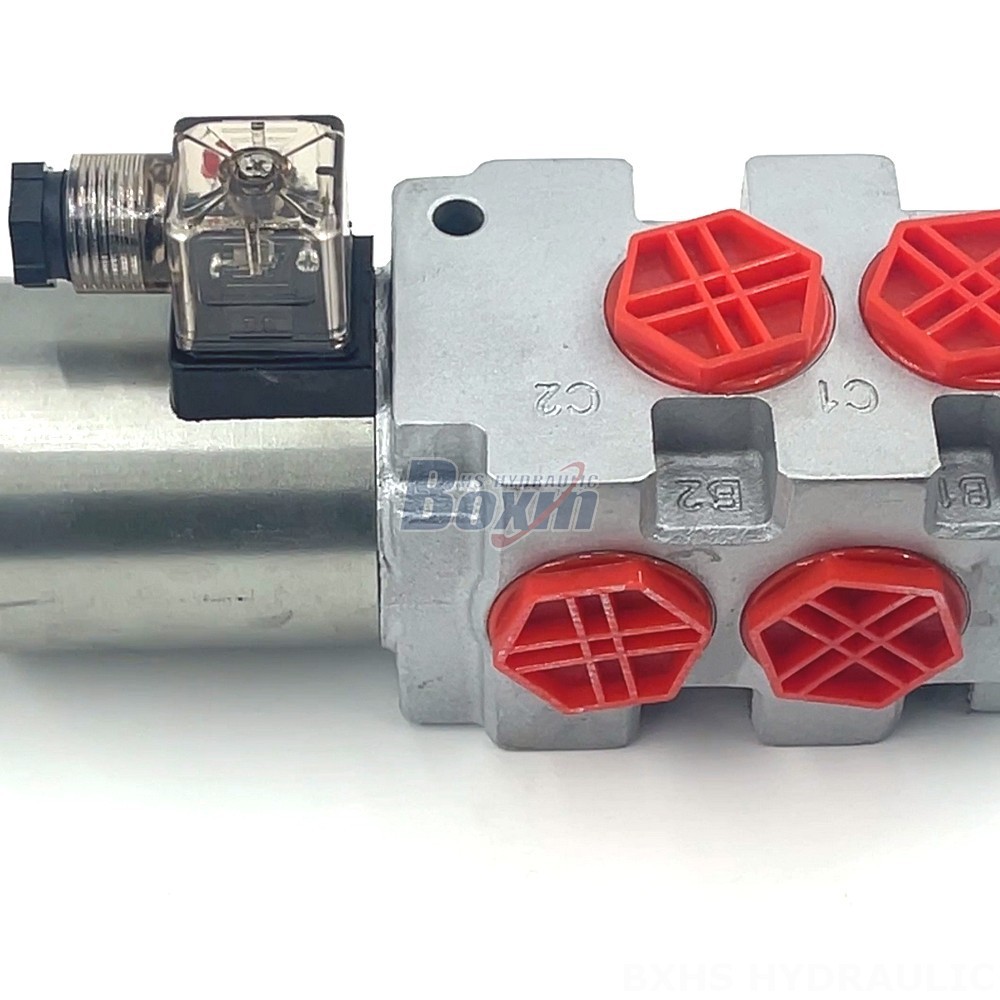

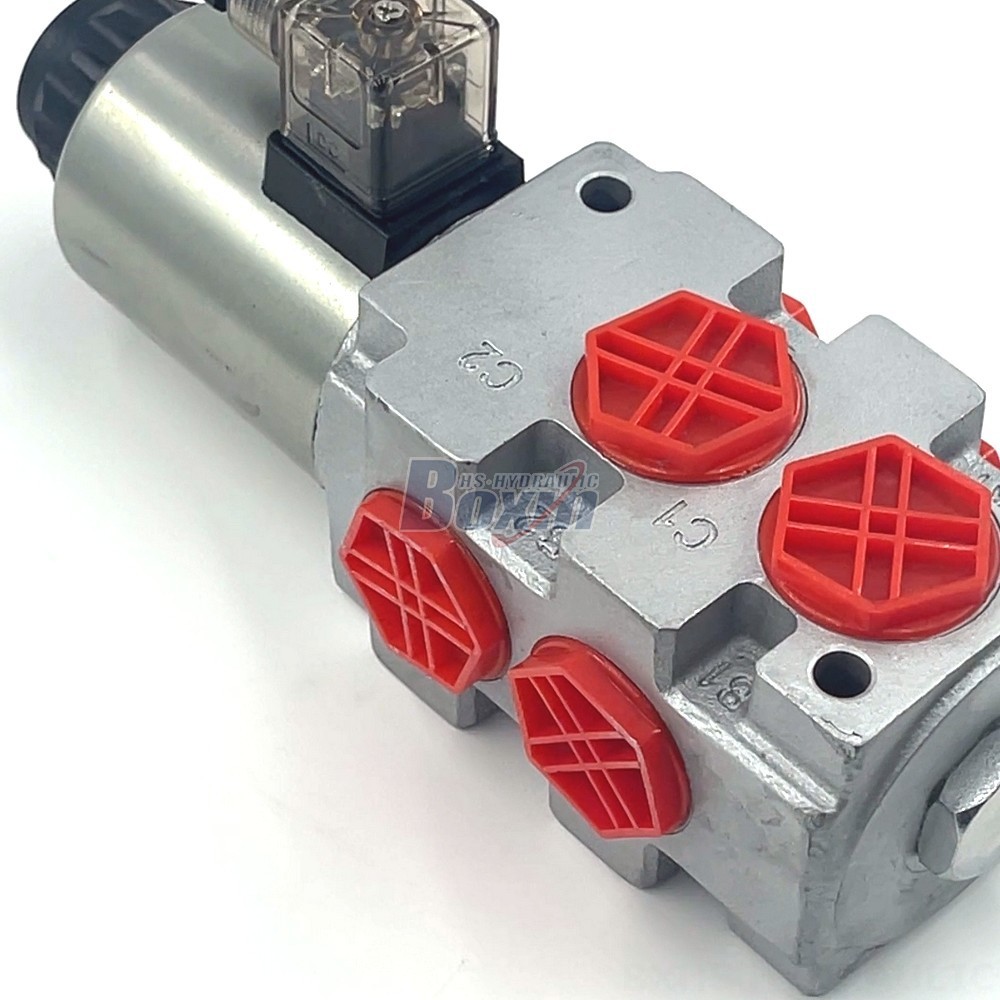

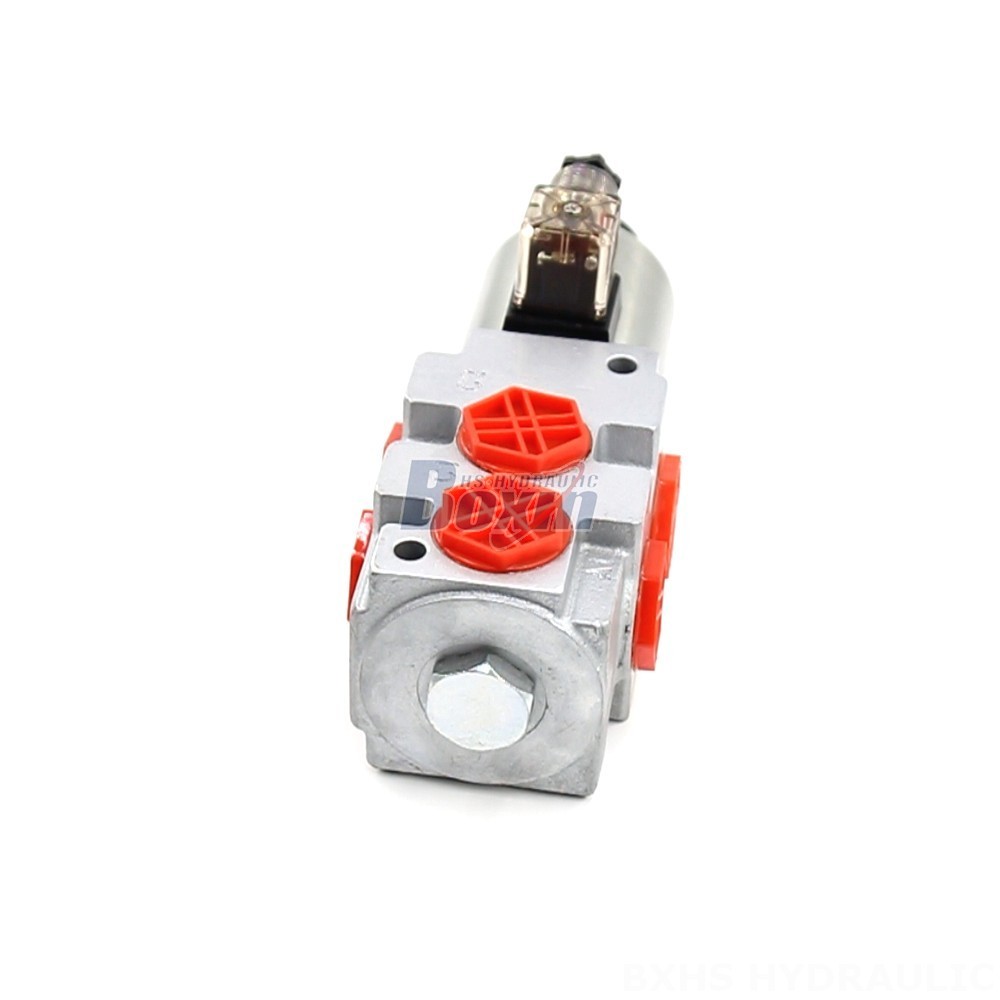

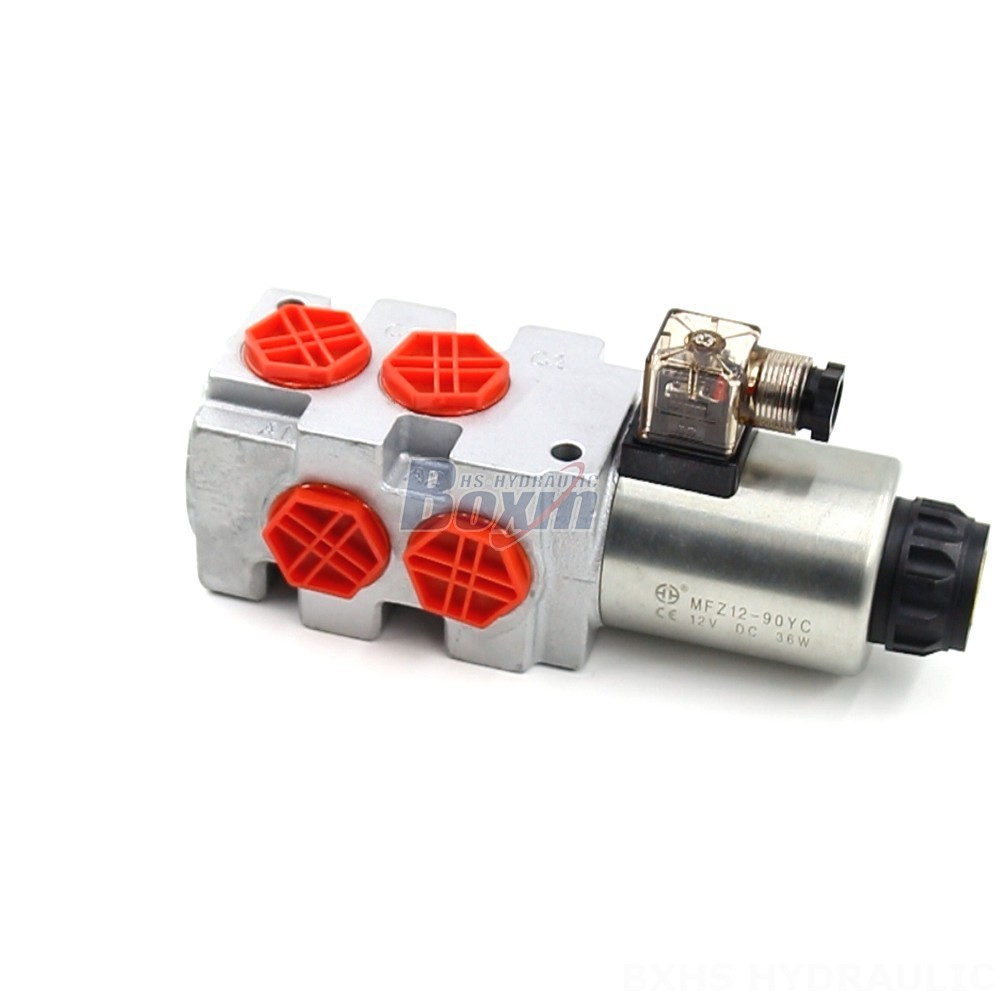

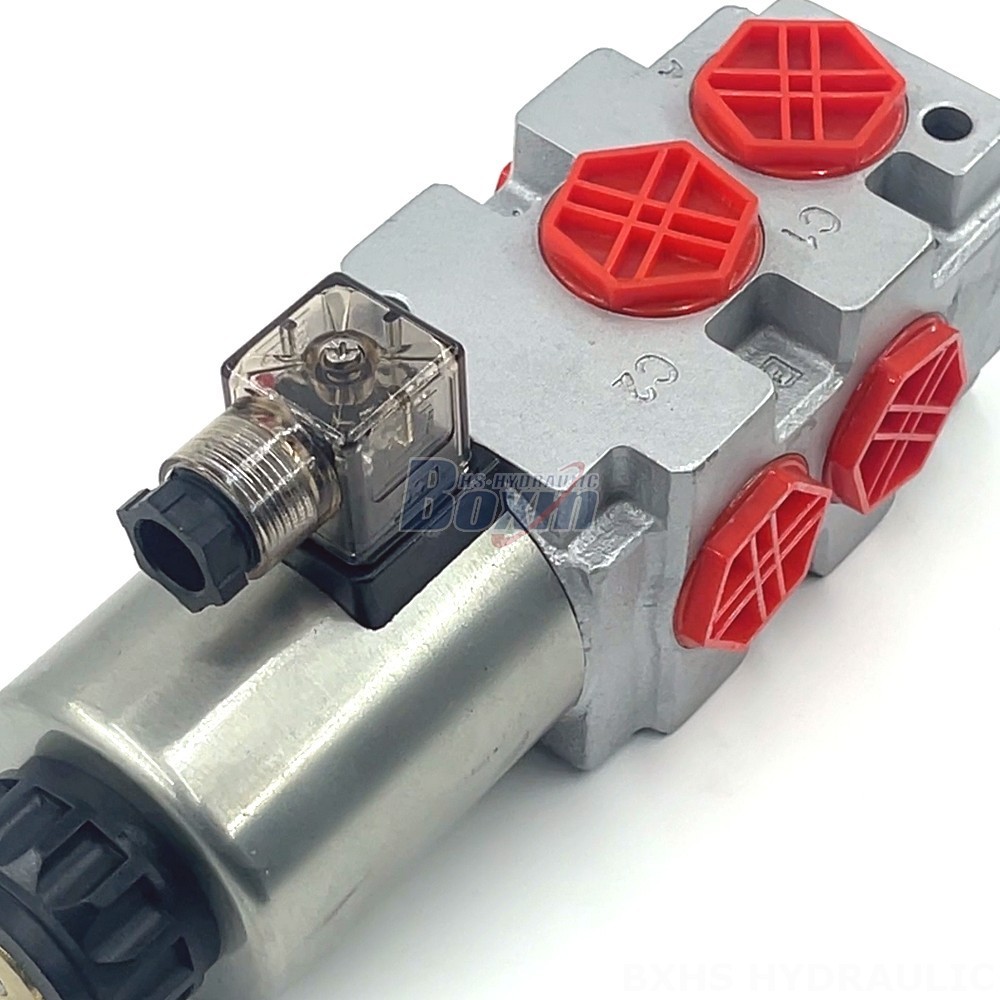

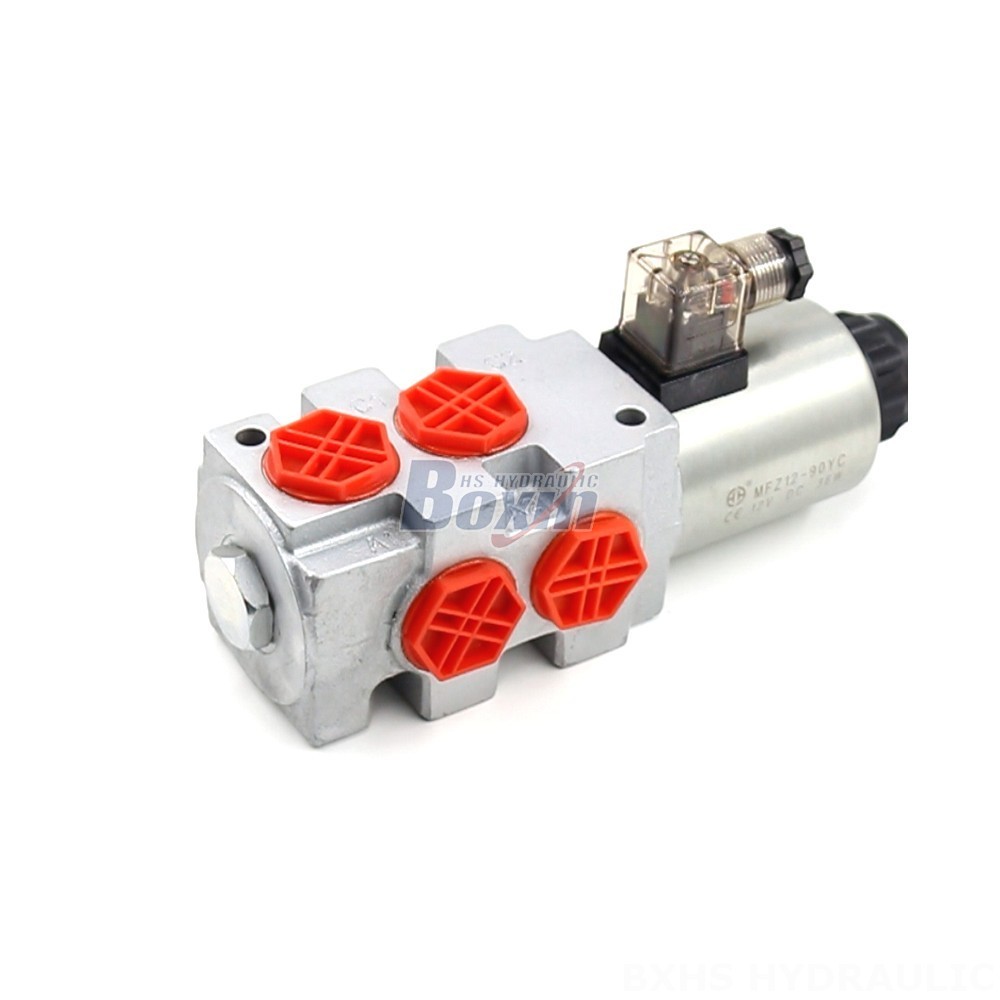

The Industrial Flow Control - HSV09-DKL Solenoid Flow Diverter Valve is a high-performance hydraulic component designed for precise flow control in various industrial applications. With a rated flow rate of 90 L/min and a maximum operating pressure of 250 bar, it offers exceptional flow management capabilities.
| HSV09-DKL系列 分流阀 参数 | |
|---|---|
| 控制方式 | 手控, 电磁, 液控, 电磁 |
| 路数 | 1 联, 2 联, 3 联 |
| 额定流量 | 90 L/min (23.8 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G1/2接口, G3/4接口 |
| 出油口 | G1/2接口, G3/4接口 |
| 接口尺寸 | G1/2接口, G3/4接口 |
| 联数 | 1联, 2联, 3联 |
| 结构类型 | 分片阀 |
| 环境温度范围 | -20°C to +80°C (-4°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**Key Features:**
* Solenoid control for reliable and responsive flow diversion
* Sectional valve design for compact and modular installation
* High flow capacity of 90 L/min for efficient flow control
* Robust construction with a maximum pressure rating of 250 bar
* Wide operating viscosity range of 15 - 75 mm²/s for compatibility with various fluids
* Temperature range of -40°C to +80°C for operation in challenging environments
* Single spool design for simple and effective flow control
**Applications:**
The HSV09-DKL Series Flow Diverter Valve finds applications in a wide range of industries, including:
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
**Applicable Models:**
This valve is commonly used in various equipment models, such as:
* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
