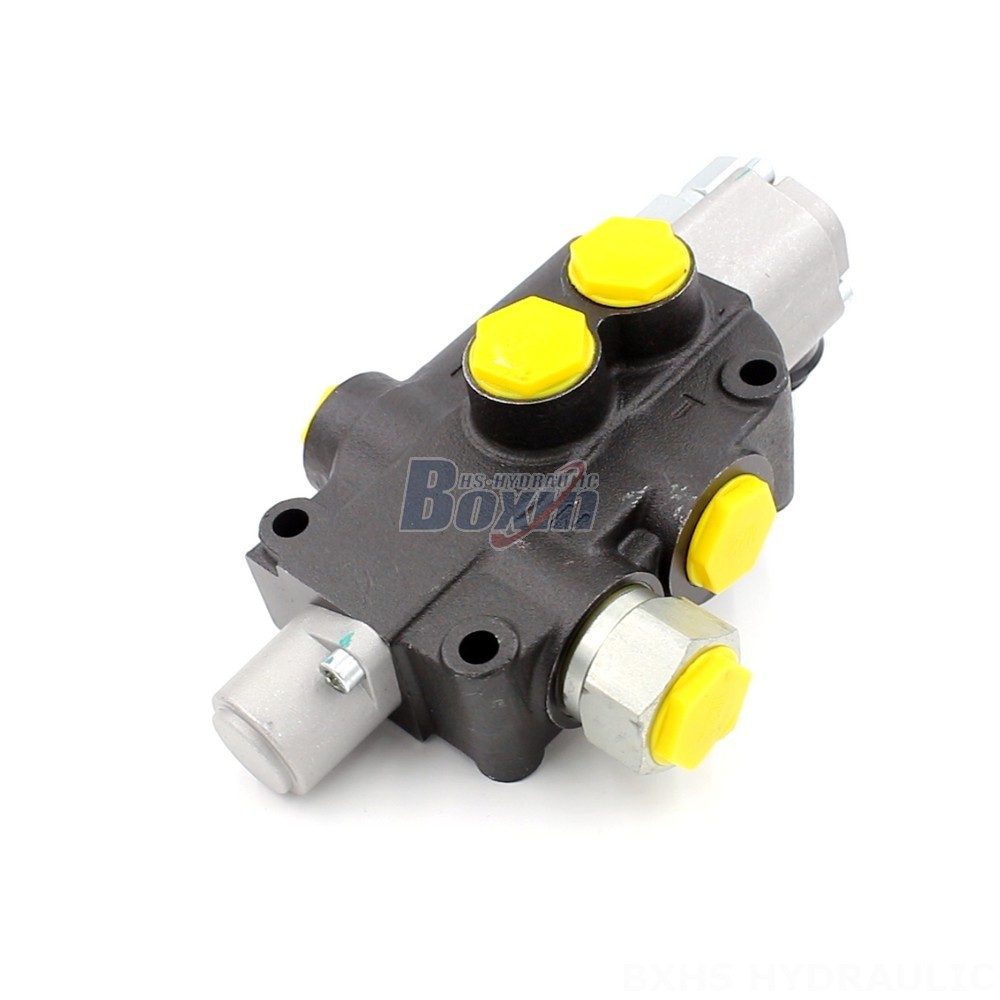

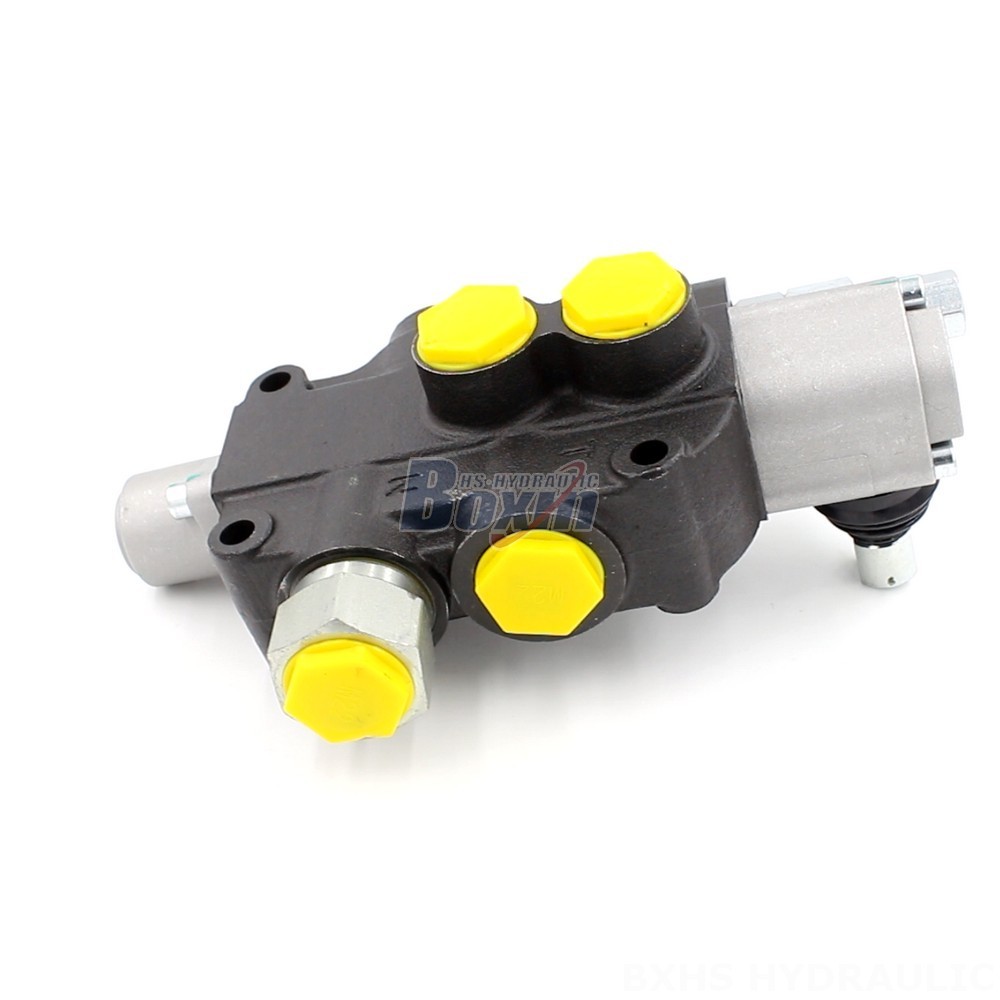

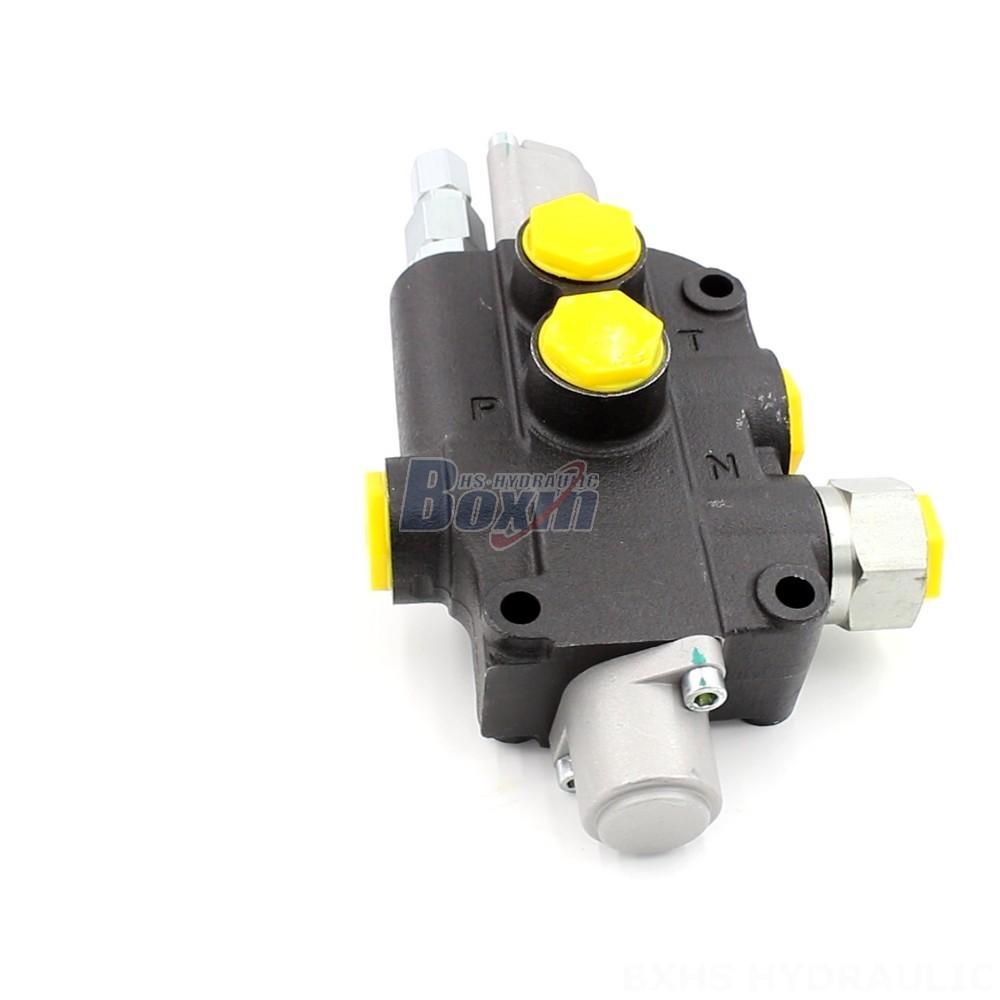

The P80J Hydraulic Control Valve is a high-performance, manual control valve designed for log splitters and a variety of construction and material handling equipment. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this monoblock valve is built to withstand demanding applications. It is available for global distribution directly from the factory.
| P80J系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁, 电磁和手动, 电磁+一控二, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M20×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M20×1.5螺纹, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
The P80J Hydraulic Control Valve is a robust and reliable solution for controlling hydraulic systems in a variety of applications. Its monoblock construction ensures durability and long-lasting performance. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it is suitable for heavy-duty log splitting and other applications requiring high flow and pressure. The manual control method provides simple and straightforward operation. This valve is specifically designed for use in various equipment including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The P80J series is manufactured to the highest quality standards and is available for global distribution directly from the factory, ensuring a reliable and cost-effective solution for your hydraulic needs.
