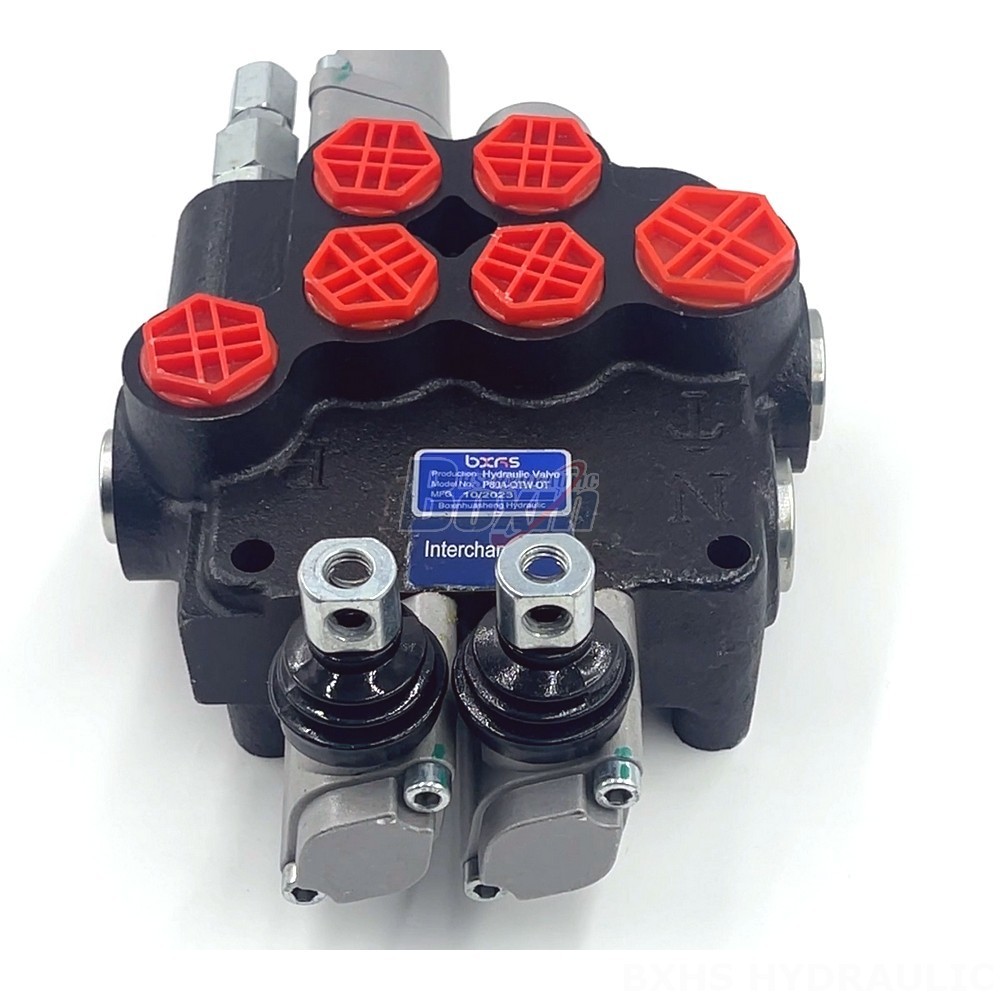

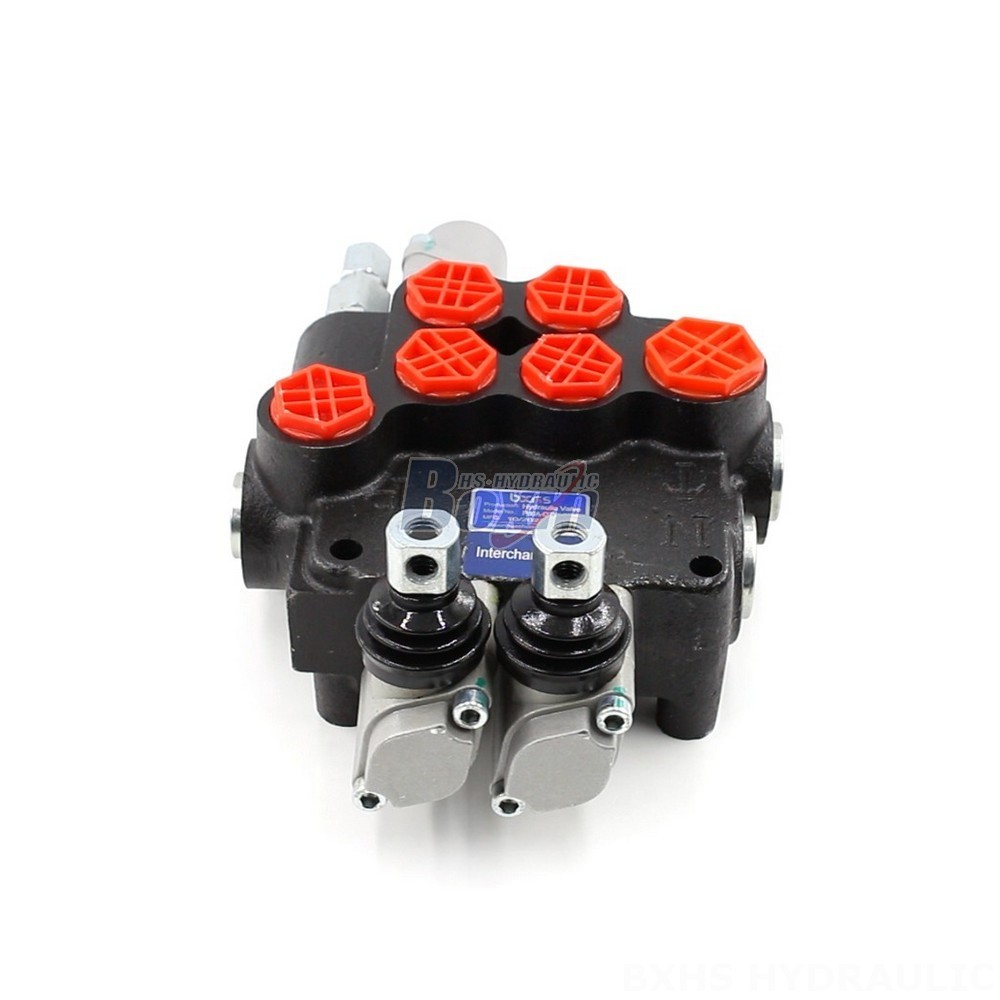

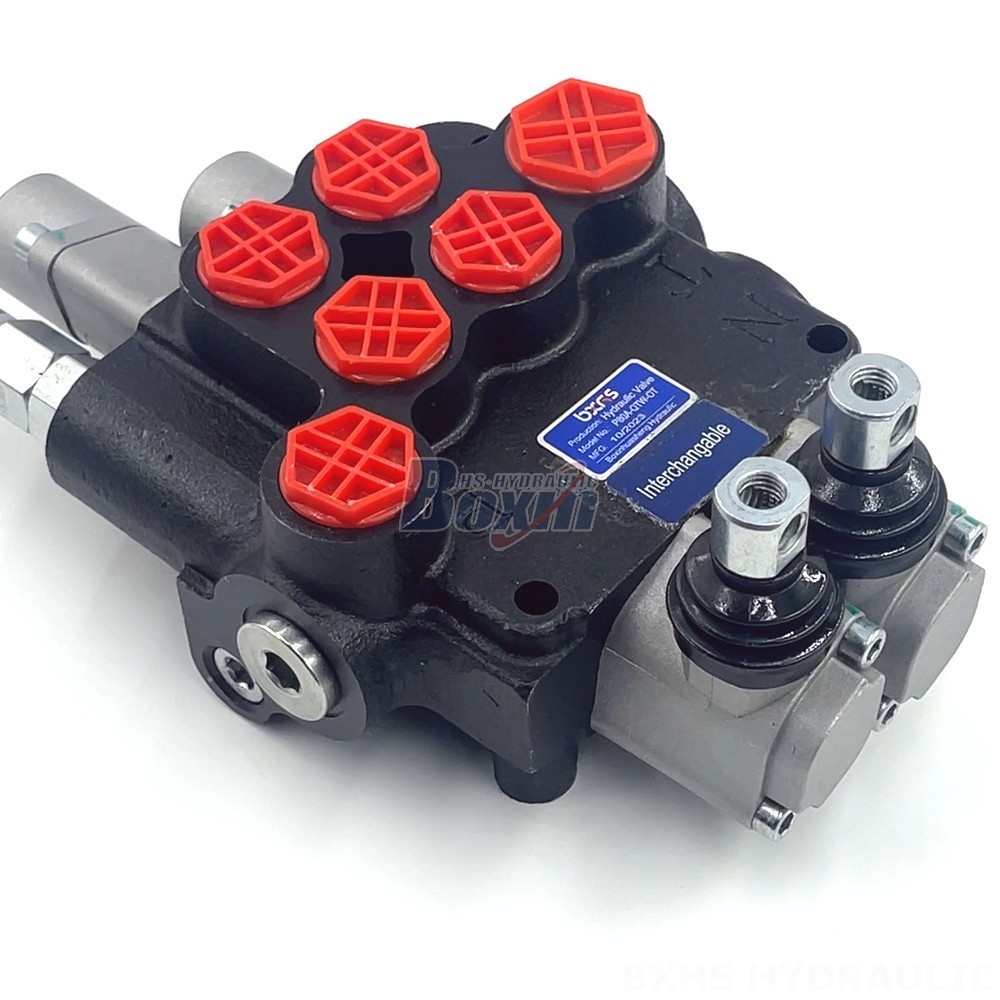

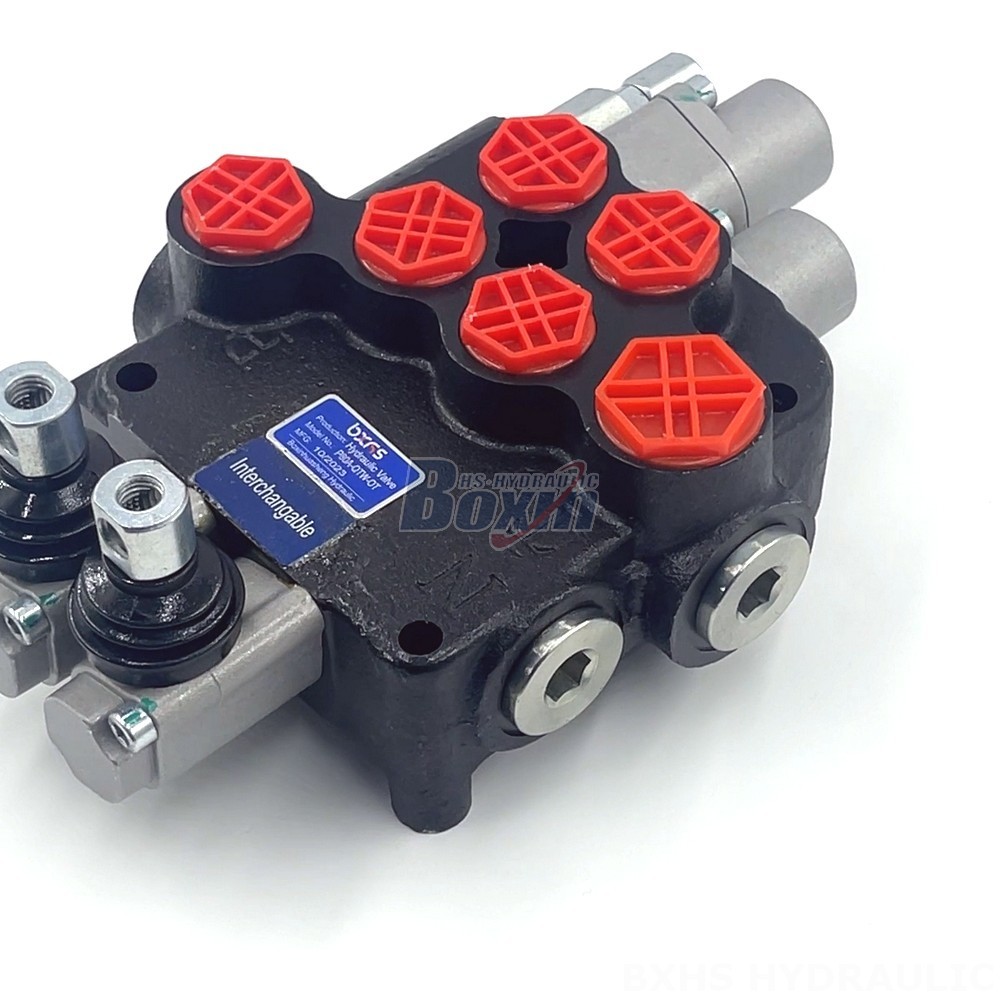

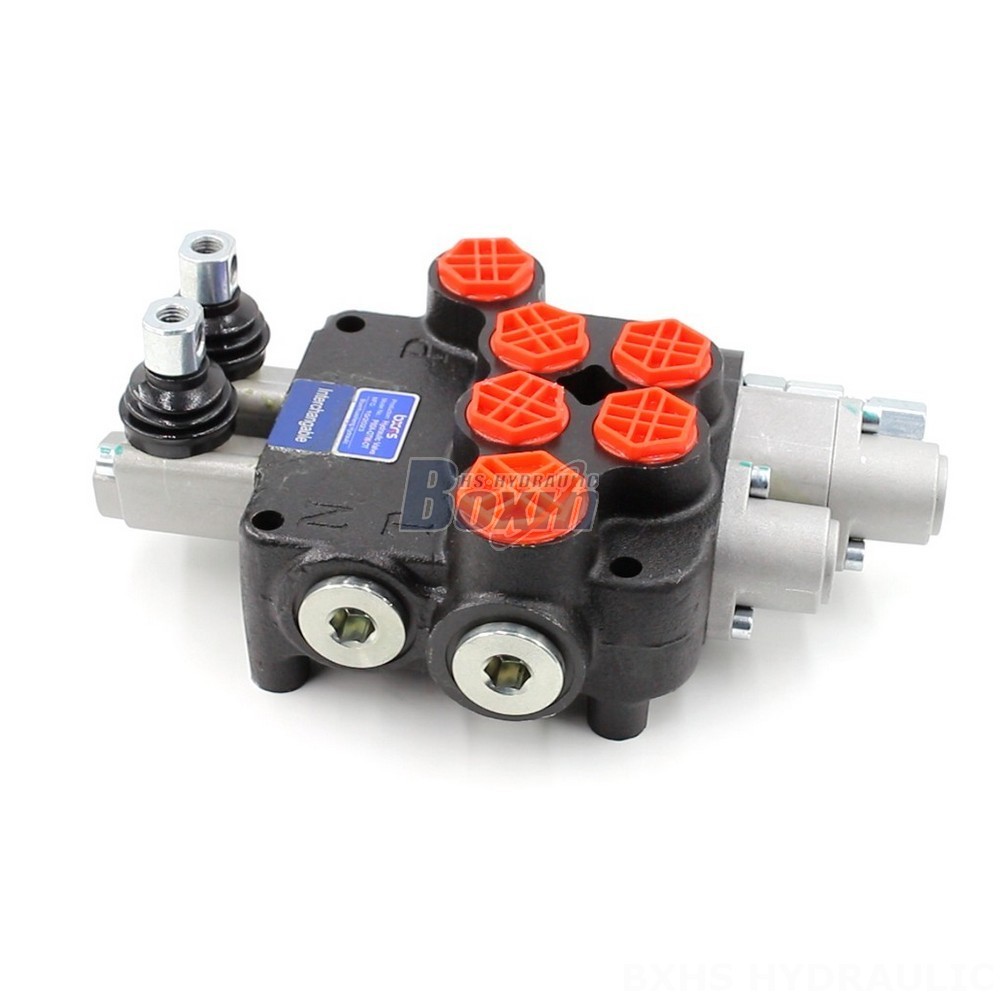

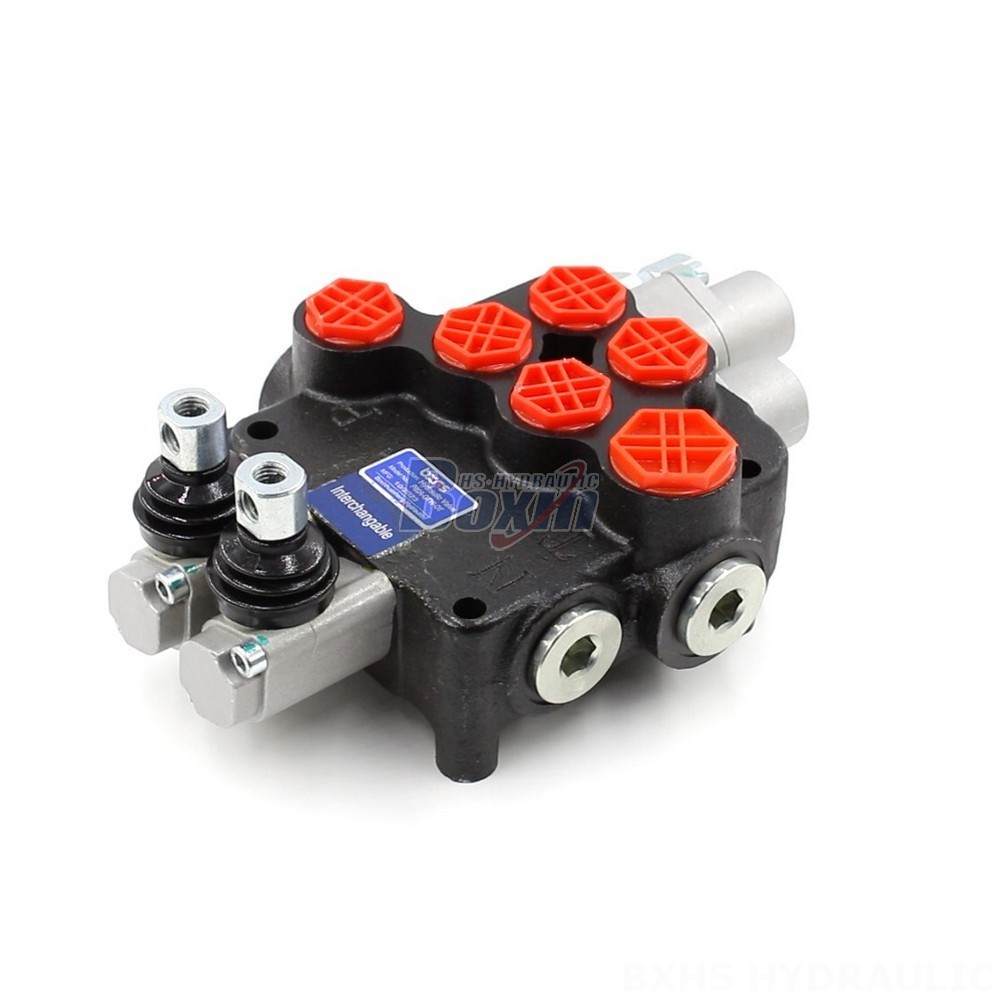

The P80A Series Manual Directional Control Valve is a high-performance hydraulic valve designed for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. This 2-section monoblock valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it ideal for demanding applications.
| P80A系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁, 电磁和手动, 电磁+一控二, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
The P80A Series Manual Directional Control Valve is a robust and reliable hydraulic component designed for use in a variety of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, and mini-excavators. This 2-section monoblock valve features a manual control method and a rated flow of 80 L/min (21.2 US gpm). It can handle a maximum pressure of 250 bar (3600 psi) and has a 2-spool design for precise control. The valve is built with high-quality materials and construction for long-lasting performance. We offer a variety of options including OEM, ODM, wholesale and custom solutions to meet your specific needs. Contact us today to discuss your project requirements.
