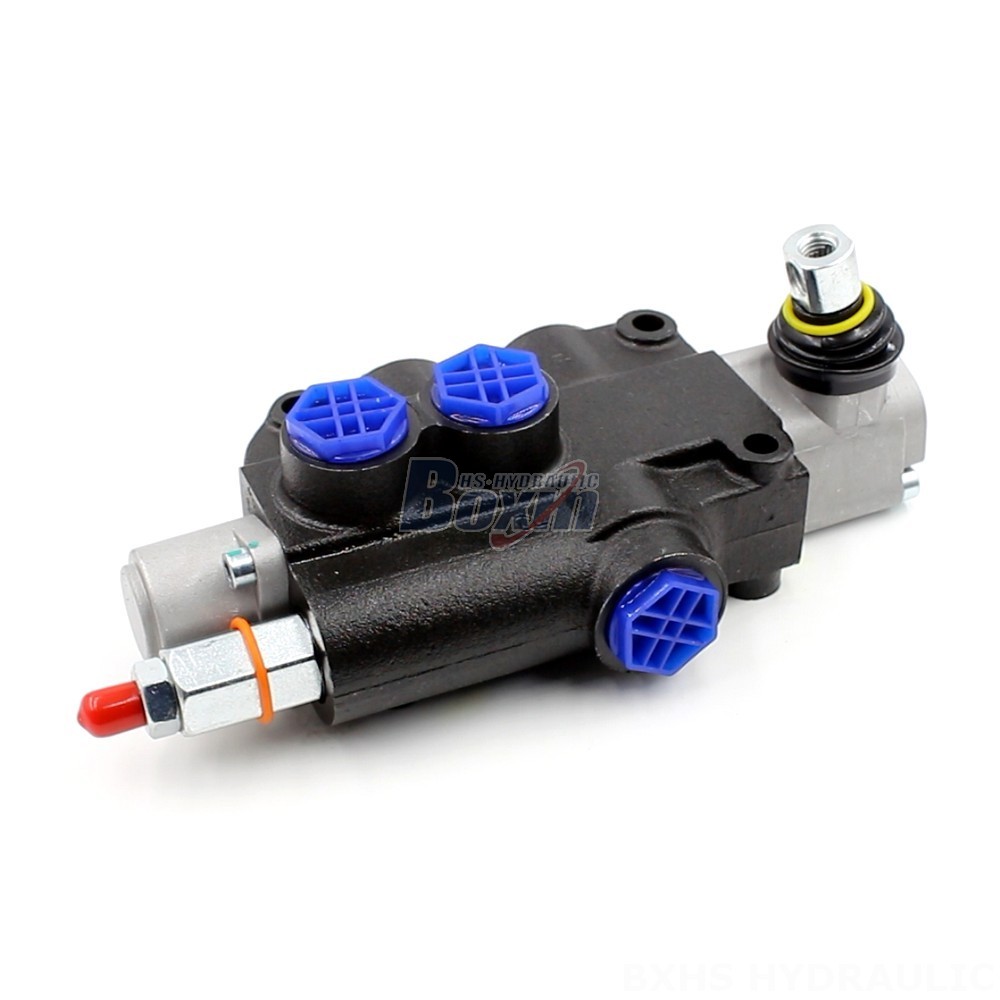

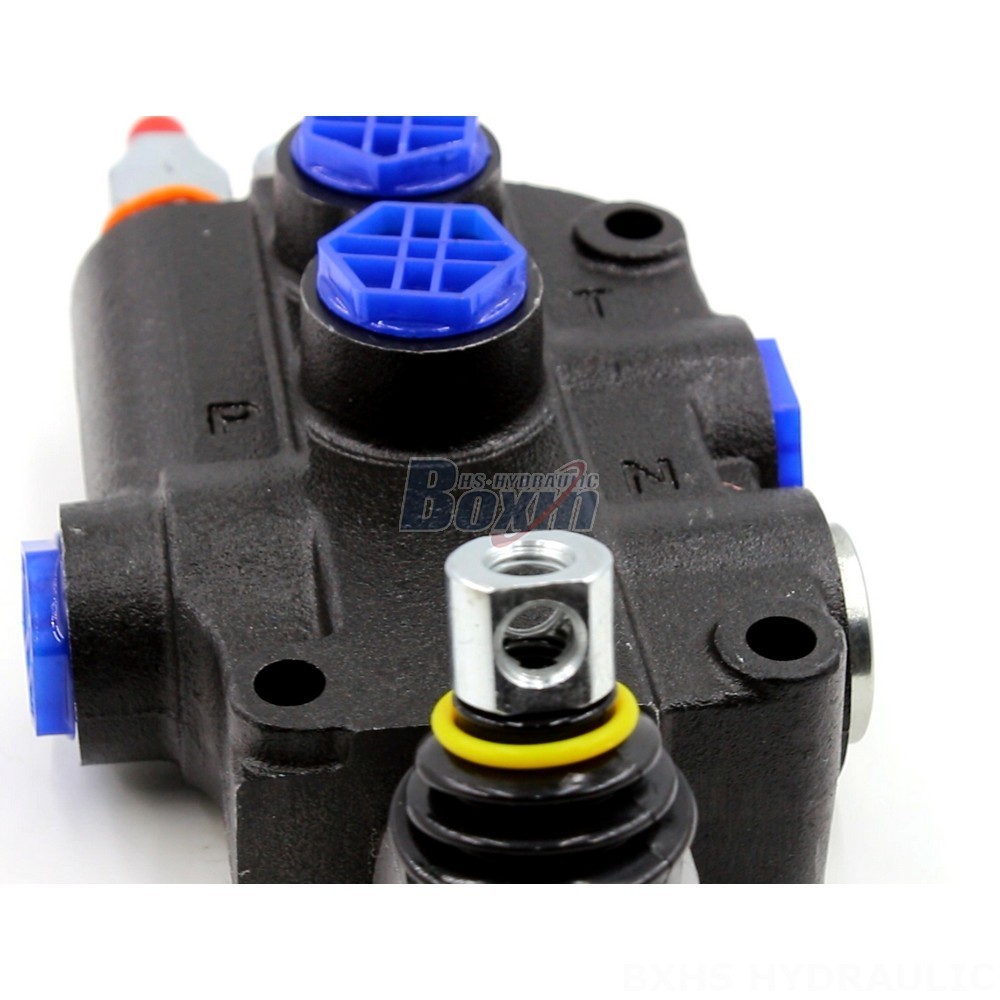

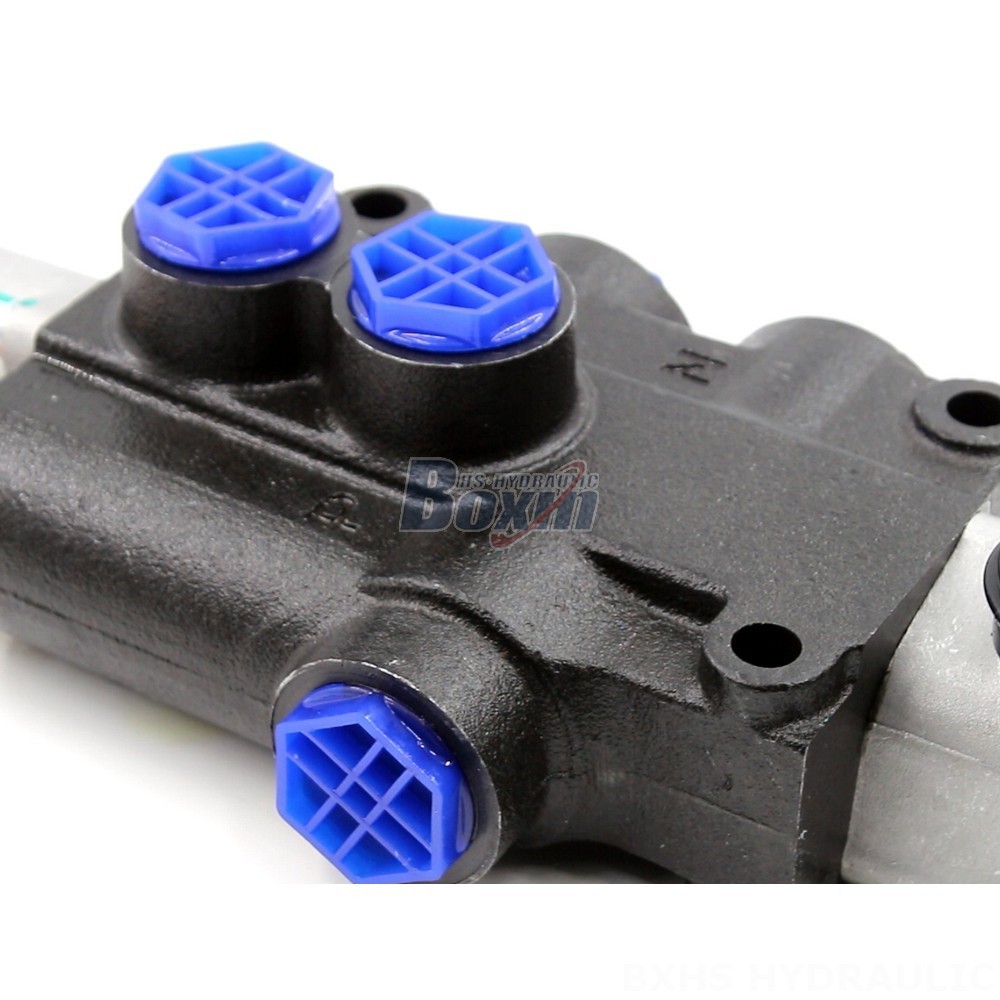

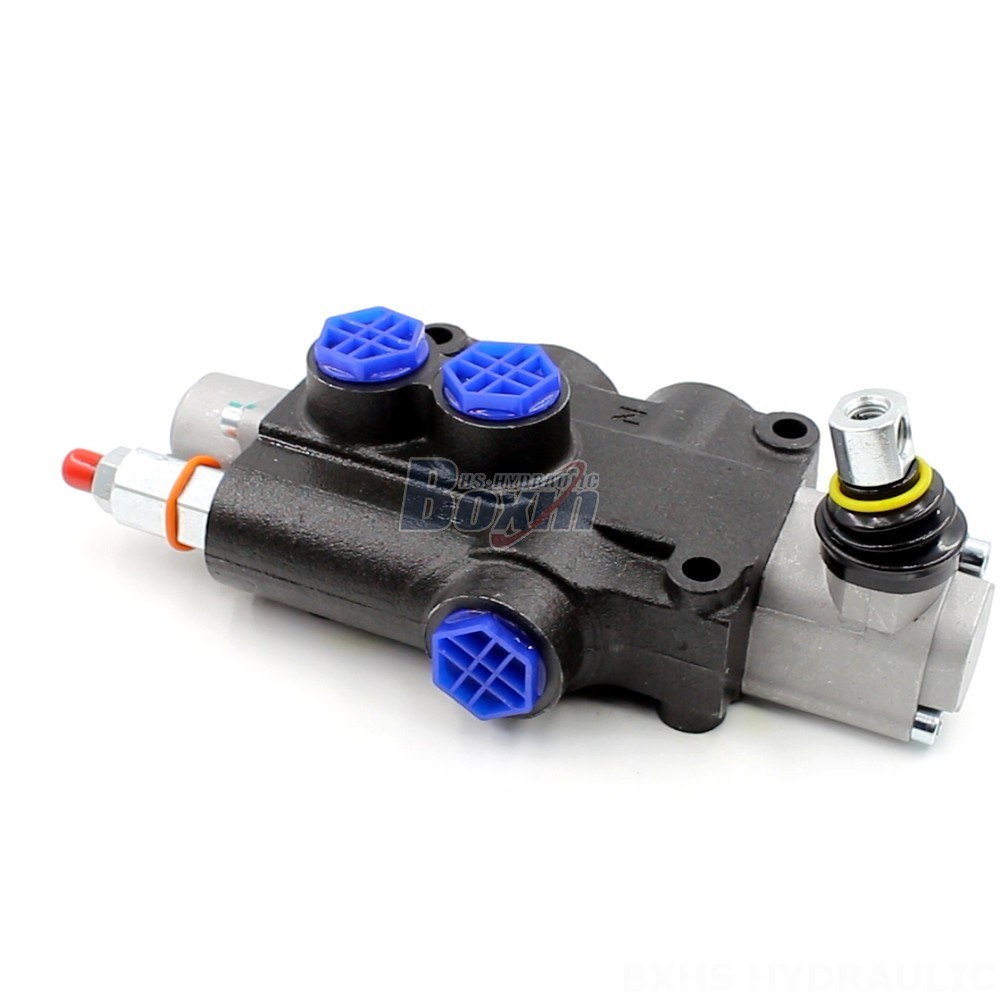

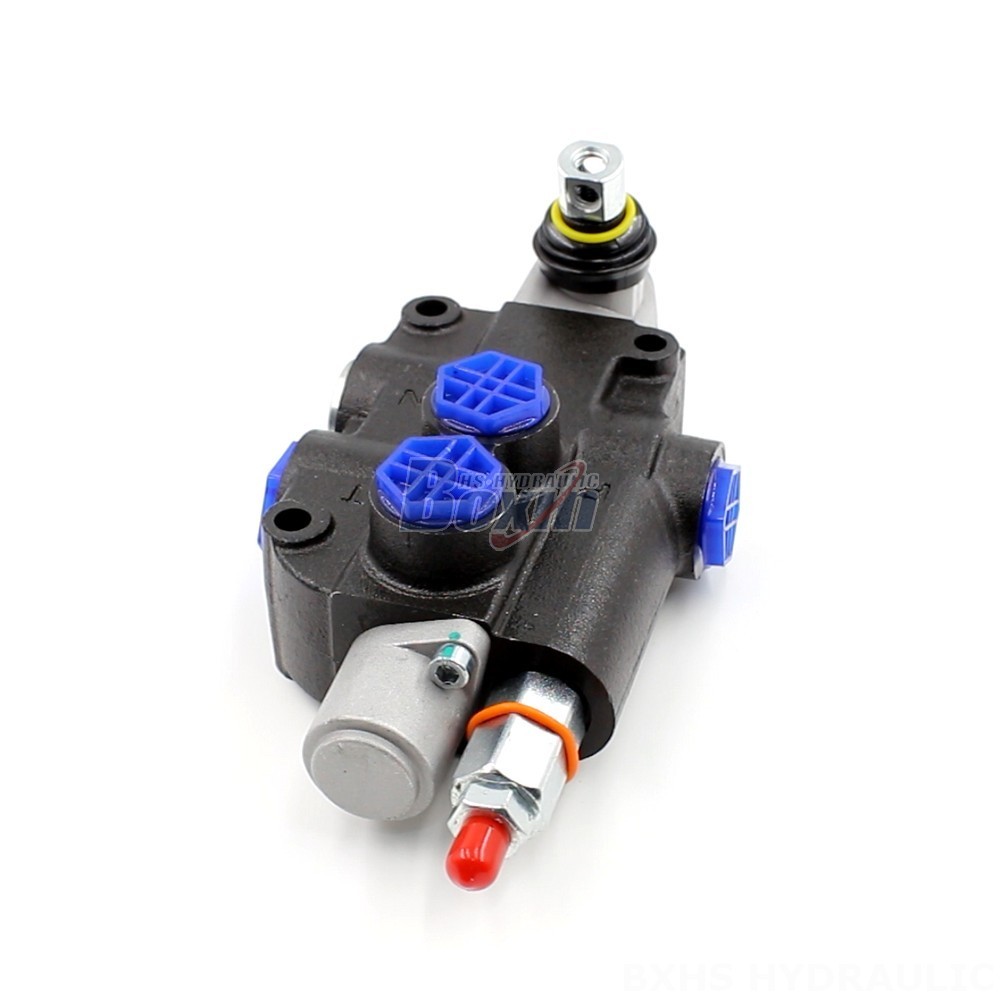

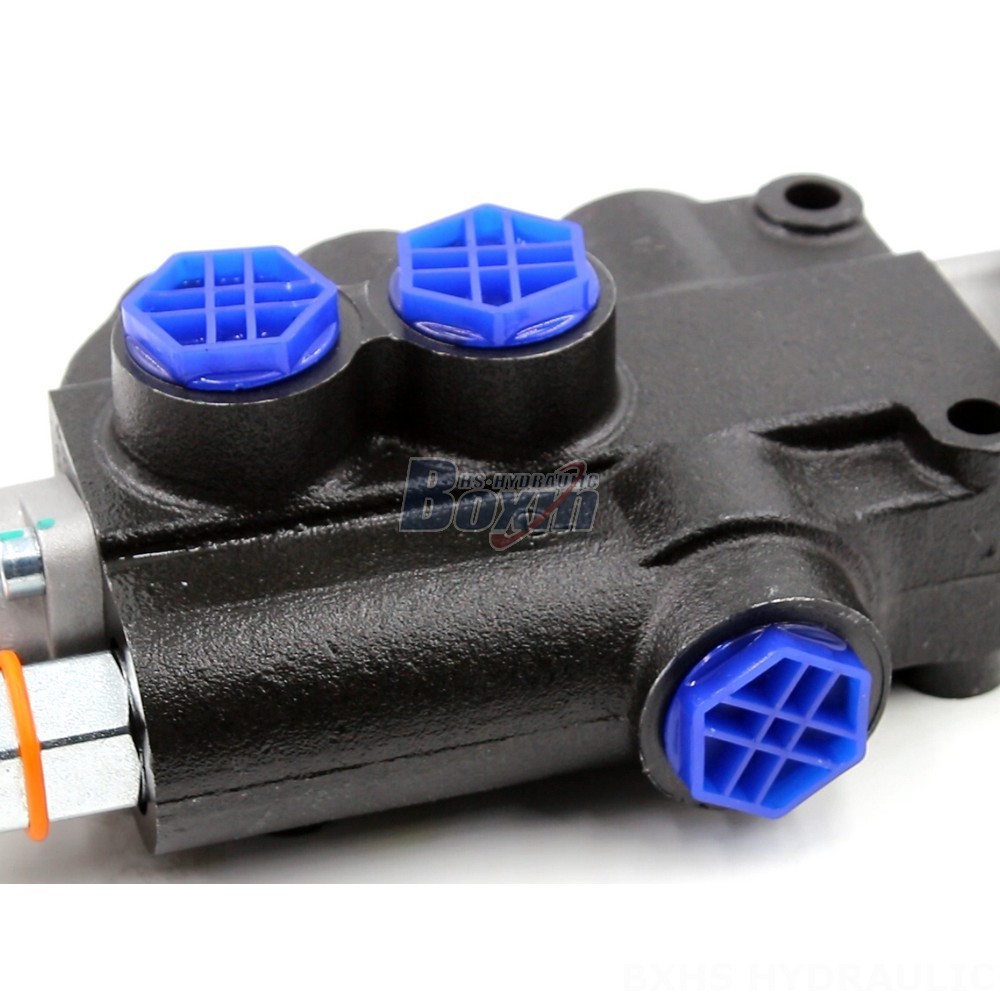

The Hydraulic Valve Manufacturer: P80-G12-OW Directional Valve is a high-performance valve designed for demanding hydraulic applications. With its manual control, monoblock structure, and impressive flow rate and pressure capabilities, this valve is ideal for various industries, including material handling, construction, agriculture, and industrial vehicles.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
**Product Details:**
- **Product Name:** Hydraulic Valve Manufacturer: P80-G12-OW Directional Valve
- **Control Method:** Manual
- **Section:** 1 Section
- **Structure Type:** Monoblock Valve
- **Rated Flow:** 80 L/min (21.2 US gpm)
- **Max Pressure:** 250 bar (3600 psi)
- **Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
- **Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
- **Spool:** 1 Spool
- **Series:** P80 Series
- **Application Area:** Material Handling, Construction, Agriculture, Industrial Vehicles
- **Applicable Model:** Telehandler, Forklift, All Terrain Crane, Stacker, Aerial Platform
