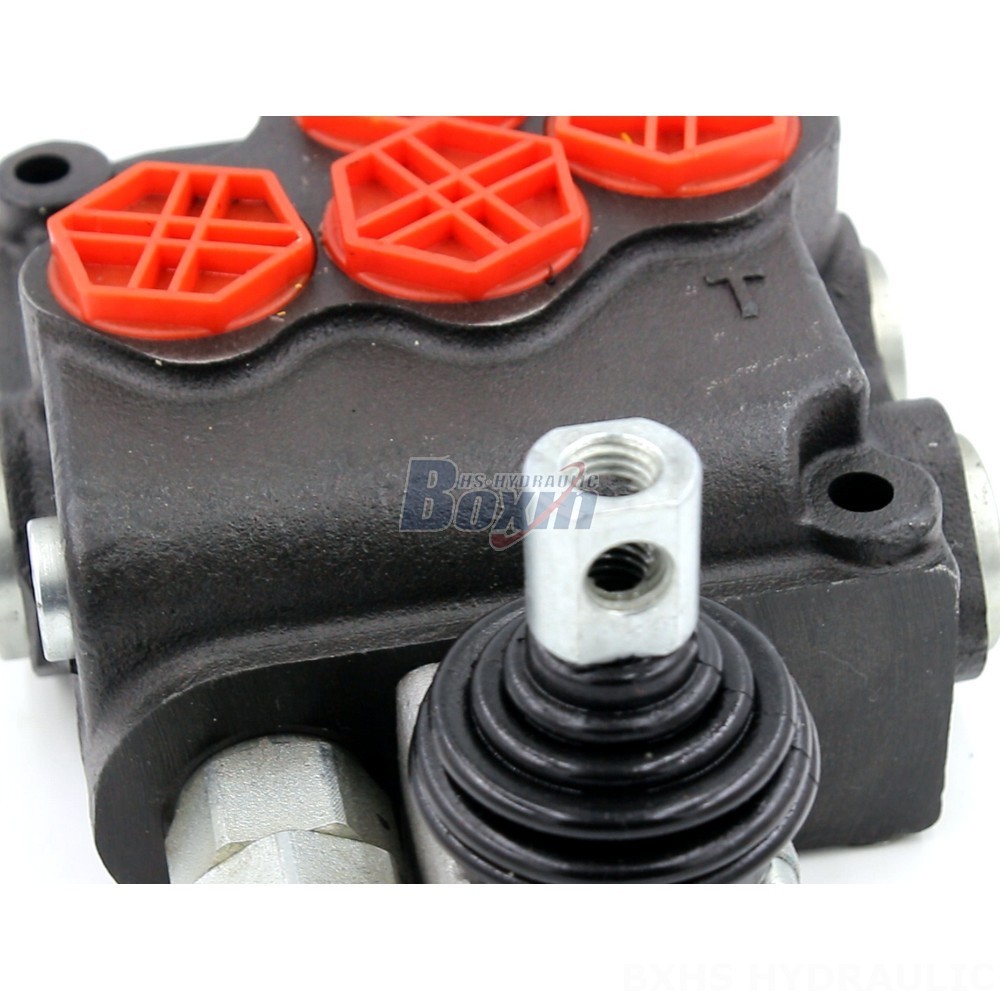

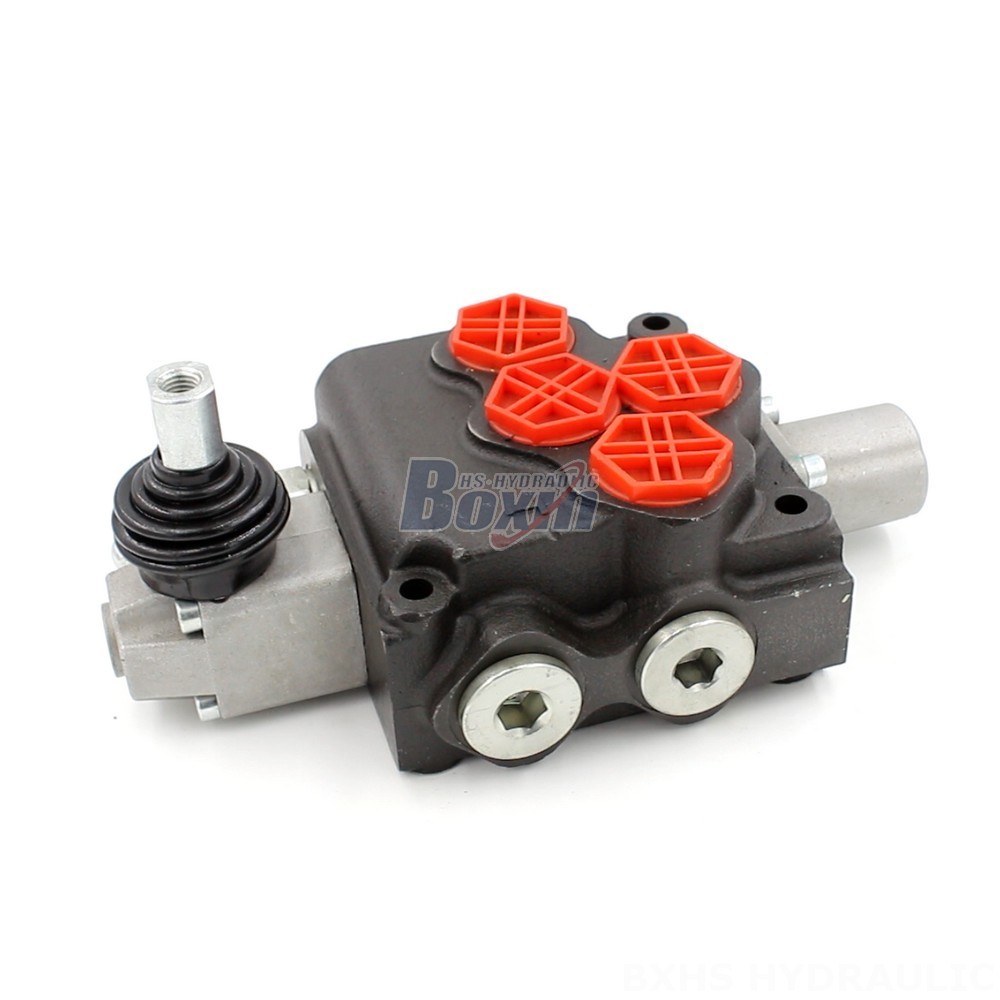

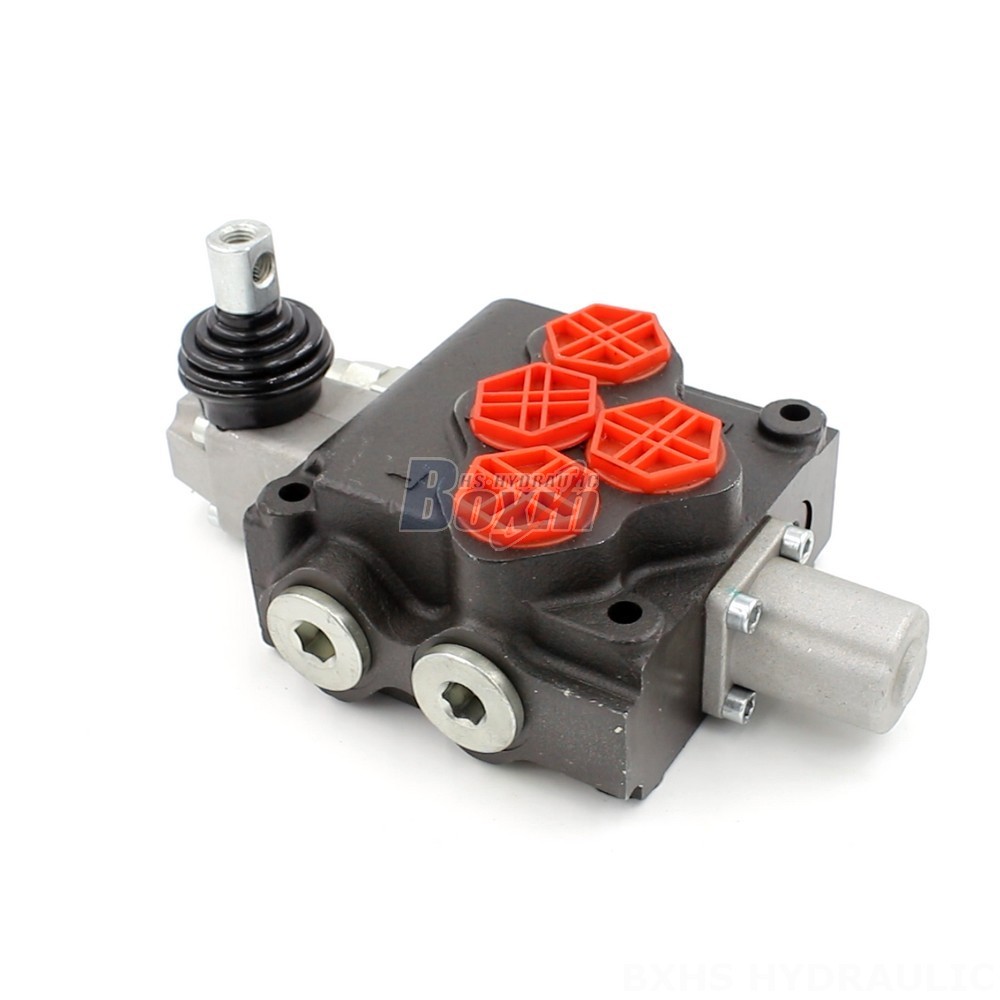

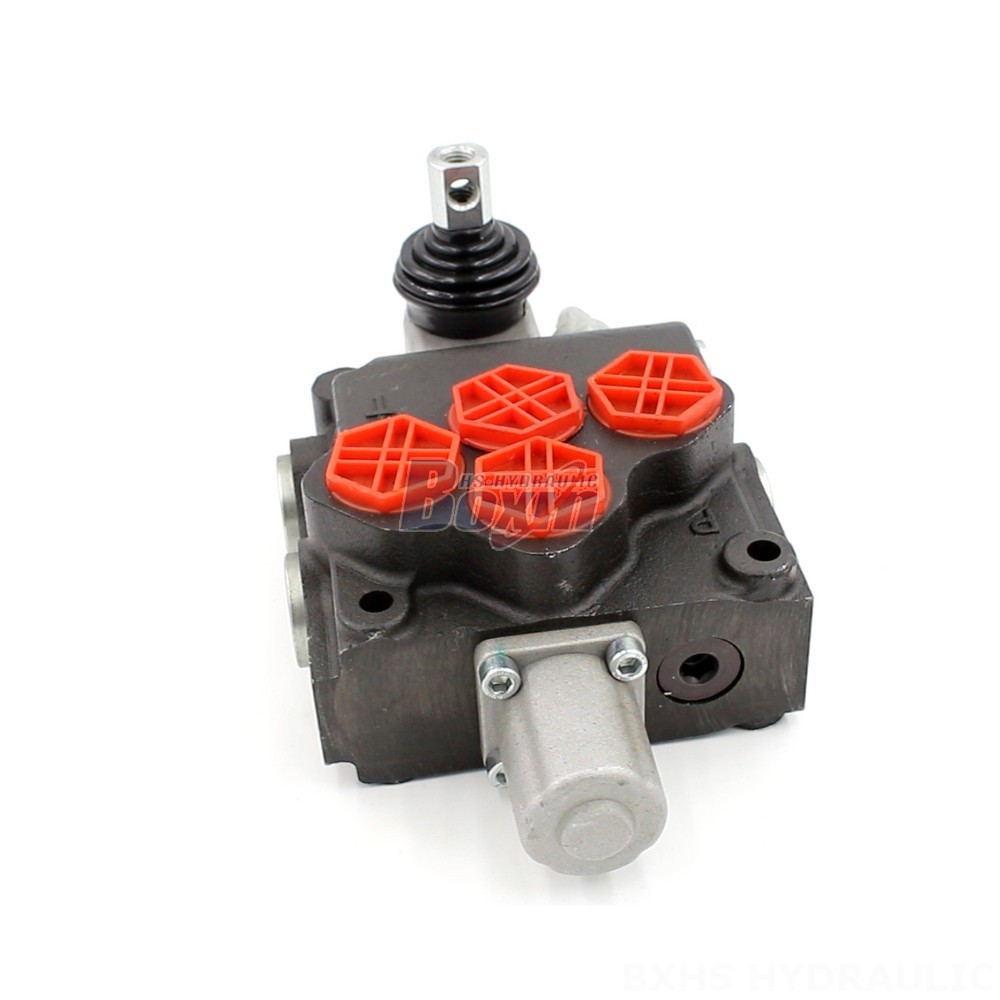

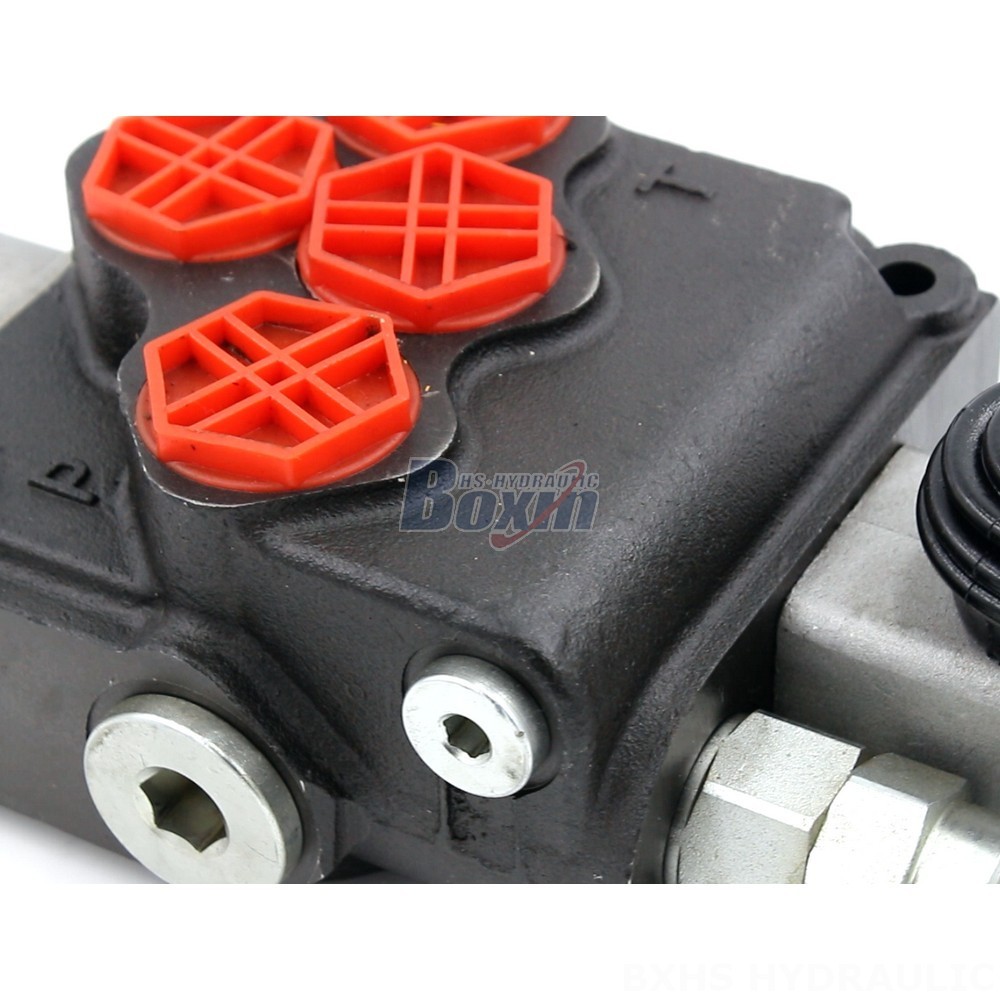

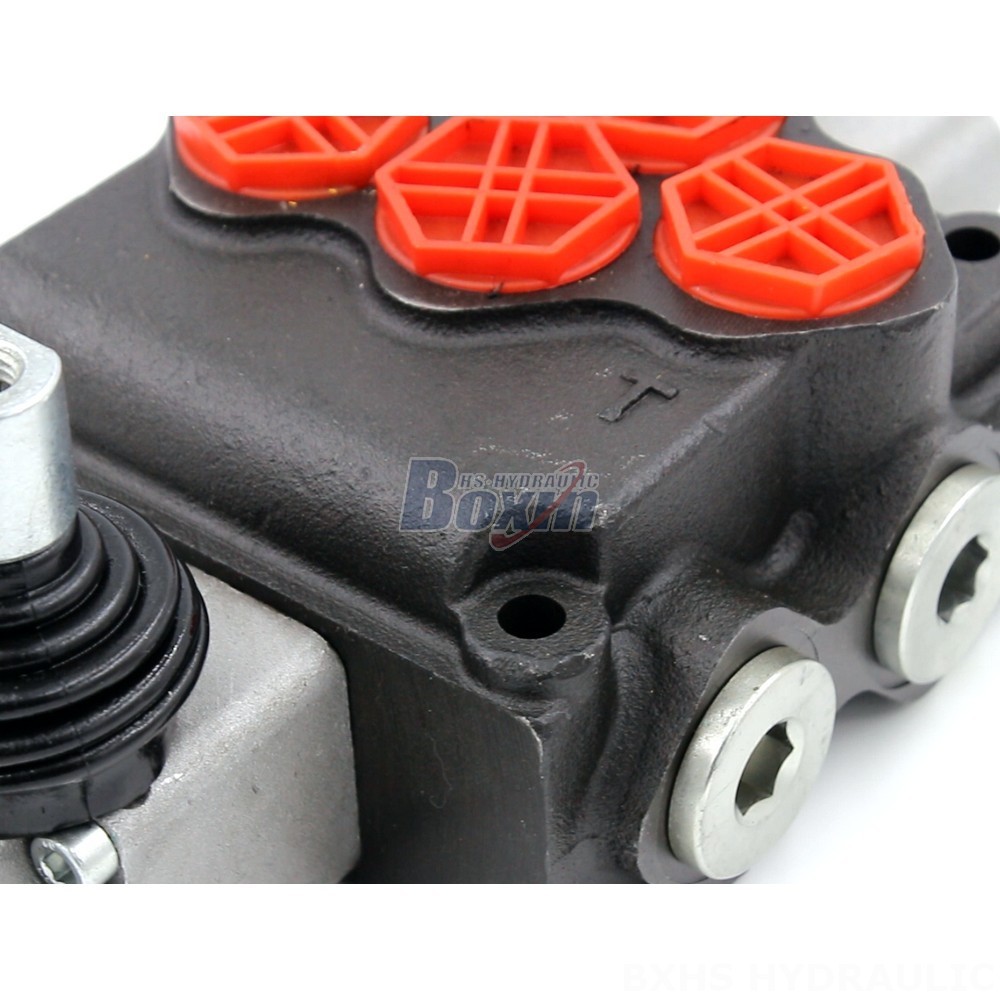

The P120-G1 Monoblock Valve is a high-performance, adjustable hydraulic flow divider valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This manual control valve features a compact, robust design with a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 250 bar (3600 psi).
| P120系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联 |
| 额定流量 | 120 升/分钟 (31.7 美制加仑/分钟) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/4接口, G1接口, M27×2.0螺纹, SAE 14接头, SAE 16接头, 3/4 NPT螺纹, 1 NPT螺纹, M36×2螺纹 |
| 出油口 | G1接口, SAE 16接头, 1 NPT螺纹, M36×2螺纹 |
| 接口尺寸 | G3/4接口, G1接口, M27×2.0螺纹, SAE 14接头, SAE 16接头, 1 NPT螺纹, M36×2螺纹 |
| 联数 | 1联, 2联, 3联, 4联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
The P120-G1 Monoblock Valve is a reliable and efficient solution for controlling hydraulic flow in demanding applications. Its robust monoblock construction ensures durability and long service life. This adjustable flow divider valve allows for precise control of hydraulic fluid flow, enabling optimized performance in various equipment such as telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. The valve operates at a flow rate of 120 L/min (31.7 US gpm) and a maximum pressure of 250 bar (3600 psi), making it suitable for high-demand applications. The manual control method provides simple and direct operation. The P120-G1 Monoblock Valve is a versatile and reliable solution for a wide range of applications in the construction, agriculture, and industrial vehicle sectors.
