Hydraulic Valve Electric Controll Hydraulic Monoblock Valve | Factory Direct

Hydraulic Valve Electric Controll Hydraulic Monoblock Valve | Factory Direct | Wholesale Prices

控制方式:手控

路数:5 联

额定流量:40 L/min (10.5 US gpm)

最大压力:315 bar (4600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:支腿控制阀

产品系列:DCV40Z系列支腿控制阀

Packagingsize:39*39*20

Grossweight:12.00 kg

库存: 有货

描述

Hydraulic Valve Electric Controll Hydraulic Monoblock Valve | Factory Direct | Wholesale Prices

Hydraulic Valve Electric Controll Hydraulic Monoblock Valve | Factory Direct | Wholesale Prices drawing image

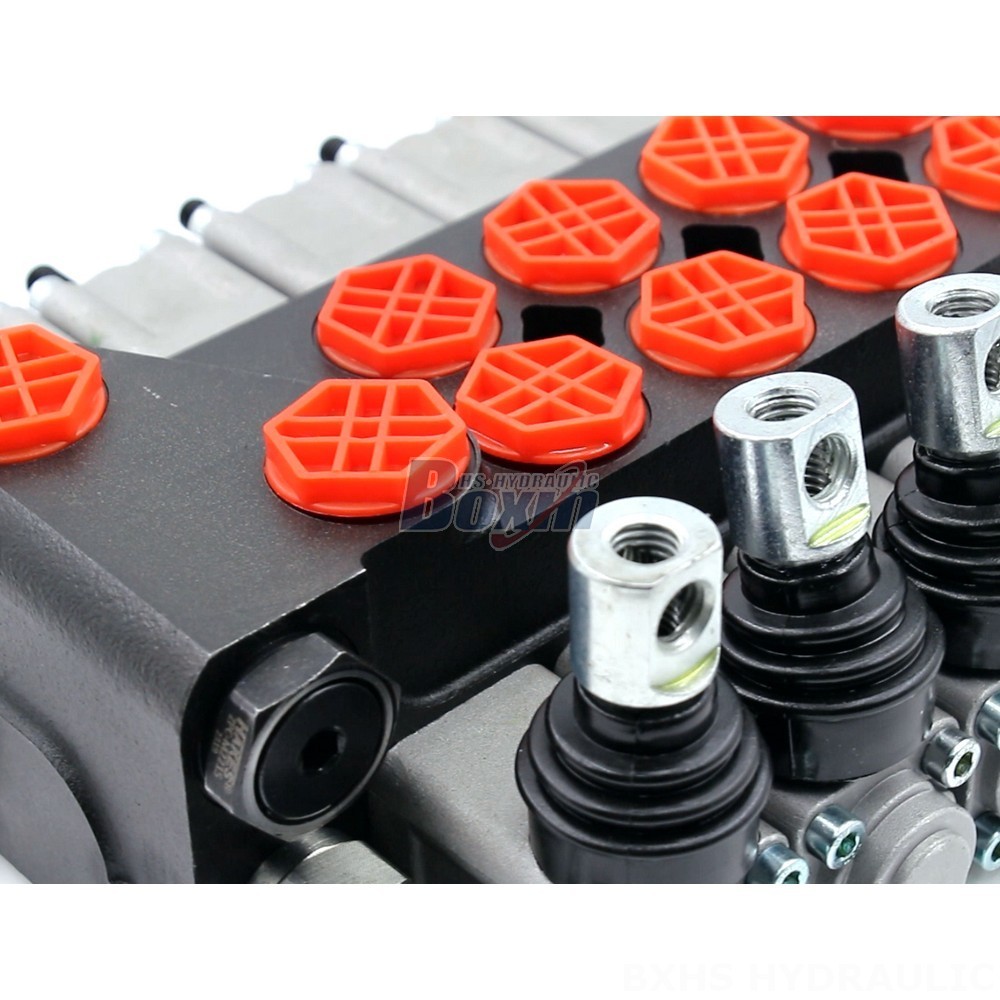

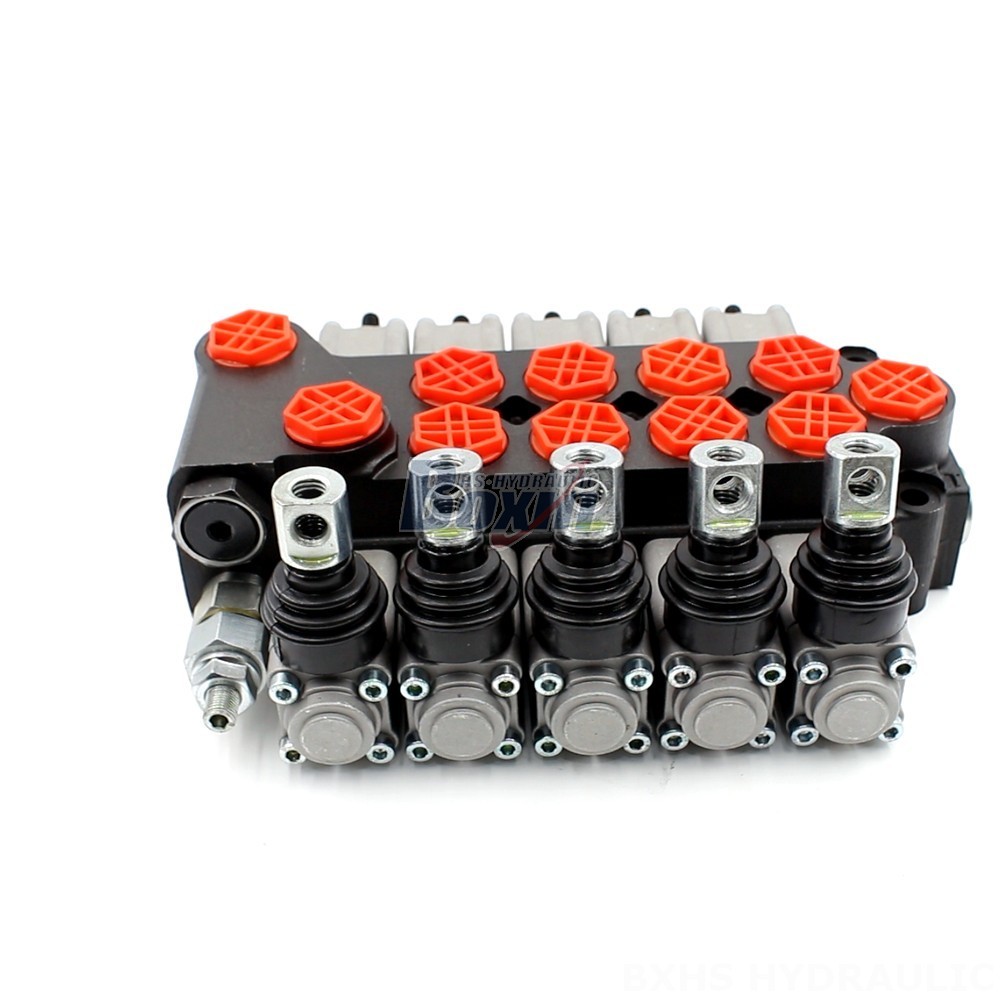

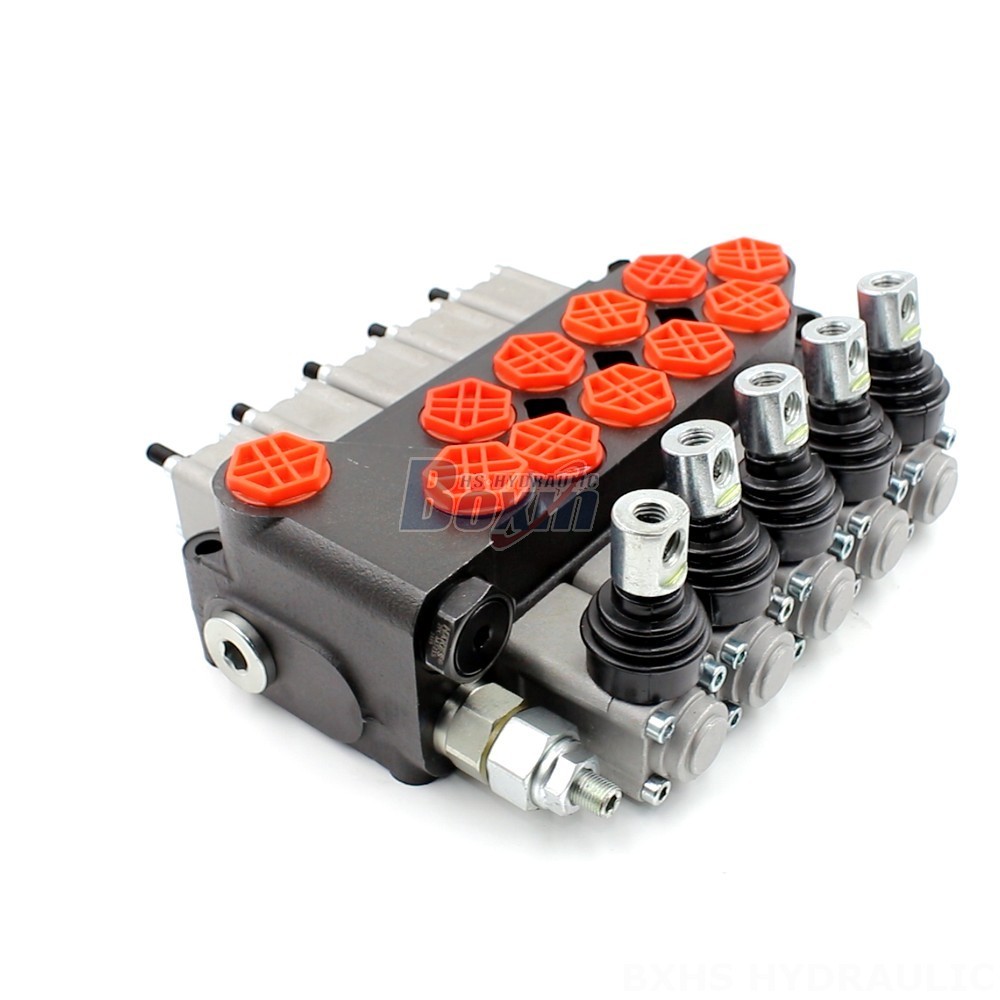

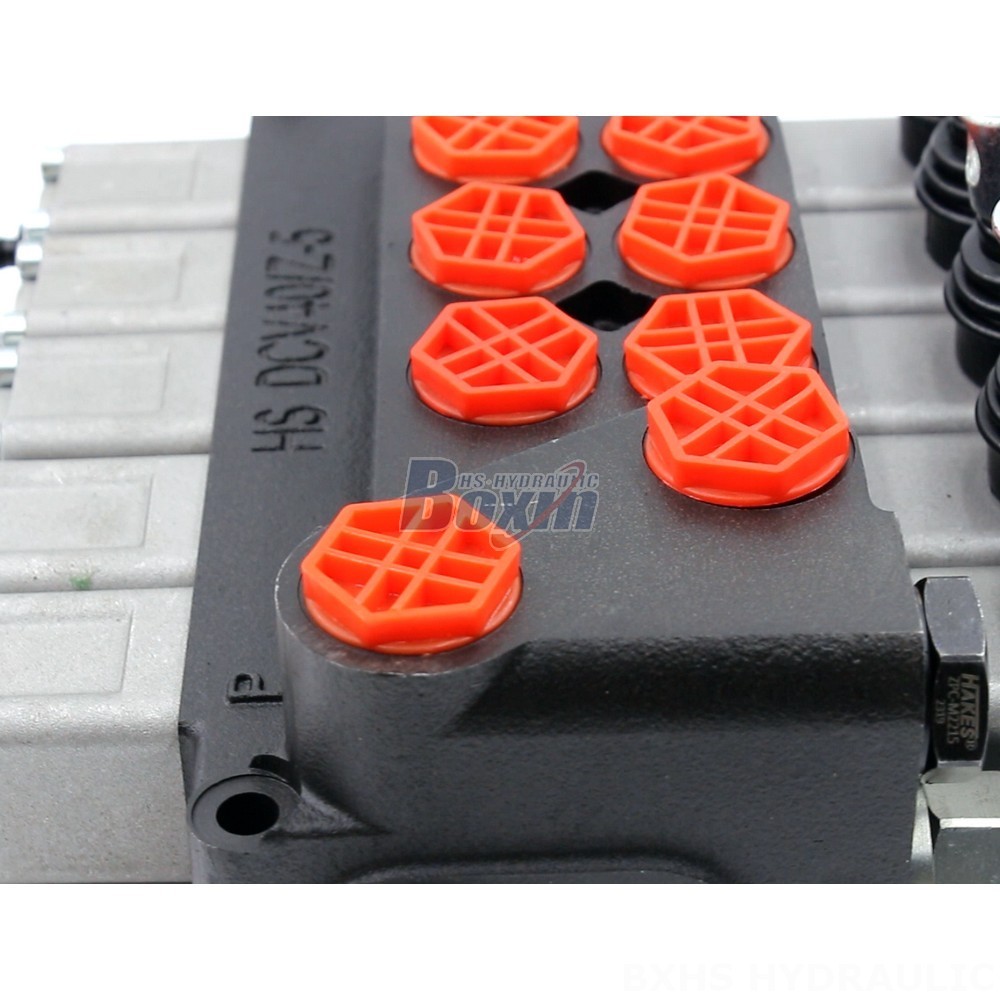

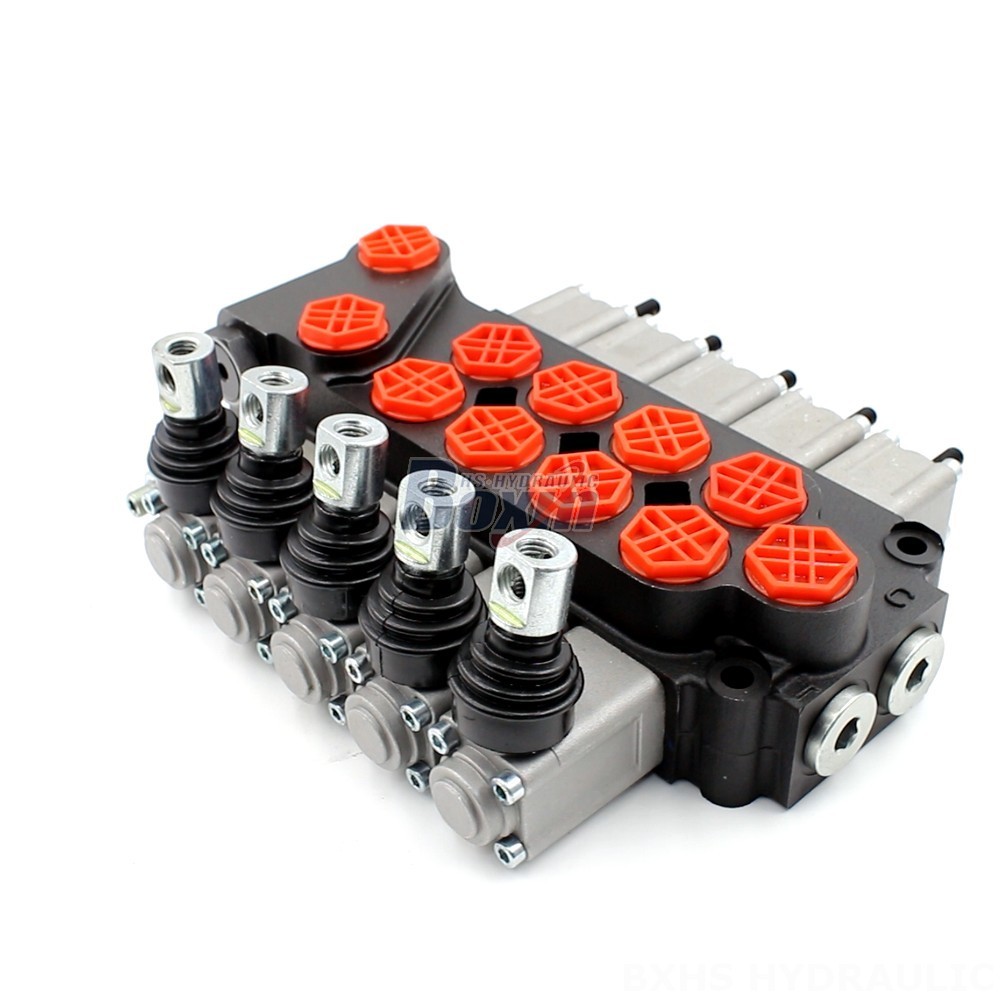

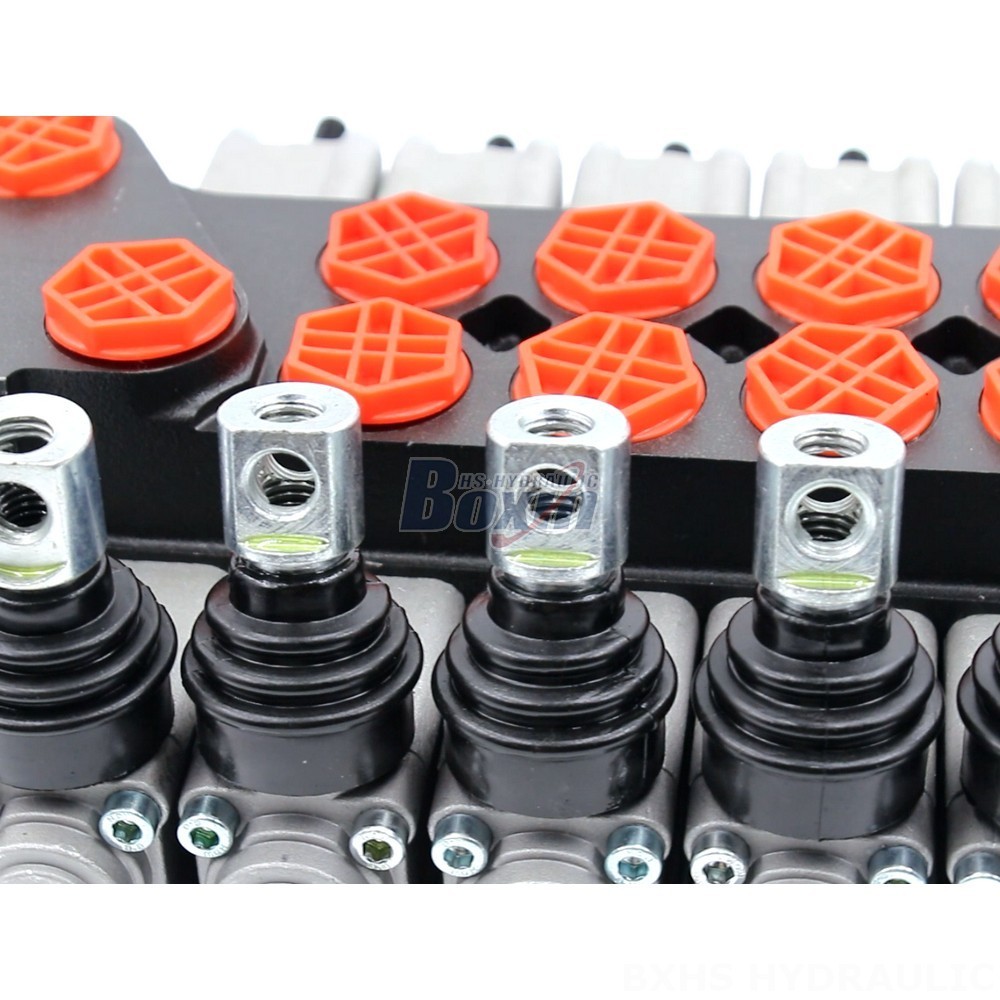

The DCV40Z Series Hydraulic Monoblock Valve is a 5-section, electric controlled valve designed for demanding applications in construction, material handling, and industrial vehicles. This valve offers reliable performance with a 40 L/min flow rate and 350 bar pressure rating.

DCV40Z系列支腿控制阀参数
控制方式	手控, 电液控, 一控二手柄控制, 手控+一控二
路数	1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围	-40°C to +80°C (-40°F to +176°F)
结构类型	整体阀
联数	1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围	15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量	40 L/min (10.5 US gpm)
最大压力	350 bar (5100 psi)
进油口	G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
出油口	G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹
接口尺寸	G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹

This DCV40Z Series Hydraulic Monoblock Valve is a high-performance, electric control valve designed for demanding applications. Featuring a 5-section design, this valve provides precise control over hydraulic systems. The valve is rated for a maximum flow rate of 40 L/min and a maximum pressure of 350 bar. It is suitable for a wide range of operating temperatures and viscosities. This valve is ideal for various applications, including telehandlers, forklifts, mini-excavators, skid steer loaders, and other construction and industrial vehicles.

Hydraulic Valve Electric Controll Hydraulic Monoblock Valve | Factory Direct | Wholesale Prices
