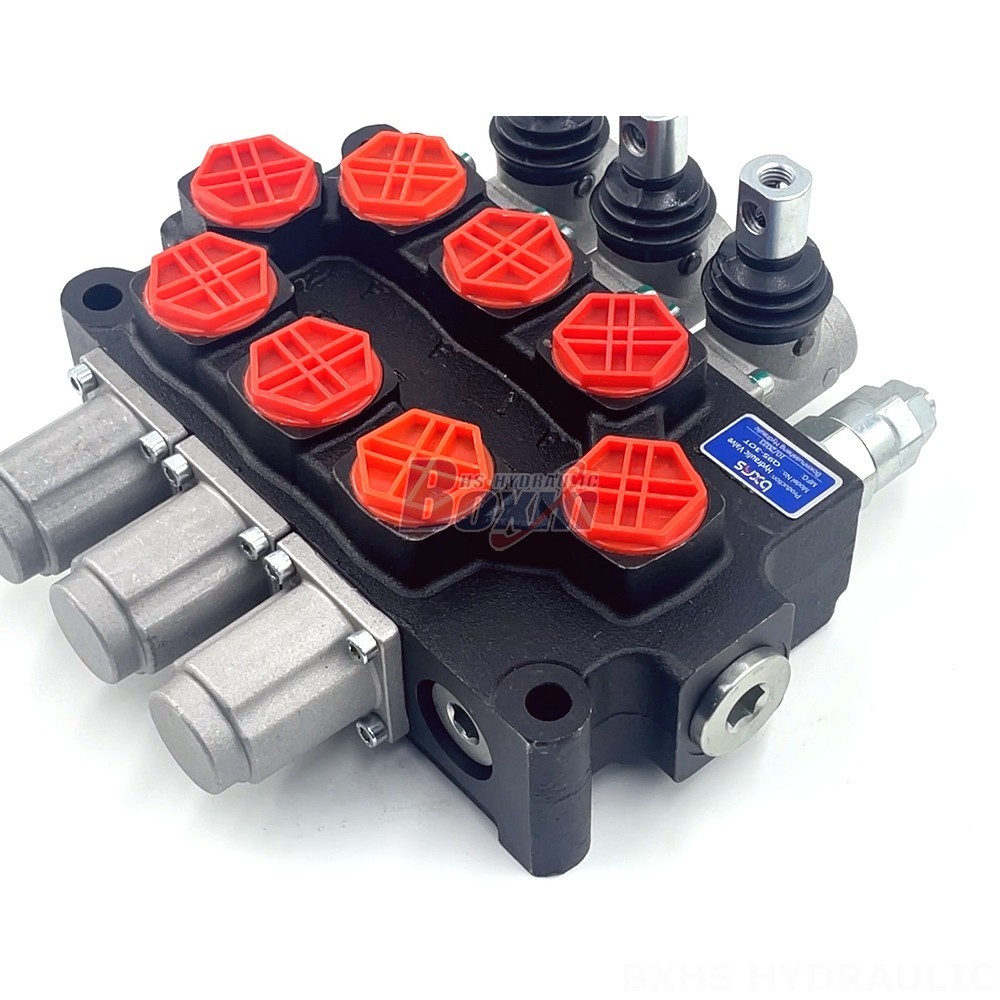

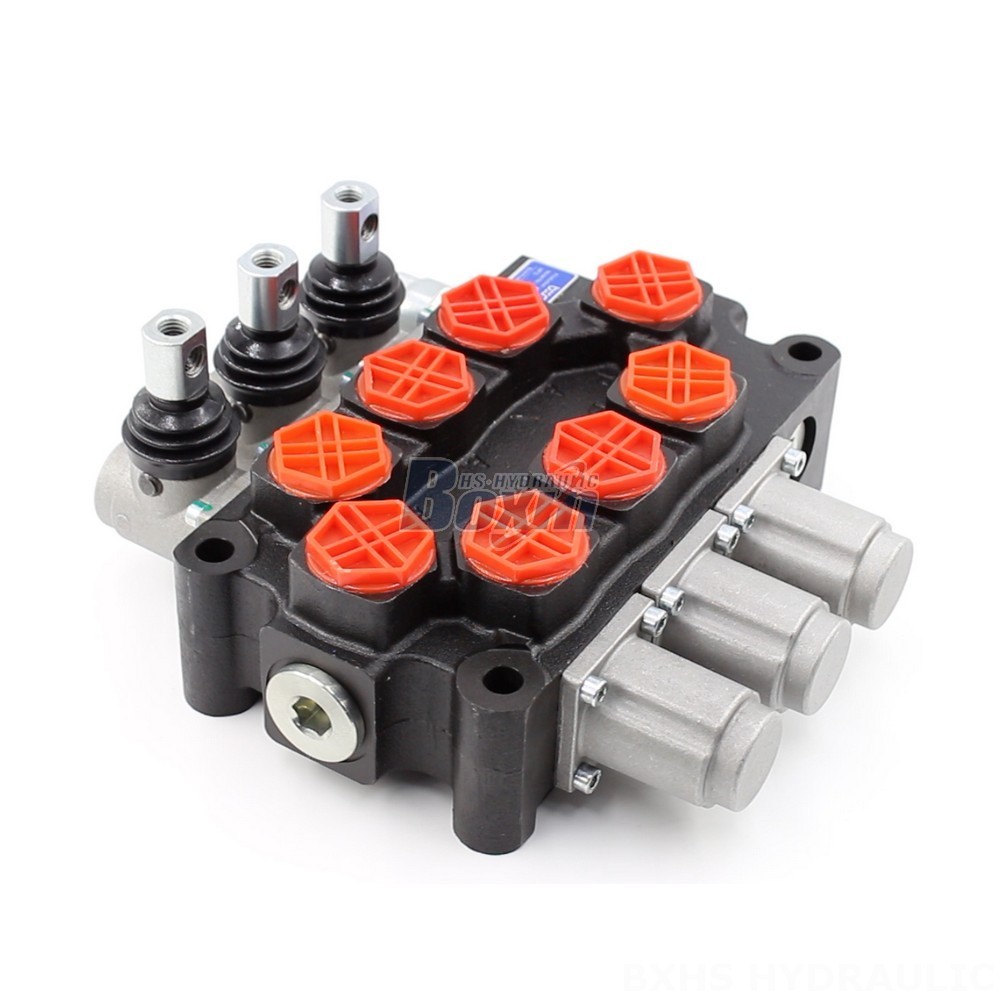

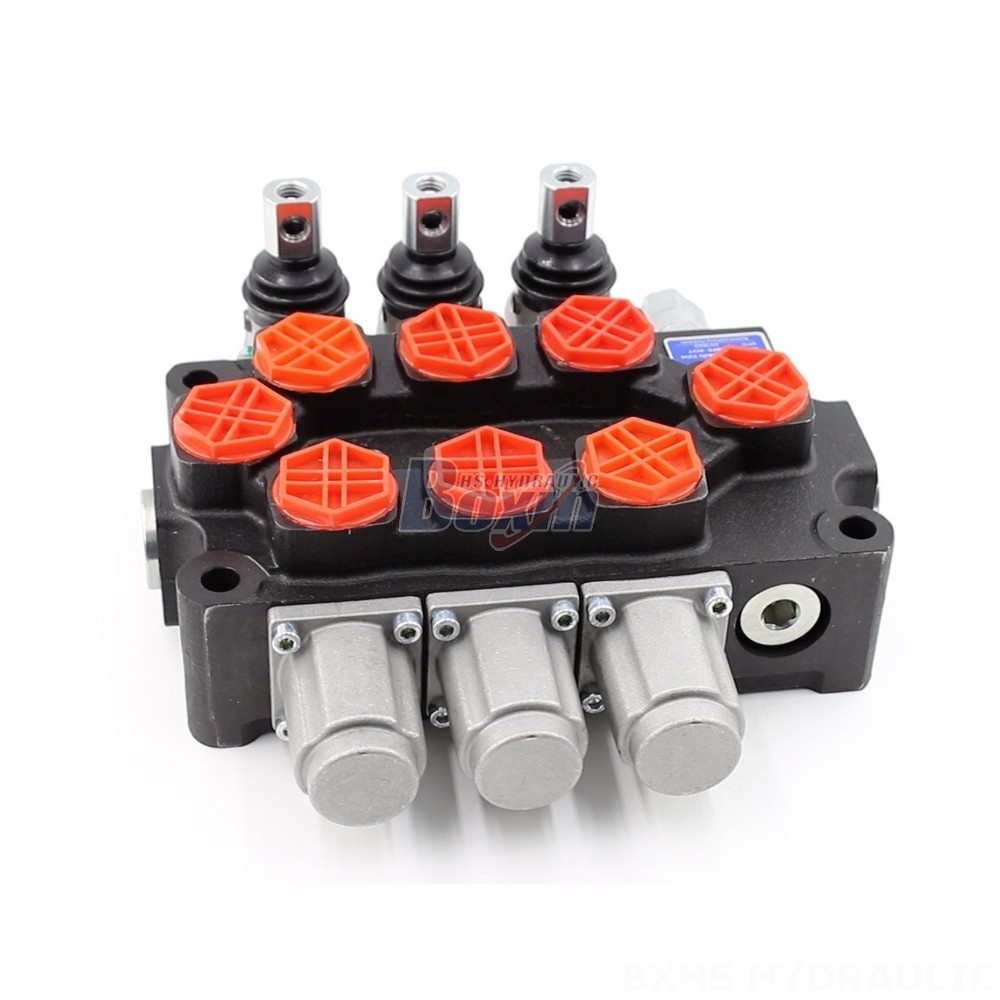

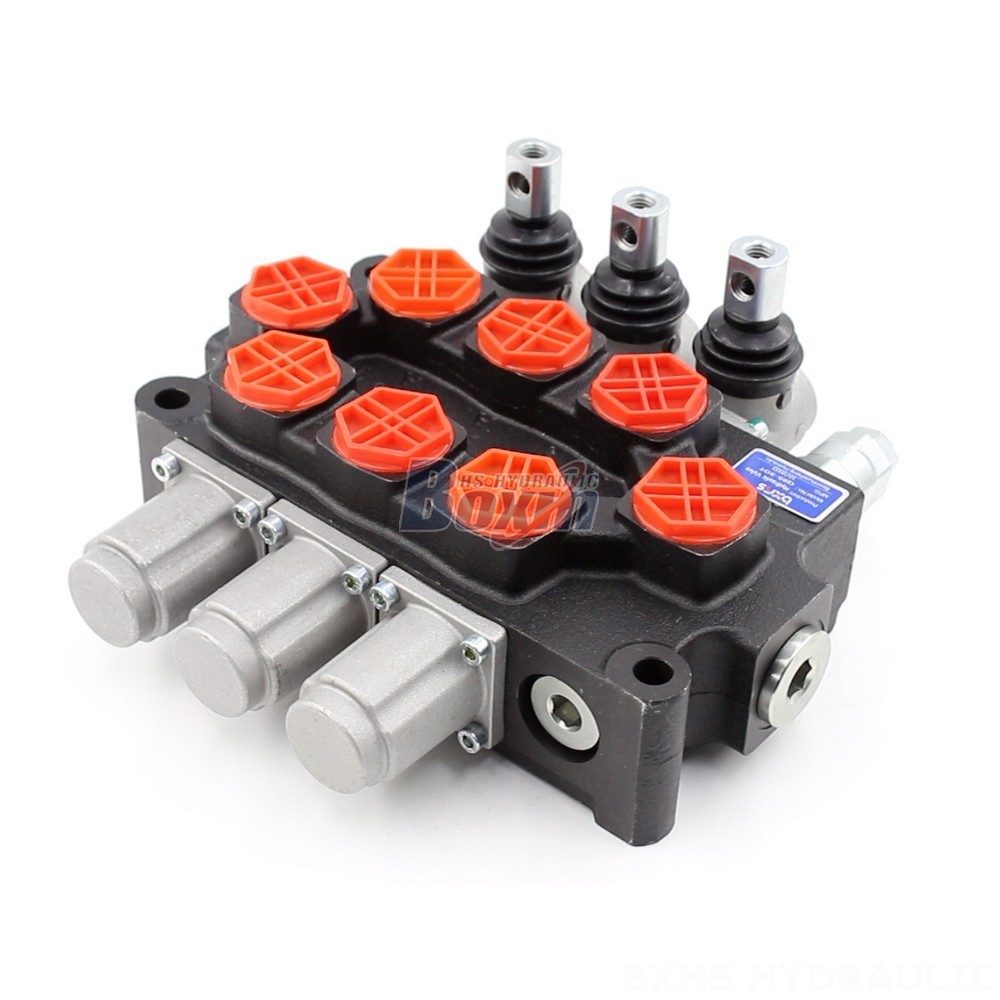

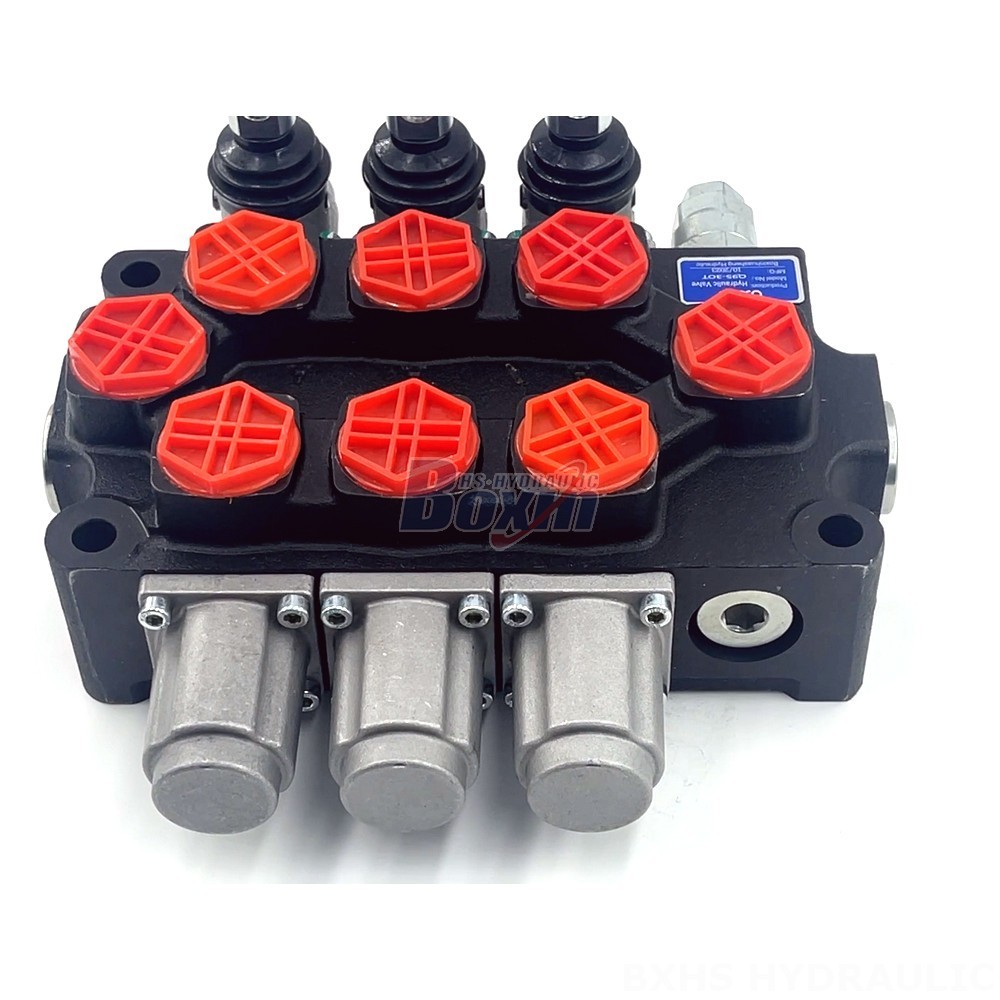

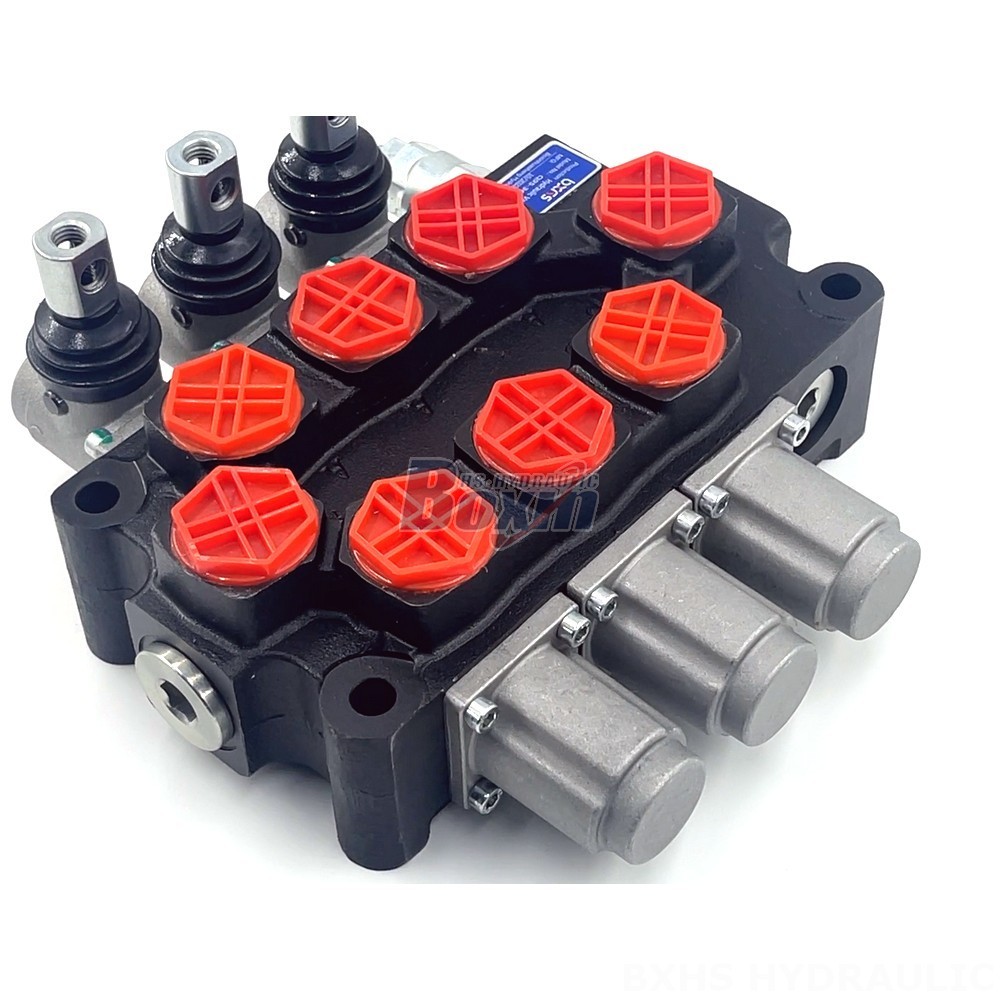

Introducing the Q95 Monoblock Valve, a revolutionary solution for fluid distribution. Engineered for exceptional performance, it boasts a rated flow of 95 L/min, a maximum pressure of 315 bar, and a wide operating viscosity range. Its compact design and versatile applications make it ideal for various industries, including material handling, construction, agriculture, and industrial vehicles.
| Q95系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 额定流量 | 95 L/min (25.1 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G3/4接口 |
| 出油口 | G3/4接口 |
| 接口尺寸 | G3/4接口 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
The Q95 Monoblock Valve is meticulously crafted with a 3-section, monoblock structure, ensuring durability and precision. Its 3-spool design allows for versatile flow control, while the wide operating viscosity range of 15 - 75 mm²/s accommodates diverse fluid types. Engineered to withstand extreme temperatures from -40°C to +80°C, this valve guarantees reliable operation in challenging environments. Its compatibility with various applications, including telehandlers, forklifts, all-terrain cranes, and agricultural machinery, makes it a versatile solution for fluid distribution needs.
