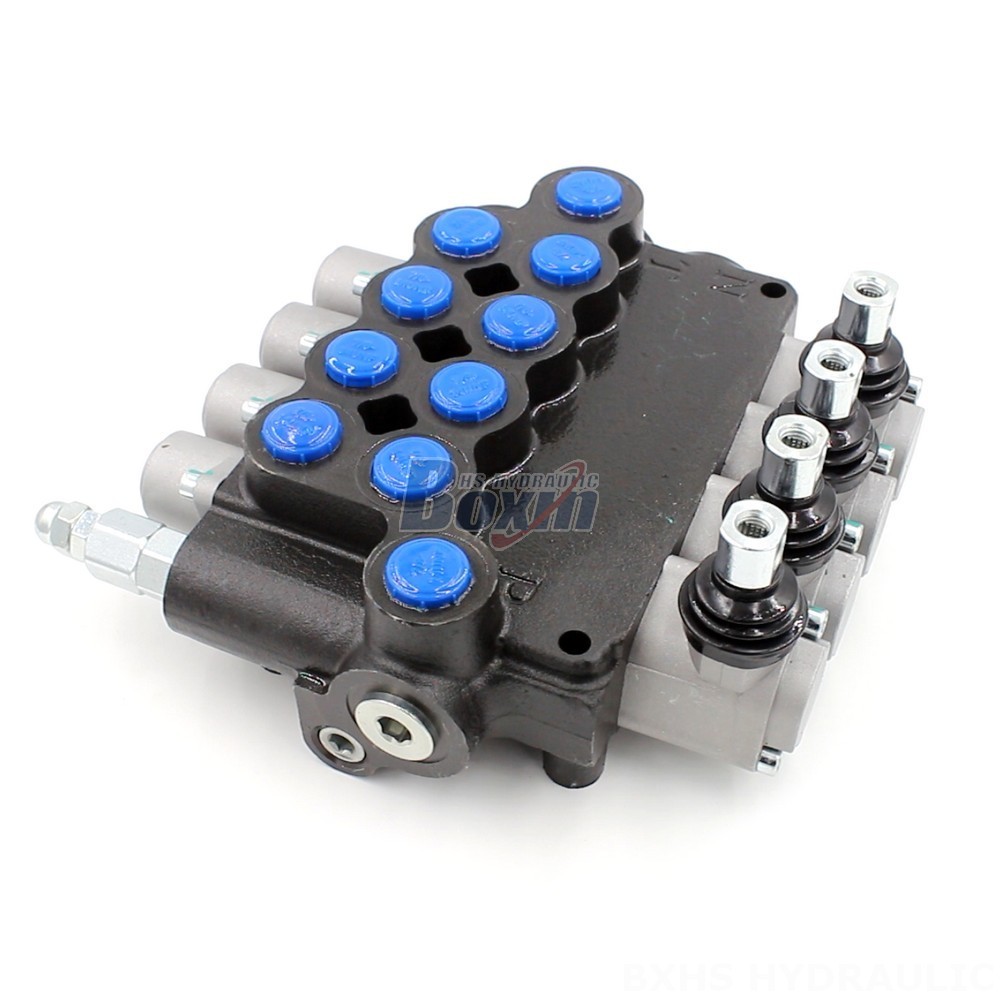

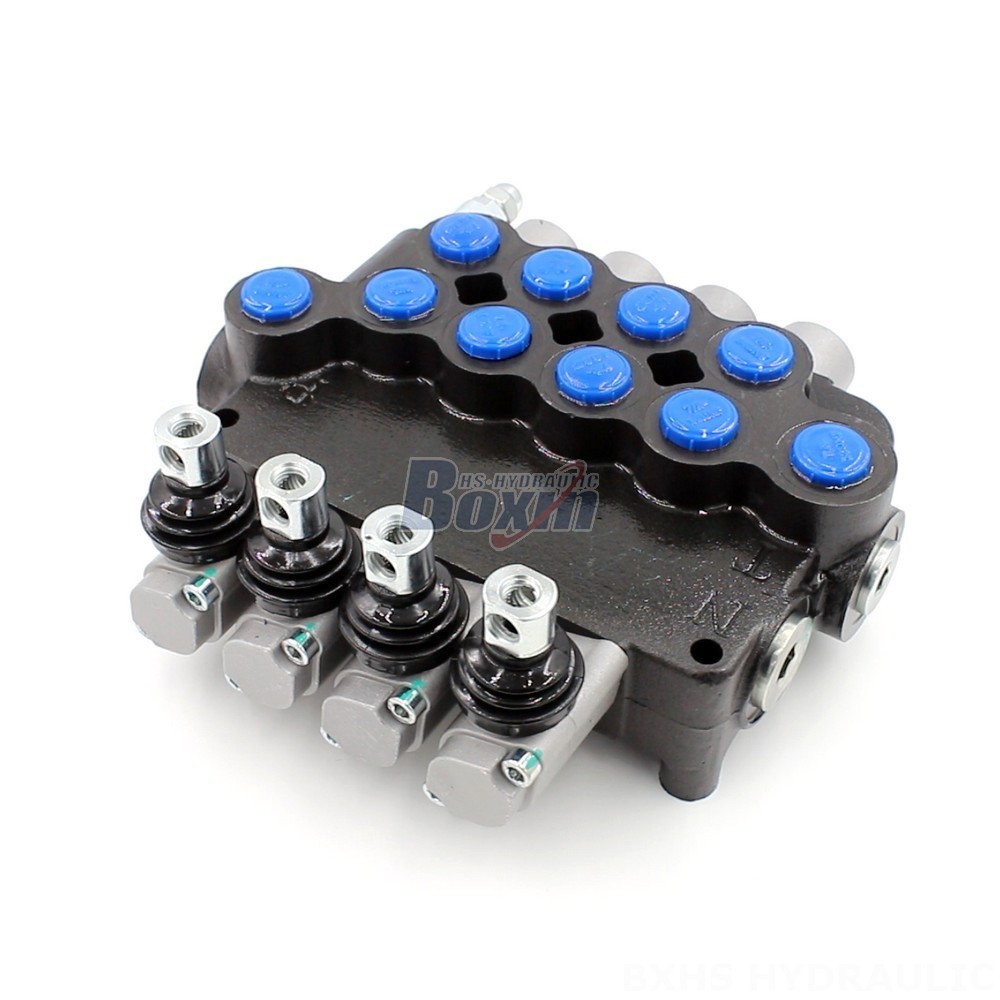

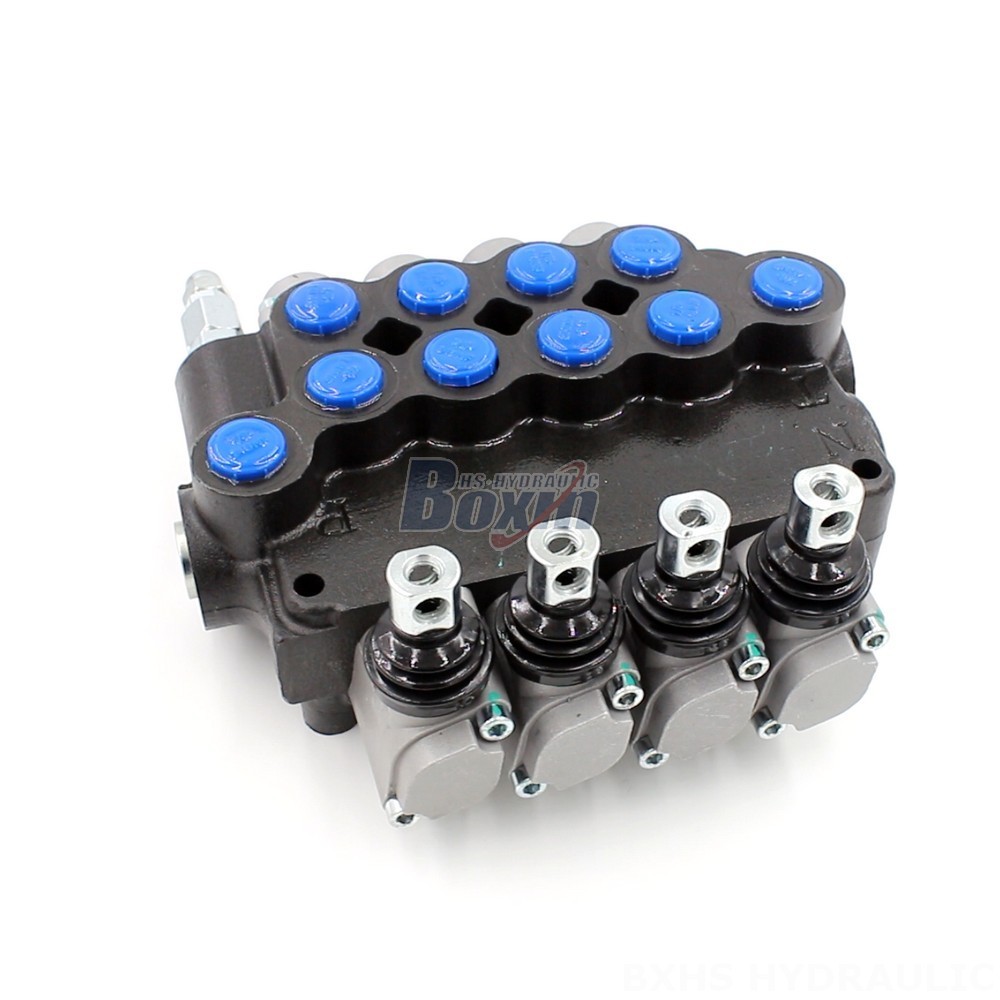

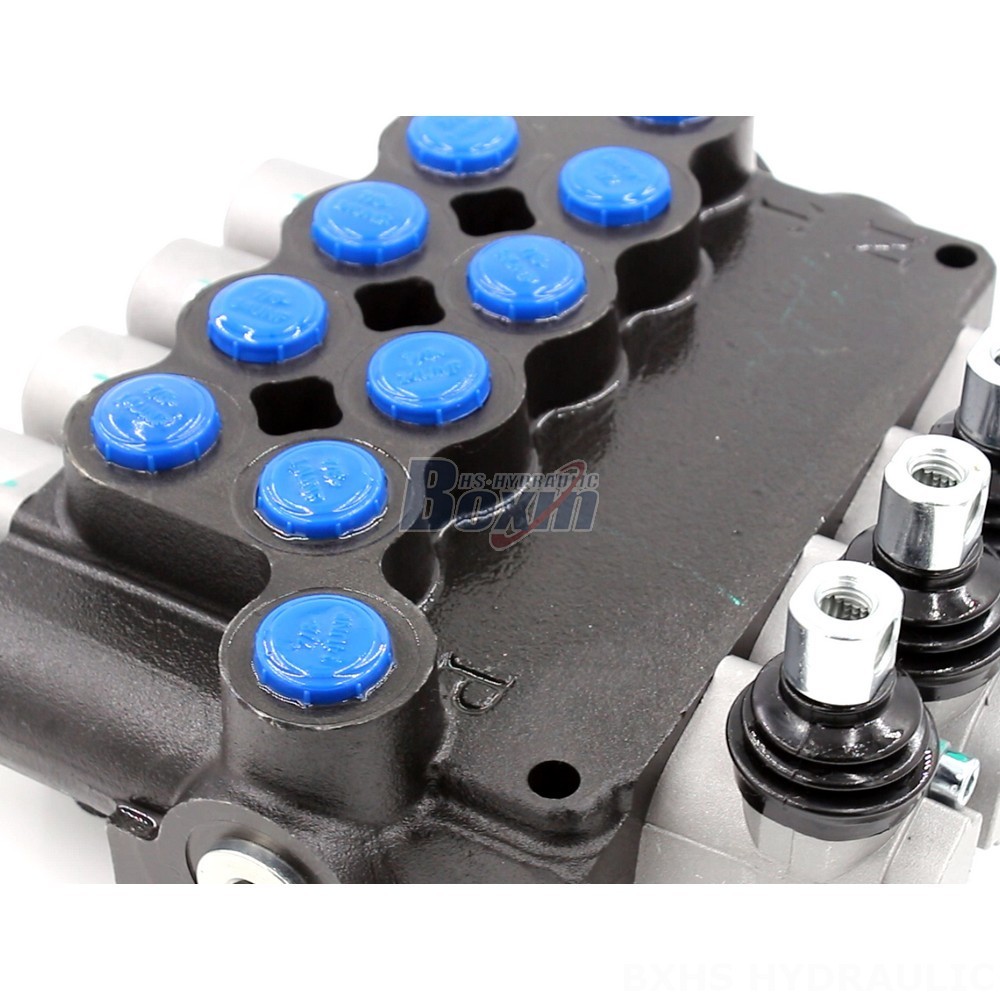

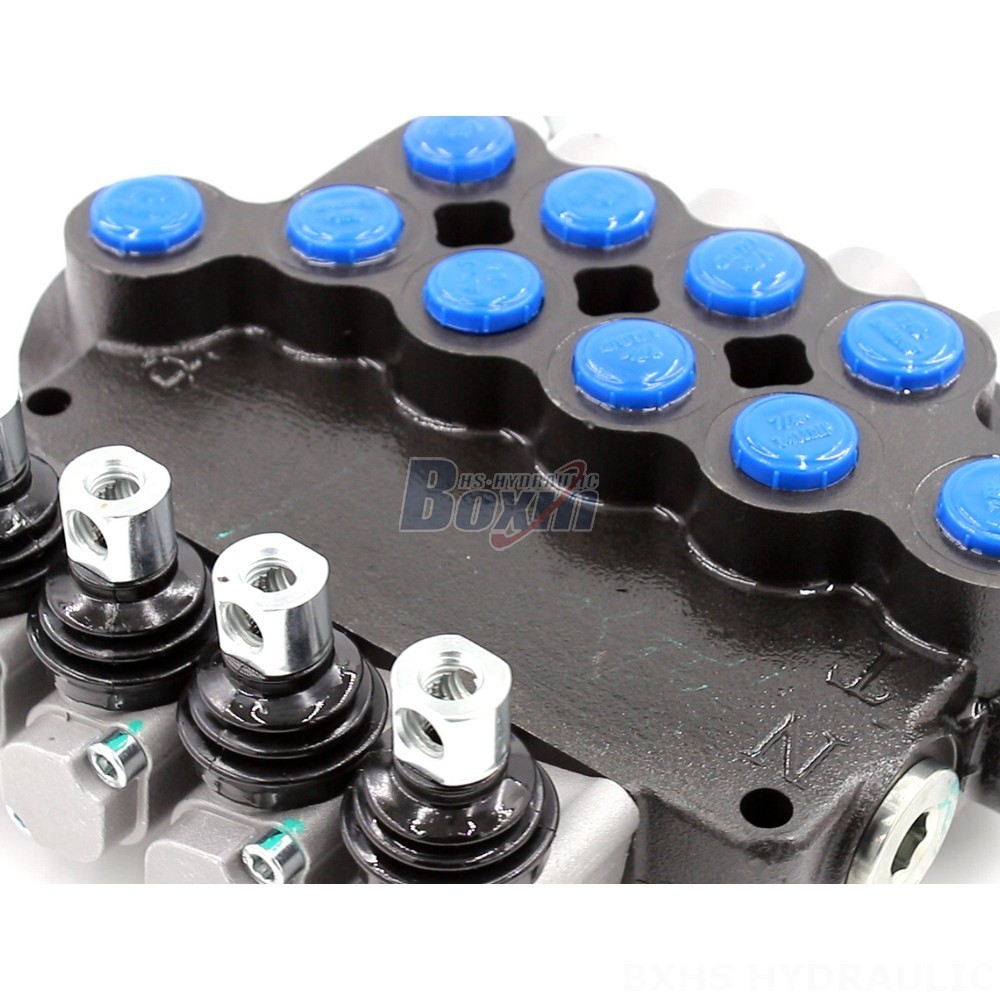

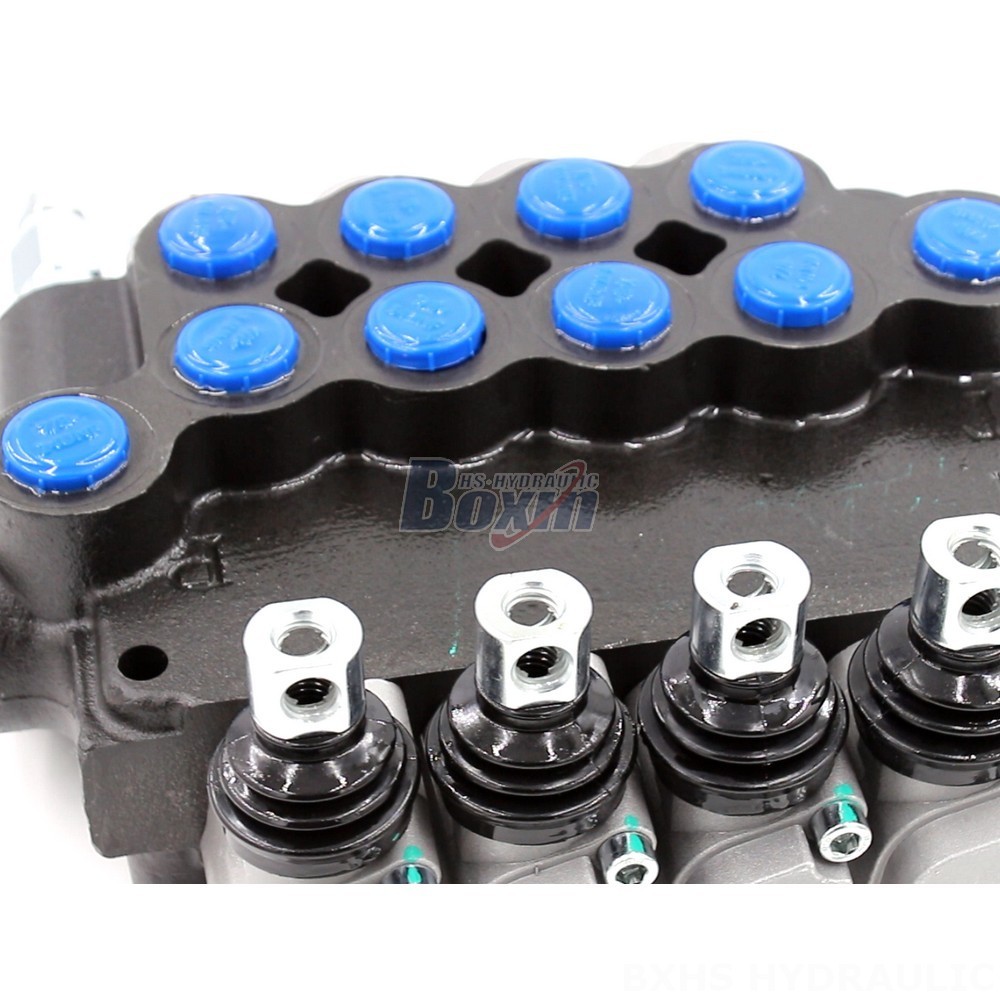

Hydraulic Control Panel Hydraulic Directional Valve, 4 Spool, Monoblock Design - P80-U78-4OT

控制方式:手控

路数:4 联

额定流量:80 L/min (21.2 US gpm)

最大压力:250 bar (3600 psi)

进油口:SAE 10接头

出油口:SAE 10接头

接口尺寸:SAE 10接头

品牌:BXHS

所属类别:单块式方向阀

产品系列:P80系列 单块式方向阀

Packagingsize:26*27*11

Grossweight:13.40 kg

库存: 有货

997 次查看了此产品

Hydraulic Control Panel Hydraulic Directional Valve, 4 Spool, Monoblock Design - P80-U78-4OT

Hydraulic Control Panel Hydraulic Directional Valve, 4 Spool, Monoblock Design - P80-U78-4OT

Hydraulic Control Panel Hydraulic Directional Valve, 4 Spool, Monoblock Design - P80-U78-4OT drawing image

The P80-U78-4OT Hydraulic Control Panel is a 4-spool, monoblock directional valve designed for material handling, construction, agriculture, and industrial vehicle applications. It offers a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for various equipment like telehandlers, forklifts, and mini-excavators.

P80系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 80 L/min (21.2 US gpm)
最大压力 315 bar (4600 psi)
进油口 G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
出油口 G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹
接口尺寸 G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹

This P80-U78-4OT Hydraulic Control Panel features a 4-spool, monoblock design, providing a compact and reliable solution for hydraulic systems. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is suitable for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. The control method is manual, offering straightforward operation. The valve is designed for an operating viscosity range of 15-75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). This durable and efficient valve is specifically designed for telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
