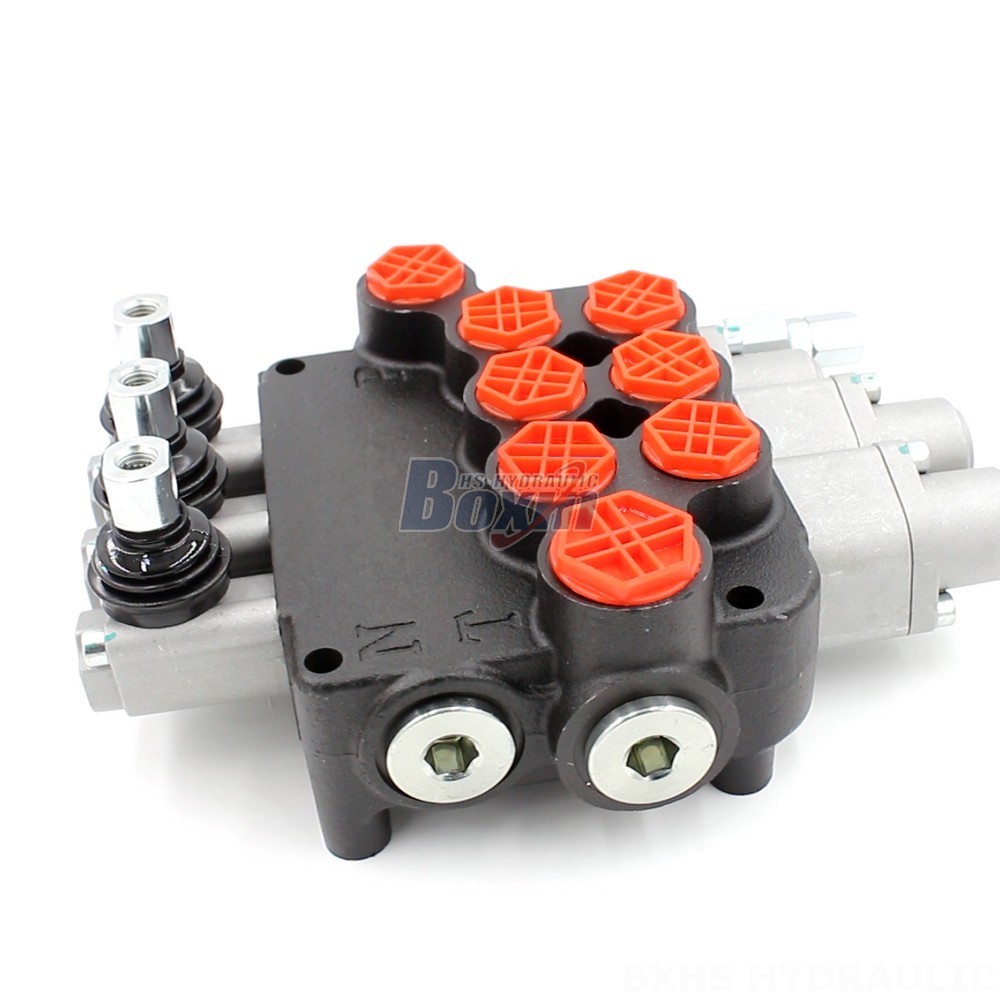

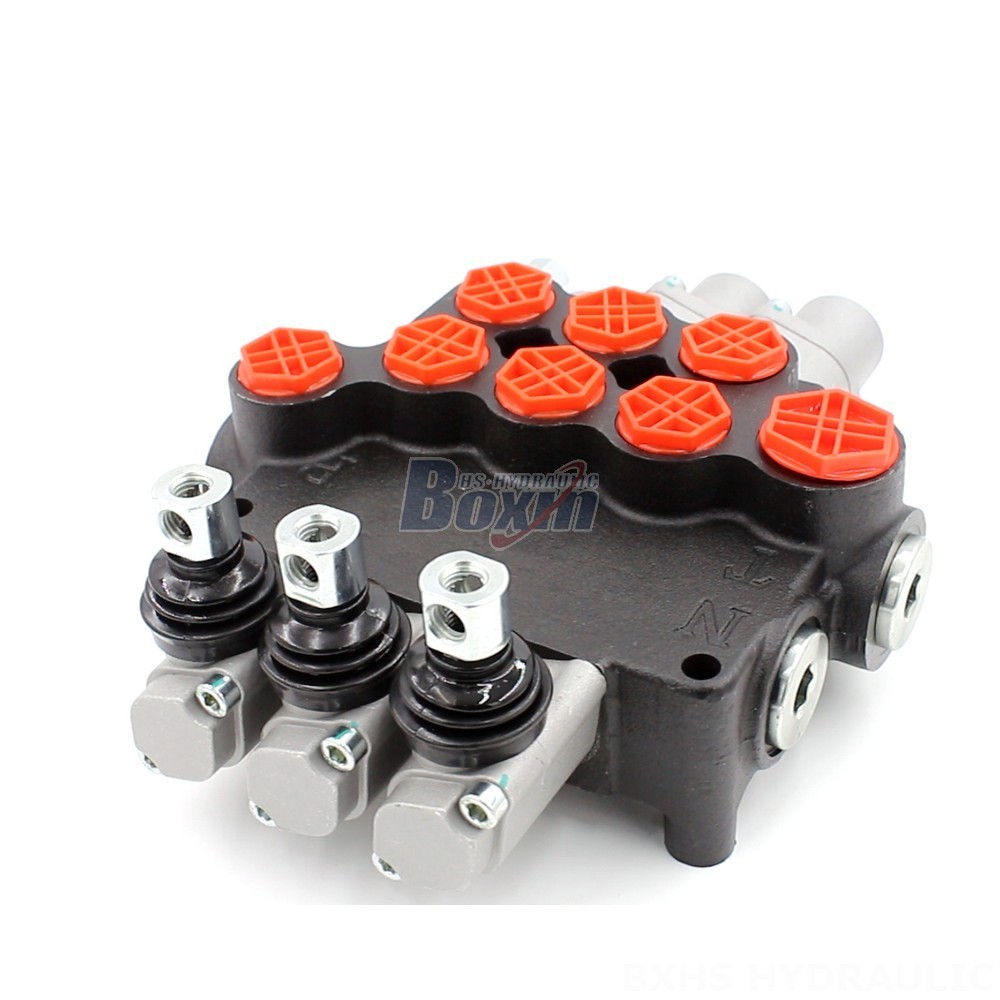

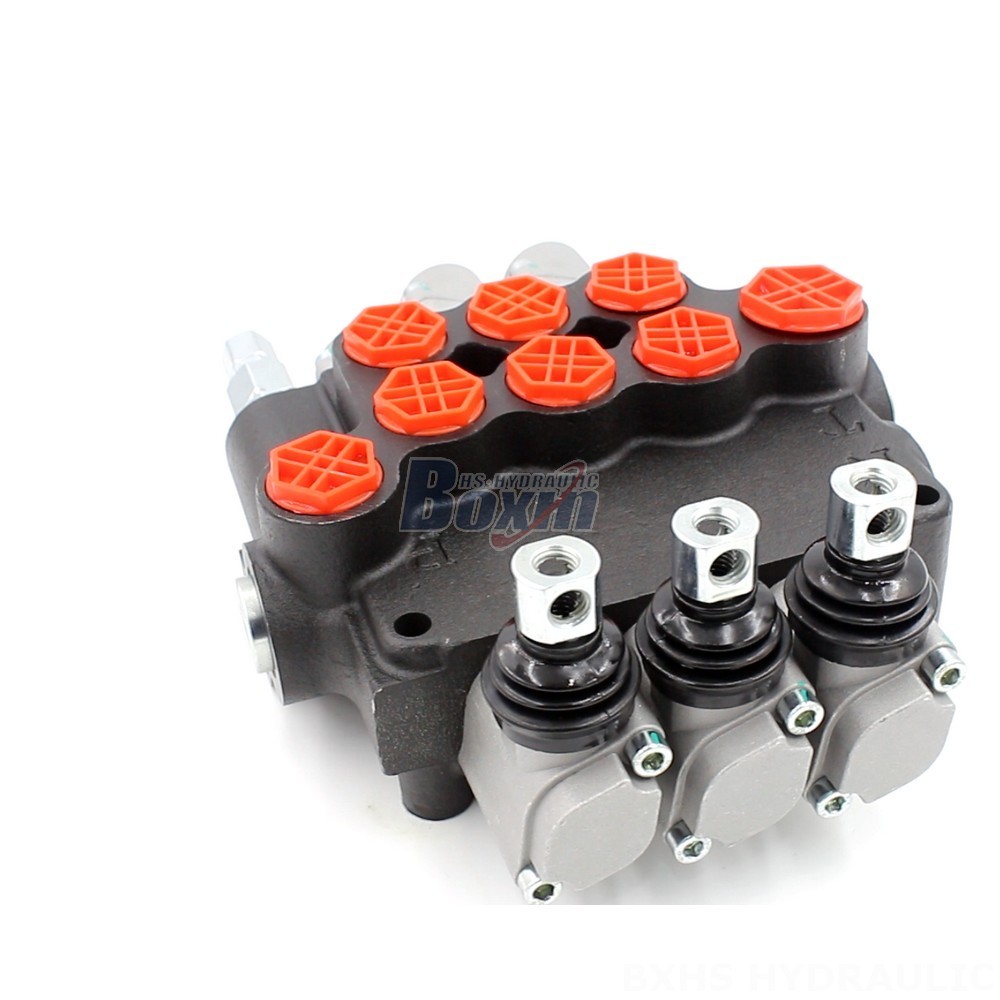

The P80-G12-G34 Series hydraulic directional control valve is a 3-section monoblock valve designed for manual control. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it's ideal for various applications in construction, material handling, agriculture, and industrial vehicles.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
This robust hydraulic directional control valve from the P80 Series is built for reliable performance. It features a 3-section design with manual control, offering precise operation. With a rated flow of 80 L/min and a maximum pressure rating of 250 bar, this valve is designed for demanding applications. Its compact monoblock structure ensures durability and efficiency. Suitable for a wide range of equipment, including telehandlers, forklifts, excavators, and skid steer loaders, this valve provides reliable hydraulic control for various functions.
