The HSV09 Solenoid 1 Spool Flow Diverter Valve is a high-performance hydraulic component designed for use in a wide range of industrial applications. With a rated flow of 90 L/min, a maximum pressure of 250 bar, and an operating viscosity range of 15 - 75 mm²/s, this valve is suitable for demanding hydraulic systems in various industries including material handling, construction, agriculture, and industrial vehicles.
| HSV09系列 分流阀 参数 | |
|---|---|
| 控制方式 | 手控, 电磁, 液控, 电磁 |
| 路数 | 1 联, 2 联, 3 联 |
| 额定流量 | 90 L/min (23.8 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G1/2接口, G3/4接口 |
| 出油口 | G1/2接口, G3/4接口 |
| 接口尺寸 | G1/2接口, G3/4接口 |
| 联数 | 1联, 2联, 3联 |
| 结构类型 | 分片阀 |
| 环境温度范围 | -20°C to +80°C (-4°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |

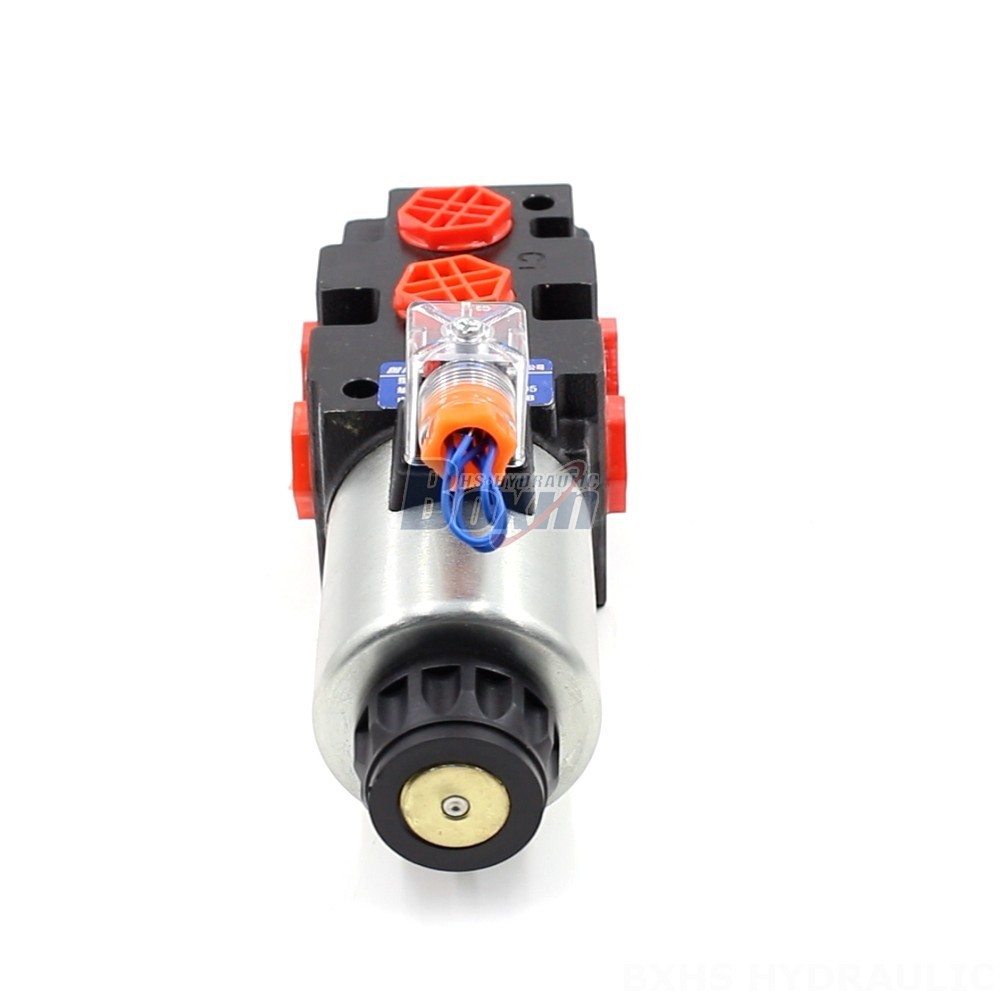

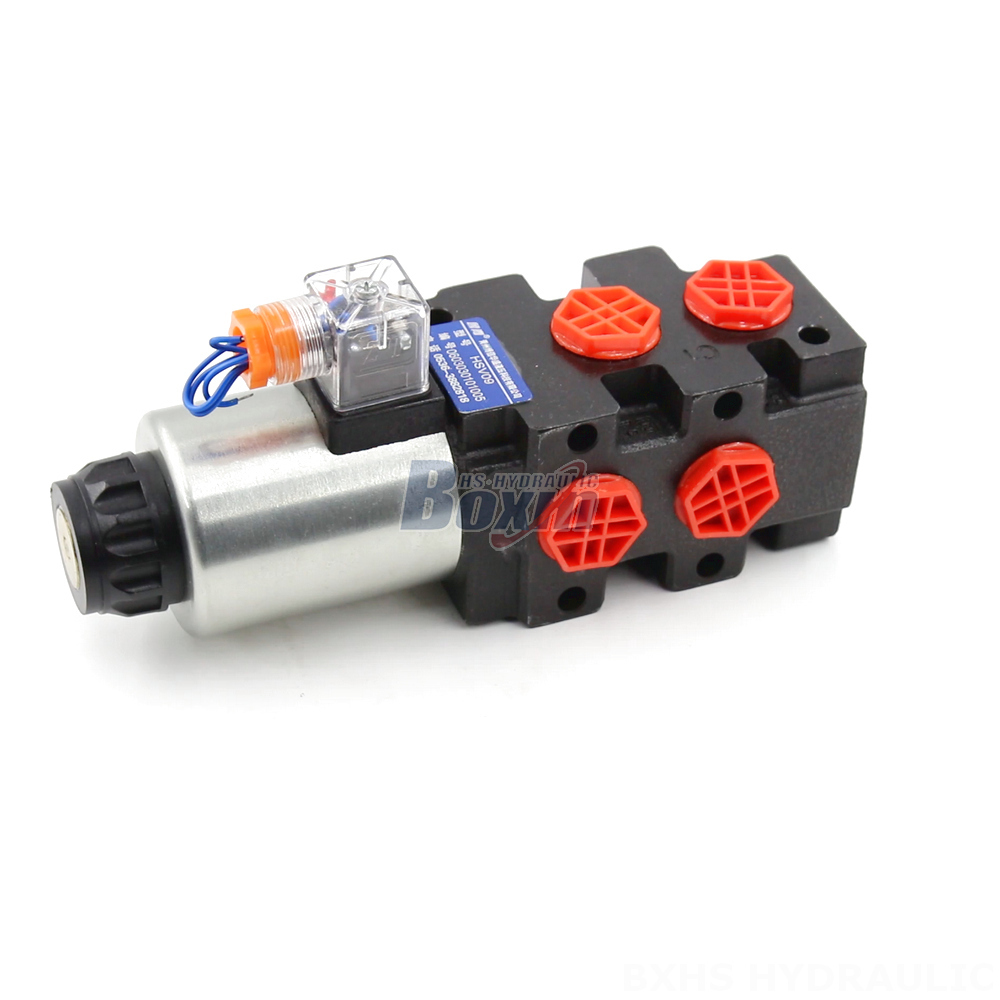

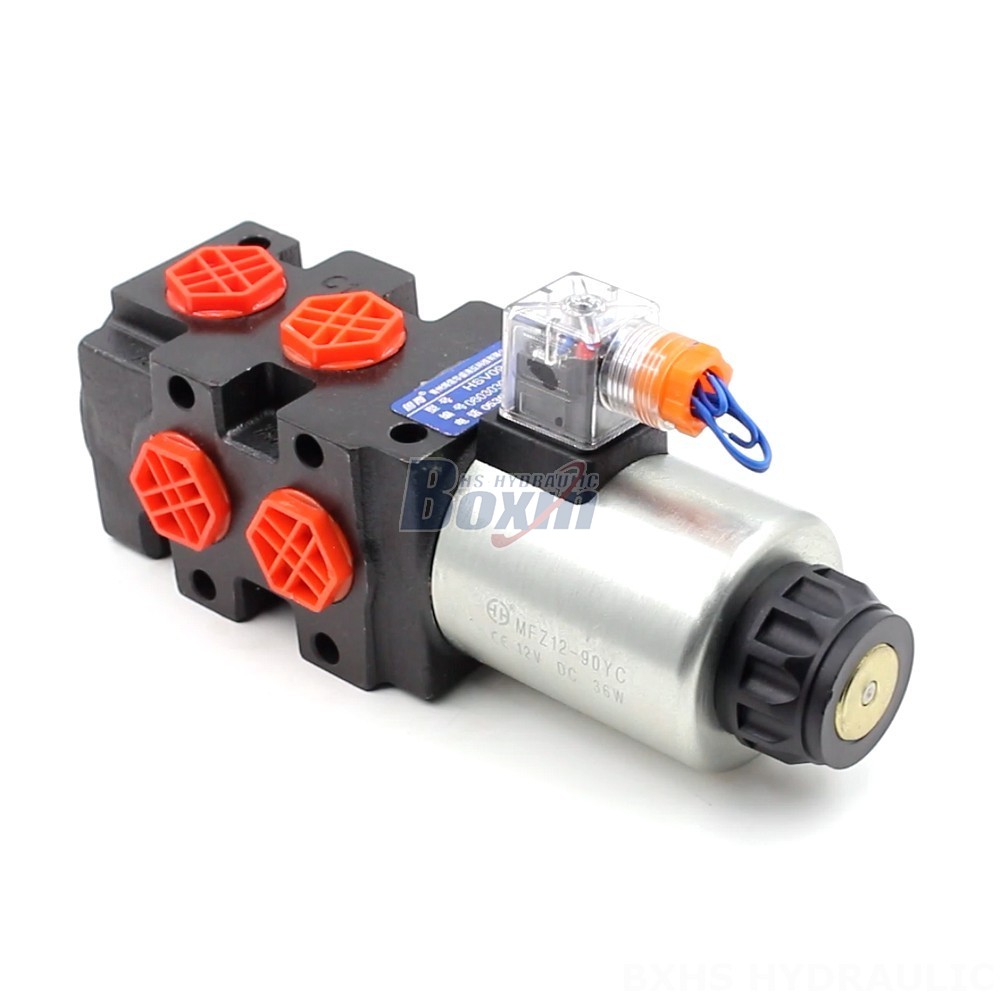

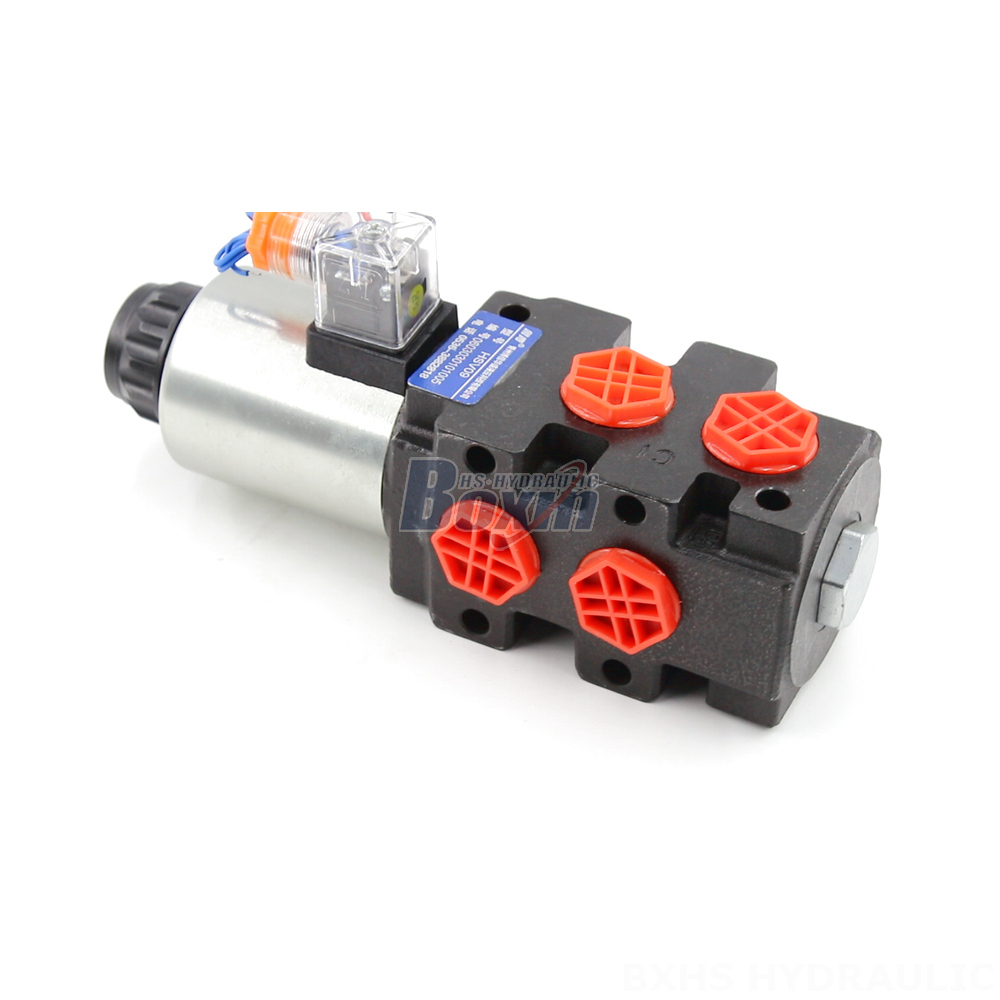

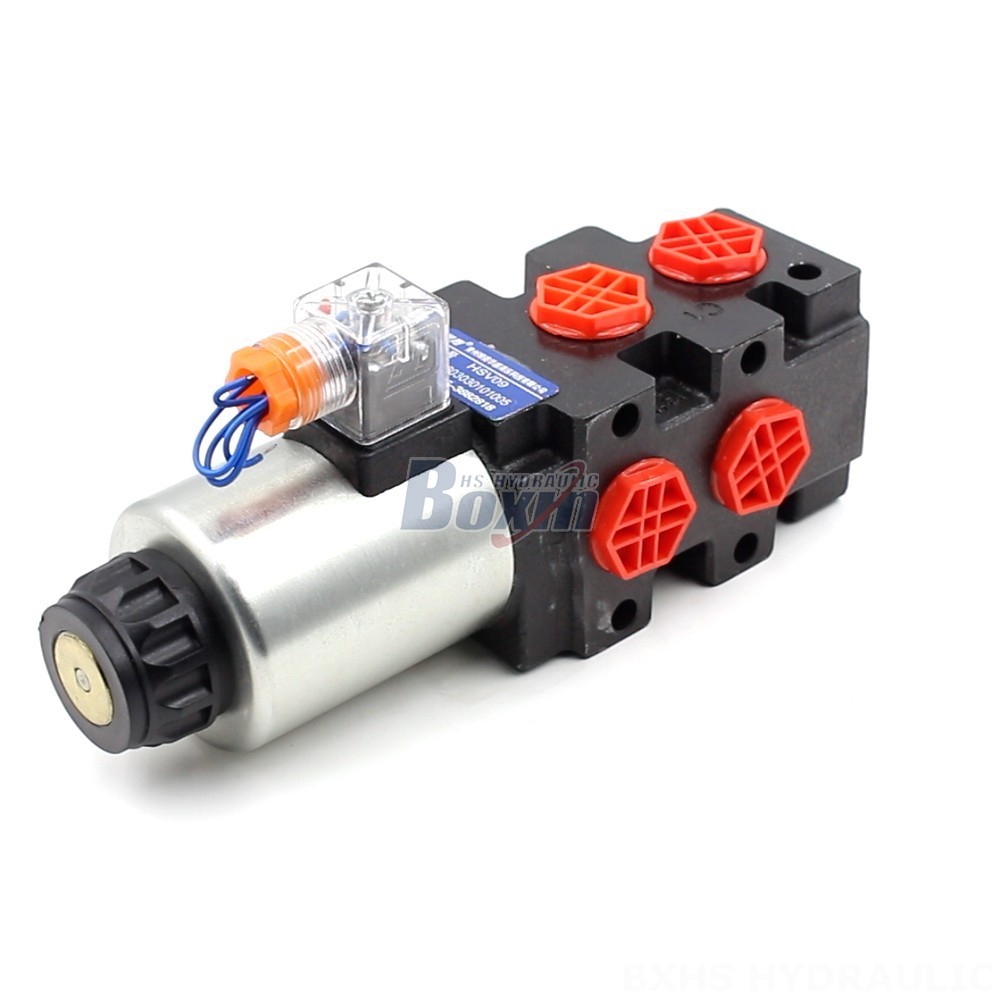

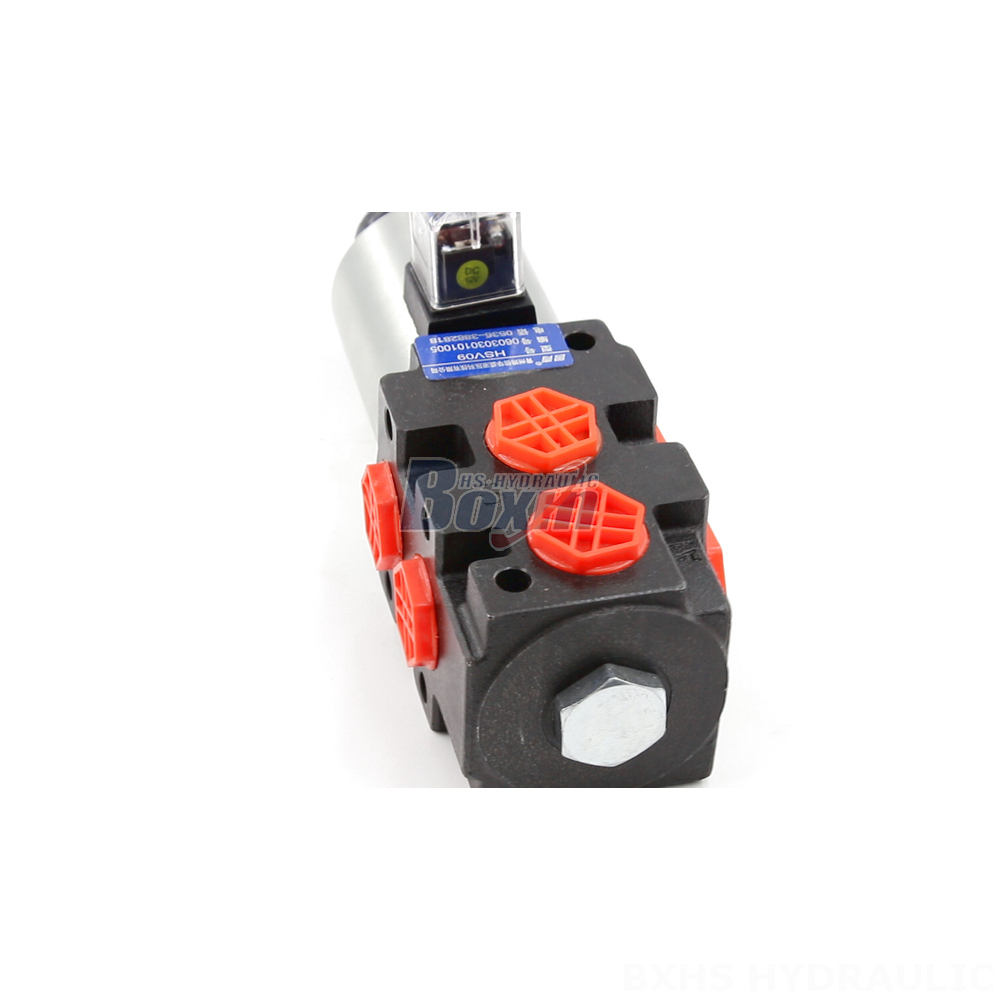

**Product Name:** HSV09 Solenoid 1 Spool Flow Diverter Valve
**Control Method:** Solenoid
**Section:** 1 Section
**Structure Type:** Sectional valve
**Rated Flow:** 90 L/min (23.8 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Series:** HSV09 Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER, WHEEL LOADER
