High Performance Q45-DT-2OT 3 Spool Monoblock Valve for Hydraulic Systems

控制方式:手动及推拉式电磁铁

路数:3 联

额定流量:45 L/min (11.8 US gpm)

最大压力:315 bar (4600 psi)

进油口:G1/2接口

出油口:G1/2接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:Q45系列 单块式方向阀

Packagingsize:22.0*36.5*19.0

Grossweight:9.00 kg

库存: 有货

12 次查看了此产品

High Performance Q45-DT-2OT 3 Spool Monoblock Valve for Hydraulic Systems

High Performance Q45-DT-2OT 3 Spool Monoblock Valve for Hydraulic Systems

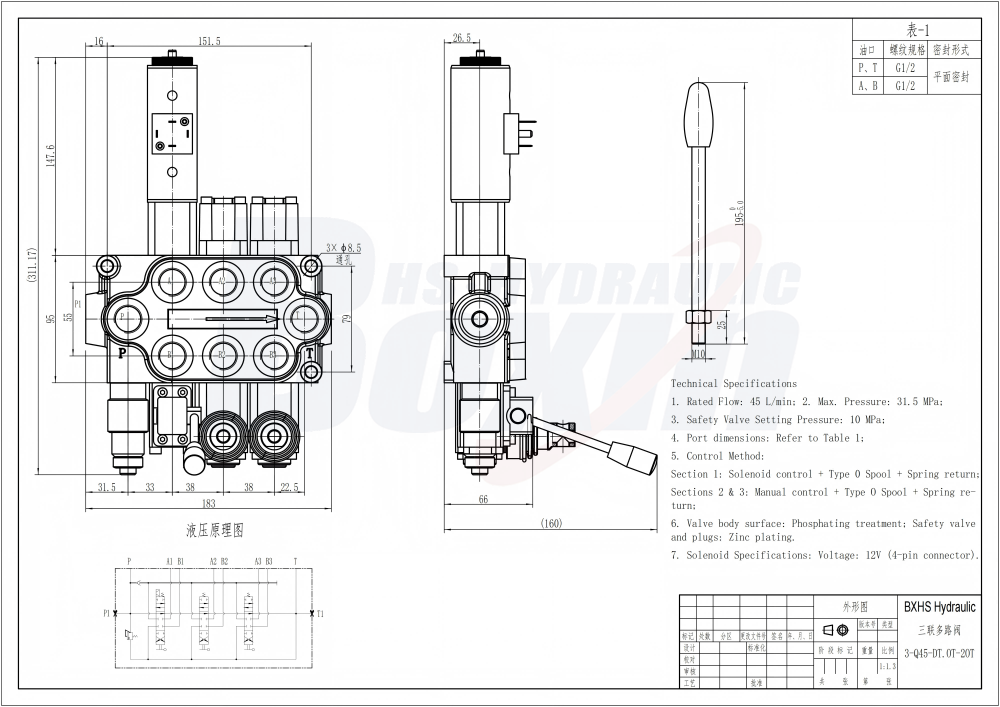

High Performance Q45-DT-2OT 3 Spool Monoblock Valve for Hydraulic Systems drawing image

The Q45-DT-2OT is a versatile 3-spool monoblock valve designed for high-performance hydraulic systems, featuring a combined manual and push-pull electromagnet control. Delivering a rated flow of 45 L/min at pressures up to 315 bar, this G1/2 ported valve is engineered for durability across material handling, agriculture, and construction machinery.

Q45系列 单块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 电磁, 一控二手柄控制, 电磁和手动, 手动及推拉式电磁铁, 推拉式电磁铁
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联
环境温度范围 -20°C to +80°C (-4°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 45 L/min (11.8 US gpm)
最大压力 315 bar (4600 psi)
进油口 G1/2接口
出油口 G1/2接口
接口尺寸 G1/2接口

Enhance your machinery with our Q45-DT-2OT 3 Spool Monoblock Valve, engineered for precision and reliability. As a prominent hydraulic manufacturer, we provide direct factory supply with expansive capabilities for OEM, private labeling, and custom engineering. This Q45 series valve supports a 45 L/min flow rate and 315 bar maximum pressure, featuring dual control methods via manual levers and push-pull electromagnets for optimal operational flexibility. It is perfectly suited for tractors, front-end loaders, mini-excavators, and forklifts. We are actively seeking global partners, including distributors, wholesalers, and trading companies, to expand our international reach. Our factory offers competitive wholesale pricing and robust manufacturing support for large-scale procurement. Whether you need customized hydraulic solutions or bulk inventory, our facility is equipped to meet rigorous industrial standards and diverse application requirements.
