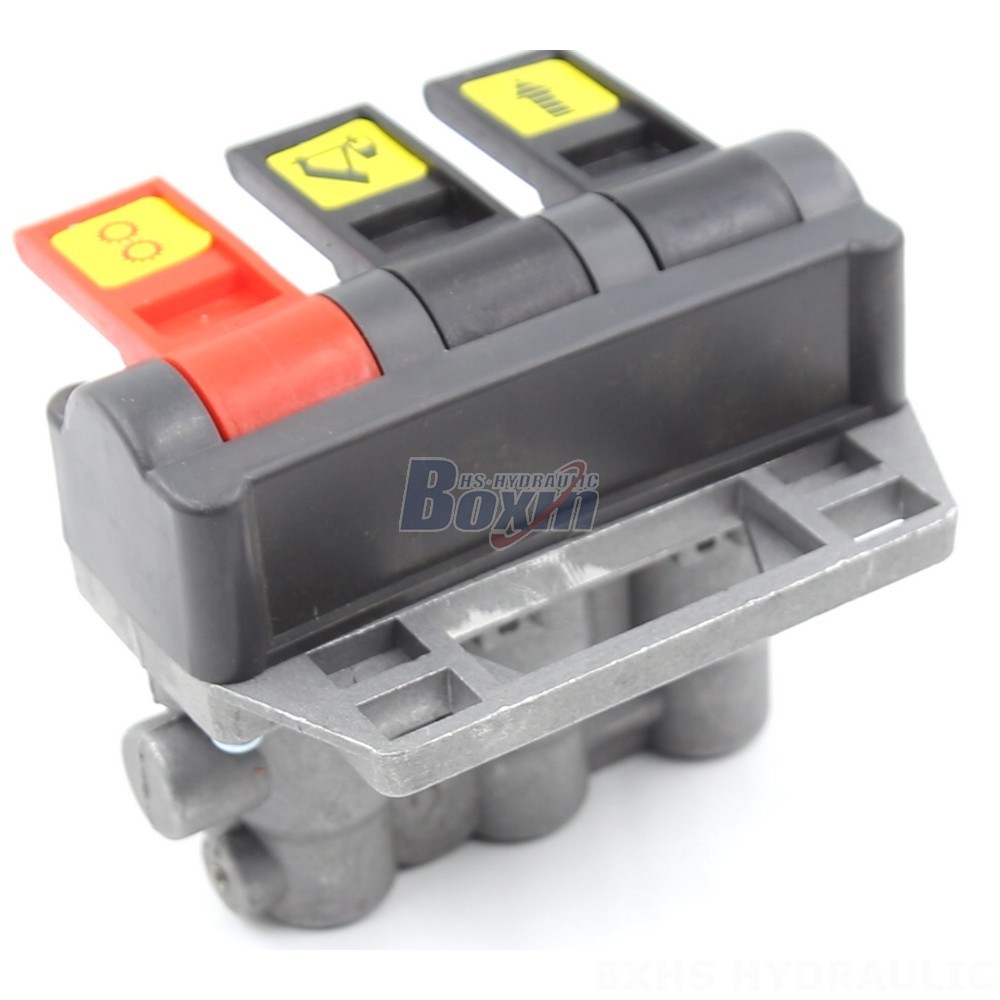

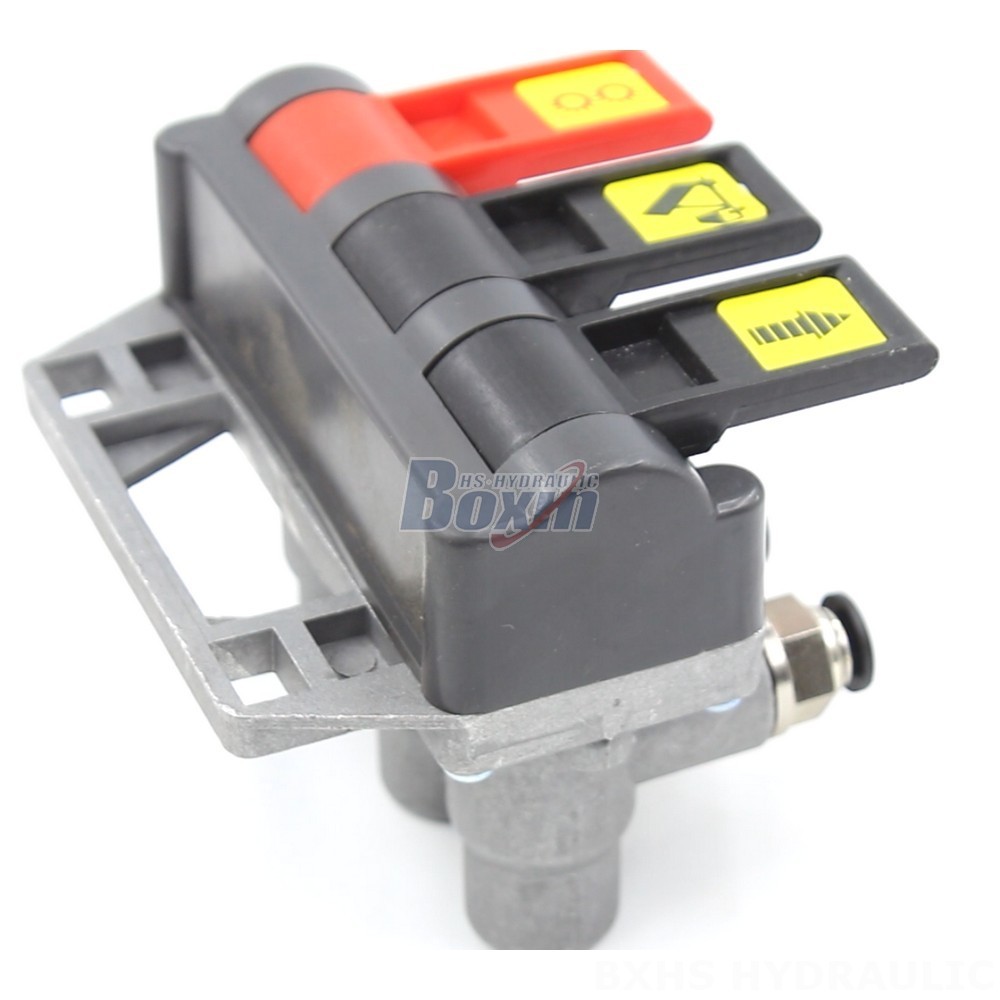

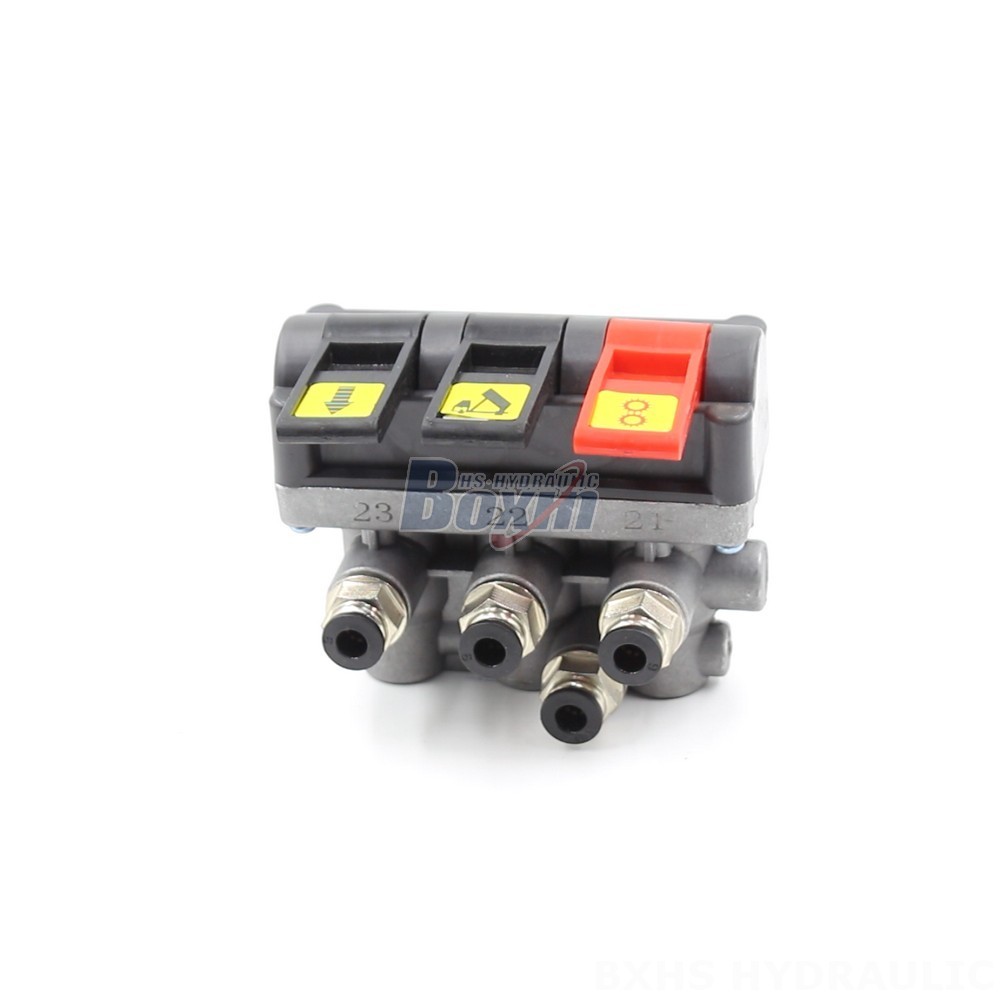

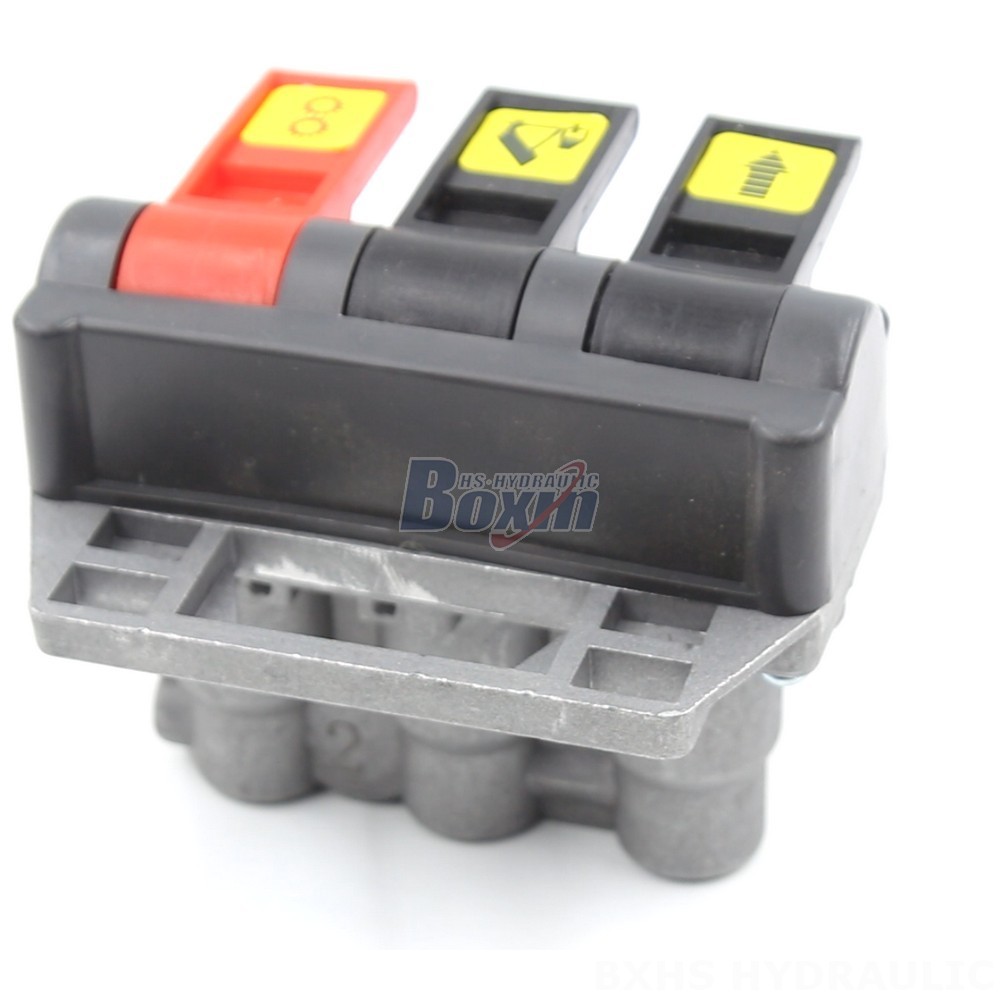

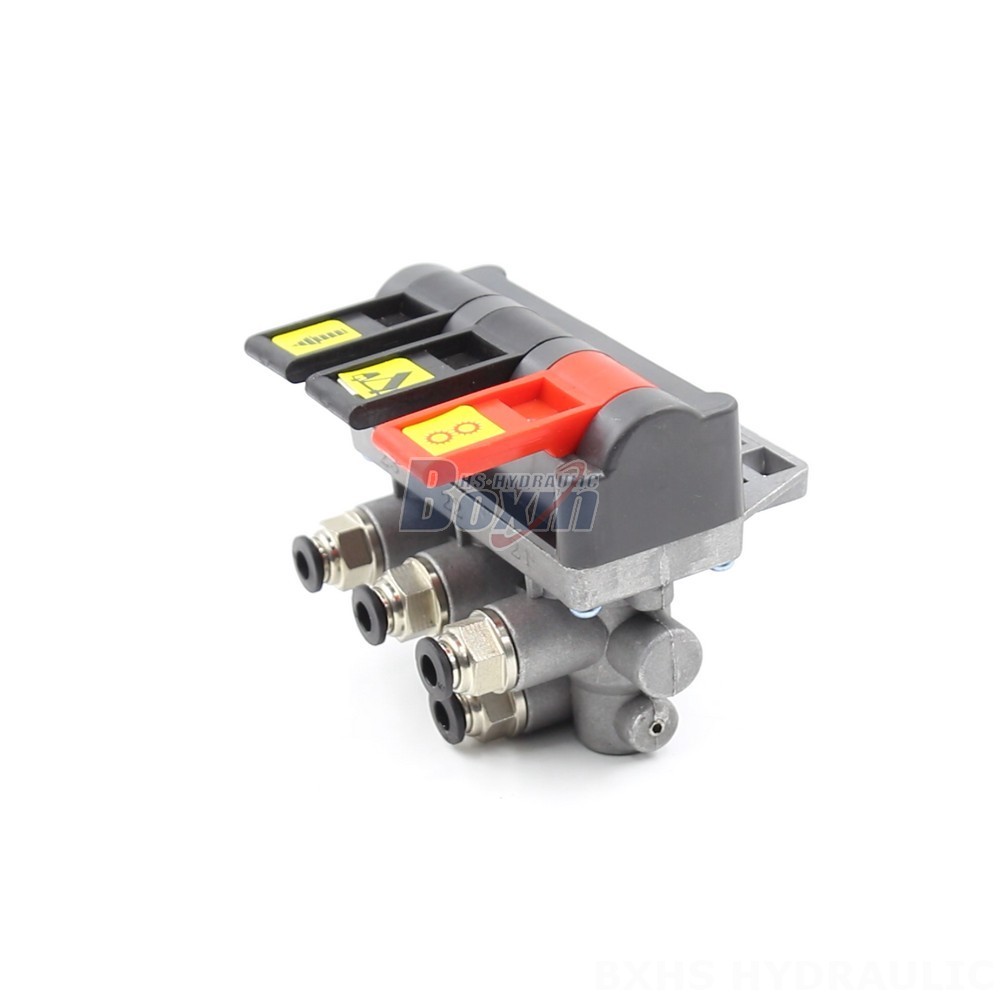

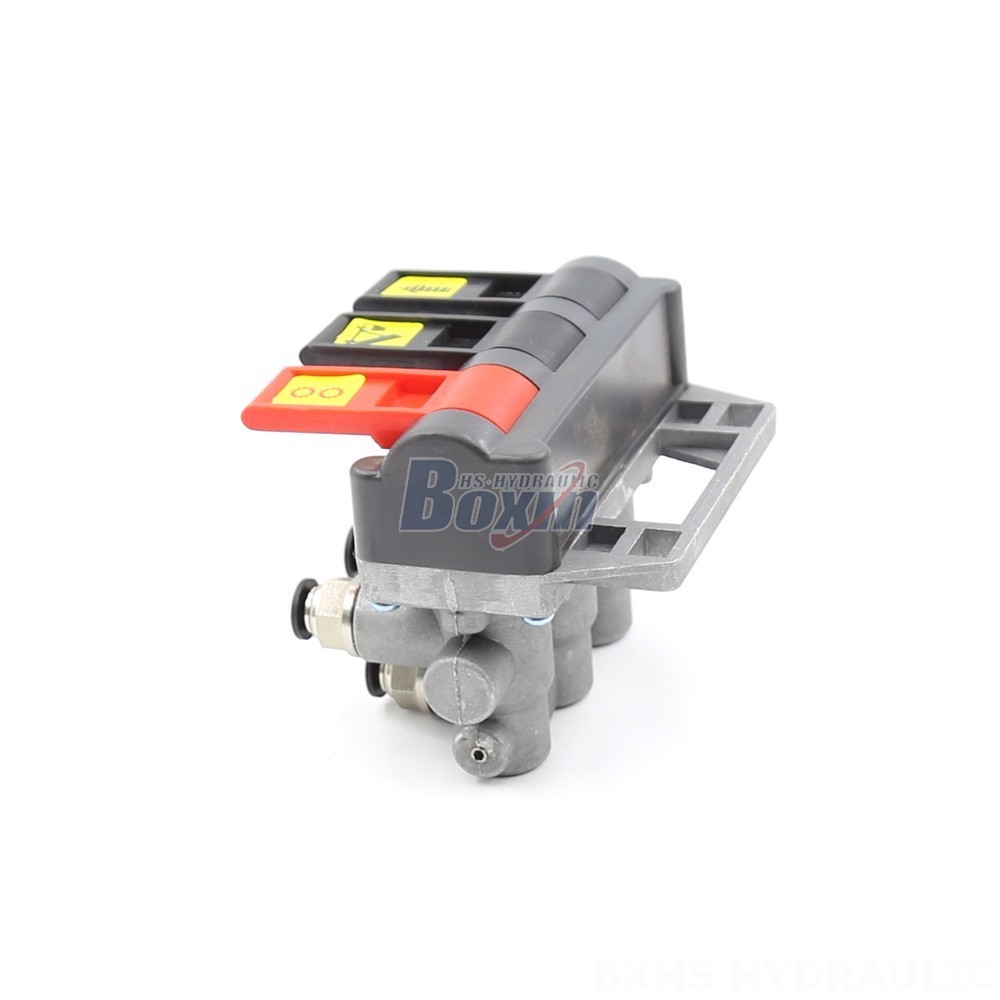

This high-performance pneumatic 1-spool hydraulic control valve is designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. The TC-4 series valve offers reliable performance, durability, and a compact design.
| TC-4系列 液压控制阀 参数 | |
|---|---|
| 控制方式 | 气控 |
| 路数 | 1 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 16 L/mi (4.2 US gpm) |
| 最大压力 | 1 MPa (145 psi) |
| 进油口 | G1/4接口 |
| 出油口 | G1/4接口 |
| 接口尺寸 | G1/4接口 |
This high-performance 1-spool hydraulic control valve features pneumatic control, a monoblock structure, and a rated flow of 40 L/min. It is suitable for a wide range of applications, including forklifts, telehandlers, mini-excavators, midi-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, and harvesters. The valve operates at a maximum pressure of 160 bar and is designed for a viscosity range of 15 - 75 mm²/s. Its robust design and high-quality materials ensure long-lasting performance in demanding environments. The TC-4 series valve is available for OEM, ODM, and private label applications, making it a versatile solution for diverse needs.
