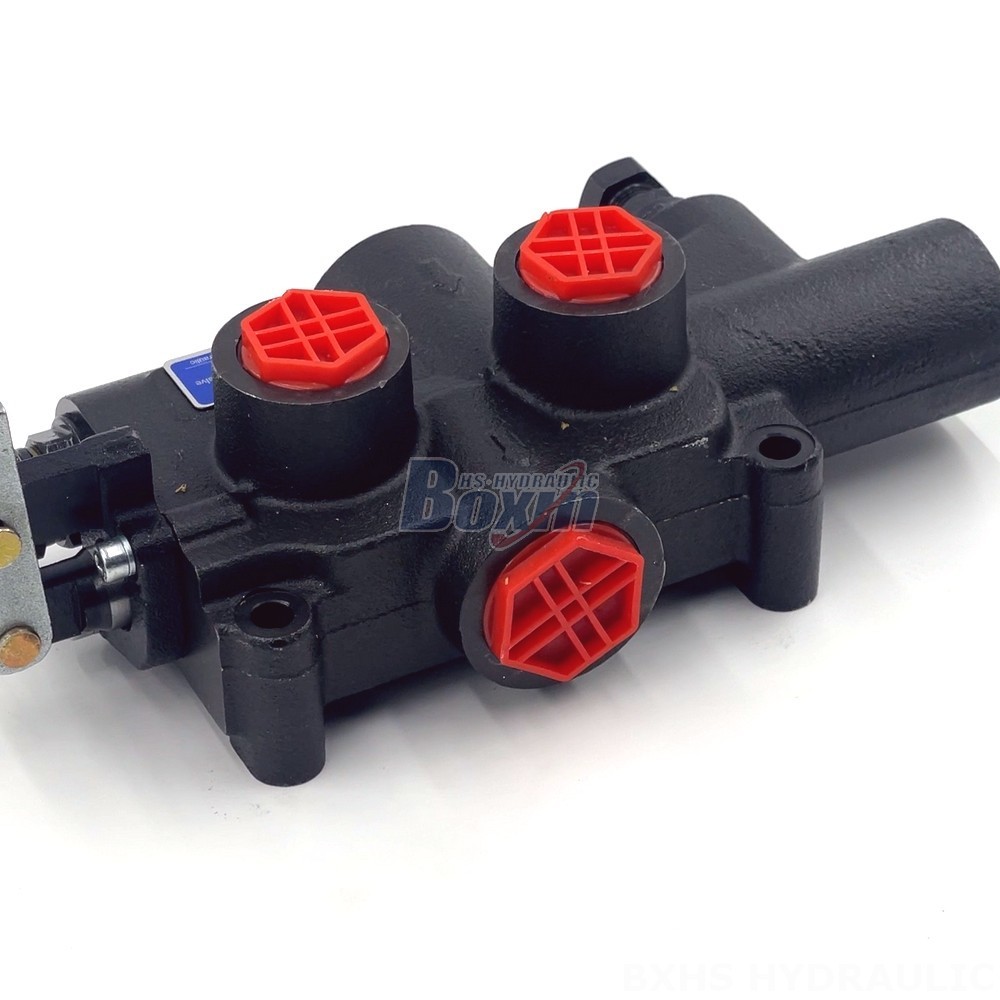

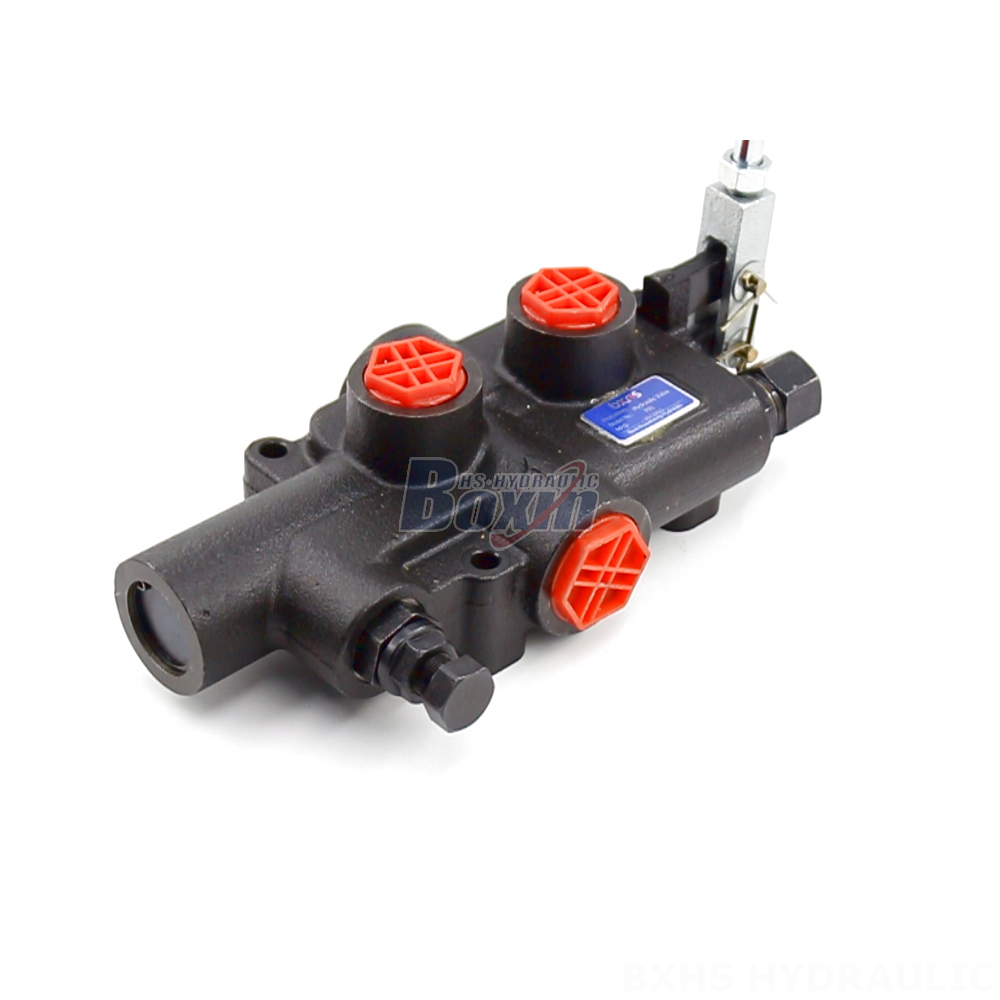

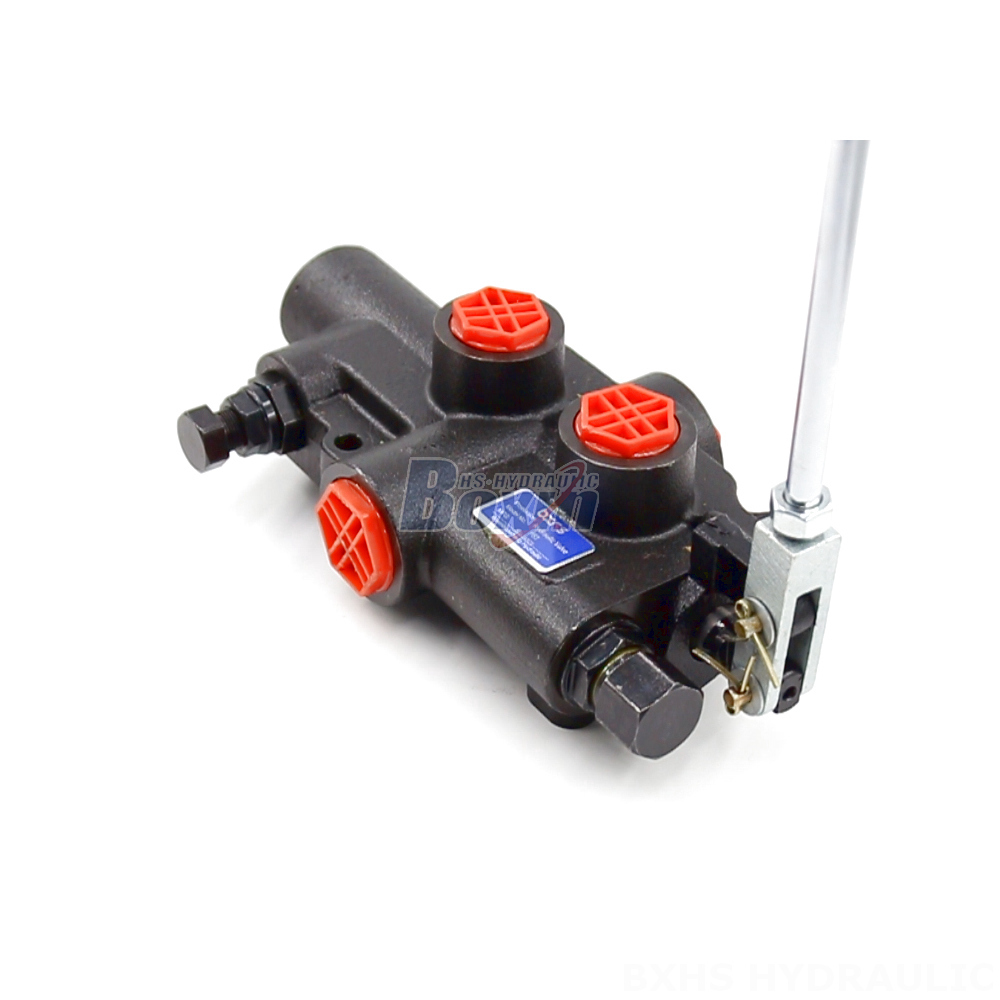

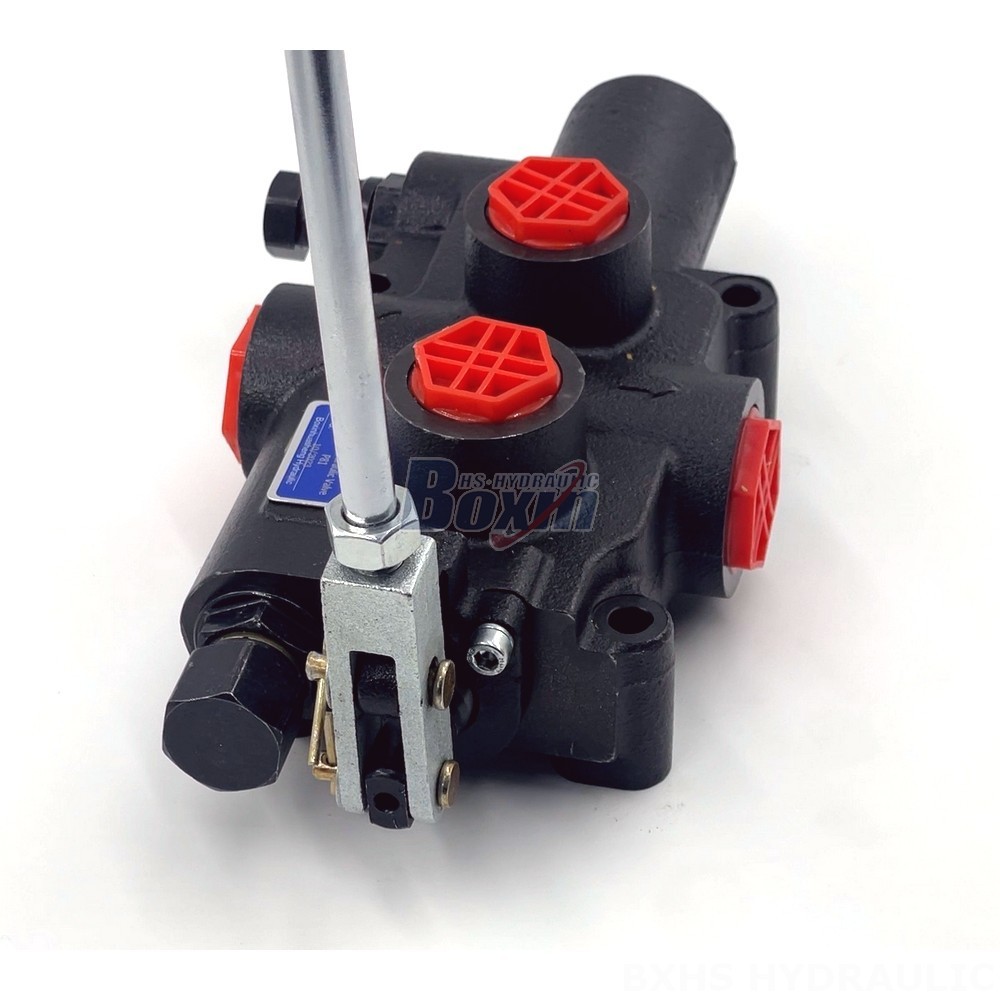

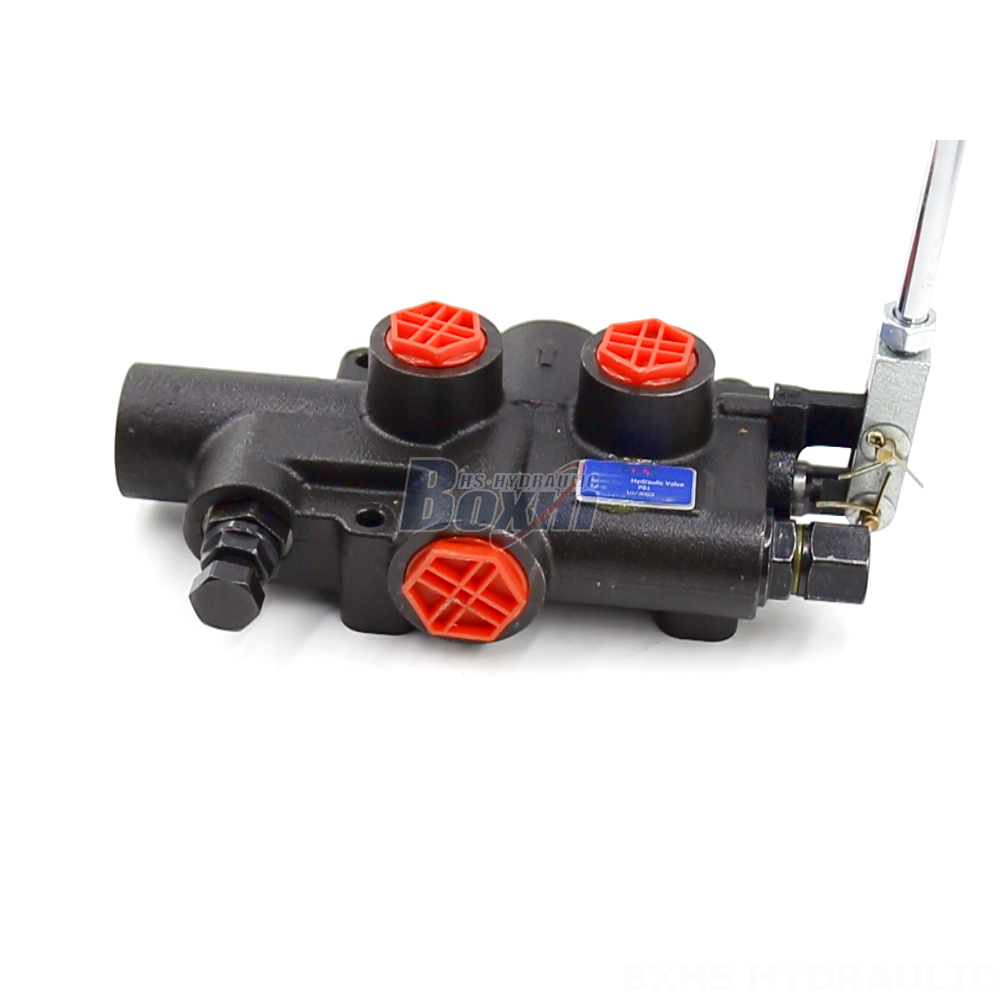

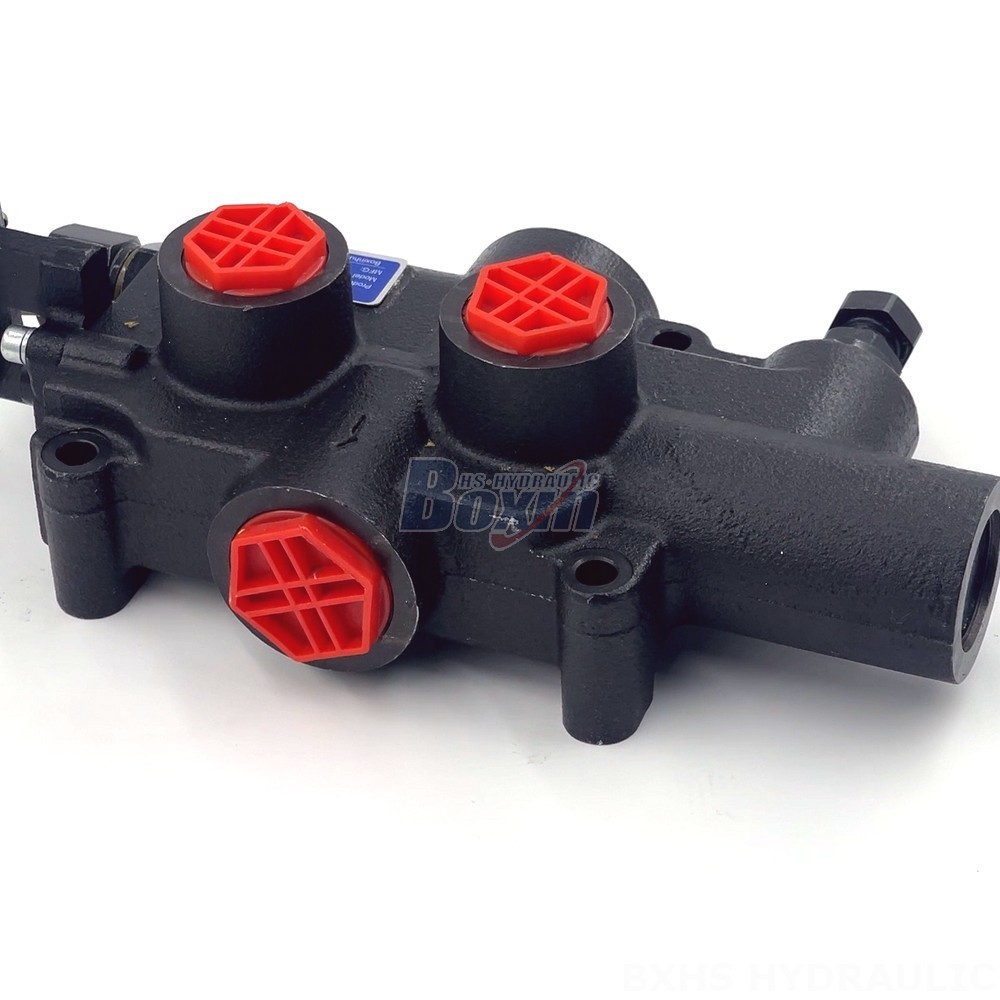

The P81 Series Multiway Directional Valve is a high-performance hydraulic valve designed for demanding applications in industrial vehicles, particularly wood splitters. This manual control valve features a monoblock structure and delivers a rated flow of 80 L/min (21.2 US gpm) at a maximum pressure of 250 bar (3600 psi).
| P81系列 伐木机多路阀 参数 | |
|---|---|
| 控制方式 | 手控 |
| 路数 | 1 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm), 95 L/min (25.1 US gpm) |
| 最大压力 | 19 MPa (145 psi) |
| 进油口 | G1/2接口 |
| 出油口 | G1/2接口 |
| 接口尺寸 | G3/4接口 |
The P81 Series Multiway Directional Valve is a robust and reliable solution for controlling hydraulic systems in demanding industrial applications. This high-performance valve is specifically designed for wood splitters, offering superior control and efficiency. Its monoblock construction provides durability and strength, ensuring long-lasting performance. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi), the P81 valve is capable of handling high-pressure hydraulic systems. The valve operates within a wide viscosity range (15 - 75 mm²/s) and can withstand temperatures from -40°C to +80°C. Its kick-out setting pressure is adjustable between 70~140bar (1015-2030psi), providing precise control and safety. The P81 Series Multiway Directional Valve is an ideal choice for manufacturers and users of industrial vehicles and equipment requiring a high-performance, reliable, and durable hydraulic valve solution.
