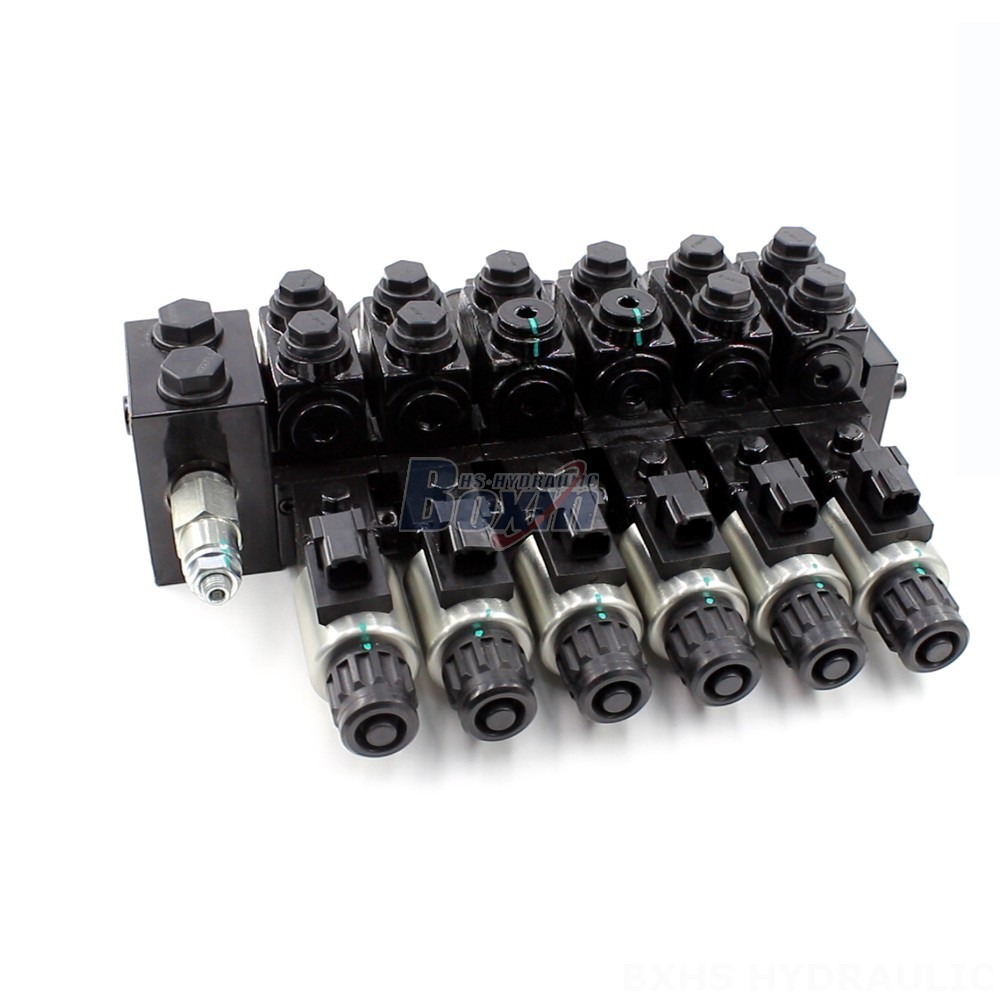

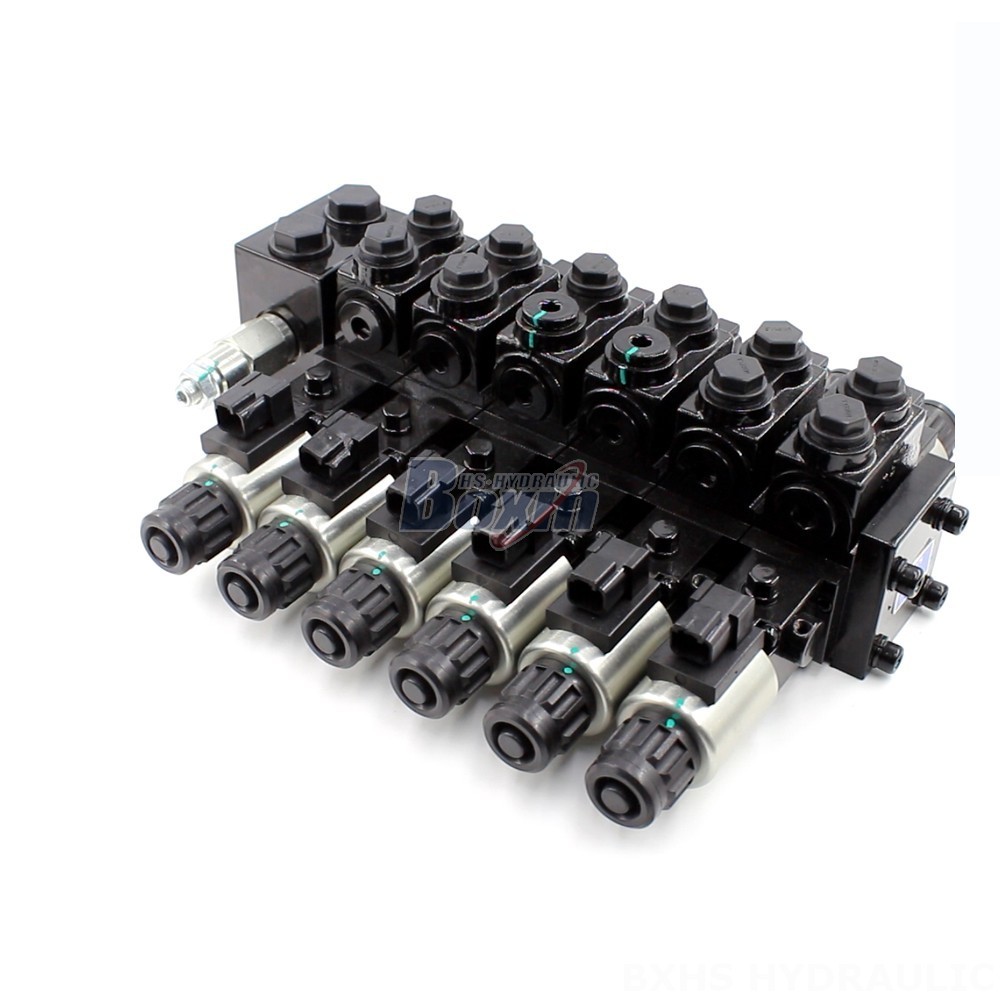

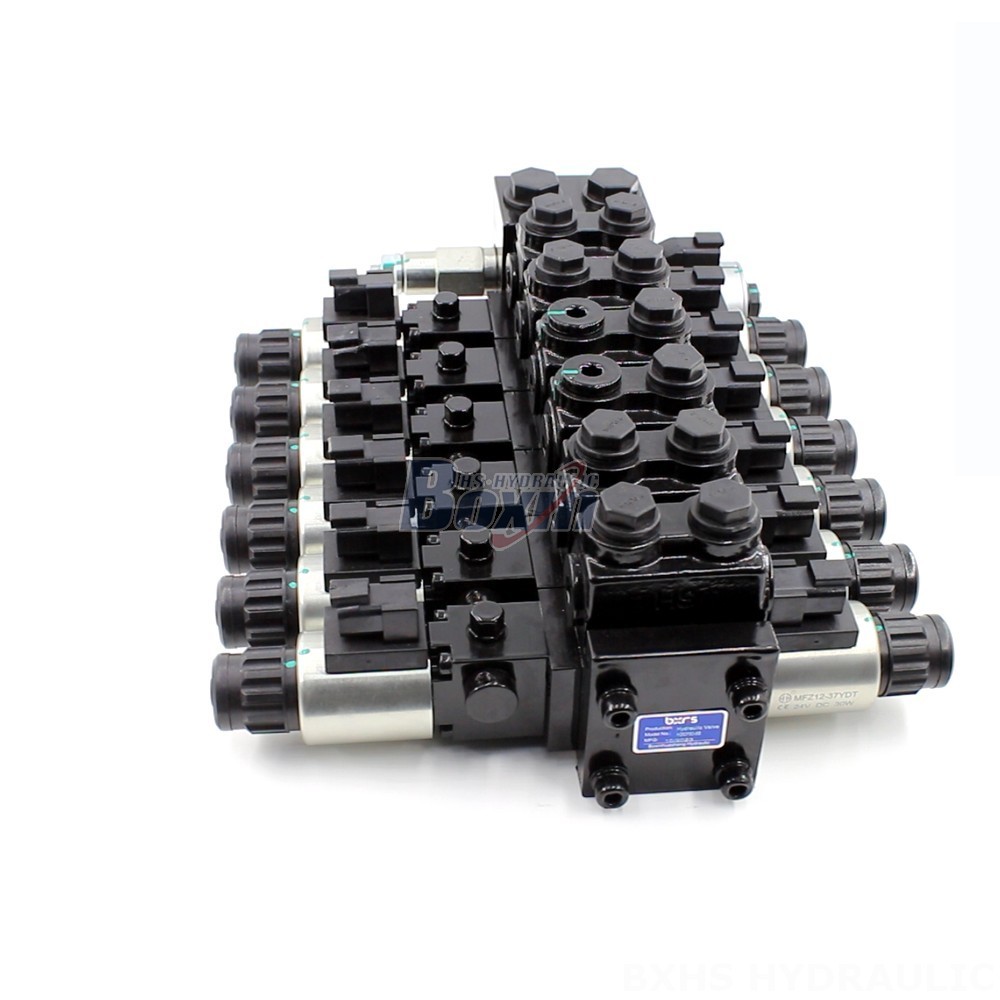

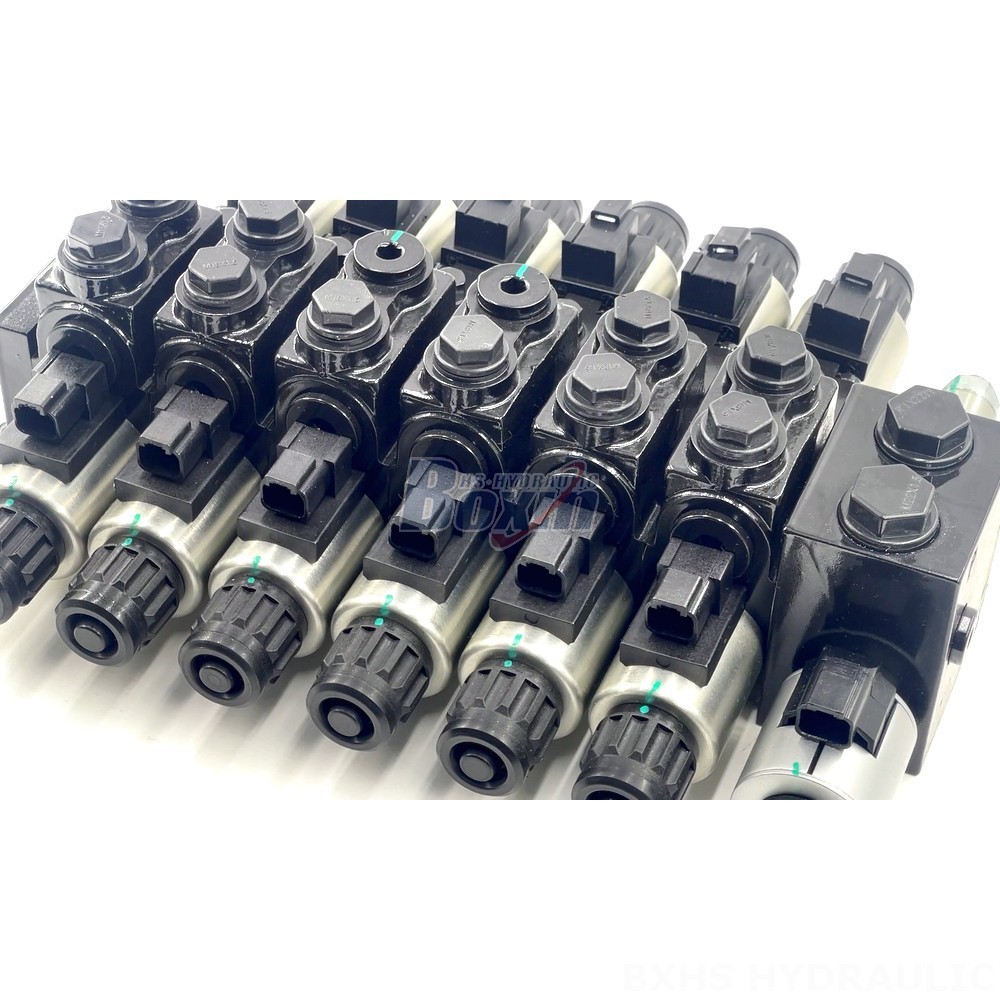

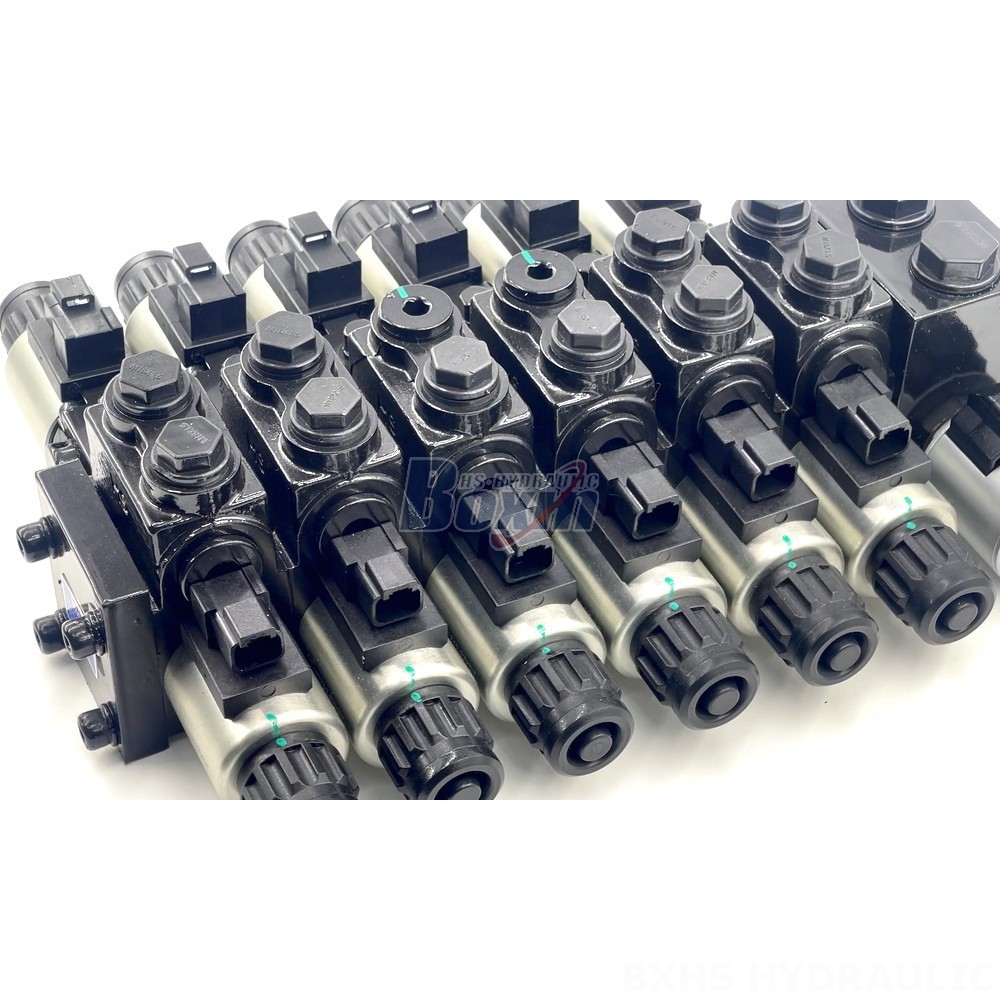

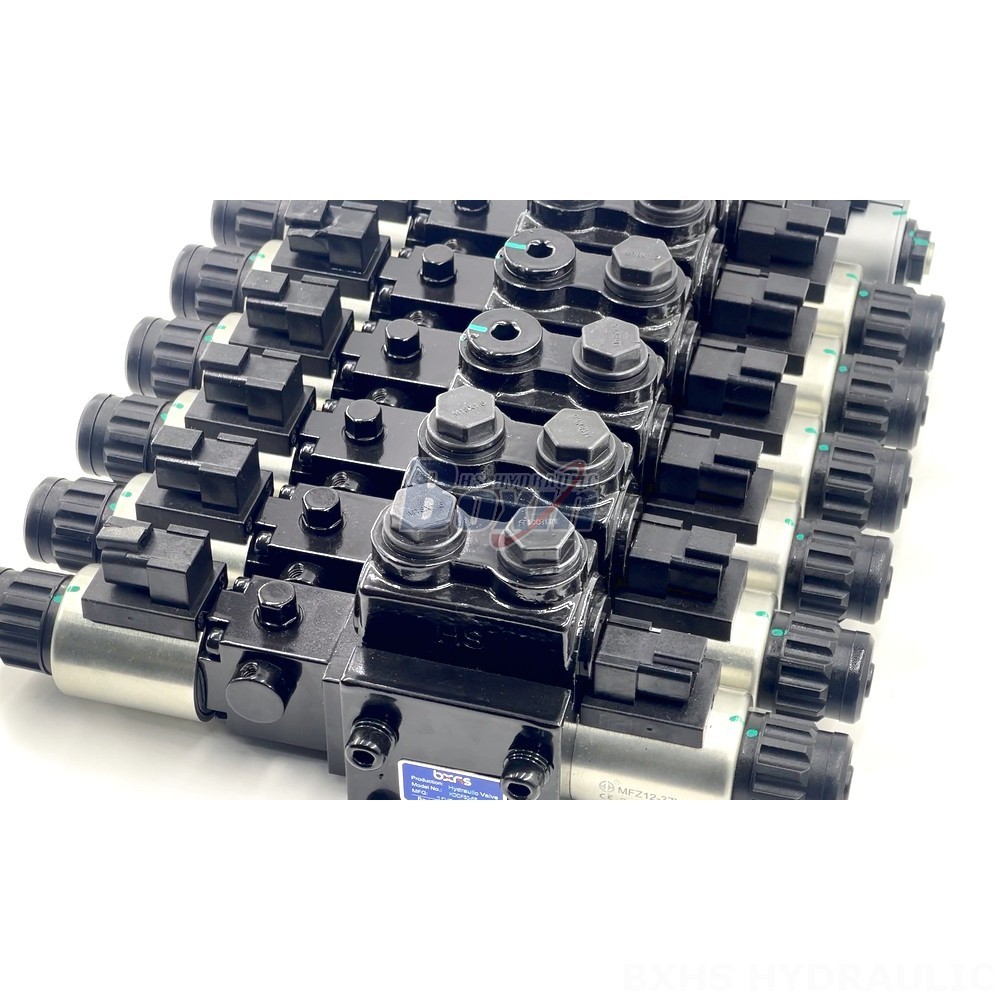

The HDCF50 series solenoid control valve is a 6-spool sectional valve designed for material handling, construction, agriculture, and industrial vehicle applications. With a rated flow of 50 L/min, a maximum pressure of 160 bar, and an ambient temperature range of -20°C to +80°C, it provides reliable and efficient control of hydraulic systems.
| HDCF50系列 电磁控制阀 参数 | |
|---|---|
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联 |
| 控制方式 | 电磁 |
| 接口尺寸 | M22×1.5螺纹, SAE 8接头 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联 |
| 环境温度范围 | -20°C to +80°C (-4°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 出油口 | M18×1.5螺纹, M22×1.5螺纹, SAE 8接头 |
| 最大压力 | 160 bar (2300 psi) |
| 额定流量 | 50 L/min (13.2 US gpm) |
| 结构类型 | 分片阀 |
| 进油口 | M18×1.5螺纹, M22×1.5螺纹, SAE 8接头 |
**Product Name:** HDCF50 Solenoid 6 Spool Solenoid Control Valve
**Control Method:** Solenoid
**Section:** 6 Section
**Structure Type:** Sectional valve
**Rated Flow:** 50 L/min (13.2 US gpm)
**Max Pressure:** 160 bar (2300 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -20°C to +80°C (-4°F to +176°F)
**Spool:** 6 Spool
**Voltage:** 12V 24V
**Series:** HDCF50 Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER,BACKHOE LOADER
