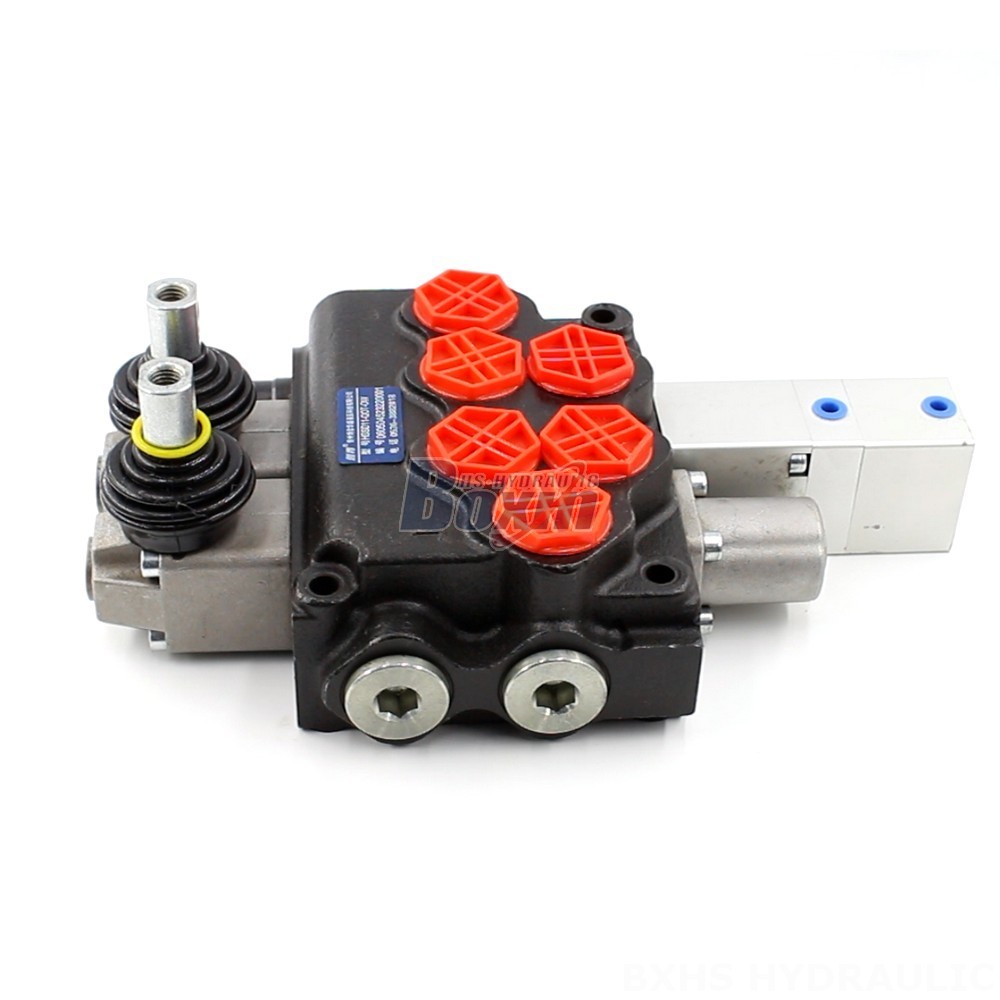

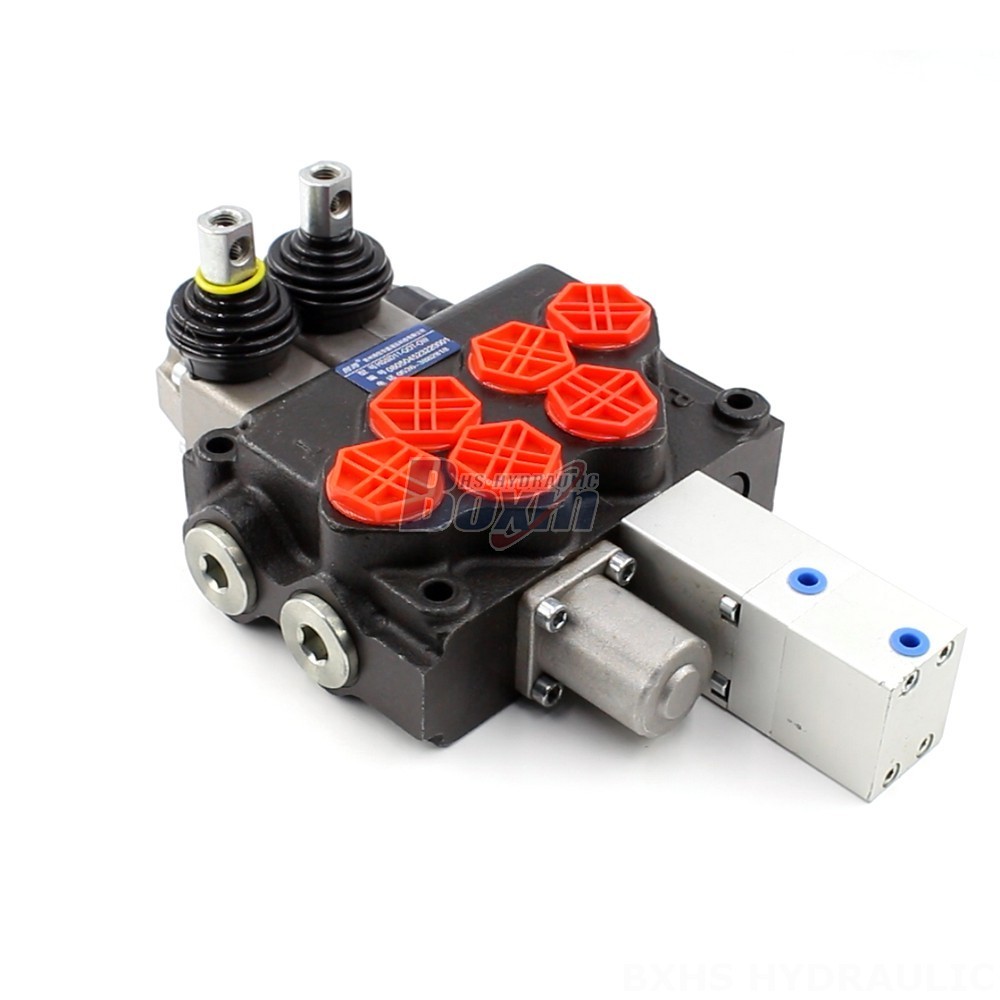

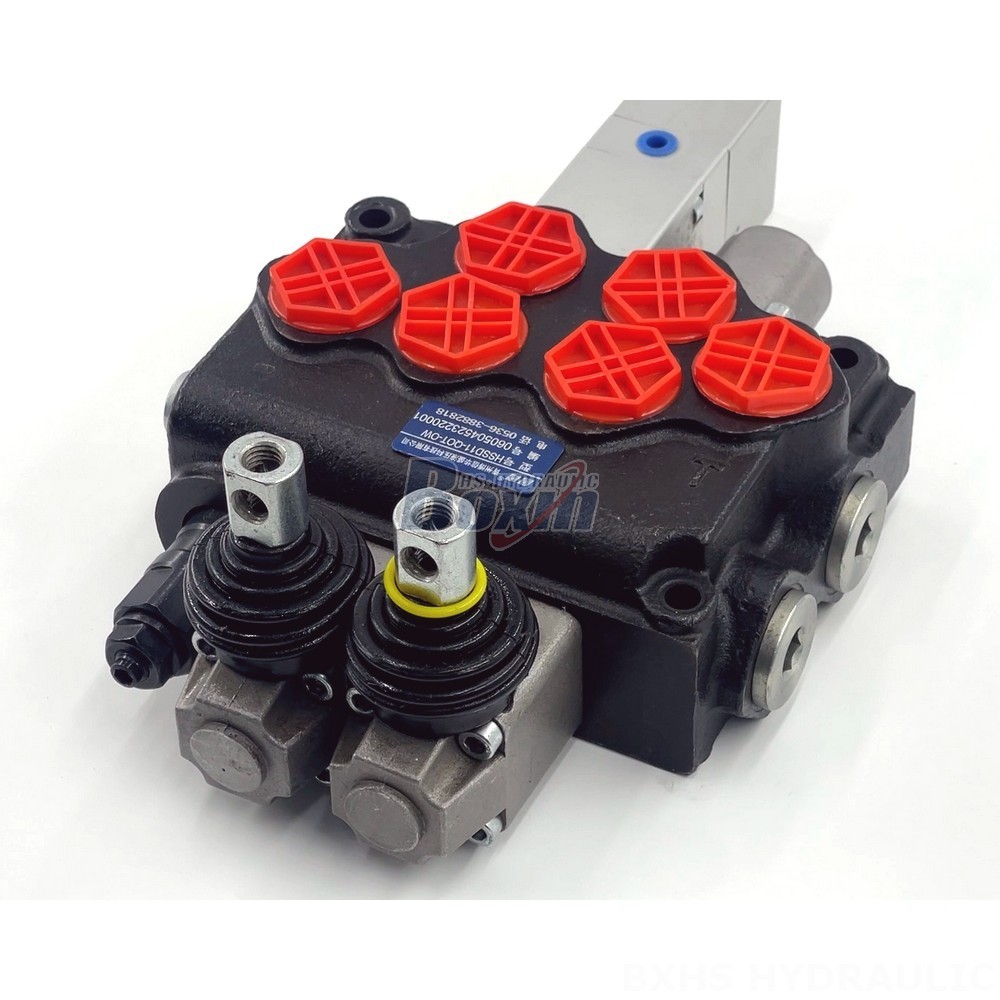

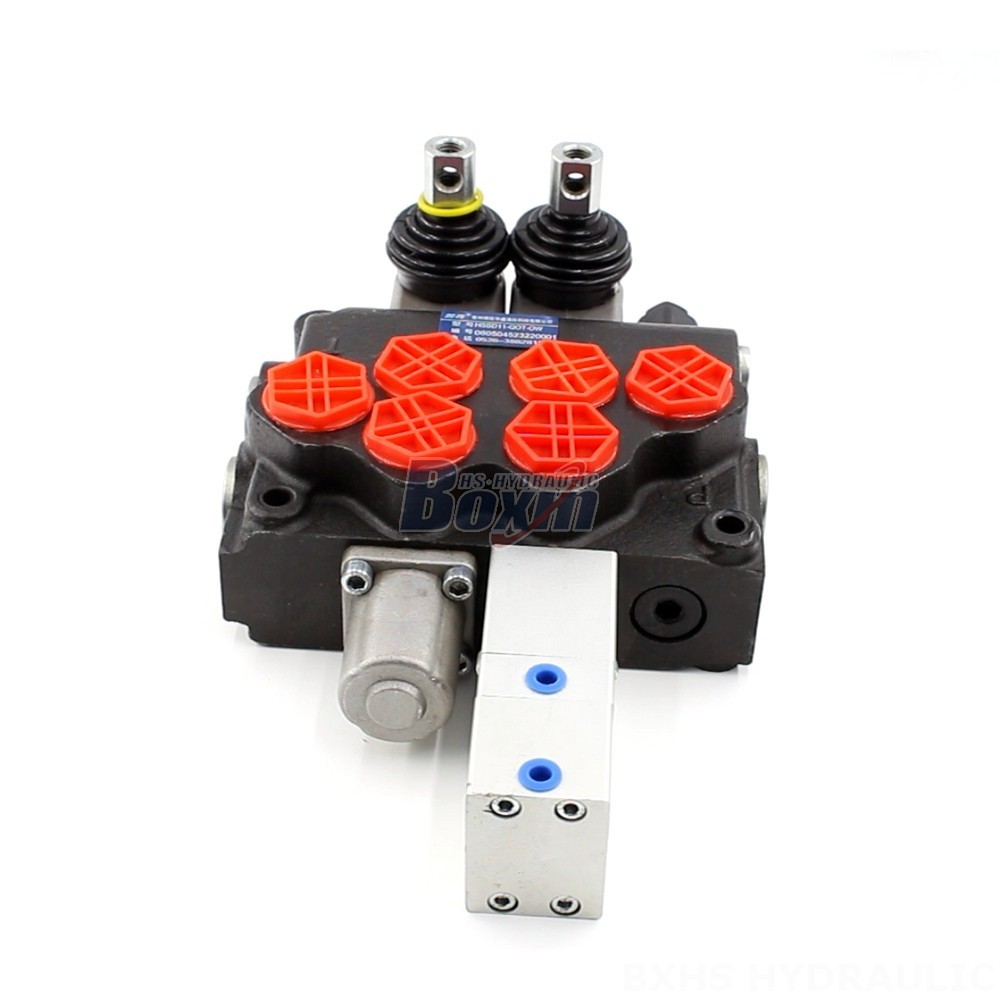

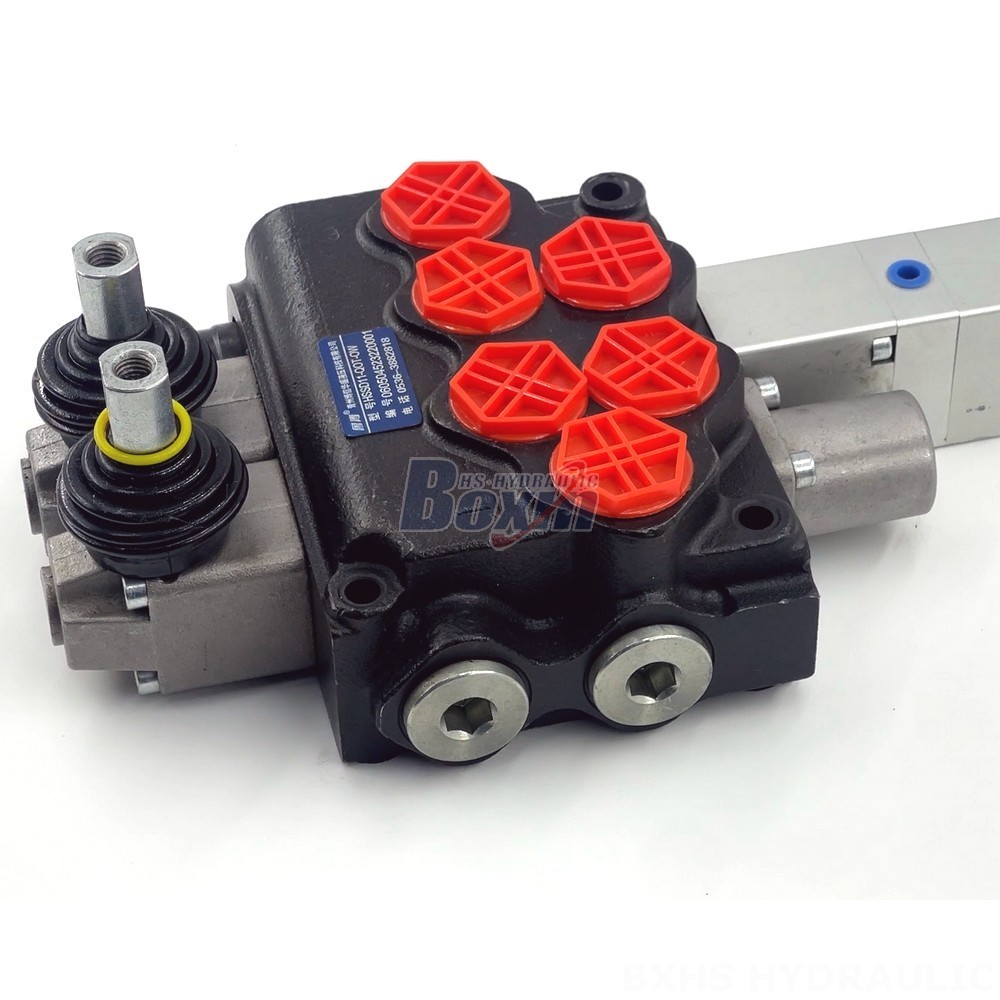

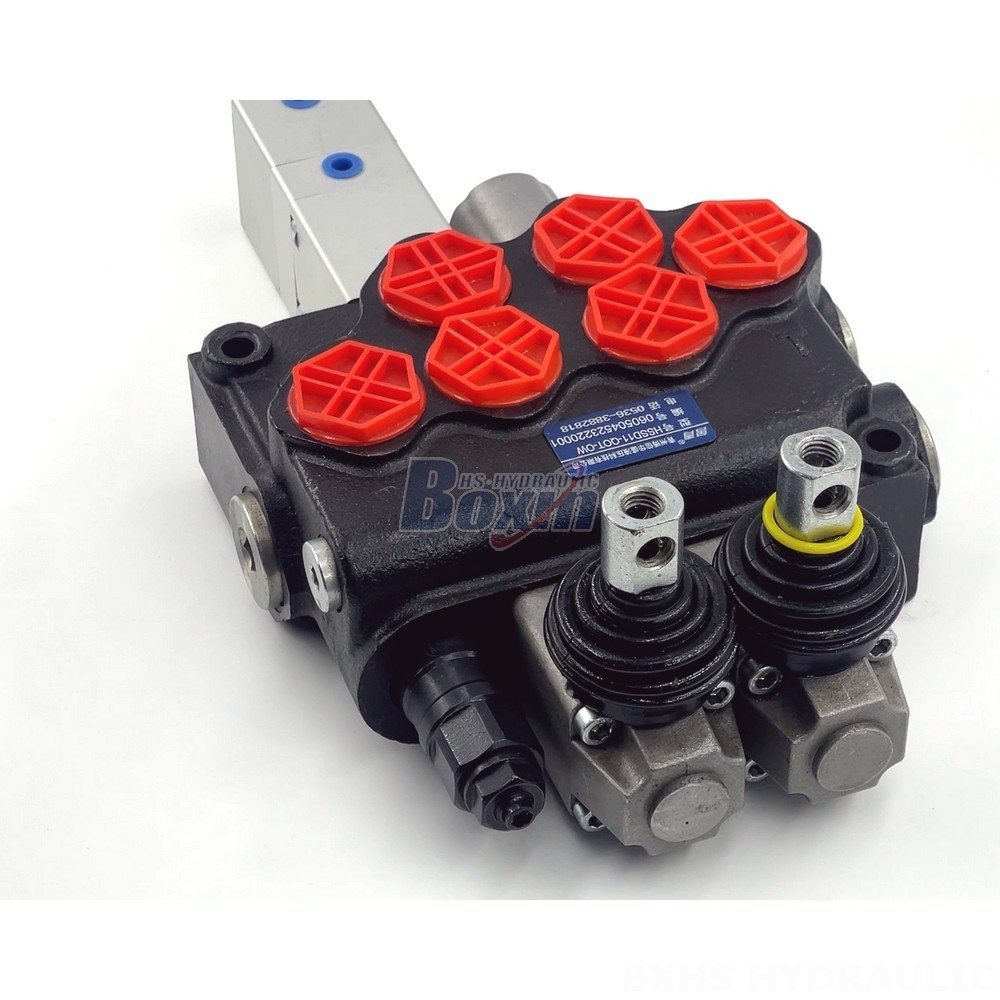

The SD11 Monoblock Valve from our company is a high-performance hydraulic valve designed for industrial applications. With a rated flow of 70 L/min and a maximum pressure of 250 bar, it offers exceptional flow control and pressure handling capabilities. The valve features a compact monoblock design, ensuring durability and reliability in demanding operating conditions.
| SD11系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 电磁, 气动和手动 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联 |
| 环境温度范围 | -40°C to +60°C (-40°F to +140°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 70 L/min (18.5 US gpm) |
| 最大压力 | 305 bar (4400 psi), 315 bar (4600 psi) |
| 进油口 | G3/4接口, SAE 12接头 |
| 出油口 | G3/4接口, SAE 12接头 |
| 接口尺寸 | G3/4接口, SAE 12接头 |
**Enhanced Hydraulic Performance:**
- Rated Flow: 70 L/min (18.5 US gpm)
- Max Pressure: 250 bar (3600 psi)
- Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient Temperature Range: -40°C to +60°C (-40°F to +140°F)
**Structural Features:**
- Control Method: Manual
- Section: 1 Section
- Structure Type: Monoblock valve
- Spool: 1 Spool
**Application Versatility:**
Suitable for a wide range of industrial applications, including:
- MATERIAL HANDLING
- CONSTRUCTION AND EARTH MOVING
- AGRICULTURE
- INDUSTRIAL VEHICLES
**Applicable Models:**
- TELEHANDLER
- FORKLIFT
- ALL TERRAIN CRANE
- STACKER
- AERIAL PLATFORM
- MOTOR GRADER
- EXCAVATOR
- SKID STEER LOADER
- COMPACT WHEEL LOADER
- WHEEL LOADER
- BACKHOE LOADER
- DUMP TRUCK
- FACE DRILL RIG
- CONCRETE BOOM PUMP
- PAVE ROLLER
- ROTARY DRILLING
- CRUSHER - STONE CUTTER
- SCREENER
- TRACTOR AND FRONT-END LOADER
