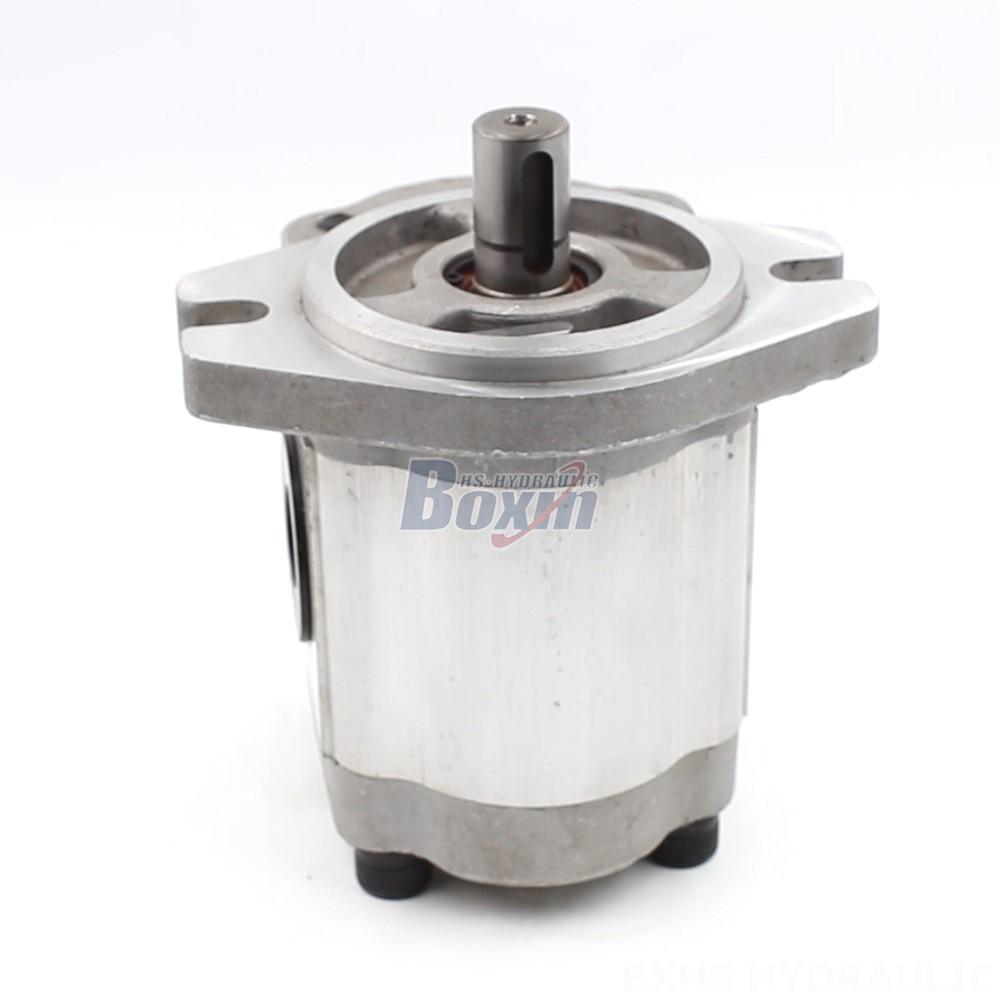

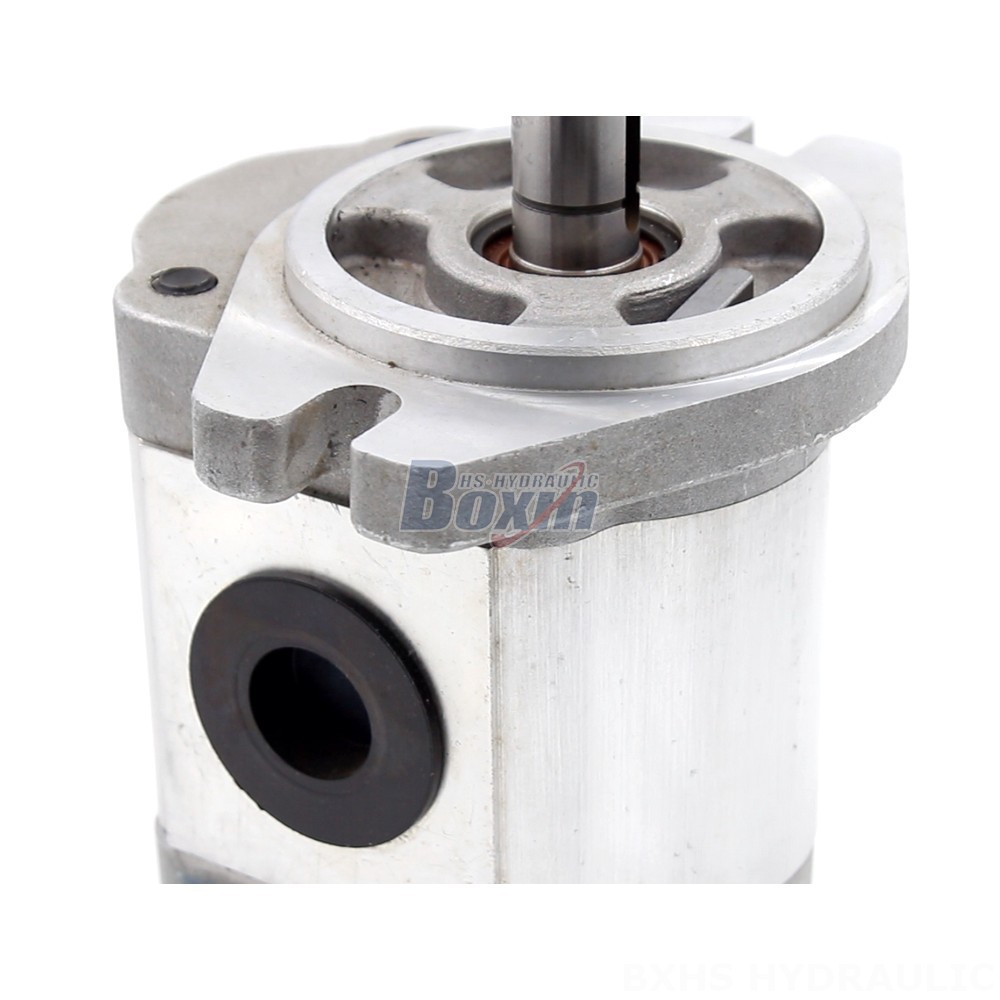

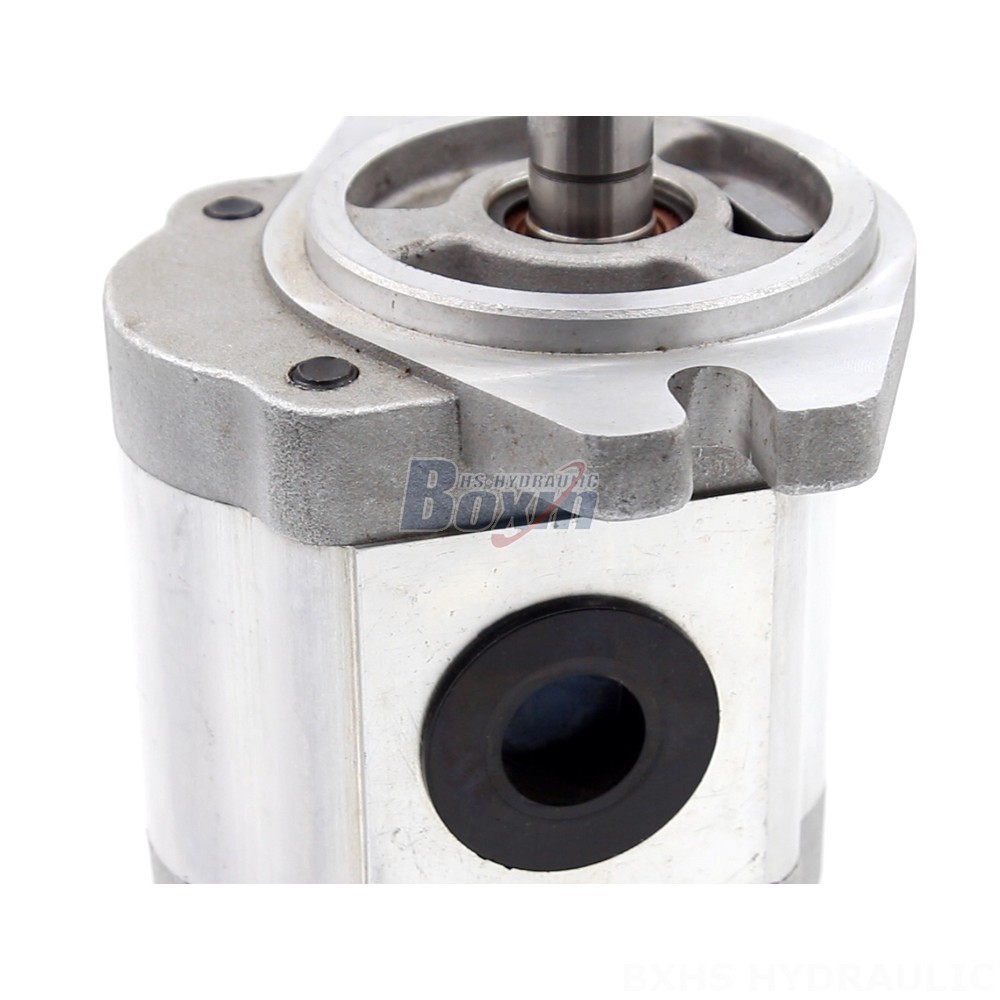

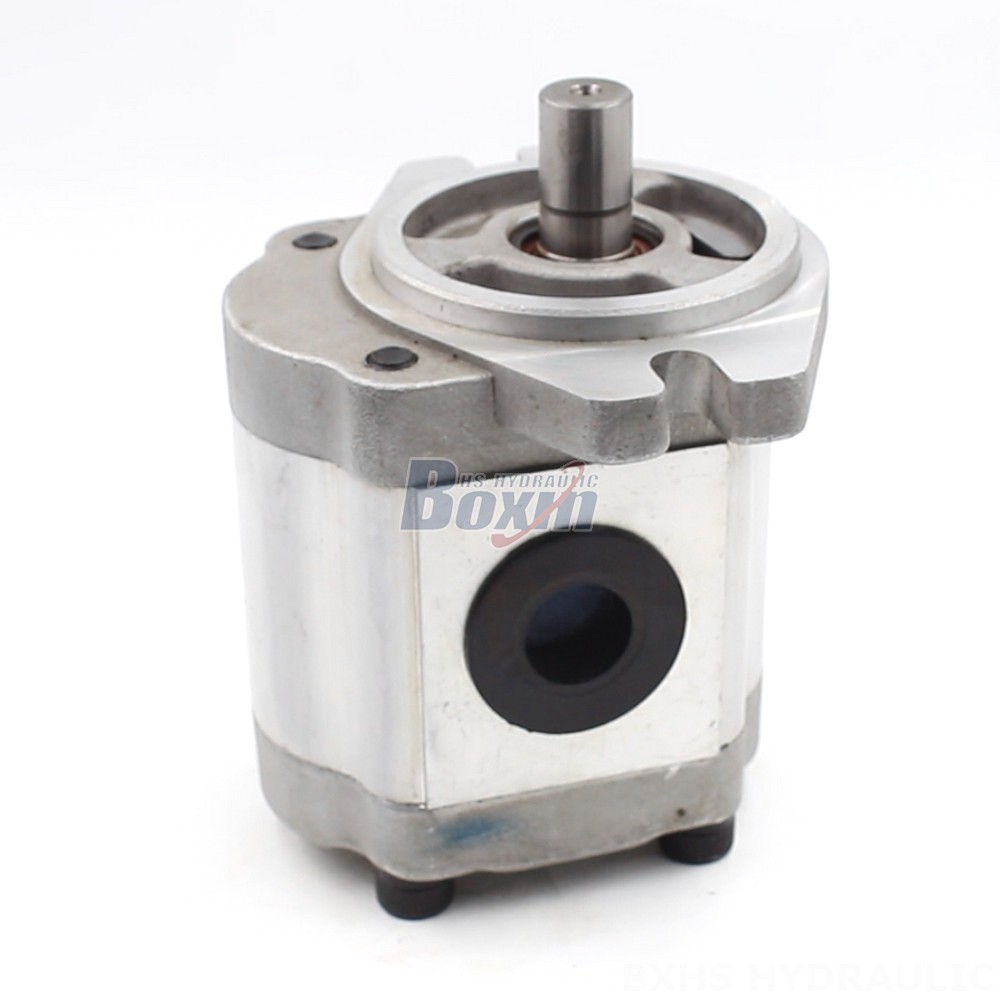

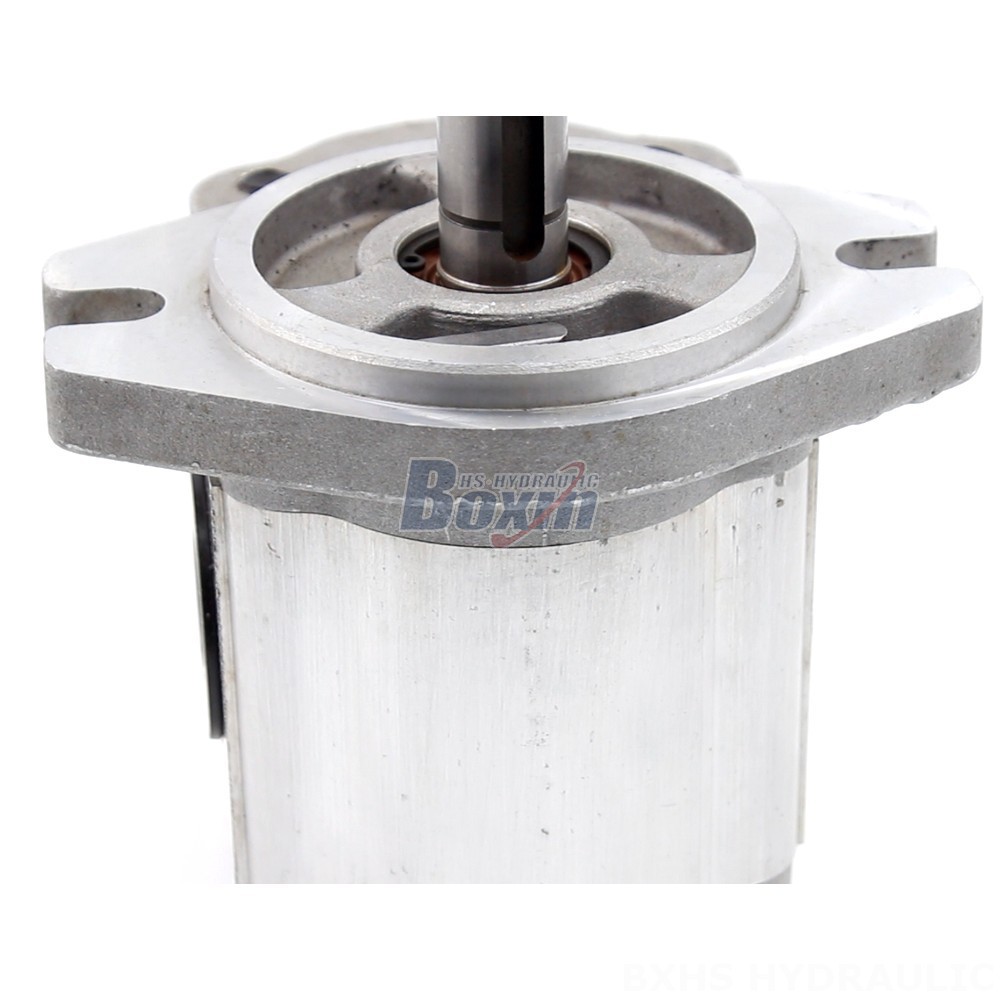

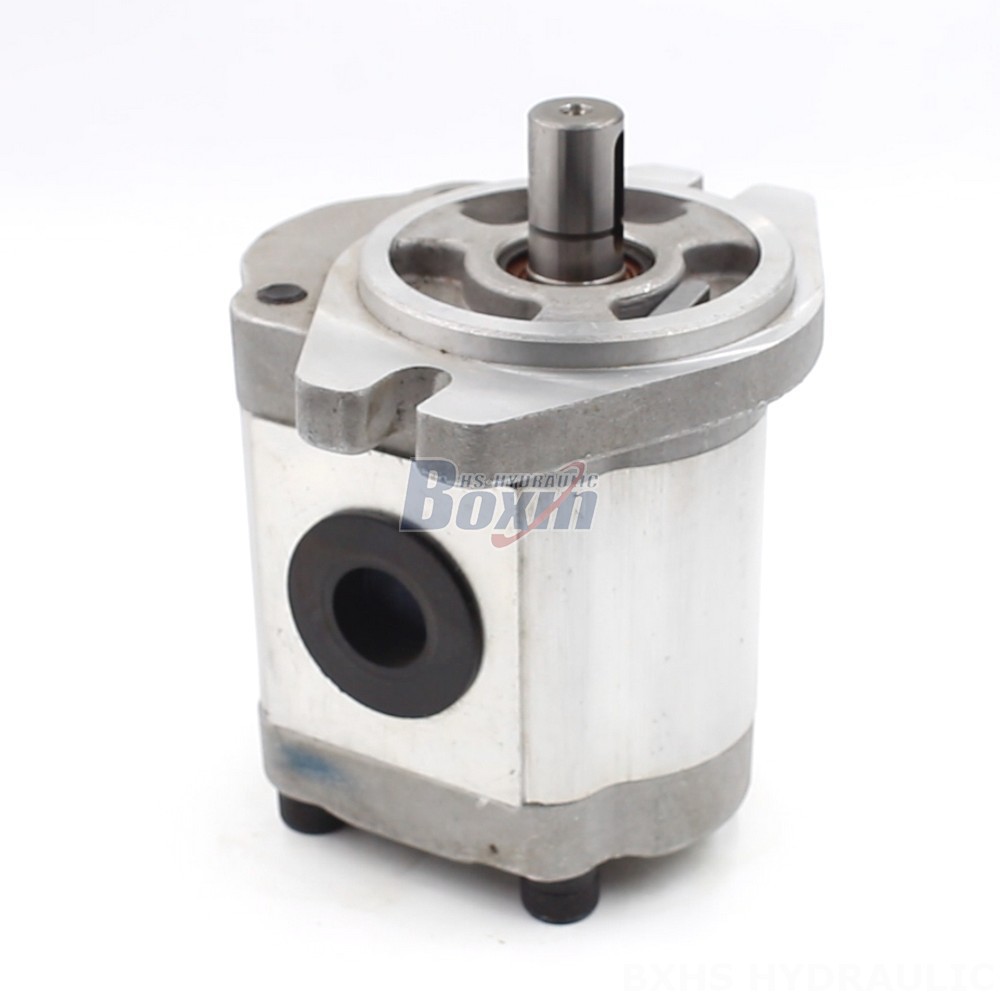

This durable 16 cc/rev hydraulic gear pump is designed for industrial applications requiring high pressure and reliable performance. With a displacement of 10 cc/rev, it boasts a rated pressure of 20 MPa and a rated speed of 2000 r/min, making it ideal for a range of heavy-duty machinery including forklifts, telehandlers, and excavators.
| CBHS-FL3系列 液压齿轮泵 参数 | |
|---|---|
| 排量 | 10 毫升/转, 4 毫升/转, 20 毫升/转, 16 毫升/转, 14 毫升/转, 6 毫升/转 |
| 额定压力 | 20 MPa (2900 psi) |
| 最大压力 | 25 MPa (3625 psi) |
| 额定转速 | 2000 r/min |
| 最大转速 | 3000 r/min |
| 旋转方向 | 左旋（逆时针旋转）, 右旋（顺时针旋转） |
| 材质 | 铝 |
| 架构 | 外啮合齿轮泵 |
| 法兰盘类型 | A-菱形法兰 |
| 轴伸形式 | H:矩形花键, X:渐开线花键, P：普通键 |
The Durable 16 cc/rev Hydraulic Gear Pump (CBHS-FL3 Series) is engineered for demanding industrial applications. It features a 10 cc/rev displacement, rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min, with a maximum speed of 3000 r/min. This internal gear pump boasts a robust aluminium construction and utilizes an A-Oval flange with a plain key shaft. The pump is suitable for diverse applications including material handling, construction, earth moving, agriculture, and industrial vehicles. Specific applications include forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini-excavators, midi-excavators, tractors, front-end loaders, harvesters, balers, and sprayers.
