Direct from the Manufacturer: High-Quality Manual 3 Spool Monoblock Directional Valves

控制方式:手控

路数:3 联

额定流量:60 L/min (15.8 US gpm)

最大压力:315 bar (4600 psi)

进油口:G1/2接口

出油口:G3/4接口

接口尺寸:G1/2接口

品牌:BXHS

所属类别:分块式方向阀

产品系列:HSDS15系列 分块式方向阀

Packagingsize:23.5*22*11

Grossweight:12.00 kg

库存: 有货

1067 次查看了此产品

Direct from the Manufacturer: High-Quality Manual 3 Spool Monoblock Directional Valves

Direct from the Manufacturer: High-Quality Manual 3 Spool Monoblock Directional Valves

Direct from the Manufacturer: High-Quality Manual 3 Spool Monoblock Directional Valves drawing image

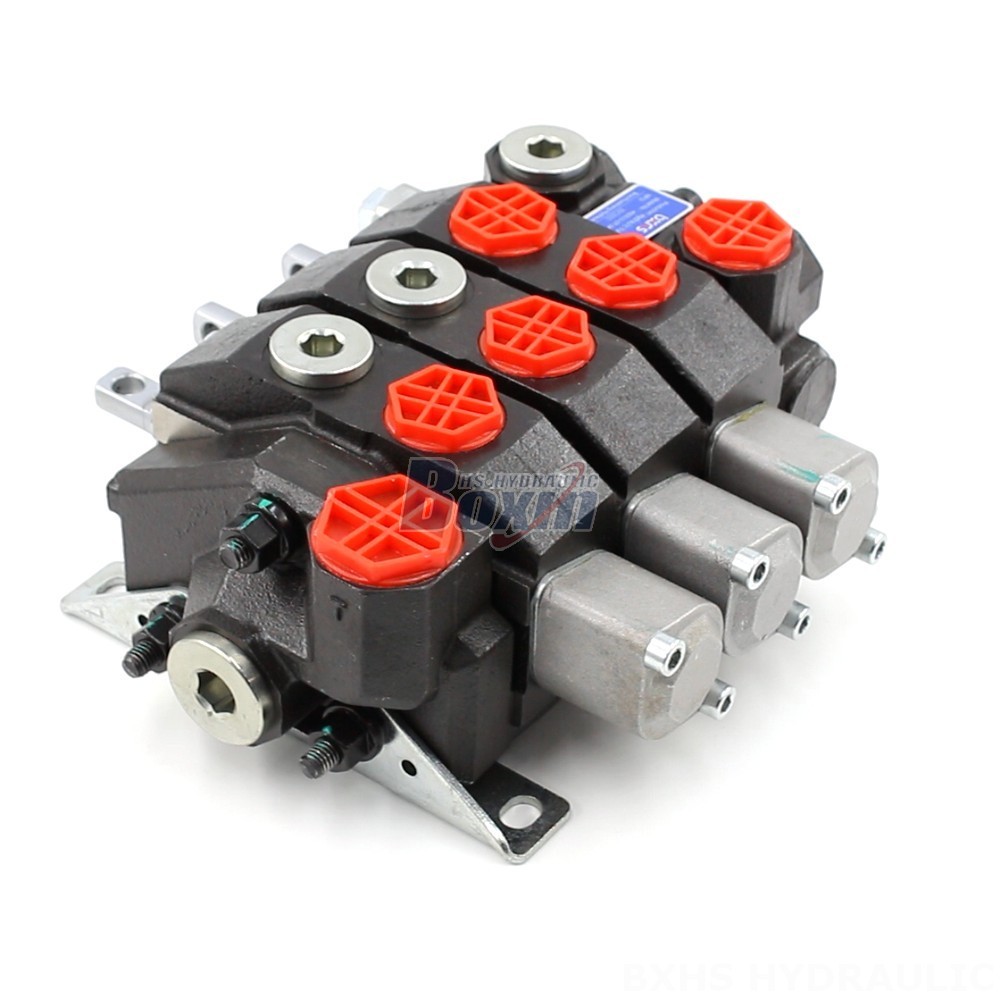

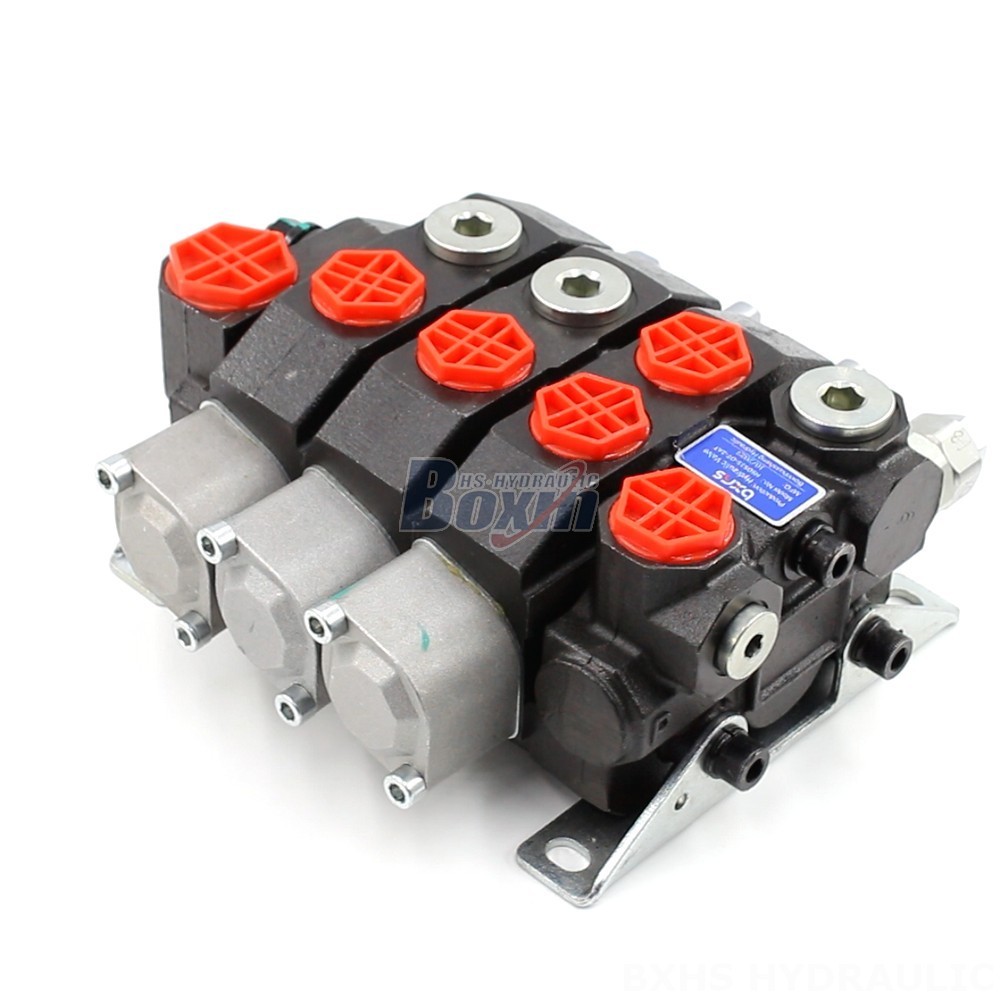

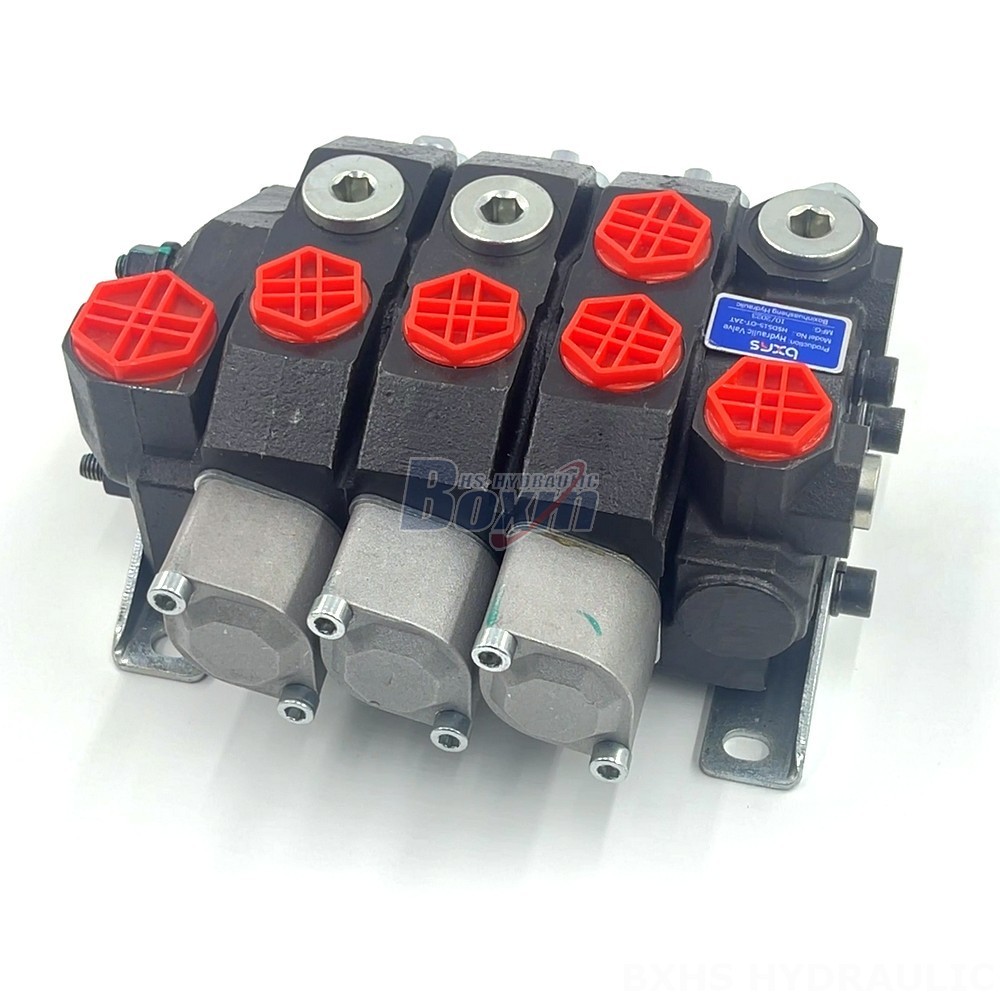

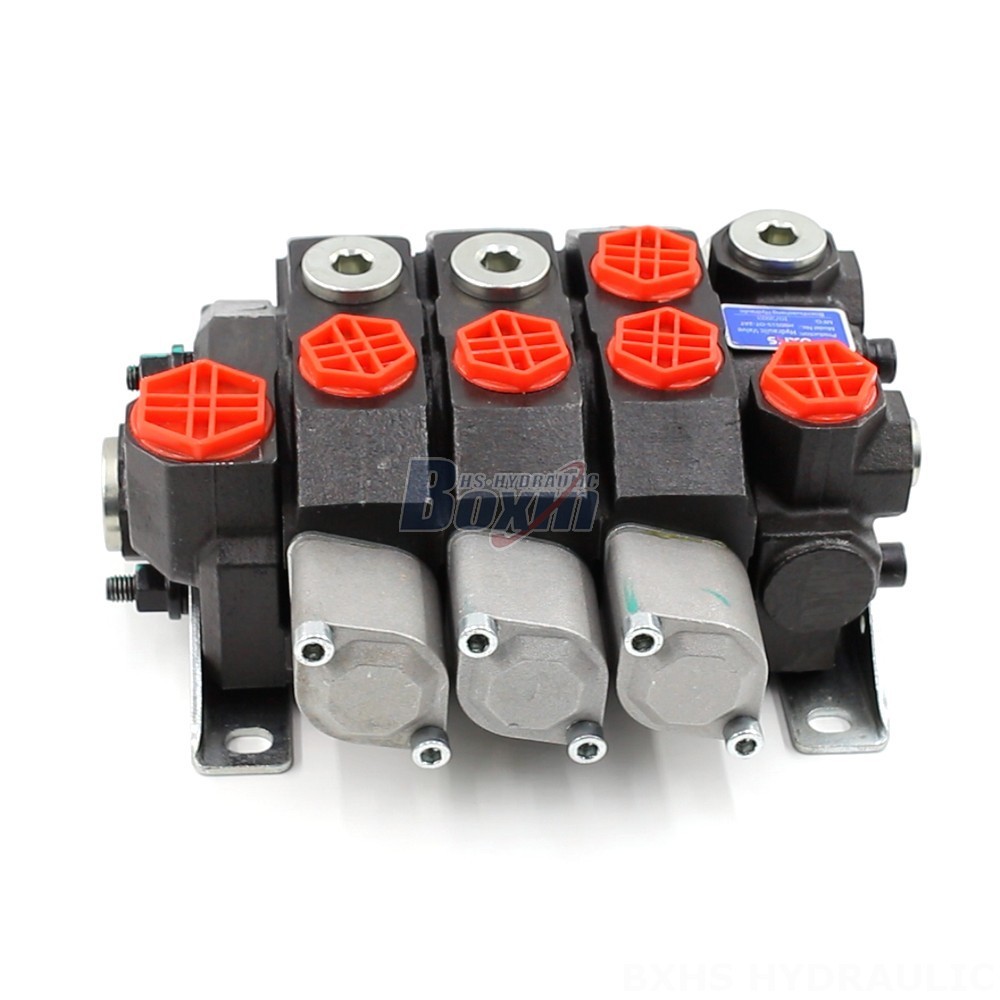

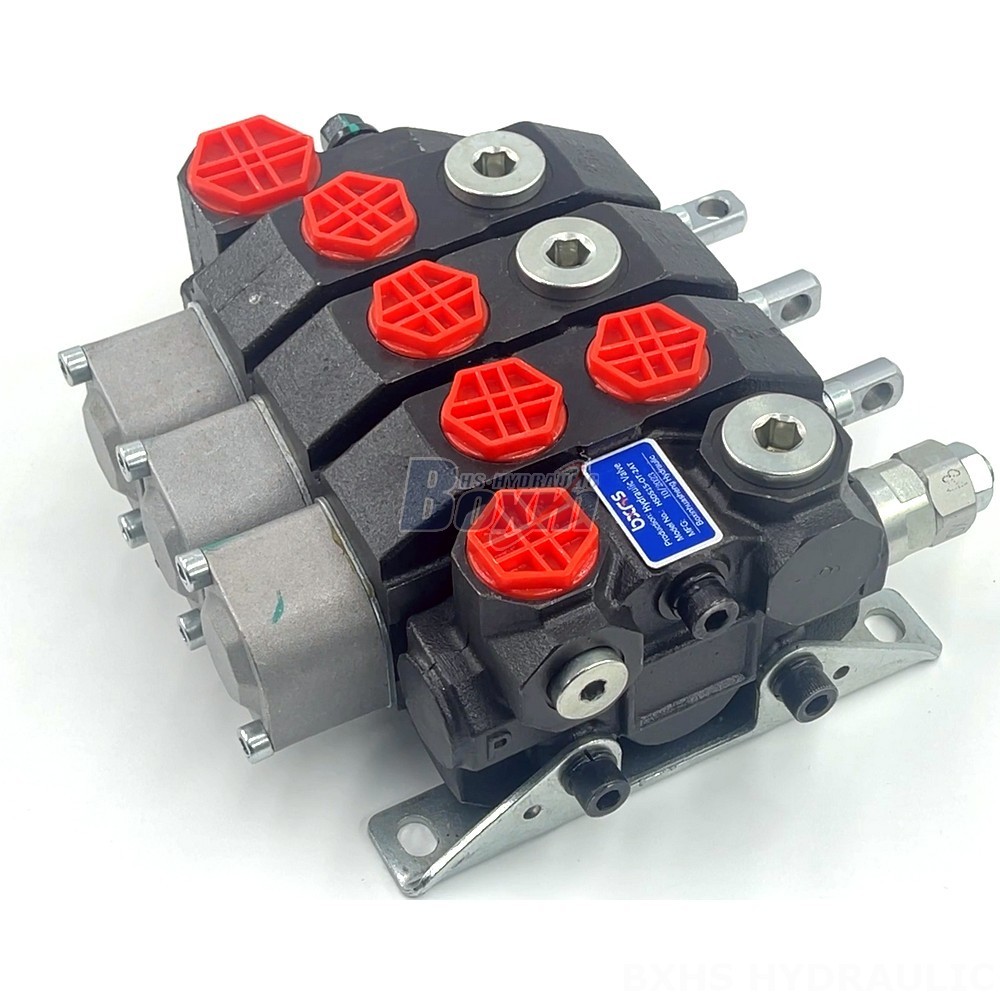

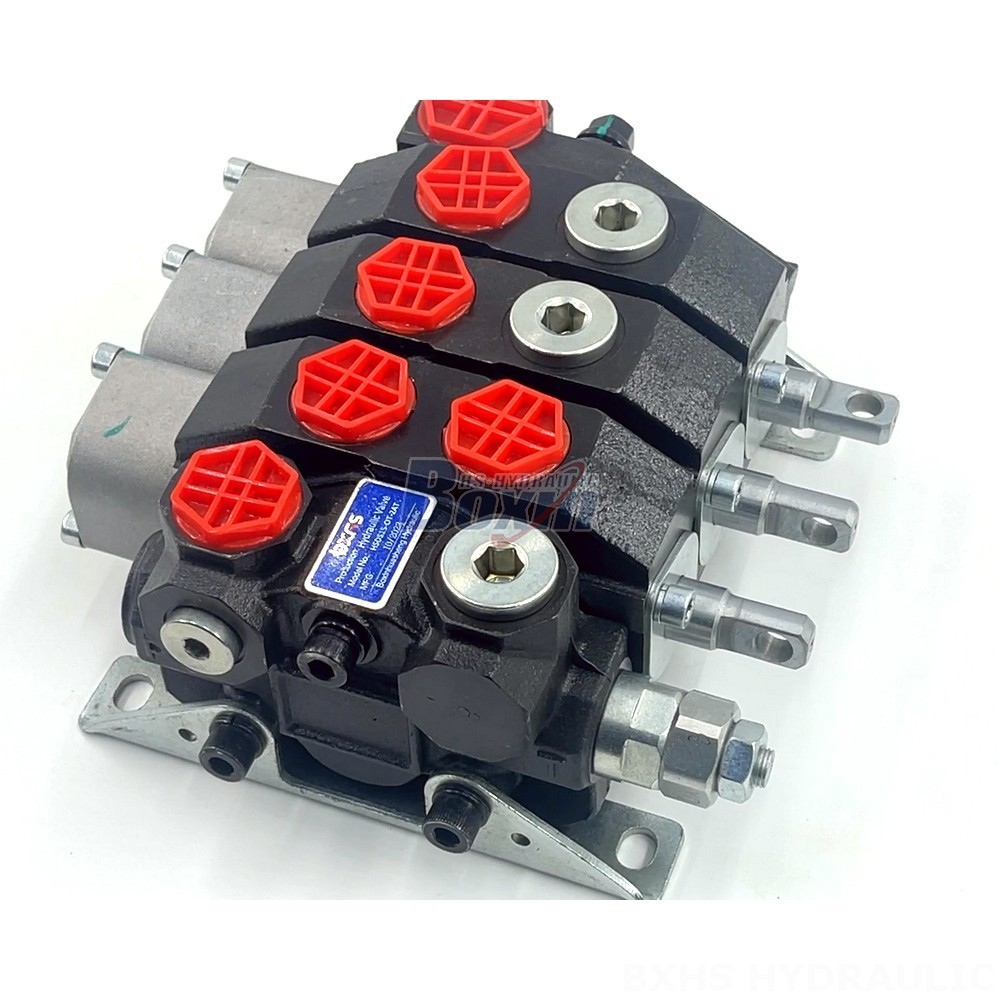

This high-quality, manual 3-spool monoblock directional valve is designed for heavy-duty applications in construction, agriculture, and industrial vehicles. It offers a robust design, high flow rate, and high pressure capability for reliable operation in demanding environments.

HSDS15系列 分块式方向阀 参数
控制方式 手控, 气控, 电气控, 电液控, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联, 8 联, 9 联, 10 联, 11 联, 12 联
额定流量 60 L/min (15.8 US gpm)
最大压力 250 bar (3600 psi)
进油口 G1/2接口, SAE 8接头
出油口 G1/2接口, G3/4接口, SAE 8接头
接口尺寸 G1/2接口, SAE 8接头
联数 1联, 2联, 3联, 4联, 5联, 6联, 7联, 8联, 9联, 10联, 11联, 12联
结构类型 分片阀
环境温度范围 -40°C to +80°C (-40°F to +176°F)
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)

Direct from the manufacturer, this 3-spool monoblock directional valve is engineered for superior performance. The valve features a manual control method, 3 sections, and a sectional valve structure. It boasts a high rated flow of 60 L/min (15.8 US gpm) and a maximum pressure rating of 315 bar (4600 psi). Operating over a wide viscosity range (15-75 mm²/s) and temperature range (-40°C to +80°C), this valve is built to withstand the toughest conditions. Ideal for use in forklifts, telehandlers, mini-excavators, skid steer loaders, compact wheel loaders, tractors, harvesters, balers, backhoes, and sprayers. We offer factory supply and factory wholesale options for this product, ensuring competitive pricing and reliable service.
