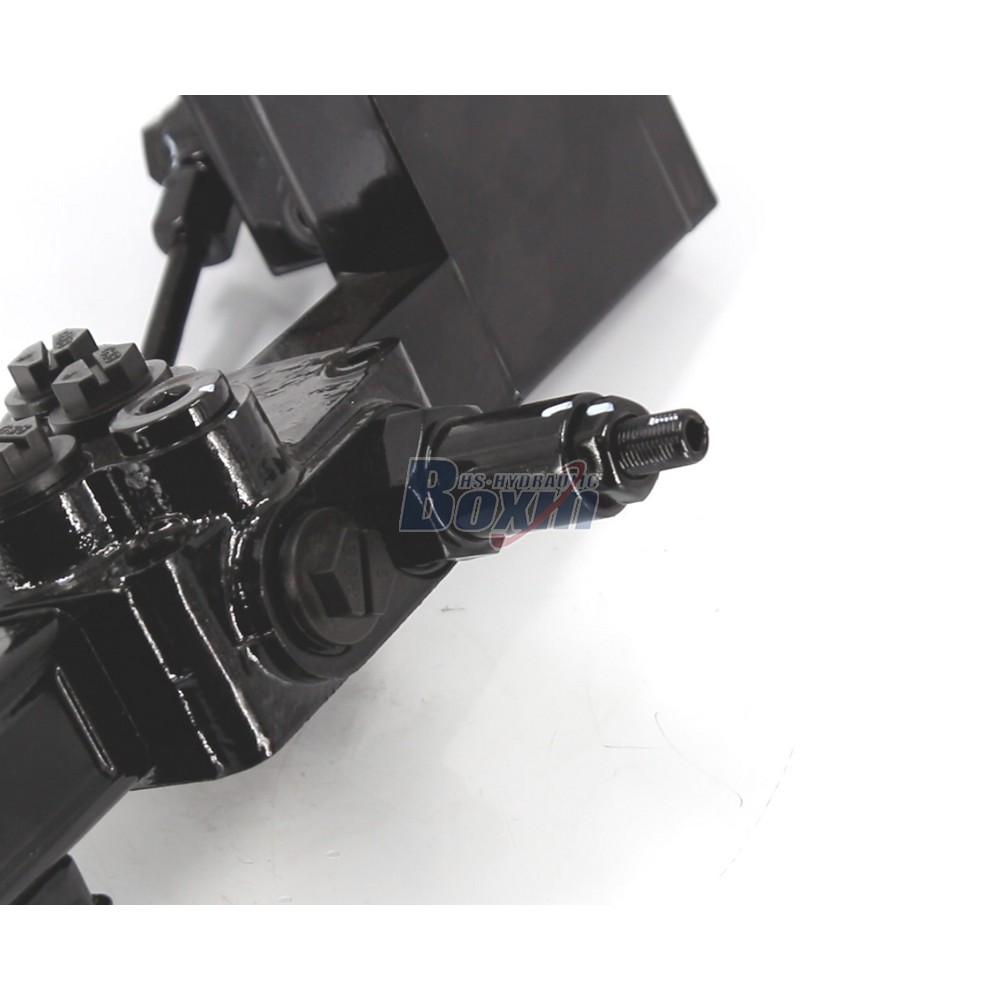

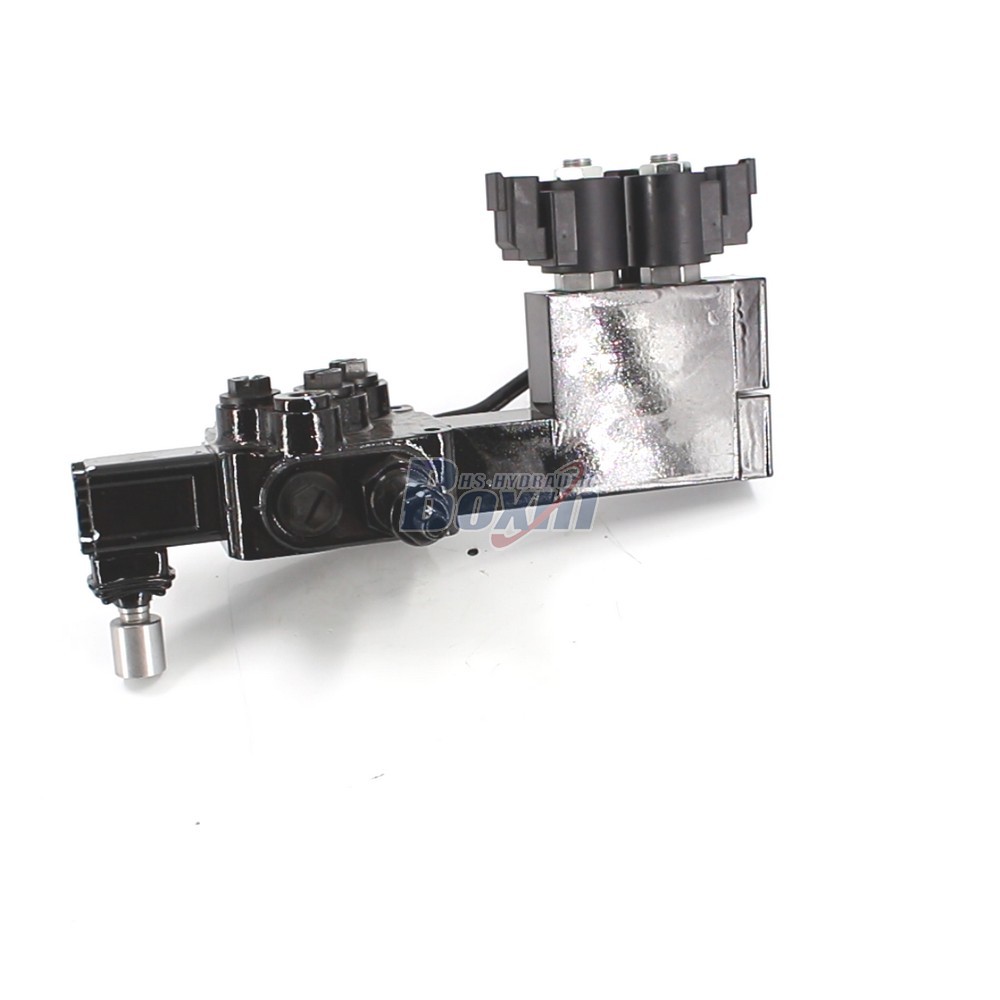

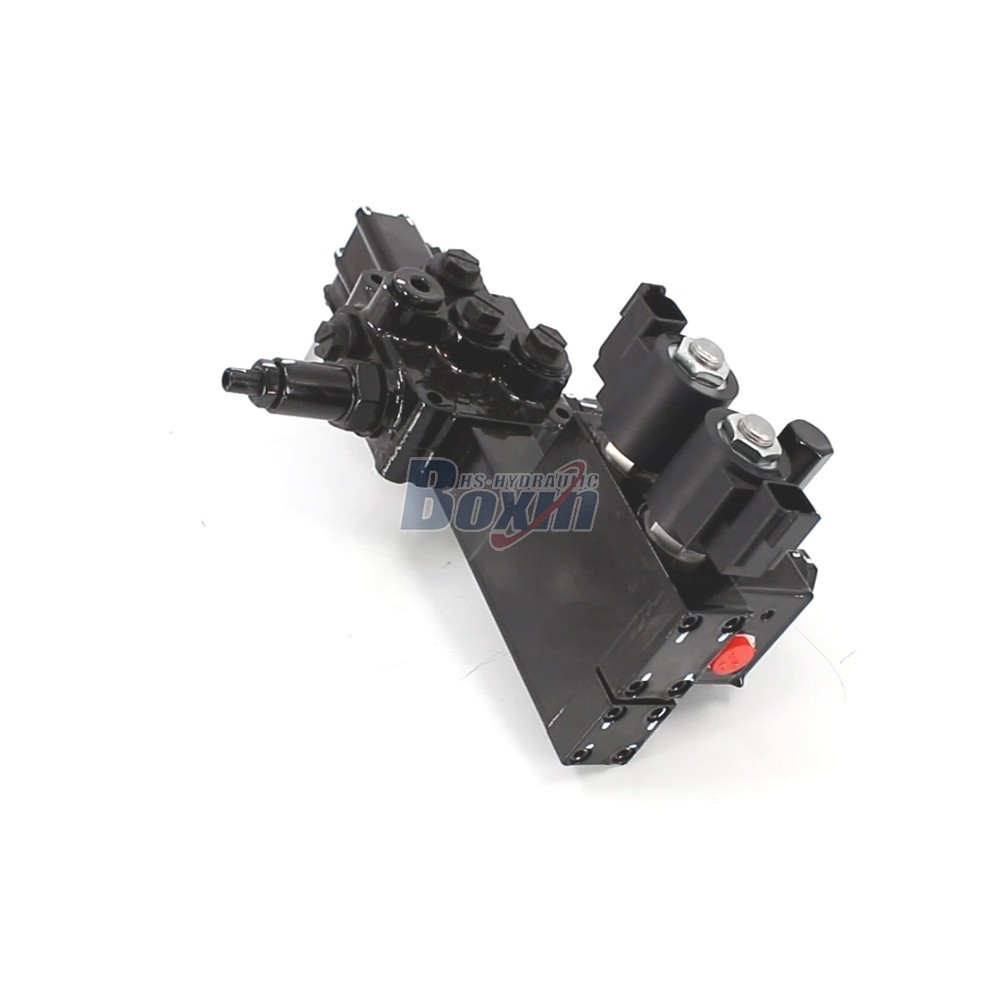

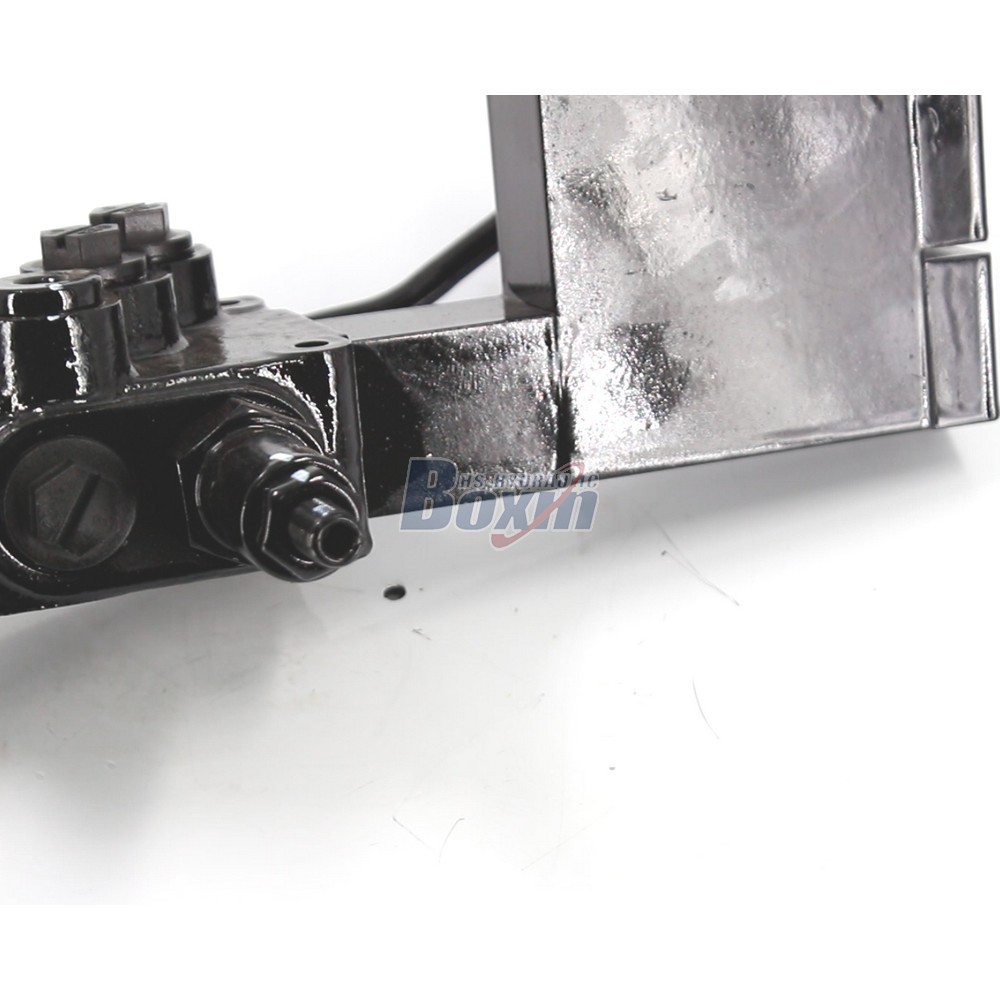

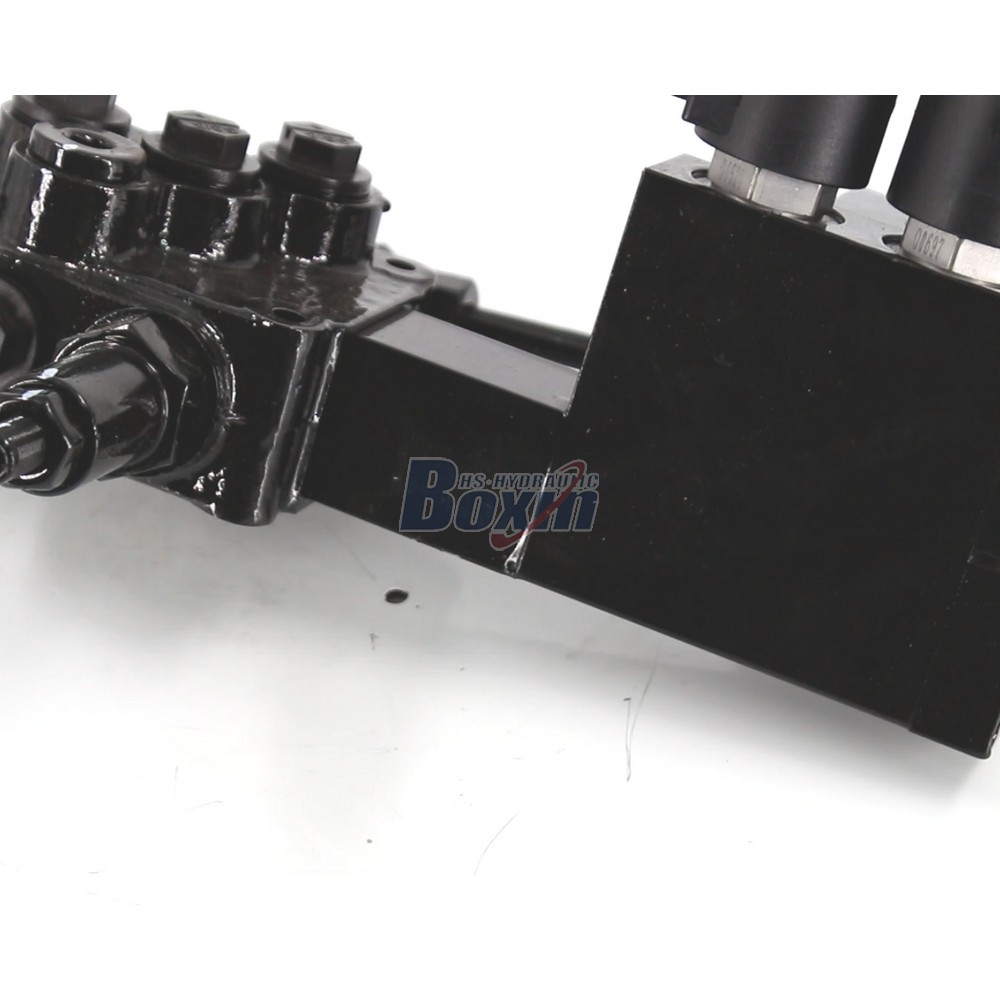

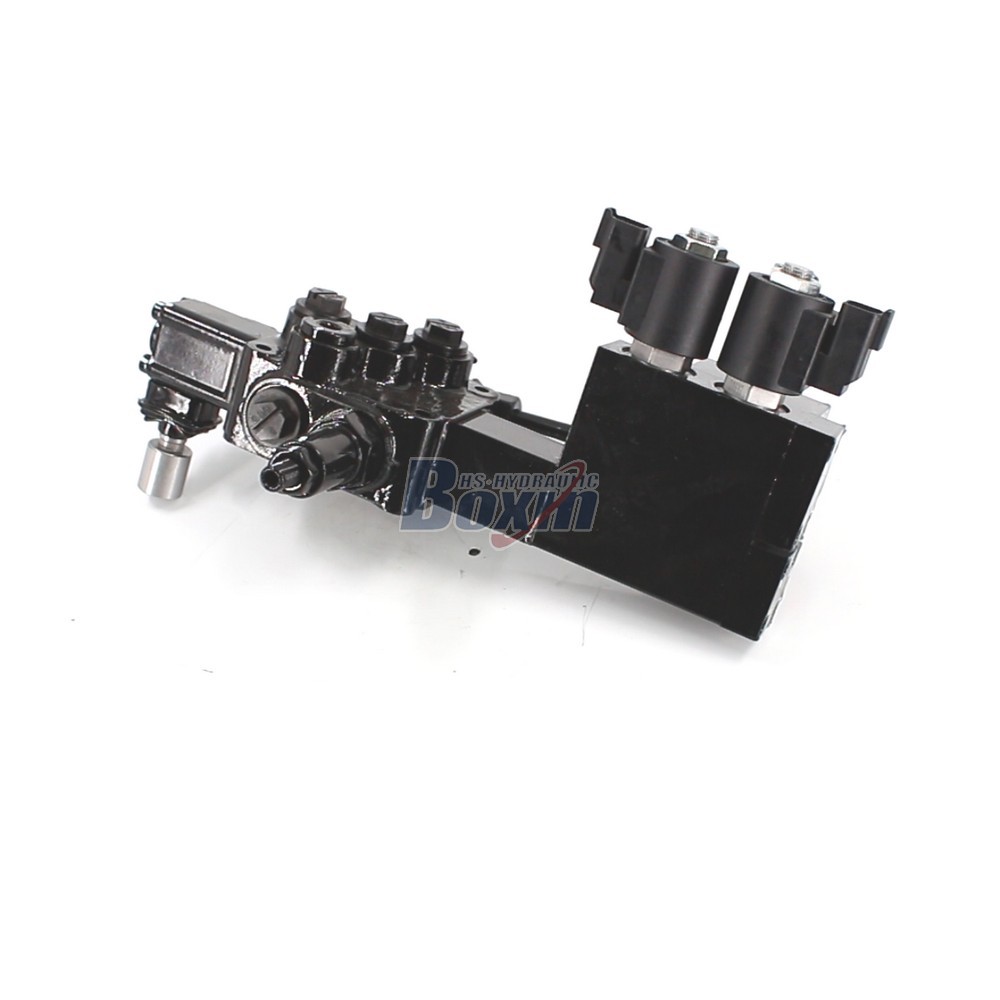

DCV20DY-OT Electro-hydraulic 1 Spool Monoblock Directional Valve

控制方式:电液控

路数:1 联

额定流量:20 L/min (5.2 US gpm)

最大压力:315 bar (4600 psi)

进油口:G3/8接口

出油口:G1/2接口

接口尺寸:G3/8接口

品牌:BXHS

所属类别:单块式方向阀

产品系列:DCV20系列 单块式方向阀

Packagingsize:32*18*20

Grossweight:3.40 kg

库存: 有货

14 次查看了此产品

DCV20DY-OT Electro-hydraulic 1 Spool Monoblock Directional Valve

DCV20DY-OT Electro-hydraulic 1 Spool Monoblock Directional Valve

DCV20DY-OT Electro-hydraulic 1 Spool Monoblock Directional Valve drawing image

The DCV20DY-OT is a high-performance 1-spool electro-hydraulic monoblock directional control valve designed for compact applications requiring precise fluid management. With a rated flow of 20 L/min and a maximum pressure capacity of 350 bar, it is ideal for modern agricultural, construction, and material handling equipment.

DCV20系列 单块式方向阀 参数
控制方式 手控, 电液控, 一控二手柄控制, 手控+一控二
路数 1 联, 2 联, 3 联, 4 联, 5 联, 6 联
环境温度范围 -40°C to +80°C (-40°F to +176°F)
结构类型 整体阀
联数 1联, 2联, 3联, 4联, 5联, 6联
工作粘度范围 15 - 75 mm²/s (15 cSt to 75 cSt)
额定流量 20 L/min (5.2 US gpm)
最大压力 350 bar (5100 psi)
进油口 G3/8接口, M18×1.5螺纹, SAE 8接头, 3/8 NPT螺纹
出油口 G3/8接口, M18×1.5螺纹, SAE 8接头, 3/8 NPT螺纹
接口尺寸 G3/8接口, M18×1.5螺纹, SAE 8接头, 3/8 NPT螺纹

As a leading manufacturer of premium hydraulic products, we provide the DCV20DY-OT Electro-hydraulic Monoblock Valve engineered for demanding industrial environments. This 1-spool valve offers a compact footprint and high efficiency for machinery such as forklifts, mini-excavators, and aerial platforms. Our factory specializes in large-scale manufacturing, offering flexible OEM, ODM, and private labeling services to meet your specific technical requirements. We provide reliable factory wholesale supply and customization options for port sizes and spool configurations. We are actively seeking global partners, including professional distributors, wholesalers, agents, and traders, to expand our international market presence. By sourcing directly from our facility, you benefit from competitive factory pricing, consistent quality control, and robust supply chain support. Whether you need bulk wholesale orders or customized branding for your local market, our manufacturing team is equipped to deliver high-pressure hydraulic solutions that satisfy industrial standards worldwide.
