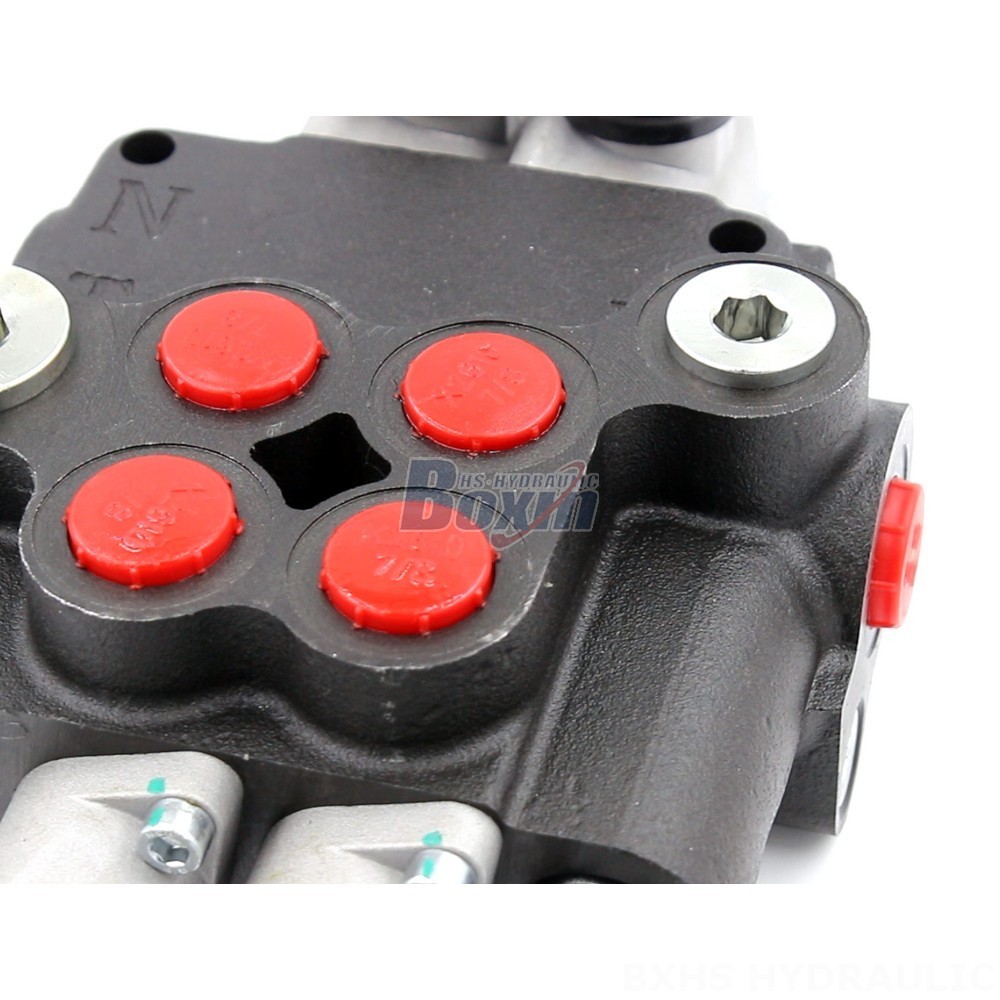

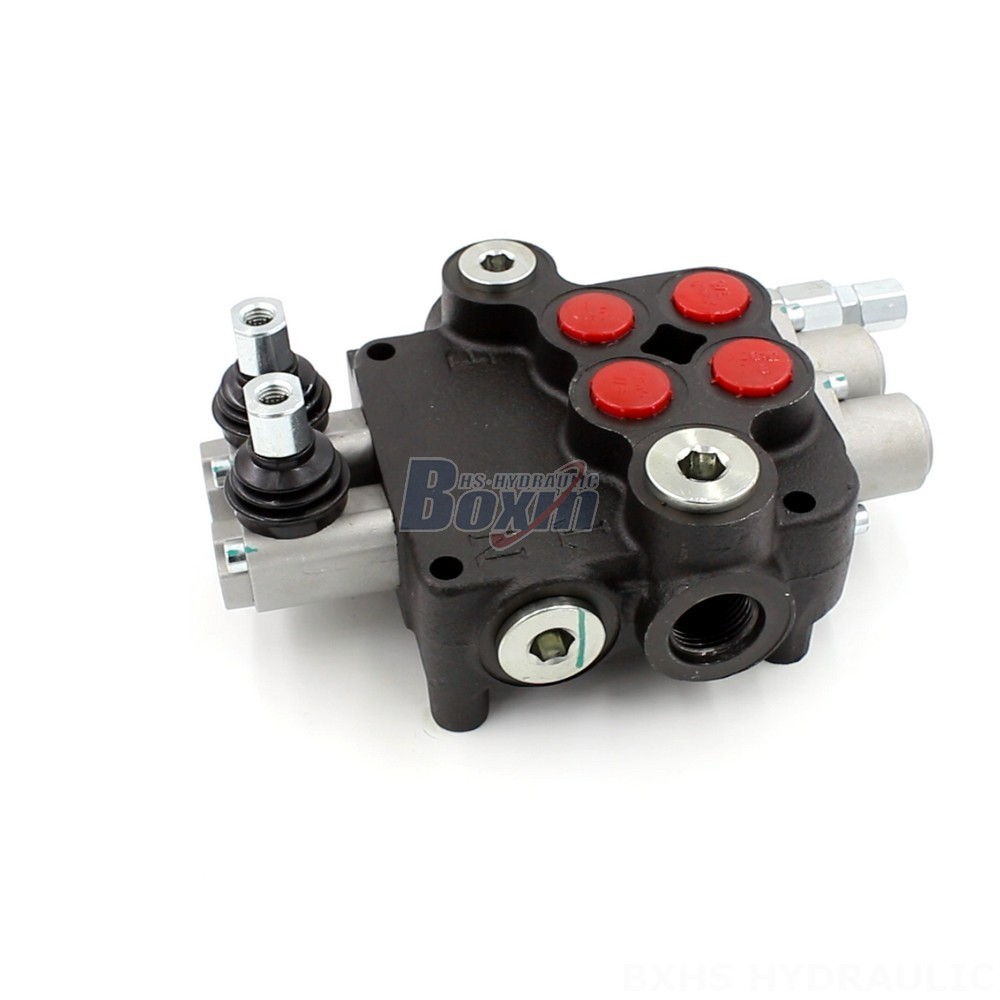

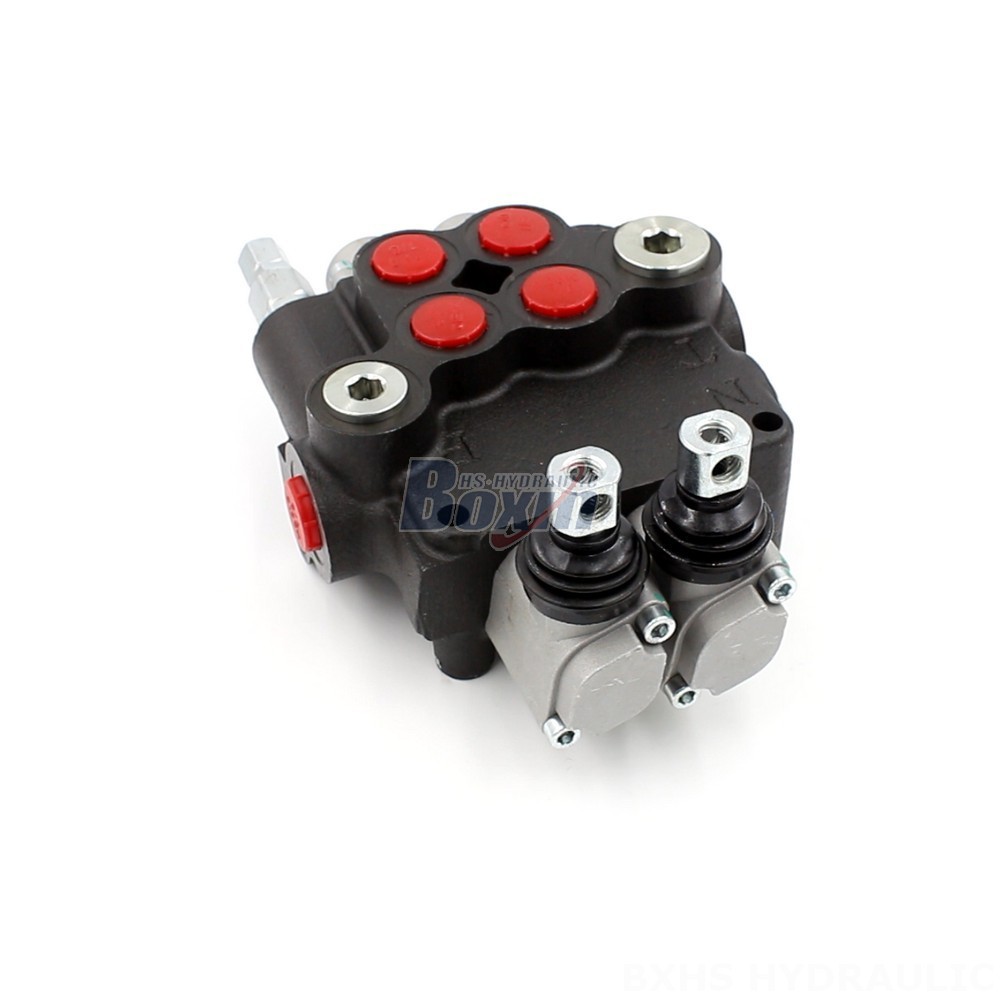

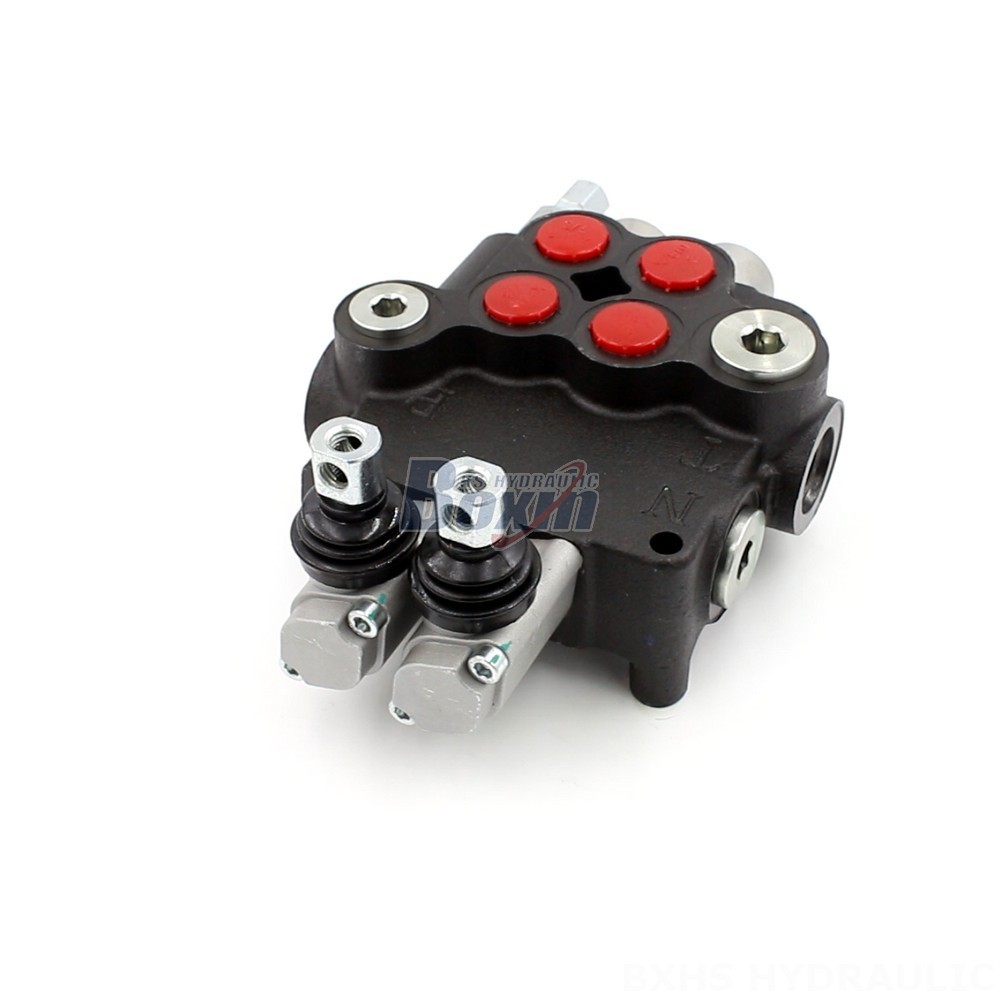

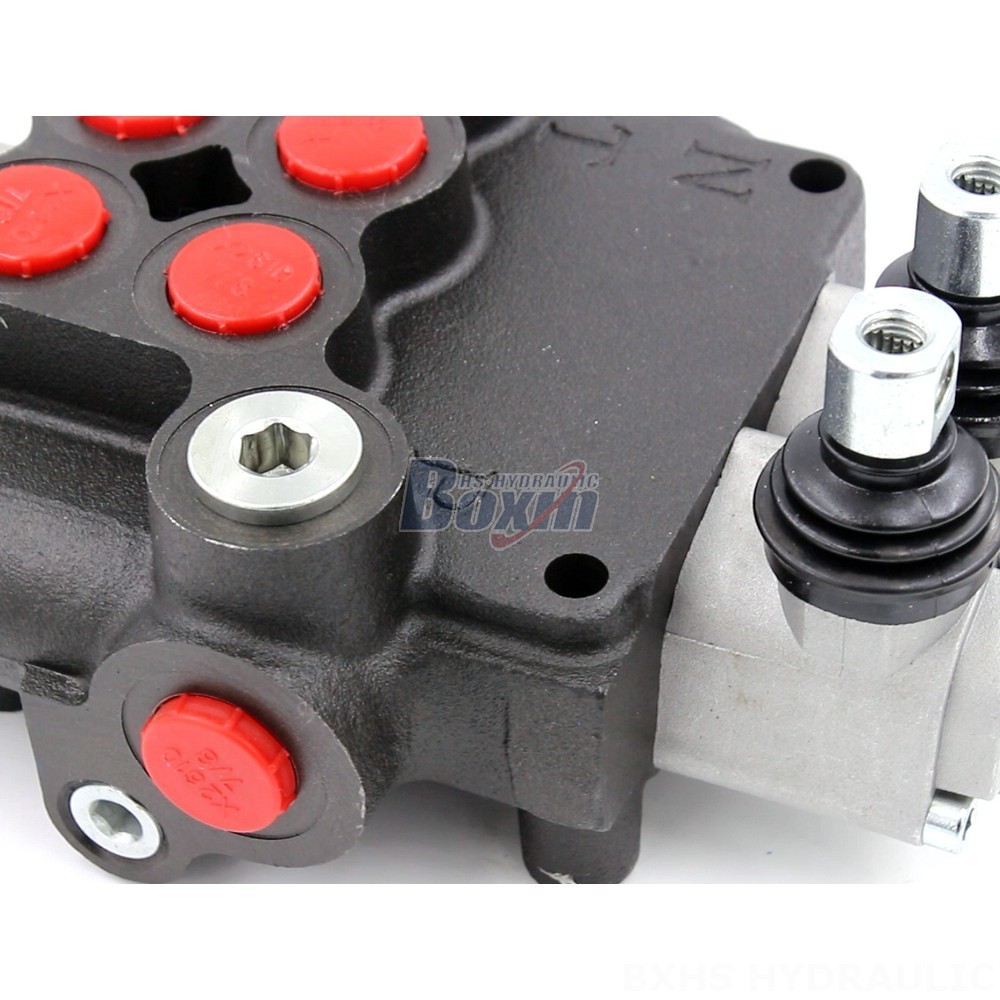

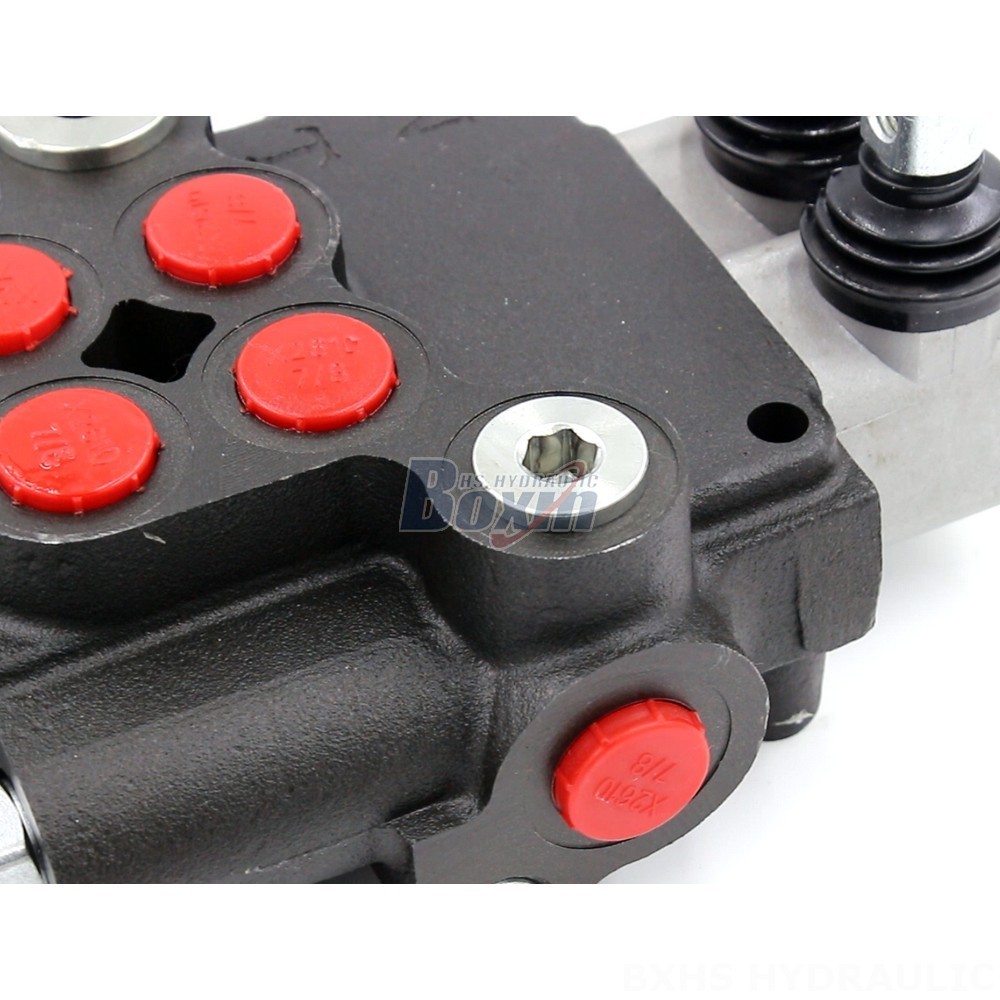

Our Customizable Hydraulic Valves: P80 Monoblock Series are designed for various applications in material handling, construction, agriculture, and industrial vehicles. These valves offer precise control, reliability, and durability, meeting the specific requirements of your hydraulic systems.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
**Key Features**:
- Customizable design to meet specific application requirements
- Manual control for precise operation
- 2 section design for efficient flow management
- Monoblock valve construction for compactness and reduced leakage
- 80 L/min rated flow for high-performance applications
- 250 bar max pressure for demanding hydraulic systems
- 15 - 75 mm²/s operating viscosity range for compatibility with various fluids
- -40°C to +80°C ambient temperature range for harsh operating conditions
- 2 spool design for increased control options
- P80 Series for proven reliability and durability
