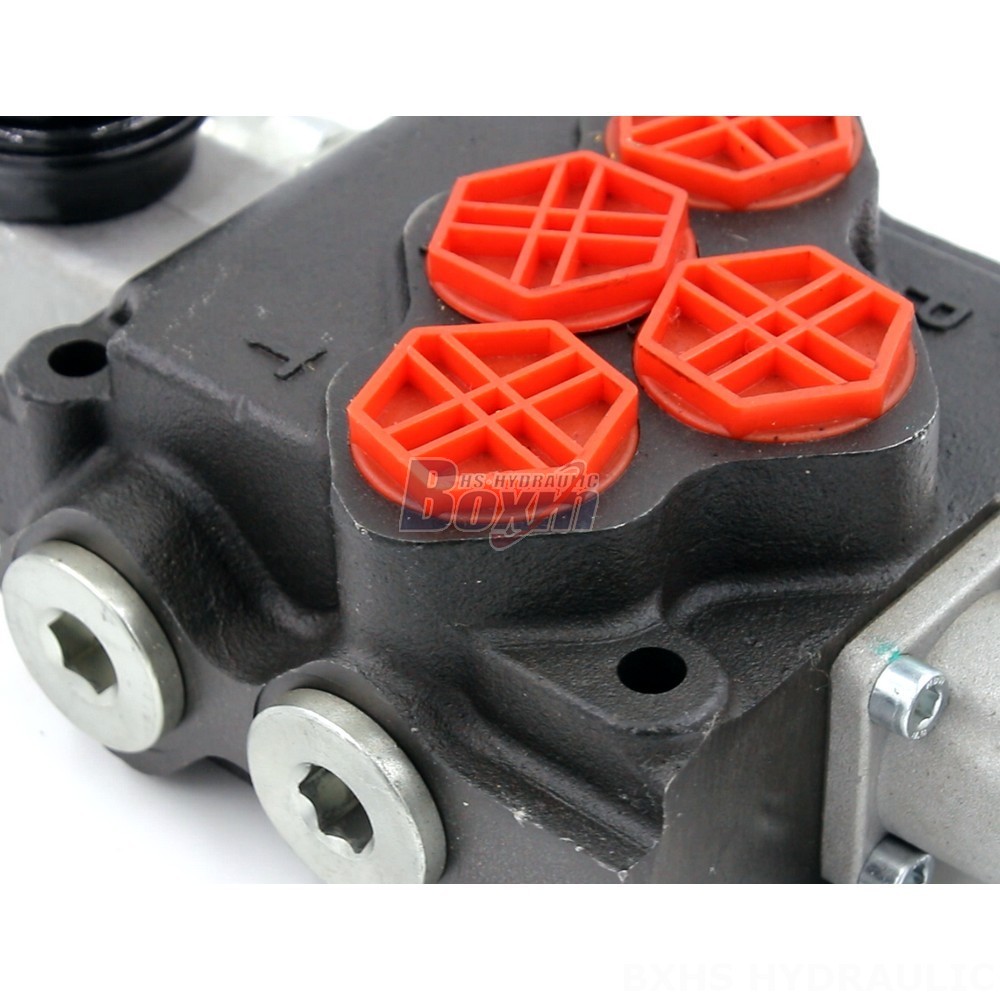

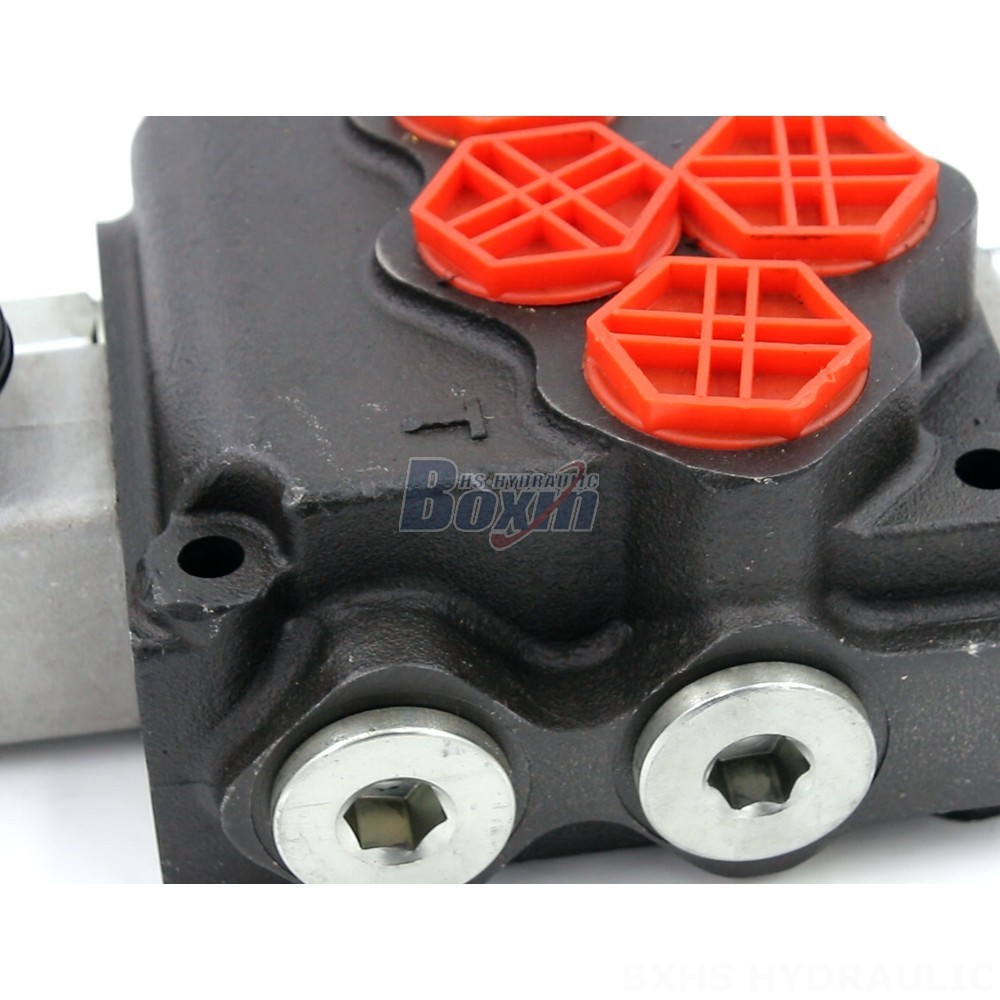

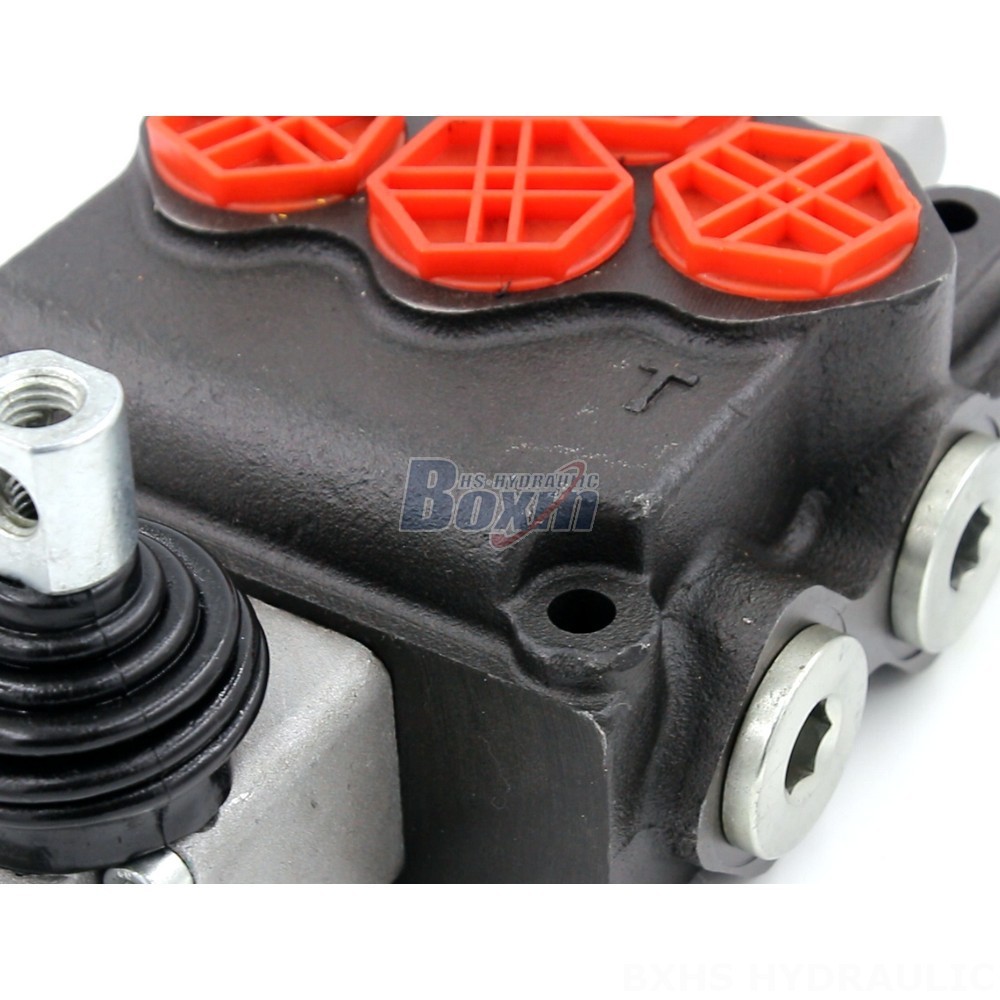

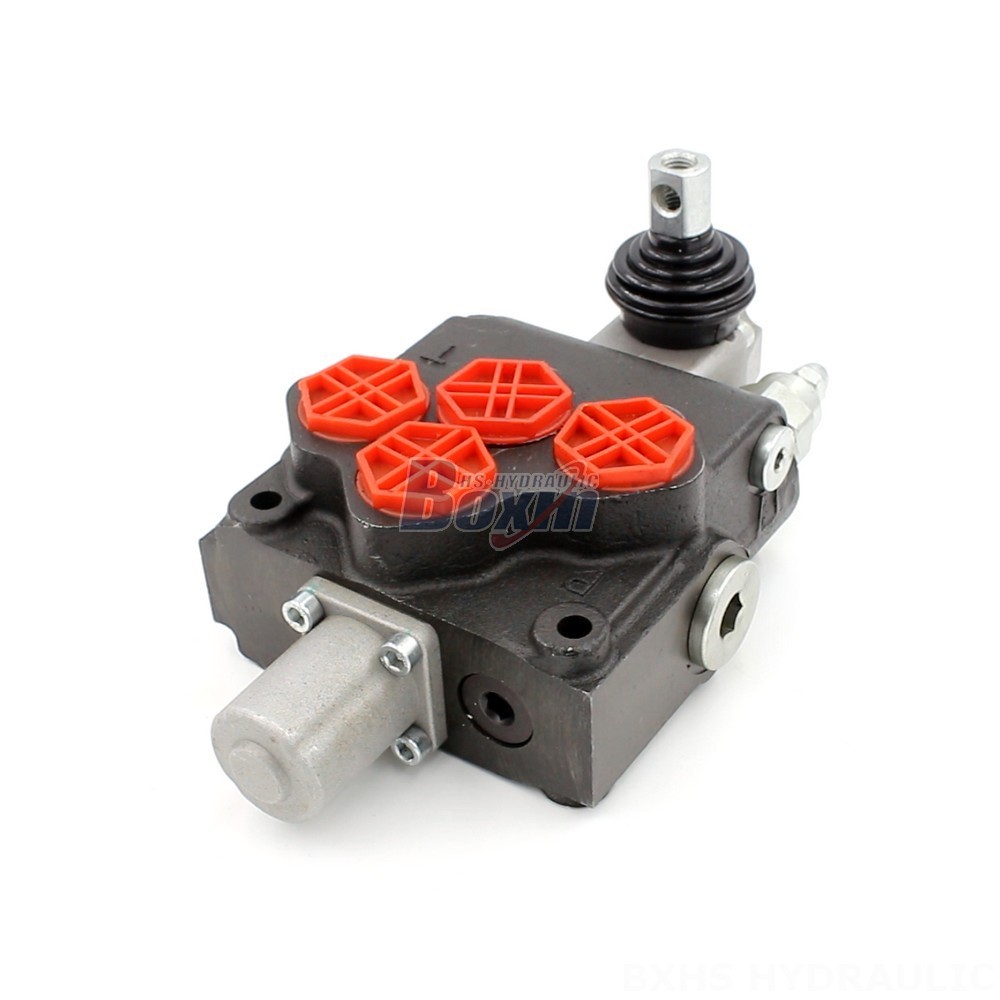

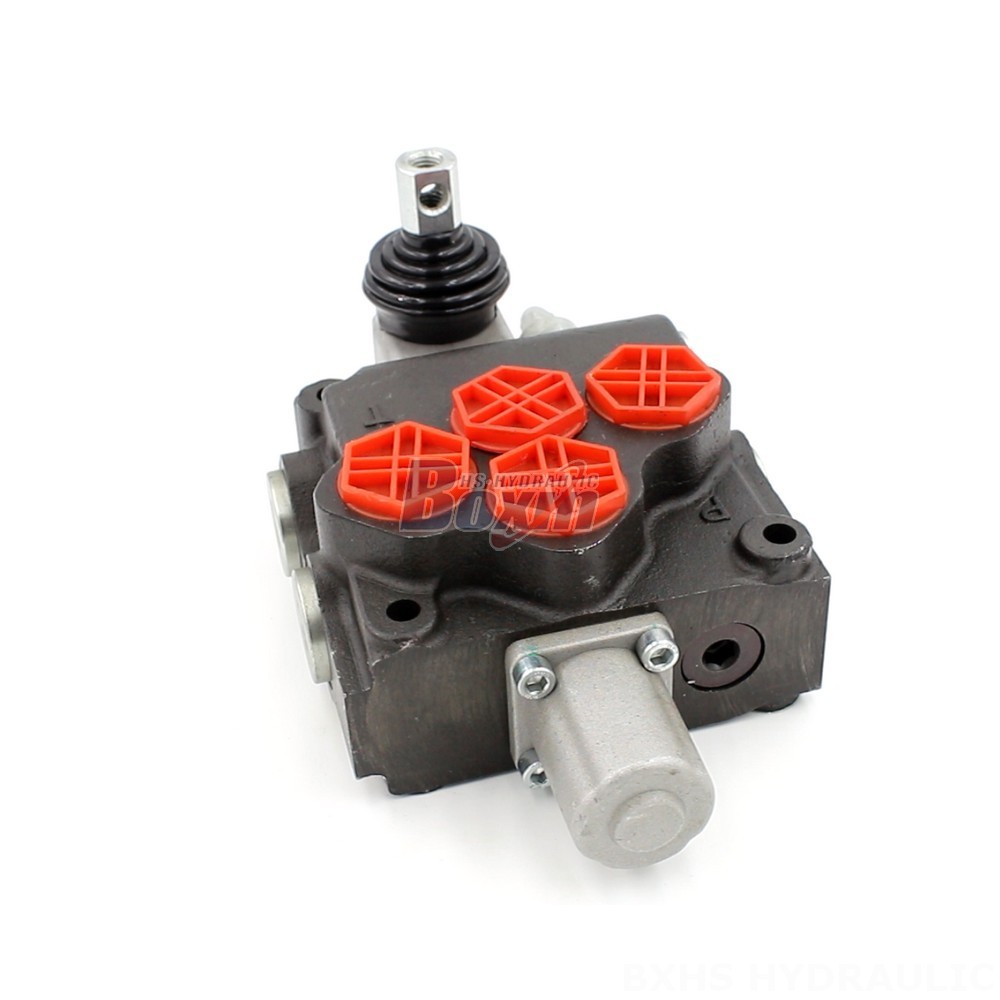

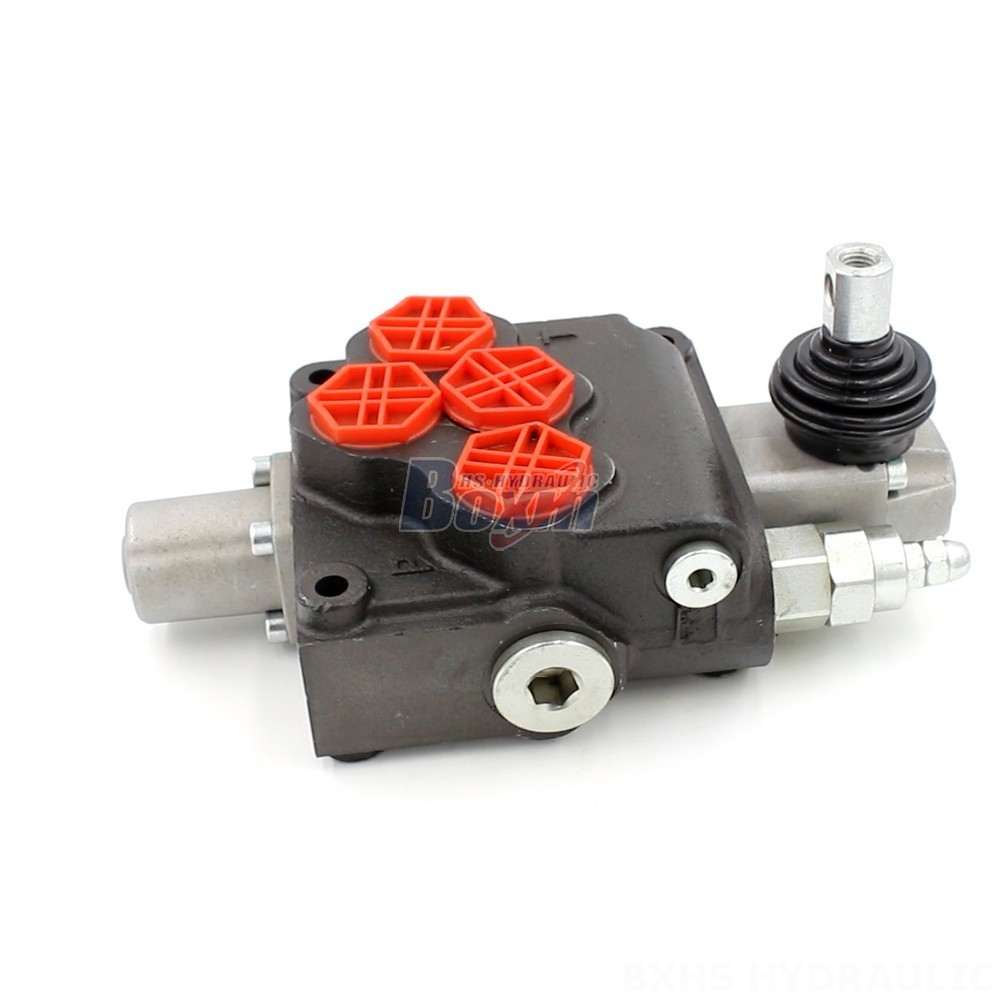

The P120-G1 Monoblock Valve is a customizable 3 position 4 way hydraulic control valve designed for a variety of applications, including material handling, construction, and agriculture. This valve is rated for a flow rate of 120 L/min and a maximum pressure of 250 bar.
| P120系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联 |
| 额定流量 | 120 升/分钟 (31.7 美制加仑/分钟) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/4接口, G1接口, M27×2.0螺纹, SAE 14接头, SAE 16接头, 3/4 NPT螺纹, 1 NPT螺纹, M36×2螺纹 |
| 出油口 | G1接口, SAE 16接头, 1 NPT螺纹, M36×2螺纹 |
| 接口尺寸 | G3/4接口, G1接口, M27×2.0螺纹, SAE 14接头, SAE 16接头, 1 NPT螺纹, M36×2螺纹 |
| 联数 | 1联, 2联, 3联, 4联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
The P120-G1 is a robust and reliable hydraulic control valve, featuring a monoblock design and a 120 L/min flow rate. It operates at a maximum pressure of 250 bar and is suitable for use in a wide range of temperatures, from -40°C to +80°C. This valve is ideal for applications in material handling, construction, agriculture, and industrial vehicles, such as telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi excavators, mini excavators, skid steer loaders, and compact wheel loaders. The P120-G1 is customizable to meet specific application needs, making it a versatile and valuable component for your hydraulic system.
