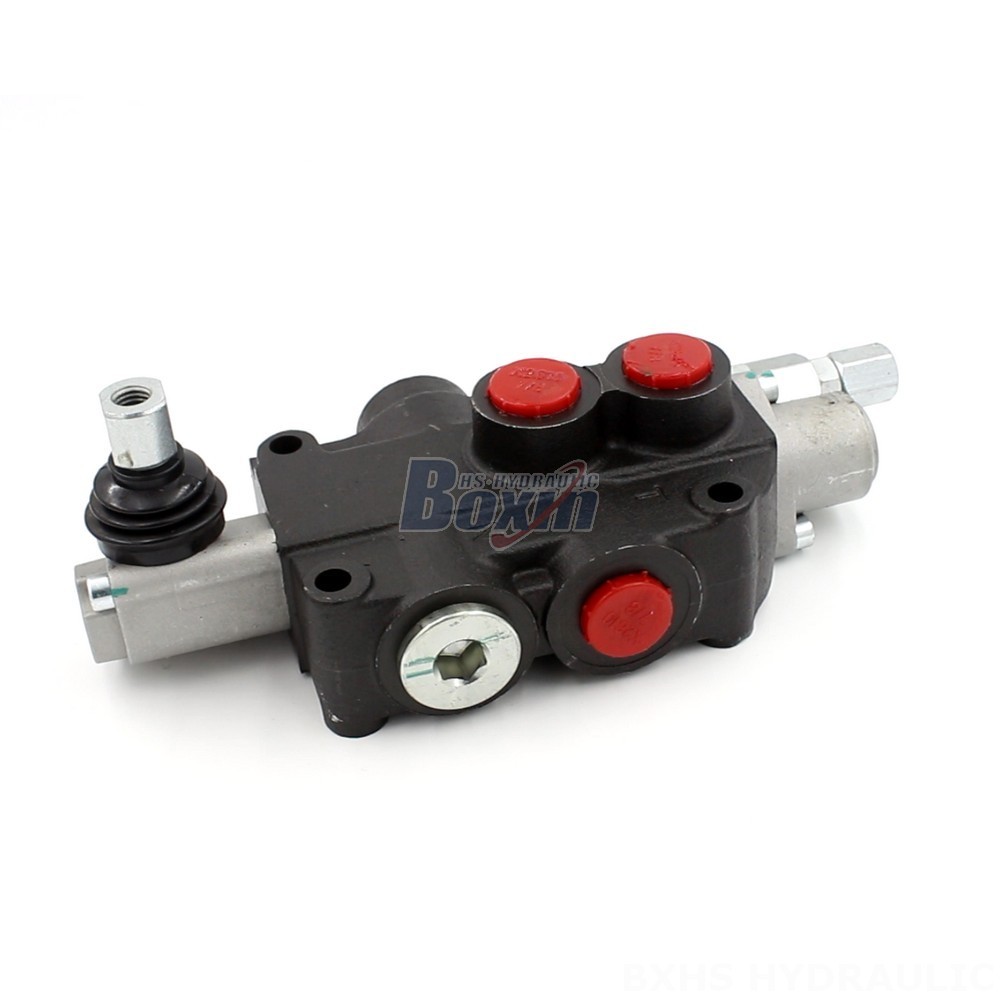

The Custom Hydraulic Valve Solutions: P80-U78 Valve offers customized hydraulic valve solutions tailored to specific requirements. Suitable for various applications such as material handling, construction, earth moving, agriculture, and industrial vehicles, this monoblock valve provides precise control with a rated flow rate of 80 L/min and a maximum pressure of 250 bar.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
The P80-U78 Valve features a manual control method and a single spool design. Its operating viscosity range spans from 15 to 75 mm²/s, ensuring compatibility with different fluid viscosities. The valve operates within an ambient temperature range of -40°C to +80°C, making it suitable for diverse operating conditions. Ideal for applications in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, and motor graders, this custom hydraulic valve solution enhances system efficiency and control.
