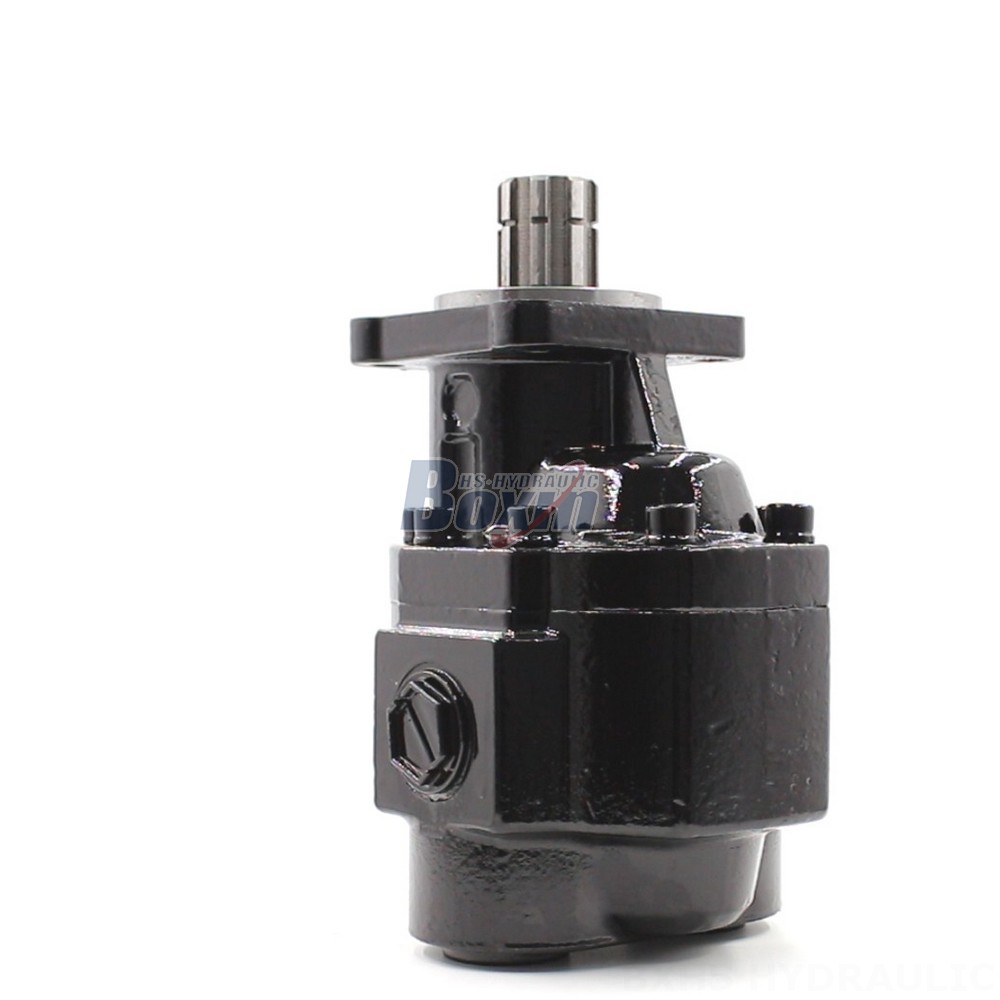

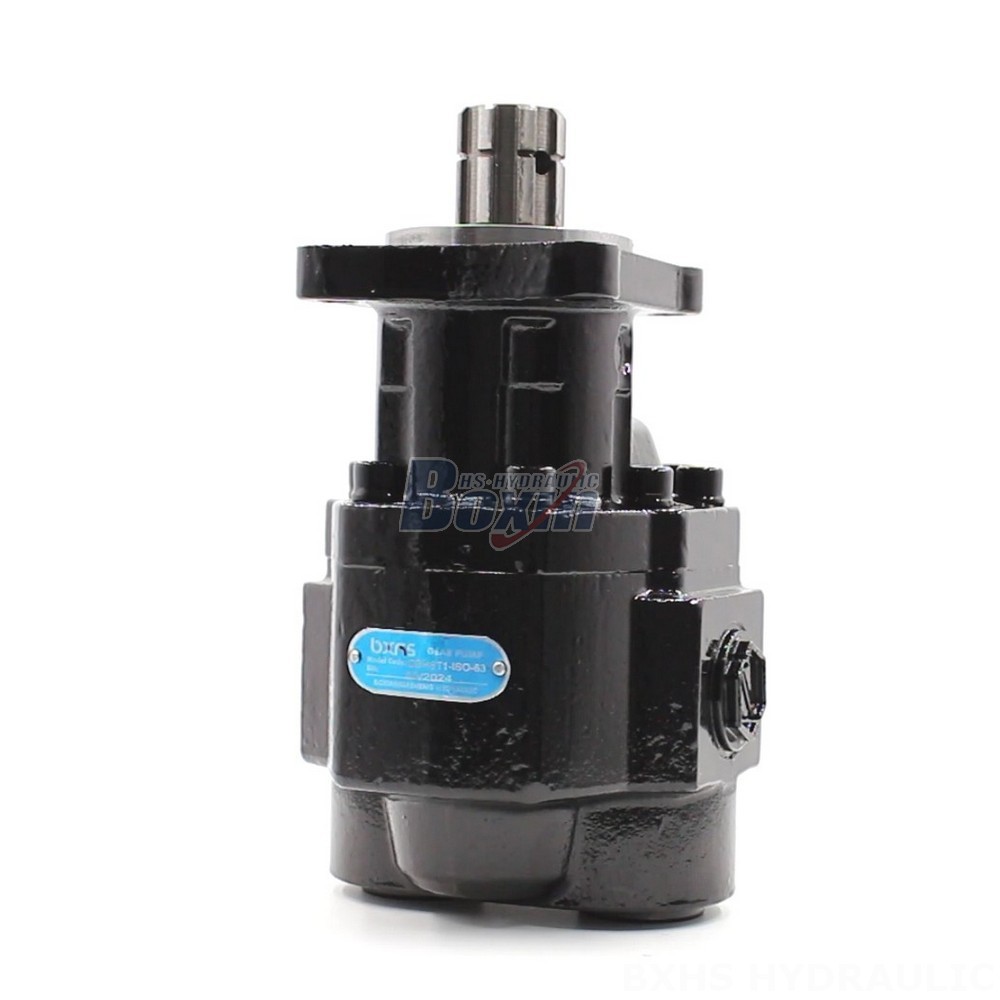

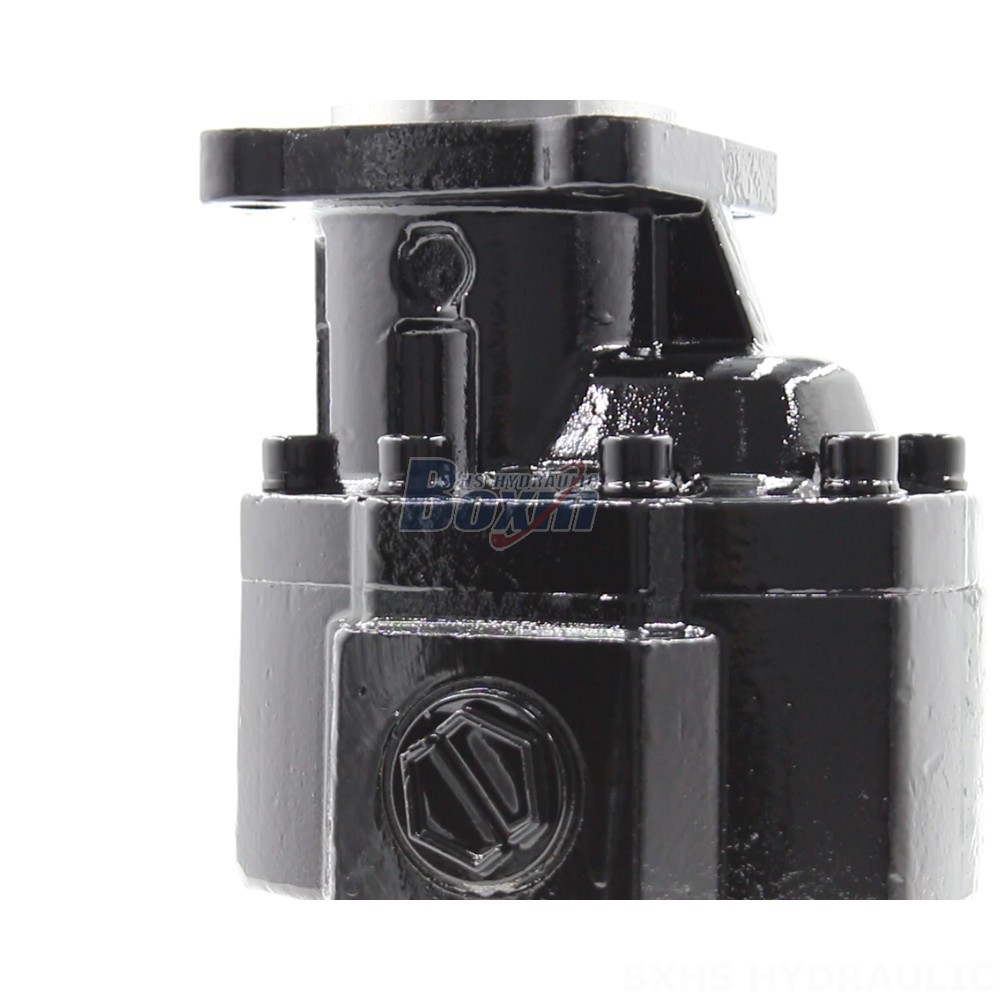

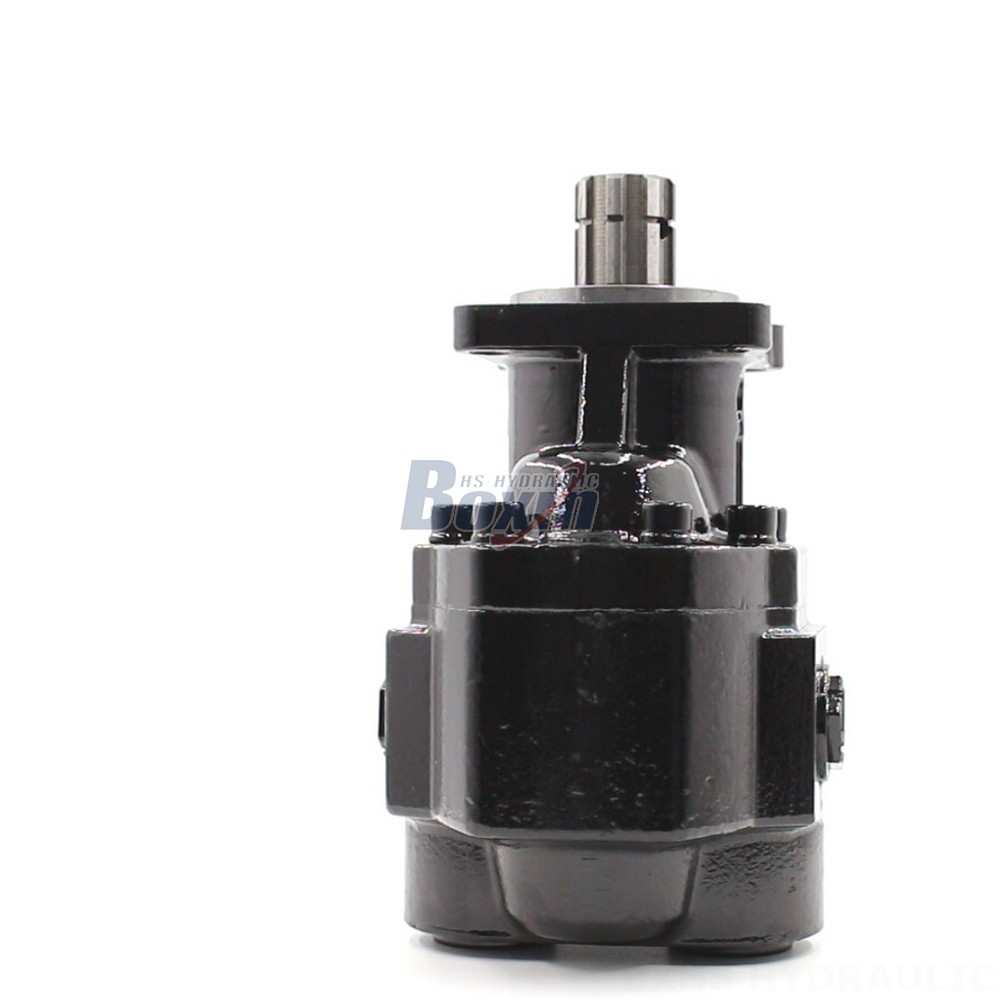

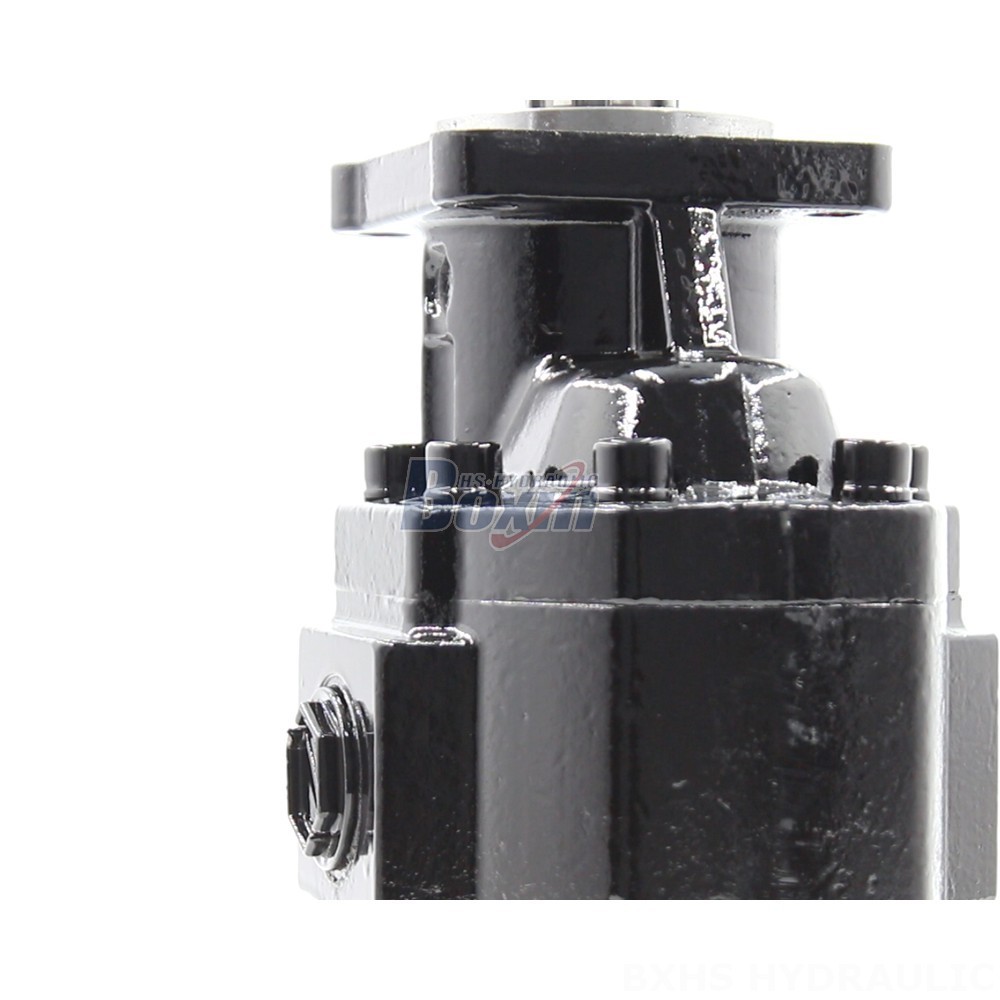

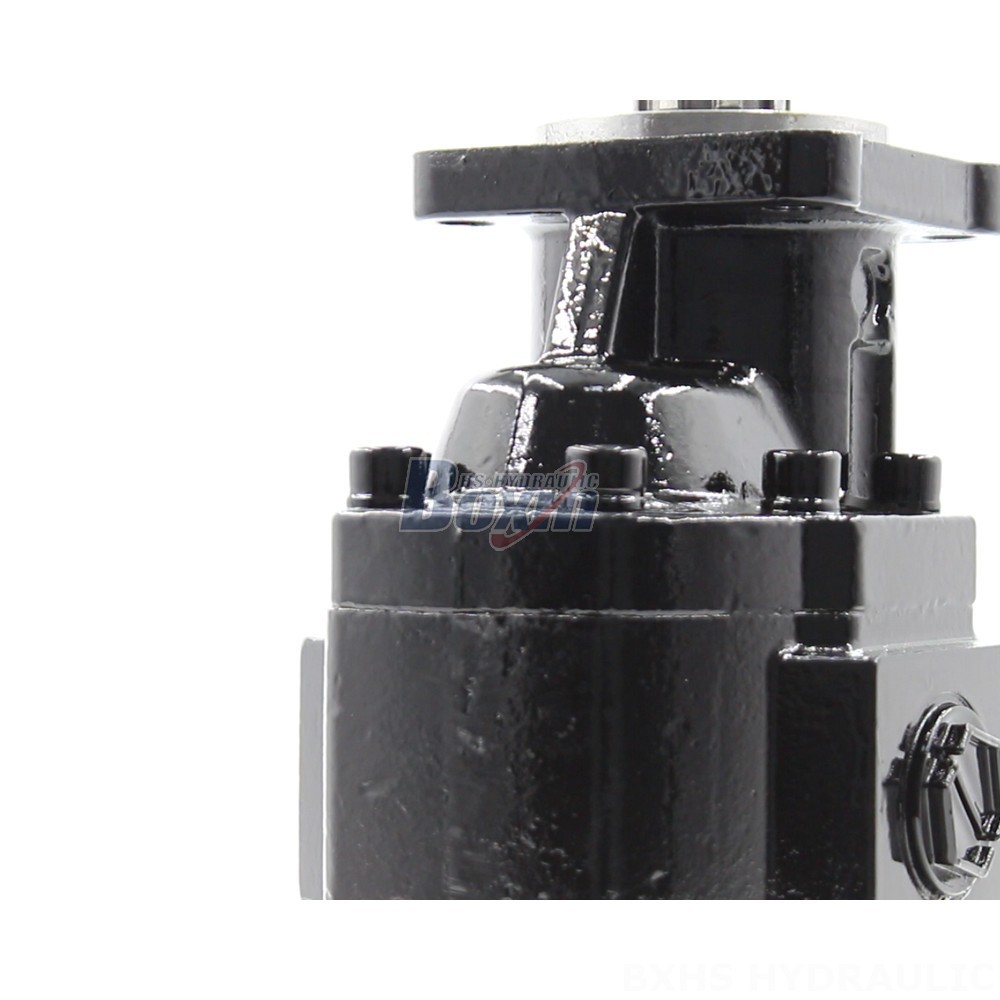

The CBHST1-ISO-63 Hydraulic Gear Pump is an advanced and globally renowned product designed for exceptional performance in various applications. With customizable displacement options ranging from 32 to 110 cc/rev, this pump delivers optimal flow rates for diverse hydraulic systems. Engineered with a robust cast iron construction, it withstands high pressures up to 23 MPa (3335 psi) and operates efficiently at speeds of up to 2500 r/min.
| CBHST1-ISO系列 液压齿轮泵 参数 | |
|---|---|
| 排量 | 50 毫升/转, 63 毫升/转, 80 毫升/转, 100 毫升/转, 110 毫升/转, 34 毫升/转, 43 毫升/转, 90 毫升/转, 120 毫升/转, 82 毫升/转 |
| 额定压力 | 20 MPa (2900 psi), 23 MPa (3335 psi), 25 MPa (3625 psi) |
| 最大压力 | 23 MPa (3335 psi), 25 MPa (3625 psi), 28兆帕 (4061磅/平方英寸) |
| 额定转速 | 2000 r/min |
| 最大转速 | 2500 r/min |
| 旋转方向 | 双向 |
| 材质 | 铸铁 |
| 架构 | 外啮合齿轮泵 |
| 法兰盘类型 | ISO-4 安装孔 |
| 轴伸形式 | H:矩形花键 |
The CBHST1-ISO-63 Hydraulic Gear Pump boasts a bidirectional rotation, allowing for versatility in system design. Its swashplate structure ensures smooth and reliable operation, while the ISO-4 mounting flange and rectangle spline shaft type provide compatibility with a wide range of applications. This pump finds its applications in material handling, construction, agriculture, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
