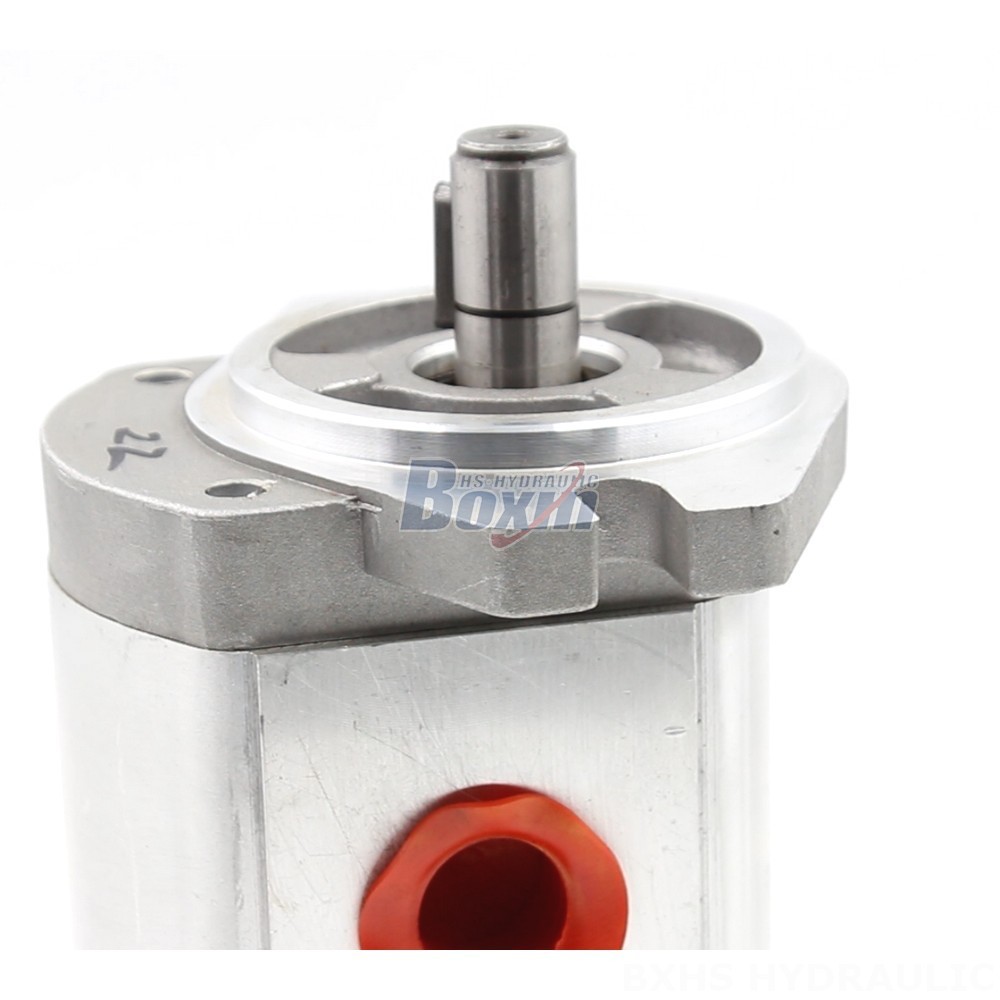

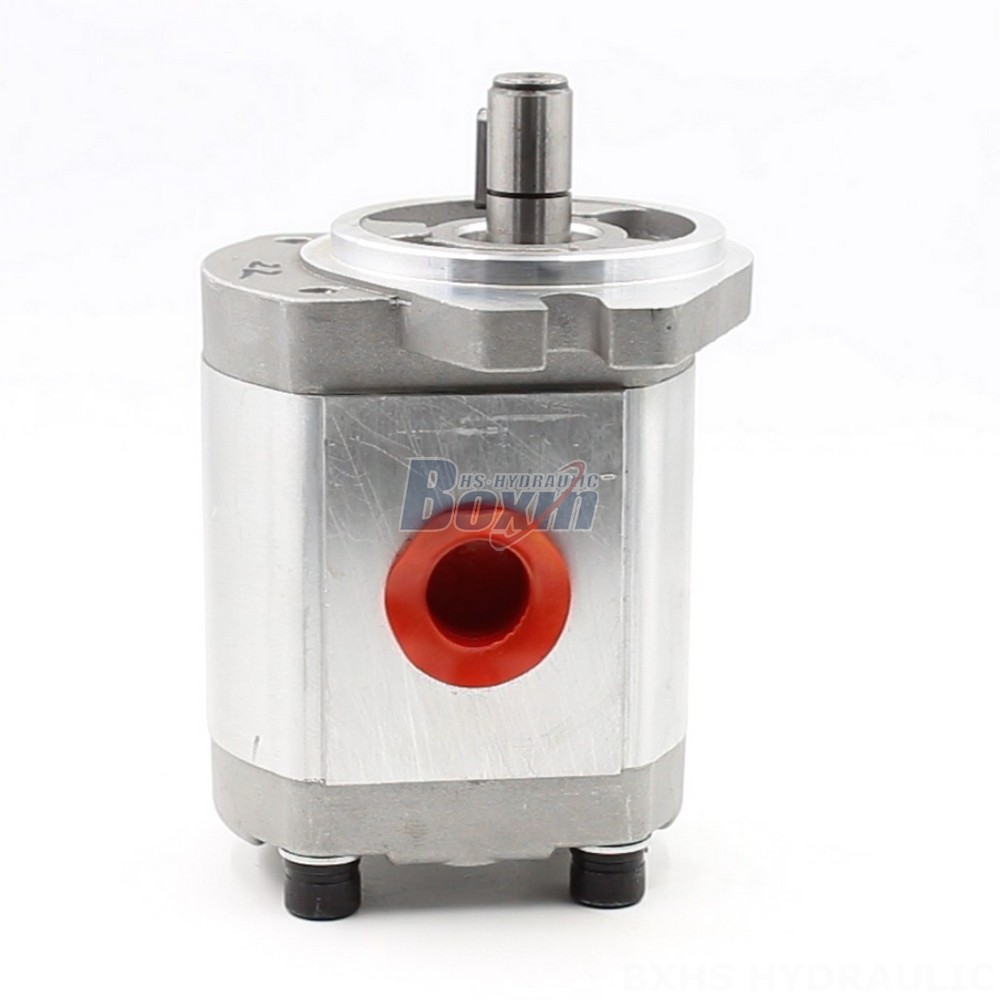

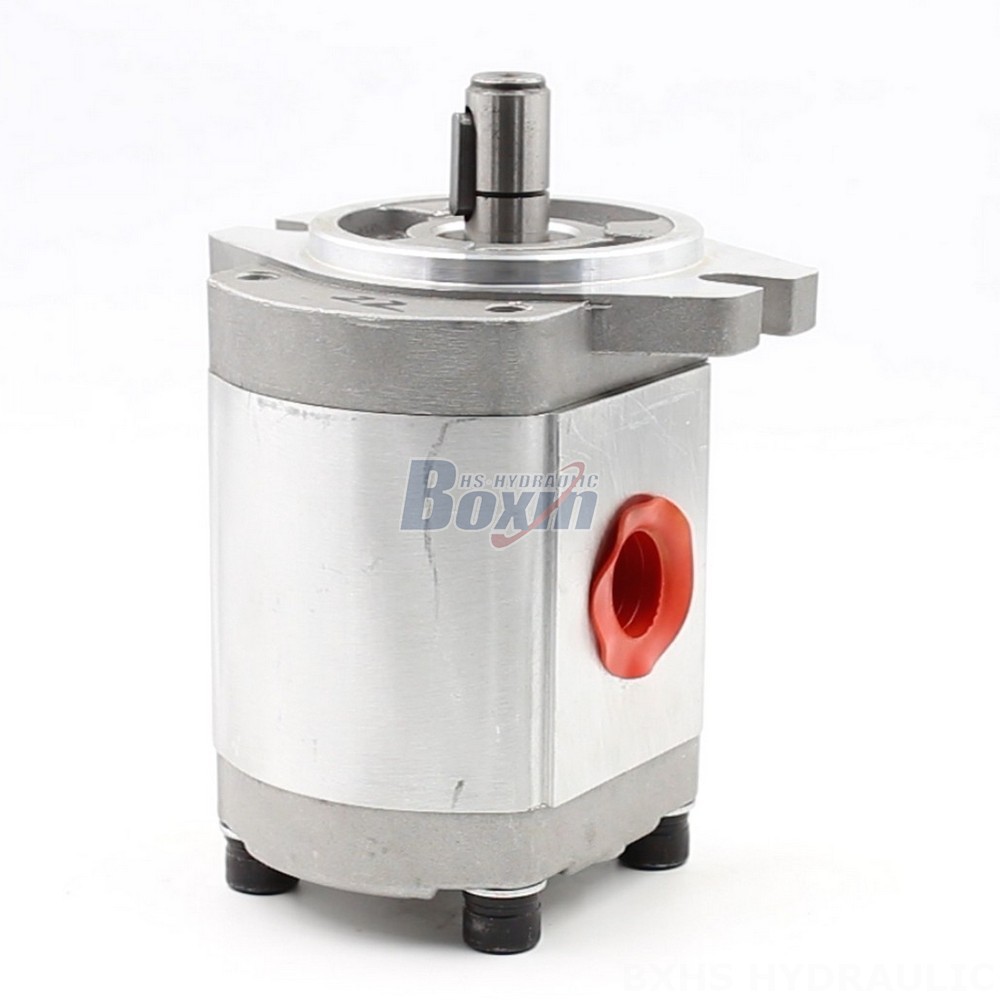

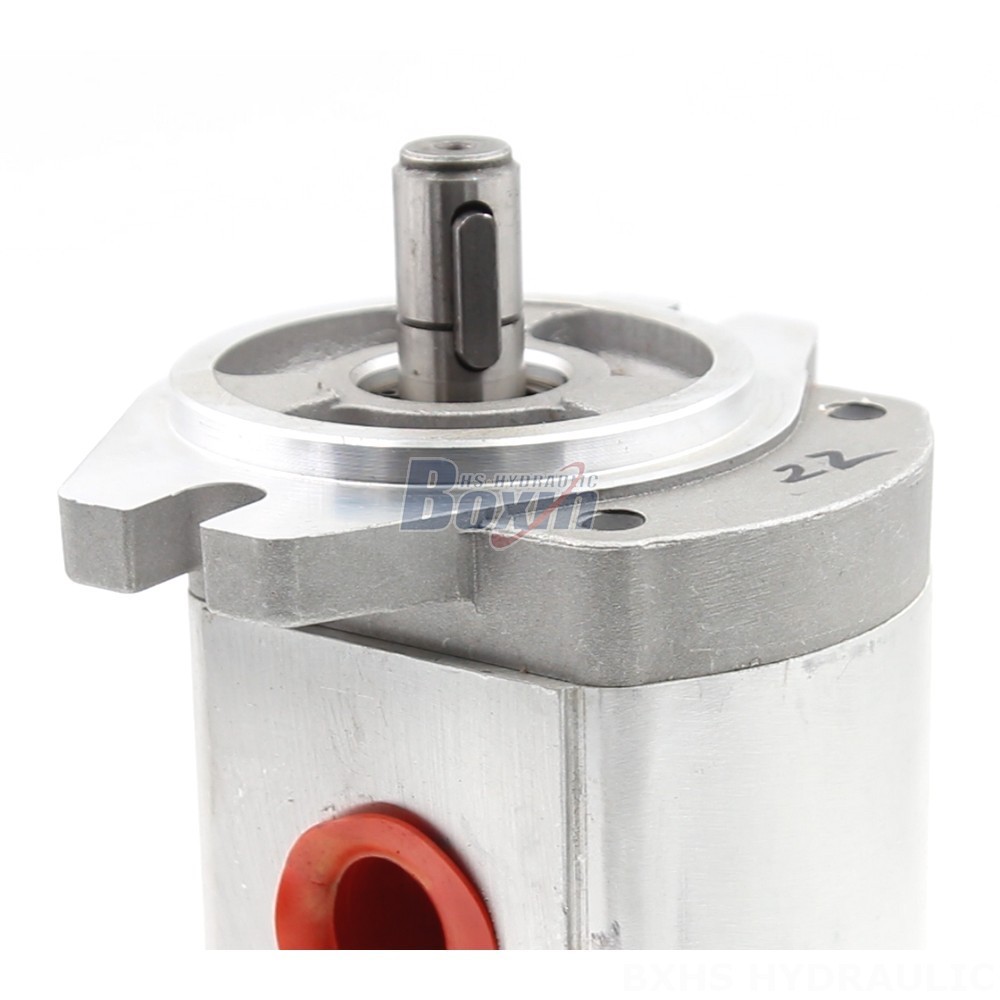

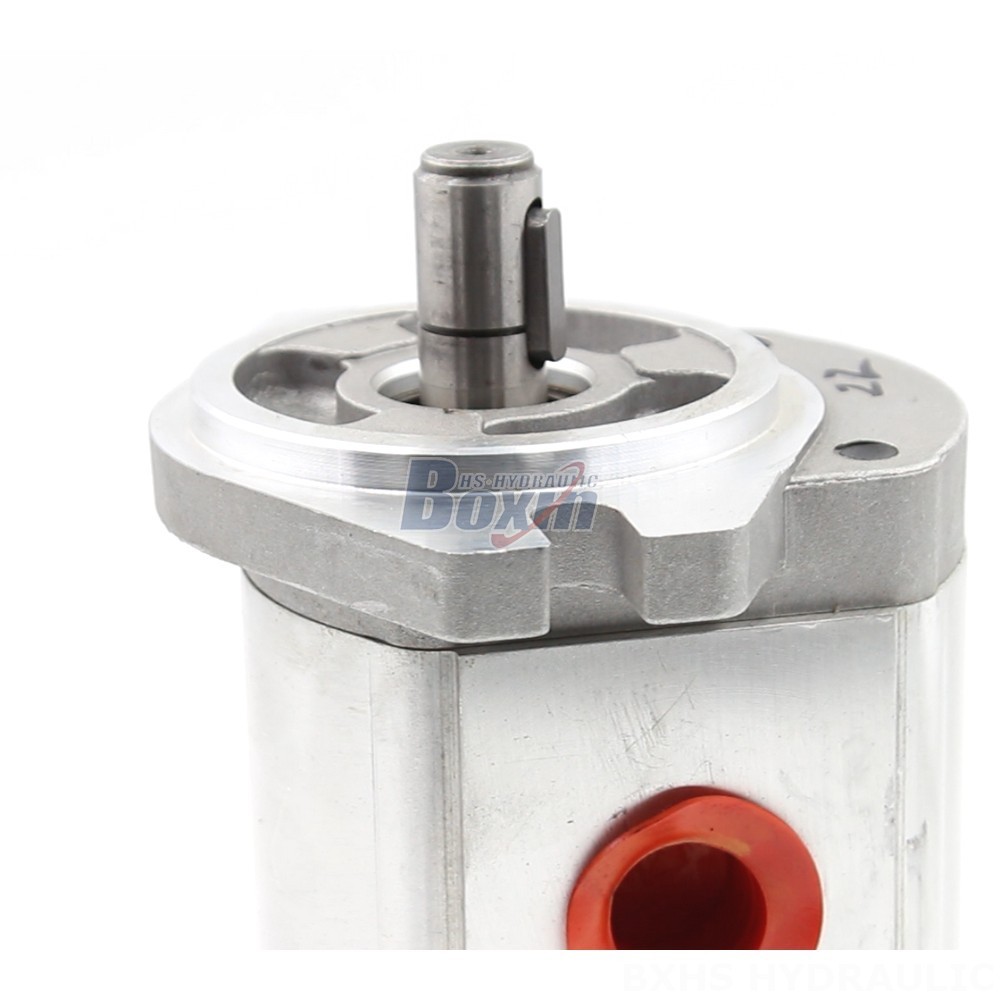

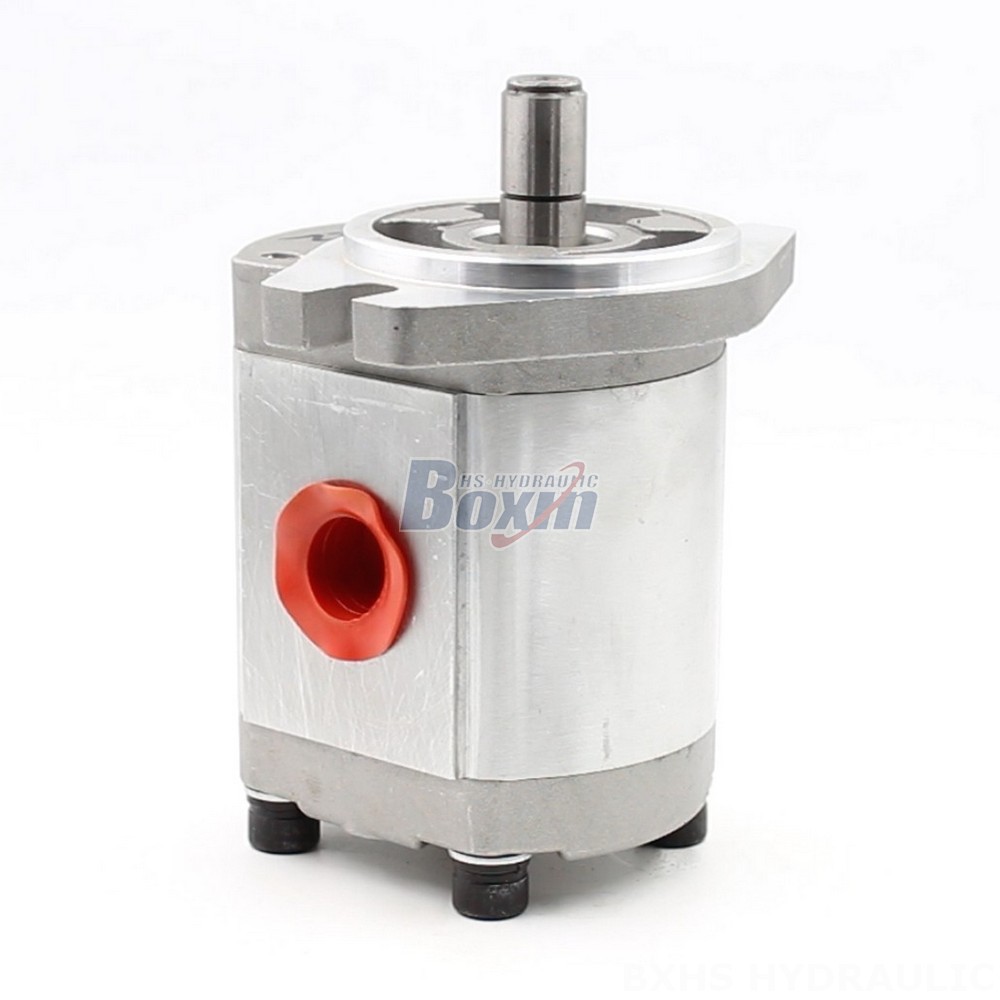

The CBHS-FL304 4 cc/rev Hydraulic Gear Pump is a high-performance, durable, and reliable pump designed for various applications in construction, agriculture, industrial vehicles, and material handling. It features a 10 cc/rev displacement, 20 MPa (2900 psi) rated pressure, and 2000 r/min rated speed, making it ideal for demanding environments.
| CBHS-FL3系列 液压齿轮泵 参数 | |
|---|---|
| 排量 | 10 毫升/转, 4 毫升/转, 20 毫升/转, 16 毫升/转, 14 毫升/转, 6 毫升/转 |
| 额定压力 | 20 MPa (2900 psi) |
| 最大压力 | 25 MPa (3625 psi) |
| 额定转速 | 2000 r/min |
| 最大转速 | 3000 r/min |
| 旋转方向 | 左旋(逆时针旋转), 右旋(顺时针旋转) |
| 材质 | 铝 |
| 架构 | 外啮合齿轮泵 |
| 法兰盘类型 | A-菱形法兰 |
| 轴伸形式 | H:矩形花键, X:渐开线花键, P:普通键 |
The CBHS-FL304 4 cc/rev Hydraulic Gear Pump is a robust and efficient internal gear pump, manufactured with high-quality aluminum material. It features an A-Oval flange design and a plain key shaft, making it compatible with various machinery. With a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min, this pump delivers exceptional performance in demanding applications such as telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors and front-end loaders, harvesters, and balers. The pump is also customizable to meet specific requirements. As a manufacturer, we provide manufacturing, OEM, private label, and customization services, along with global distribution network support.
