787 次查看了此产品

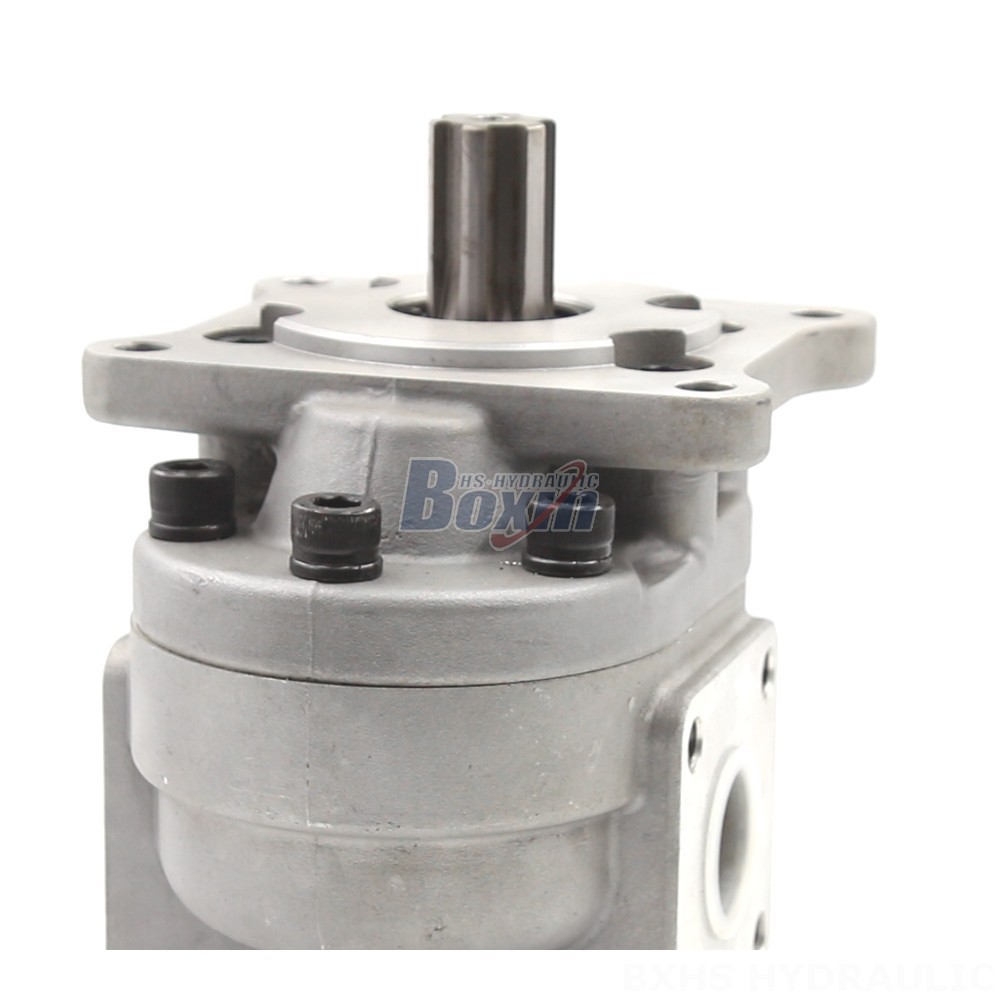

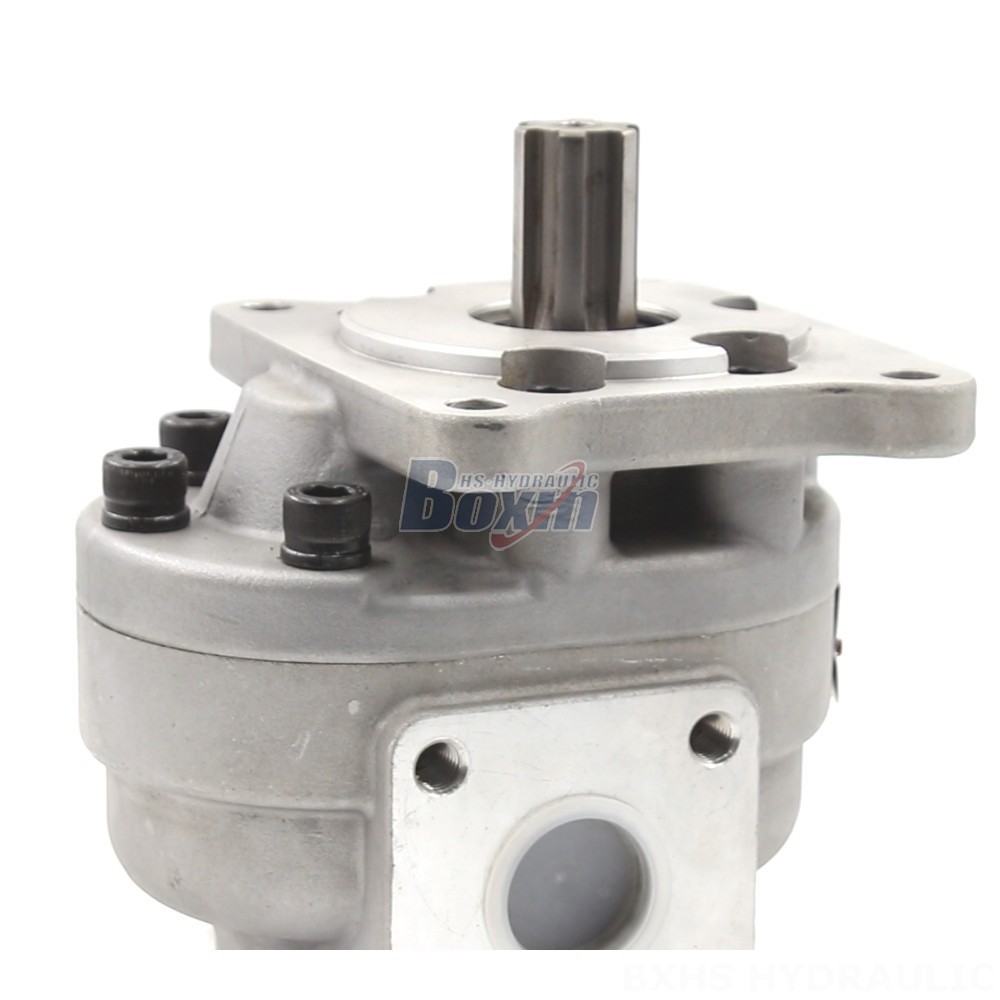

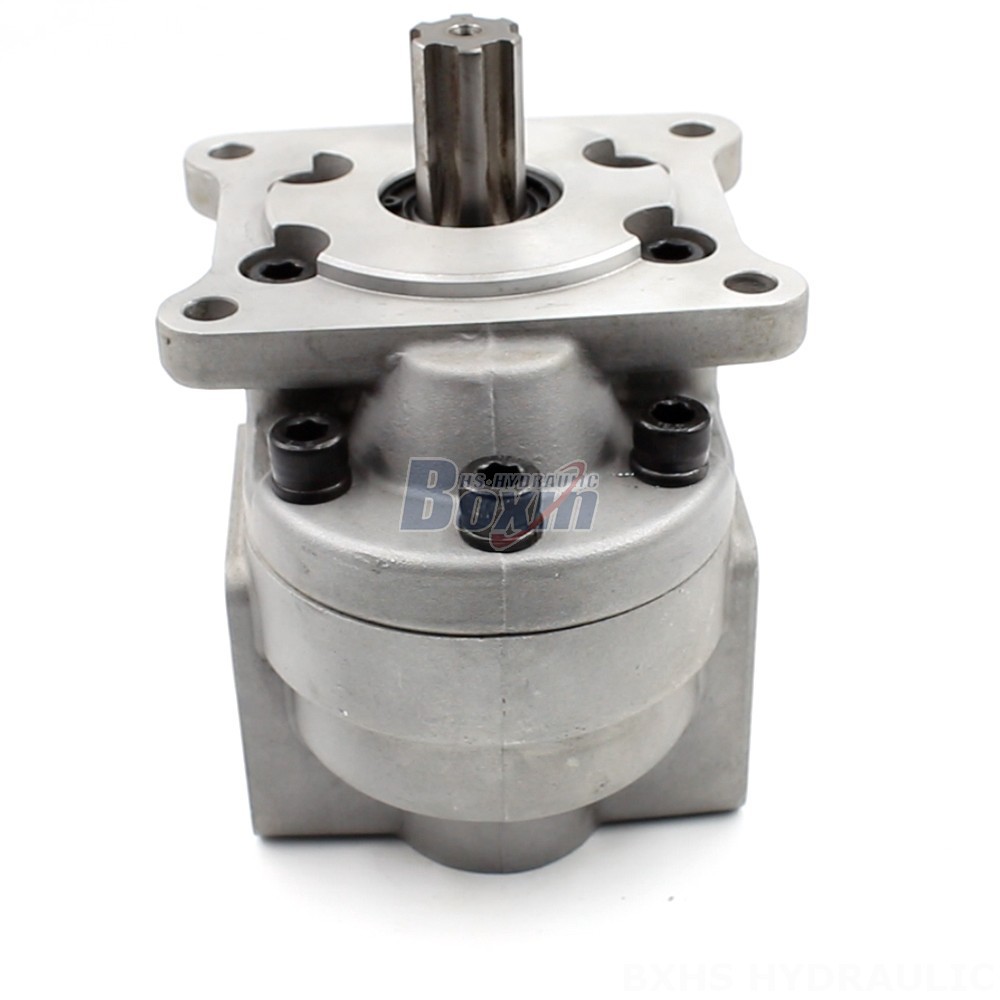

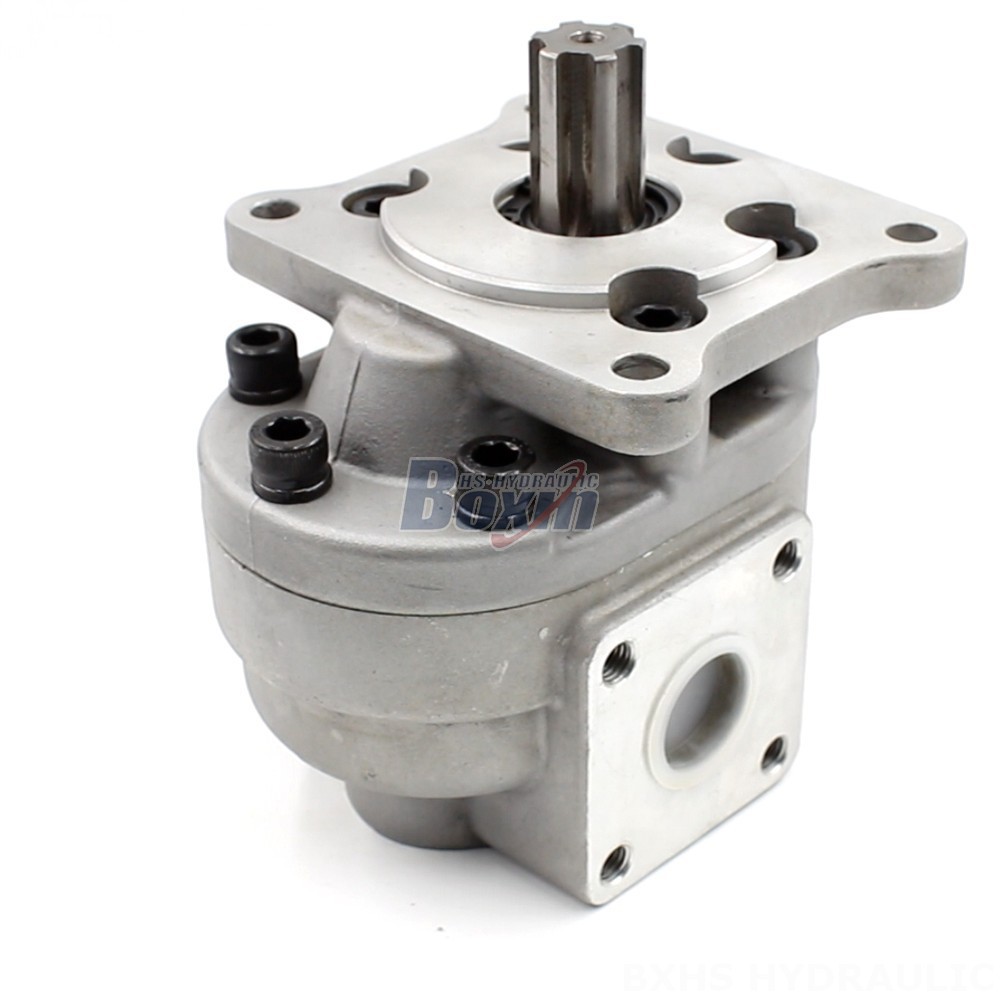

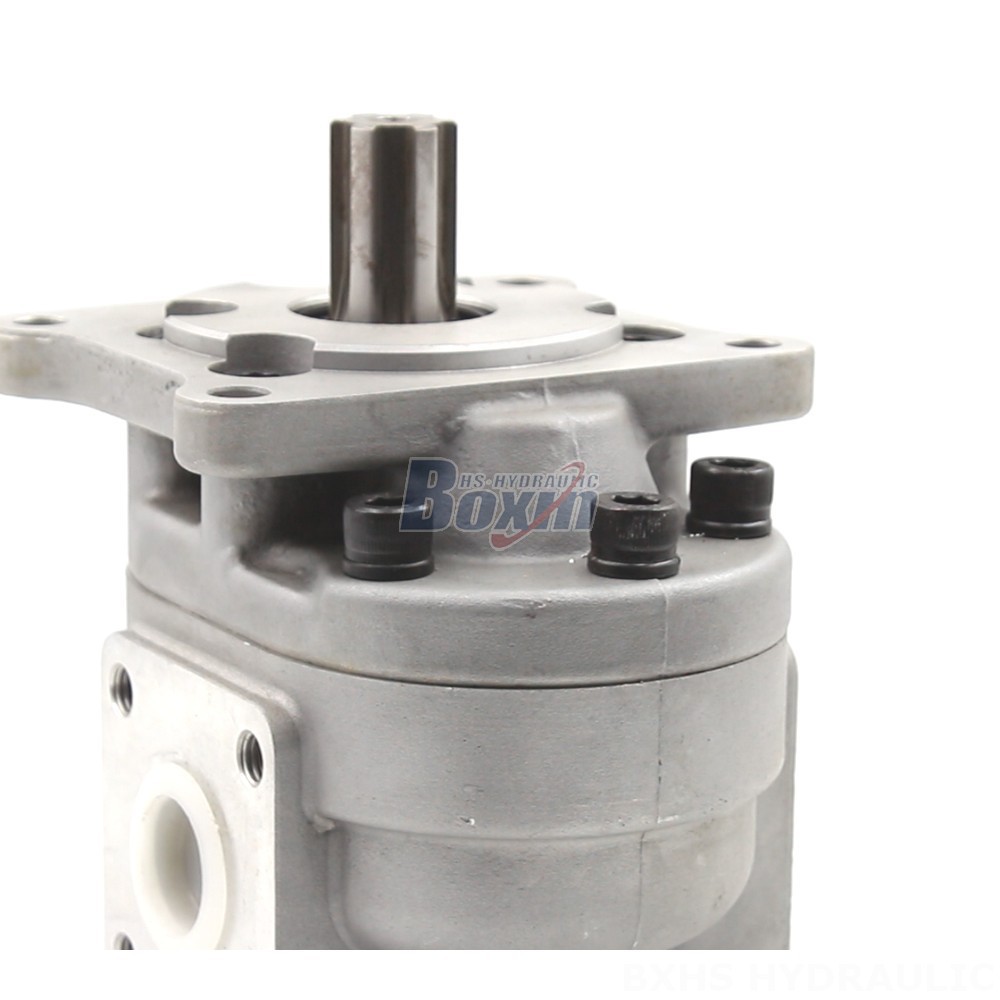

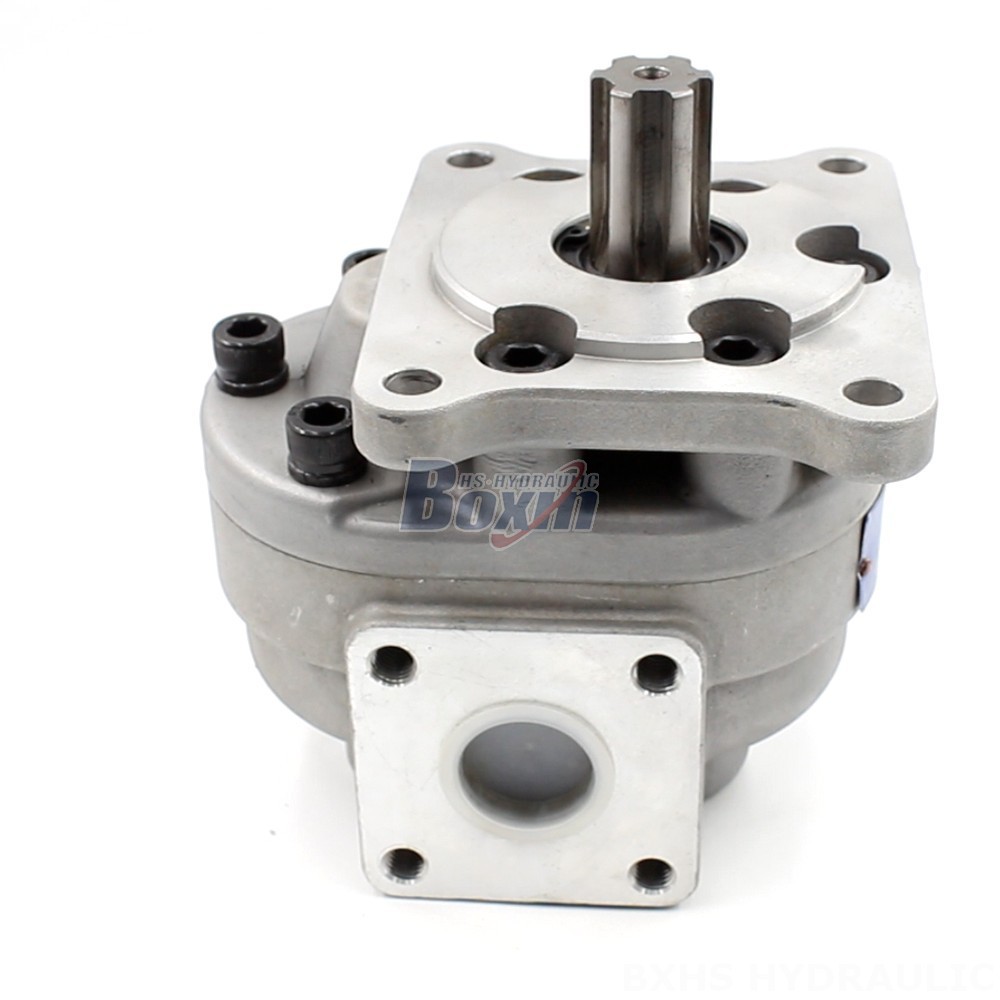

The CBHS-F550 Hydraulic Gear Pump, part of the CBHS-F5 Series, is a highly adaptable and efficient component designed for a wide range of applications in industries such as material handling, construction and earth moving, agriculture, and industrial vehicles. With a displacement of 32 cc/rev, 50 cc/rev, or 63 cc/rev, a rated pressure of 20 MPa (2900 psi), a rated speed of 2000 r/min, and a maximum speed of 2200 r/min, this pump delivers exceptional performance under various operating conditions.
| CBHS-F5系列 液压齿轮泵 参数 | |
|---|---|
| 排量 | 32 毫升/转, 50 毫升/转, 63 毫升/转, 20 毫升/转 |
| 额定压力 | 20 MPa (2900 psi) |
| 最大压力 | 25 MPa (3625 psi) |
| 额定转速 | 2000 r/min |
| 最大转速 | 2500 r/min |
| 旋转方向 | 左旋（逆时针旋转）, 右旋（顺时针旋转） |
| 材质 | 铸铁 |
| 架构 | 外啮合齿轮泵 |
| 法兰盘类型 | B-方形法兰 |
| 轴伸形式 | H:矩形花键, X:渐开线花键, P：普通键 |
**Product Details of the CBHS-F550 Hydraulic Gear Pump:**
* **Displacement:** 32 cc/rev, 50 cc/rev, 63 cc/rev
* **Rated Pressure:** 20 MPa (2900 psi)
* **Rated Speed:** 2000 r/min
* **Max Speed:** 2200 r/min
* **Rotation:** Left (counter-clockwise), Right (clockwise)
* **Structure:** Internal Gear Pump
* **Material:** Cast Iron
* **Flange Version:** B-Square Flange
* **Shaft Type:** Plain Key (P), Rectangle Spline (H), Involute Spline (X)
* **Product Series:** CBHS-F5 Series
* **Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
* **Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER
