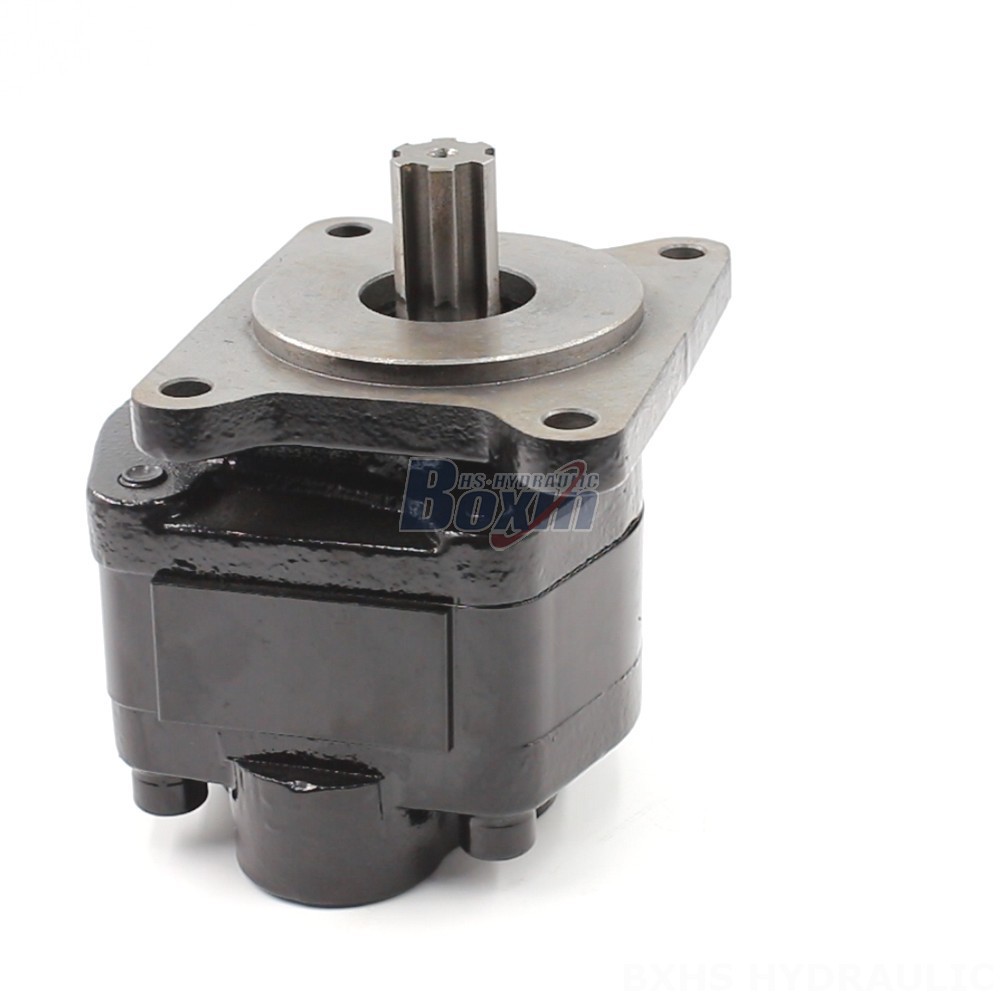

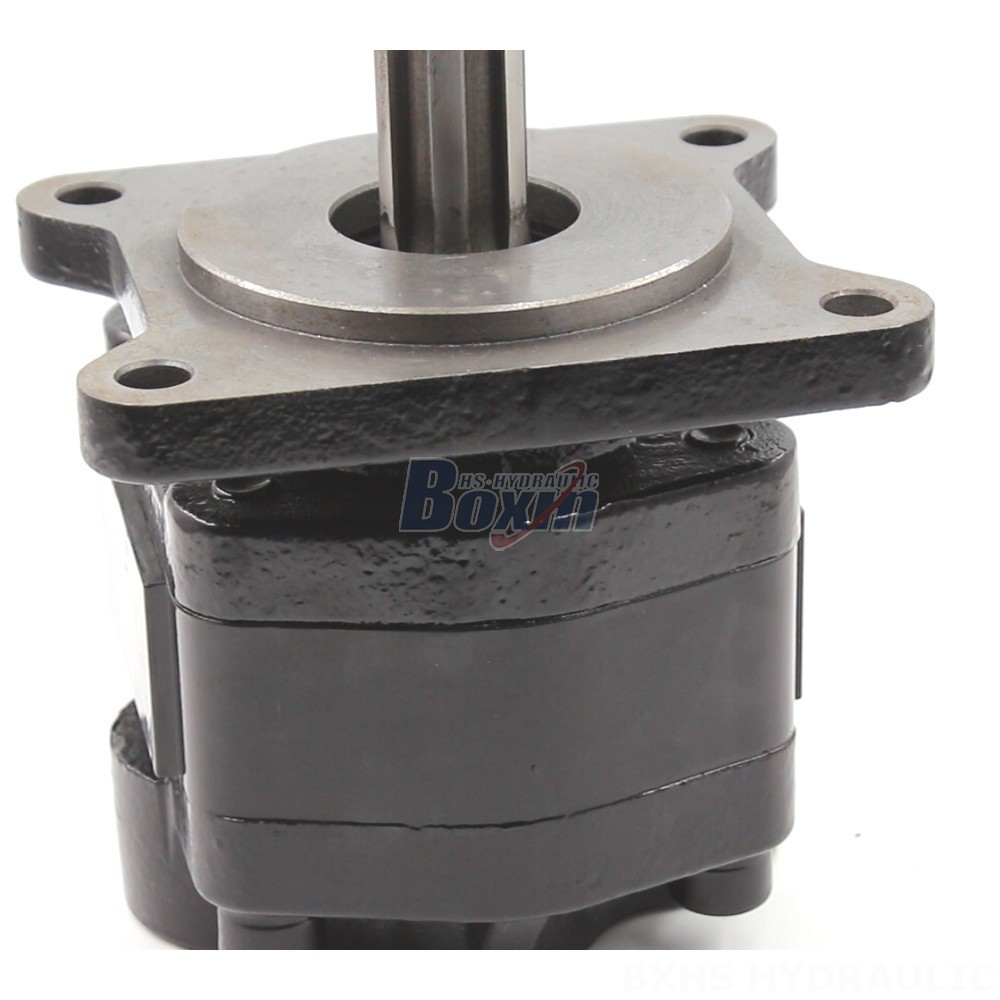

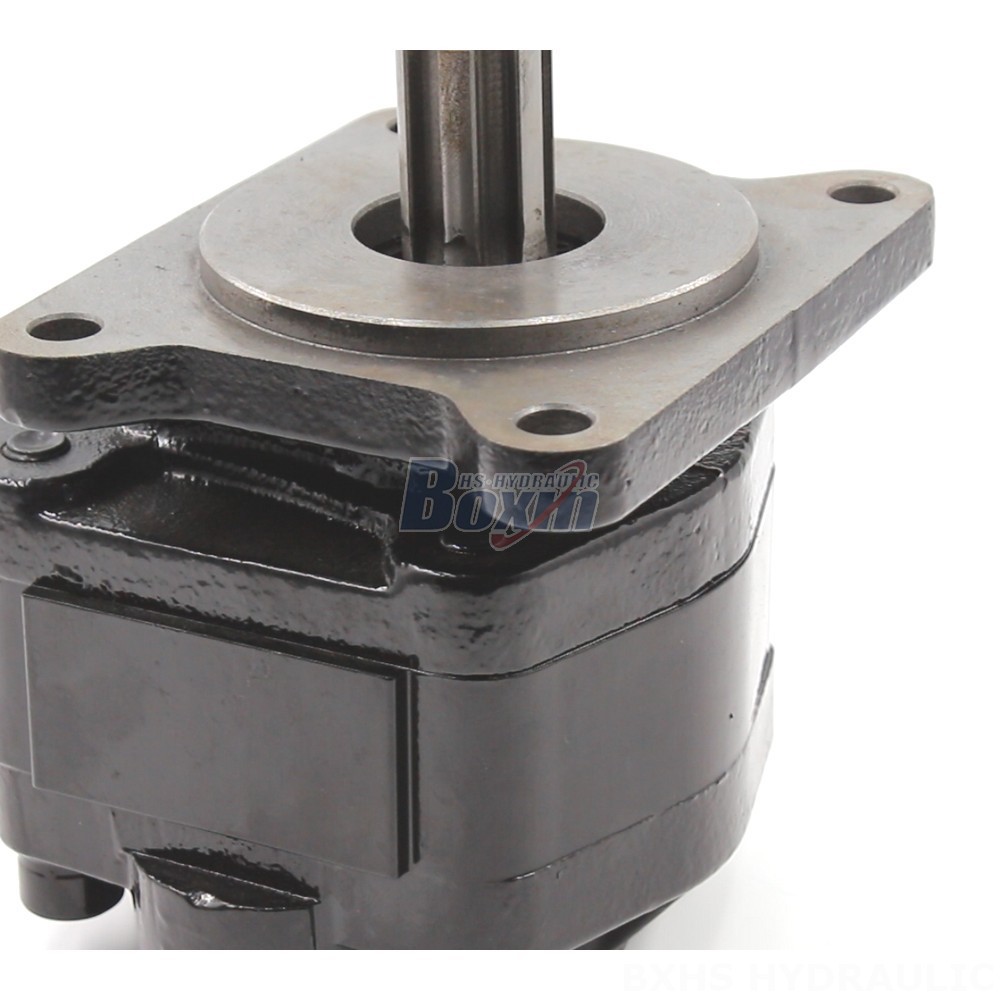

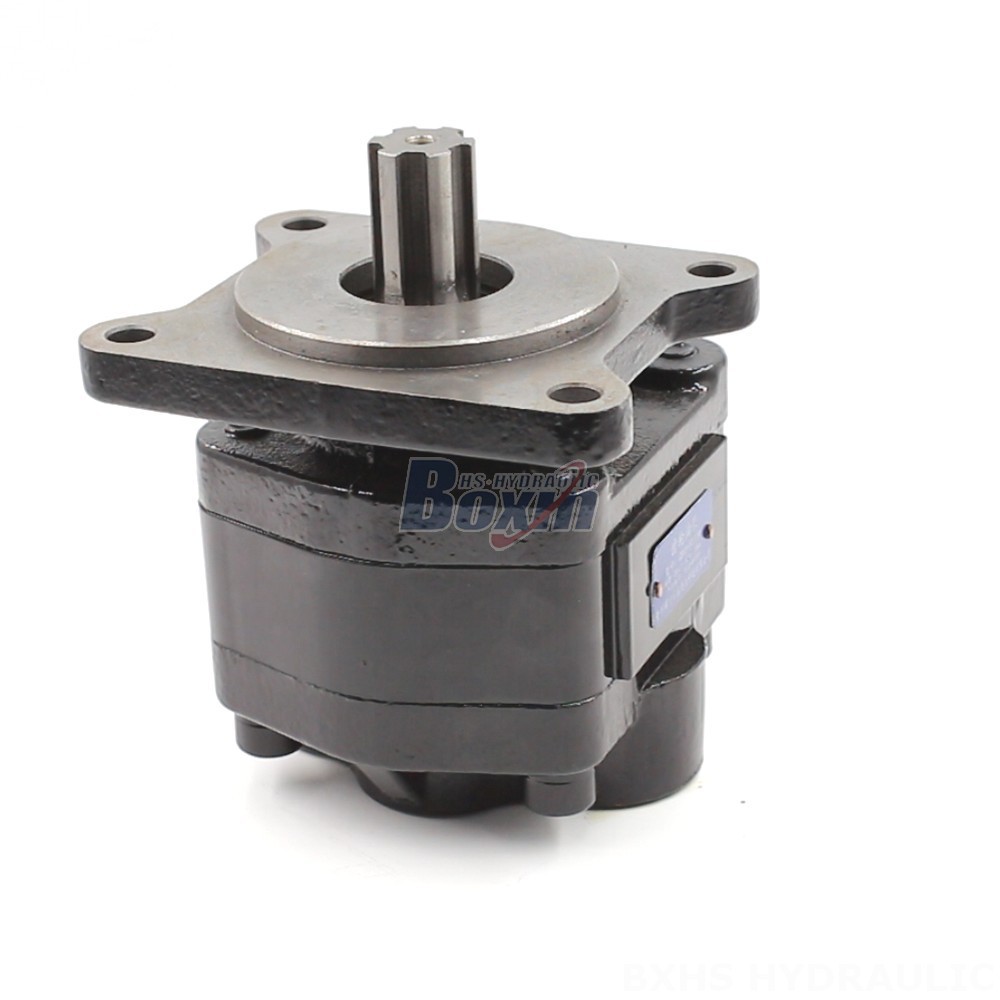

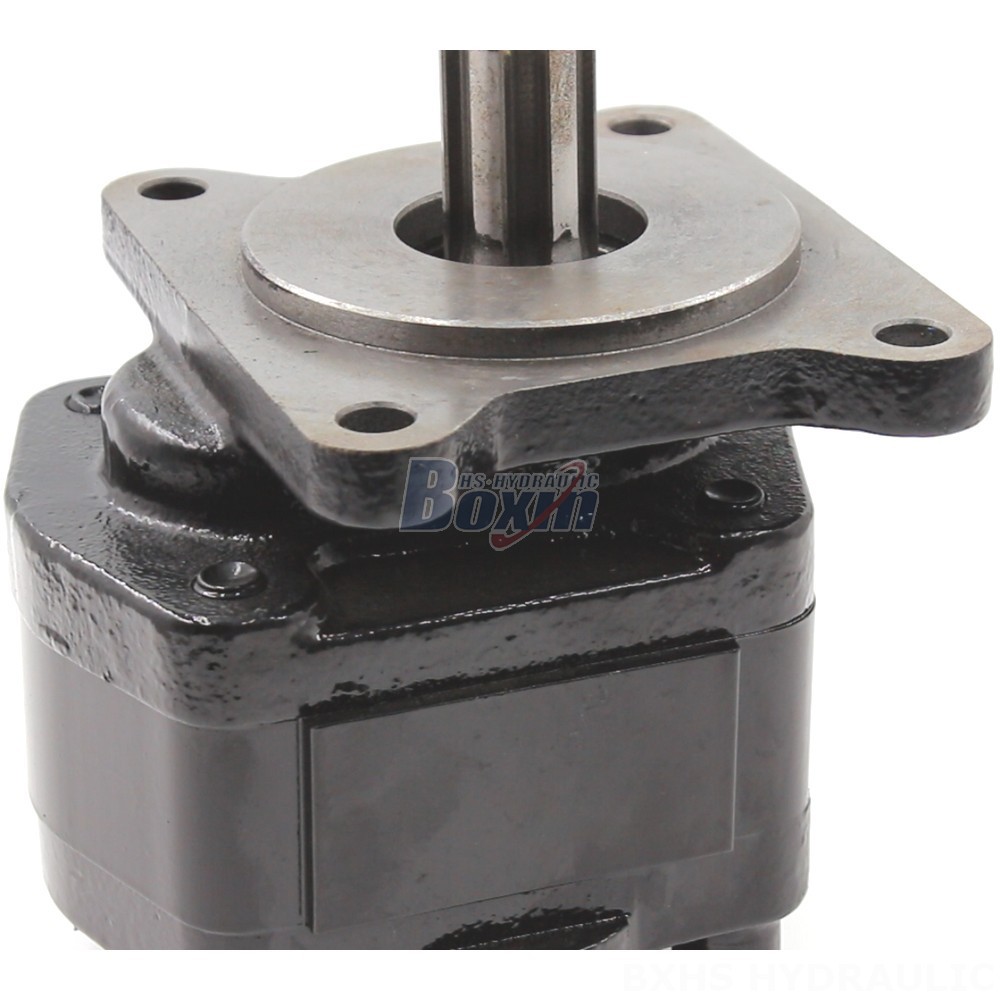

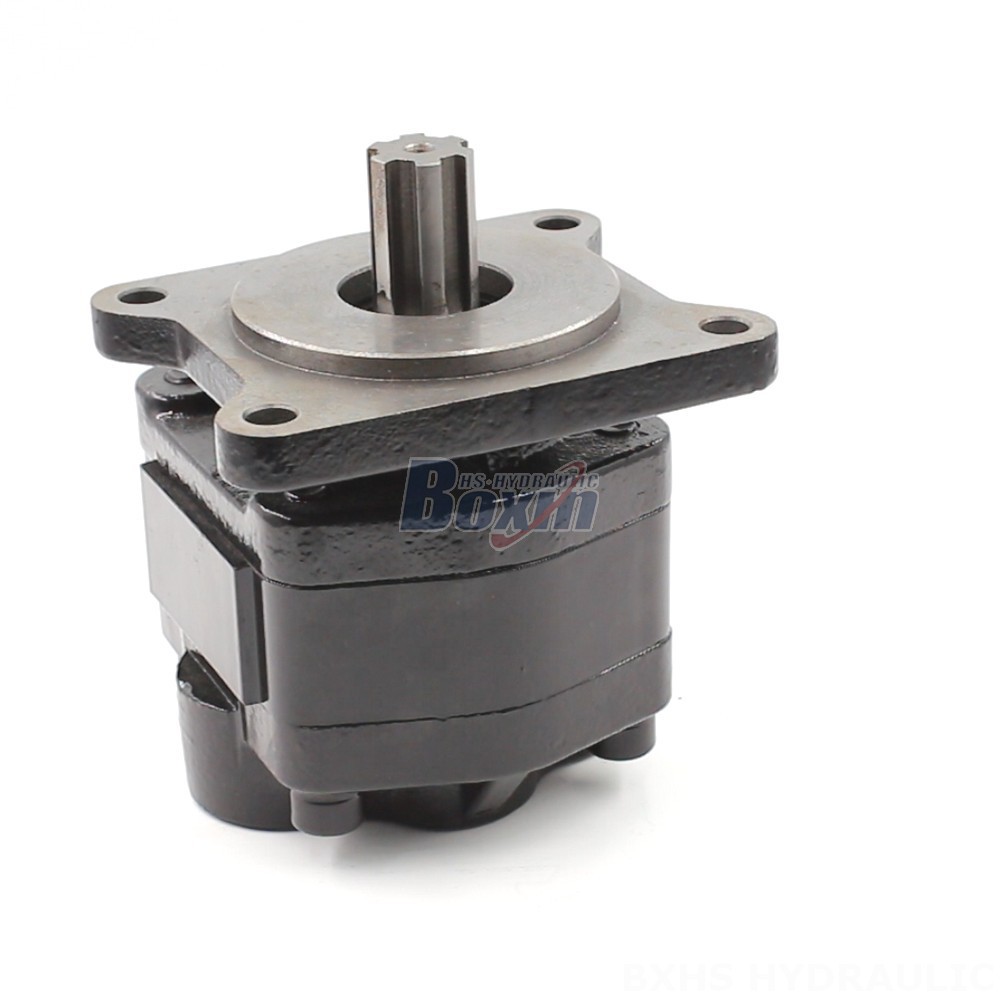

This product is a 20 cc/rev hydraulic gear pump, available in various displacements (32 cc/rev, 50 cc/rev, 63 cc/rev) and shaft types (Plain Key, Rectangle Spline, Involute Spline). It's designed for heavy-duty applications in various industries like material handling, construction, agriculture, and industrial vehicles.
| CBHS-F5系列 液压齿轮泵 参数 | |
|---|---|
| 排量 | 32 毫升/转, 50 毫升/转, 63 毫升/转, 20 毫升/转 |
| 额定压力 | 20 MPa (2900 psi) |
| 最大压力 | 25 MPa (3625 psi) |
| 额定转速 | 2000 r/min |
| 最大转速 | 2500 r/min |
| 旋转方向 | 左旋(逆时针旋转), 右旋(顺时针旋转) |
| 材质 | 铸铁 |
| 架构 | 外啮合齿轮泵 |
| 法兰盘类型 | B-方形法兰 |
| 轴伸形式 | H:矩形花键, X:渐开线花键, P:普通键 |
The CBHS-F5 Series 20 cc/rev hydraulic gear pump is a robust and reliable power source for various machinery. Featuring a cast iron construction, B-Square flange, and a rated pressure of 20 MPa (2900 psi), this pump delivers high performance and durability. It is available in three displacement options (32 cc/rev, 50 cc/rev, 63 cc/rev) to suit diverse application requirements. Choose from different shaft types (Plain Key, Rectangle Spline, Involute Spline) for compatibility with your existing system. This pump is ideal for use in material handling equipment like forklifts and telehandlers, construction and earth moving machines such as mini-excavators, midi-excavators, skid steer loaders, and compact wheel loaders, as well as agricultural machinery like tractors and harvesters.
