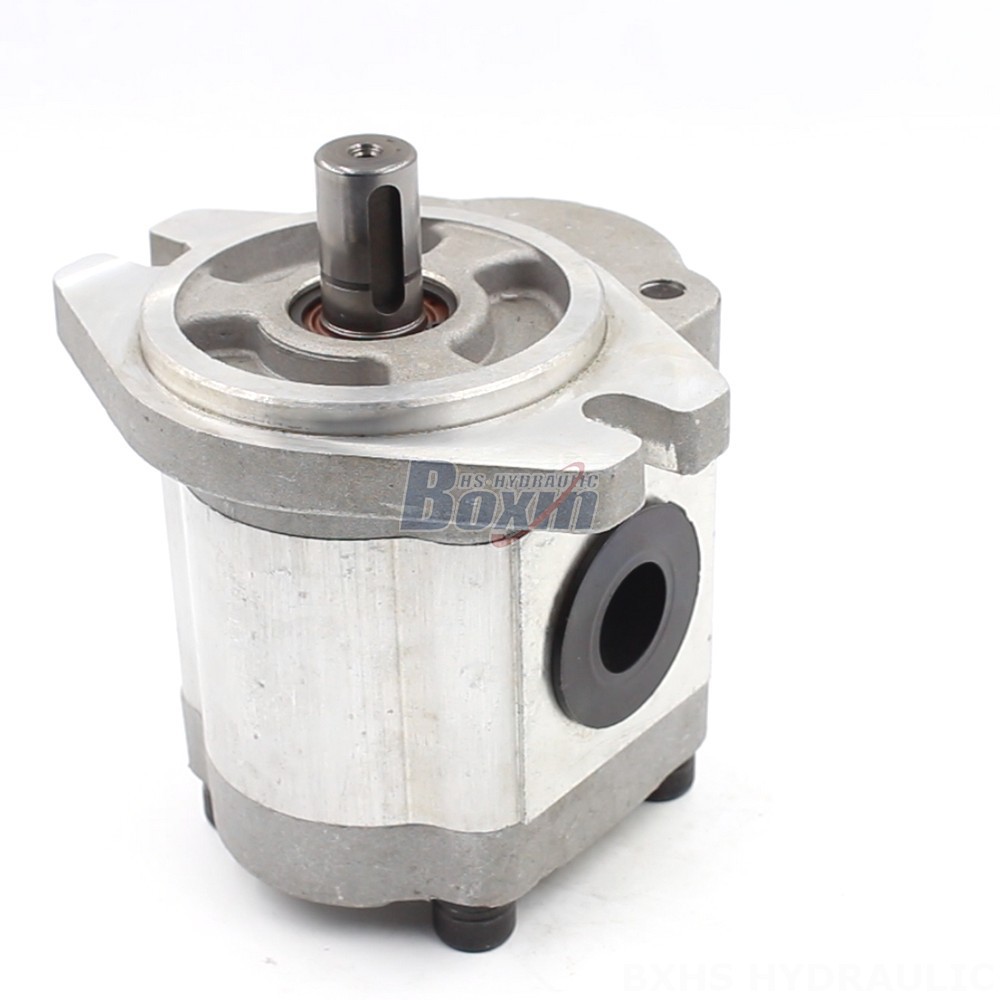

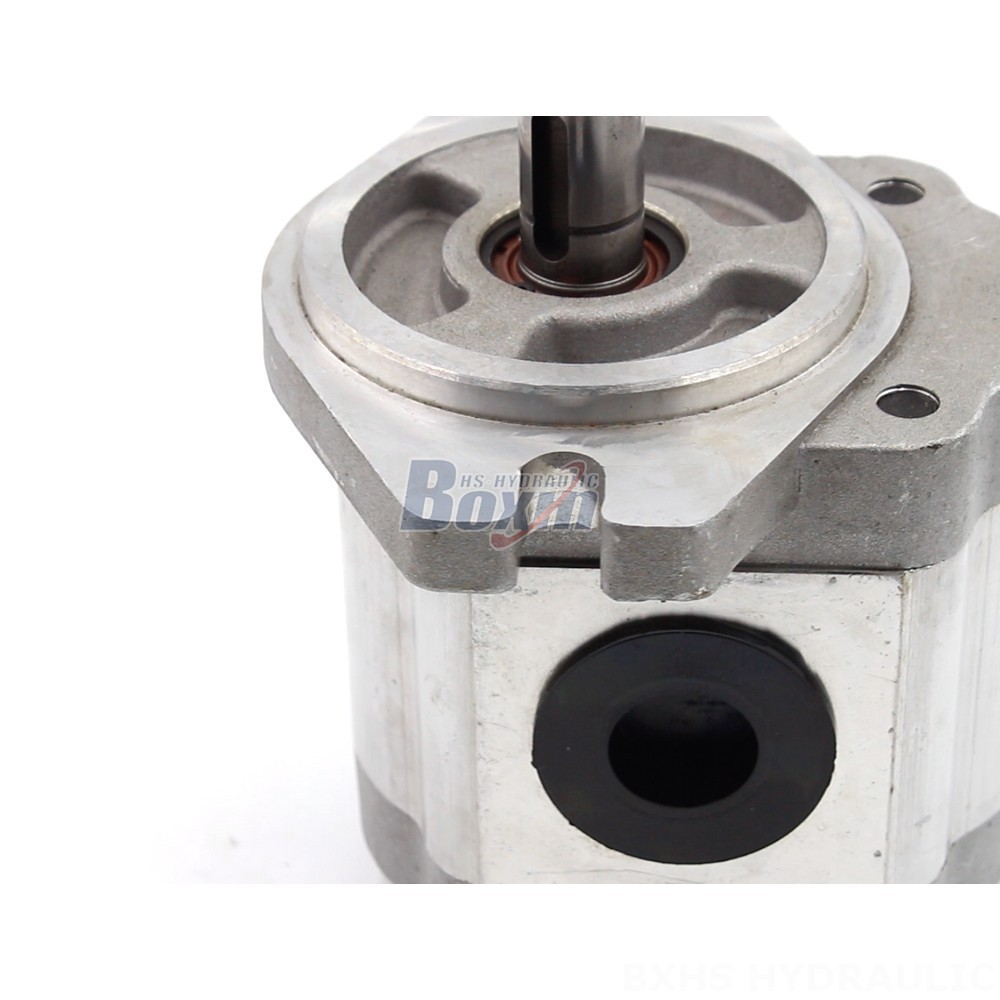

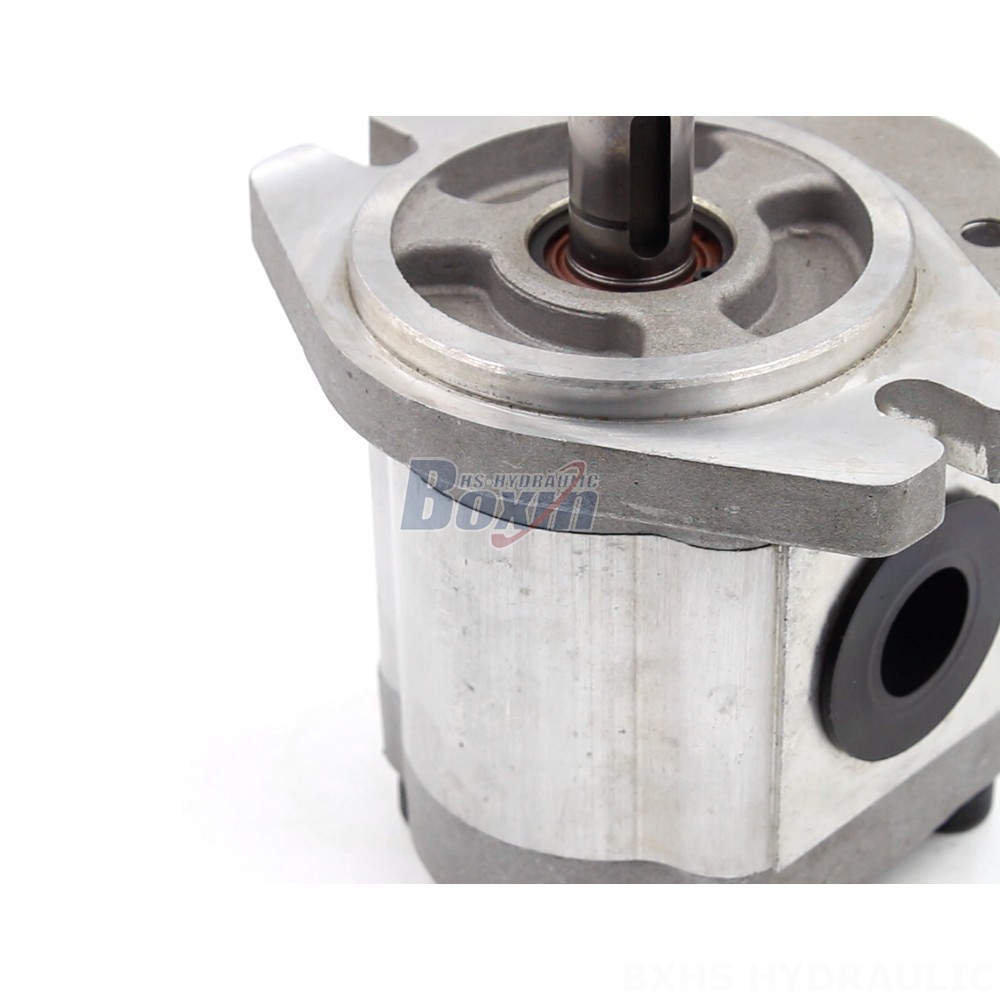

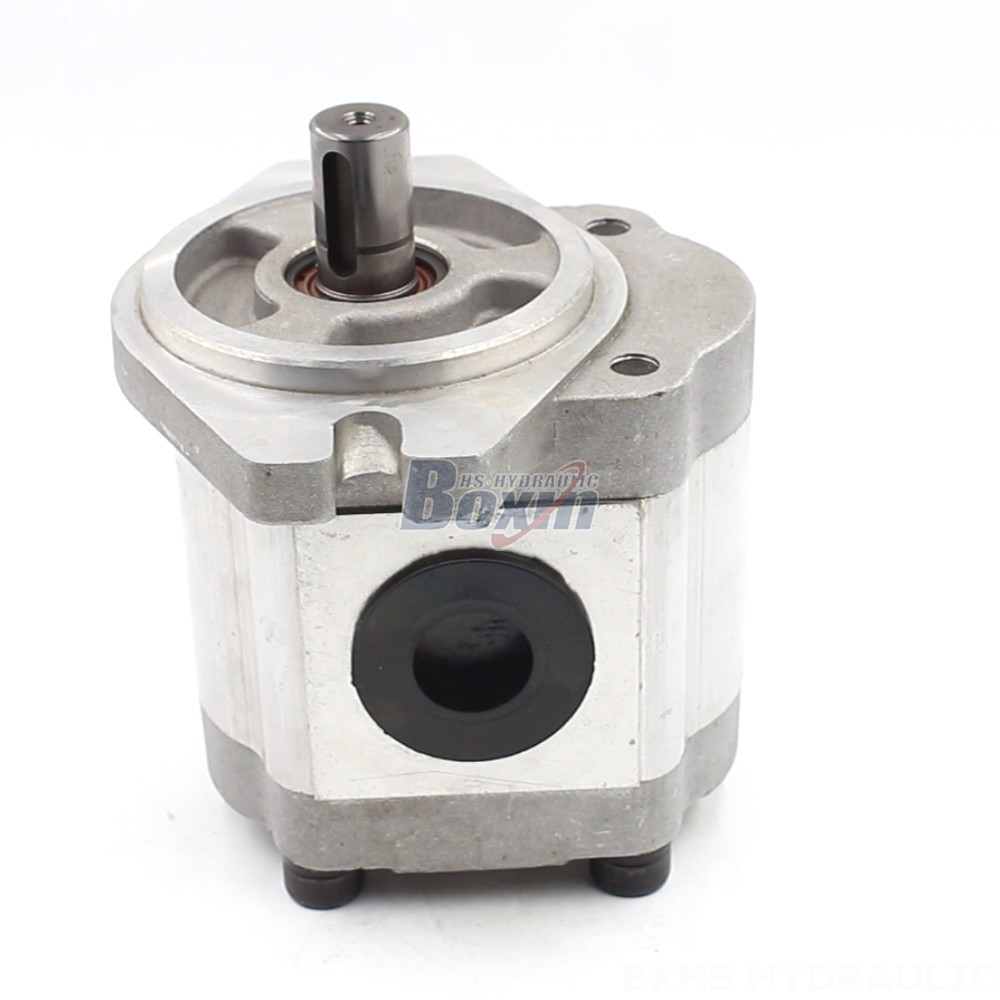

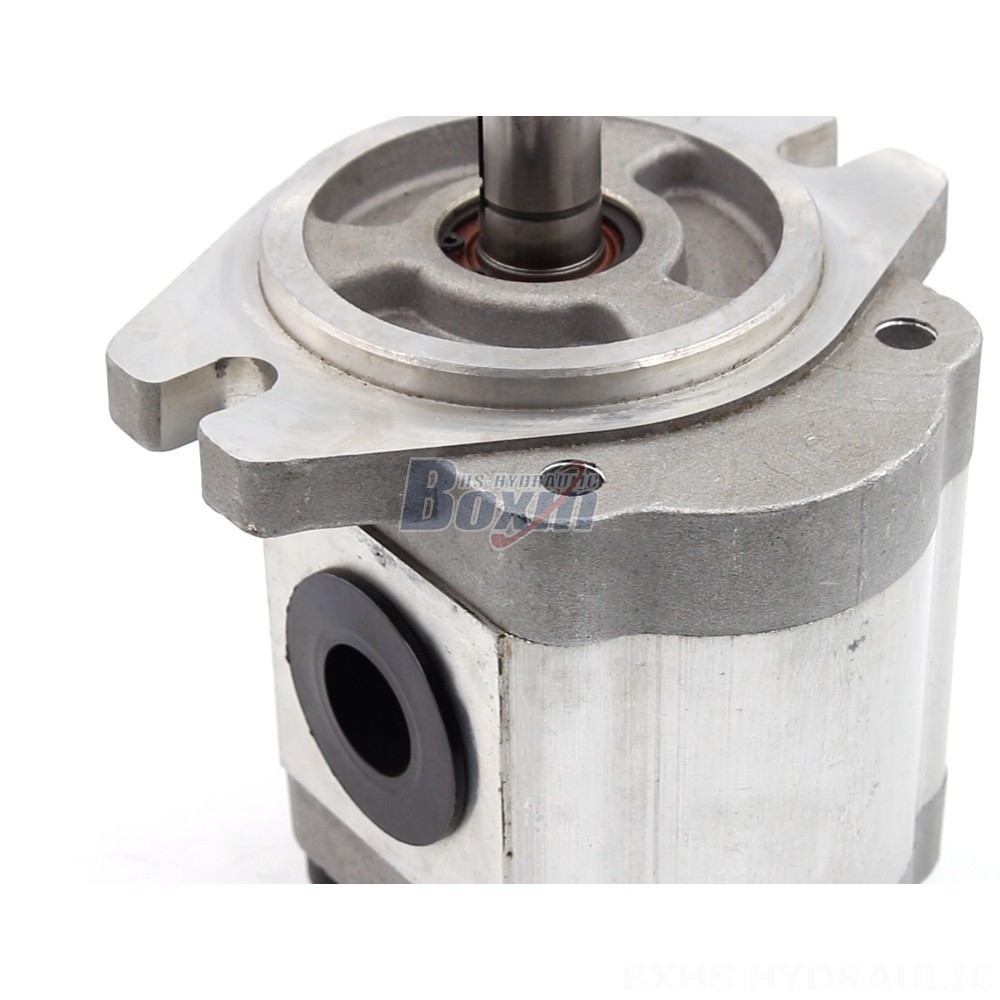

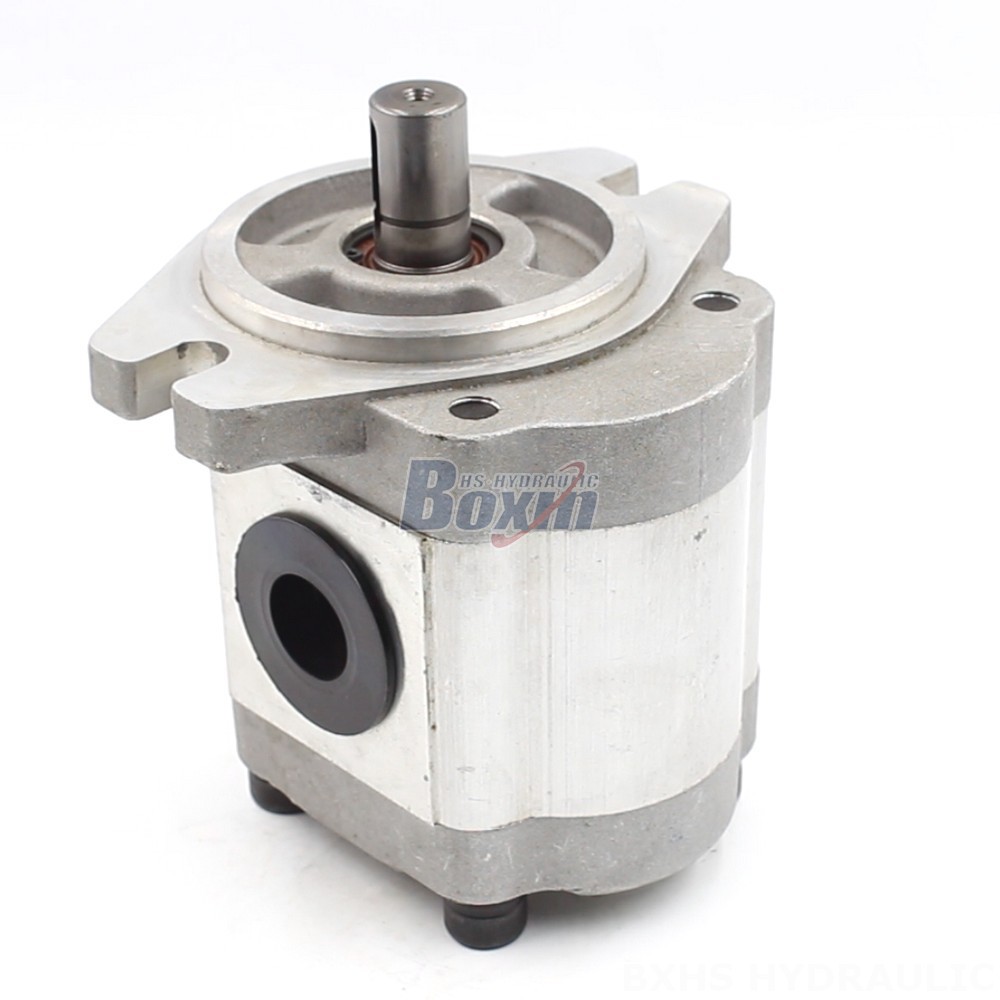

This high-performance 14 cc/rev hydraulic gear pump is designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features a robust aluminum construction, A-Oval flange, and plain key shaft, making it durable and reliable. This pump is available for wholesale purchase directly from the manufacturer, offering flexibility for OEM, ODM, and customized solutions.
| CBHS-FL3系列 液压齿轮泵 参数 | |
|---|---|
| 排量 | 10 毫升/转, 4 毫升/转, 20 毫升/转, 16 毫升/转, 14 毫升/转, 6 毫升/转 |
| 额定压力 | 20 MPa (2900 psi) |
| 最大压力 | 25 MPa (3625 psi) |
| 额定转速 | 2000 r/min |
| 最大转速 | 3000 r/min |
| 旋转方向 | 左旋（逆时针旋转）, 右旋（顺时针旋转） |
| 材质 | 铝 |
| 架构 | 外啮合齿轮泵 |
| 法兰盘类型 | A-菱形法兰 |
| 轴伸形式 | H:矩形花键, X:渐开线花键, P：普通键 |
The CBHS-FL3 series hydraulic gear pump offers a displacement of 14 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min. It can operate at a maximum speed of 3000 r/min and is available in both left (counter-clockwise) and right (clockwise) rotation configurations. Constructed from durable aluminum, it features an A-Oval flange and a plain key shaft for easy integration into various machinery. This pump is ideal for applications such as forklifts, telehandlers, mini-excavators, skid steer loaders, and tractors. As a manufacturer, we offer factory wholesale pricing and cater to OEM, ODM, and customized requirements to meet diverse customer needs.
