The SD5 Series Directional Control Valves are customizable hydraulic solutions designed for a wide range of applications including material handling, construction, agriculture, and industrial vehicles. We offer OEM, ODM, and private label services to meet your specific needs.
| SD5系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +60°C (-40°F to +140°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 305 bar (4400 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头, G1-1/2接口 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, M20×1.5螺纹, SAE 6接头, SAE 8接头 |

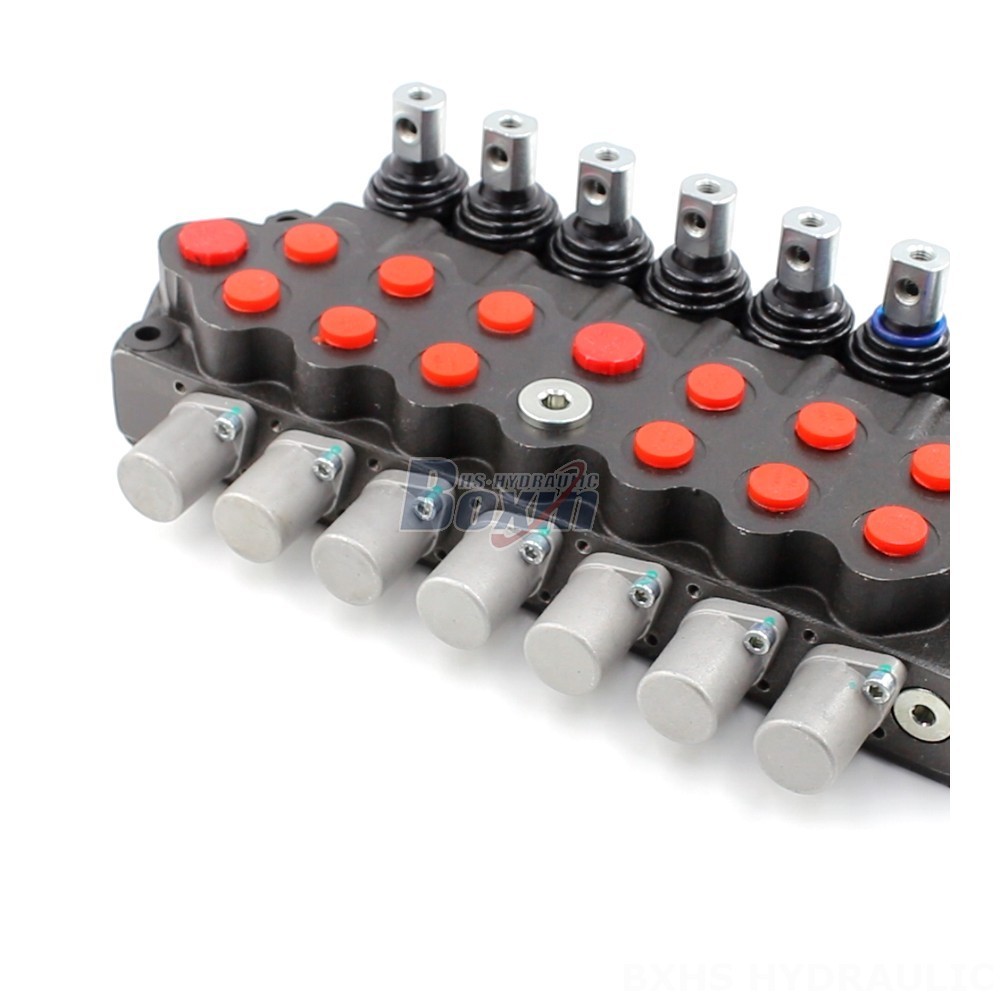

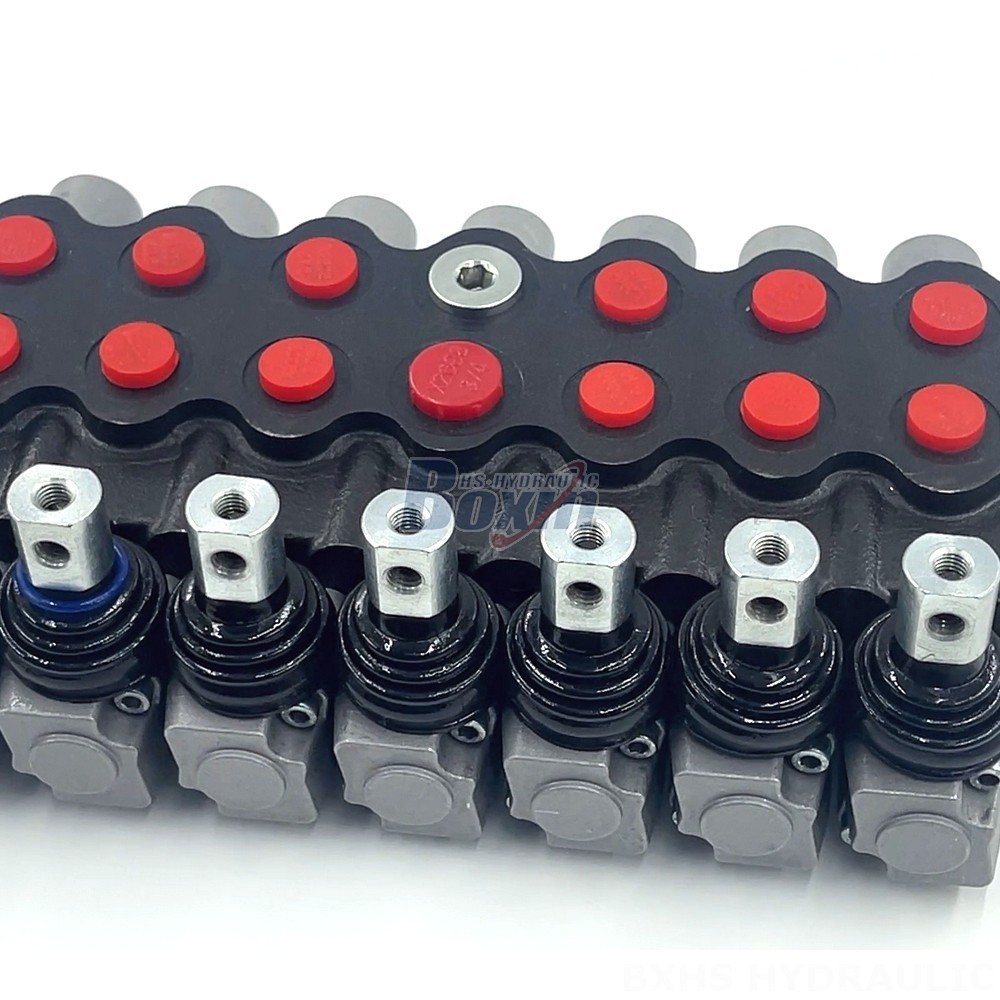

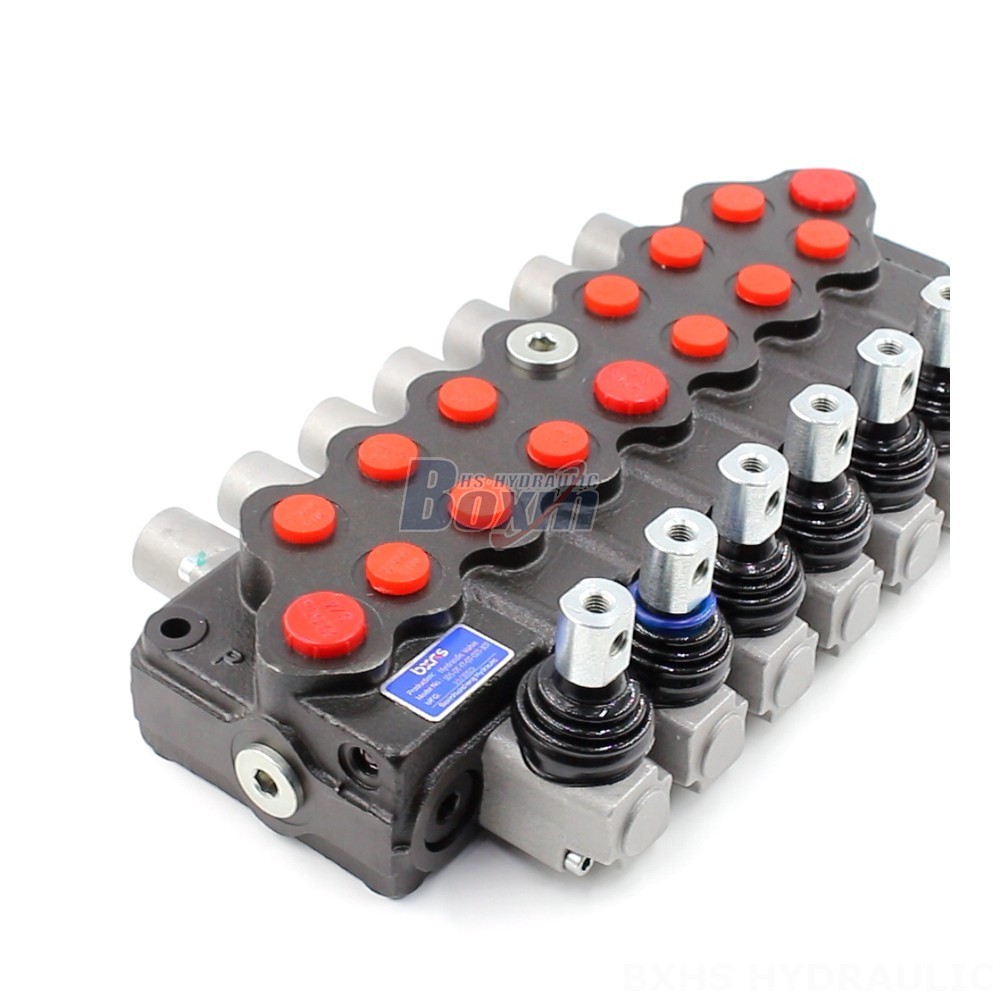

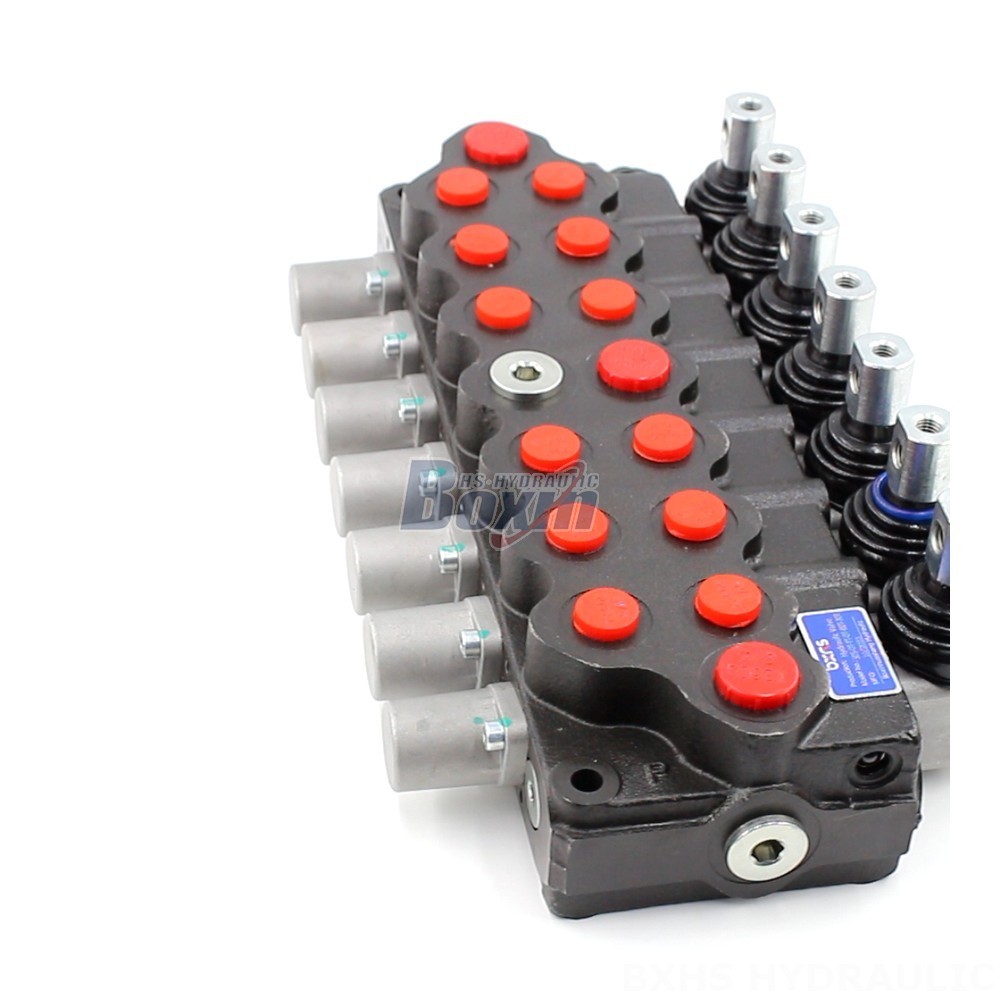

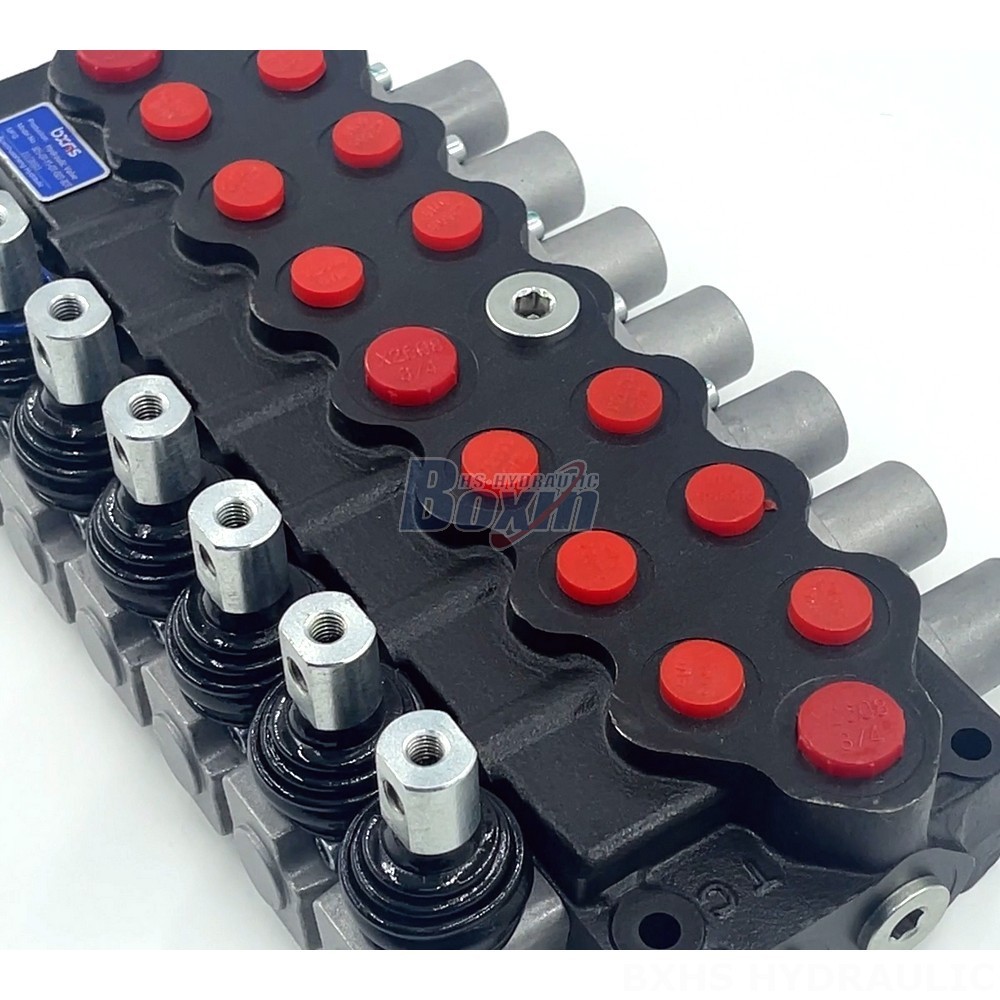

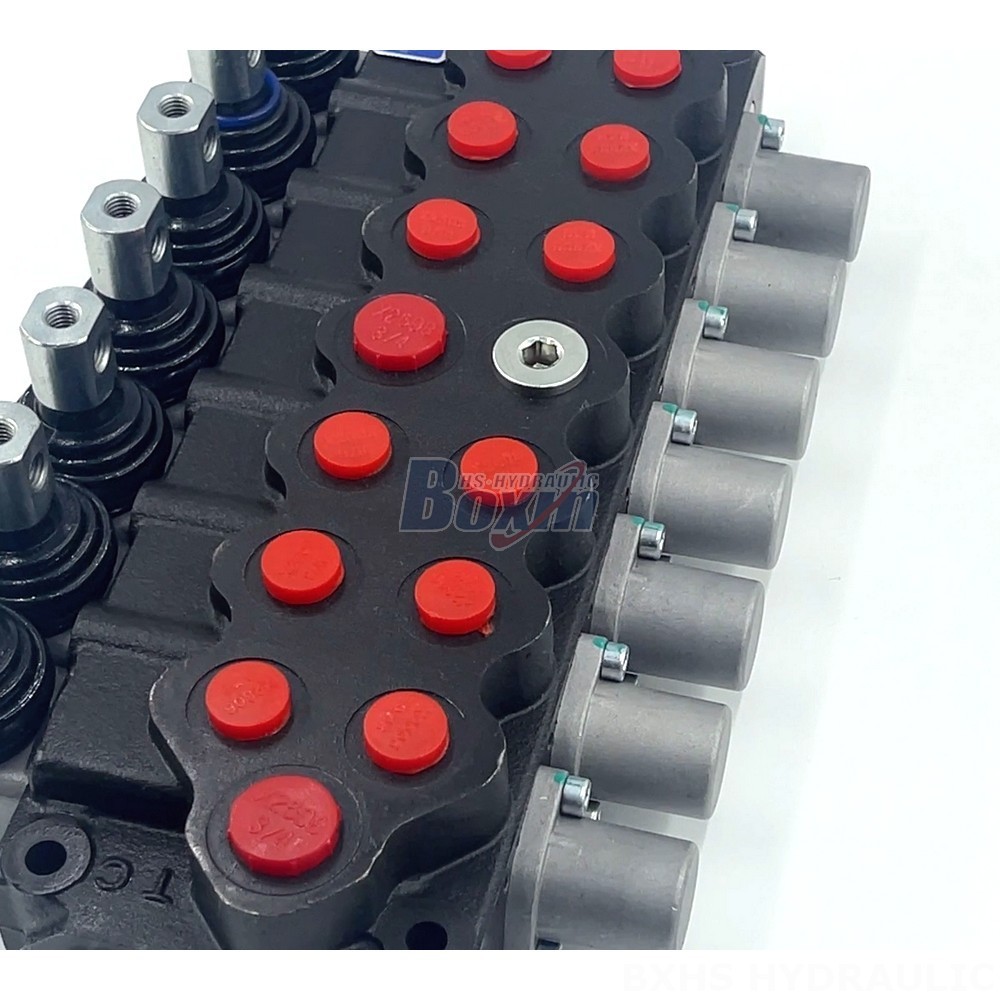

Our SD5 Series Directional Control Valves are high-performance, manual control valves built with a 7-section monoblock structure. Featuring a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 305 bar (4400 psi), these valves are suitable for diverse applications such as telehandlers, forklifts, stackers, aerial platforms, mini-excavators, compact wheel loaders, harvesters, bale wrappers, seeding machines, and wood splitters. We offer bespoke solutions, customization options, and manufacturing services to suit your unique requirements. Whether you need OEM, ODM, or private label products, our team is ready to collaborate with you to deliver the perfect hydraulic solution for your project.
