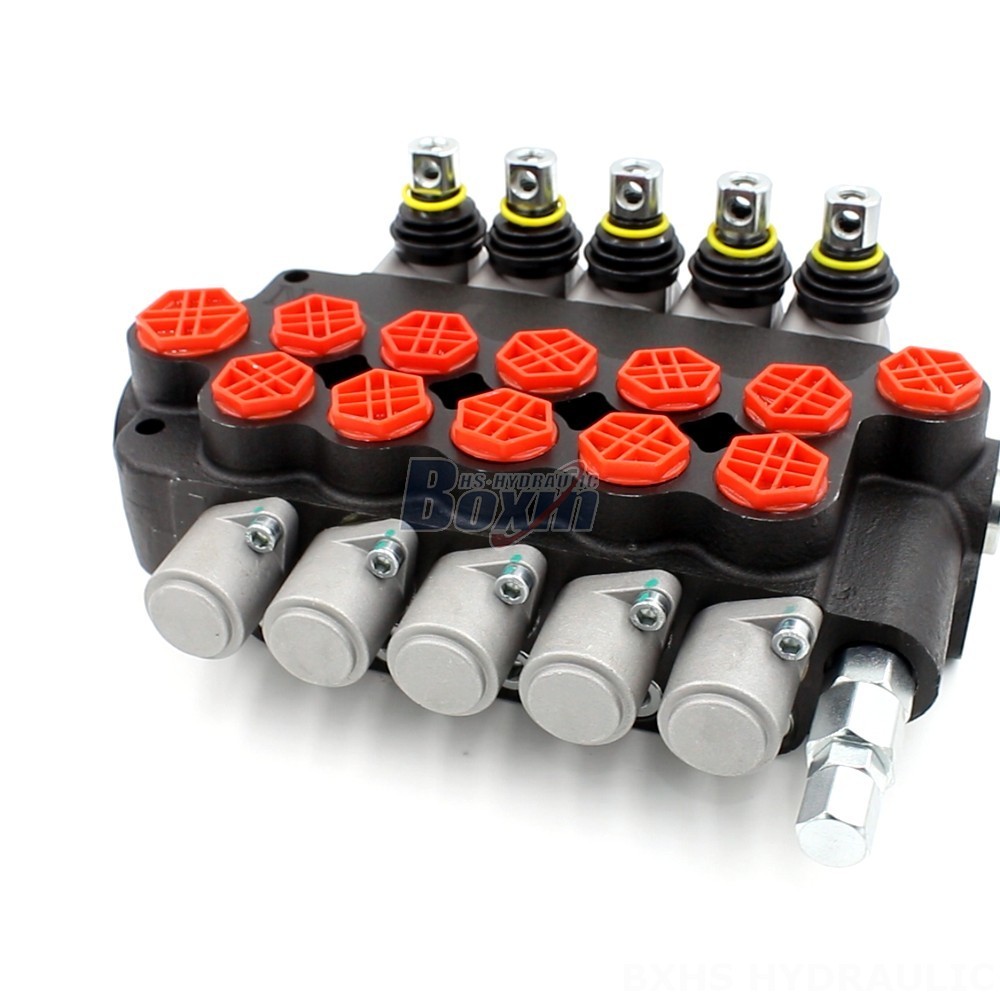

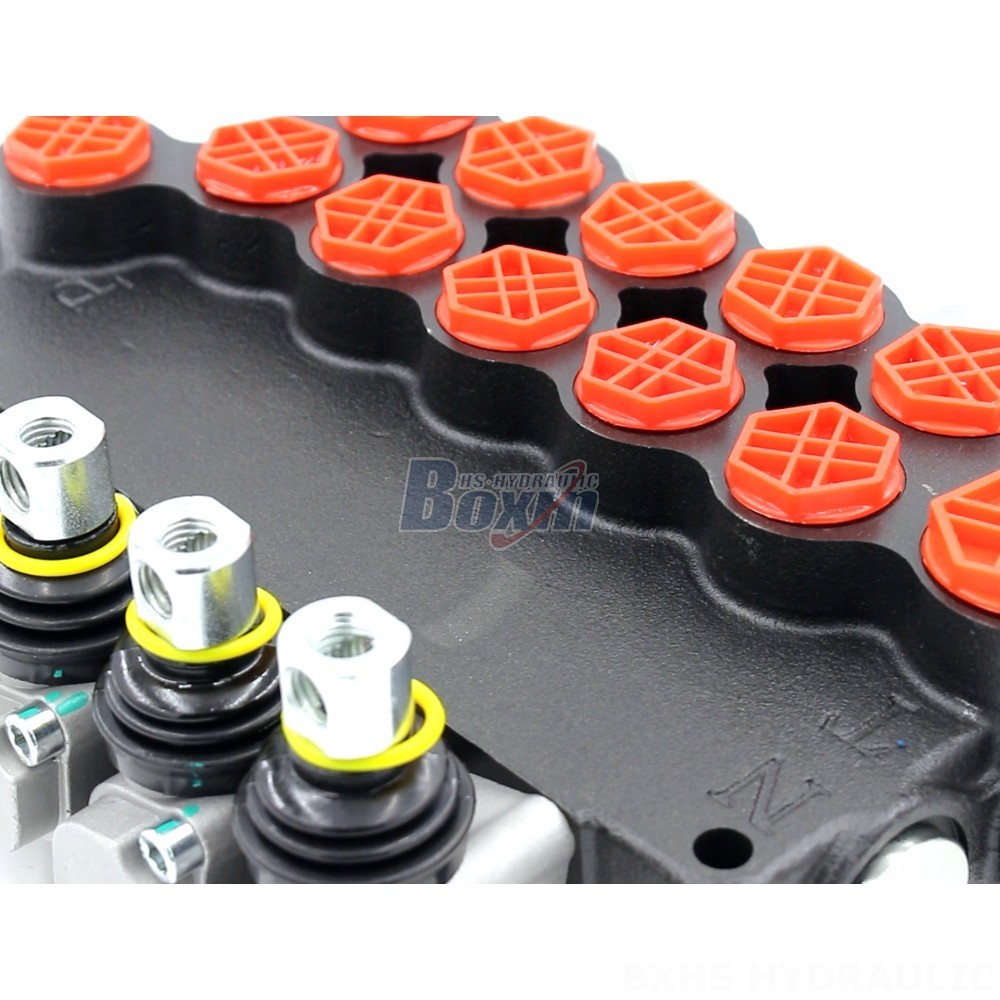

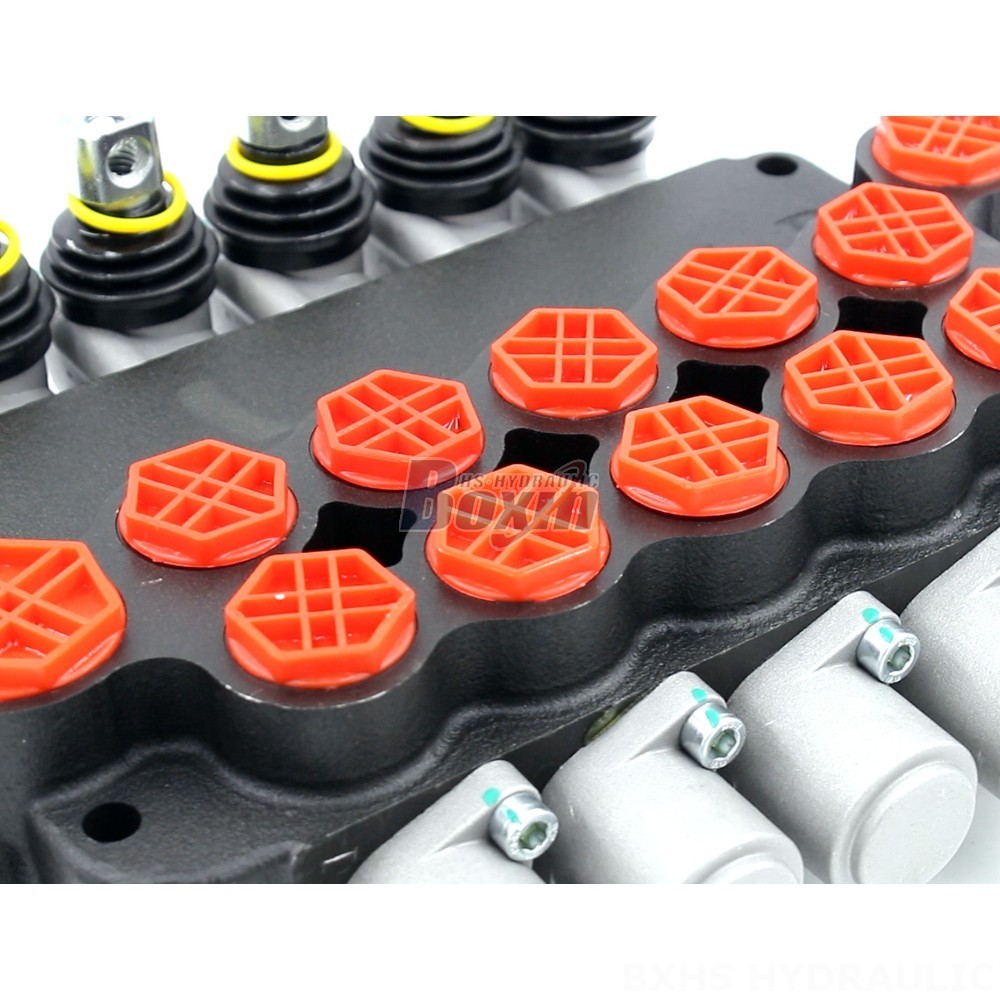

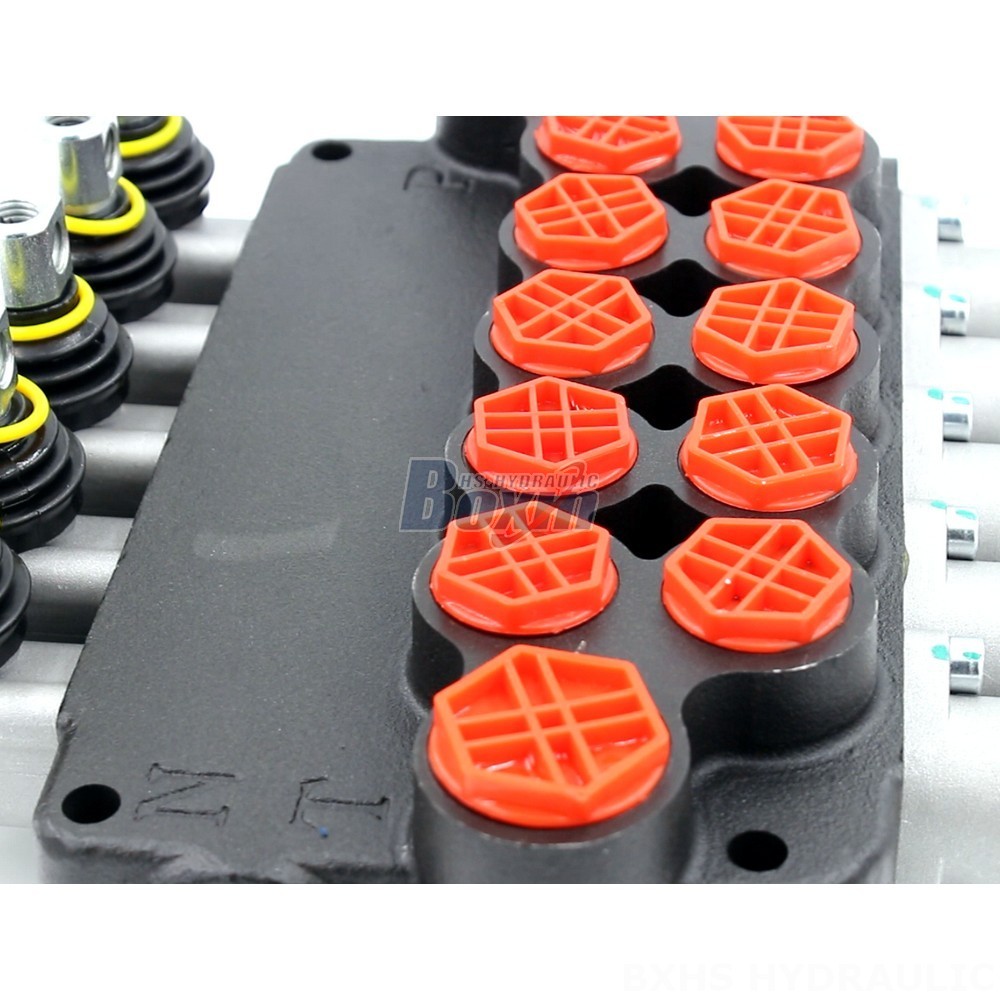

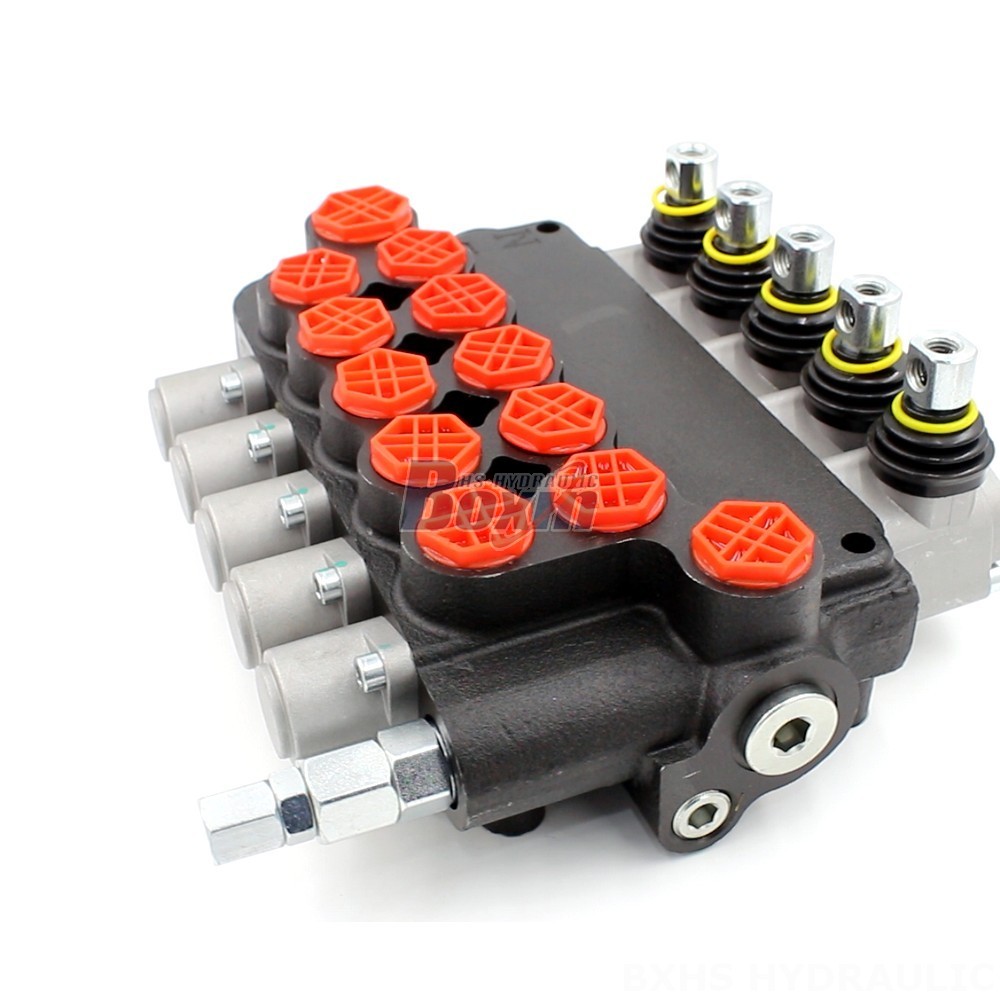

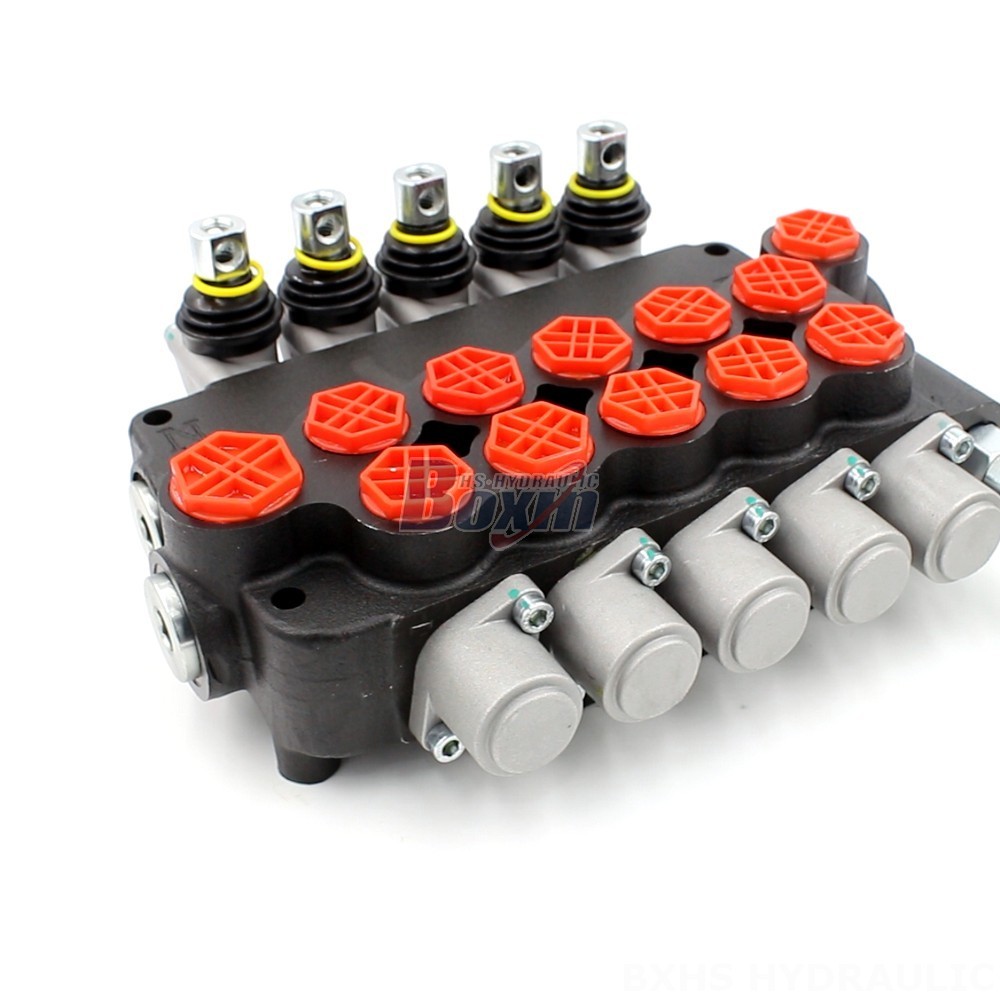

Introducing Bespoke Hydraulic Solutions: P80-G12-G38-OW 5 Spool Directional Control Valves, meticulously engineered to meet your specific hydraulic system requirements. Our valves are highly customizable, allowing you to tailor them to your unique application needs. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), these valves provide exceptional performance and durability.
| P80系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控, 气控, 电气控, 电液控, 电磁, 液控, 液控和手控, 软轴, 一控二手柄控制, 手控+一控二 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 结构类型 | 整体阀 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 额定流量 | 80 L/min (21.2 US gpm) |
| 最大压力 | 315 bar (4600 psi) |
| 进油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 出油口 | G1/2接口, G3/4接口, M27×2.0螺纹, SAE 10接头, SAE 12接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
| 接口尺寸 | G1/2接口, G3/4接口, M22×1.5螺纹, M27×2.0螺纹, SAE 10接头, 1/2 NPT螺纹, 3/4 NPT螺纹 |
Our P80 Series Directional Control Valves are designed with a monoblock structure, ensuring superior strength and reliability. They feature a wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F), making them suitable for use in demanding environments. We offer a comprehensive range of customization options, including spool configurations, pressure settings, and porting arrangements. Whether you require OEM, ODM, or private label services, our team of experts is dedicated to working closely with you to deliver the perfect solution. Contact us today to discuss your specific requirements and experience the Bespoke Hydraulic Solutions difference.
