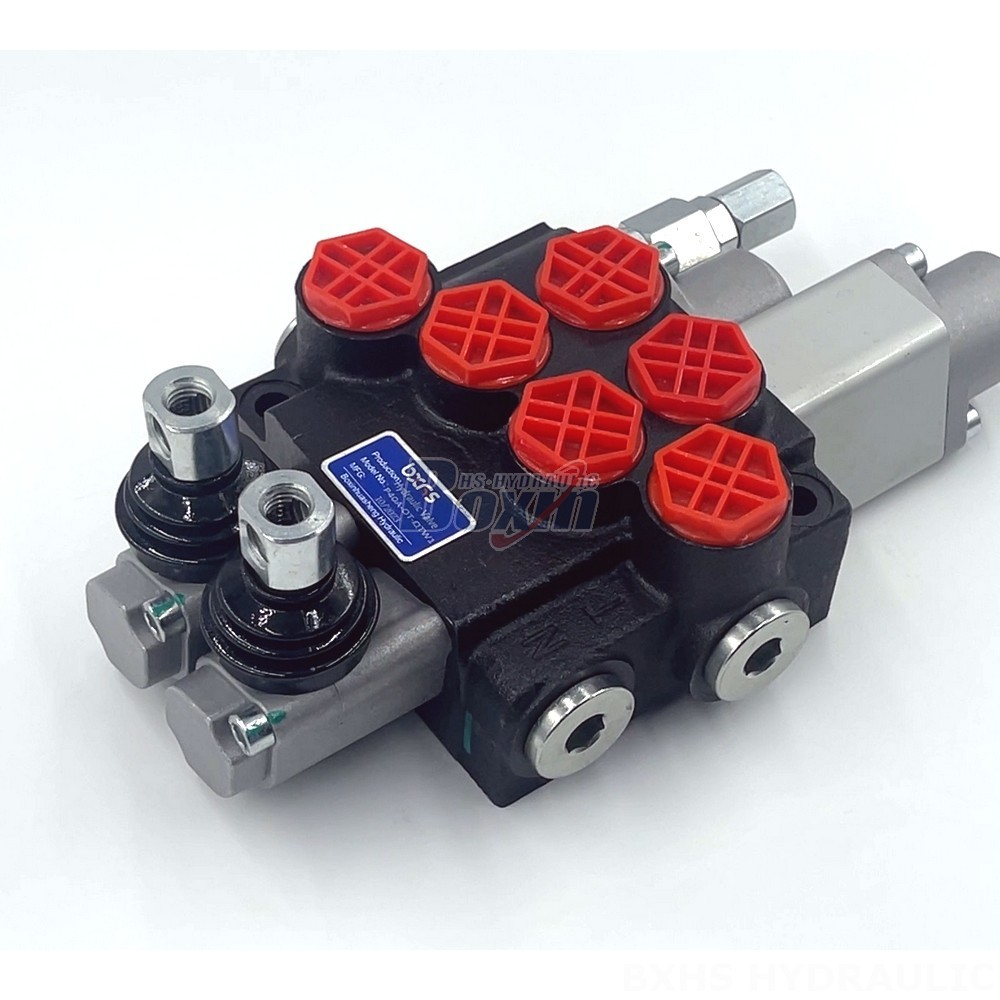

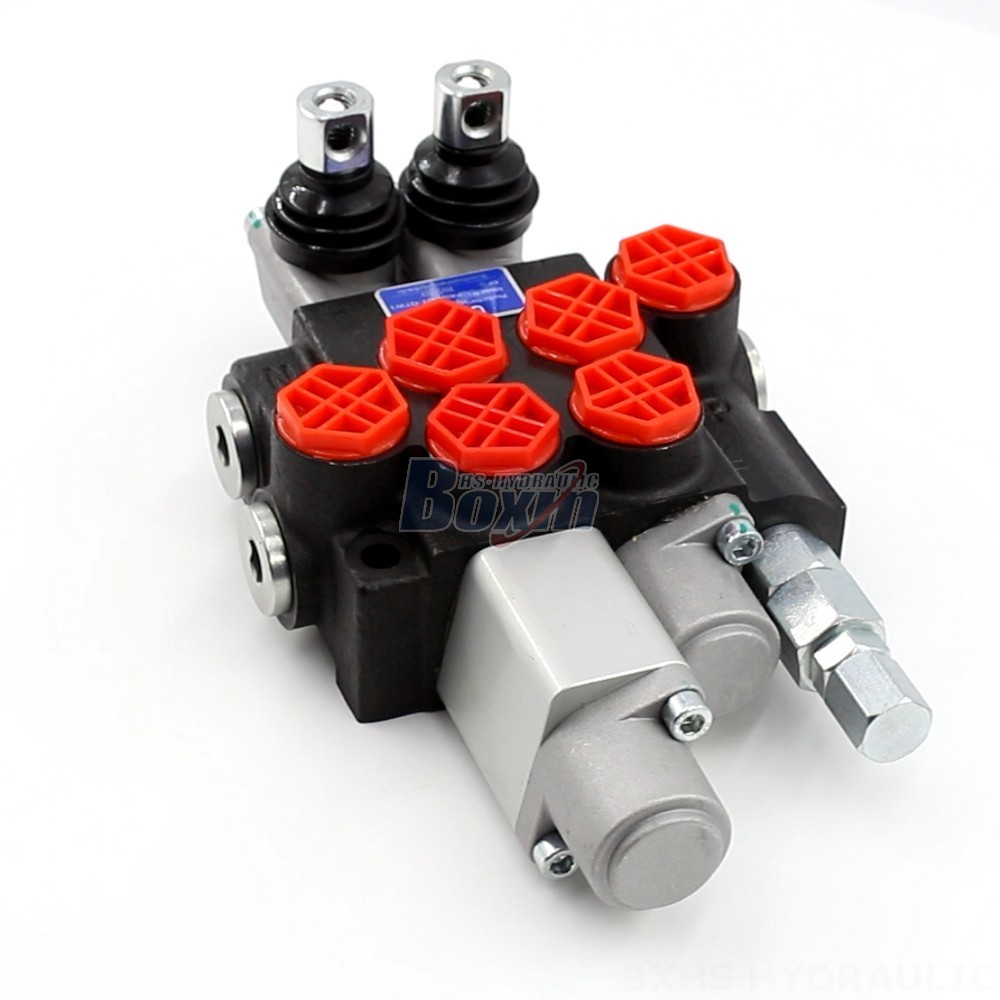

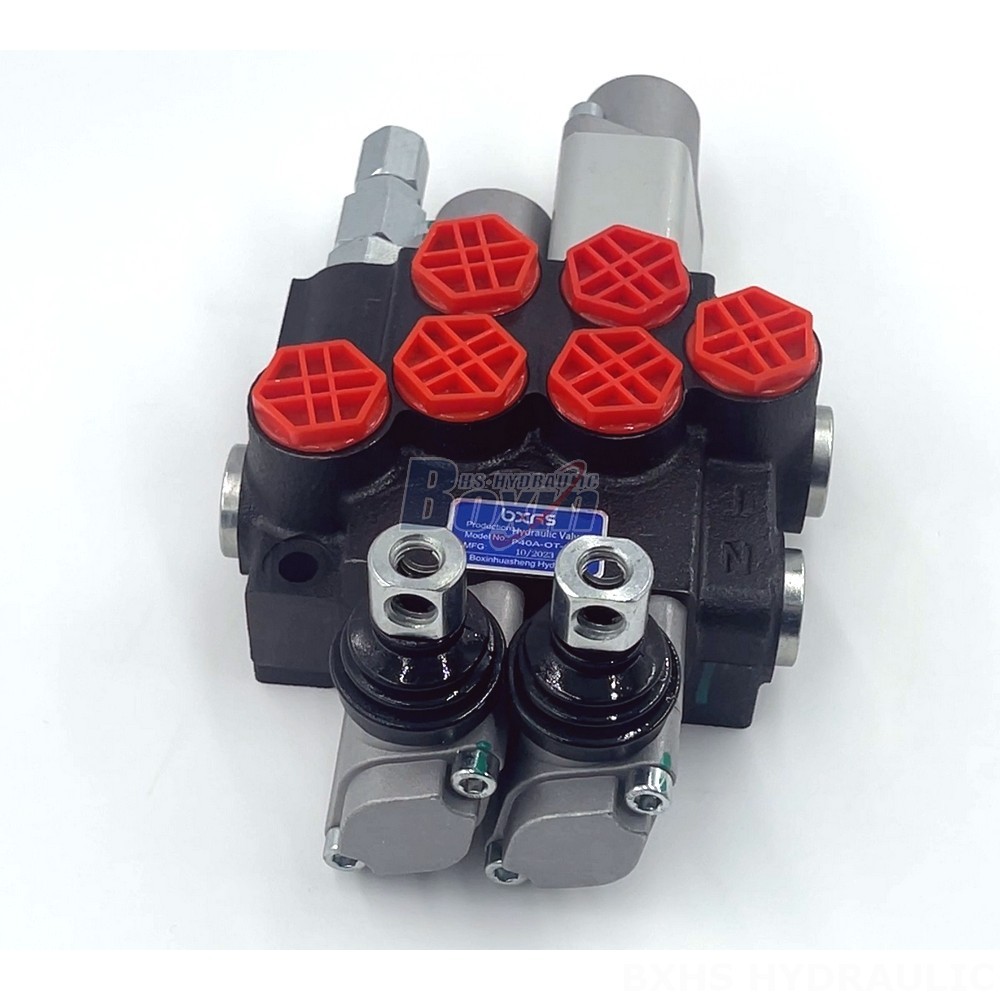

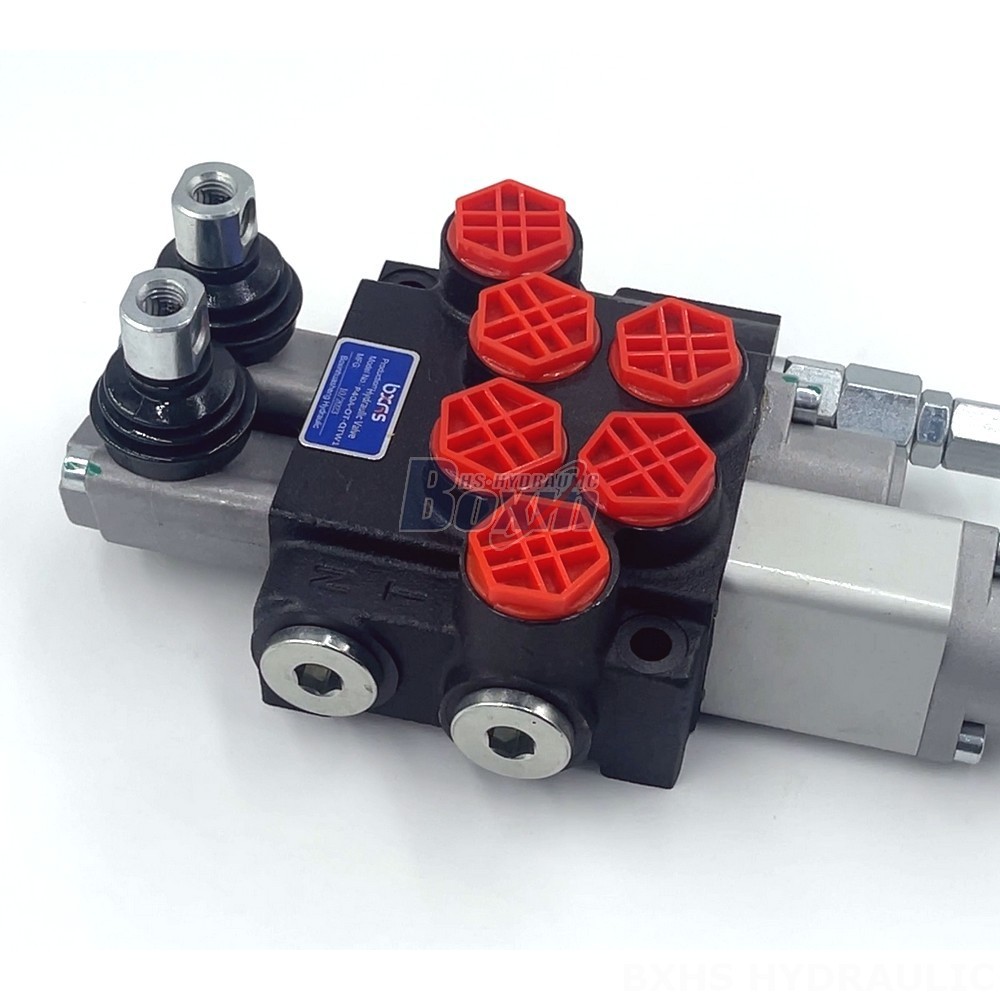

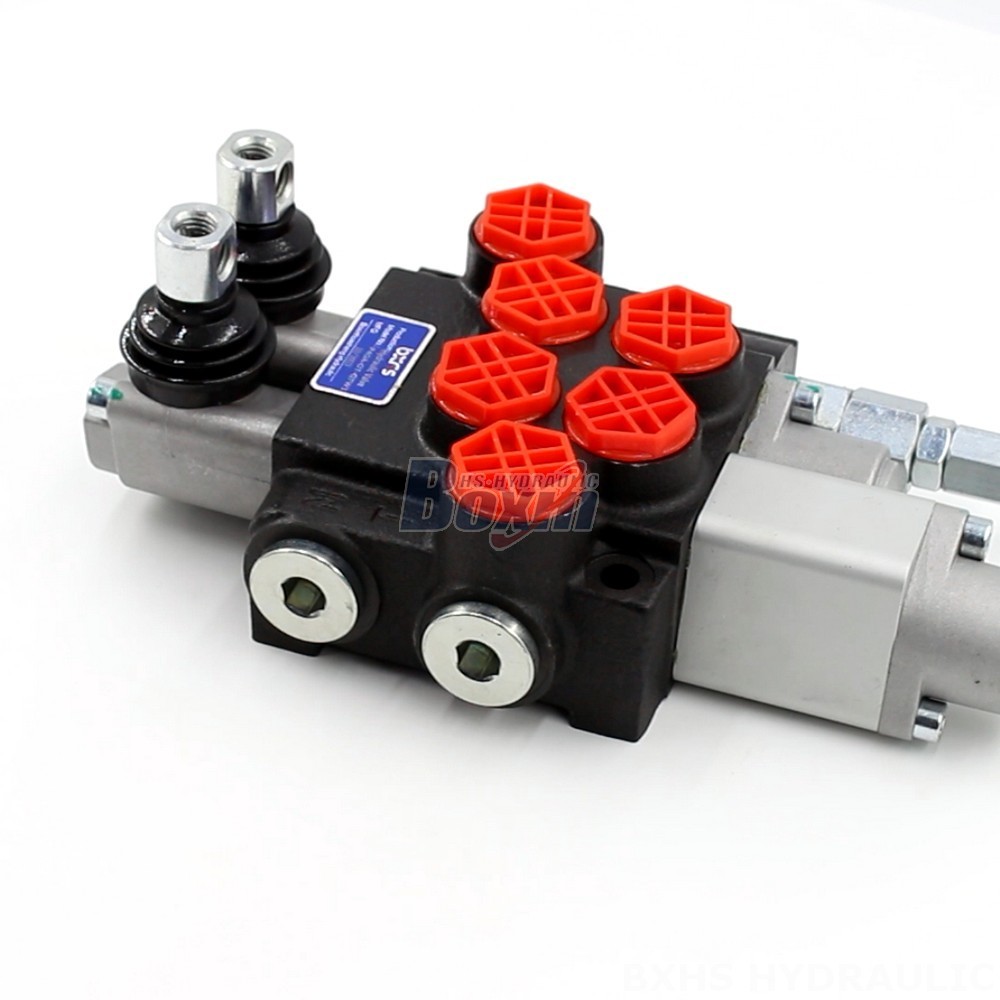

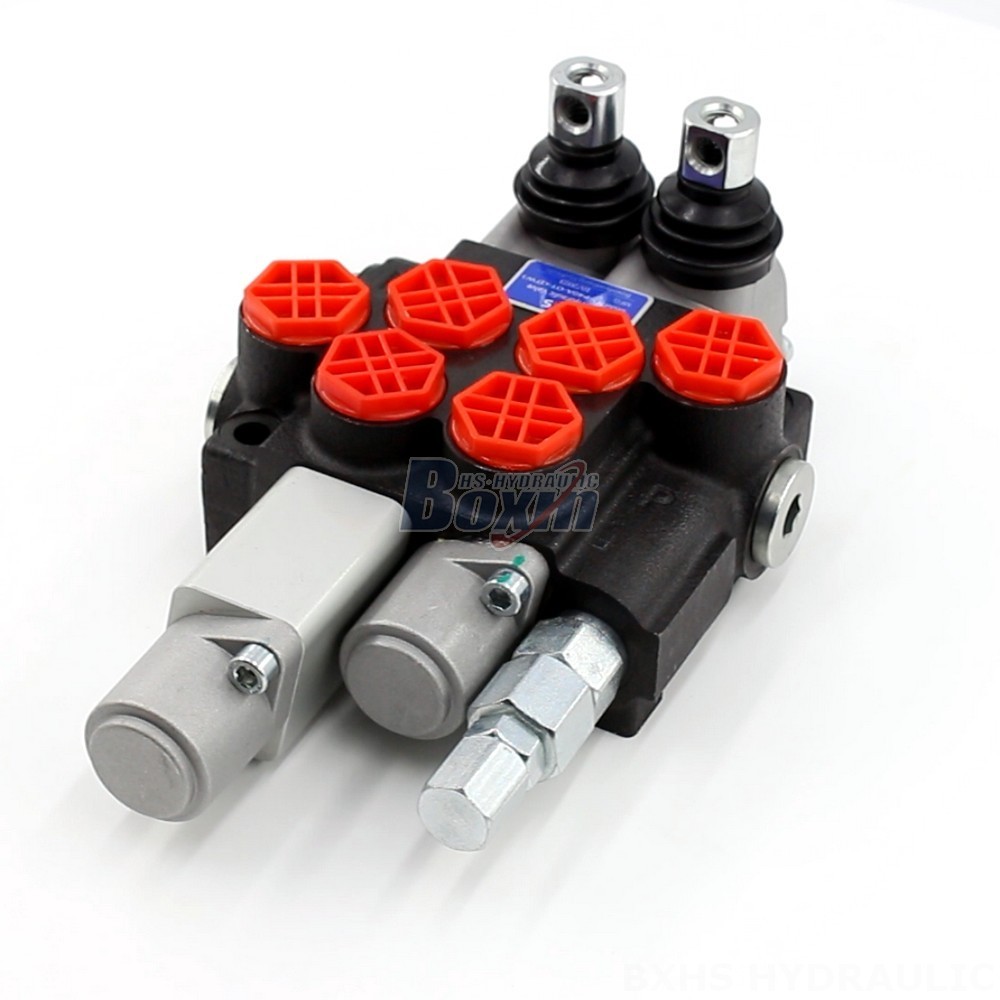

Our P40A Directional Control Valve is a high-quality hydraulic product designed for various applications. With its manual control, 2-section design, and robust construction, it provides precise and reliable flow control for hydraulic systems.
| P40A系列 单块式方向阀 参数 | |
|---|---|
| 控制方式 | 手控 |
| 路数 | 1 联, 2 联, 3 联, 4 联, 5 联, 6 联, 7 联 |
| 额定流量 | 40 L/min (10.5 US gpm) |
| 最大压力 | 250 bar (3600 psi) |
| 进油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 出油口 | G3/8接口, G1/2接口, M18×1.5螺纹, M22×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 接口尺寸 | G3/8接口, G1/2接口, M18×1.5螺纹, SAE 8接头, SAE 10接头, 3/8 NPT螺纹, 1/2 NPT螺纹 |
| 联数 | 1联, 2联, 3联, 4联, 5联, 6联, 7联 |
| 结构类型 | 整体阀 |
| 环境温度范围 | -40°C to +80°C (-40°F to +176°F) |
| 工作粘度范围 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
The P40A Directional Control Valve is a monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It operates within a viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. This valve is widely used in material handling, construction and earth moving, agriculture, and industrial vehicle applications. Common applications include TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER, and COMPACT WHEEL LOADER.
